2024 Granite Ridge

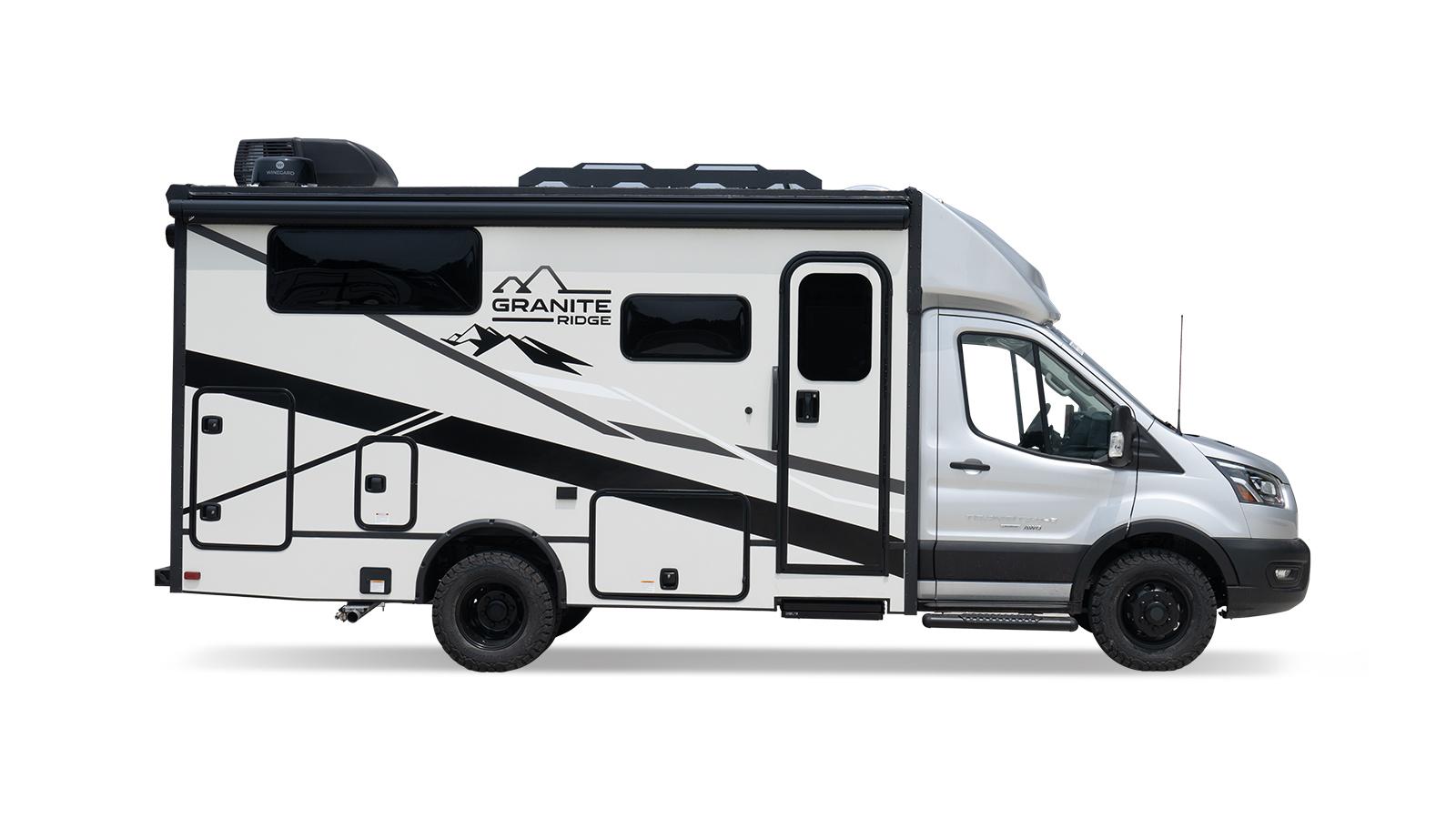

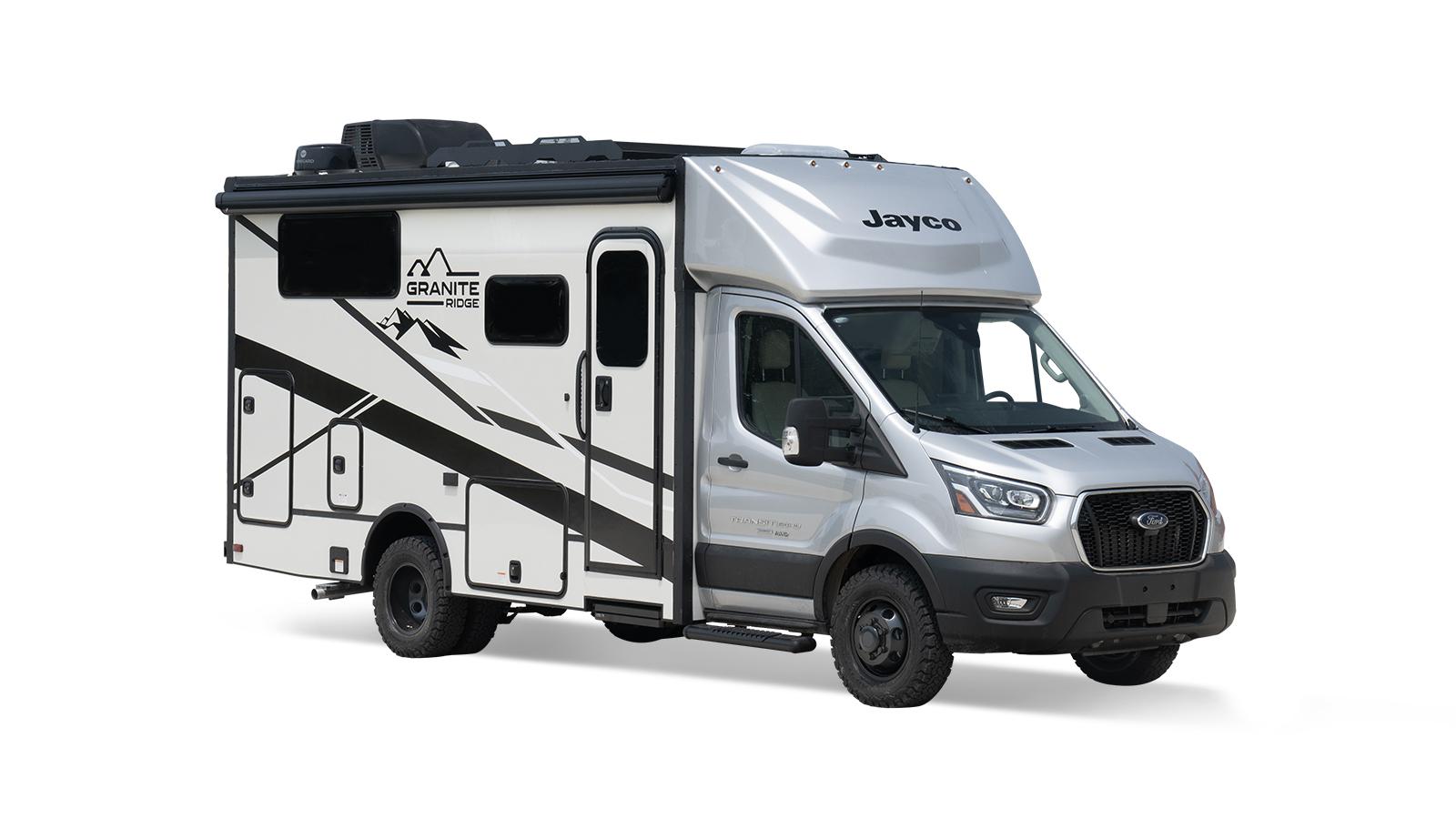

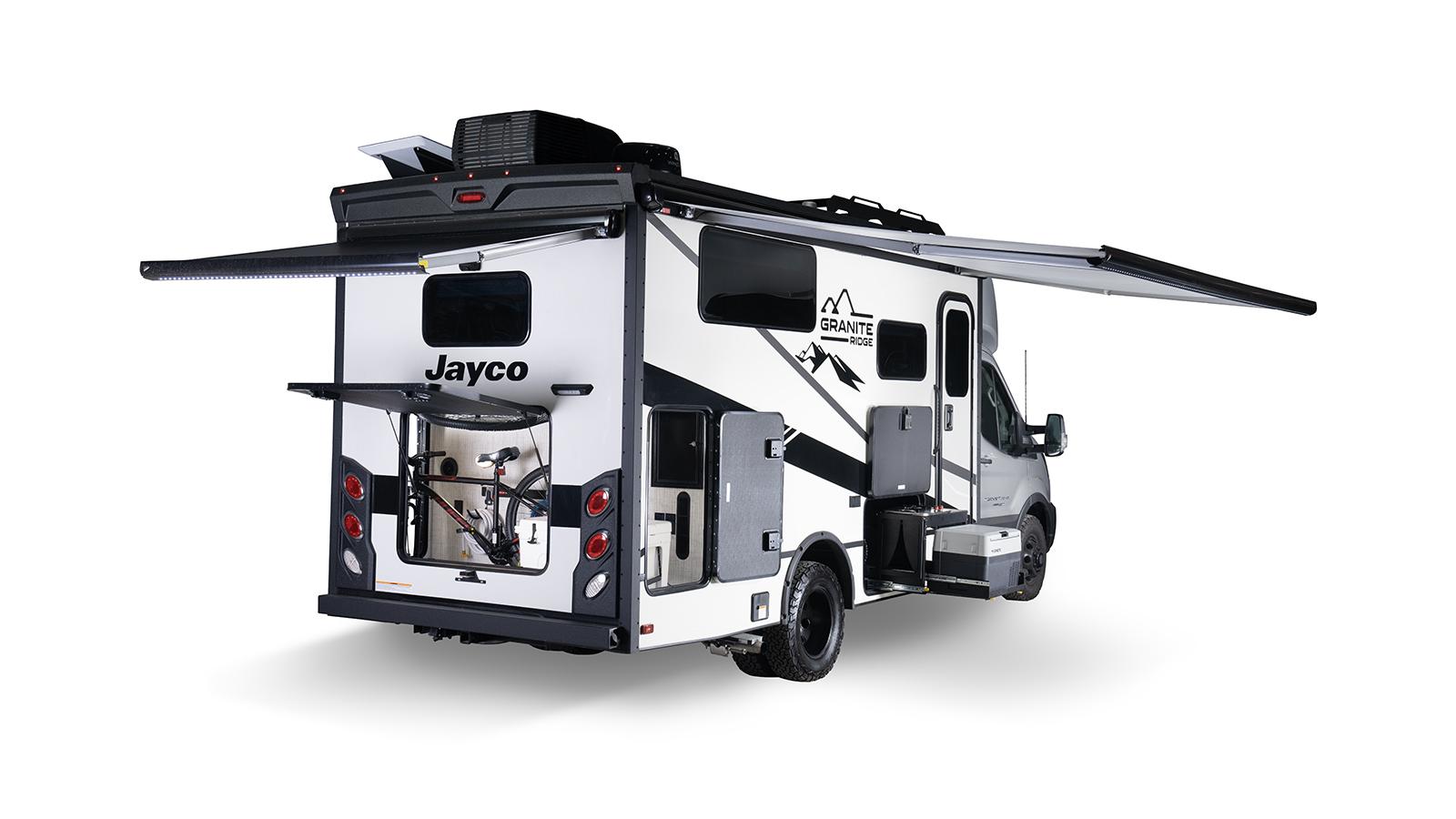

Escape the campground and seek adventure in the Jayco Granite Ridge Class C. Built on the Ford Transit 350HD AWD chassis, this off-road ready motorhome features a 2-inch Van Compass front and rear lift kit, all-terrain tires with custom matte black wheels and the JRide ride and handling package featuring Hellwig helper springs and a rear stabilizer bar. The all-weather capabilities of the Granite Ridge will allow you to extend your trips thanks to 2-inch thick walls and enclosed holding tanks. With tons of exterior storage space, this motorhomes is begging you to load up your favorite adventure equipment and embark on your next big journey.

Granite Ridge

Granite Ridge Floorplans and Prices

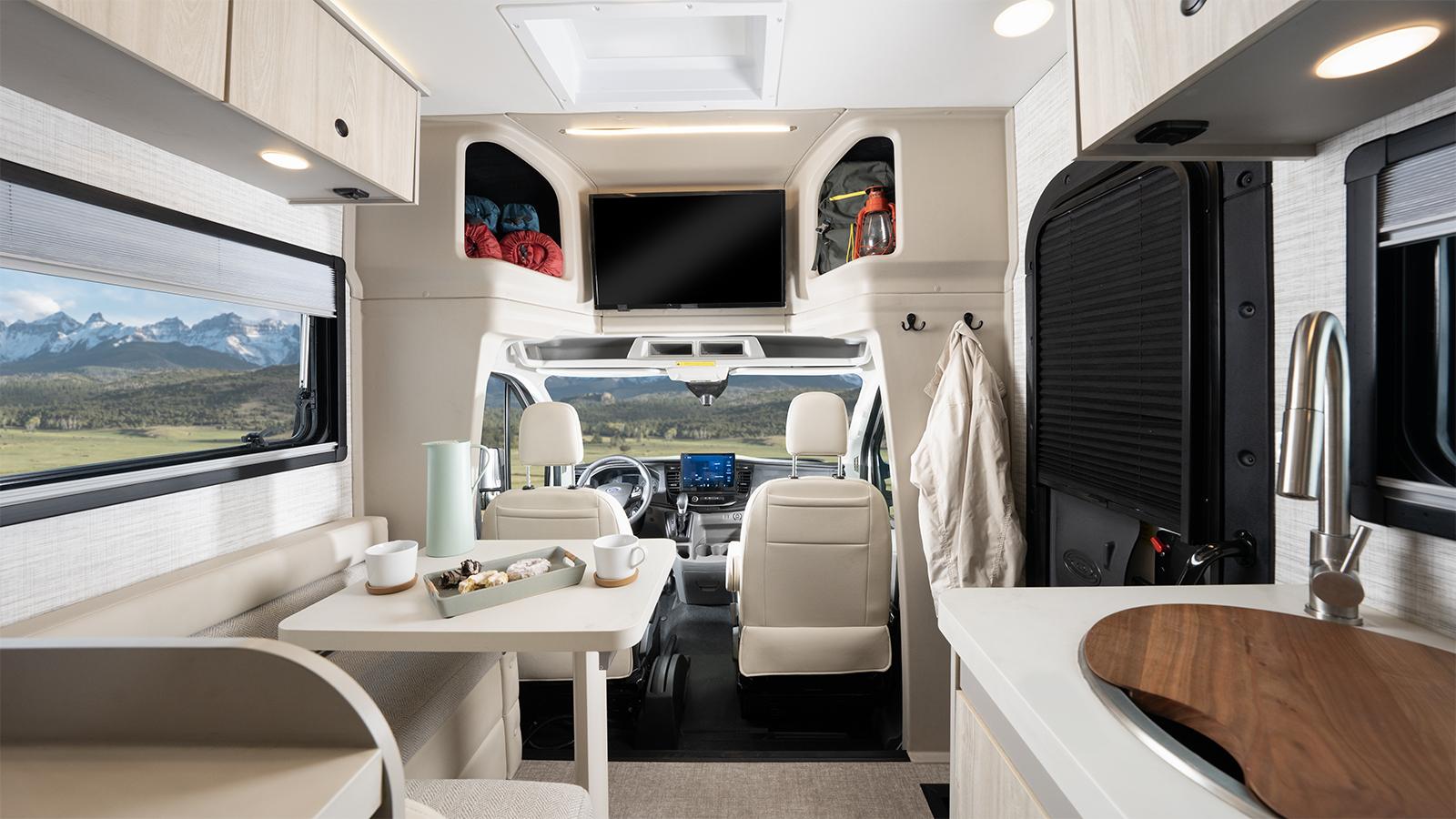

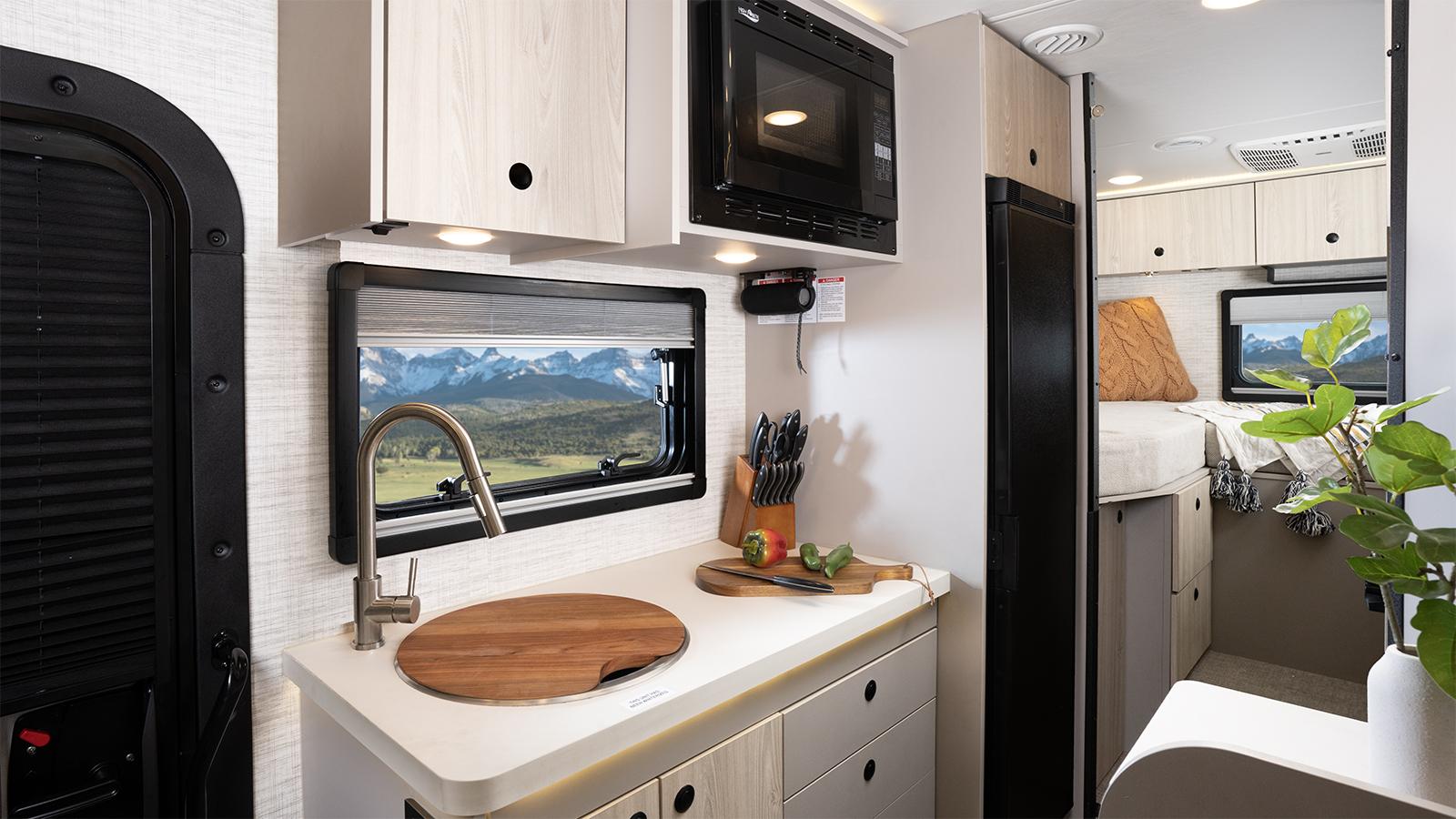

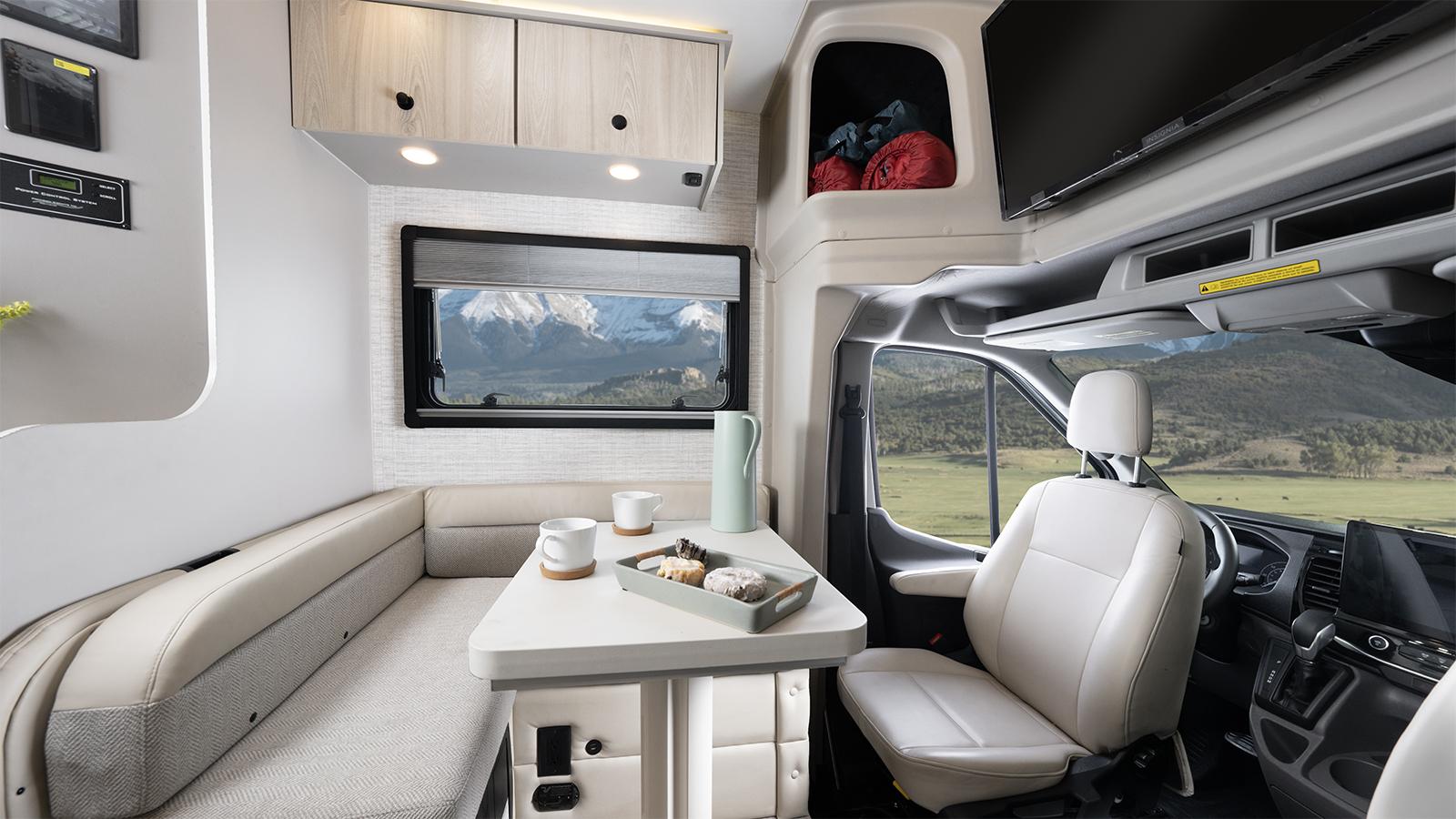

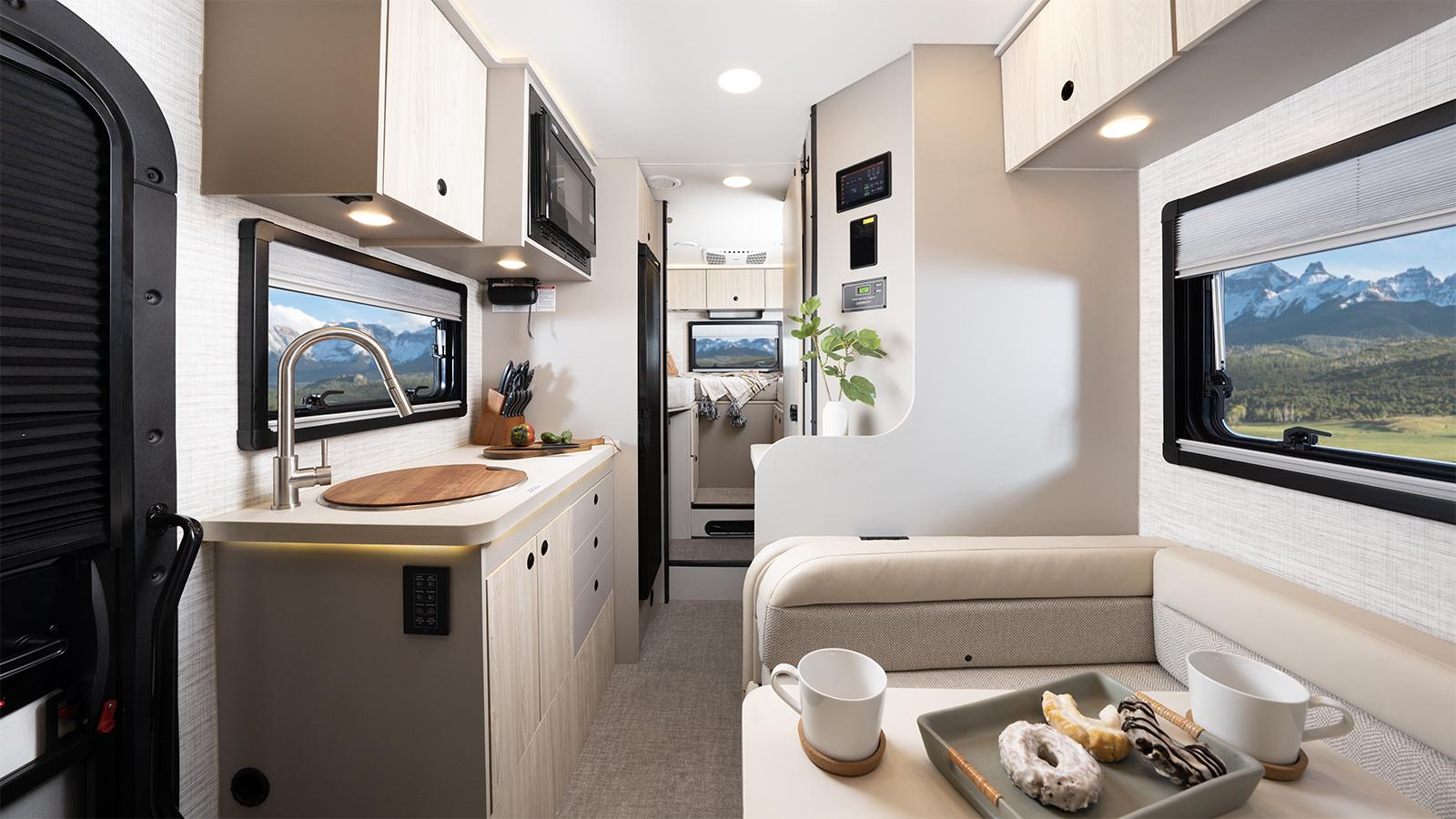

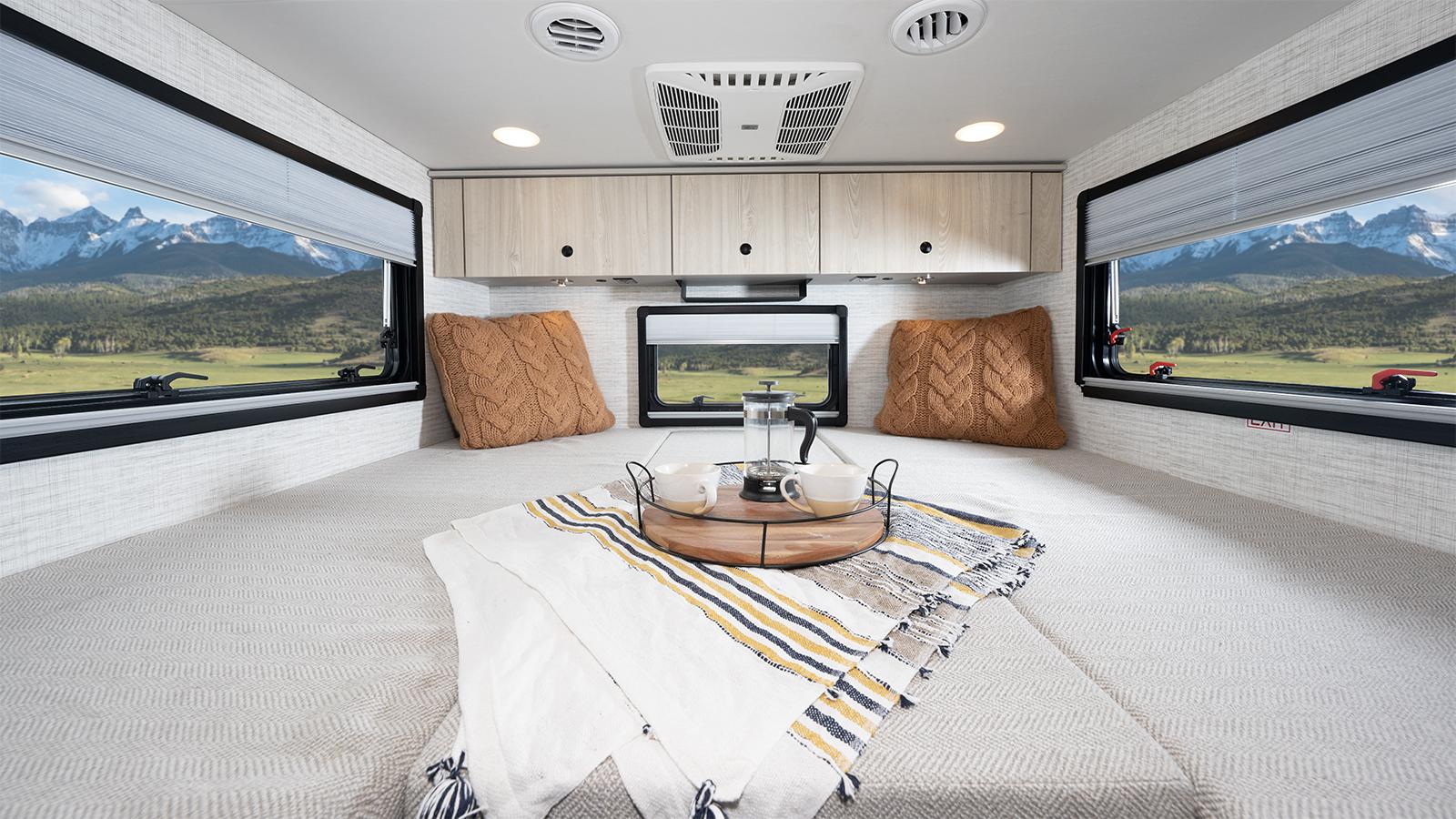

The Granite Ridge 22T is functional and comfortable for its small footprint. The 38-inch by 48-inch dinette lounge is a great place to eat a meal cooked in the spacious kitchen. In the rear of the motorhome, two twin-size bed convert to a king-size bed for maximum sleeping space after a long day of adventure.

Sleeps up to 2
Length 22' 11" - 22' 11"

Standard Features and Options

Standard Driving Equipment

  • Ford® Transit 350HD AWD chassis
  • 156 in. wheelbase
  • GVWR - 11,000 lb.
  • GCWR- 15,000 lb.
  • 3.5L EcoBoost V6 310 HP engine with 400 ft-lb. torque
  • 10-speed transmission
  • 3.73 limited slip axle
  • 250-amp alternator
  • Matte black aluminum wheels
  • Power anti-lock brakes with power steering
  • (2) 12V AGM chassis batteries (70 amp-hr)
  • 31 gal. fuel tank (gas)
  • 12 in. SYNC 4 HD/NAV/IACC multi-function display
  • 4-way swivel driver and passenger seats
  • Tilt and telescoping steering wheel
  • Power-adjusting, heated side-view mirrors
  • Intelligent adaptive cruise control
  • Lane-keeping system
  • Forward collision warning
  • Pre-collision assist with automatic emergency braking (AEB)
  • Post-collision braking
  • SOS Post Crash Alert System™
  • Driver and passenger airbags
  • Safety Canopy® side-curtain airbags
  • Ford® AdvanceTrac® with RSC® (roll stability control)
  • Side wind stabilization
  • Hill start assist
  • SecuriLock® passive anti-theft system with engine immobilizer
  • Autolocking drive away with crash unlocking
  • Remote keyless entry
  • FordPass™ Connect
  • Tire pressure monitoring system (TPMS)
  • Rain-sensing wiper system
  • Automatic high-beam headlights
  • Wiper-activated headlights
  • Power windows and door locks
  • Privacy shades for cab windows

Standard Exterior Equipment

  • StrongholdVBL™ vacuum-bond laminated roof, floor and sidewalls
  • Bead-foam insulation (R-24 max roof, R-9 max floor, R-8 max walls)
  • One-piece, seamless, fiberglass roof
  • Fiberglass exterior walls with partial paint and vinyl graphics
  • Dual-pane acrylic windows
  • Heated garage with L-track and (2) 120V charging ports
  • Electric patio awning with auto-retract and LED lights
  • Roof rack
  • Collapsible exterior ladder
  • Daytime running headlamps
  • Cable TV hookup with RG-6 coax
  • Winegard® Connect 2.0 4G/Wi-Fi/digital TV antenna
  • 2,800W gas generator with auto-gen start
  • Portable solar plug
  • 30-amp electrical service with detachable power cord
  • 120V exterior outlet
  • 6 gal. propane tank (20 lb.)
  • LP quick-connect hookup
  • LED-lit holding tank valves
  • Winterization drain system
  • 12V demand water pump
  • Water filtration system
  • Outside shower

Standard Interior Equipment

  • Custom-molded ABS cab-over with storage
  • Soft-touch vinyl ceiling
  • High-intensity LED ceiling lights
  • Residential vinyl flooring
  • Firefly Multiplex system - wall-mounted touchscreen and mobile app for total coach control
  • 13,500 BTU air conditioner
  • 17,000 BTU Timberline Binar 5D hydronic heating system with LED touchscreen control
  • Cassette screens and night shades
  • JBL® Flip 5 removable wireless Bluetooth speaker
  • Adjustable table with multiple mounts
  • 5.3 cu. ft. 12V refrigerator
  • Induction cooktop
  • Convection microwave
  • Stainless steel sink
  • Pressed countertops

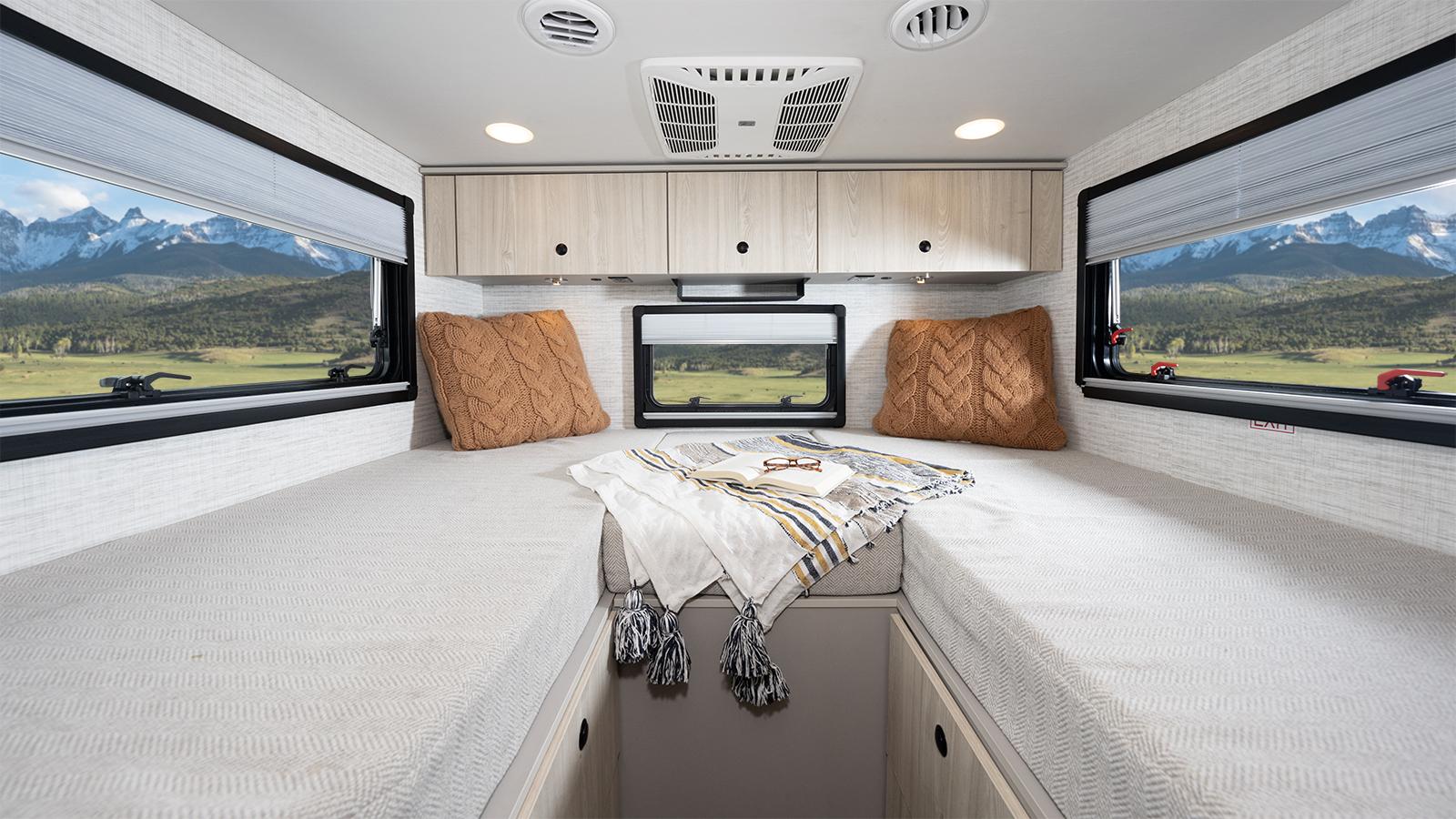

  • (2) twin-size beds with filler cushion converts to king-size bed

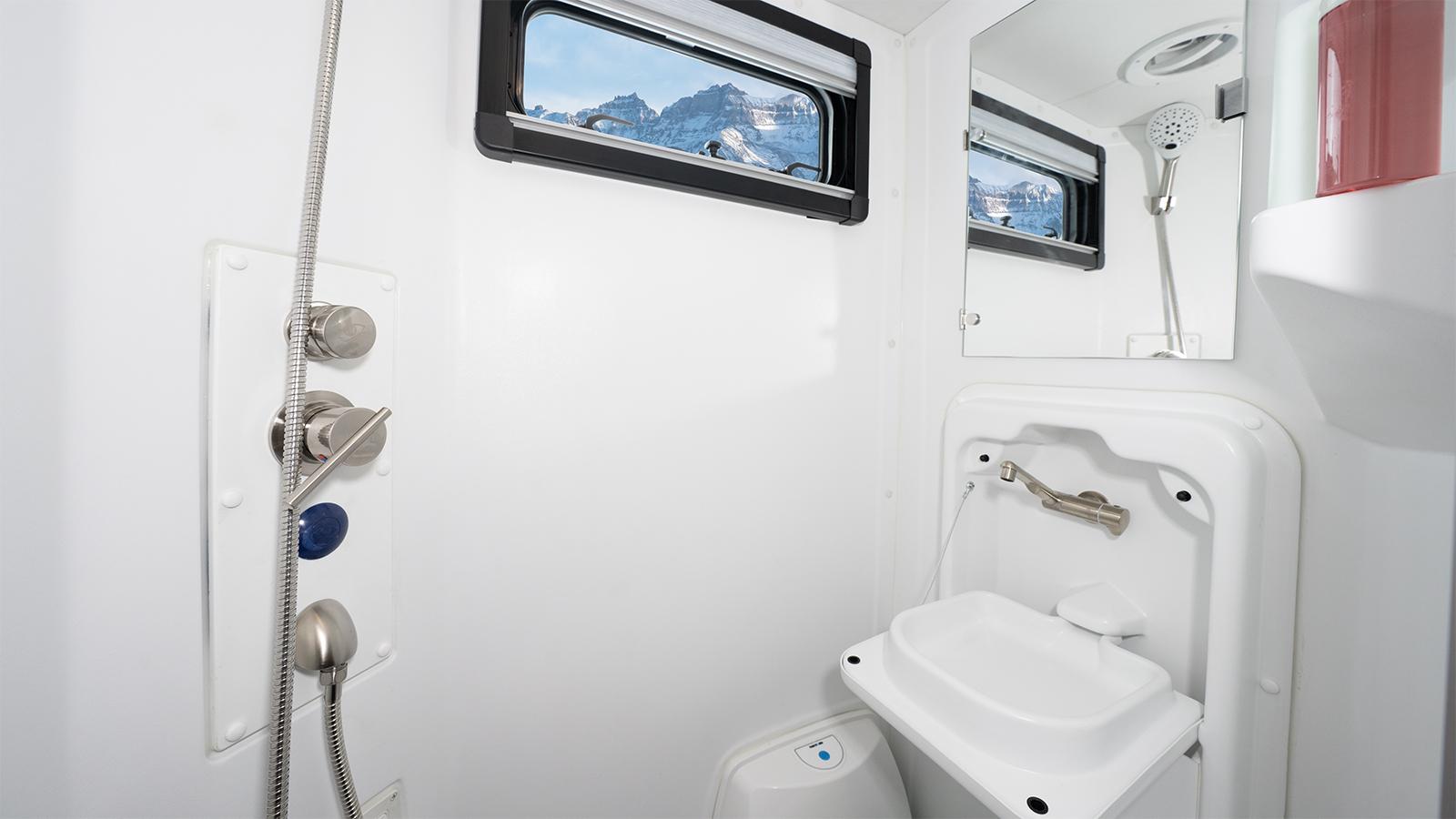

  • All-in-one wet bath with shower and cassette toilet
  • Powered roof vent in wet bath
  • Shower with curtain surround
  • Medicine cabinet with mirror
  • Seatbelts for driver/passenger seats and select cab locations
  • Smoke alarm
  • Carbon monoxide detector
  • Fire extinguisher

Customer Value Package

  • JRide®: Computer-balanced driveshaft, heavy-duty rear stabilizer bar, standard front stabilizer bar, Hellwig® helper springs and rubber isolation body mounts
  • One-piece, seamless, fiberglass front cap
  • Van Compass™ front and rear lift kit
  • 3.9kWh 12V lithium battery
  • 2,000W inverter
  • 360W roof mounted solar panel with dual controller
  • All-terrain tires
  • Backup camera
  • Aqua View® SHOWERMI$ER™ water management system
  • Internal holding tanks

Options

  • 32 in. Smart LED HD TV with cab and bedroom mounts
  • Starlink satellite internet system
  • 7 ft. rear awning
  • Pull-out exterior kitchen
