Granite Ridge

2026 Granite Ridge

Starting at $223,793

The 2026 Jayco Granite Ridge is ready for adventure, built with rugged capability and confidence-boosting features that let you explore farther and stay longer. With a massive heated rear garage, this Class C motorhome is ready to take you and your large adventure gear to the most remote locations.

The Granite Ridge is available on two chassis options to match your travel style. The 22T is built on the Ford® Transit 350HD AWD chassis featuring a powerful 3.5L EcoBoost V6 gas engine. The 22T is a more affordable gas option that still packs serious capability. For those seeking even more performance, the 23S rides on the Mercedes-Benz® 3500 AWD diesel chassis, delivering a premium experience on and off the road.

The 23S upgrade brings even more to the table, including additional ground clearance, an 18-inch longer overall length, all-terrain tires, a roof rack with a collapsible ladder, standard Starlink satellite internet, Molle panels in the rear garage and a JBL® Flip 6 removable speaker for music around the campsite. You’ll also enjoy Firefly total coach control system app integration for smart tech convenience right at your fingertips.

No matter which chassis you choose, Granite Ridge is built to go further. Two-inch walls, enclosed holding tanks, and dual-pane acrylic windows help extend your travels into colder seasons. Both floorplans include a lounge area behind the captain's chairs, twin beds in the rear that convert to a large bed by adding a filler cushion, a wet bath and a kitchen featuring a refrigerator, stainless steel sink and portable induction cooktop. In the 22T, the lounge

The Granite Ridge is all about traveling your way. Choose from optional features like a 7-foot rear awning, slide-out kitchen, pop-top for added sleeping space or 32-inch smart LED TV with mounts in both the cab and outside. However you like to camp, the Granite Ridge gives you the confidence, comfort and customization to make the journey your own.

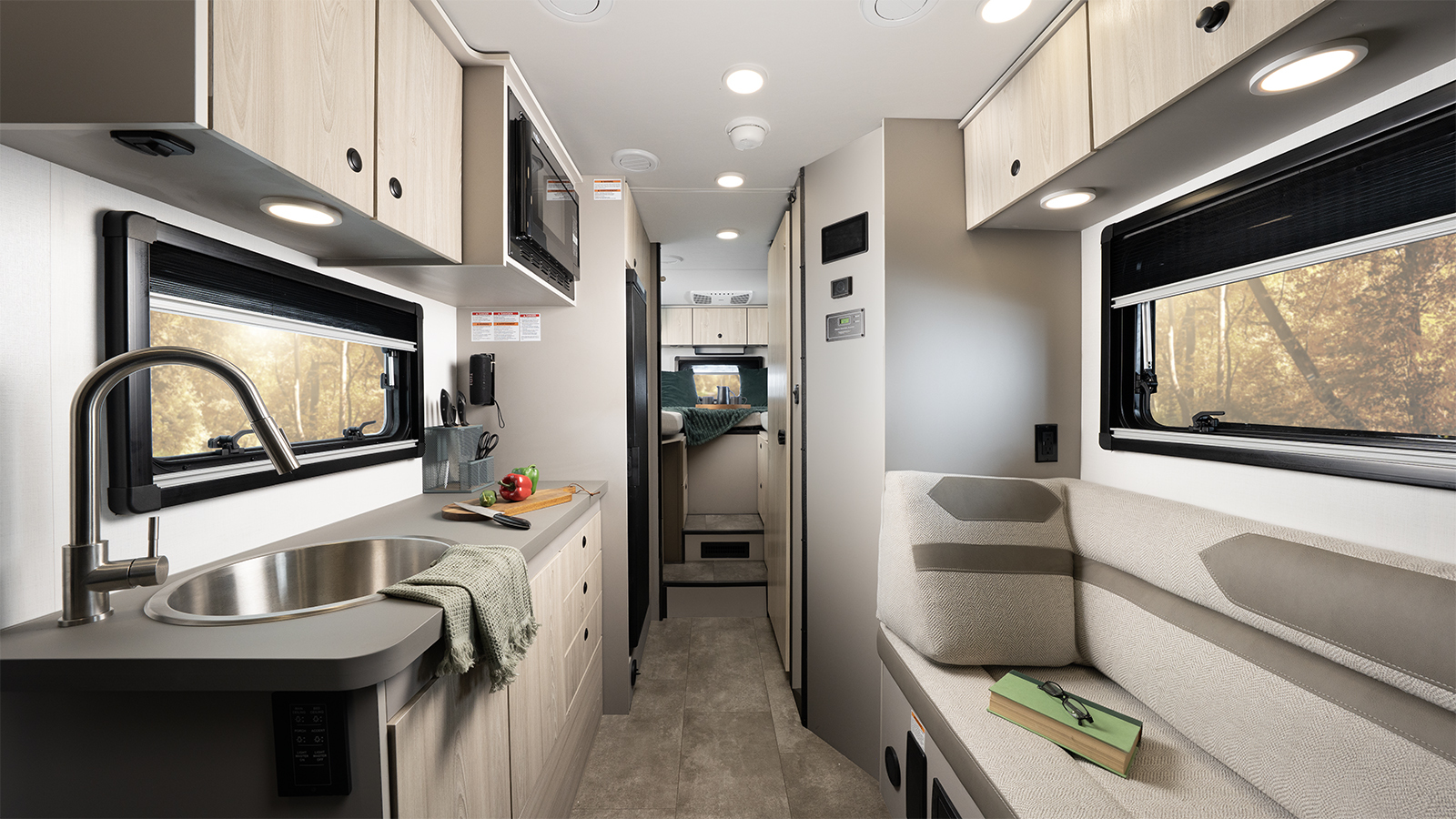

Granite Ridge 23S Interior with Grotto Interior Design

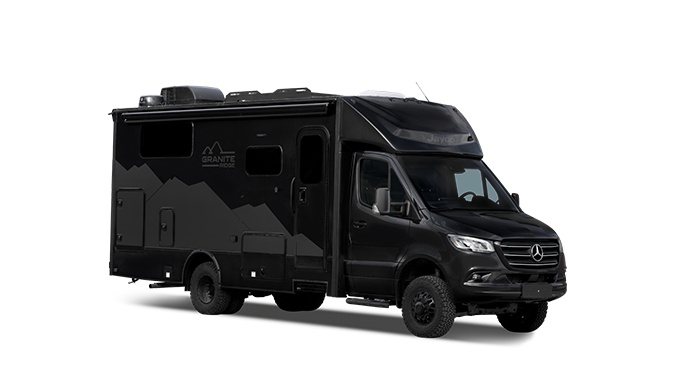

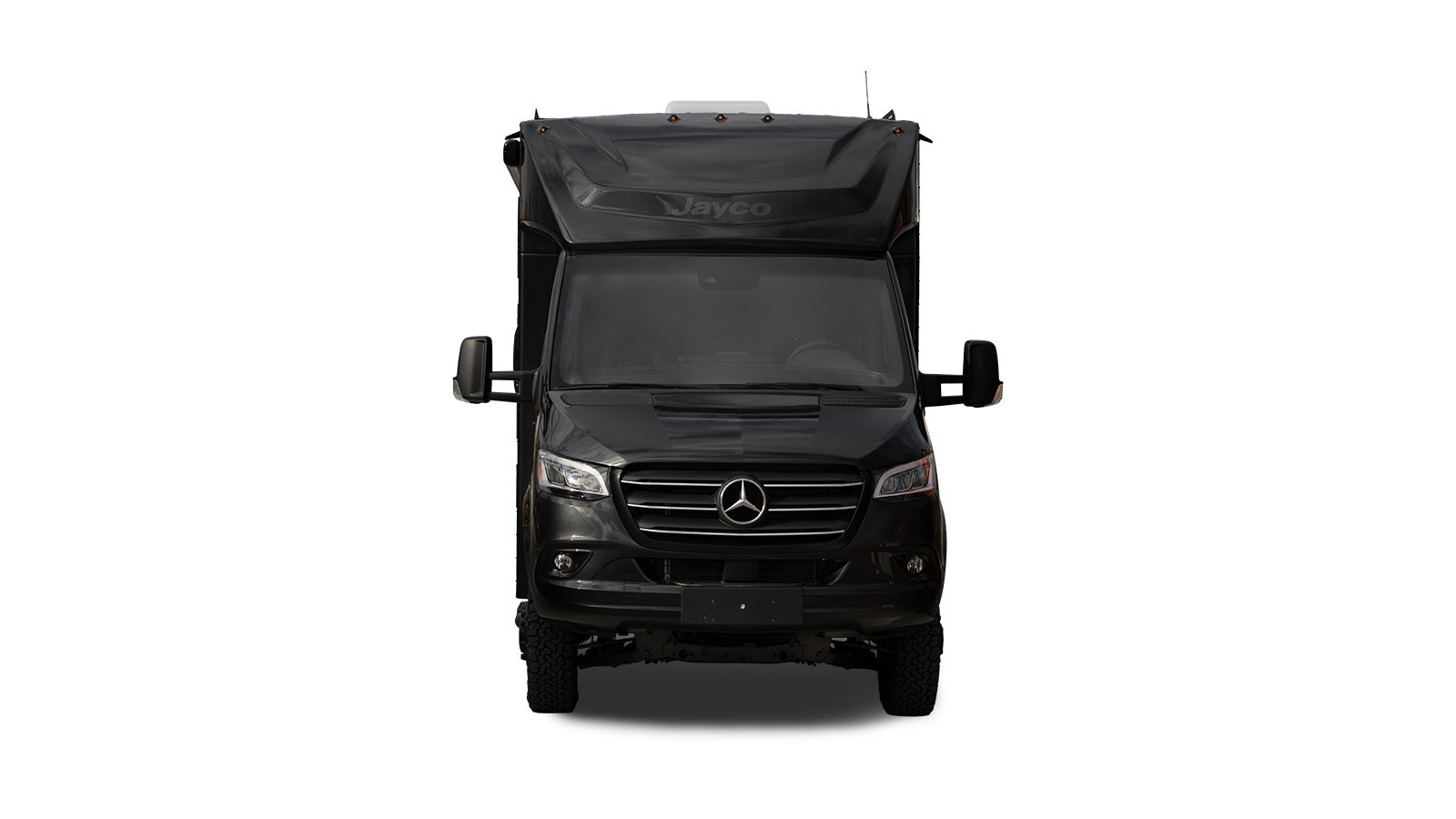

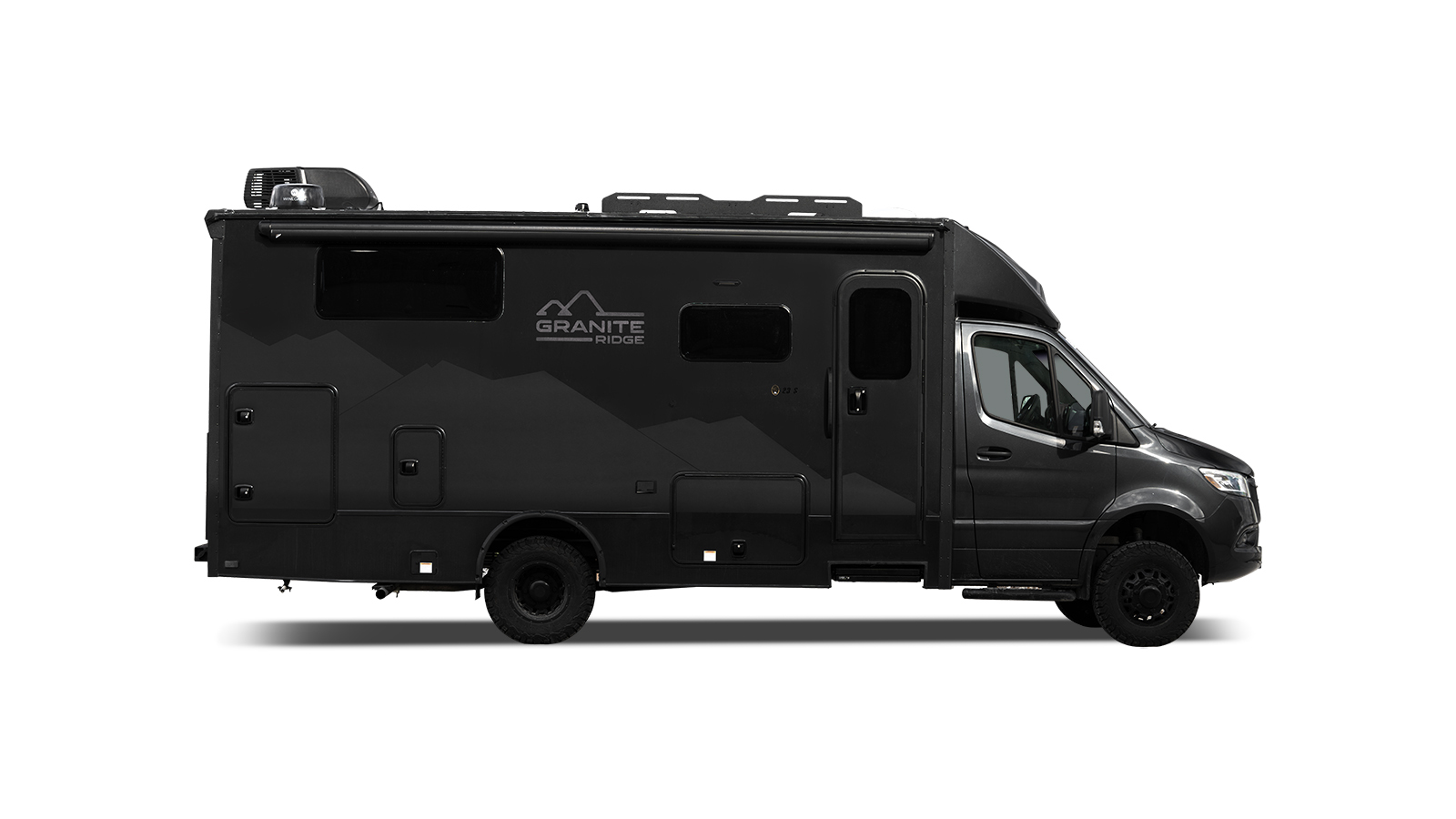

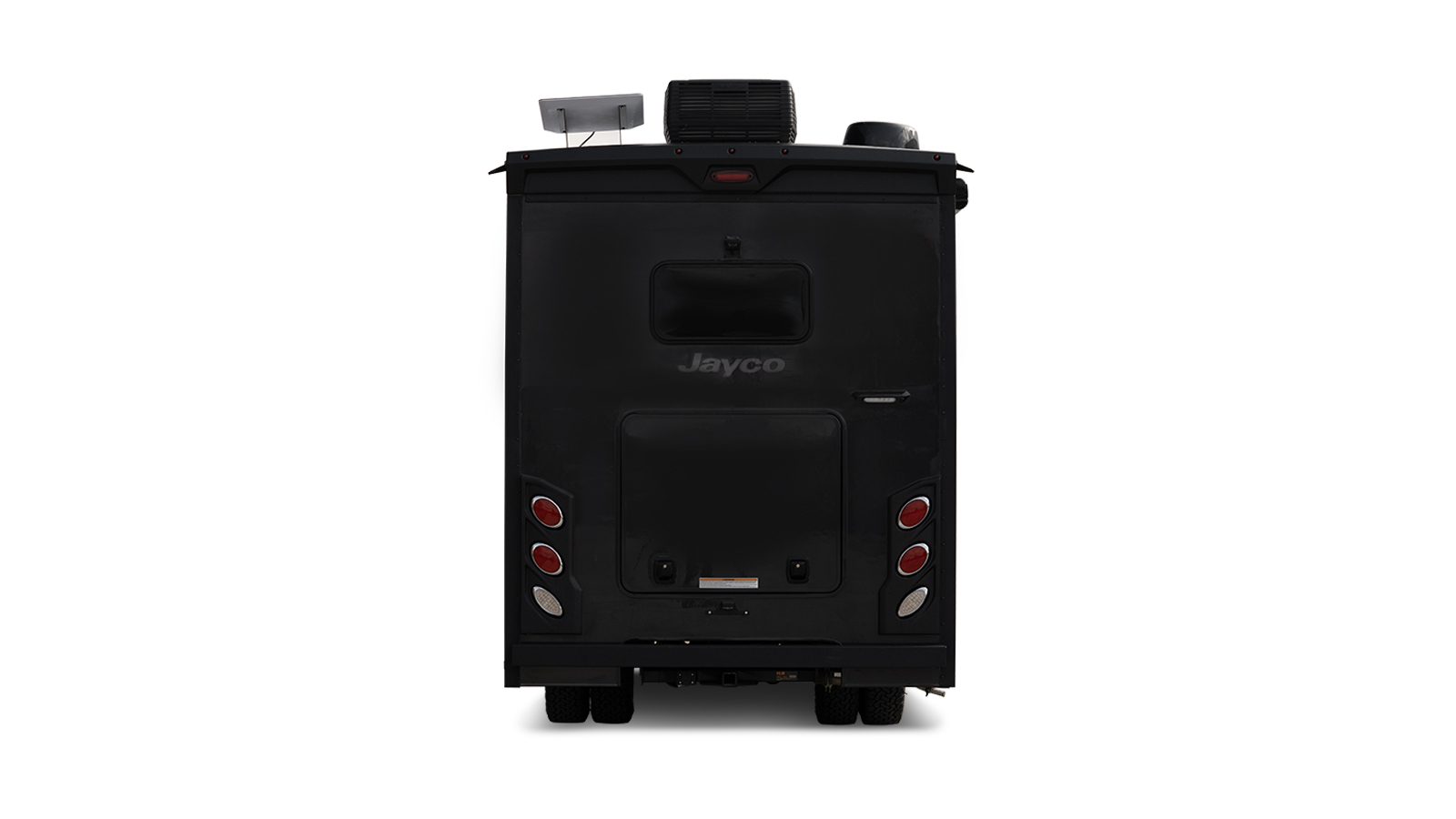

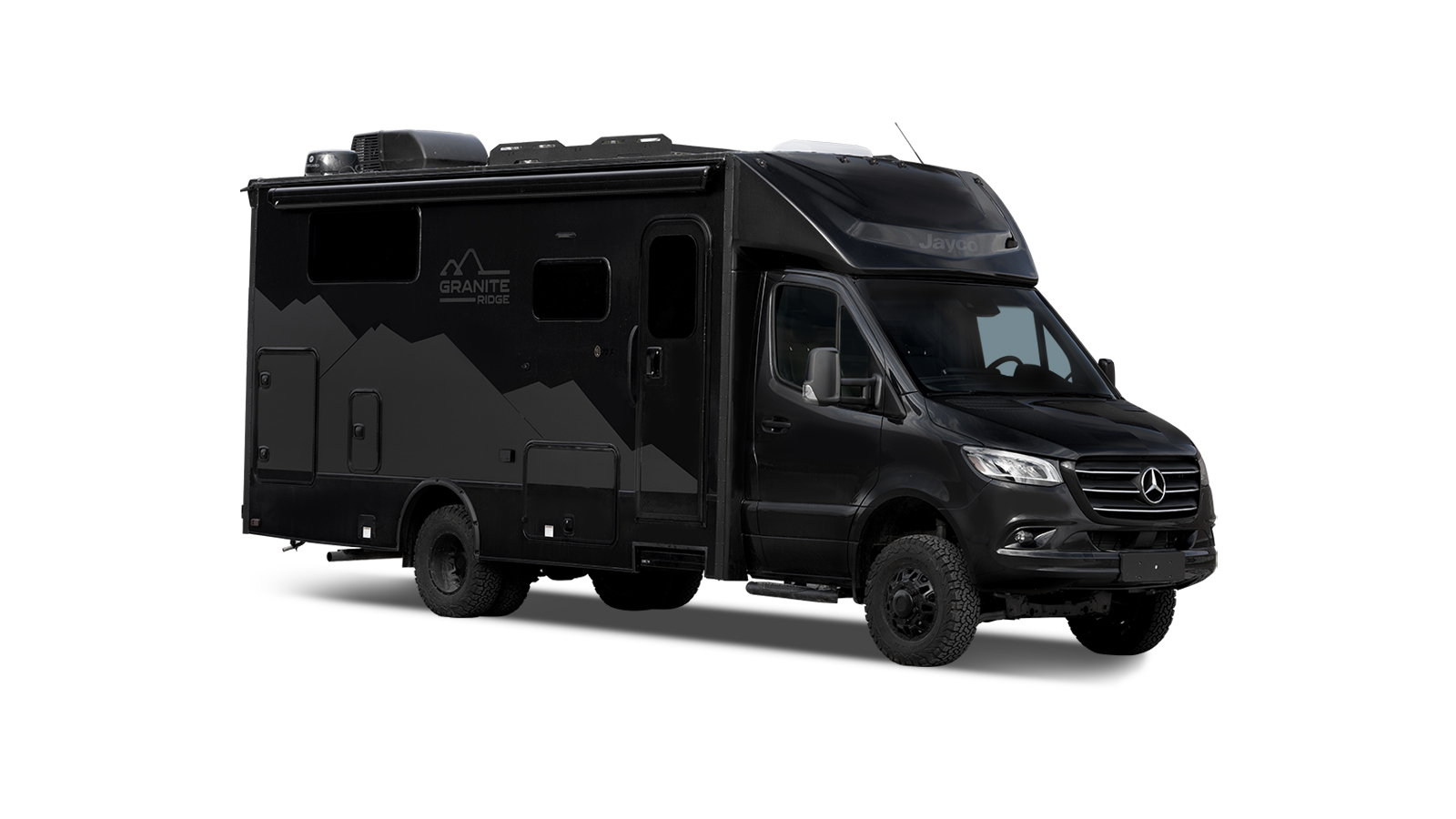

Granite Ridge 23S with Black Hills Full-Body Paint
Granite Ridge 23S with Black Hills Full-Body Paint
Granite Ridge 23S with Black Hills Full-Body Paint
Granite Ridge 23S with Black Hills Full-Body Paint MORE PHOTOS

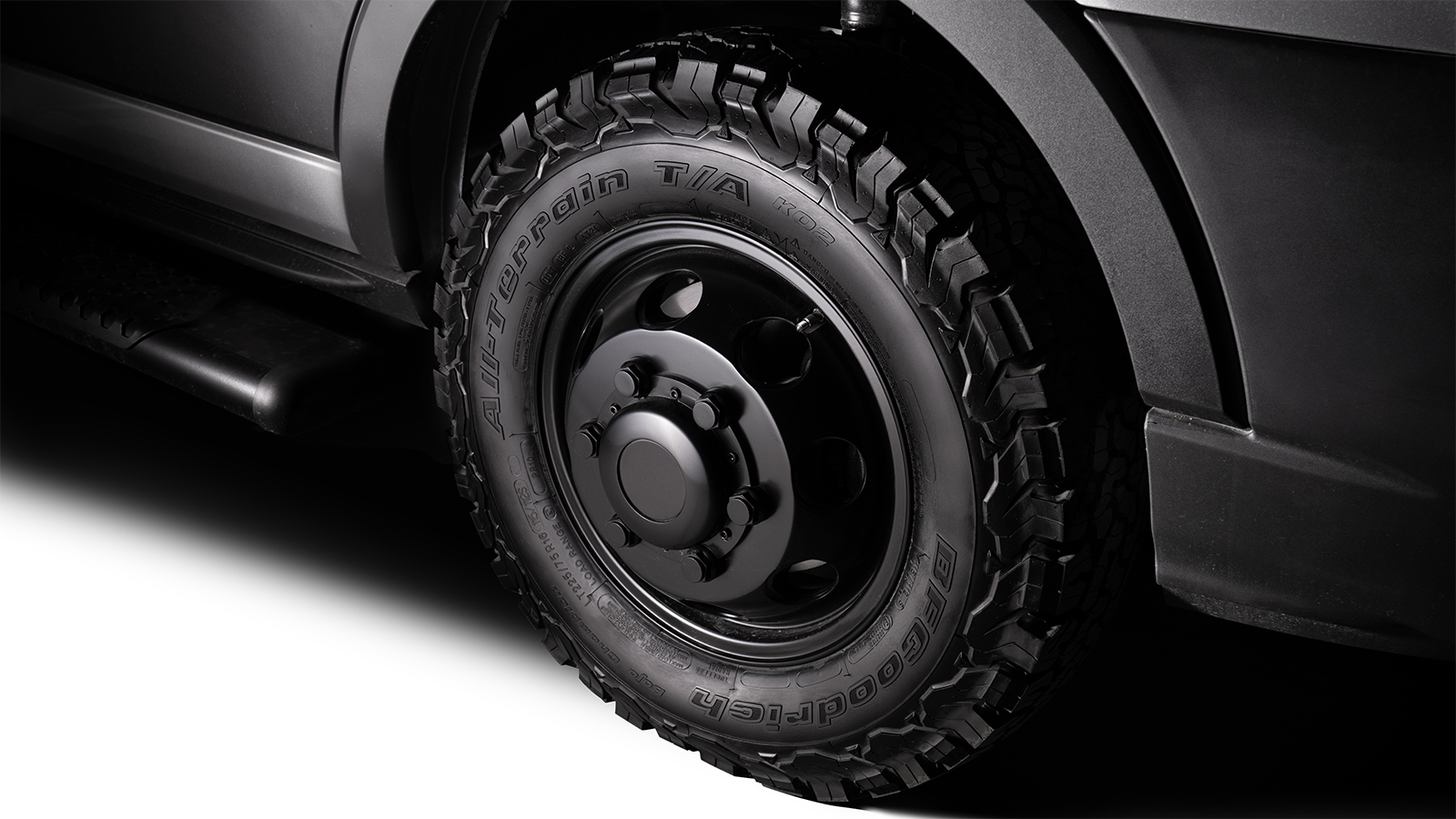

Granite Ridge 23S All-Terrain Tires and Matte Black Wheels

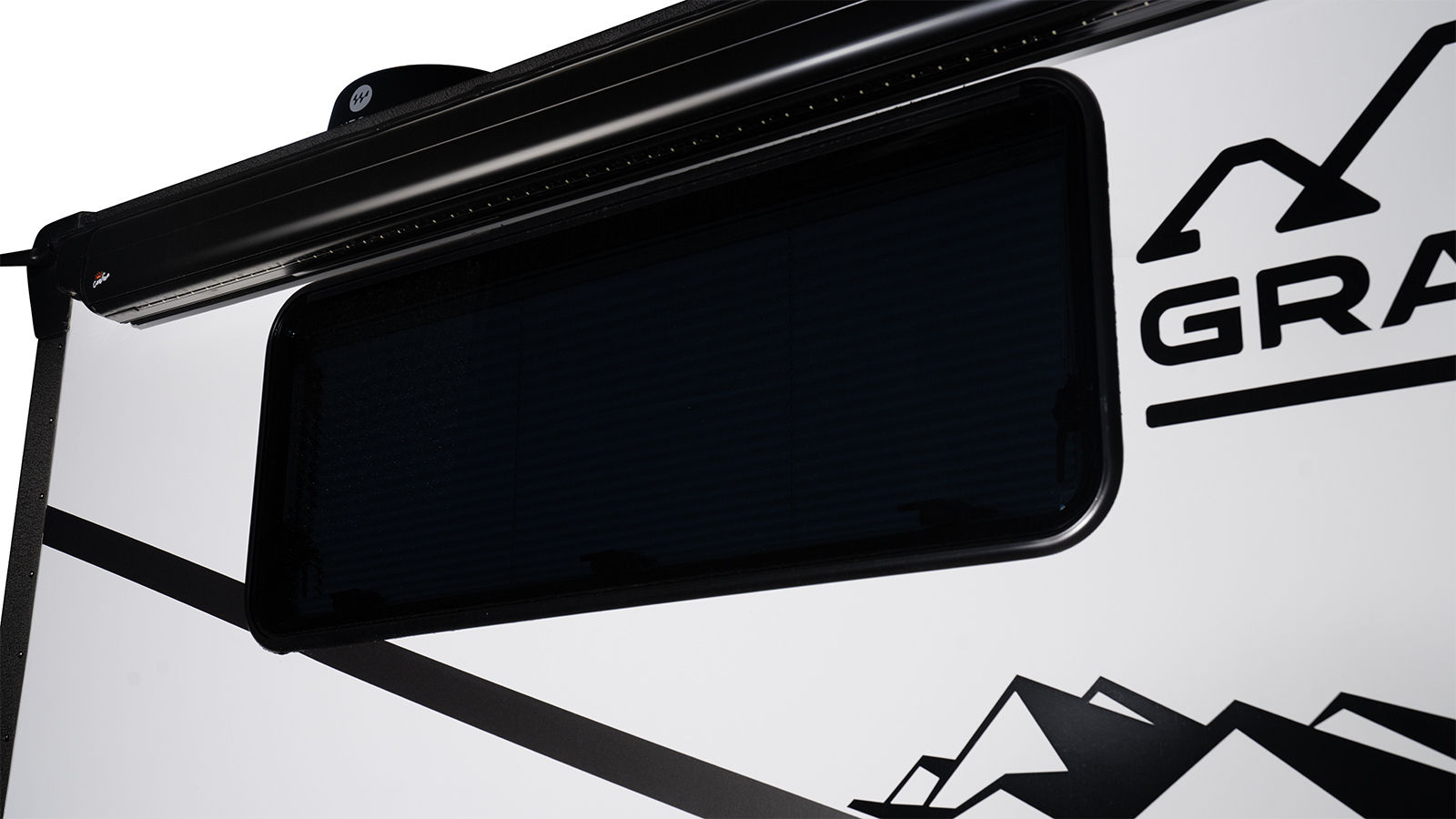

Granite Ridge Dual-Pane Acrylic Windows

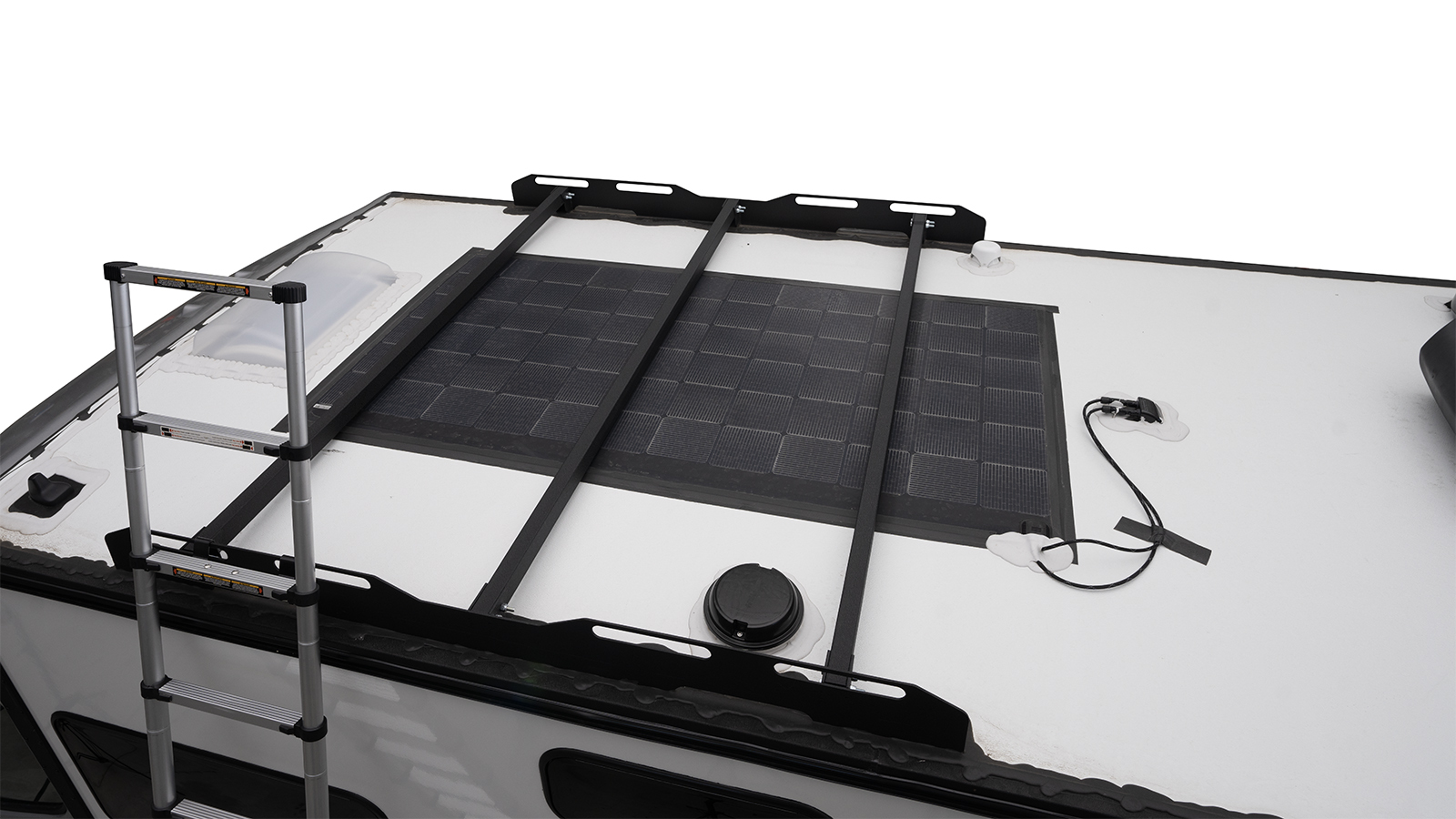

Granite Ridge Roof Featuring 360W Solar Panel, Roof Rack and Collapsible Ladder
Ashbrook Interior Design Option
Ashbrook Interior Design Option

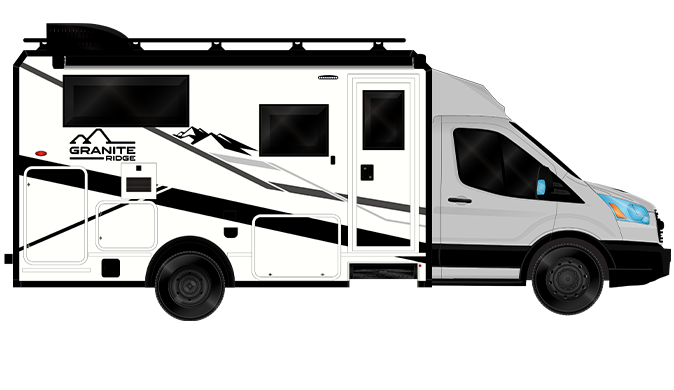

Standard Graphics
Standard Graphics
Ashbrook Interior Design Option
Ashbrook Interior Design Option
Standard Graphics
Standard Graphics
Granite Ridge

Granite Ridge Floorplans and Prices

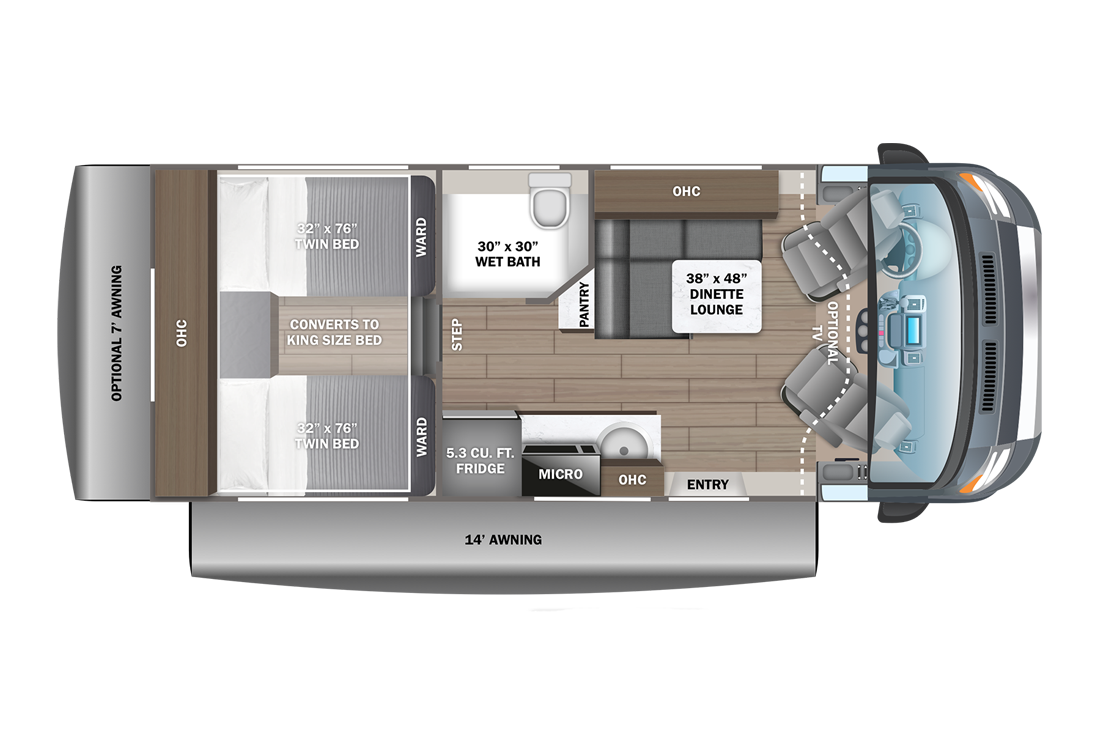

The Granite Ridge Class C is built for ultimate off-road exploration. This unique product is available in two configurations - the 22T on the gas Ford® Transit 350HD AWD chassis and the 23S on the diesel Mercedes-Benz® 3500 AWD chassis. While the layout of each floorplan is very similar, there are some differences thanks to the extra 21" of length on the 23S. The 22T is 23' 5" long and features a 38" x 48" L-shaped dinette lounge.  The 23S is 25' 2" long and features a 68" bench seat with two removable tables. The other major difference is in the rear of the Granite Ridge, where the twin beds of the 23S are 5" longer than the 22T. One of the highlights of either floorplan is the heated rear garage, which is large enough for bikes, coolers or any other gear you need for your next big adventure. The 23S picks up an extra 6" in the garage with an overall measurement of 34" x 81" x 43" versus the 22T which measures 28" x 81" x 43". Both floorplans offer your choice of Grotto and Oakley interior design options and come standard with a modern graphics package. There is an option to delete graphics for those who prefer a minimalist look, while 4 full-body paint options are available for those wanting bold, eye-catching appeal.

Starting at $223,793
Sleeps up to 2
Length 23' 5" - 25' 2"

See Floorplans »

Standard Features and Options

Standard Driving Equipment

Chassis Equipment for 22T

  • Ford® Transit 350HD AWD chassis
  • 156 in. wheelbase
  • GVWR - 11,000 lb.
  • GCWR- 15,000 lb.
  • 3.5L EcoBoost V6 310 HP engine with 400 ft-lb. torque
  • 10-speed transmission
  • 3.73 limited slip axle
  • 205/75R16C all-season tires
  • Matte black aluminum wheels
  • (2) 12V AGM chassis batteries (70 amp-hr)
  • 31 gal. fuel tank (gas)
  • 12 in. SYNC 4 HD/NAV/IACC multi-function display
  • 4-way swivel driver and passenger seats
  • Tilt and telescoping steering wheel
  • Intelligent adaptive cruise control
  • Lane-keeping system
  • Forward collision warning
  • Pre-collision assist with automatic emergency braking (AEB)
  • Post-collision braking
  • SOS Post Crash Alert System™
  • Safety Canopy® side-curtain airbags
  • Ford® AdvanceTrac® with RSC® (roll stability control)
  • Side wind stabilization
  • SecuriLock® passive anti-theft system with engine immobilizer
  • Autolocking drive away with crash unlocking
  • Remote keyless entry
  • FordPass™ Connect
  • Tire pressure monitoring system (TPMS)
  • Wiper-activated headlights

Chassis Equipment for 23S

  • Mercedes-Benz® 3500 AWD chassis
  • 170 in. wheelbase
  • GVWR - 11,030 lb.
  • GCWR- 15,250 lb.
  • 2.0 inline 4-cylinder Twin Turbo 211HP diesel engine with electronic fuel injection with 332 ft.-Ib. torque
  • 9-speed transmission
  • All-terrain tires
  • Matte black aluminum wheels
  • (2) 12V AGM chassis batteries (70 amp-hr)
  • 26.4 gal. fuel tank (diesel)
  • 5.8 gal. DEF tank
  • 10.25 in. integrated Mercedes-Benz® MBUX infotainment center
  • Heated power swivel driver/passenger seats
  • Leather-wrapped tilt steering wheel with integrated controls
  • Smartphone tray with wireless charging
  • Active Distance Assist DISTRONIC®
  • Active lane keeping assist
  • Crosswind assist
  • Active brake assist
  • Traffic sign assist
  • Attention assist
  • Breakdown management
  • Emergency call system

Chassis Equipment on All Floorplans

  • 250-amp alternator
  • Power anti-lock brakes with power steering
  • Power-adjusting, heated side-view mirrors
  • Driver and passenger airbags
  • Hill start assist
  • Rain-sensing wiper system
  • Automatic high-beam headlights
  • Power windows and door locks
  • Privacy shades for cab windows

Standard Exterior Equipment

  • StrongholdVBL™ roof, floor and sidewalls
  • Bead-foam insulation (R-24 max roof, R-9 max floor, R-8 max walls)
  • One-piece, seamless, fiberglass roof
  • Fiberglass exterior walls with partial paint and vinyl graphics
  • Dual-pane acrylic windows
  • Heated rear garage (28 in. x 81 in. x 43 in. on 22T; 34 in. x 81 in. x 43 in. on 23S)
  • L-track, (2) 120V charging ports and (1) 12V charging port in garage
  • Molle panels in garage (23S)
  • Electric patio awning with auto-retract and LED lights
  • Roof rack (23S - N/A with pop-top option)
  • Collapsible exterior ladder (23S)
  • Daytime running headlamps
  • Cable TV hookup with RG-6 coax
  • Starlink satellite internet system (23S)
  • Winegard® Connect 2.0 4G/Wi-Fi/digital TV antenna
  • 2,800W gas generator with auto-gen start (22T)
  • 2,500W LP generator with auto-gen start (23S)
  • 30-amp electrical service with detachable power cord
  • 120V exterior outlet
  • 6 gal. propane tank (20 lb.) (22T)
  • 6 gal. (20 lb.) and 12.2 gal. (41 lb.) propane tanks (23S)
  • LP quick-connect hookup
  • LED-lit holding tank valves
  • Winterization drain system
  • 12V demand water pump
  • Water filtration system
  • Outside shower

Standard Interior Equipment

  • Custom-molded ABS cab-over with storage
  • Soft-touch vinyl ceiling
  • High-intensity LED ceiling lights
  • Residential vinyl flooring
  • Firefly Multiplex system - wall-mounted touchscreen and mobile app for total coach control (mobile app available on 23S only)
  • 13,500 BTU air conditioner
  • 17,000 BTU Timberline Binar 5D hydronic heating system with LED touchscreen control
  • Cassette screens and night shades
  • JBL® Flip 6 removable wireless Bluetooth speaker (23S)
  • Adjustable table with multiple mounts
  • 5.3 cu. ft. 12V refrigerator
  • Portable induction cooktop
  • Convection microwave
  • Stainless steel sink
  • Pressed countertops
  • (2) twin-size beds with filler cushion converts to king-size bed
  • All-in-one wet bath with shower and cassette toilet
  • Shower with curtain surround
  • Powered roof vent in wet bath (N/A with pop-top option)
  • Medicine cabinet with mirror
  • Seatbelts for driver/passenger seats and select cab locations
  • Smoke alarm
  • Carbon monoxide detector
  • Fire extinguisher

Customer Value Package (Mandatory)

  • JRide®: Computer-balanced driveshaft, heavy-duty rear stabilizer bar, standard front stabilizer bar, and Hellwig® helper springs (22T)
  • One-piece, seamless, fiberglass front cap
  • 3.9kWh 12V lithium battery (12V with 310 amp-hr)
  • 2,000W inverter
  • 360W roof mounted solar panel with dual controller
  • Expandable side port with second dual bank controller for solar
  • Backup camera
  • Aqua View® SHOWERMI$ER™ water management system
  • Internal holding tanks

Options

  • Starlink satellite internet system (22T)
  • 32 in. Smart LED HD TV with cab and exterior mounts
  • 7 ft. rear awning
  • Pull-out exterior kitchen
  • Delete patio awning
  • 50.5 in. x 79.75 in. pop-top

Standard Features
and Options

See all »
