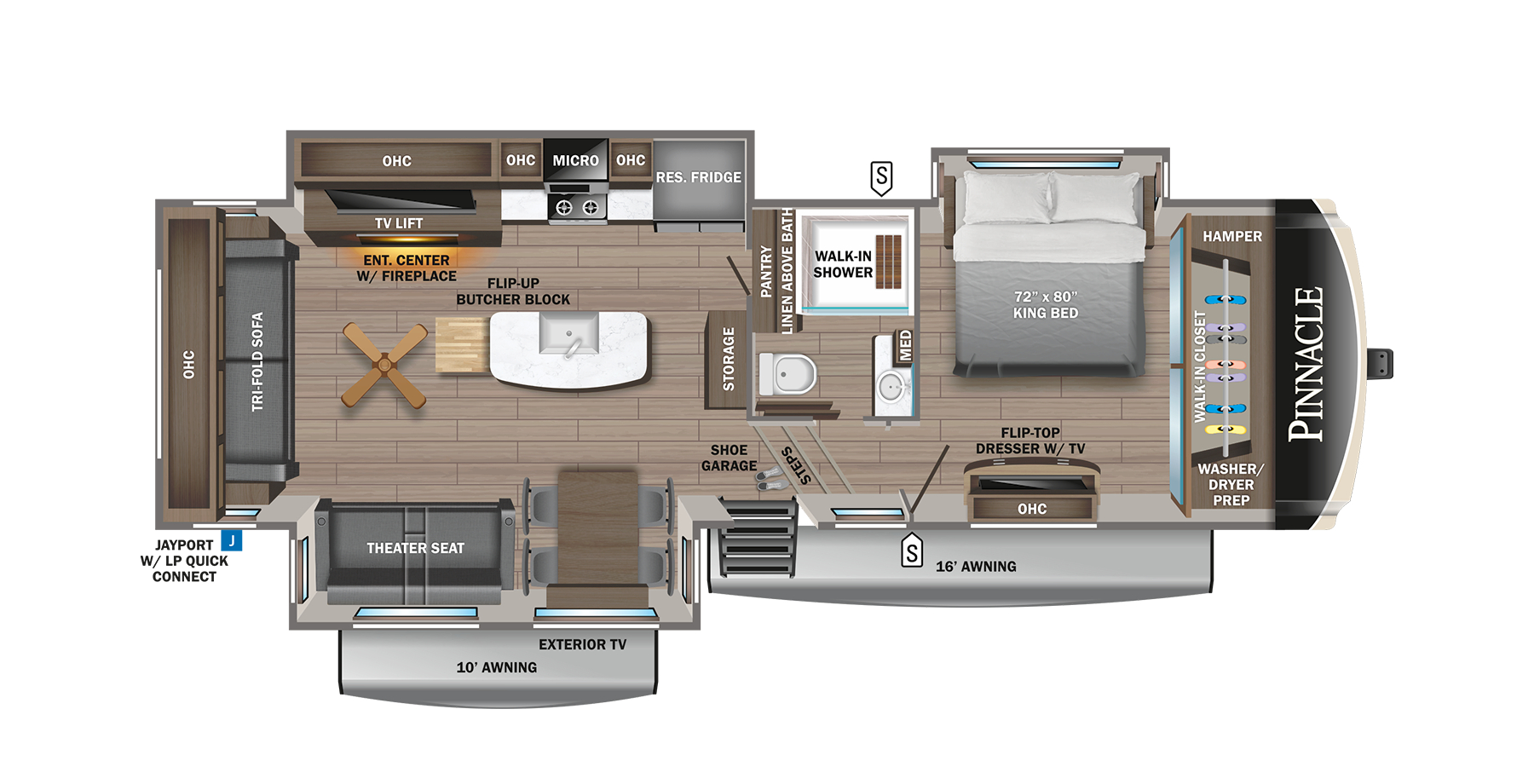

2023 Pinnacle | 32RLTS

2023 Pinnacle

360° view » Saved Print Request Quote »

See Floorplan with
an Option Added:

See Floorplan with an Option Added:

Interior Design

Modern Farmhouse

Silvermist

Exterior

Diamond Paint

Sand Paint

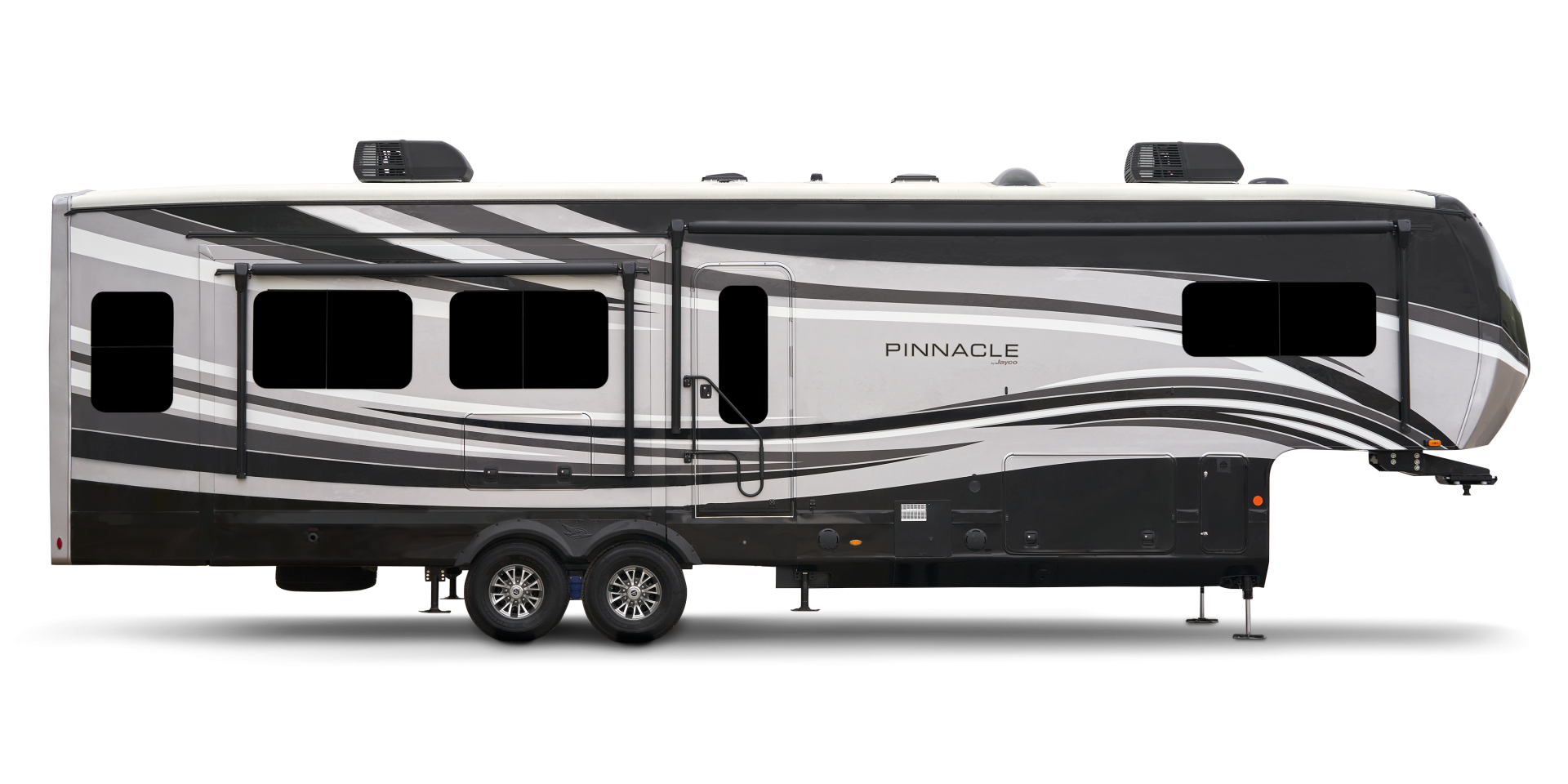

Steel Paint

2023 Pinnacle

Starting at $119,943

Aptly named, the Pinnacle luxury fifth wheel takes all the best a fifth wheel has to offer and elevates it to the top with technology, luxury, and attention to detail. The 102-inch wide body design provides the most room available in the industry. Room for solid hardwood cabinets and the Magnum 6XL roof rafter system – a six-inch roof that doesn’t taper down, creating higher ceilings throughout. Available in three stunning exterior full-body paint options, try the Pinnacle of camping today.

Learn More »

Standard Features
and Options

See All »

Overlander Packages

Solar Capabilities

Solar power offers RVers newfound freedom when it comes to their camping experiences by allowing users to break away from shore power constraints. Jayco RV now offers varying levels of optional solar packages on travel trailers, fifth wheels and toy haulers. Your next RV can come equipped with solar prep or optional solar packages.

Learn More »

JAYCOMMAND^®

This system puts you in full control of your Jayco. Custom-built by our product development team and our partners, you can monitor and control key operations from just about anywhere on a phone or tablet.

Mini System Quick-Start Videos »Pro System Quick-Start Videos »

JayVoice System

JayVoice works in conjunction with the existing JAYCOMMAND® system to control functions like A/Cs, lights, furnaces, and more. The system is prompted by a wake word, “Jayco”. Once the word is spoken, the voice receiver on the ceiling will light up to indicate that it is listening for a command. Simply say “Jayco” and any of the predetermined commands like “Main A/C” and you can operate a variety of systems with just a few words. The voice receiver is mounted centrally within the RV to allow for utilization in not only the living area, but other rooms throughout the unit.

The JAYCOMMAND system puts RVers in full control of their unit. The system was custom-built by the Jayco product development teams along with various supplier partners, so that owners can monitor and control key RV operations from a phone or a tablet. Paired with the new JayVoice system, RVers can now voice command these functions to occur or still have the freedom of utilizing their phone or tablet while away from the coach.

Learn More »

5 Star Handling Package

The 5 Star Handling package is a Jayco exclusive blend of five high-end components selected and installed to deliver a more safe and stable luxury fifth wheel towing experience.

Learn more »

Climate Shield

Extend your camping season with built-in protection against extreme heat and cold—even in temperatures as high as 100 degrees or as low as zero degrees (Fahrenheit).

Learn more »

JaySMART™

The exclusive safety system adds several tow vehicle-controlled exterior lights to indicate turning, braking, reverse travel and hazard situations—because a split second can make all the difference.

Learn more »

Prepped for Solar Power

Jayco is one of the first companies to offer solar prep, or solar panels, on every single RV. With sidewall AND roof-mounted prep kits, you have the option to easily install solar panels for extra power at camp.

Learn more »

Strong foundations

While other manufacturers often weld or modify stock frames, every Jayco RV is built on a custom frame, designed and sized specifically to best support each unit on and off the road for years to come.

Learn more »

Stronghold VBL™ Lamination

Every sidewall, rear wall and slide room wall is bonded together for a minimum of 16 minutes under 144 tons of pressure to create the lightest, yet strongest, construction available in the RV industry.

Learn more »

The Magnum Truss™ Roof System

In testing, the creatively engineered system withstood 4,500 pounds—50 percent more than competitors’ roofs. Walk confidently on top of your unit and feel safer in wind or snowstorms.

Learn more »

Standard Exterior Equipment

Stronghold VBL™ aluminum framed and vacuum bond laminated gelcoated fiberglass exterior walls (including slide room end walls)
12 in. structural steel I-beam with 10 in. steel drop frame
Magnum Truss™ XL6™ Roof System (strongest tested roof in the industry) with one piece, seamless roof material with a 20 year warranty material
Climate Shield™ zero-degree tested weather protection:
- Fully enclosed and heated underbelly (ducted)
- 40,000 BTU output furnace
- Double layer fiberglass batt insulation (roof and floor)
- PEX plumbing, 2 in. block foam and reflective foil
JaySMART™ (Safety Markers And Reverse Travel) LED lighting (patent-pending)
Painted fiberglass front and rear cap with double clear coat and built-in specialty LED lighting
Frameless dark tinted safety-glass windows
Custom automotive-grade vinyl exterior graphics package
102 in. widebody construction
Skirt metal enclosed drop frame
LED exterior lighting package
Dual 30 lb. propane bottles with auto regulator
Doorside compartment framed and vented for third propane bottle
Pass-through storage with Slam-latch™ baggage doors
Digital TV antenna with Wi-Fi extender
Exterior marine-grade speakers
Fully enclosed, universal docking center:
- Selectable water connections
- Quick-connect outside shower
- Black tank flush
- Winterization and sanitation
- Independent satellite wiring
- Whole coach cable hookups
Water heater bypass
Battery disconnect
Under-mounted spare tire
JayPort outside griddle prep (standard on all floorplans without a standard outside kitchen)
Built in sewer hose carrier
3,000 lb. tow hitch with 4-way pin
Inverter pre-wire to select outlets
120V heat blankets on all tanks plus 12V heat tape on fresh water line

Standard Interior Equipment

Solid hardwood slide fascia
Handcrafted hardwood glazed doors, stiles, drawers and trim
5/8 in. tongue-and-groove joined plywood floor and 3/8 in. roof decking
Vinyl flooring (made in the USA) throughout including slide rooms
Ceiling fan (select models)
LED interior lighting throughout
LED accent lighting above slideouts
Tri-fold hide-a-bed sofa with sleep surface (select models)
Dual USB charging ports throughout
12V charging station
JayVoice voice command system - controls lighting, A/C and furnace
“Shoe garage” in hallway step (select models)
Flip-up tabletop storage next to tri-fold sofa (select models)
Soft close, heavy-duty, 75 lb. full extension, steel ball-bearing drawer guides
Toe kick nightlights in bedroom, bathroom and kitchen
Pull-out spice rack above microwave (select models)
Farmhouse stainless steel kitchen sink
Residential-grade, pull-out kitchen faucet
Extra 120V power outlets in kitchen and slide rooms
Flip-up countertop extension with 24 in. x 24 in. butcher block bar top (select models)
Pull-out utility drawer under kitchen sink
Residential quilted bedspread and pillows
Cedar-lined front wardrobe closet
Gas-strutted under-bed storage
C.P.A.P. prepped bedroom (includes 120V outlets and night stands)
Carbon monoxide and LP detector
Flip-up hidden storage in bedroom chest of drawers (select models)
Built-in laundry hamper in wardrobe (select models)
Cup holders in bedroom nightstands (N/A 36SSWS)
Bathroom skylight
LED backlit custom framed mirror and medicine cabinet
Residential bathroom backsplash
Vessel bowl sink with high rise faucet in main bath
Porcelain toilet with foot flush

Customer Value Package (Mandatory)

15,000 BTU “Whisper Quiet” A/C with heat pump (main)
15,000 BTU “Whisper Quiet” A/C (bedroom)
Electric patio awning with integrated LED lights
Gas/electric DSI water heater
Custom machined aluminum rims
Keyed-Alike™ lock system (single key for all doors/locks)
Rooftop and ground solar prep
Backup, main entrance door and side observation security camera prep (includes a power switch in the bedroom to use the optional 7 in. monitor for security)
Hidden hinges on cabinet doors
XL grab handle
Home entertainment system with subwoofer
50 in. 4K SMART LED HDTV with fully digital HDMI® output and two additional HDMI® cables
Wireless remote control system (includes Bluetooth® wireless interior controls) with dimmer switches
Residential king (72 in. x 80 in.) mattress with under-bed storage
Refrigerator temperature sensors linked to JAYCOMMAND®

5 Star Handling Package (Mandatory)

17.5 in. 'H' rated Uniroyal tires
MORryde® rubber pin box
Dexter® axles with Nev-R-Adjust® brakes, E-Z Lube® hubs and 4,000 lb. leaf springs
MORryde® LRE-4000™ rubberized suspension
Wet bolt fasteners and bronze bushings

Luxury Package (Mandatory)

6-point hydraulic auto-leveling system
MORryde® StepAbove™ entrance steps (main entrance) with strut assist
2nd electric patio awning with integrated LED lights
Powered 50-amp cord reel
JAYCOMMAND® “Smart RV” system
Cellular prep for 4G WiFi antenna and JAYCOMMAND®
High gloss gelcoated sidewalls
Oversized multi-battery compartment (industry leading room for 4-6 batteries)
32 in. 4K outside Smart LED TV
Solid hardwood cabinet stiles
Central vacuum system with dust port
Day/night roller shades in living room
Frameless dark tinted safety-glass windows
Free-standing (no pedestal) table with leaf, (2) free-standing and (2) folding chairs
LED fireplace with electric space heater
Fresh Water Drinking System (patent-pending) for fresh drinking water at the kitchen sink and water/ice dispensers in the residential refrigerator
Residential refrigerator with ice maker and 1800W pure sine wave inverter
30 in. residential microwave
Residential 24 in. Insignia™ stove (3.73 cu. ft. with 12K BTU high output burner)
Residential solid-surface kitchen countertop with solid-surface sink covers
32 in. 4K Smart LED bedroom TV
Residential walk-in shower with shampoo/soap holder, teak seat and shower tower
Washer/dryer prep

Options

True interior design choice (Modern Farmhouse or Silver Mist)
Truma on-demand hot water system
Full body paint- Sand, Steel and Diamond
Overlander 2 Solar Package (30-amp controller, (1) 800W inverter and (2) 200W solar panels)
Wireless backup/side view/front entry door observation kit with 7 in. monitor
Sani-Con® Turbo waste management system
Generator prep with 120 lb. max LP system includes (3) 40lb. LP bottles
5,500W Onan® Microquiet generator
Frameless dual-pane tinted safety-glass windows
Slideout awning (quantity varies by model)
7K hydraulic disc brake package
8K hydraulic disc brake package
3rd-15,000 BTU ducted A/C

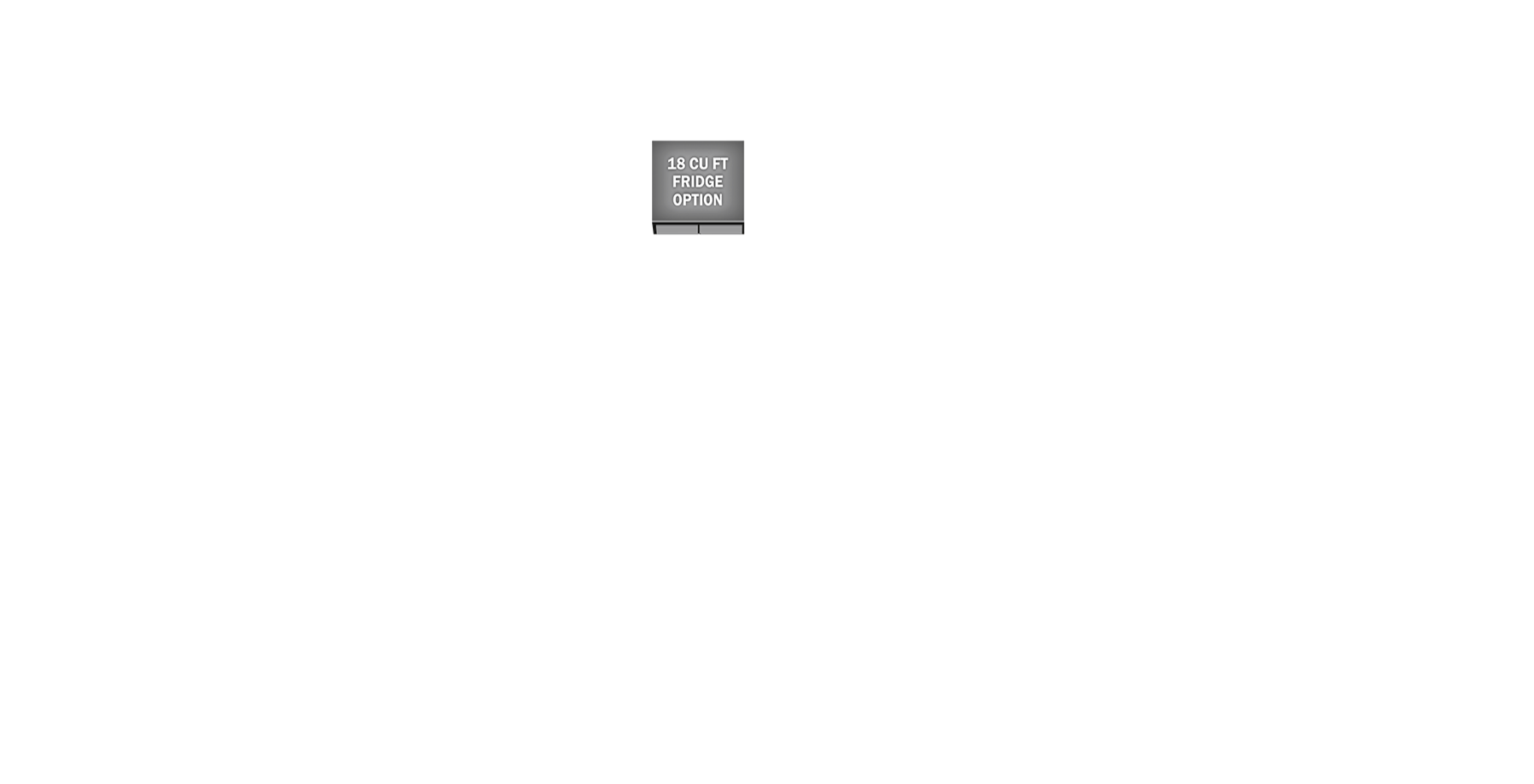

18 cu. ft. Norcold® Polar Max gas/electric refrigerator

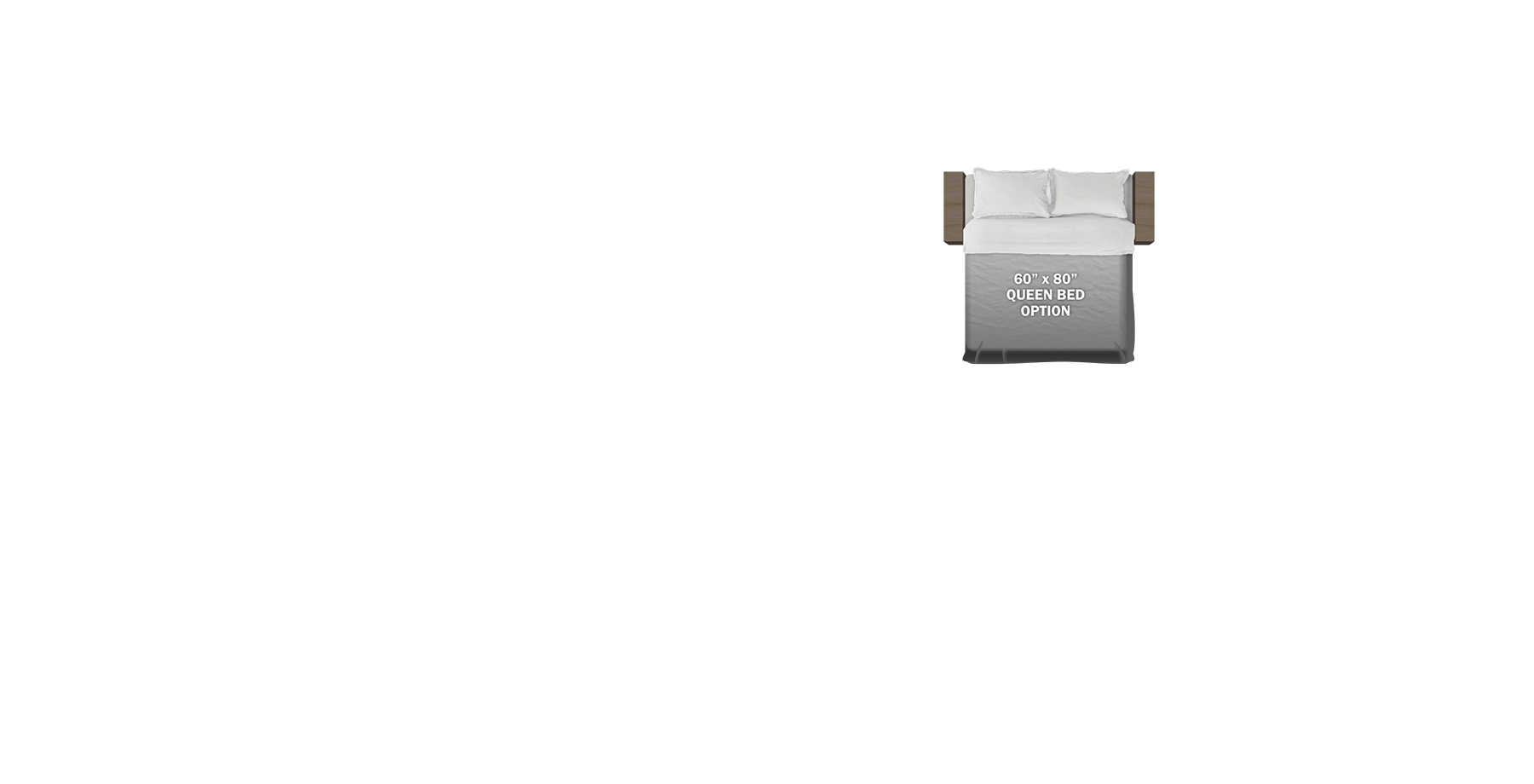

Queen residential foam-top mattress
Front wardrobe in place of front windshield and sofa lounge (36SSWS)
Butler’s pantry (in place of half bath, 38FLGS)
Outside griddle for JayPort system (32RLTS, 36FBTS, 36KPTS, 36SSWS)
Overlander 4 Solar Package: (4) 200W solar panels, (2) 100-amp/hour lithium heated batteries, 60-amp controller, 3000W inverter, DC/DC power converter, soft start power save main 15K A/C, soft start power save for bedroom 15K A/C, battery monitor, energy management system, roof pre-wire for additional solar panels, generator prep capable and heavy gauge steel battery enclosure
Overlander EXT Solar Package: 3,000W inverter/charger with internal 50-amp transfer switch, energy management system, (6) solar panels with 200W each, (6) 100-amp/hour lithium heated batteries, 12V DC A/C in bedroom, DC to DC battery charger, 100-amp MPPT controller management, generator prep capable

Dry Hitch Weight (lbs)	2,415
Unloaded Vehicle Weight (lbs)	12,870
Cargo Carrying Capacity (lbs)	3,125
Gross Vehicle Weight Rating (lbs)	15,995

Exterior Length (overall)	36' 4"
Exterior Length (pin to bumper)	34' 8"
Exterior Height	12' 8"
Exterior Height (with A/C)	13' 4"
Exterior Height (with 2nd A/C)	13' 4"
Exterior Width	8' 6"
Exterior Width (with slides out)	14' 3"
Interior Height (main)	8' 7"
Interior Height (upper deck)	6' 7"
Awning Length	16' 0"
Awning Length 2	10' 0"

Fresh Water Capacity (gals)	75.0
Gray Water Capacity (gals)	87.0
Black Tank Capacity (gals)	50.0
Propane Unit (lbs)	60
Propane Unit (lbs) (Optional)	120

Sleeps	up to 5
Water Heater	12
# of outside storage compartments	2
Furnace BTU	40000
Tire Size	ST255/85R16'E'

	Customer Value Package	$4,500
	Luxury Package	$12,450
	5 Star Handling Package	$0
	Overlander 2 Solar Package	$1,943
	Overlander 4 Solar Package	$14,093
	Overlander EXT Solar Package	$21,750
	3rd A/C in living area (15K BTU)	$1,193
	18 cu. ft. 2-way refrigerator	$1,793
	Generator prep with 120 lb. max LP system	$1,193
	5500W Onan microquiet generator	$6,743
	Truma on demand water heater	$1,575
	Sani-con® turbo waste management system	$525
	360° security kit with 7" monitor	$1,365
	Dual pane tinted safety glass windows	$2,243
	Slideout awnings (3)	$1,793
	Outside griddle for JayPort system	$443
	7K axle with hydraulic disc brakes	$7,793
	Queen residential foam top mattress	$75
