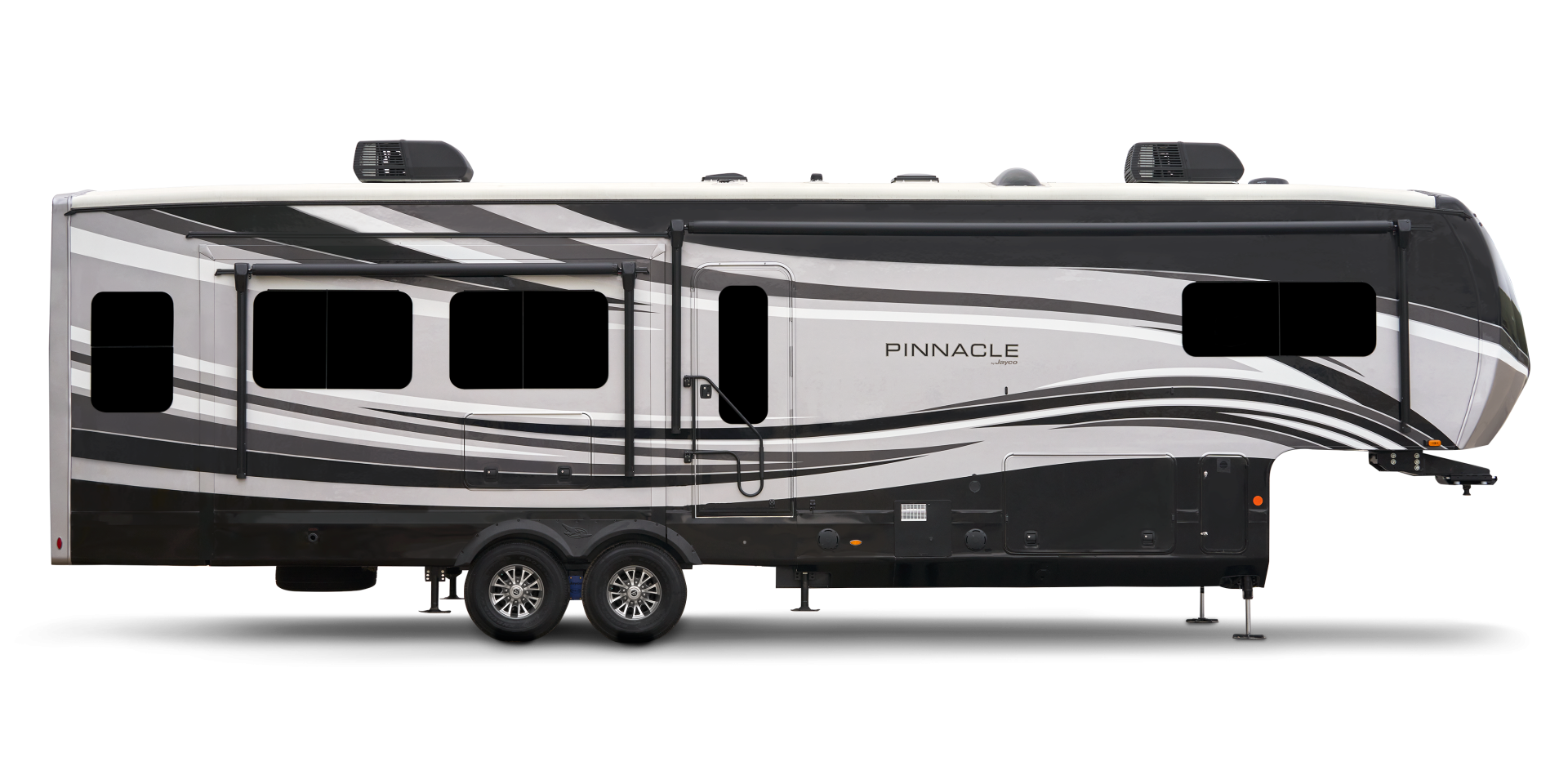

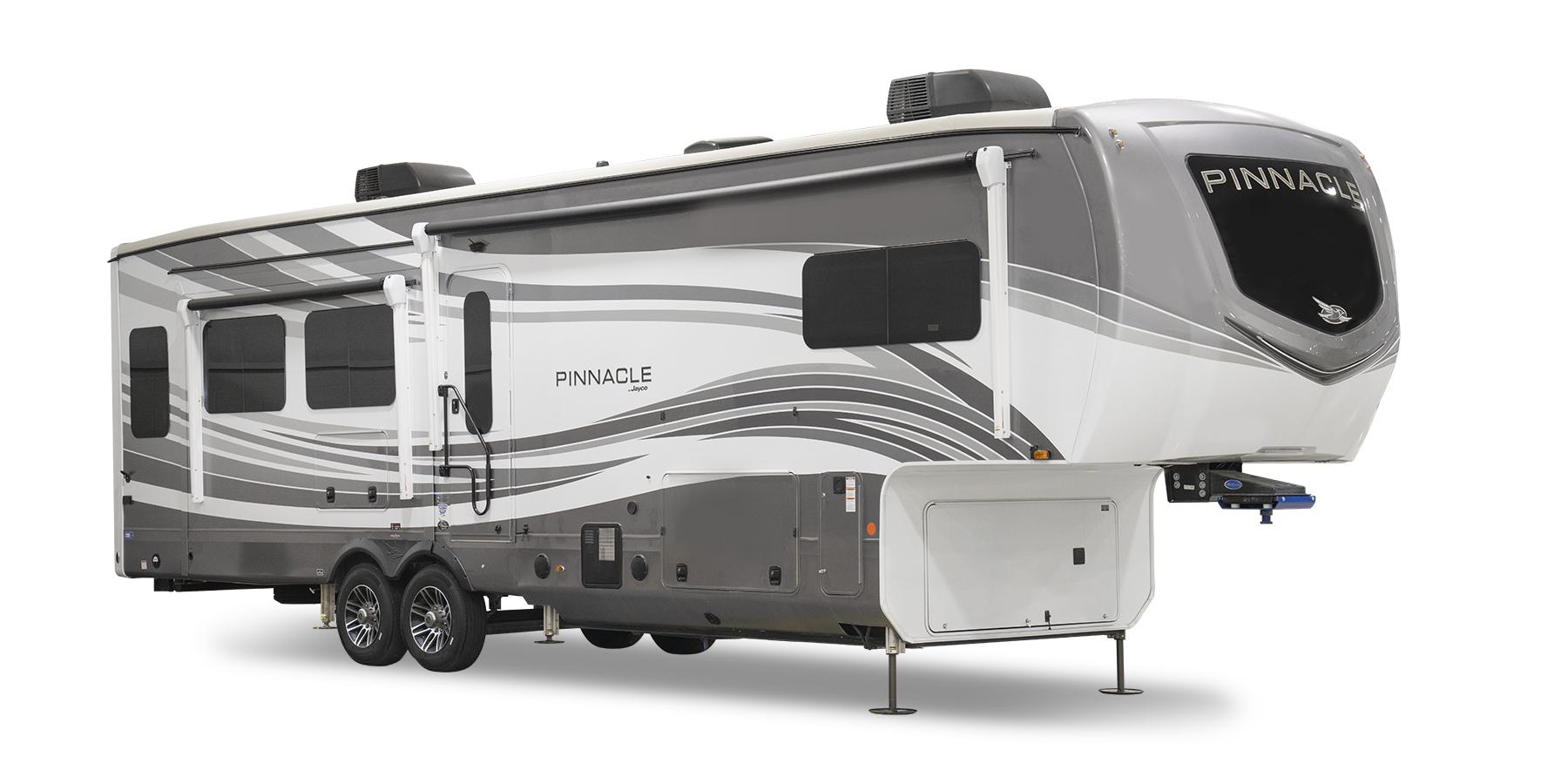

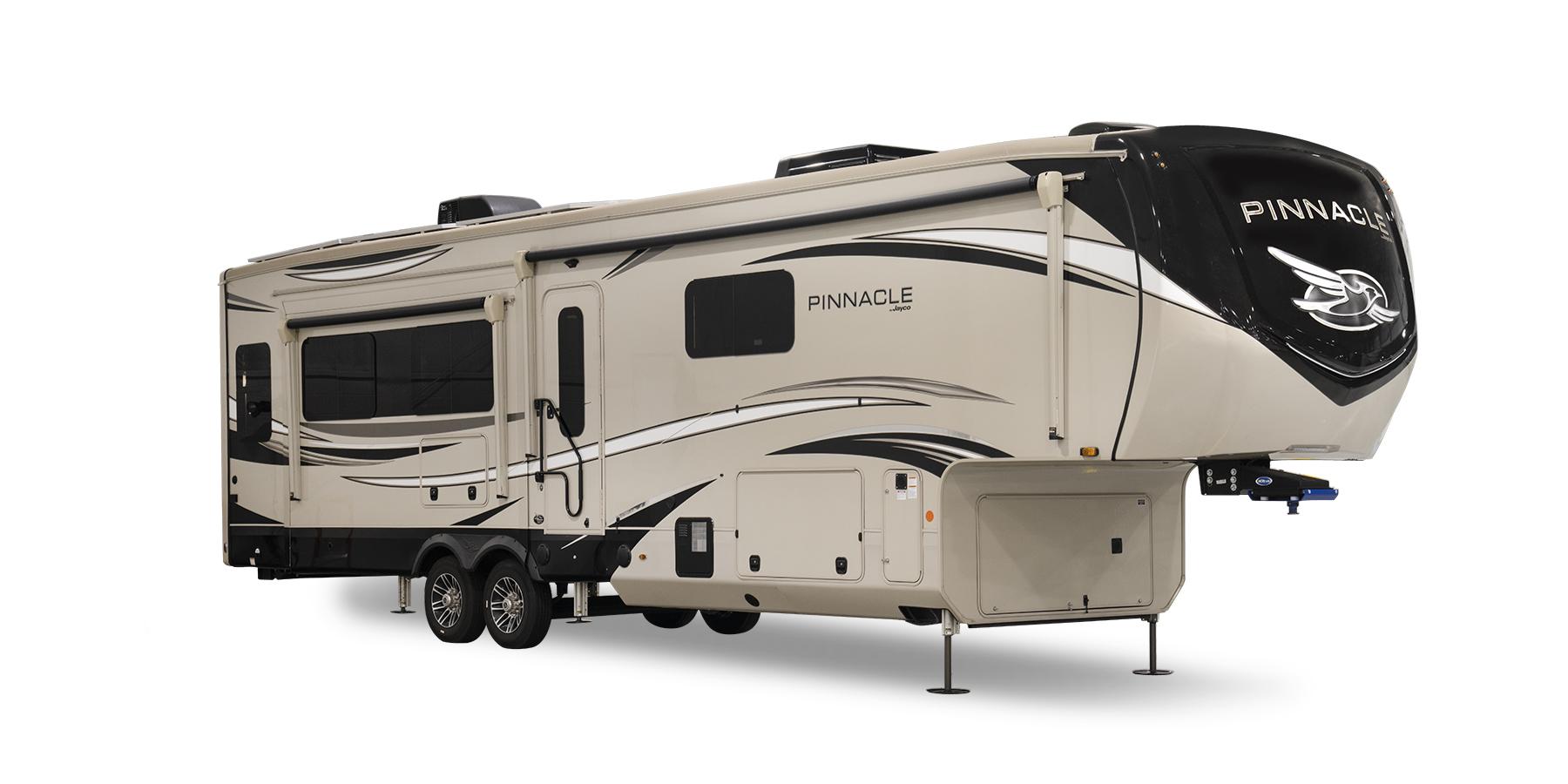

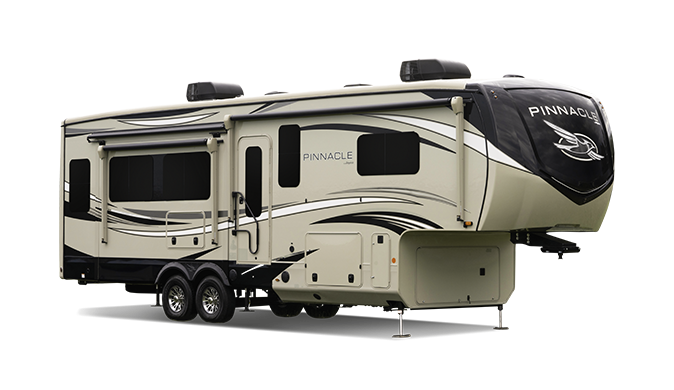

2023 Pinnacle

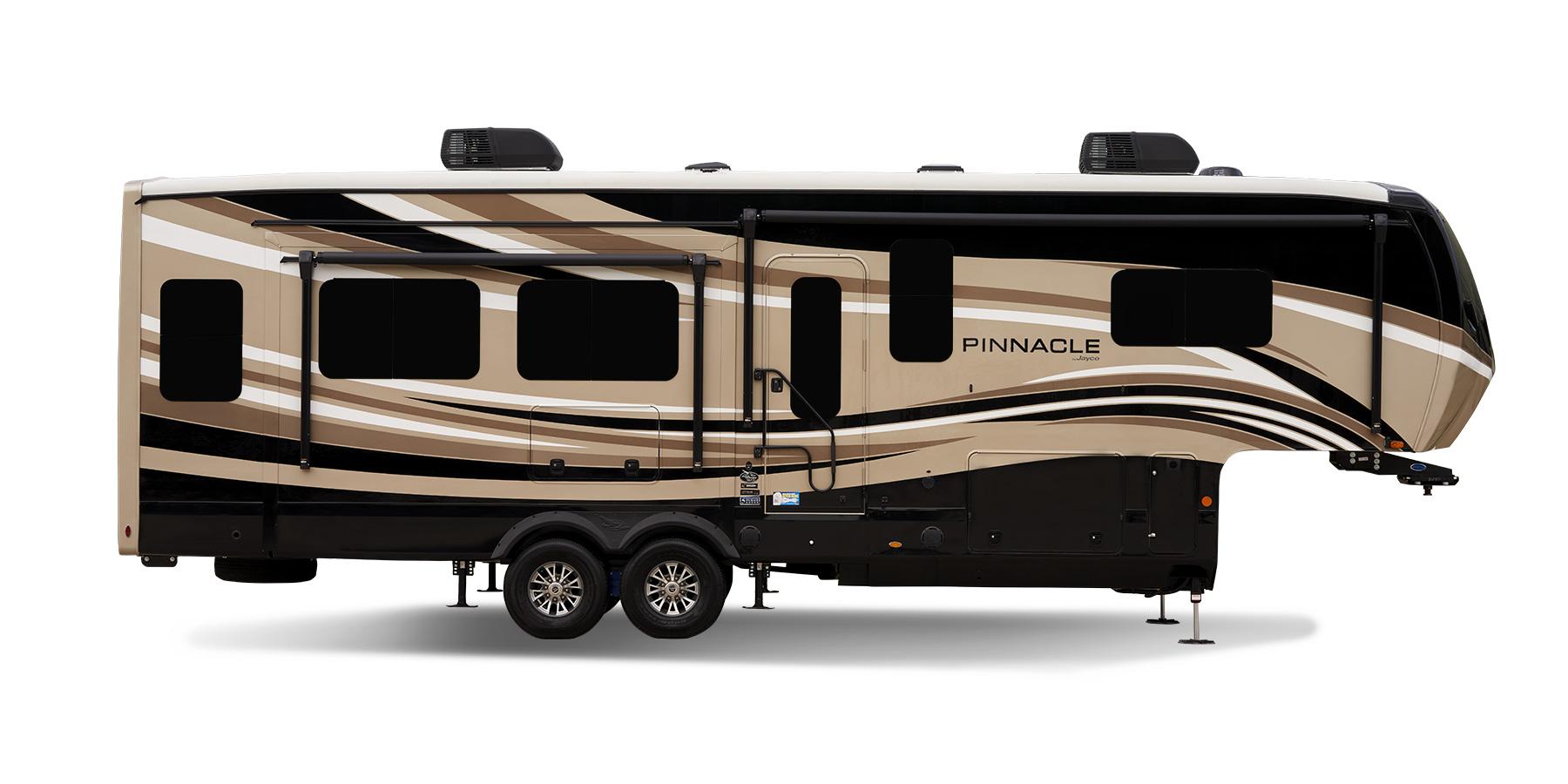

Aptly named, the Pinnacle luxury fifth wheel takes all the best a fifth wheel has to offer and elevates it to the top with technology, luxury, and attention to detail. The 102-inch wide body design provides the most room available in the industry. Room for solid hardwood cabinets and the Magnum 6XL roof rafter system – a six-inch roof that doesn’t taper down, creating higher ceilings throughout. Available in three stunning exterior full-body paint options, try the Pinnacle of camping today.

Pinnacle

Pinnacle Floorplans and Prices

Every Pinnacle floorplan provides room to spread out with layouts configured for different camping styles including rear and front living options. All our floorplans include gorgeous interior décor, 4K smart TVs, and a new 12-volt outlet in the main slide room to power the theatre seats while using a solar source for luxury off-grid camping.

Sleeps up to 10
Length 36' 4" - 44' 5"
Weight 12,870 - 14,835 lbs.

Standard Features and Options

Standard Exterior Equipment

  • Stronghold VBL™ aluminum framed and vacuum bond laminated gelcoated fiberglass exterior walls (including slide room end walls)
  • 12 in. structural steel I-beam with 10 in. steel drop frame
  • Magnum Truss™ XL6™ Roof System (strongest tested roof in the industry) with one piece, seamless roof material with a 20 year warranty material
  • Climate Shield™ zero-degree tested weather protection:
    • Fully enclosed and heated underbelly (ducted)
    • 40,000 BTU output furnace
    • Double layer fiberglass batt insulation (roof and floor)
    • PEX plumbing, 2 in. block foam and reflective foil
  • JaySMART™ (Safety Markers And Reverse Travel) LED lighting (patented)

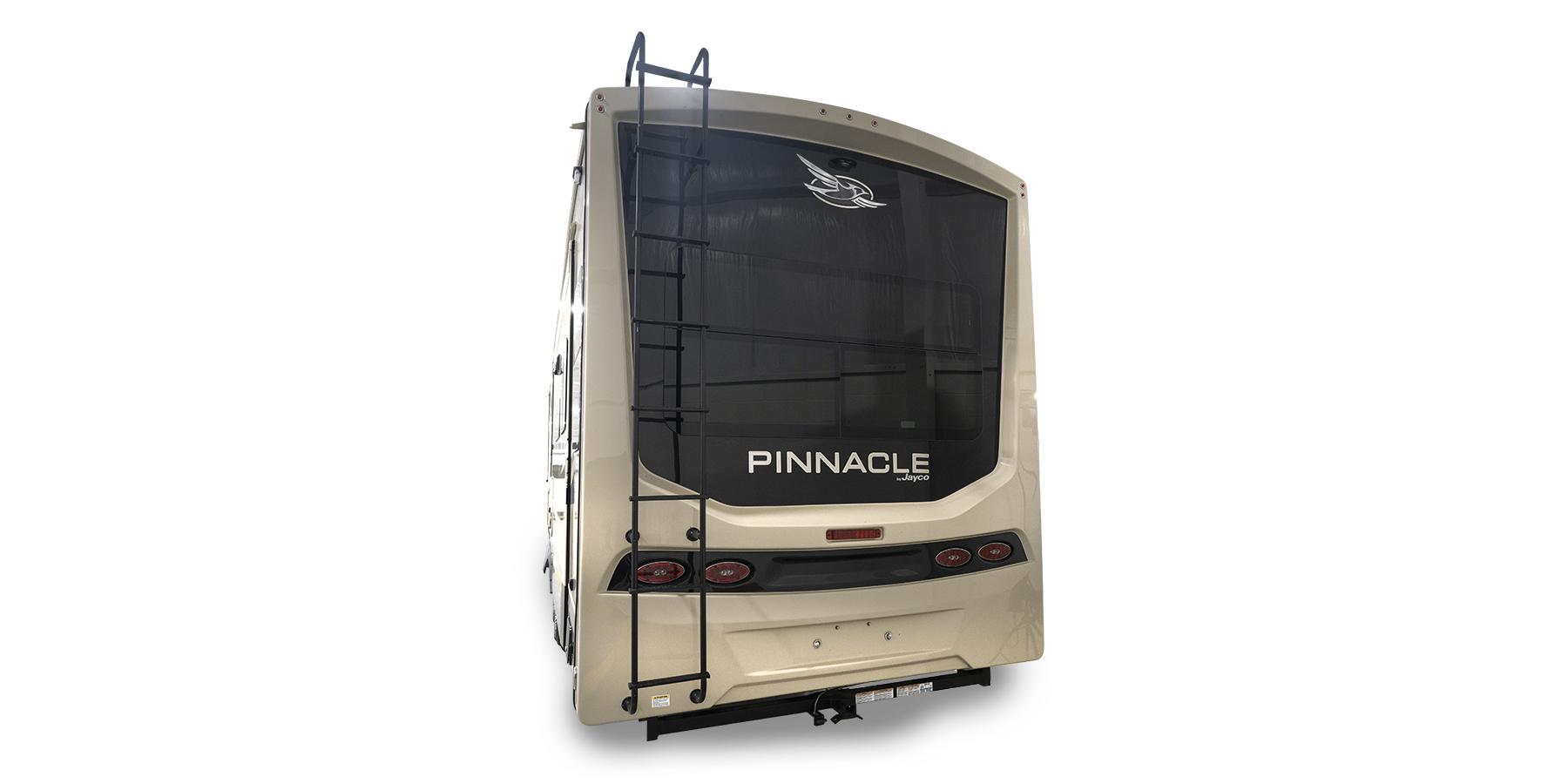

  • Painted fiberglass front and rear cap with clear coat and built-in specialty LED lighting
  • Frameless dark tinted safety-glass windows
  • Custom automotive-grade vinyl exterior graphics package
  • 102 in. widebody construction
  • Skirt metal enclosed drop frame
  • LED exterior lighting package
  • Dual 30 lb. propane bottles with auto regulator
  • Doorside compartment framed and vented for third propane bottle
  • Pass-through storage with Slam-latch™ baggage doors
  • Digital TV antenna with Wi-Fi extender
  • Exterior marine-grade speakers
  • Fully enclosed, universal docking center:
    • Selectable water connections
    • Quick-connect outside shower
    • Black tank flush
    • Winterization and sanitation
    • Independent satellite wiring
    • Whole coach cable hookups
    • Water heater bypass
  • Battery disconnect
  • Under-mounted spare tire

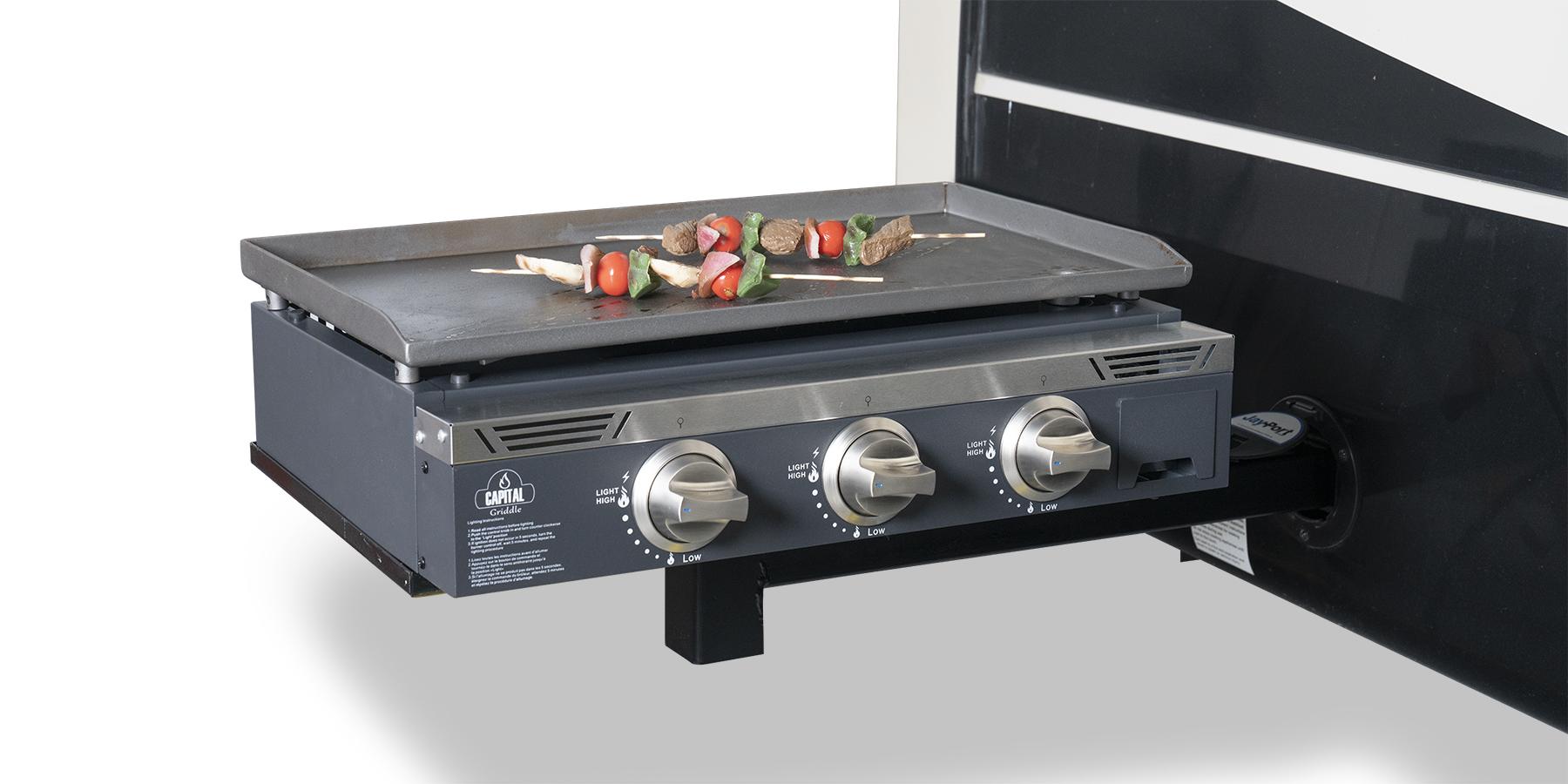

  • JayPort outside griddle prep (standard on all floorplans without a standard outside kitchen)
  • Built in sewer hose carrier
  • 3,000 lb. tow hitch with 4-way pin
  • Inverter pre-wire to select outlets
  • 120V heat blankets on all tanks plus 12V heat tape on fresh water line

Standard Interior Equipment

  • Solid hardwood slide fascia
  • Handcrafted hardwood glazed doors, stiles, drawers and trim
  • 5/8 in. tongue-and-groove joined plywood floor and 3/8 in. roof decking
  • Vinyl flooring (made in the USA) throughout including slide rooms
  • Ceiling fan (select models)
  • LED interior lighting throughout
  • LED accent lighting above slideouts
  • Tri-fold hide-a-bed sofa with sleep surface (select models)
  • Dual USB charging ports throughout
  • 12V charging station

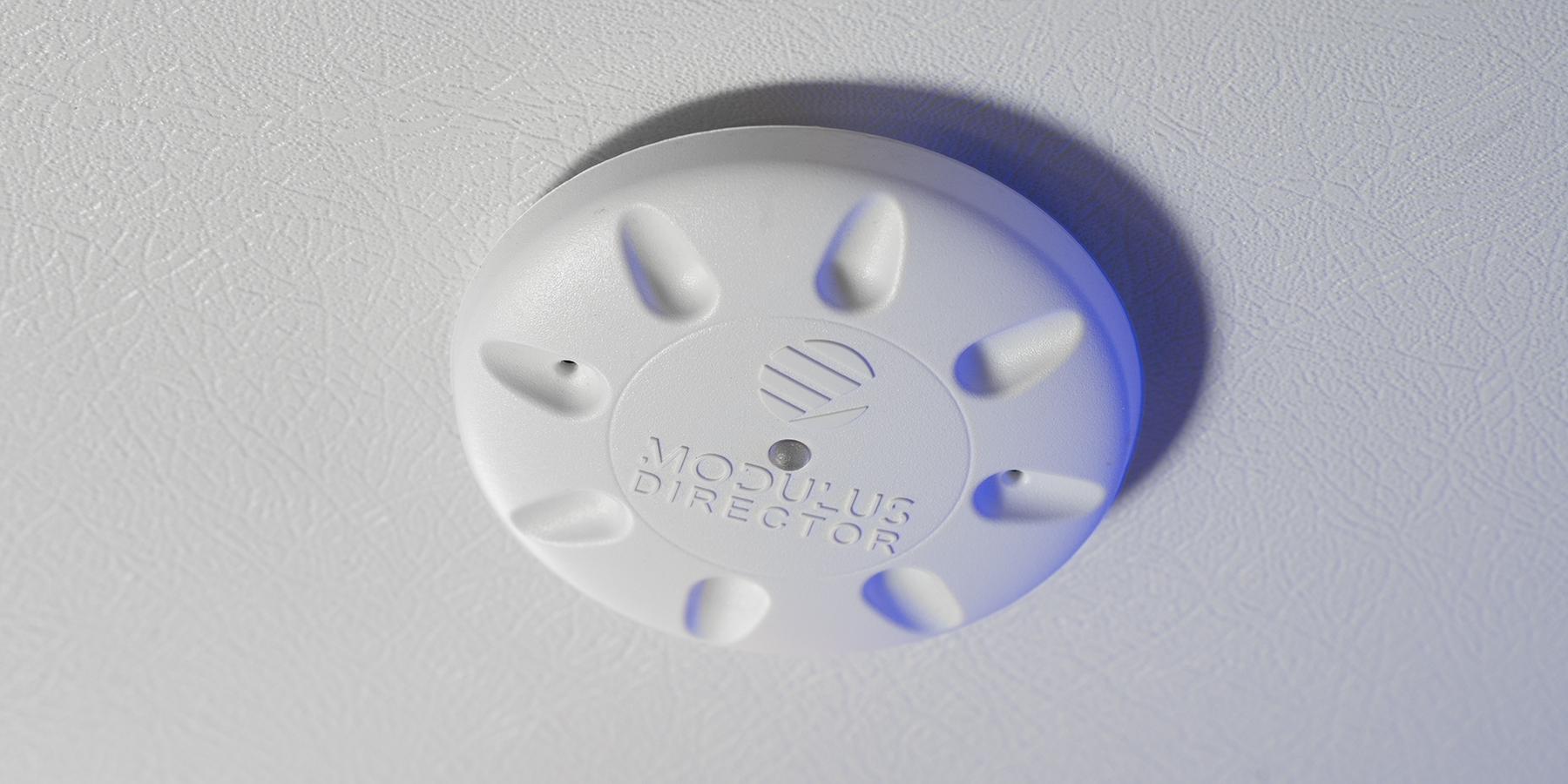

  • JayVoice voice command system - controls lighting, A/C and furnace
  • “Shoe garage” in hallway step (select models)
  • Flip-up tabletop storage next to tri-fold sofa (select models)
  • Soft close, heavy-duty, 75 lb. full extension, steel ball-bearing drawer guides
  • Toe kick nightlights in bedroom, bathroom and kitchen

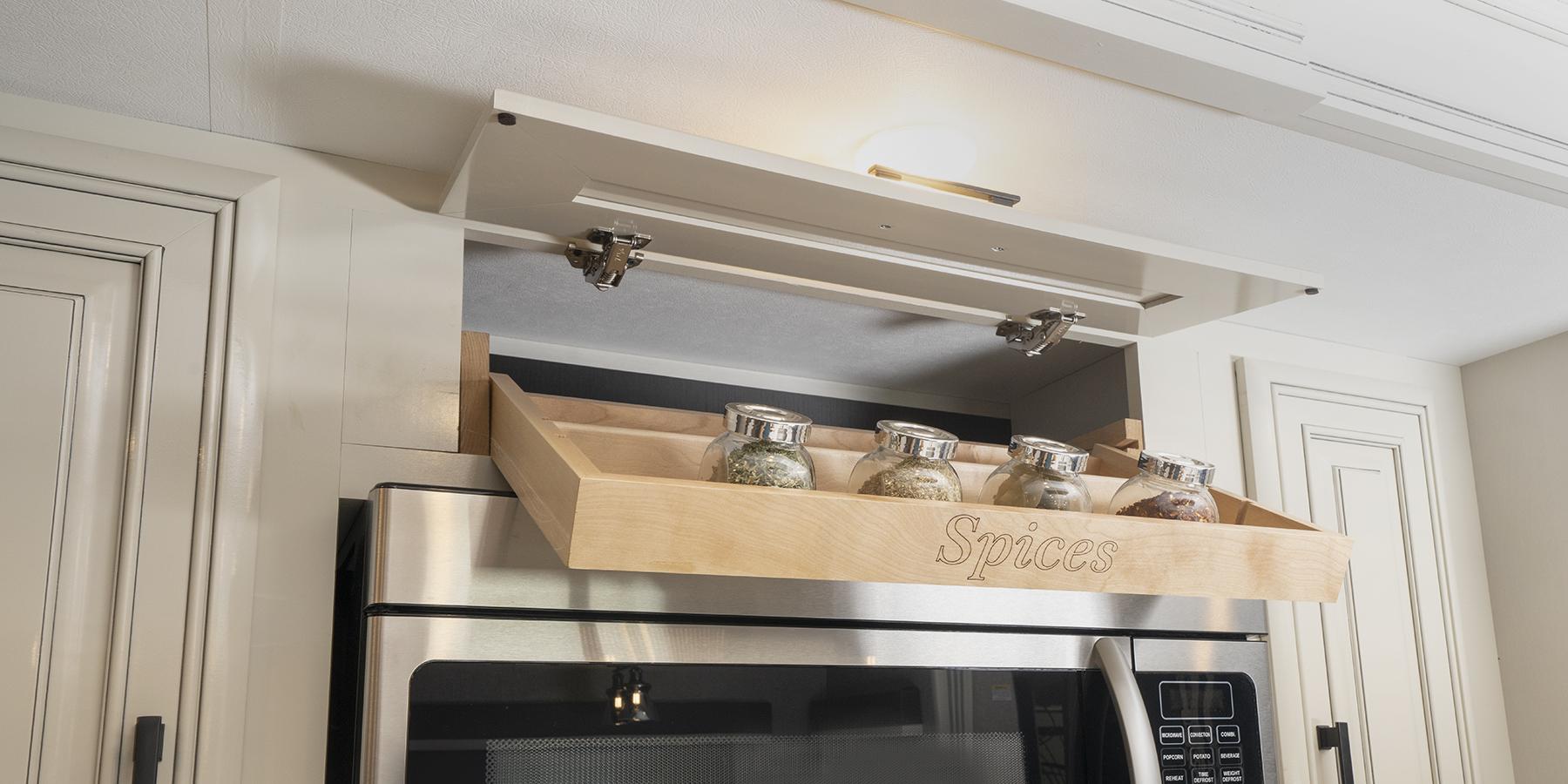

  • Pull-out spice rack above microwave (select models)

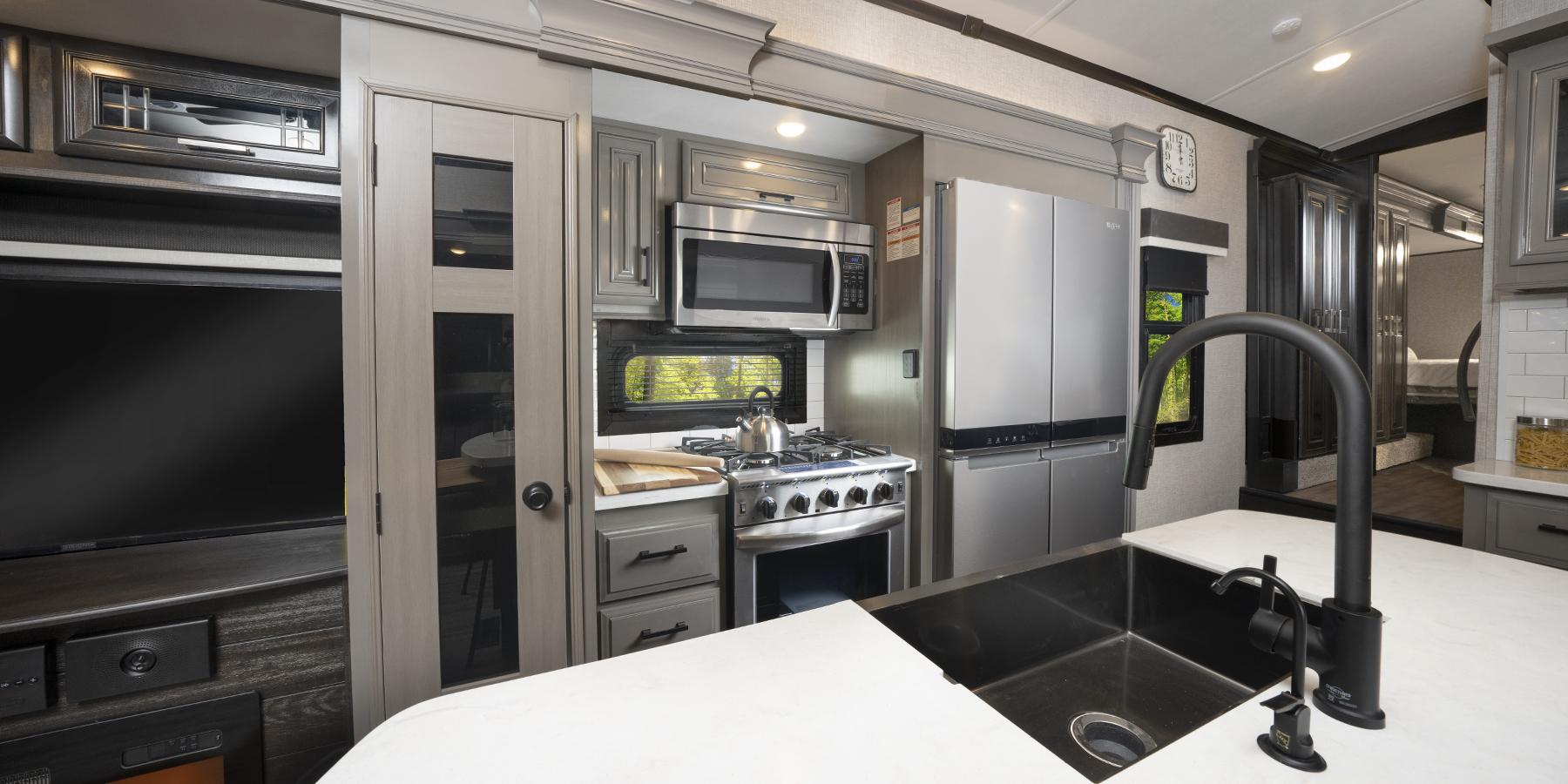

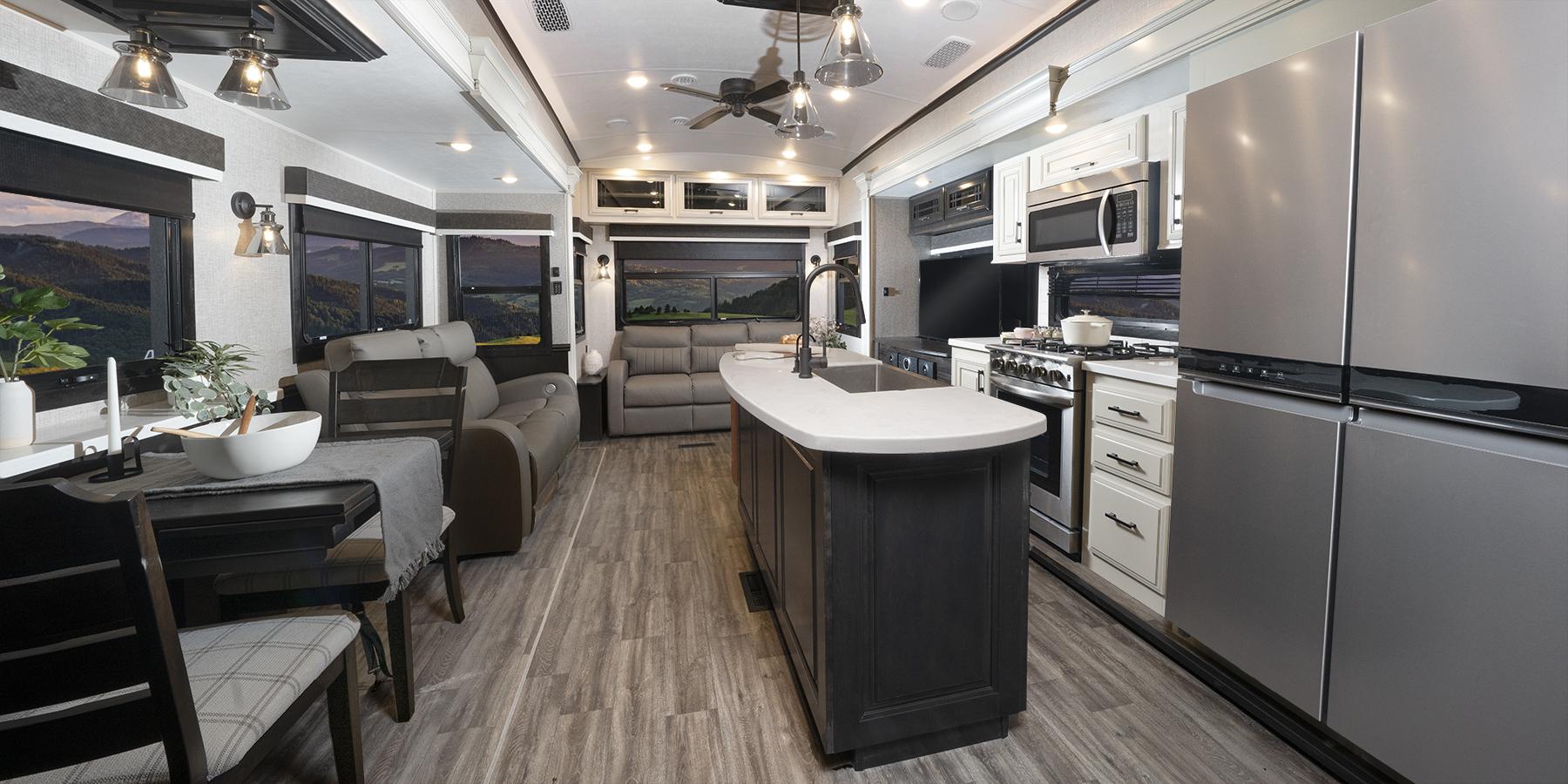

  • Farmhouse stainless steel kitchen sink
  • Residential-grade, pull-out kitchen faucet
  • Extra 120V power outlets in kitchen and slide rooms
  • Flip-up countertop extension with 24 in. x 24 in. butcher block bar top (select models)
  • Pull-out utility drawer under kitchen sink
  • Residential quilted bedspread and pillows
  • Cedar-lined front wardrobe closet
  • Gas-strutted under-bed storage

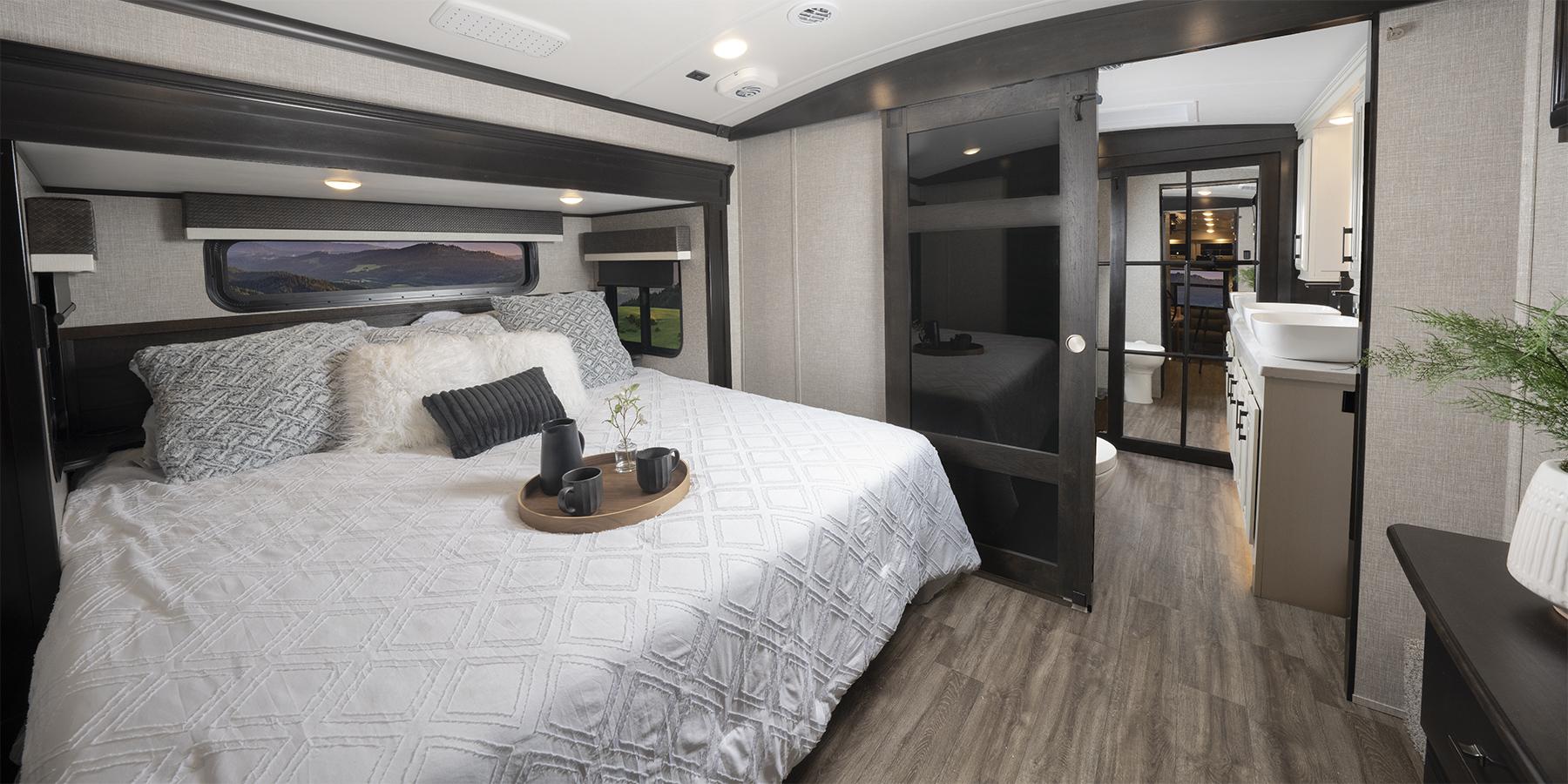

  • C.P.A.P. prepped bedroom (includes 120V outlets and night stands)
  • Carbon monoxide and LP detector
  • Flip-up hidden storage in bedroom chest of drawers (select models)
  • Built-in laundry hamper in wardrobe (select models)
  • Cup holders in bedroom nightstands (N/A 36SSWS)
  • Bathroom skylight
  • LED backlit custom framed mirror and medicine cabinet
  • Residential bathroom backsplash
  • Vessel bowl sink with high rise faucet in main bath
  • Porcelain toilet with foot flush

Customer Value Package (Mandatory)

  • 15,000 BTU “Whisper Quiet” A/C with heat pump (main)
  • 15,000 BTU “Whisper Quiet” A/C (bedroom)
  • Electric patio awning with integrated LED lights
  • 16 gal. gas/electric DSI water heater

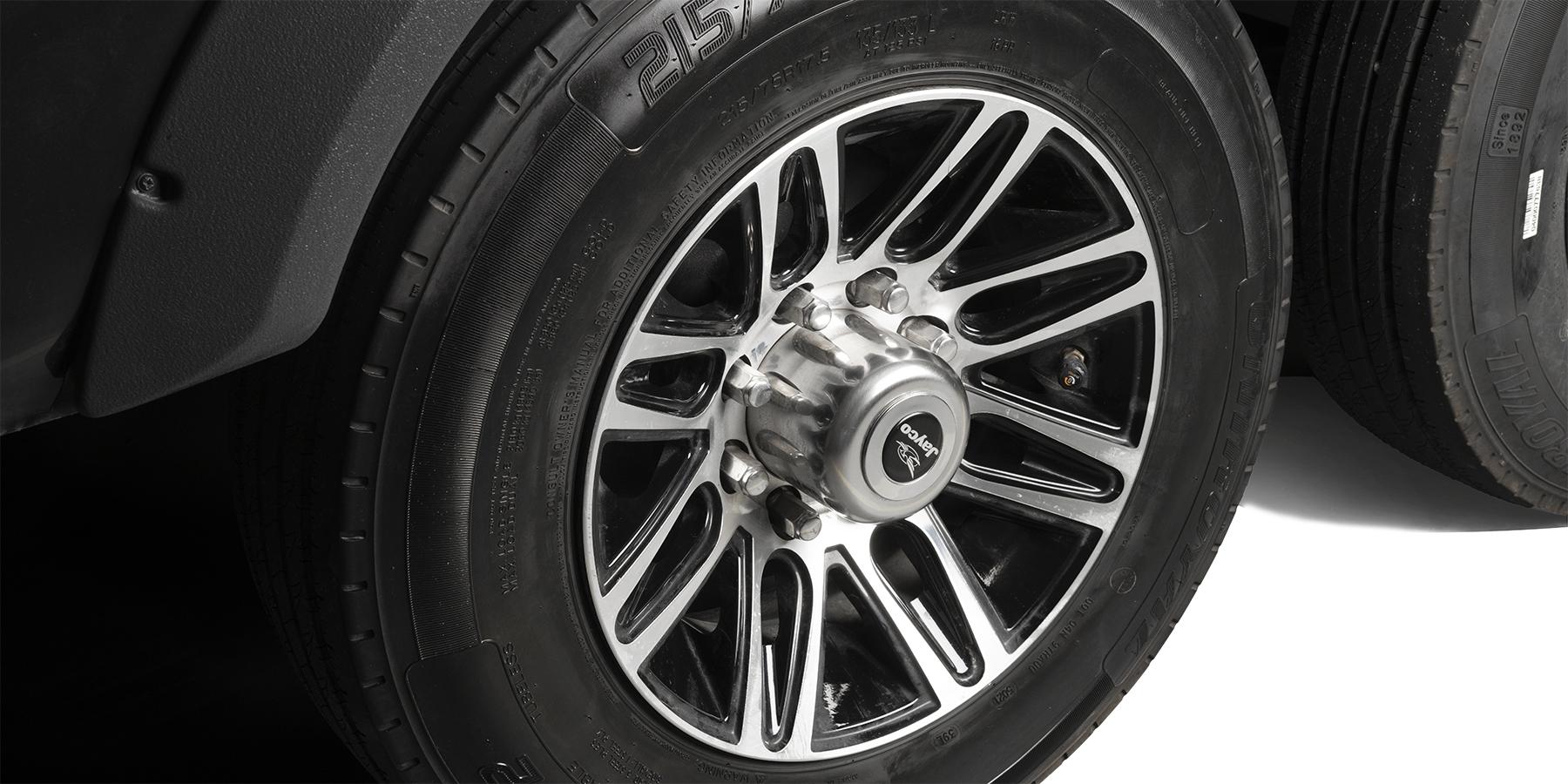

  • Custom machined aluminum rims
  • Keyed-Alike™ lock system (single key for all doors/locks)
  • Rooftop and ground solar prep
  • Backup, main entrance door and side observation security camera prep (includes a power switch in the bedroom to use the optional 7 in. monitor for security)
  • Hidden hinges on cabinet doors
  • XL grab handle
  • Home entertaiment system with subwoofer
  • 50 in. 4K SMART LED HDTV with fully digital HDMI® output and two additional HDMI® cables
  • Wireless remote control system (includes Bluetooth® wireless interior controls) with dimmer switches
  • Residential king (72 in. x 80 in.) mattress with under-bed storage

5 Star Handling Package (Mandatory)

  • 17.5 in. 'H' rated Uniroyal tires
  • MORryde® rubber pin box
  • Dexter® axles with Nev-R-Adjust® brakes, E-Z Lube® hubs and 4,000 lb. leaf springs
  • MORryde® LRE-4000™ rubberized suspension
  • Wet bolt fasteners and bronze bushings

Luxury Package (Mandatory)

  • 6-point hydraulic auto-leveling system
  • MORryde® StepAbove™ entrance steps (main entrance) with strut assist
  • 2nd electric patio awning with integrated LED lights
  • Powered 50-amp cord reel
  • JAYCOMMAND® “Smart RV” system
  • Cellular prep for 4G WiFi antenna and JAYCOMMAND®
  • High gloss gelcoated sidewalls
  • Oversized multi-battery compartment (industry leading room for 4-6 batteries)
  • 32 in. 4K outside Smart LED TV
  • Solid hardwood cabinet stiles
  • Central vacuum system with dust port
  • Day/night roller shades in living room
  • Frameless dark tinted safety-glass windows
  • Free-standing (no pedestal) table with leaf, (2) free-standing and (2) folding chairs

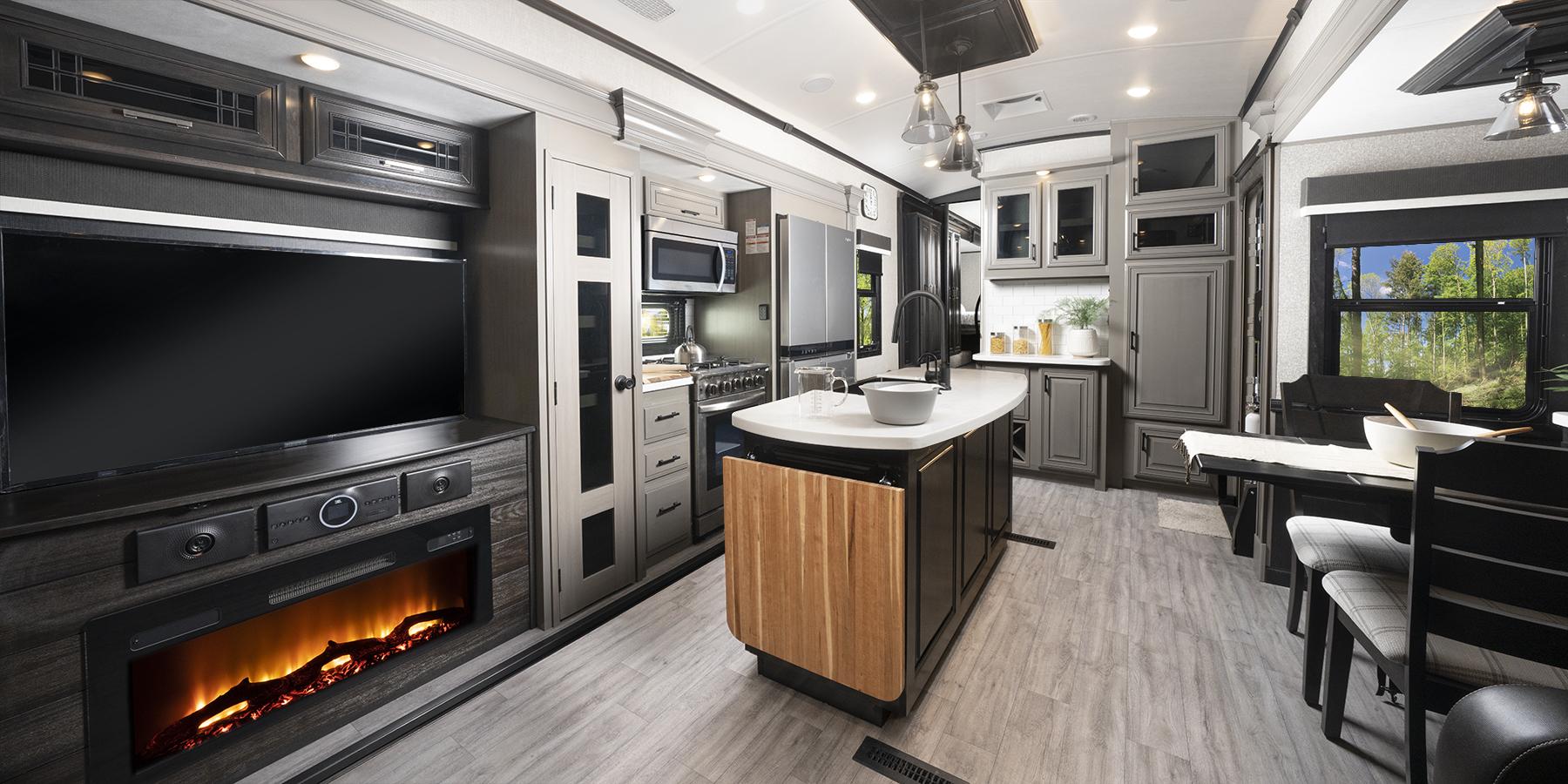

  • LED fireplace with electric space heater
  • Fresh Water Drinking System (patented) for fresh drinking water at the kitchen sink and water/ice dispensers in the residential refrigerator
  • Residential refrigerator with ice maker and 1800W pure sine wave inverter
  • 30 in. residential microwave
  • Residential 24 in. Insignia™ stove (3.73 cu. ft. with 12K BTU high output burner)
  • Residential solid-surface kitchen countertop with solid-surface sink covers
  • 32 in. 4K Smart LED bedroom TV

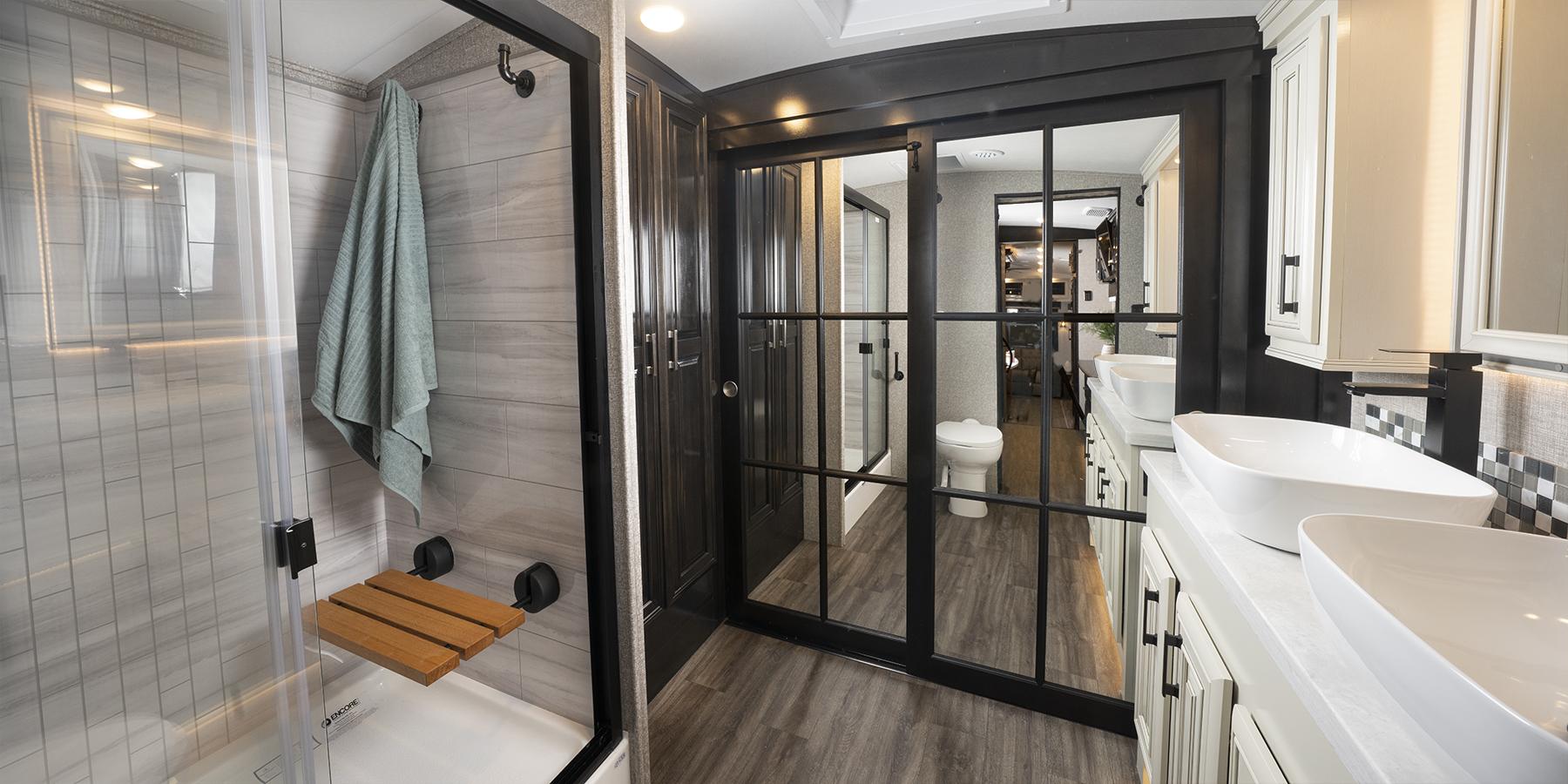

  • Residential walk-in shower with shampoo/soap holder, teak seat and shower tower
  • Washer/dryer prep

Options

  • True interior design choice (Modern Farmhouse or Silvermist)
  • Truma on-demand hot water system
  • Full body paint- Sand, Steel and Diamond
  • Wireless backup/side view/front entry door observation kit with 7 in. monitor
  • Sani-Con® Turbo waste management system
  • Generator prep with 120 lb. max LP system includes (3) 40lb. LP bottles
  • 5,500W Onan® Microquiet generator
  • Frameless dual-pane tinted safety-glass windows
  • Slideout awning (quantity varies by model)
  • 7K hydraulic disc brake package
  • 8K hydraulic disc brake package
  • 3rd-15,000 BTU ducted A/C
  • 20 cu. ft. 12V refrigerator
  • Queen residential foam-top mattress
  • Front wardrobe in place of front windshield and sofa lounge (36SSWS)
  • Butler’s pantry (in place of half bath 38FLGS)
  • Outside griddle for JayPort system (32RLTS, 36FBTS, 36KPTS, 36SSWS)
  • Overlander 2 Solar Package: 30-amp controller, (1) 1800W inverter and (2) 200W solar panels
  • Overlander 4 Solar Package: (4) 200W solar panels, (2) 100-amp/hour lithium heated batteries, 60-amp controller, 3000W inverter, DC/DC power converter, soft start power save main 15K A/C, soft start power save for bedroom 15K A/C, battery monitor, energy management system, roof pre-wire for additional solar panels, generator prep capable and heavy gauge steel battery enclosure
  • Overlander EXT Solar Package: 3,000W inverter/charger with internal 50-amp transfer switch, energy management system, (6) solar panels with 200W each, (6) 100-amp/hour lithium heated batteries, 12V DC A/C in bedroom, DC to DC battery charger, 100-amp MPPT controller management, generator prep capable

Standard Features
and Options

Overlander Packages
JAYCOMMAND<sup>®</sup>
JayVoice System
5 Star Handling Package
Climate Shield
JaySMART™
Prepped for Solar Power
Strong foundations
Stronghold VBL™ Lamination
The Magnum Truss™ Roof System

Overlander Packages

Solar Capabilities

Solar power offers RVers newfound freedom when it comes to their camping experiences by allowing users to break away from shore power constraints. Jayco RV now offers varying levels of optional solar packages on travel trailers, fifth wheels and toy haulers. Your next RV can come equipped with solar prep or optional solar packages.

Learn More »

JAYCOMMAND®

This system puts you in full control of your Jayco. Custom-built by our product development team and our partners, you can monitor and control key operations from just about anywhere on a phone or tablet.

Mini System Quick-Start Videos »Pro System Quick-Start Videos »

JayVoice System

JayVoice works in conjunction with the existing JAYCOMMAND® system to control functions like A/Cs, lights, furnaces, and more. The system is prompted by a wake word, “Jayco”. Once the word is spoken, the voice receiver on the ceiling will light up to indicate that it is listening for a command. Simply say “Jayco” and any of the predetermined commands like “Main A/C” and you can operate a variety of systems with just a few words. The voice receiver is mounted centrally within the RV to allow for utilization in not only the living area, but other rooms throughout the unit.

The JAYCOMMAND system puts RVers in full control of their unit. The system was custom-built by the Jayco product development teams along with various supplier partners, so that owners can monitor and control key RV operations from a phone or a tablet. Paired with the new JayVoice system, RVers can now voice command these functions to occur or still have the freedom of utilizing their phone or tablet while away from the coach.

Learn More »

5 Star Handling Package

The 5 Star Handling package is a Jayco exclusive blend of five high-end components selected and installed to deliver a more safe and stable luxury fifth wheel towing experience.

Learn more »

Climate Shield

Extend your camping season with built-in protection against extreme heat and cold—even in temperatures as high as 100 degrees or as low as zero degrees (Fahrenheit).

Learn more »

JaySMART™

The exclusive safety system adds several tow vehicle-controlled exterior lights to indicate turning, braking, reverse travel and hazard situations—because a split second can make all the difference.

Learn more »

Prepped for Solar Power

Jayco is one of the first companies to offer solar prep, or solar panels, on every single RV. With sidewall AND roof-mounted prep kits, you have the option to easily install solar panels for extra power at camp.

Learn more »

Strong foundations

While other manufacturers often weld or modify stock frames, every Jayco RV is built on a custom frame, designed and sized specifically to best support each unit on and off the road for years to come.

Learn more »

Stronghold VBL™ Lamination

Every sidewall, rear wall and slide room wall is bonded together for a minimum of 16 minutes under 144 tons of pressure to create the lightest, yet strongest, construction available in the RV industry.

Learn more »

The Magnum Truss™ Roof System

In testing, the creatively engineered system withstood 4,500 pounds—50 percent more than competitors’ roofs.  Walk confidently on top of your unit and feel safer in wind or snowstorms.

Learn more »

Pinnacle Videos

Superior Construction Elements

(Click on number for more information)

Cutouts
1
2
3
4
5
6
7
8

Your RV needs a strong foundation built specifically for your floorplan. We build each trailer on a frame that has been specifically designed by our skilled team of engineers for its size and shape to better endure the wear and tear of the road. Our frames also include more outriggers and cross members for better support and structural integrity.

Functionality is key and that's why Jayco uses MORryde over other brands. MORryde suspensions absorb the 3-4 in. of up and down travel that trailers often take while on the road.

Axles are a key factor to a comfortable and stable towing experience. That's why we partner with a long-standing American company, Dexter.

Jayco uses plywood vs. OSB or other materials because it is more eco-friendly (no formaldehyde), handles moisture better, is lighter in weight and has better screw retention.

Most manufacturers use standard 3500 lb. springs but on all Luxury Fifth Wheels and Toy Haulers we upgrade to the heavy duty 4000 lb. springs for maximum strength.

Jayco uses plywood vs. OSB or other materials because it is more eco-friendly (no formaldehyde), handles moisture better, is lighter in weight and has better screw retention.

The Magnum Truss™ Roof system is one of the strongest roofs in the industry. It's capable of withstanding 50 percent more weight- up to 4,500 lbs.- than the competition so that you can safely perform maintenance and avoid costly structure damage from debris, branches or snow.
