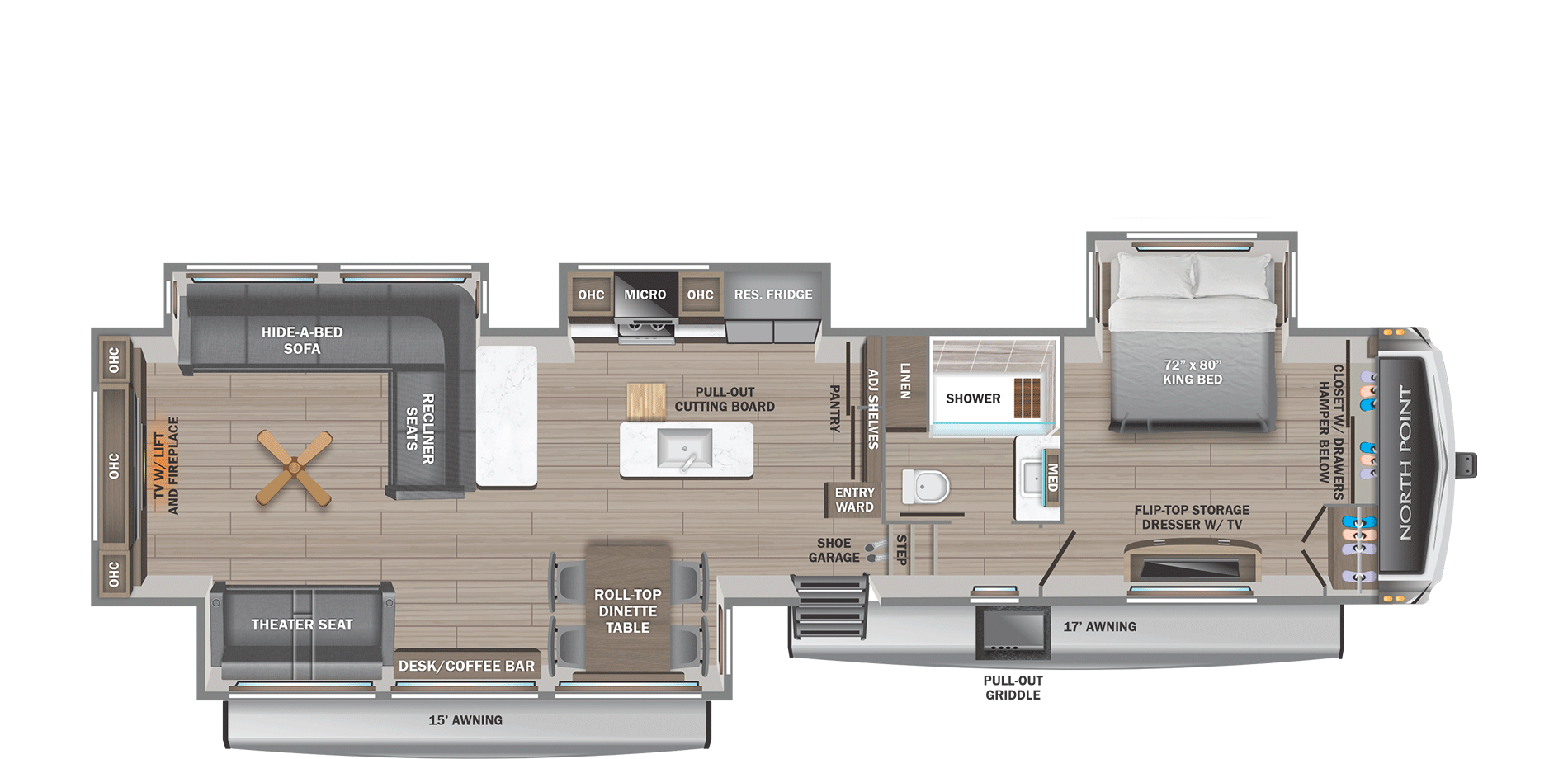

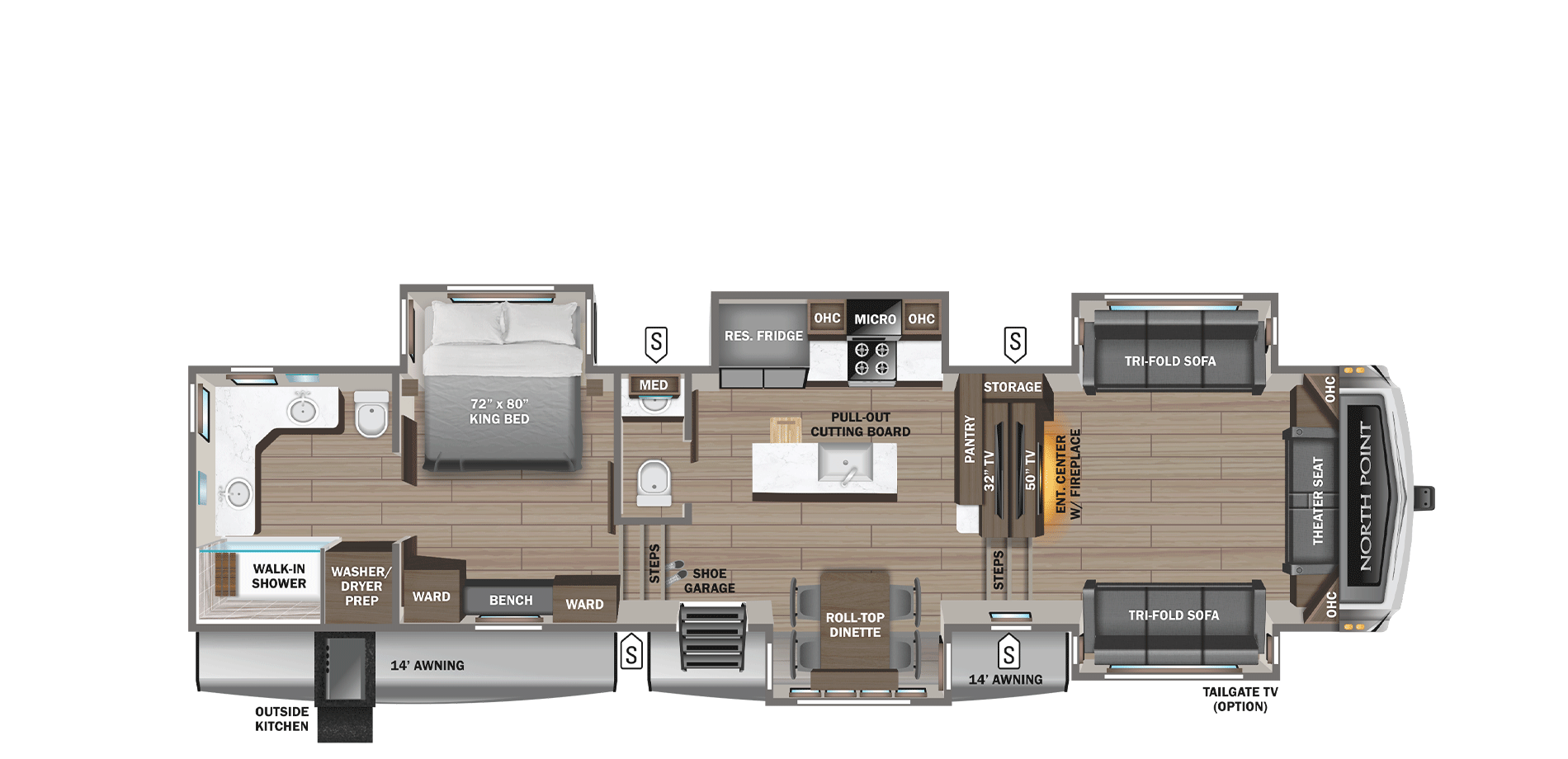

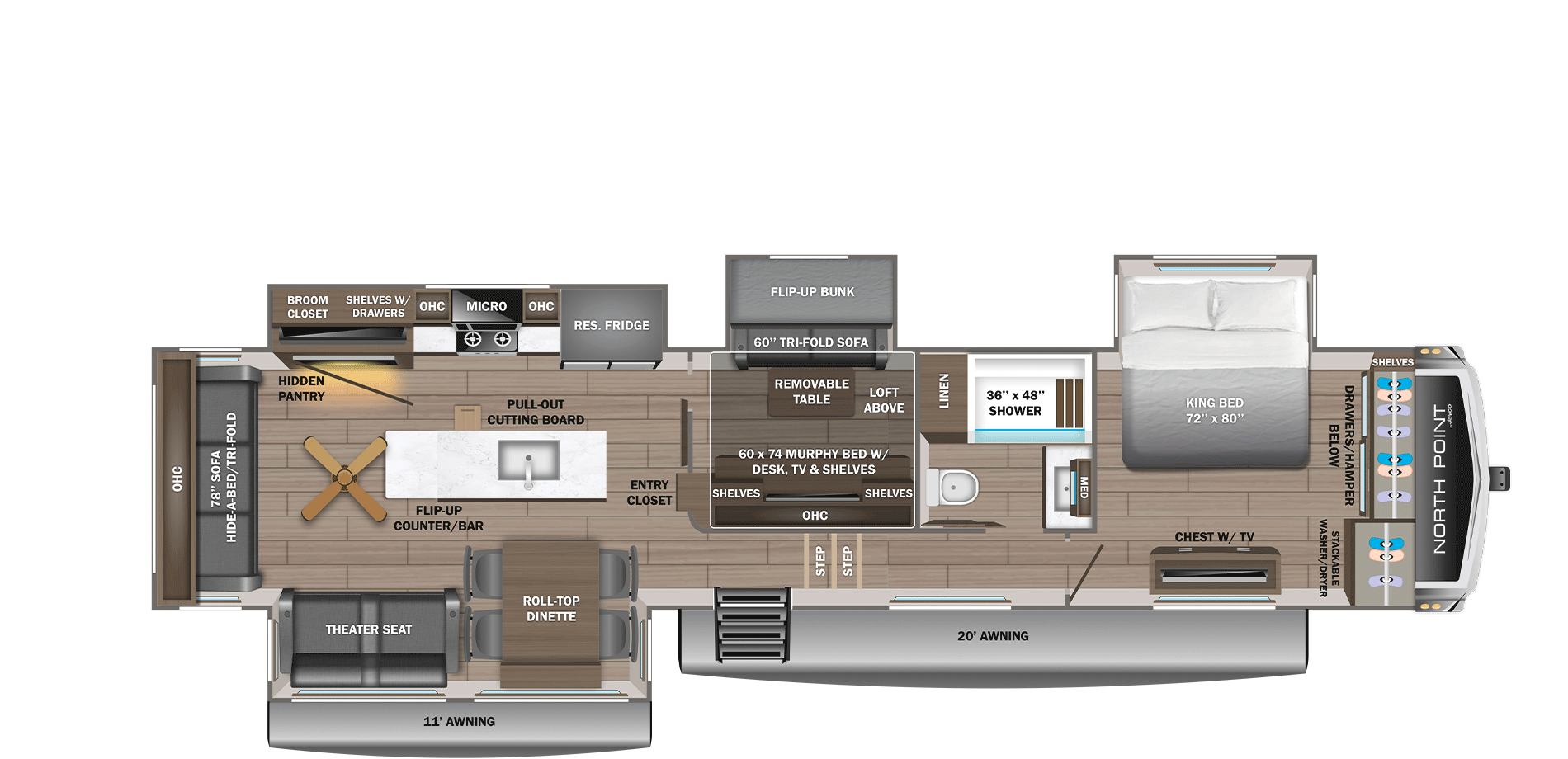

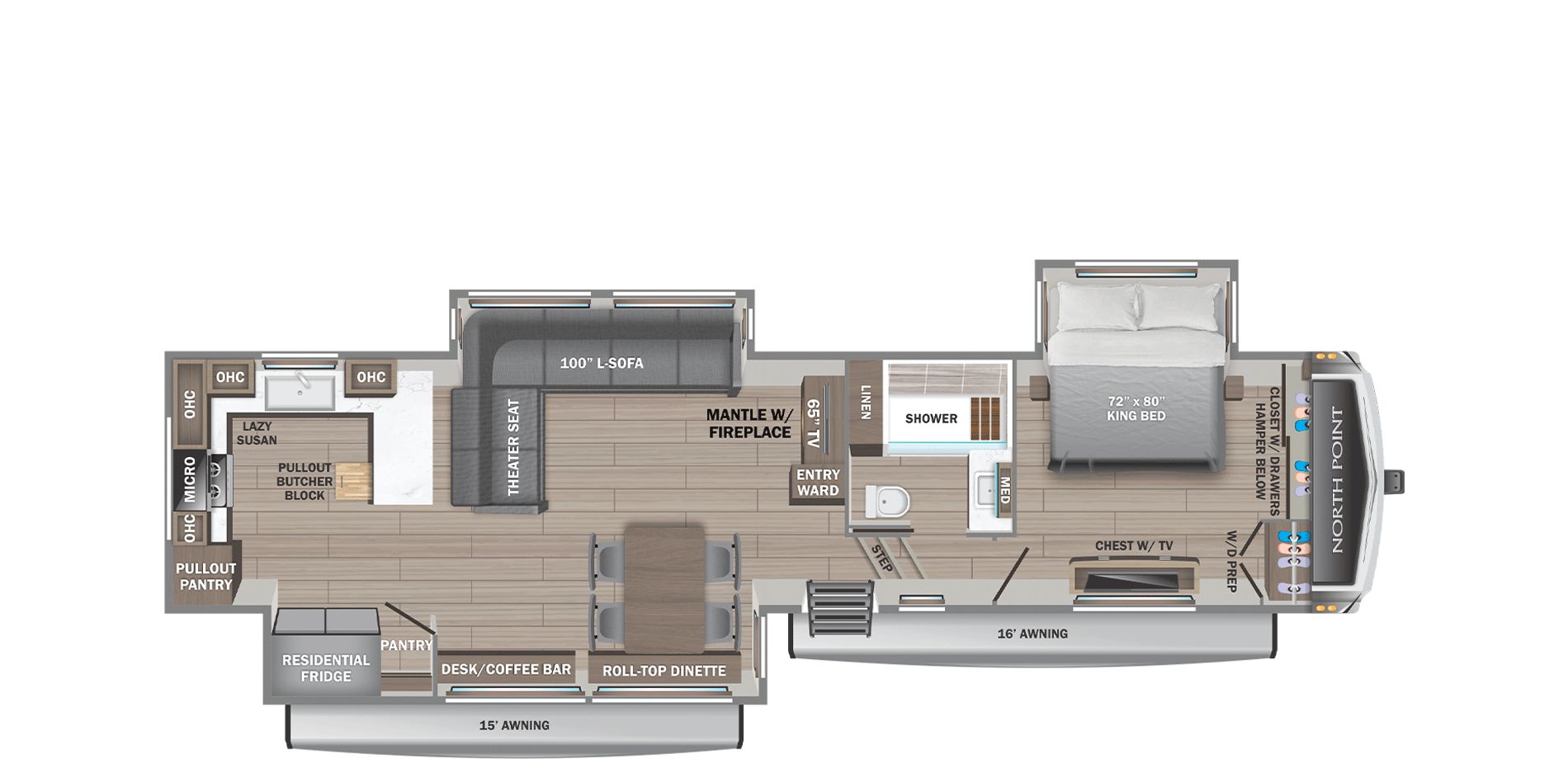

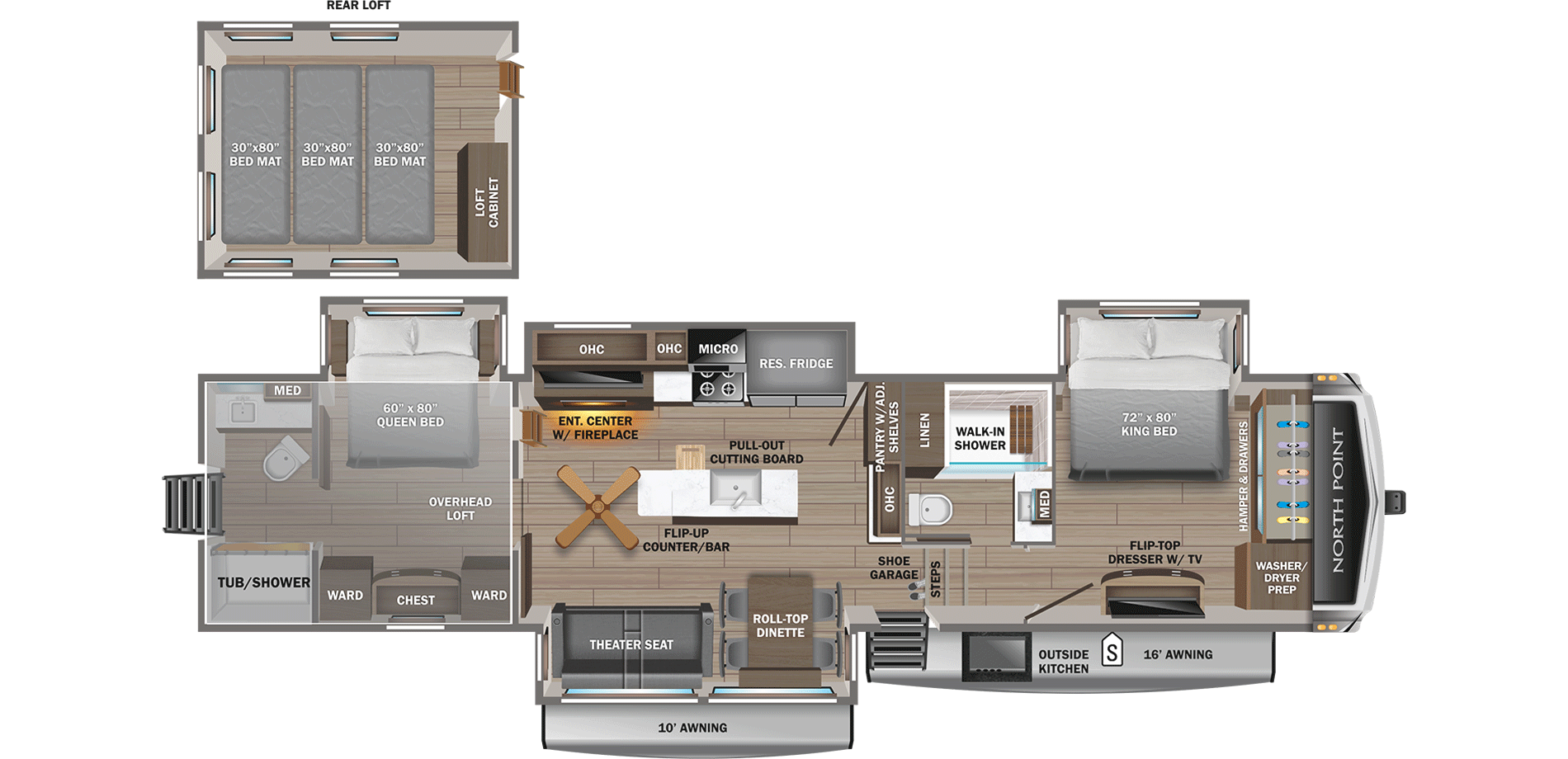

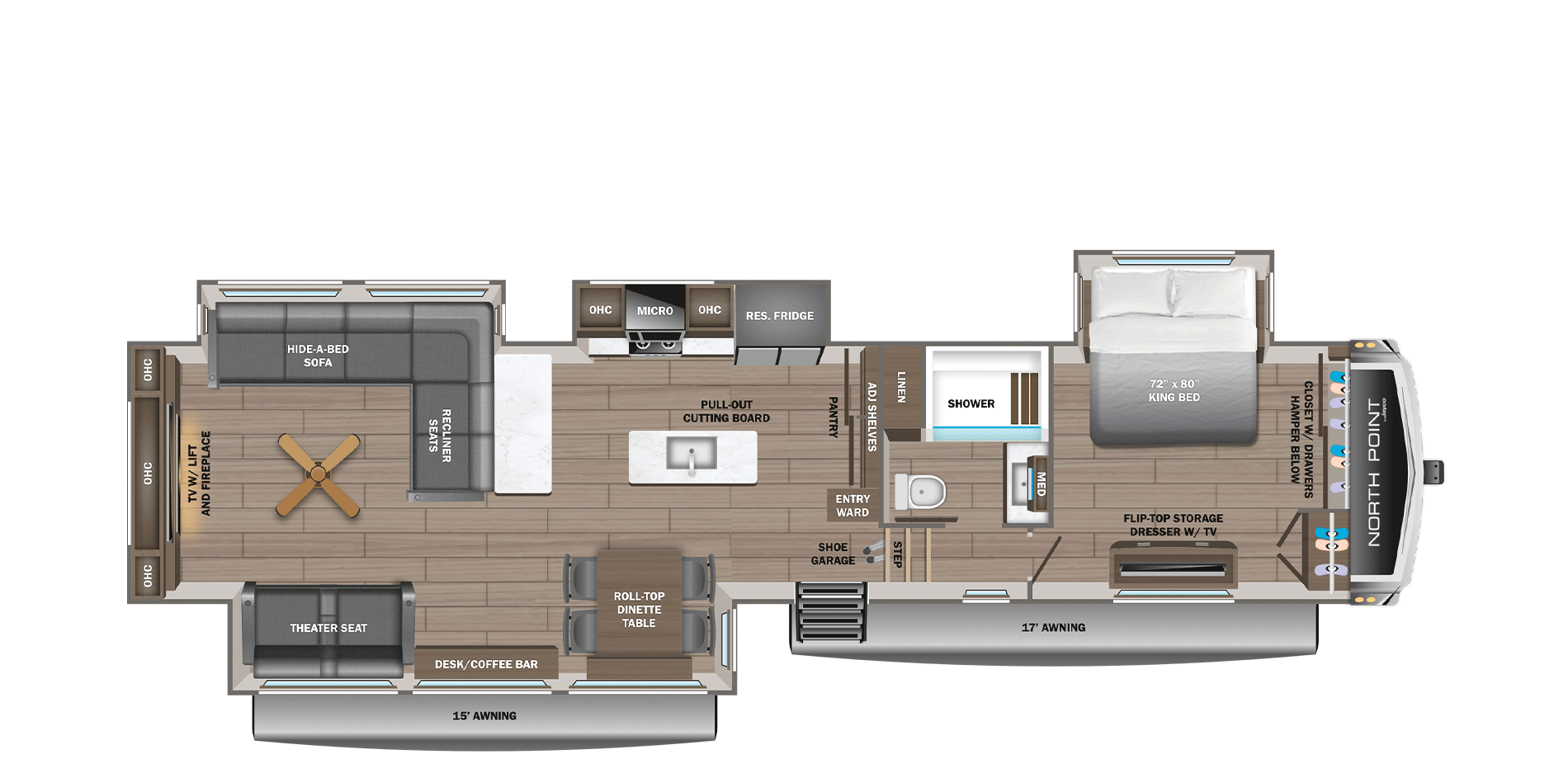

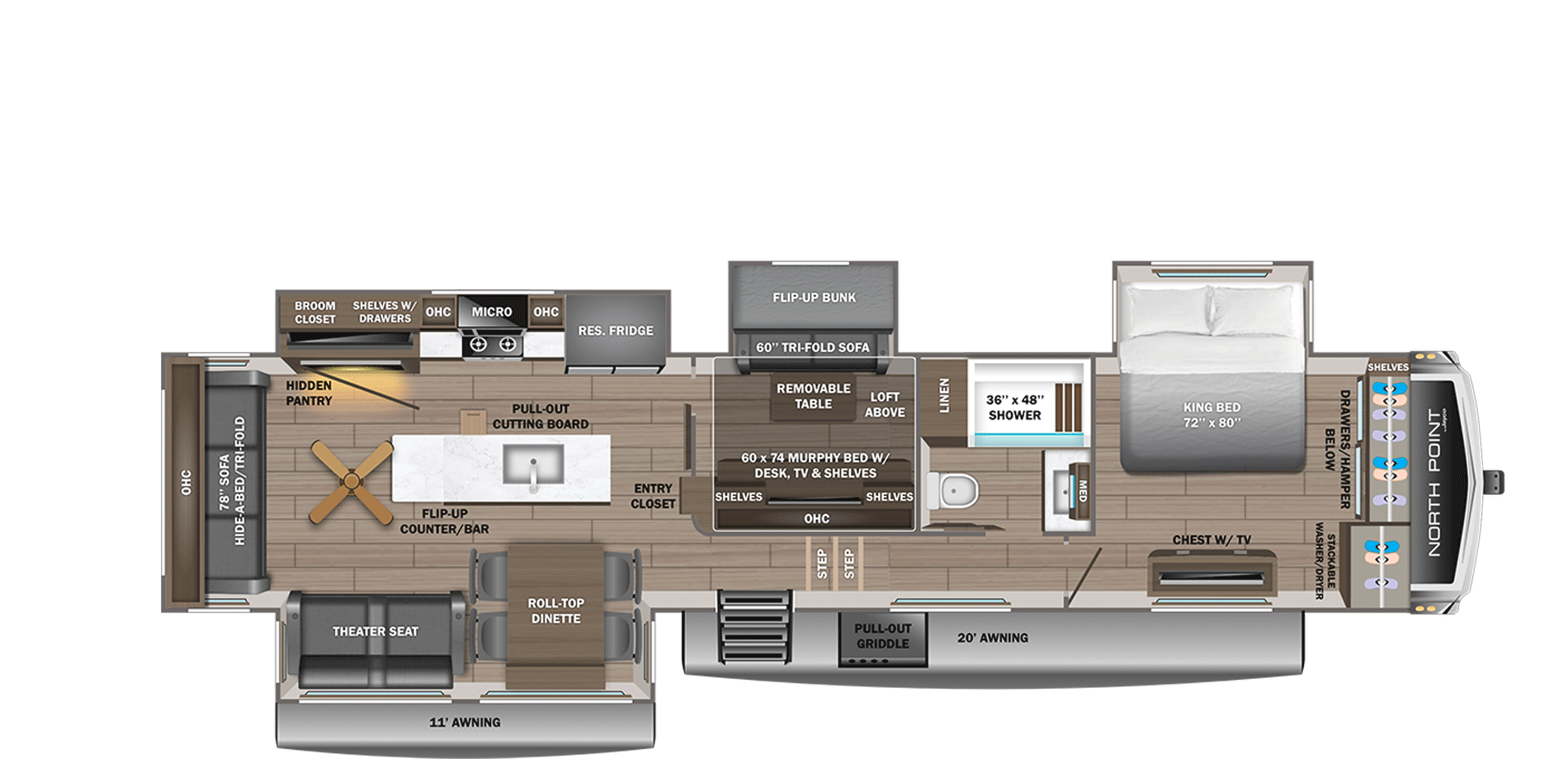

2026 North Point Floorplans

Standard Exterior Equipment

• 102 in. wide-body construction
• 12 in. structural steel I-beam with 8 or 10 in. monster beam steel drop frame
• 3K lb. tow hitch with 4-way pin (N/A on 390CKDS)
• Battery disconnect
• Built-in sewer hose carrier
• Climate Shield™ Zero-Degree Tested Weather Protection:
  • 40K BTU output furnace
  • Double-layer fiberglass batt insulation (roof and floor)
  • Fully enclosed and heated underbelly (ducted)
  • 2 in. block foam and reflective foil
• Digital TV antenna
• Exterior marine-grade speakers with Bluetooth® controller
• Frameless, dark-tinted, safety-glass windows
• Fully Enclosed Universal Docking Center:
  • Black tank flush
  • Independent satellite wiring
  • Quick-connect outside shower
  • Selectable water connections
  • Whole-coach cable hookups
  • Winterization and sanitation hookups
• Inverter pre-wire to select outlets
• JayPort® system for outside griddle (all floorplans without a standard outside kitchen)
• JaySMART™ (Safety Markers And Reverse Travel) LED lighting
• Magnum Truss™ XL6™ Roof System with Alpha roof membrane (limited lifetime warranty)
• Painted fiberglass front cap with clear coat and built-in specialty LED lighting
• Pass-through storage with Slam-Latch™ baggage doors
• Skirt-metal enclosed drop frame
• Stronghold VBL™ aluminum-framed and vacuum-bond laminated, gel-coated fiberglass exterior walls (including rear wall and slide room end walls)
• Under-mounted spare tire
• Water heater bypass

Standard Interior Equipment

• 5/8 in. tongue-and-groove joined plywood floor decking
• Built-in laundry hamper in wardrobe (select models)
• Carbon monoxide and LP detector
• Ceiling fan (select models)
• C.P.A.P.-prepped bedroom
• Dual USB charging ports throughout
• Flip-up countertop extension/bar top (select models)
• Flip-up hidden storage in bedroom chest of drawers (select models)
• Flip-up tabletop storage next to tri-fold sofa (select models)
• Gas-strutted under-bed storage
• Handcrafted hardwood doors and drawers
• Integrated under-mount sink and lever faucet in main bathroom
• LED accent lighting above slideouts
• LED backlit custom-framed mirror and medicine cabinet (select models)
• No in-floor heat registers throughout coach
• Pantry with adjustable shelves (includes 120V outlet)
• Pull-out cutting board above trash can
• Pull-out utility drawers under kitchen sink
• Residential quilted bedspread and pillow shams
• “Shoe garage” in hallway step (select models)
• Soft-close, 75 lb. full extension ball-bearing drawer guides
• Solid hardwood slide fascia
• Stain-protected fabric on all furniture
• Toe-kick nightlights in bedroom and bathroom
• Tri-fold hide-a-bed sofa with residential sleep surface (select models)
• Up/down switch to raise/lower the TV by theater seats
• Vinyl flooring (Made in the USA) throughout (including slideout floors)

Customer Value Package (Mandatory)

• 15K BTU “Whisper Quiet” A/C (main) / 15K BTU “Whisper Quiet” A/C (bedroom)
• On-demand tankless hot water heater
• 4K Smart LED HDTV with fully digital HDMI® output and two extra HDMI cables
• Backup, main entrance door, and side observation security camera prep (includes a power switch in the bedroom to use the optional monitor for security)
• Custom, black, machined aluminum rims
• Electric patio awning (multi-color with remote control)
• Hidden hinges, magnet latches, and soft-close cabinet doors and drawers
• JBL® home entertainment system with sound bar and wireless subwoofer
• Keyed-Alike™ lock system (single key for all doors/locks)
• MORryde Safe-T-Rail™ grab handle
• Residential king (72 in. x 80 in.) mattress with under-bed storage
• Wireless remote-control system (includes Bluetooth® wireless controls) with dimmer switches
• Residential dovetail-jointed drawers throughout
• (3) 40 lb. propane bottles with auto regulator (120 lb. max LP system)
• Free-standing ottoman with hinged top
• Overlander II Solar Package: 30-amp controller, 1800W inverter, and (2) 200W solar panels

Customer Value Package (Optional)

• Whisper Quiet 15K BTU central air with heat pump

5 Star Handling Package (Mandatory)

• 17.5 in. 16-ply “H”-rated tires with SpartanLync™ TPMS
• Dexter® axles with ABS and Tow Assist – includes Nev-R-Adjust® brakes and E-Z Lube® hubs
• MORryde® CRE-3000™ rubberized suspension
• MORryde® rubber pin box
• Wet-bolt fasteners, bronze bushings, and 4K lb. leaf springs

Luxury Package (Mandatory)

• 2nd electric patio awning with multi-color LED lighting and remote control
• Frameless dark-tinted safety-glass windows
• High gloss gel-coated sidewalls
• MORryde® StepAbove™ entrance steps with strut assist
• Oversized multi-battery compartment (room for 4–6 batteries)
• 32 in. 4K Smart bedroom TV
• Central vacuum system with dust port
• Free-standing roll-top (no pedestal) table with (2) free-standing and (2) folding chairs
• LED fireplace with electric space heater
• Privacy day/night roller shades in living room
• GE 21 cu. ft. residential refrigerator with 1800W inverter
• GE 30 in. space-saver convection microwave with built-in air fryer
• GE Profile Series residential 24 in. range
• Residential, solid-surface kitchen and bathroom countertops
• Residential walk-in shower with teak seat
• Residential “Do it all” sink
• 6-point hydraulic auto-leveling system
• Washer/dryer prep
• Residential NuvoH2O whole coach water treatment system with water softening and triple cartridge filters
• JAYCOMMAND™ Smart RV System

Optional Exterior Paint Package

• Mineral
• Smoke
• Pearl

Options

• 20 cu. ft. 12V refrigerator
• 39 in. 4K Smart TV in cargo area
• 3rd 15K BTU ducted A/C
• 5,500W Onan® MicroQuiet® generator
• 7K hydraulic disc brake package (ABS N/A with disc brakes)
• 8K hydraulic disc brake package (ABS N/A with disc brakes)
• Frameless dual-pane tinted safety-glass windows
• Generator prep
• MORryde® independent suspension with shocks, 8K axles, and disc brakes (ABS N/A)
• Outside HALO griddle for outside kitchens or JayPort® system (includes LP quick-connect) (select models)
• Queen residential foam-top mattress
• Slideout awning(s) (quantity varies by model)
• Extreme Weather Package: 120V heated holding tank pads and 12V wrapped and heated freshwater line
