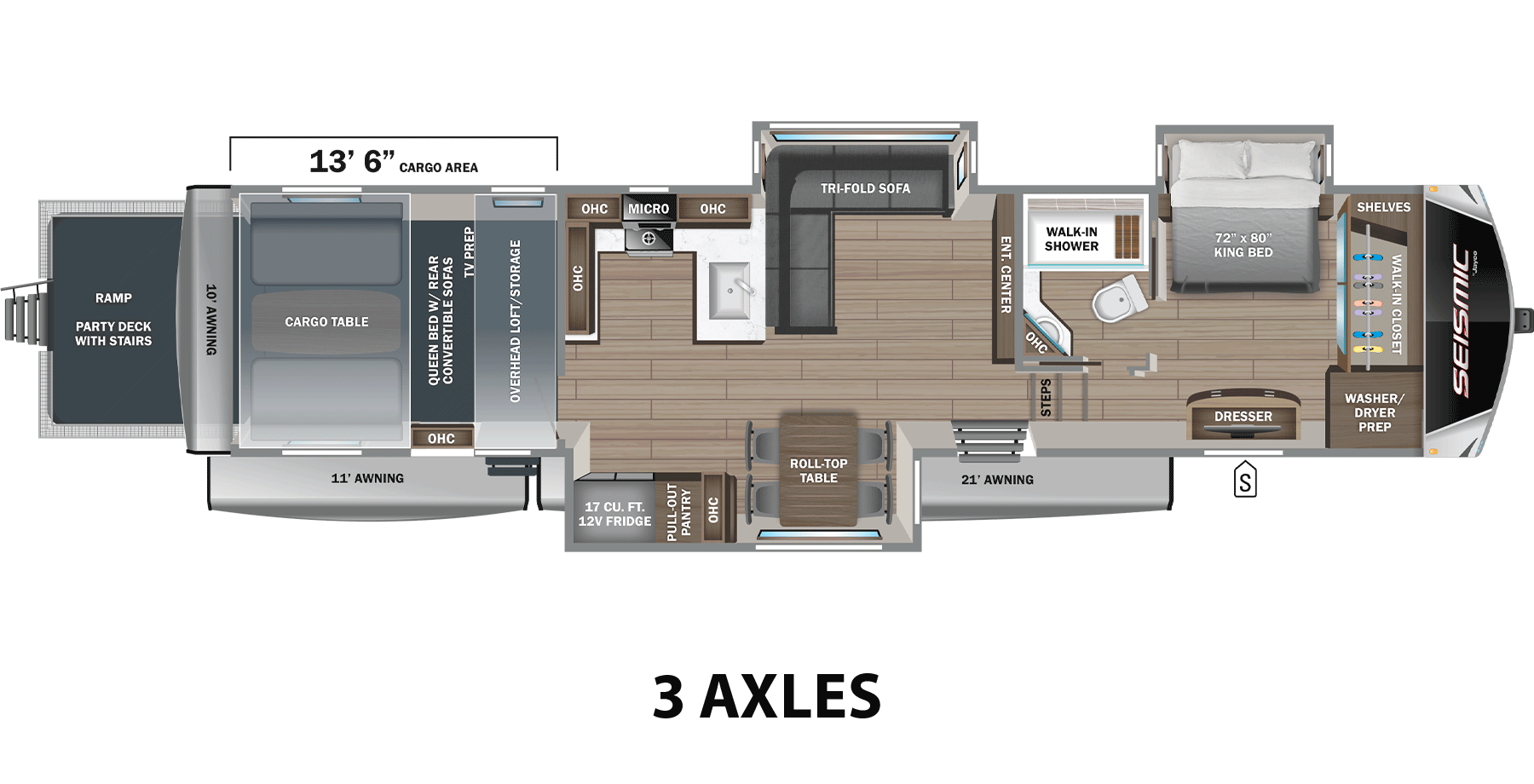

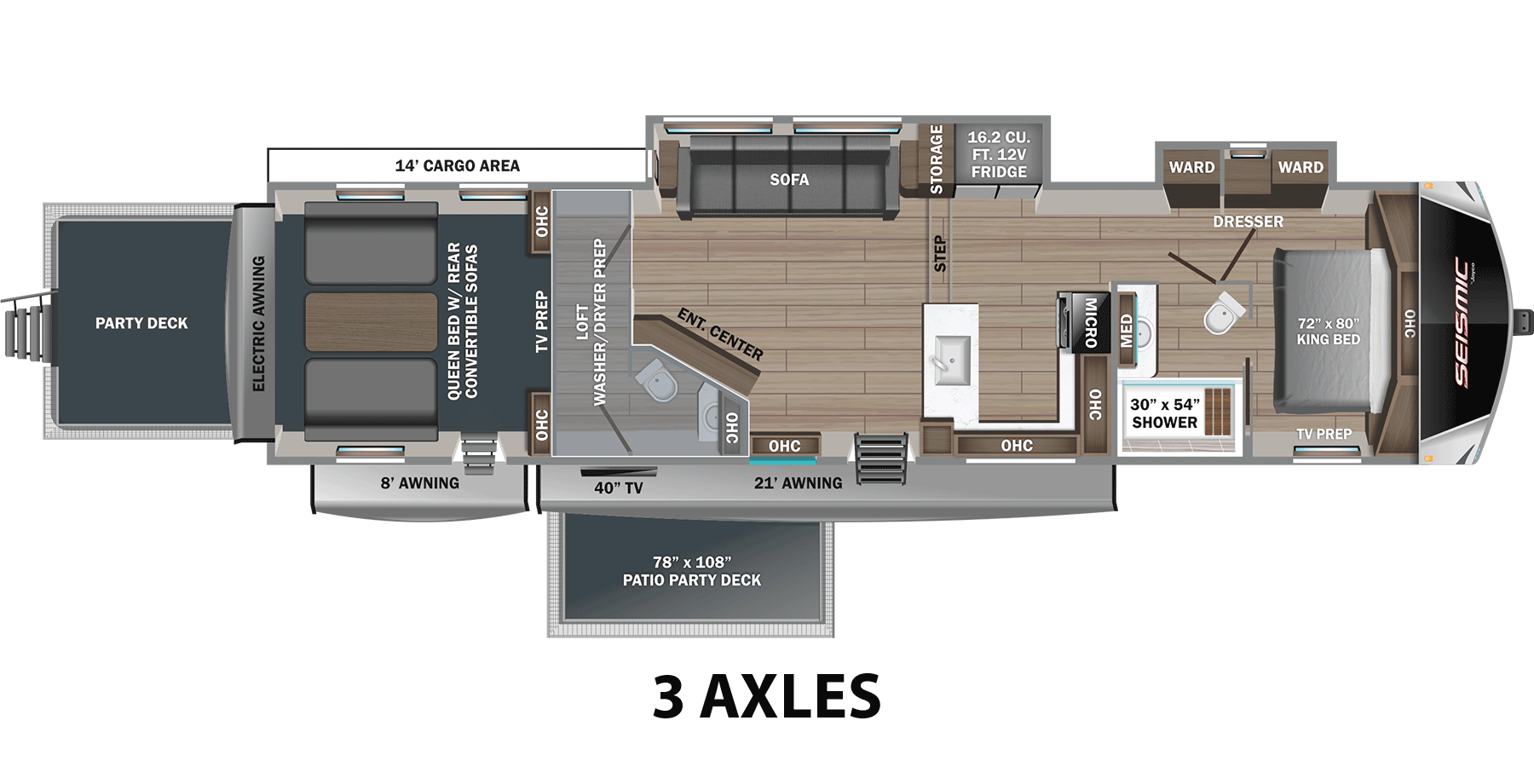

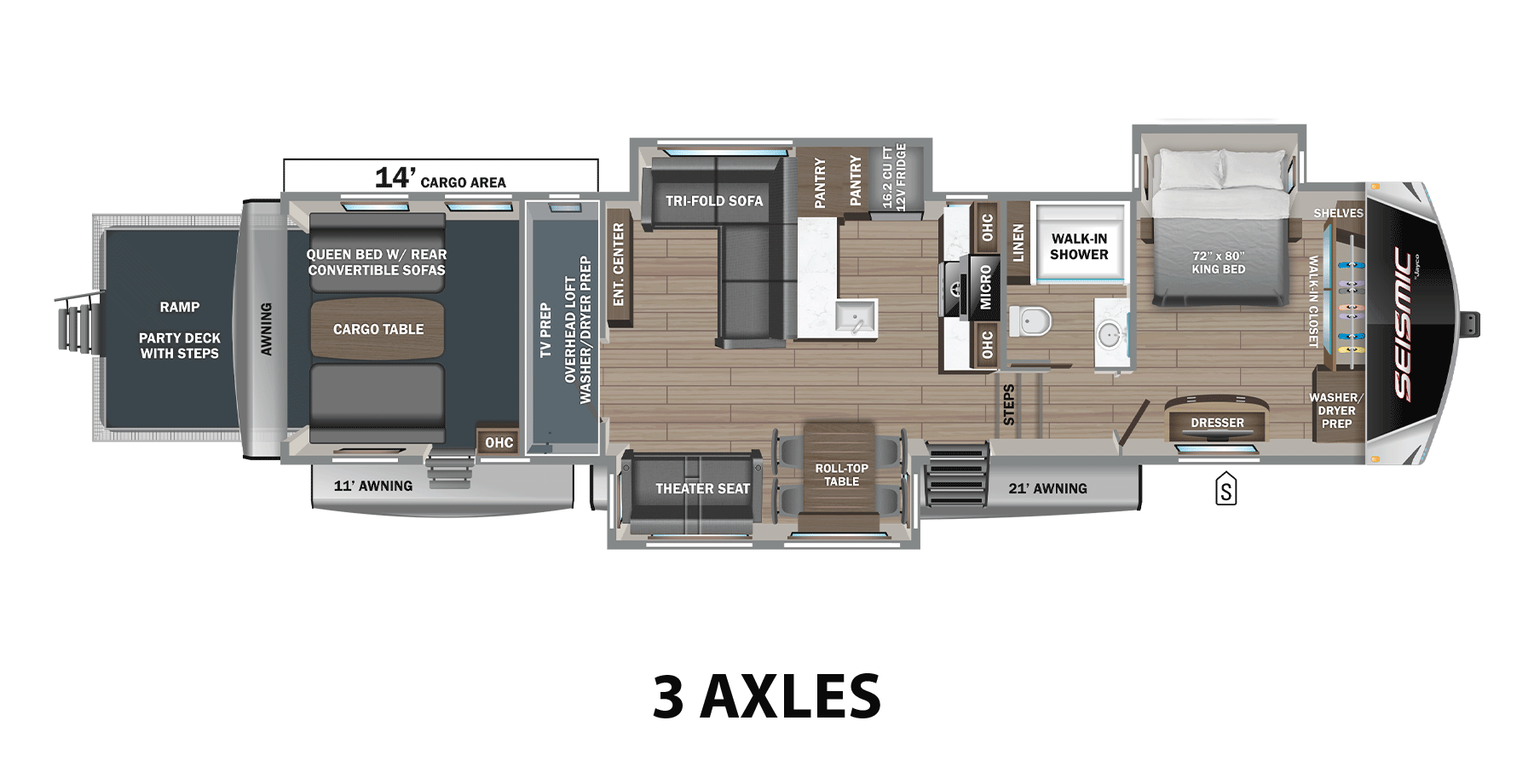

2026 Seismic Floorplans

Standard Exterior Equipment

• 102 in. wide-body structural steel I-beam construction
• Stronghold VBL™ aluminum-framed and vacuum-bond laminated gel-coated fiberglass exterior walls and slide room end walls
• Magnum Truss™ XL6™ Roof System (strongest tested roof in the industry) with Alpha roof membrane system (limited lifetime warranty)
• Painted fiberglass front cap with clear coat and built-in specialty LED lighting
• Custom automotive-grade vinyl exterior graphics package
• Climate Shield™ zero-degree tested weather protection includes:
  • 35K BTU output furnace
  • Double-layer fiberglass batt insulation in ceiling and floor
  • Double-sided radiant barrier insulation (roof and floor)
  • Fully enclosed and heated underbelly (ducted)
• NPS – Powered by Yamaha® 6,000-watt generator with built-in pure sine inverter (gas/C.A.R.B. certified)
• 6-point hydraulic auto-leveling system
• Battery disconnect switch
• Detachable shore power cord
• Dual 30 lb. propane bottles with auto regulator
• Water heater bypass
• LP quick-connect
• Exterior marine-grade speakers
• Digital TV antenna
• Folding roof ladder
• LED exterior lighting package
• JaySMART™ (Safety Markers And Reverse Travel) LED lighting (patented)
• HELIX Cooling System™ (industry exclusive) includes:
  • Three exterior-mounted 13,500 BTU soft-start, high-efficiency, ducted A/Cs (living room and bedroom)
  • Directional and closeable A/C vents
  • Insulated dual-duct design
• Pass-through storage with Slam-latch™ baggage doors
• Under-mounted spare tire
• Fully enclosed, LED-lighted universal docking center with:
  • Black tank flush
  • Winterization and sanitation hookups
  • Quick-connect outside shower
  • Satellite prep

Standard Interior Equipment

• Olympic king bed (359 & 413)
• Residential quilted bedspread
• Gas-strutted under-bed storage
• Washer/dryer prep
• 12V charging station
• Bathroom skylight
• Central command center with built-in tank monitoring
• Custom interior design (Dune Gray)
• LED interior lighting throughout
• LED fireplace with electric space heater (select models)
• No in-floor heat registers throughout the coach
• Vinyl flooring in slideouts (no carpet)
• Residential vinyl flooring (made in the USA)
• Hardwood safety handrail on hallway steps
• Carbon monoxide and LP detector
• 5/8 in. tongue-and-groove joined plywood main floor decking and 3/8 in. tongue-and-groove plywood roof decking
• Handcrafted and glazed doors, drawers, and trim
• Solid hardwood cabinet doors
• Residential finished dovetail-jointed drawers throughout
• Heavy-duty, 75 lb., full-extension, steel ball-bearing drawer guides
• SuperSofa™ or theater seats with heat, massage, and LED lighting (select models)
• Stain-protected fabric on all furniture
• Residential “Do it all” sink with pull-out kitchen faucet, glass rinse, and vegetable rinse
• Porcelain foot-flush toilet
• Inverter pre-wire

Customer Value Package (Mandatory)

• On-demand tankless hot water heater
• 50-amp service
• Overlander II Solar Package: 30-amp solar controller with (2) roof-mounted 200W solar panels and a 1,800W inverter
• 17 cu. ft. 12V refrigerator
• 30 in. space-saver microwave
• Residential 21 in. oven with three burners
• 4K Smart LED HDTV with fully digital HDMI® output
• Touch-screen Bluetooth® stereo with four speakers
• Electric patio awning with integrated RGB LED lights (multi-color with remote control)
• MORryde® strut-assisted fold-away entrance steps (main entrance)
• Custom black, machined aluminum rims
• SpartanLync™ Tire Pressure Monitoring System (TPMS)
• Keyed-Alike™ lock system
• Bathroom power vent
• Night roller shades
• Hidden hinges and magnet door catches on cabinet doors

5 Star Handling Package (Mandatory)

• 17.5 in., 16-ply “H” rated Cooper® tires
• Dexter® axles with ABS and Tow Assist – includes Nev-R-Adjust® brakes and E-Z Lube® hubs
• MORryde® CRE-3000™ Suspension System
• Rota-Flex® king pin
• Wet bolt fasteners, bronze bushings, and 4K lb. leaf springs
• 2^nd electric patio awning with integrated RGB LED lights (multi-color with remote control)

Ramp and Cargo Equipment

• 30 gal. fuel tank with timer
• Garage D-rings mounted to steel frame
• HappiJac® electric-lift queen beds/convertible sofas with folding armrests and cup holders
• Three-season removable garage wall/doors
• Tuff-ply™ rubberized garage floor liner
• Rear ramp door and patio with anti-slip, non-skid flooring
• Ramp patio kit with exterior steps
• Rear electric patio awning
• LED high-intensity ramp lights
• Ram air vents and power roof vent

Options

• Frameless, dual-pane, tinted safety-glass windows
• Outside HALO™ griddle for outside kitchens or JayPort® system (includes LP quick-connect) (select models)
• Queen residential foam-top mattress (395 & 399)
• Retractable half-bath wall in garage (395 & 399)
