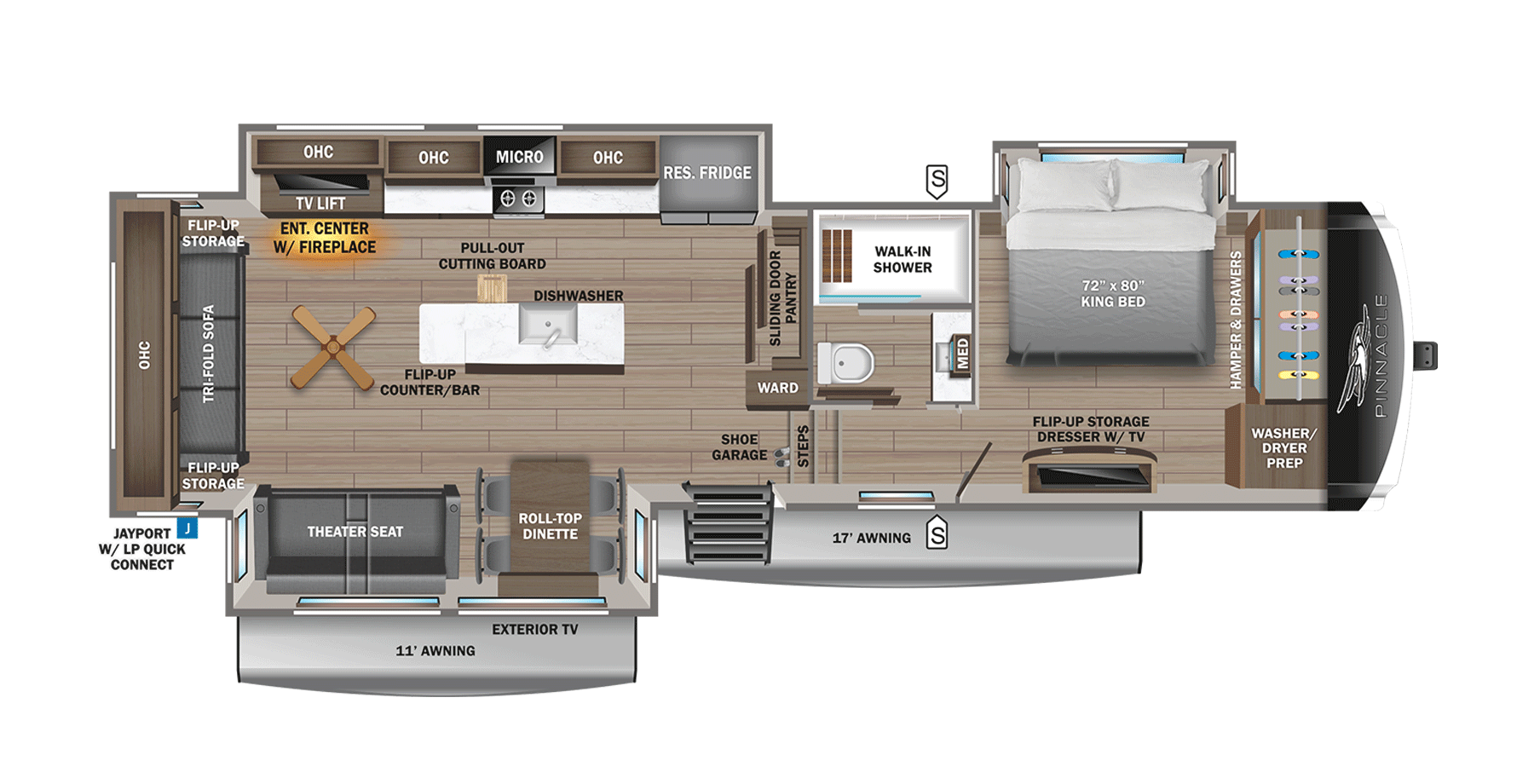

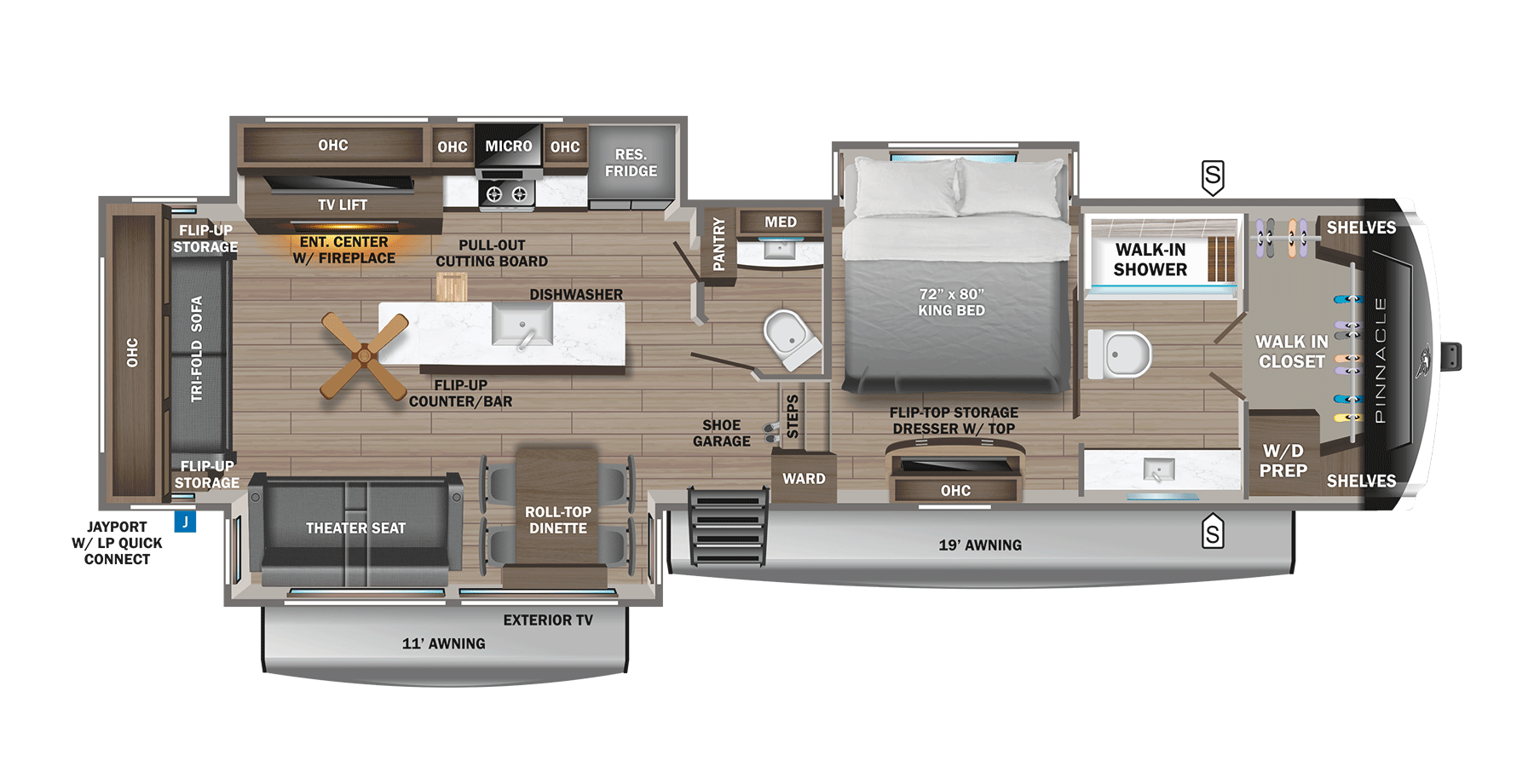

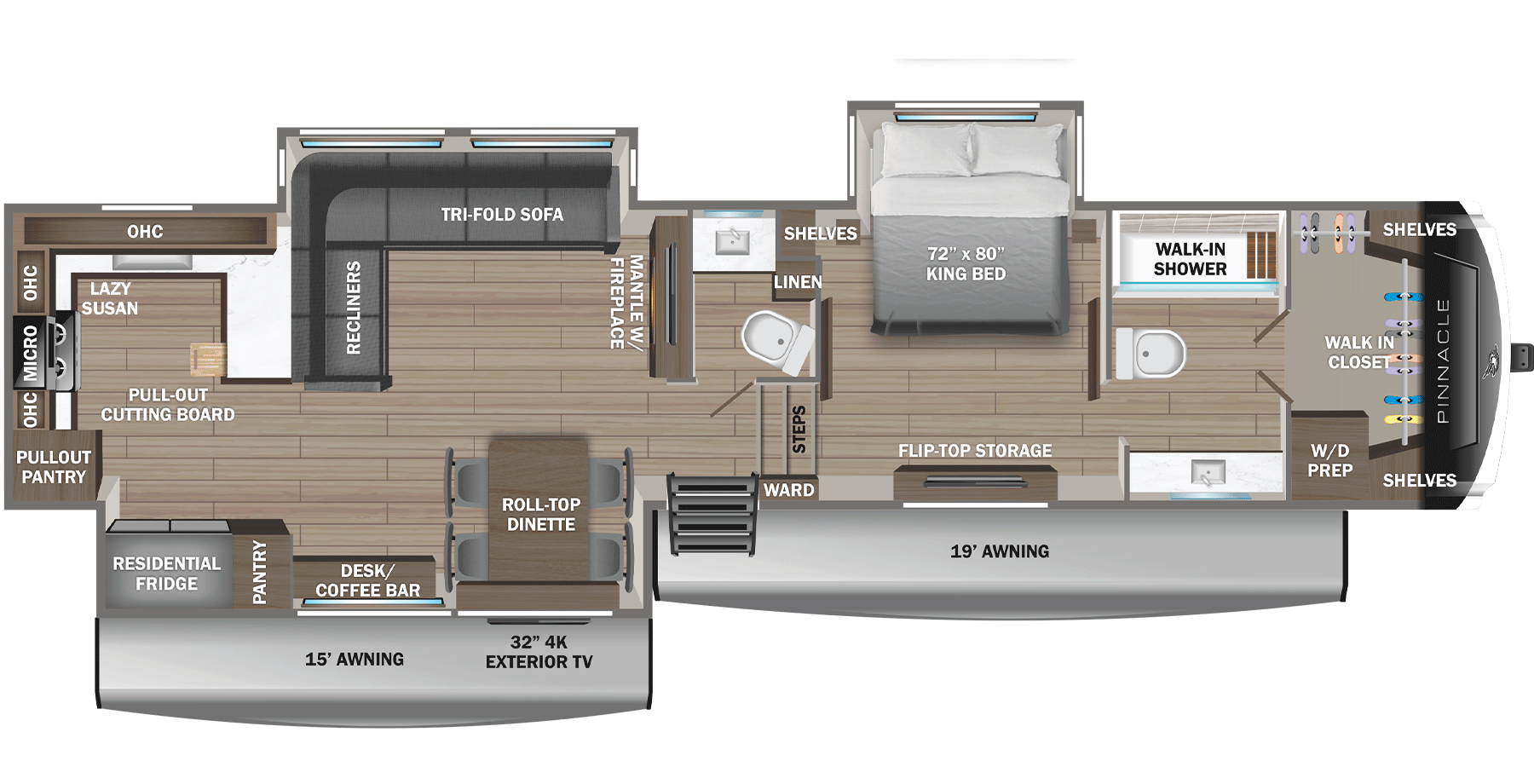

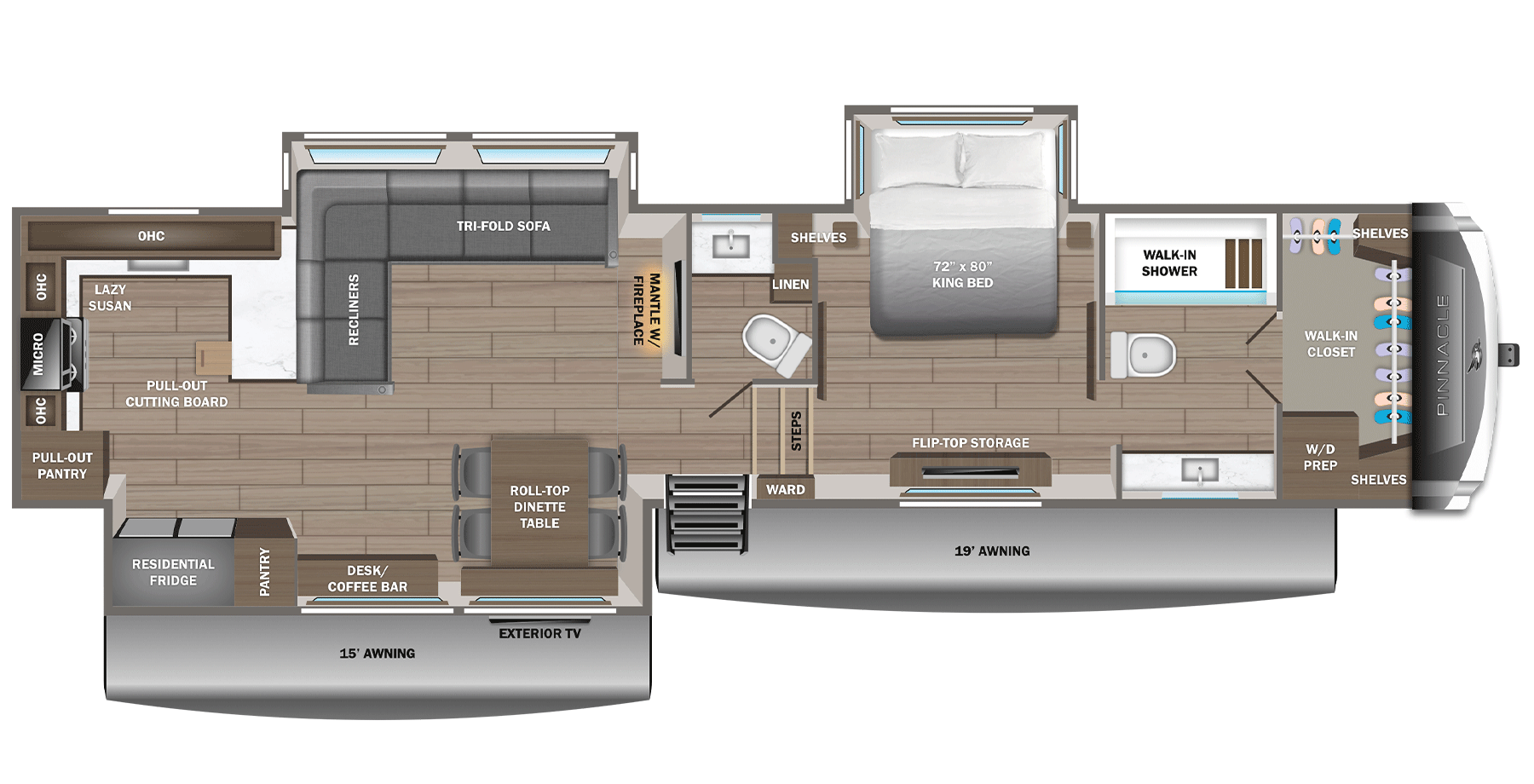

2026 Pinnacle Floorplans

Standard Exterior Equipment

• 102 in. wide-body construction
• 12 in. structural steel I-beam with 8 or 10 in. monster beam steel drop frame
• 3,000 lb. tow hitch with 4-way pin
• Built-in sewer hose carrier
• Painted fiberglass front and rear cap with clear coat and built-in specialty LED lighting
• Skirt metal enclosed drop frame
• Stronghold VBL™ aluminum-framed and vacuum-bond laminated gel-coated fiberglass exterior walls (including slide room end walls)
• Magnum Truss™ XL6™ roof system with Alpha roof membrane system
• Under-mounted spare tire
• Weather Protection (Climate Shield™ zero-degree tested)
  • 40K BTU output furnace
  • Double-layer fiberglass batt insulation (roof and floor)
  • Fully enclosed and heated underbelly (ducted)
  • 2 in. block foam insulation with reflective foil
• 120V heat blankets on all tanks
• 12V heat tape on freshwater line
• Frameless dark-tinted safety-glass windows
• Exterior marine-grade speakers with Bluetooth® controller
• Digital TV antenna
• JaySMART™ (Safety Markers And Reverse Travel) LED lighting
• Pass-through storage with Slam-latch™ baggage doors
• JayPort® outside griddle prep (standard on all floorplans without a standard outside kitchen)
• Battery disconnect
• Inverter pre-wire to select outlets
• Water heater bypass
• Fully enclosed universal docking center:
  • Black tank flush
  • Independent satellite wiring
  • Quick-connect outside shower
  • Selectable water connections
  • Whole-coach cable hookups
  • Winterization and sanitation hookups

Standard Interior Equipment

• Ceiling fan (select models)
• P.A.P-prepped bedroom
• Tri-fold hide-a-bed sofa with sleep surface (select models)
• Toe-kick nightlights in bedroom, bathroom, and kitchen
• LED accent lighting above slideouts
• LED backlit custom-framed mirror and medicine cabinet (most models)
• Residential quilted bedspread and pillows
• Carbon monoxide and LP detector
• No in-floor heat ducts throughout the unit
• 12V charging station
• Built-in laundry hamper in wardrobe (select models)
• Cedar-lined front wardrobe closet
• Flip-up hidden storage in bedroom chest of drawers (select models)
• Flip-up tabletop storage next to tri-fold sofa (select models)
• Flip-up countertop extension/bar top (select models)
• Pantry with adjustable shelves and 120V outlet (most models)
• “Shoe garage” in hallway step (select models)
• Gas-strutted under-bed storage
• Residential dovetail-jointed drawers throughout
• Soft-close, heavy-duty, 75 lb. full-extension steel ball-bearing drawer guides
• Hidden hinges, magnet latches, and soft-close cabinet doors and drawers
• Bathroom skylight
• Integrated under-mount sink and lever faucet in main bathroom
• Porcelain toilet with foot flush
• Residential "Do it all" sink with pull-out kitchen faucet, glass rinse, and vegetable rinse
• 5/8 in. tongue-and-groove joined plywood floor and 3/8 in. plywood roof decking
• Handcrafted hardwood doors, stiles, drawers, and trim – hand-painted with 90 poly sheen
• Solid hardwood slide fascia
• Vinyl flooring (made in the USA) throughout, including slide rooms
• Stain-protected fabric on all furniture
• Residential NuvoH2O whole coach water treatment system with water softening and triple cartridge filters

Customer Value Package (Mandatory)

• 15K BTU “Whisper Quiet” A/C (bedroom) & 15K BTU “Whisper Quiet” A/C with heat pump (main)
• On-demand tankless hot water heater
• (3) 40 lb. LP propane bottles with auto regulator
• Electric patio awning (multi-color with remote control)
• Residential king (72 in. x 80 in.) mattress with under-bed storage
• Hidden hinges, magnet latches, and soft-close cabinet doors
• Free-standing ottoman with hinged top
• MORryde® Safe-T-Rail™ grab handle
• 4K Smart LED HDTV with fully digital HDMI® output and two additional HDMI® cables
• JBL® home entertainment system with sound bar and wireless subwoofer
• Wireless remote-control system (includes Bluetooth® wireless interior controls) with dimmer switches
• Backup, main entrance door, and side observation security camera prep (including a power switch in the bedroom to use the optional monitor for security)
• Keyed-Alike™ lock system (single key for all doors/locks)
• Rooftop and ground solar prep
• Overlander II Solar Package: 30-amp controller, (1) 1800W inverter, and (2) 200W solar panels

Luxury Package (Mandatory)

• 2^nd electric patio awning (multi-color LED with remote control)
• 40 in. 4K outside Smart LED TV
• Frameless dark-tinted safety-glass windows
• High-gloss, gel-coated sidewalls
• MORryde® StepAbove™ entrance steps with strut assist
• Oversized multi-battery compartment (room for 4–6 batteries)
• 32 in. 4K Smart LED bedroom TV
• Day/night roller shades in living room
• LED fireplace with electric space heater
• Pull-out "Roll Top" dinette with two free-standing chairs and two folding chairs
• Residential walk-in shower with teak seat
• Solid hardwood cabinet doors, stiles, and fascia – hand-painted with 90 poly sheen
• GE 21 cu. ft. residential refrigerator with 1,800W inverter
• GE Profile Series 30 in. residential convection microwave with built-in air fryer
• GE Profile Series residential 24 in. range
• Residential “Do it all” sink
• Residential, solid-surface kitchen and bathroom countertops
• 6-point hydraulic auto-leveling system
• Central vacuum system with dust port
• Powered 50-amp cord reel
• Washer/dryer prep
• JAYCOMMAND™ Smart RV System

5 Star Handling Package (Mandatory)

• 17.5 in., 16-ply, “H”-rated tires with SpartanLync™ TPMS
• Dexter® axles with ABS and Tow Assist – includes Nev-R-Adjust® brakes and E-Z Lube® hubs
• MORryde® LRE-4000™ rubberized suspension system
• MORryde® rubber pin box
• Wet bolt fasteners, bronze bushings, and 4K lb. leaf springs

Options

• 20 cu. ft. 12V refrigerator
• 3^rd 15K BTU ducted A/C
• Generator prep
• 5,500W Onan® MicroQuiet™ generator
• 7K hydraulic disc brake package (ABS not available with disc brakes)
• 8K hydraulic disc brake package (ABS not available with disc brakes)
• MORryde® independent suspension and shocks with 8K axles and disc brakes (ABS not available)
• Frameless dual-pane tinted safety-glass windows
• Full-body paint: Midnight Gold, Silver Metallic, Midnight Charcoal
• Slideout awning(s) (quantity varies by model)
• Outside HALO griddle for JayPort® system or outside kitchens; includes LP quick connect (select models)
• Front wardrobe in place of front windshield and sofa lounge (38SSWS)
• Queen residential foam-top mattress
