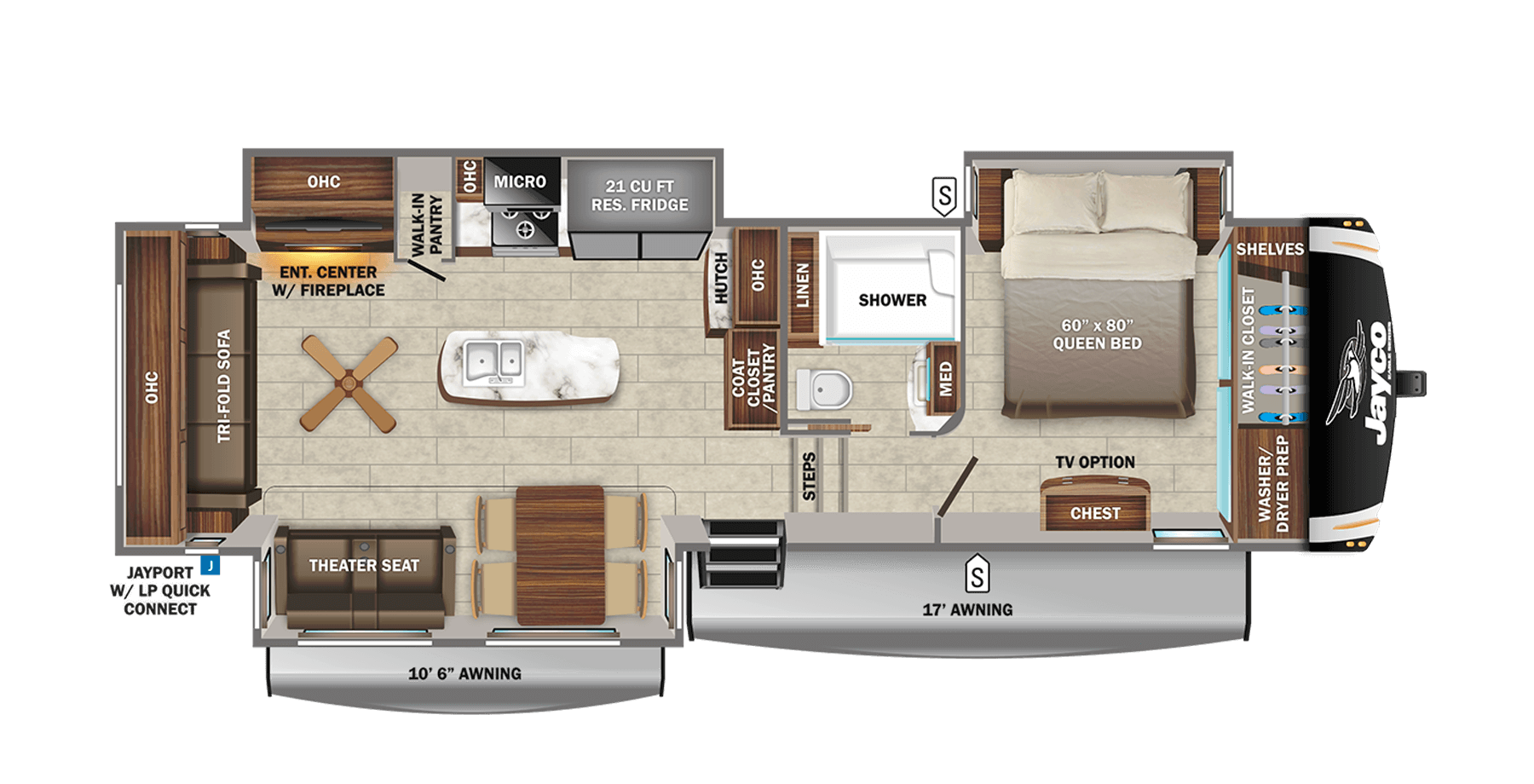

See Floorplan with
Interior Design
Modern Farmhouse
American Craftsman
Specifications
Weights
Dry Hitch Weight (lbs) | 1,995 |
Unloaded Vehicle Weight (lbs) | 10,580 |
Cargo Carrying Capacity (lbs) | 2,120 |
Gross Vehicle Weight Rating (lbs) | 12,700 |
Gross Combined Weight Rating (lbs) | 15,700 |
Measurements
Exterior Length (overall) | 36' 2" |
Exterior Height | 12' 5" |
Exterior Height (with A/C) | 12' 9" |
Exterior Width | 8' 1" |
Exterior Width (with slides out) | 13' 0" |
Interior Height (main) | 8' 7" |
Awning Length | 17' 0" |
Tank Capacities
Fresh Water Capacity (gals) | 81.0 |
Gray Water Capacity (gals) | 87.0 |
Black Tank Capacity (gals) | 50.0 |
Propane Unit (lbs) | 80 |
Miscellaneous
Sleeps | up to 6 |
Water Heater | 6 |
# of outside storage compartments | 2 |
Furnace BTU | 32767 |
Tire Size | ST235/85R16 E |
2022 Eagle Fifth Wheels
Starting at $82,685
After more than 30 years of success, the Eagle brand has become known for inventive features and floorplan layouts. The 2022 Eagle Fifth Wheel is no different, with fresh interior design, larger windows and an expanded freshwater tank. Luxurious, with room for upgrades, you’ll find features and concepts you can’t in other manufacturer’s fifth wheels.
