2017 Melbourne

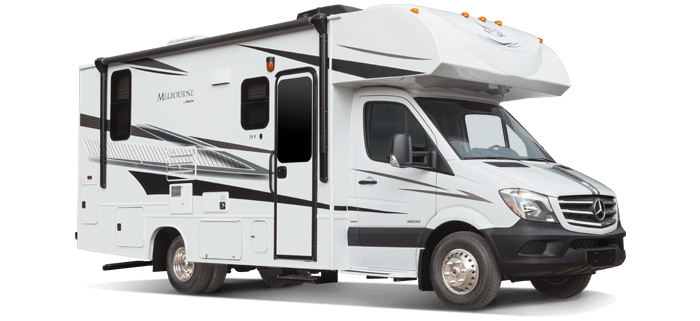

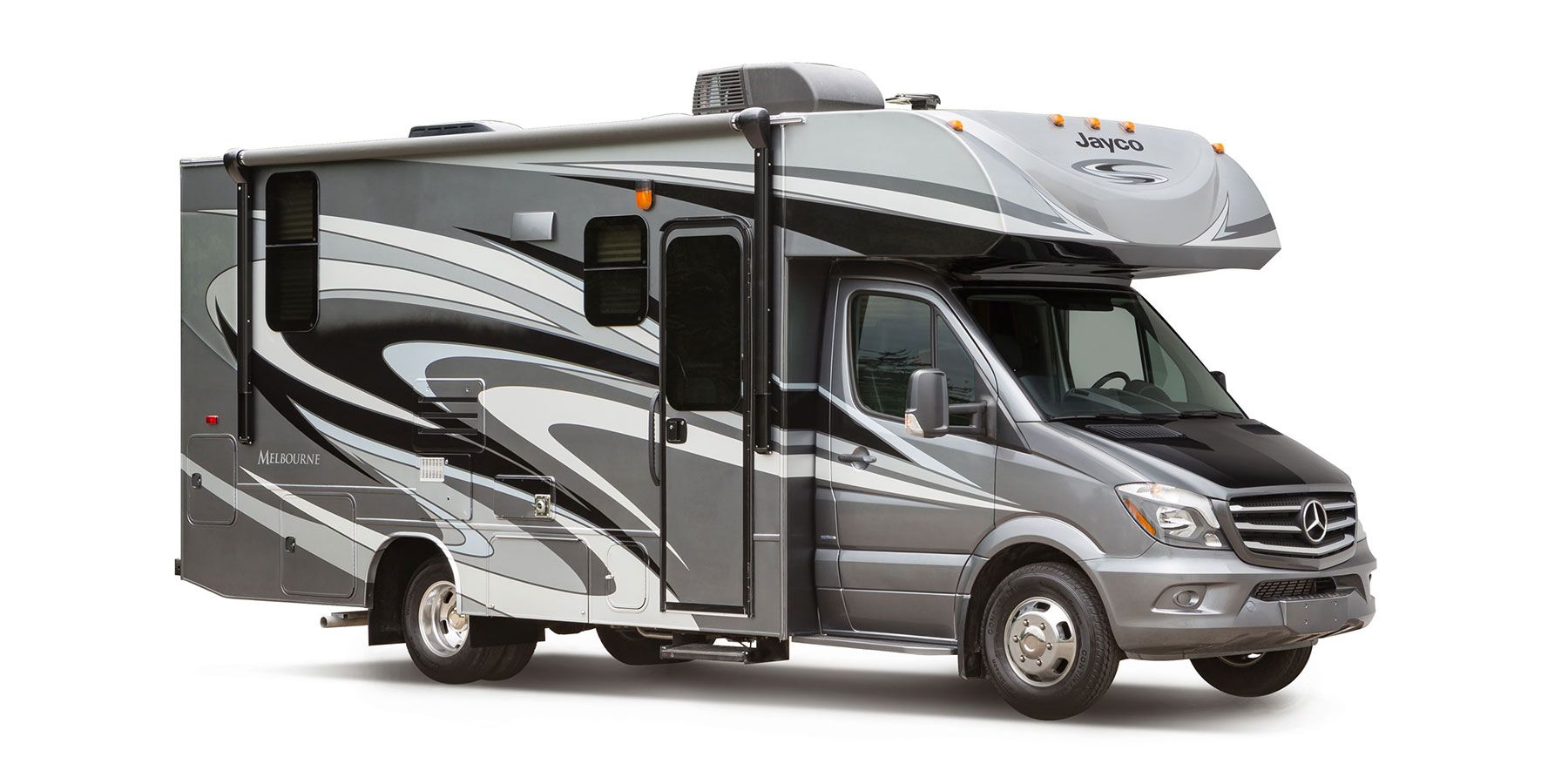

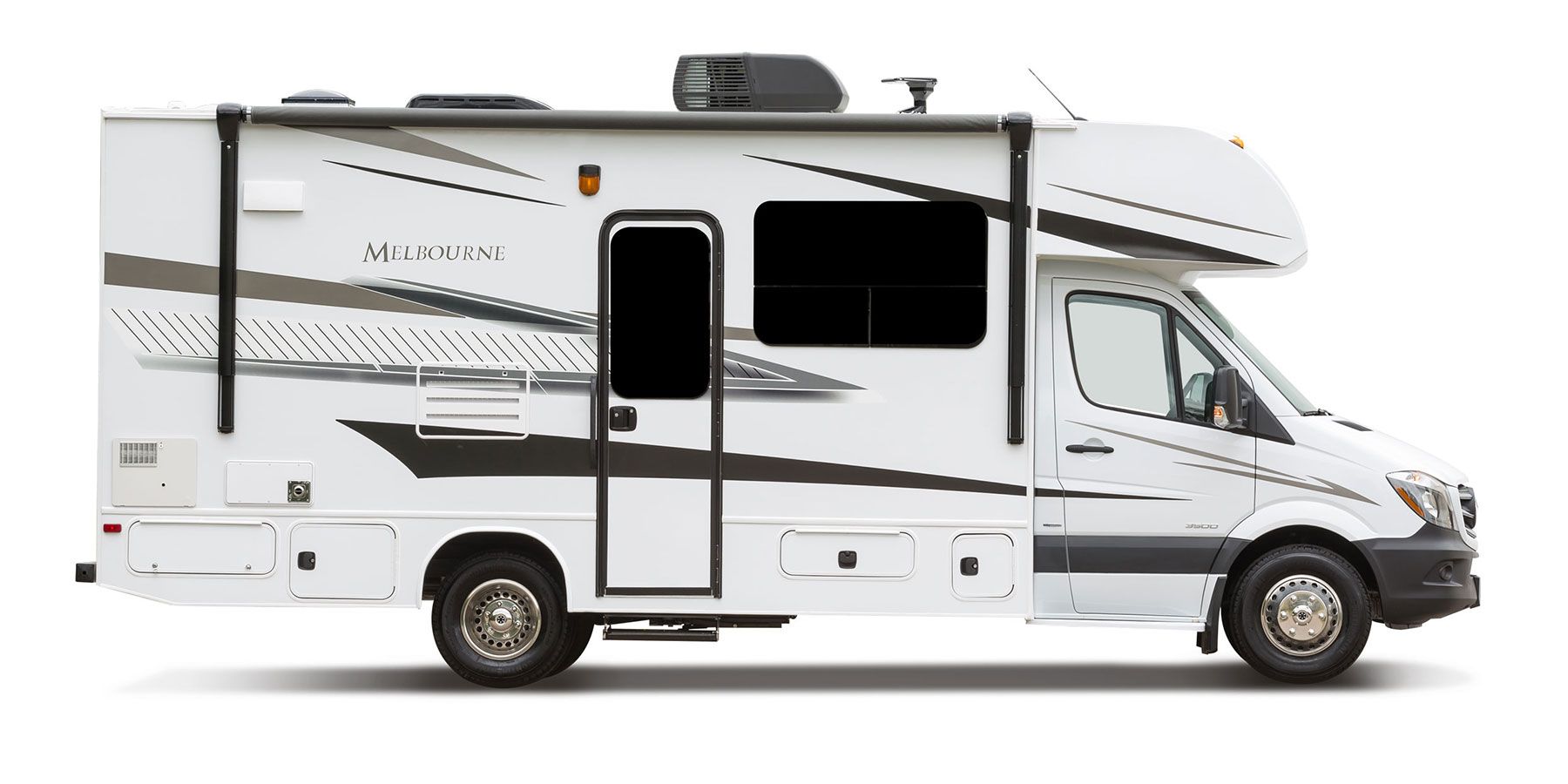

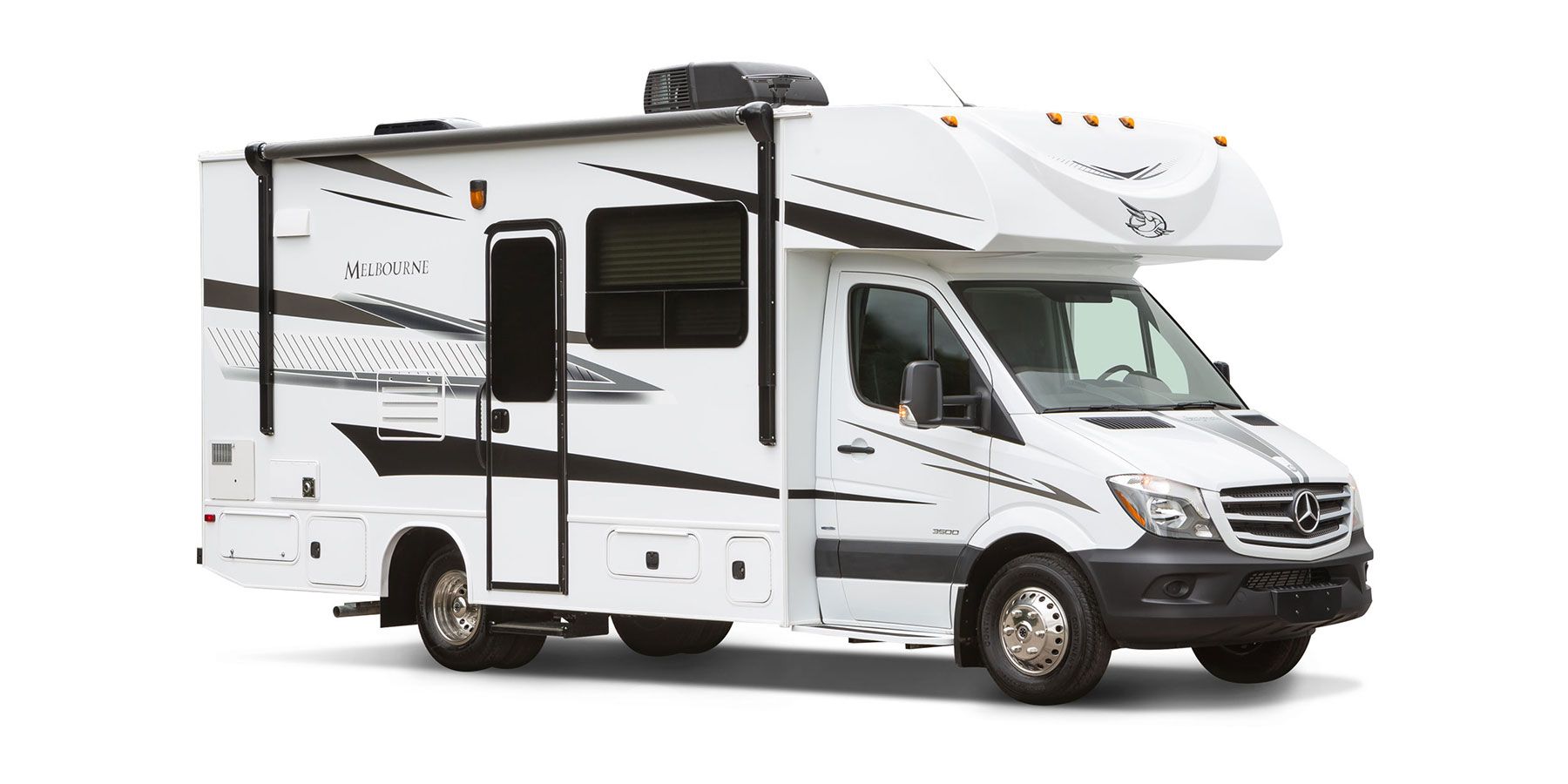

The Melbourne Class C motorhome is built on a Mercedes 3500 chassis and powered by a 188-horsepower, V6 turbo diesel engine to keep you going.


Melbourne Floorplans and Prices

Length 25' 2" - 25' 2"

Standard Features and Options

Customer Value Package

  • Touchscreen, in-dash infotainment center with built-in CD/DVD/MP3 and input jack
  • Back-up camera
  • Electric patio awning with LED light strip
  • Frameless windows
  • Remote-control and heated mirrors

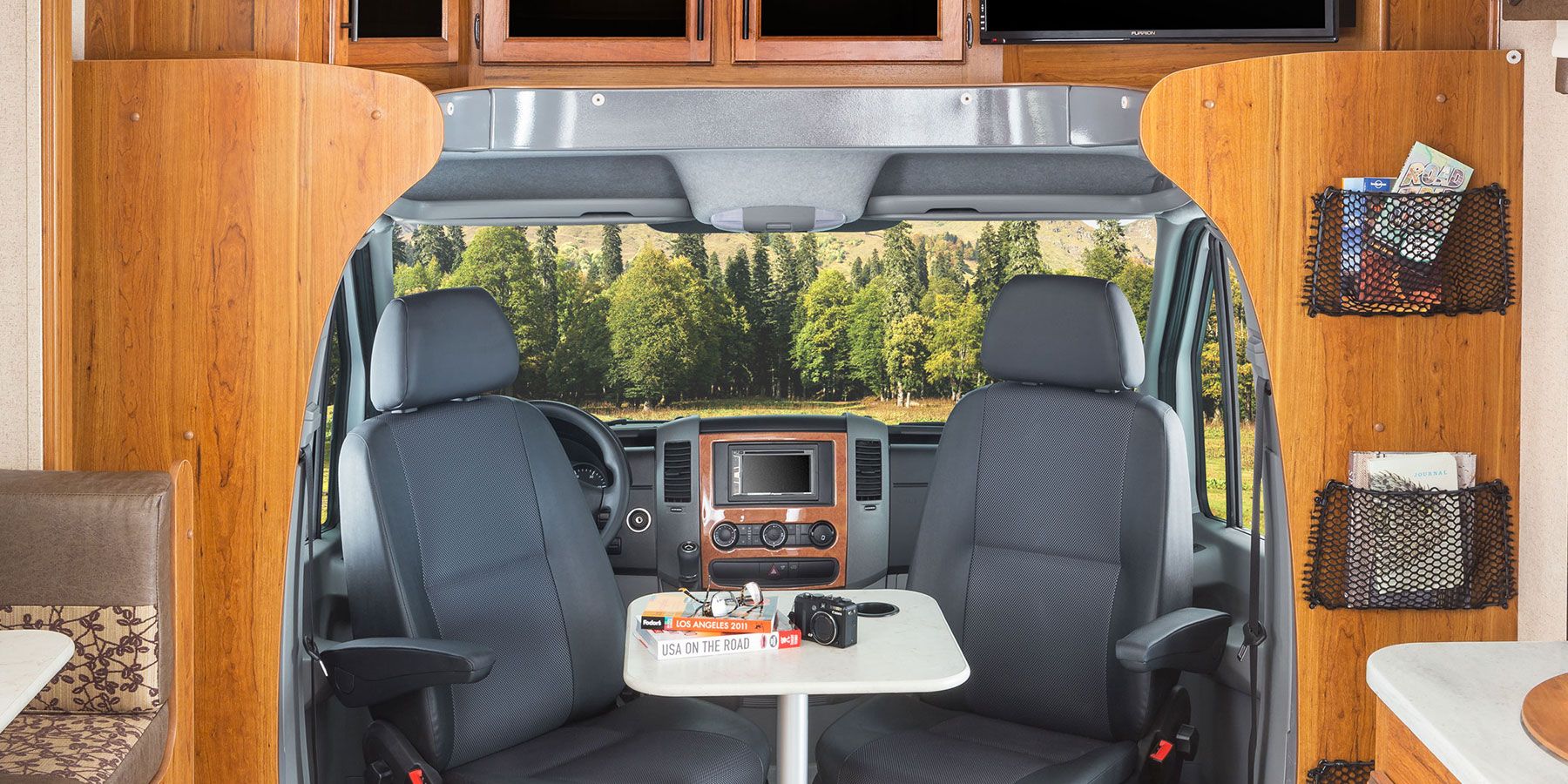

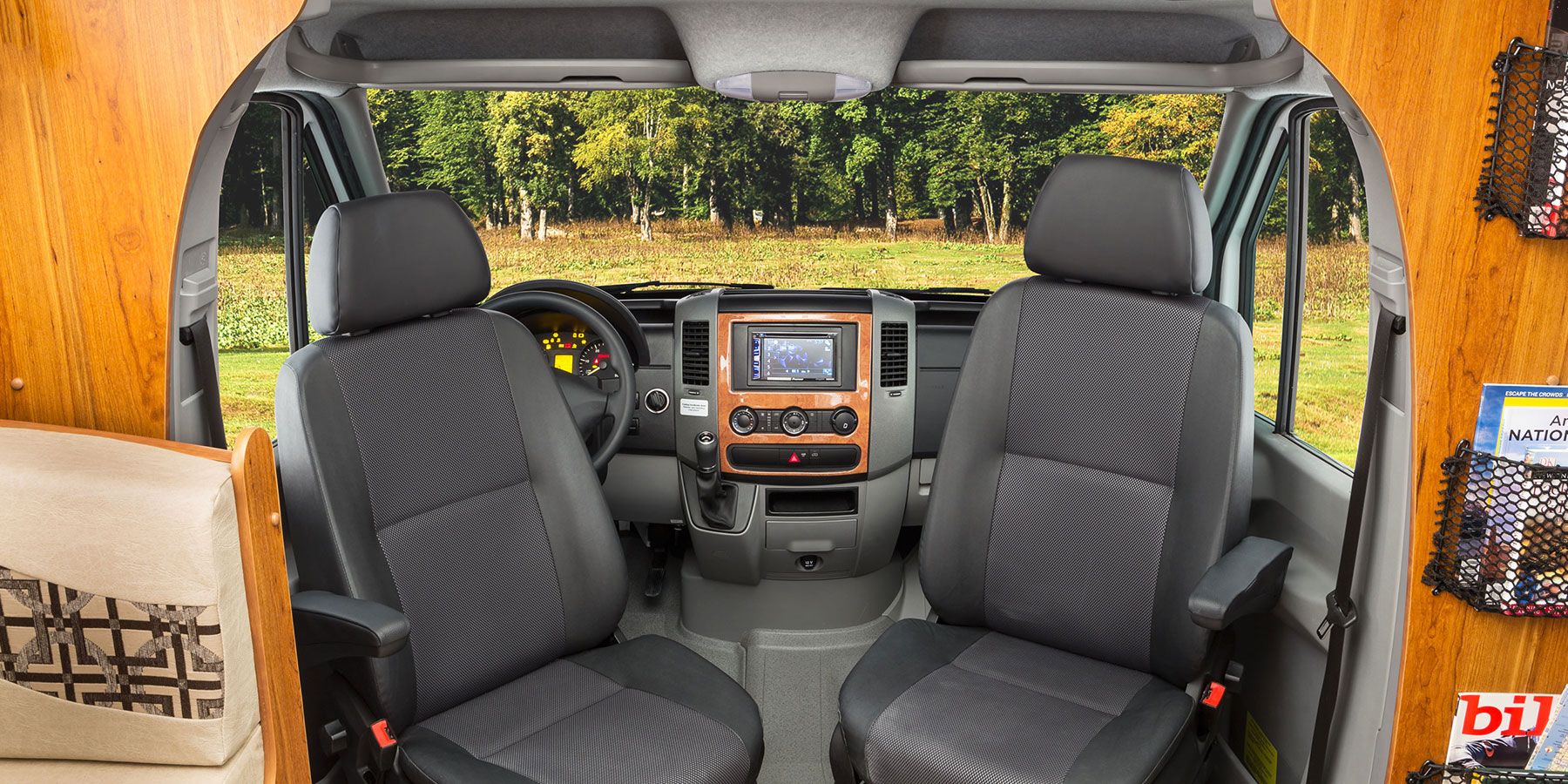

  • Swivel driver and passenger seats
  • Stabilizer jacks
  • Tank heating pads
  • Keyless cab entry

Standard Driving Equipment

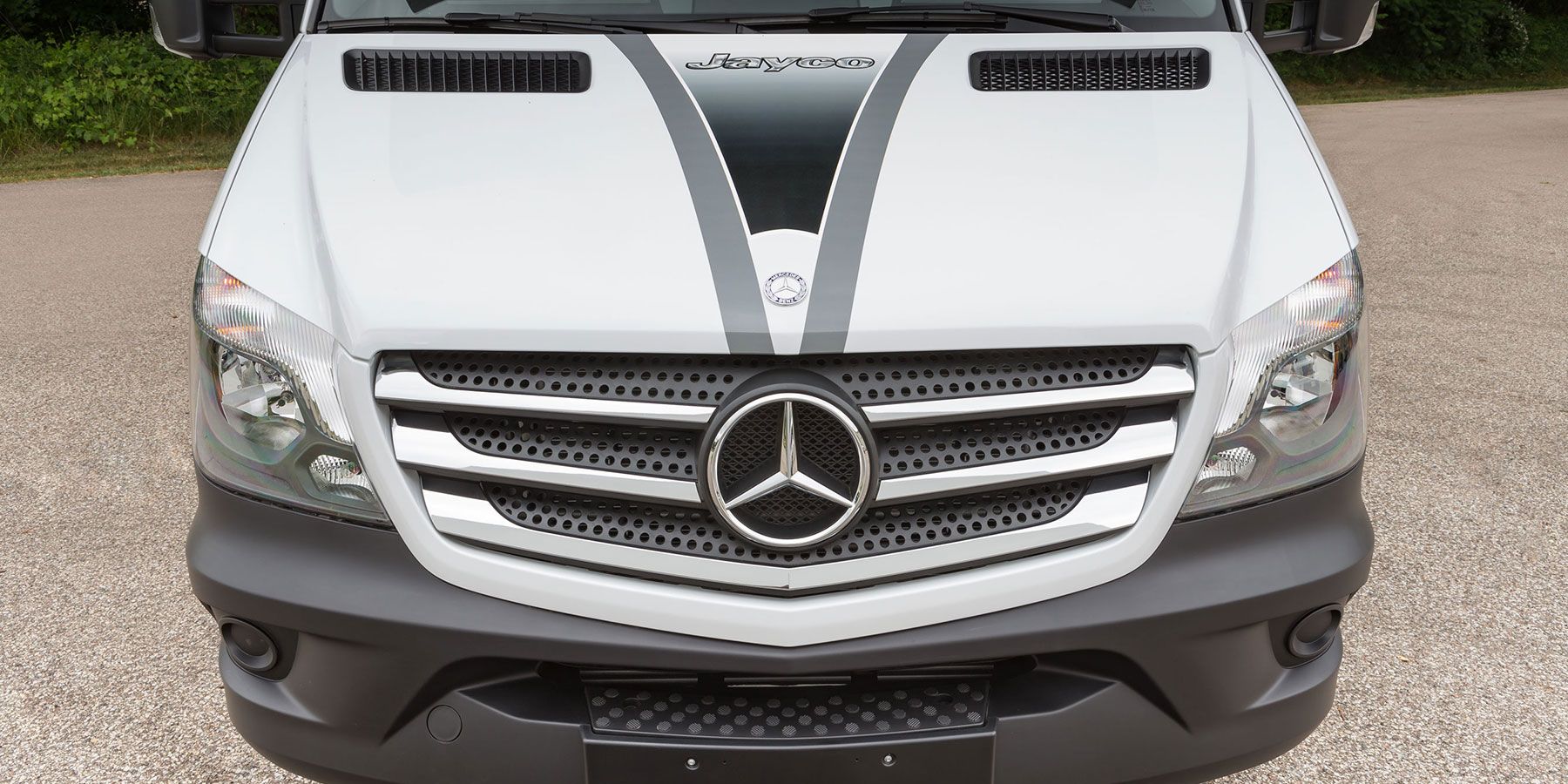

  • Mercedes 3500, 170" wheelbase, 11,030-lb GVWR chassis
  • V-6 turbo 188HP diesel engine with electronic fuel injection and 325 lbs-ft torque
  • 5-speed automatic transmission
  • 220-amp alternator
  • Front and rear disc, 4-wheel, anti-lock brakes
  • 7-pin trailer hitch plug
  • 9.8-gallon propane tank
  • 5,000-lb. rear hitch receiver with dual connector
  • Flush-mount LED marker lights
  • Third brake light

Standard Exterior Equipment

  • Two vinyl exterior graphics (Soft Sand & Canyon Red)
  • Cream Reflections Gold fiberglass walls
  • Cream Reflections Gold baggage doors with slam latches
  • One-piece fiberglass front cap
  • Fiberglass running boards
  • TPO laminated roof
  • Full pass-through storage compartment (24K)
  • Electric-powered, single-entrance step
  • Metal storage compartments
  • Slide out battery tray with 12V house battery
  • 12V on-demand water pump
  • 30-amp detachable electrical service cord
  • 60-amp 12V converter
  • 4" tube bumper with sewer hose storage
  • 3.6-KW Onan propane generator
  • 13,500-BTU air conditioner
  • Exterior grill quick-connect
  • Black tank sprayer
  • Chrome simulators
  • Valve stem extensions
  • 110V GFCI exterior receptacles
  • Outside shower

Standard Interior Equipment

  • 81" ceiling height with soft-touch vinyl ceiling
  • High-intensity LED ceiling lights
  • Honey Cherry cabinetry and doors with oil-rubbed bronze hardware
  • Ball-bearing drawer guides
  • Water filtration system
  • Auto-ignition, 30,000-BTU, ducted furnace
  • 6-gallon gas/electric water heater
  • Water heater bypass
  • Prep for satellite dish
  • Cable TV hookup with RG6 coax
  • Digital antenna with signal booster
  • Battery disconnect
  • Full linoleum
  • Slideout fascia
  • Window valances
  • Pleated blackout shades
  • Cab area privacy curtain
  • Wood grain dash (radio surround)
  • Removable carpet cab mat

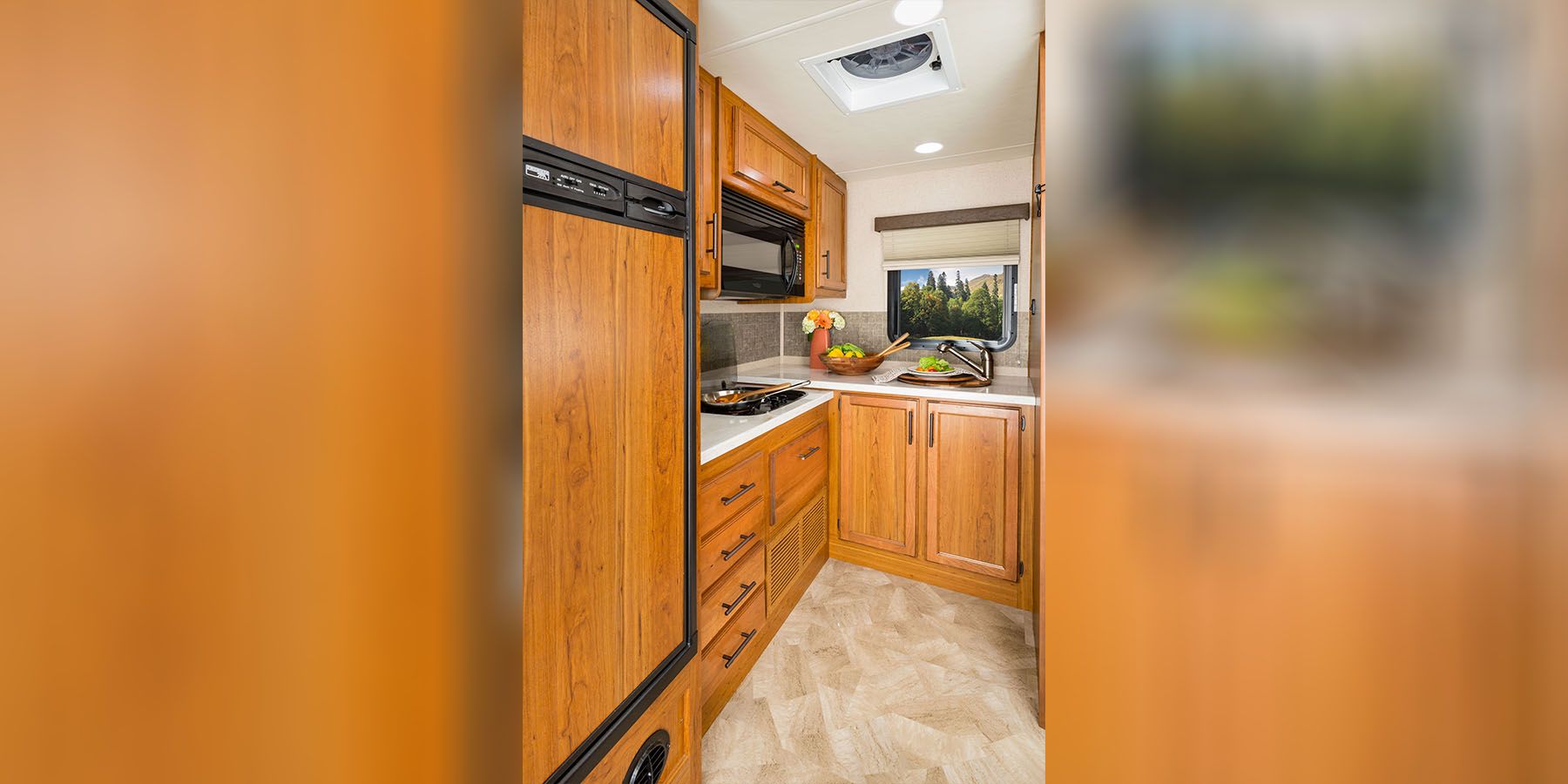

  • Solid-surface kitchen countertops with round sink and faucet with pullout sprayer
  • Wooden sink cover/cutting board
  • Solid-surface flip-up countertop extension
  • Kitchen faucet with pull-out sprayer
  • Suburban black, 2-burner, drop-in cooktop with flush cover
  • Convection microwave
  • 8 cu. ft. gas/electric refrigerator
  • Lauan refrigerator panel
  • 32" LED living room TV
  • Fantastic Fan in living room
  • Dream Dinette™ with booth dinettes (24K)

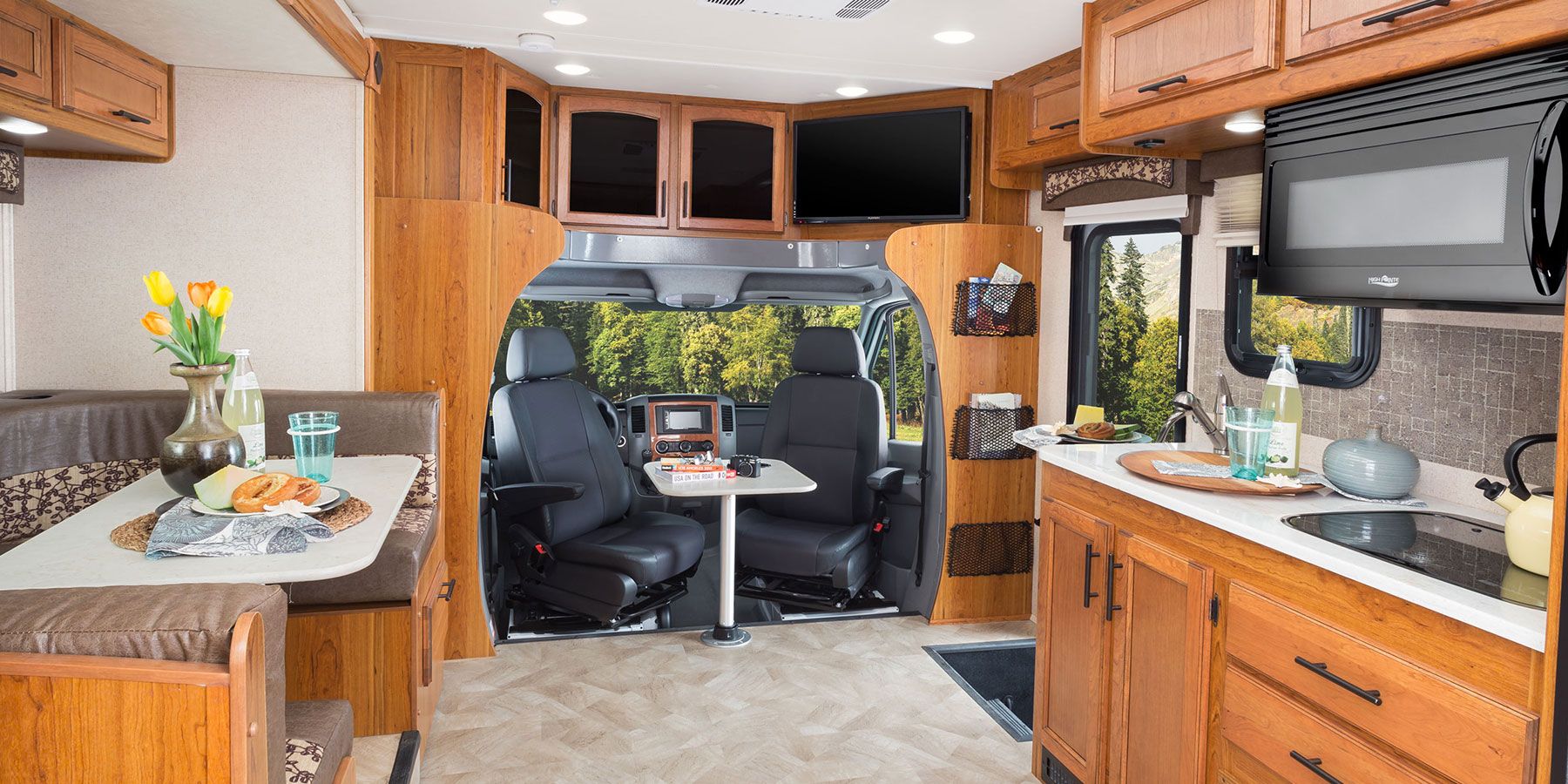

  • U-shaped dinette with stow-away pedestal legs (24L)
  • Tri-fold sofa (24M)
  • 12V USB charging station in dinette area
  • Lap safety belts in living area seats

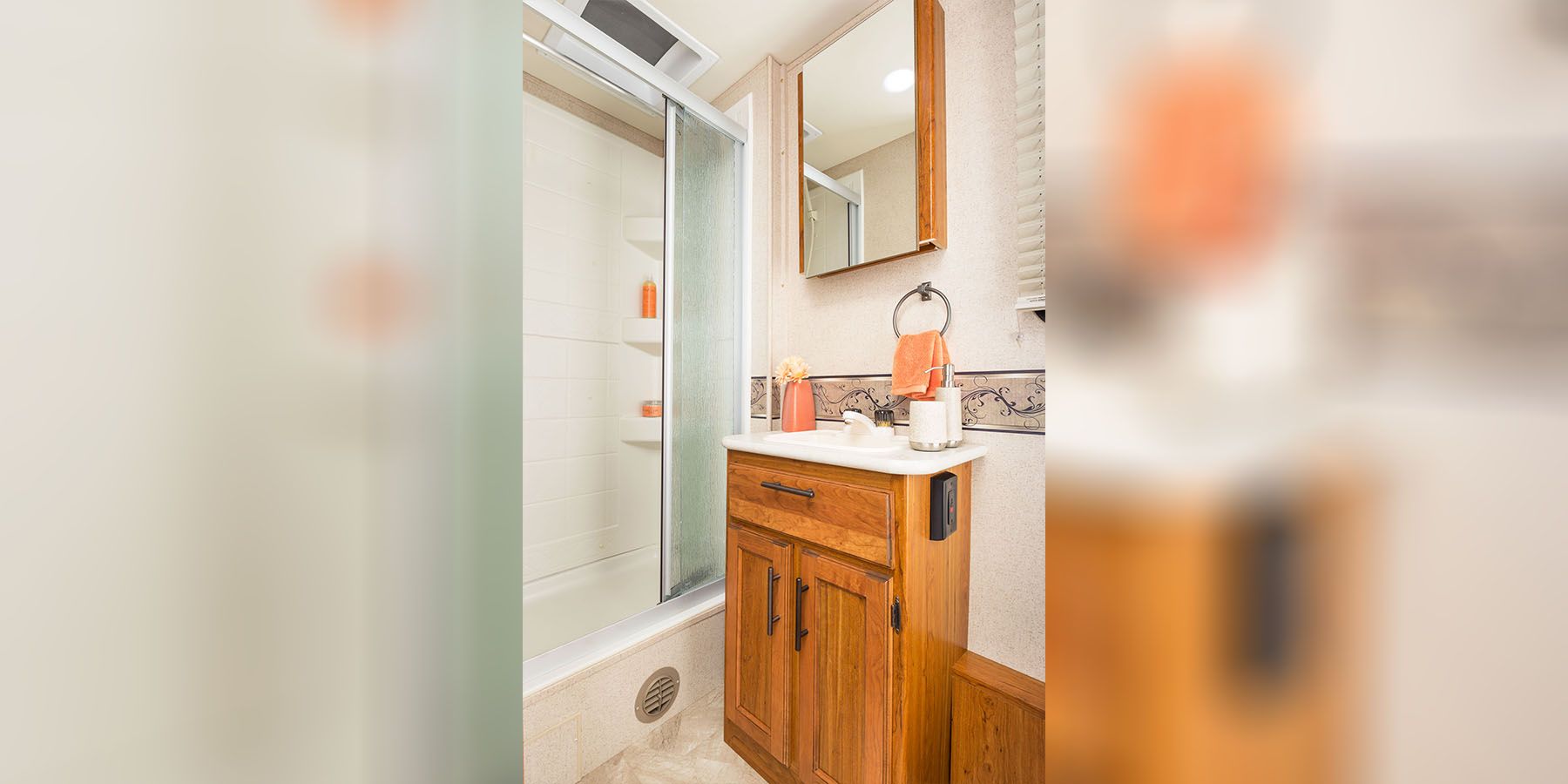

  • Glass shower door
  • Shower skylight
  • Bathroom electric roof vent
  • Bedroom TV prep
  • Mattress bunk mats

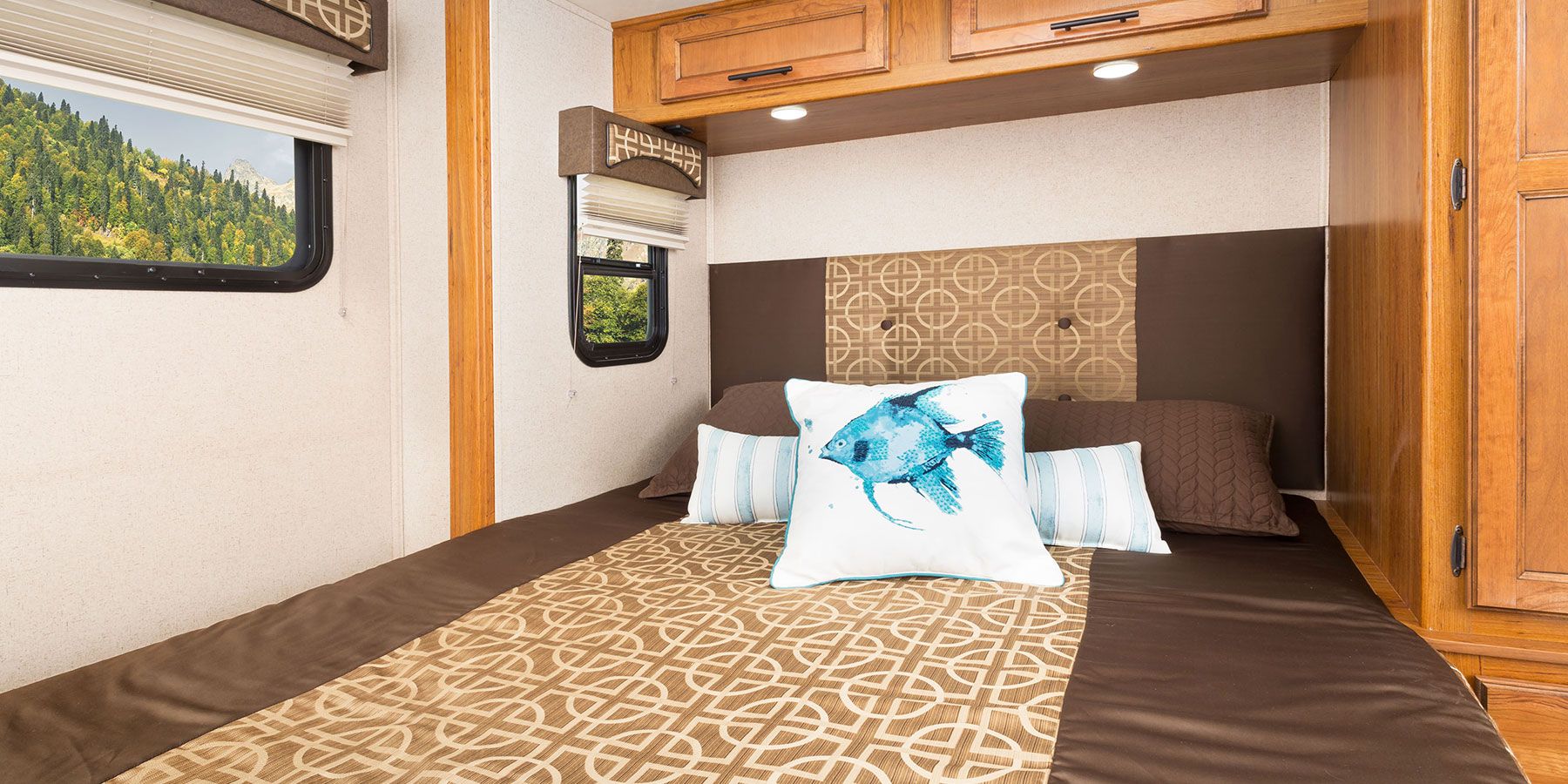

  • Queen-size bed with bedspread

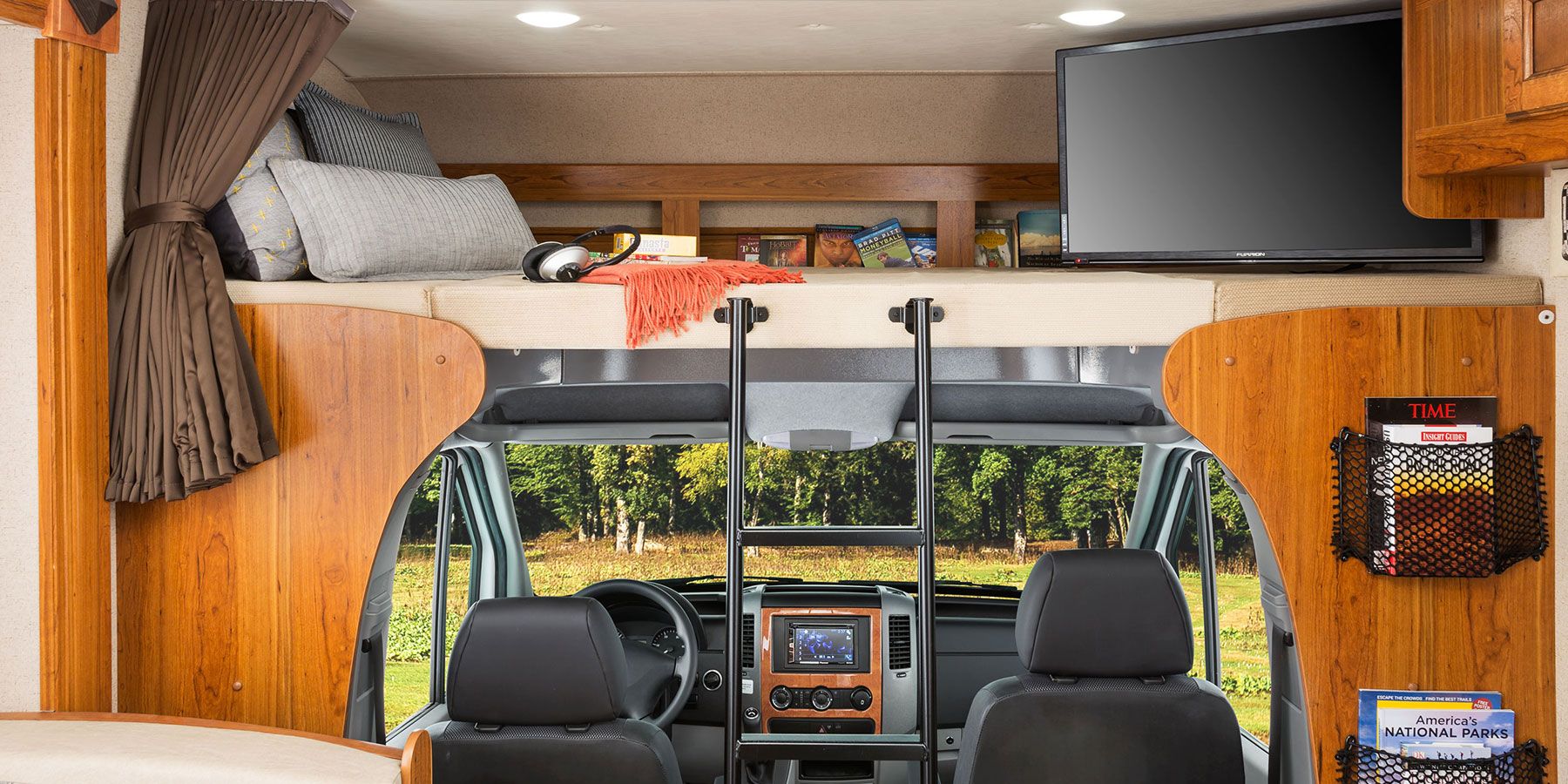

  • Cab-over bunk (750 lbs.)
