2023 Melbourne | 24T

2023 Melbourne

Previous model years are dealer stock only.

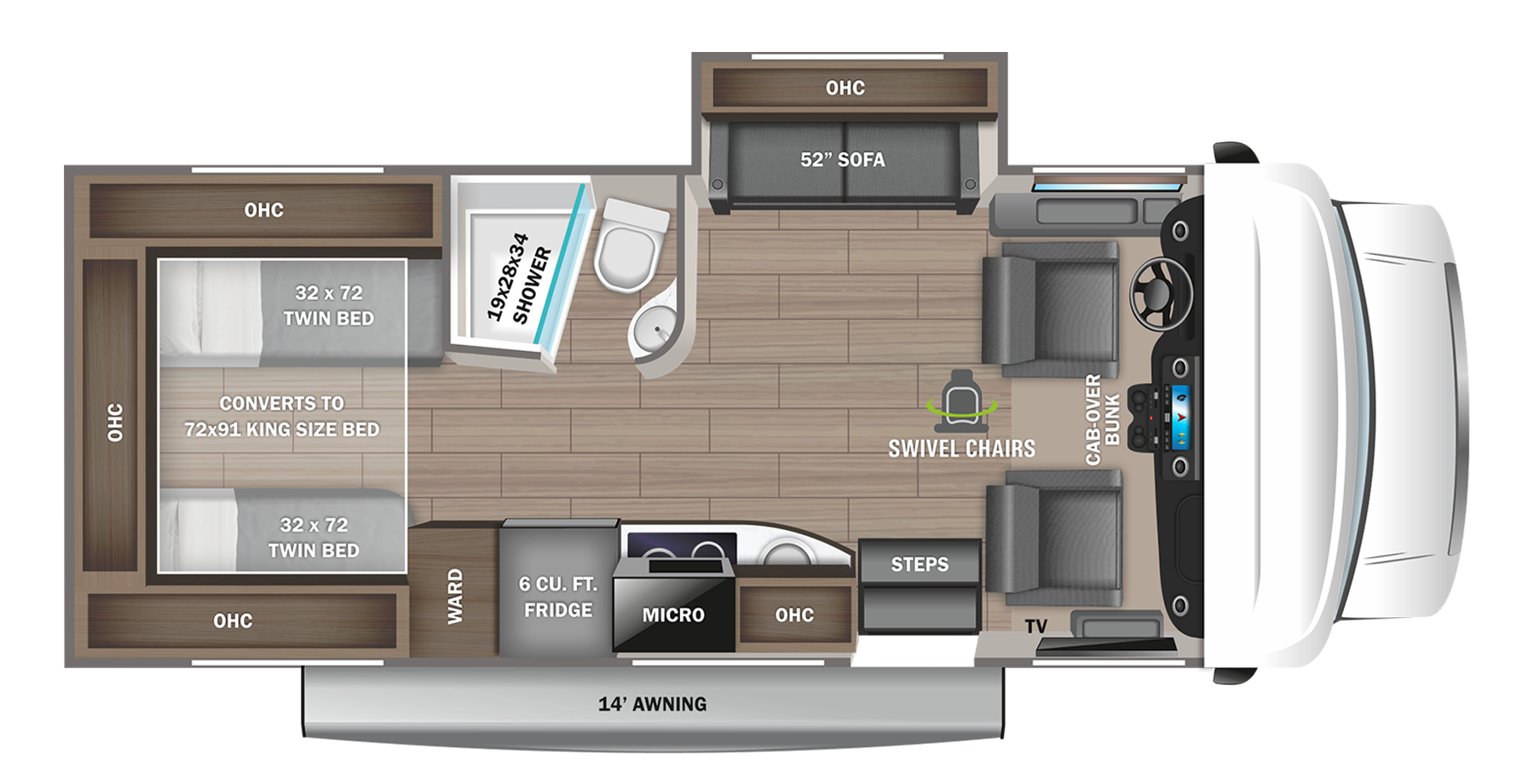

See Floorplan with
an Option Added:

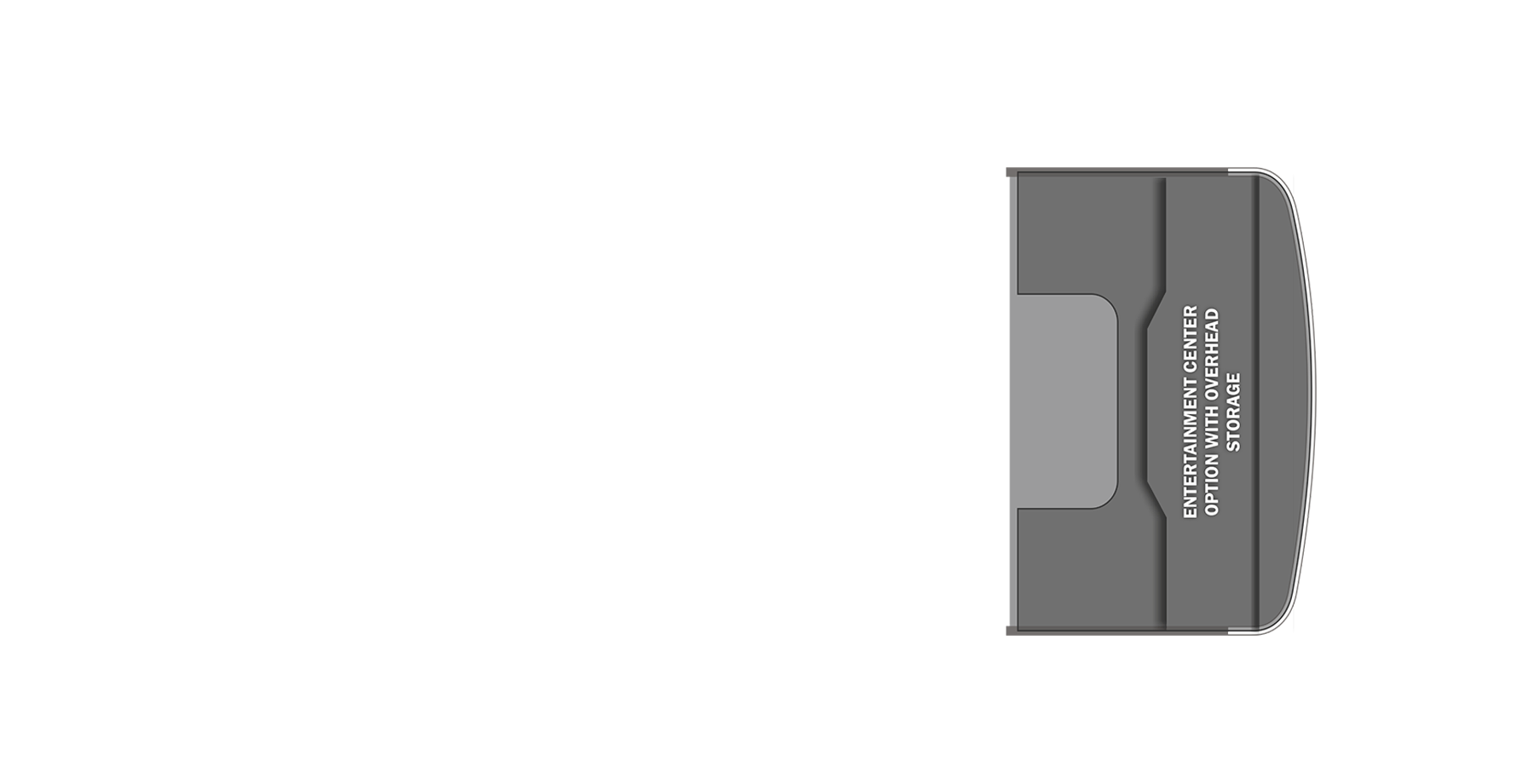

24T Front Entertainment Center with 32 in. LED HD Smart TV

See Floorplan with an Option Added:

Interior Design

Dover

Dover

Exterior

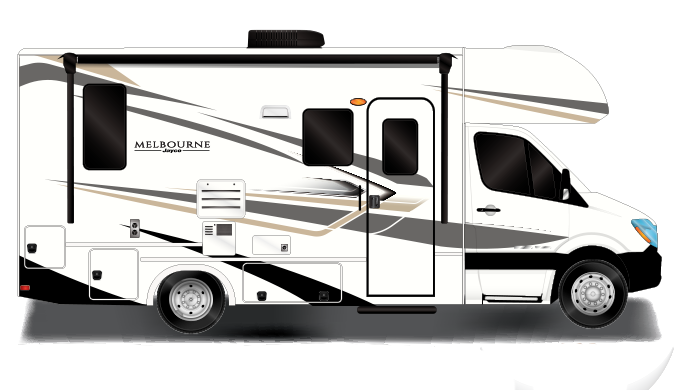

Standard Graphics

Standard Graphics

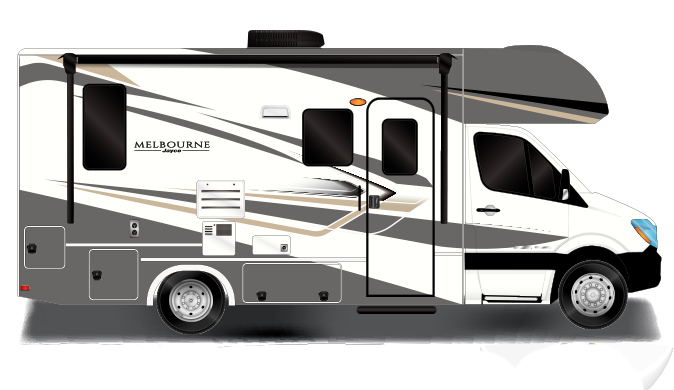

Partial Paint Option

Partial Paint Option

Specifications

Weights
Gross Vehicle Weight Rating (lbs)11,030
Gross Combined Weight Rating (lbs)15,250
Measurements
Exterior Length (overall)25' 2"
Exterior Height (with A/C)11' 5"
Exterior Width8' 0"
Exterior Width (with slides out)9' 8"
Interior Height (main)6' 11"
Awning Length14' 0"
Tank Capacities
Fresh Water Capacity (gals)43.0
Gray Water Capacity (gals)31.0
Black Tank Capacity (gals)31.0
Propane Unit (lbs)41
Fuel Tank Capacity (gals)26
Miscellaneous
Sleepsup to 4
Tire SizeLT215/85R16
Engine Size3.0L V6 BluTEC Diesel
Exterior Cargo Capacity (cu. ft.)38
Melbourne

2023 Melbourne

Starting at $152,843

Small but mighty, Jayco’s Melbourne Diesel Class C is compact enough to easily maneuver through the city but with amenities like a U-shaped dinette with stow-away pedestal legs for easy and customized configurations. When you’re parked, the last thing you’ll be thinking about is space. Melbourne features technology such as the Sony® infotainment center with Apple CarPlay® and Android Auto®, 3,600W LP generator, and optional 200W solar panel with dual controller and second house battery. With Melbourne, you’re ready to hit the road.
