Terrain

2027 Terrain

Starting at $203,625

If you're dreaming about going where the road ends and the real adventure begins, the Jayco Terrain Class B is ready to take you there. Built for off-road freedom and off-grid capability, the Terrain combines rugged durability with premium features so you can confidently chase new horizons.

The Terrain rides on the Mercedes-Benz® Sprinter 2500 AWD chassis, upgraded by the JRide® Ride and Handling package featuring upgraded shocks and a heavy-duty rear stabilizer bar. The chassis itself combined with these upgraded offers a smoother ride on rougher terrain, making traveling off-road enjoyable.

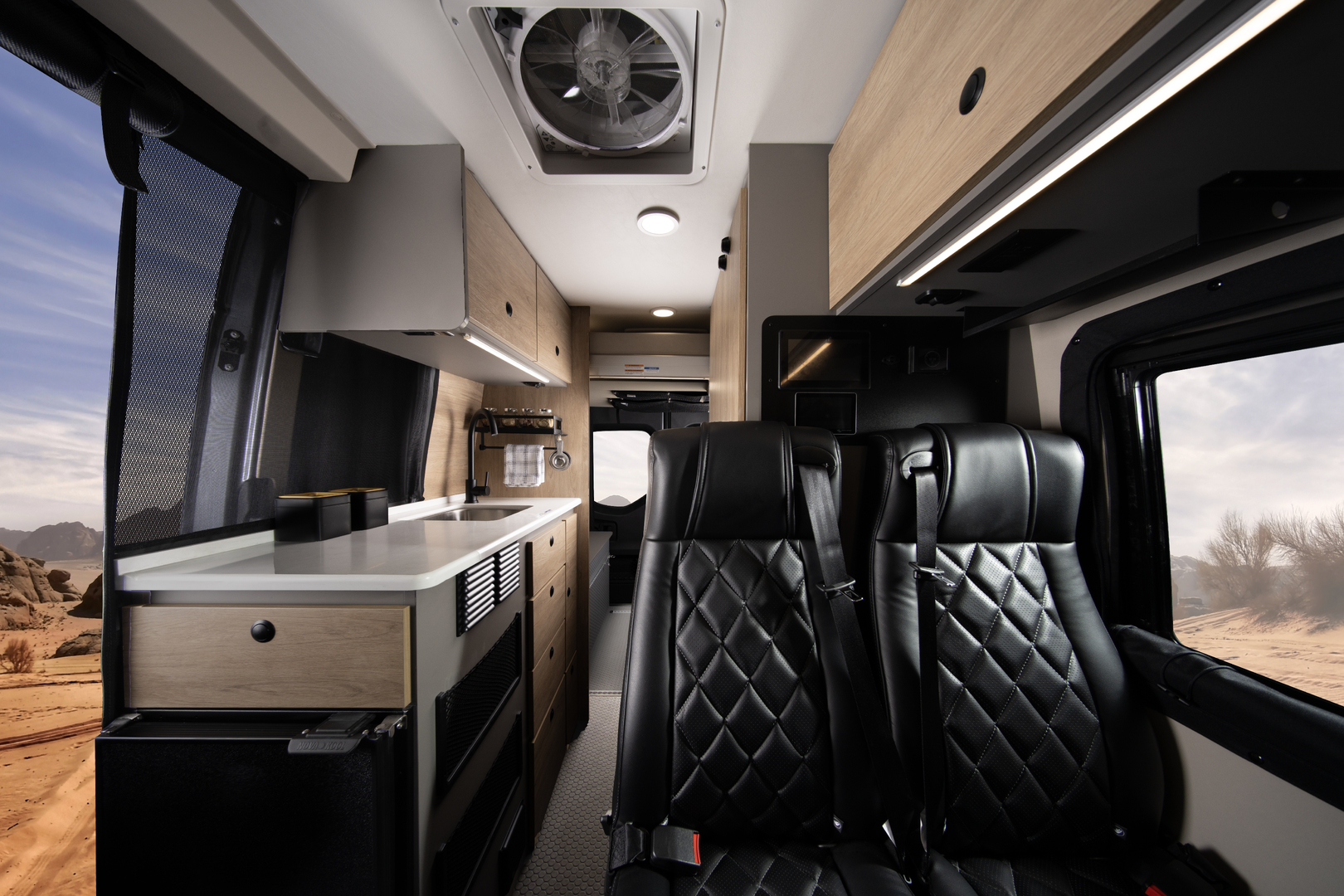

Terrain 19Y Front to Back

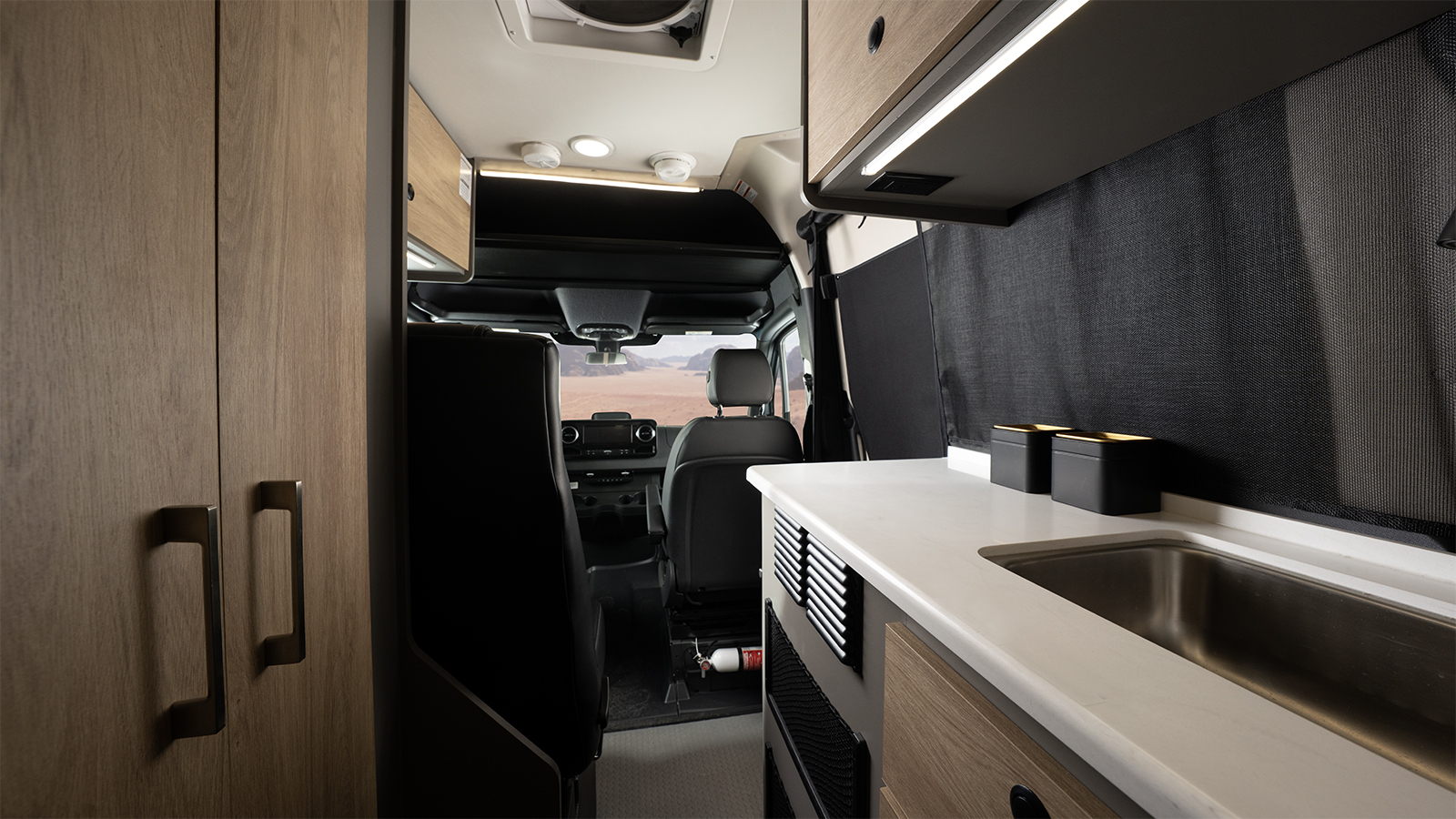

Terrain 19Y Back to Front

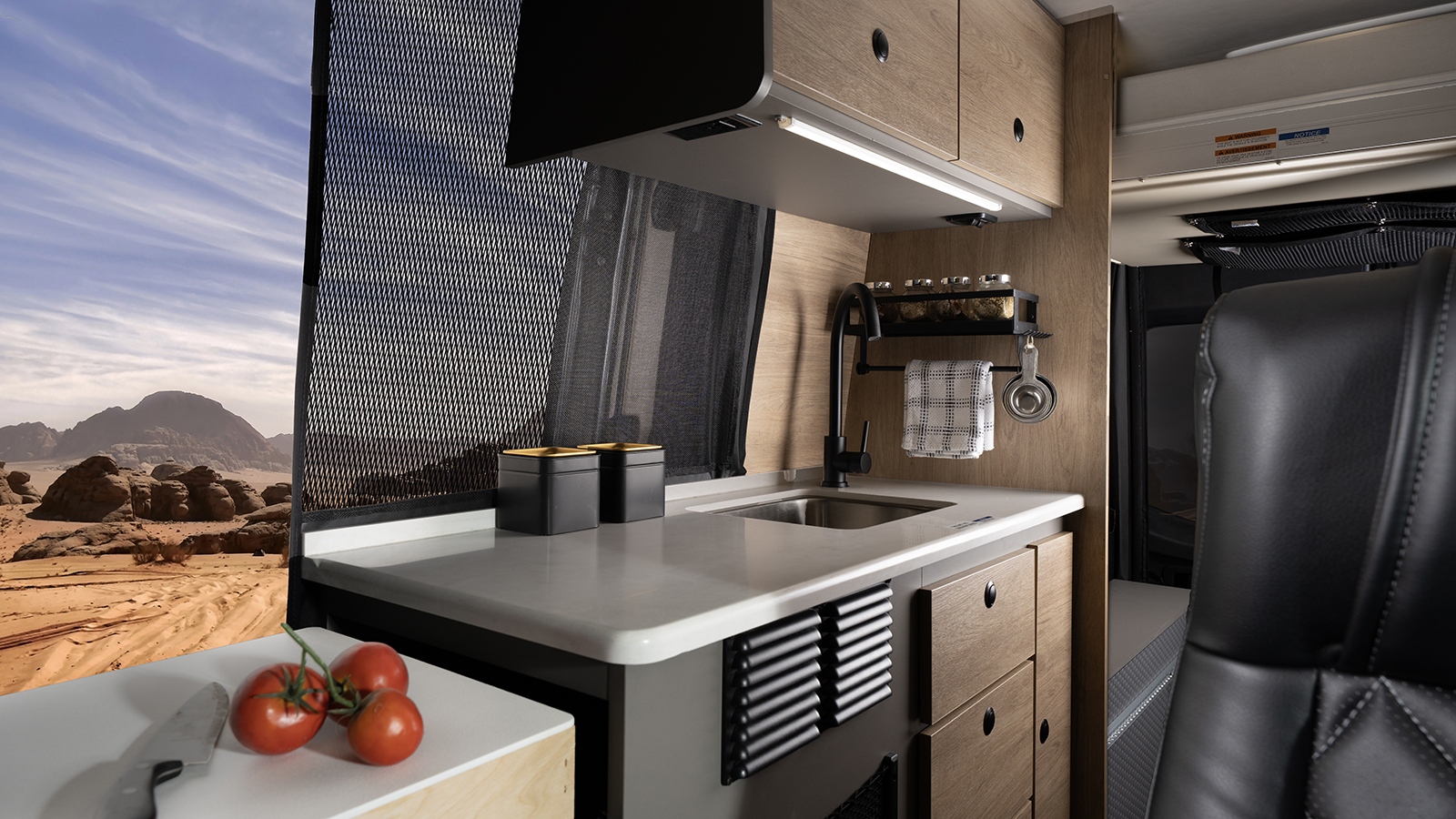

Terrain 19Y Kitchen

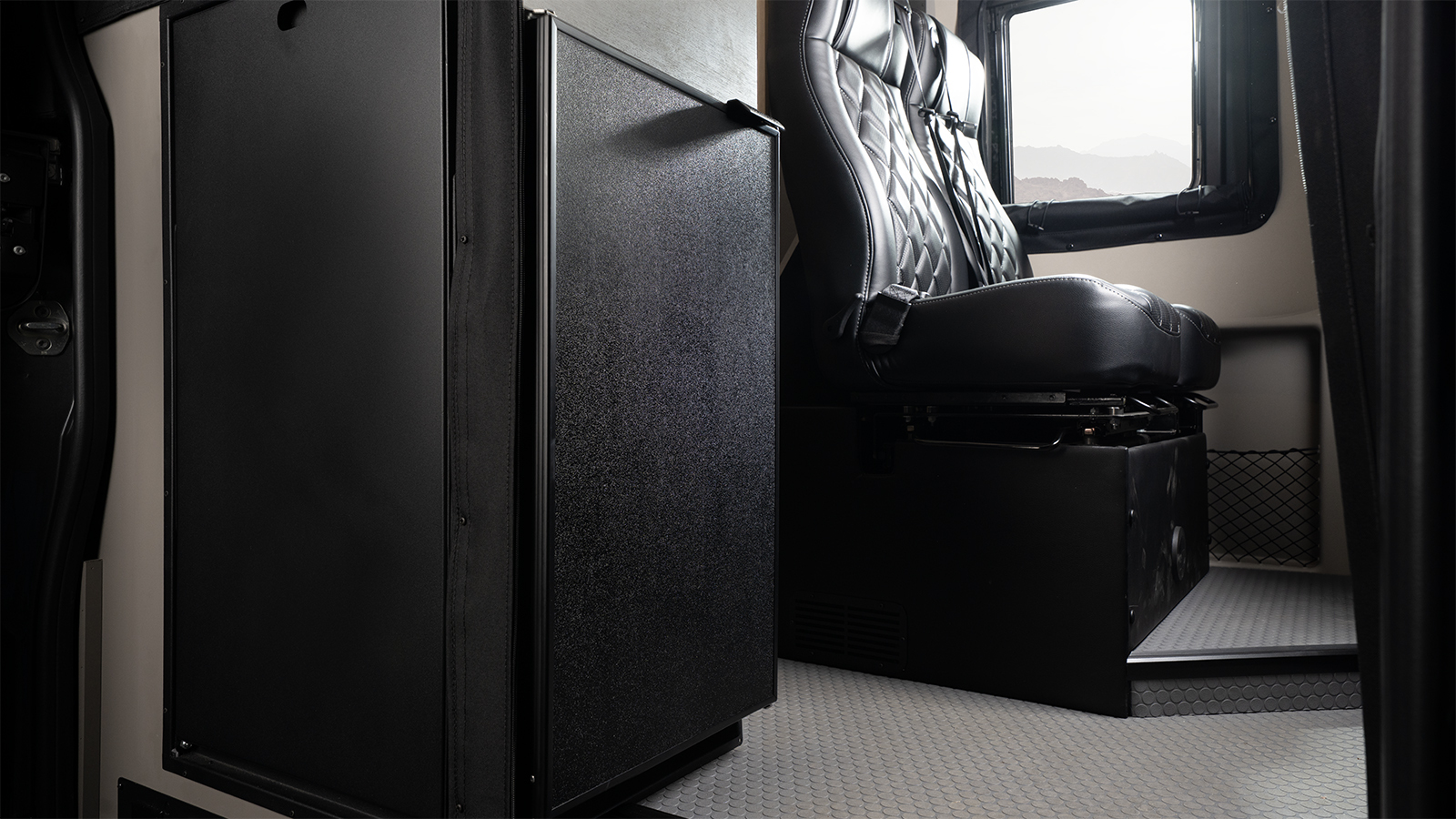

Terrain 19Y Refrigerator

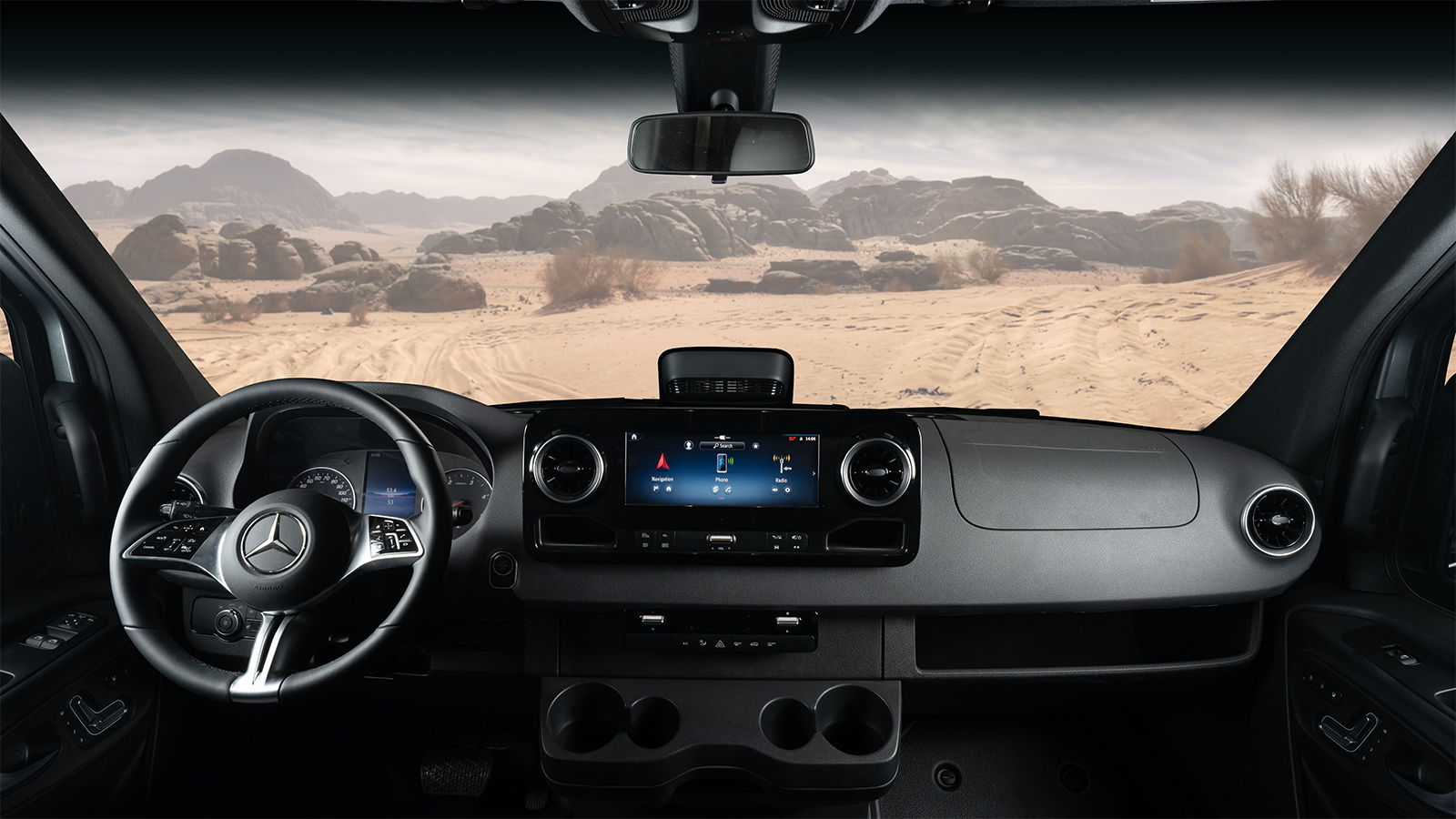

Terrain Dash MORE PHOTOS

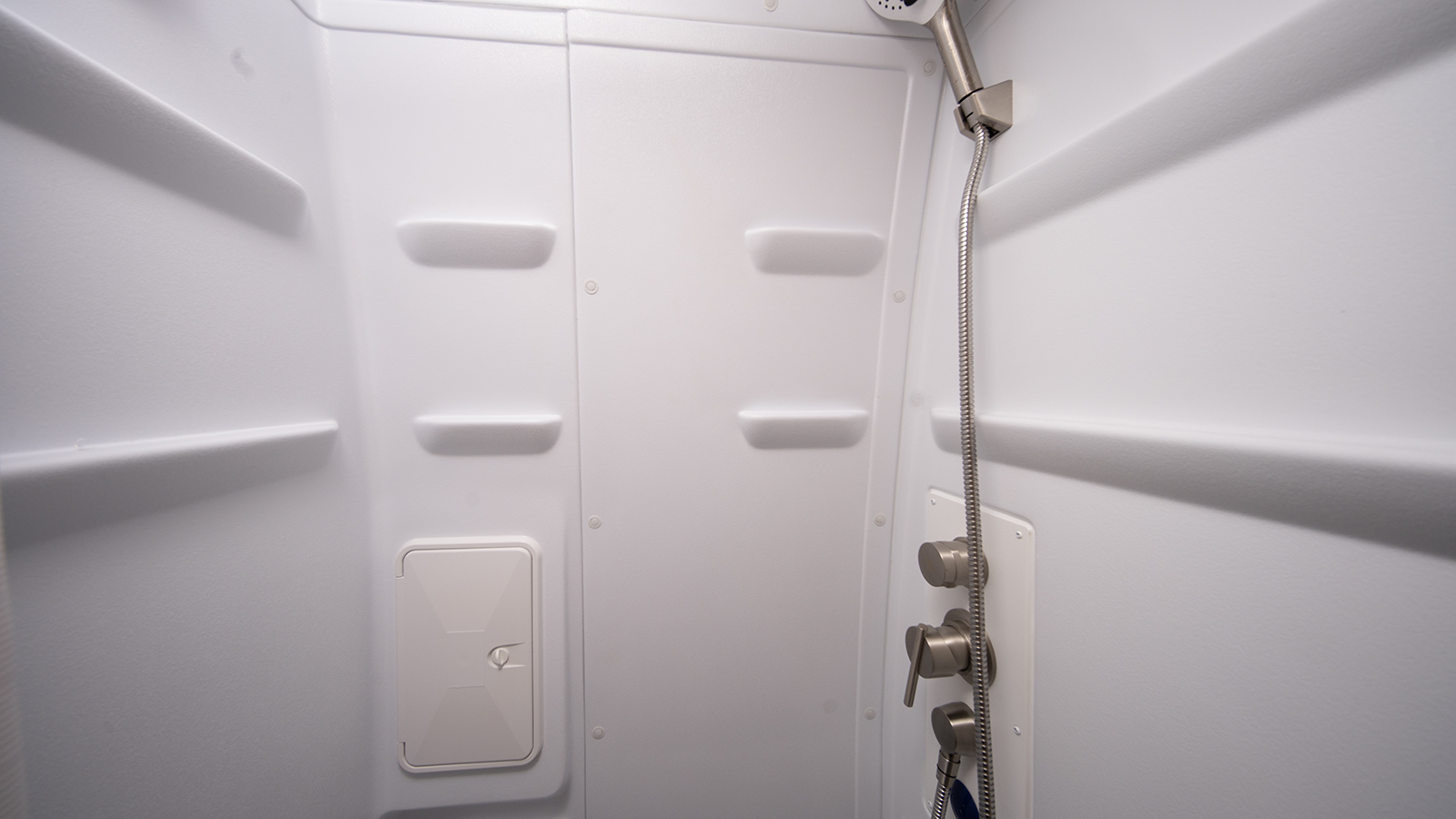

Terrain 19Y Bathroom
Terrain

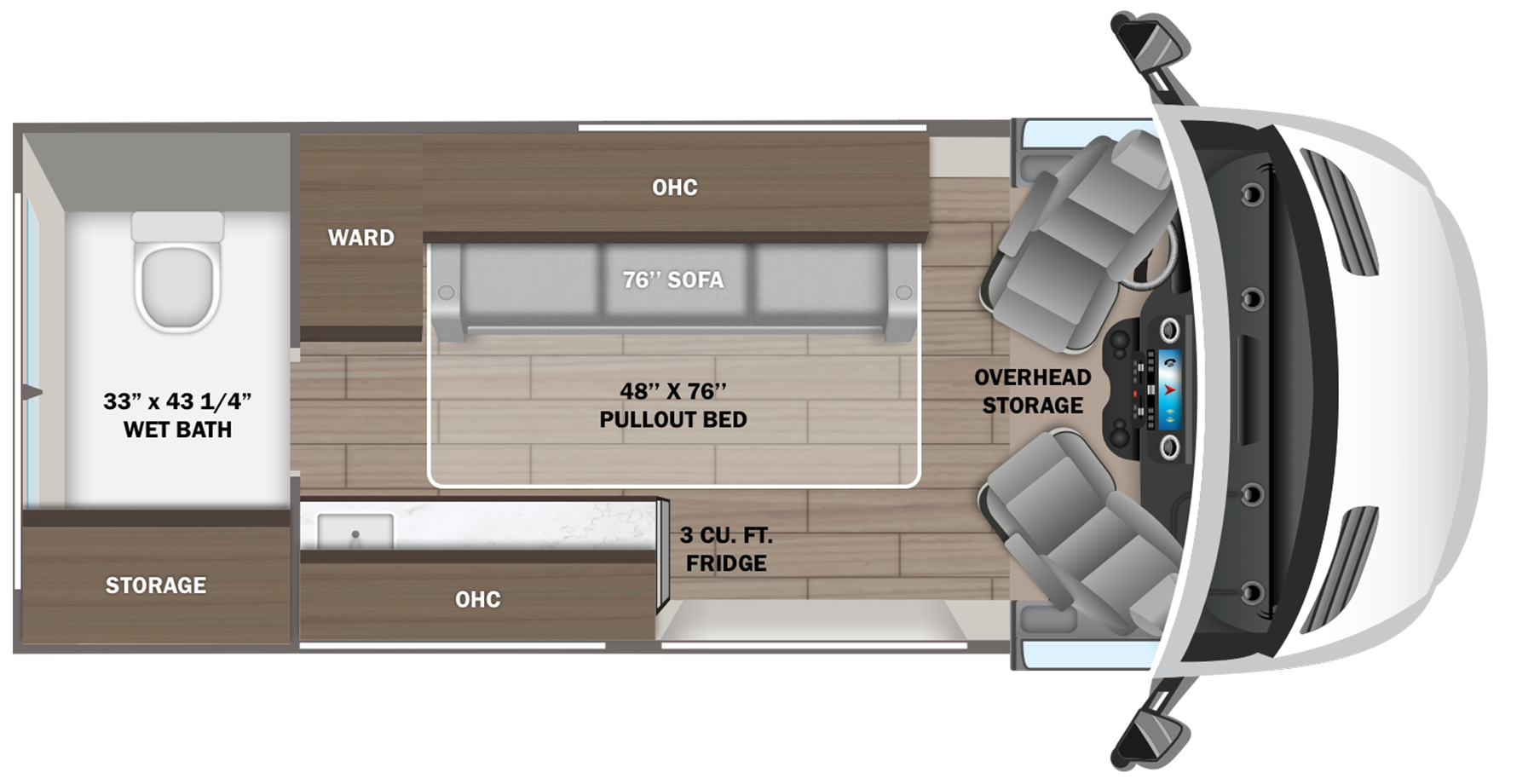

Terrain Floorplans and Prices

The Jayco Terrain is available in 4 floorplans. The 19Y and 19A are the lithium offerings of the lineup while the 19YG and 19AG are the generator offerings. The 19Y and 19YG are the same interior layouts and the same goes for the 19A and 19AG. This gives our potential owners the opportunity to choose the power source that they prefer.

The 19Y and 19YG offer front bench seats with an adjustable table, a midship wetbath across from the kitchen and a rear gear garage with a powered drop-down bed system. The rear gear garage is accessible through the back doors to easily load large camping items such as a bike or a kayak on durable flooring with L-tracks to secure them.

The 19A and 19AG offer a front 74 in. sofa that converts into a bed at night across from the kitchen with abundant storage and cabinet space. This floorplan includes a rear wetbath with a large storage area. The wetbath and storage are accessible through the back doors for maintenance or loading in larger items to take along on your next adventure.

Starting at $203,625
Length 23' 6" - 23' 6"

See Floorplans »

Standard Features and Options

Standard Driving Equipment

  • Mercedes-Benz® Sprinter 2500 AWD van with 144 in. wheelbase
  • 2.0L inline 4-cylinder Twin Turbo 211HP diesel engine with electronic fuel injection with 332 ft.-lb. torque
  • 9-speed automatic transmission
  • 5,000 lb. rear hitch receiver with 7 pin connector
  • 24.5 gal. fuel tank (diesel)
  • 5.8 gal DEF Tank

Standard Exterior Equipment

  • 48V-165 amp hour smart lithium battery providing 7.9KW hours of power (19A, 19Y)
  • 2,500W LP generator with auto-gen start (19AG, 19YG)
  • 6 gal. propane tank - 20 lb. (19AG, 19YG)
  • (2) 12V AGM batteries (19AG, 19YG)
  • 3,000W Victron inverter (19A, 19Y)
  • 2,000W inverter (19AG,19YG)
  • 48V BSG "smart" alternator dedicated to lithium battery (19A, 19Y)
  • 200W of roof-mounted solar
  • Water filtration system

Standard Interior Equipment

  • Firefly total coach control system
  • 12V Deluxe roof vent
  • 12V refrigerator
  • Portable induction cooktop
  • Smoke alarm
  • Carbon monoxide detector
  • Fire extinguisher

Customer Value Package (Mandatory)

  • JRide®: upgraded shocks, heavy-duty rear stabilizer bar
  • Electric patio awning with LED light strip
  • Roof rack and side-mounted ladder
  • Front and rear wind deflectors with front rotating LED light bar
  • Timberline hydronic heating system
  • 18,000 BTU variable speed air conditioner
  • Black aluminum wheels with all-terrain 245/70R17 tires

Options

  • Rear spare tire with tire mount
  • Driver side "Single" Seat (19Y/19YG)

Standard Features
and Options

See all »
