2027 Seismic Fifth Wheel Toy Hauler

Starting at $119,280

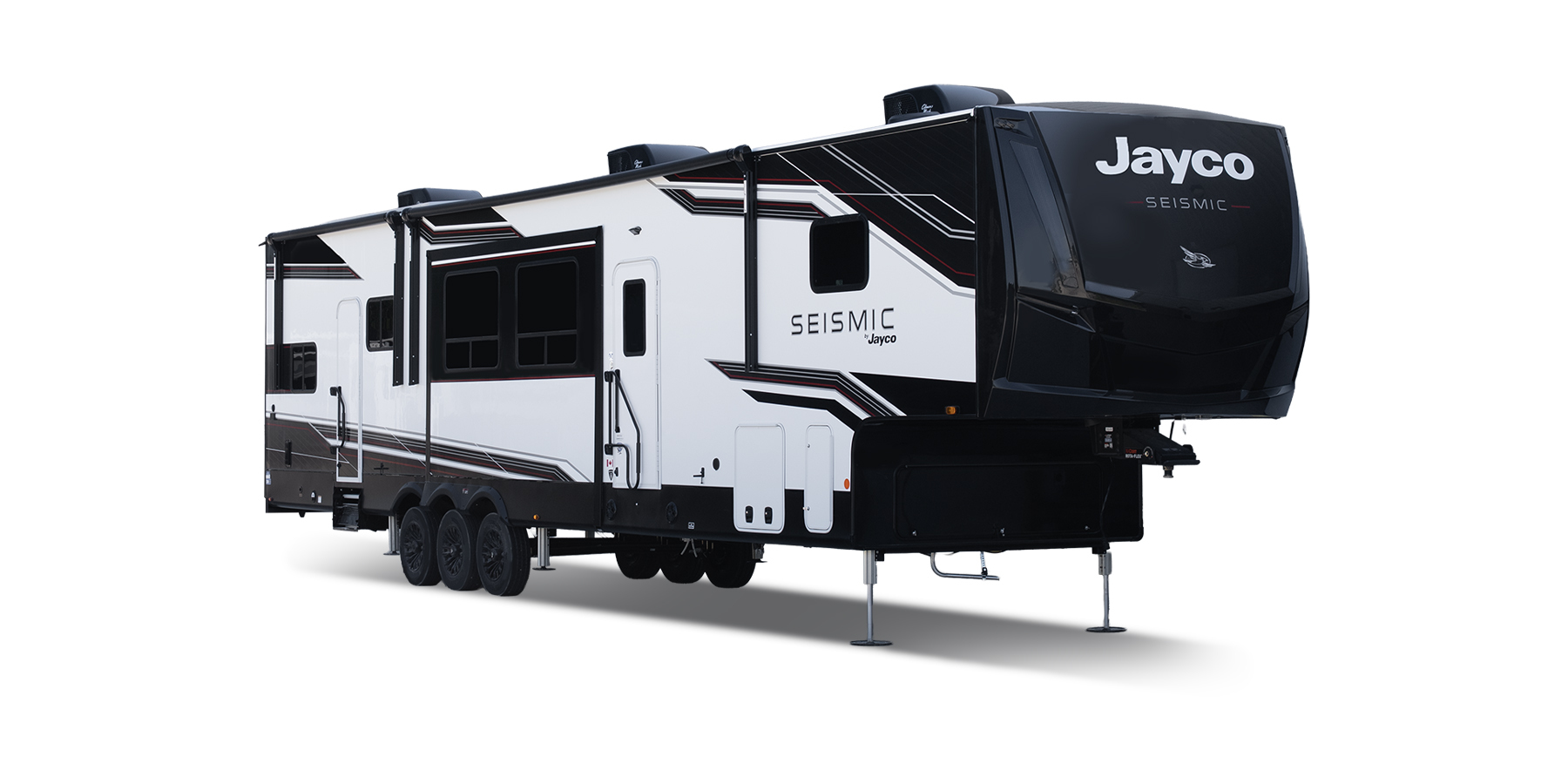

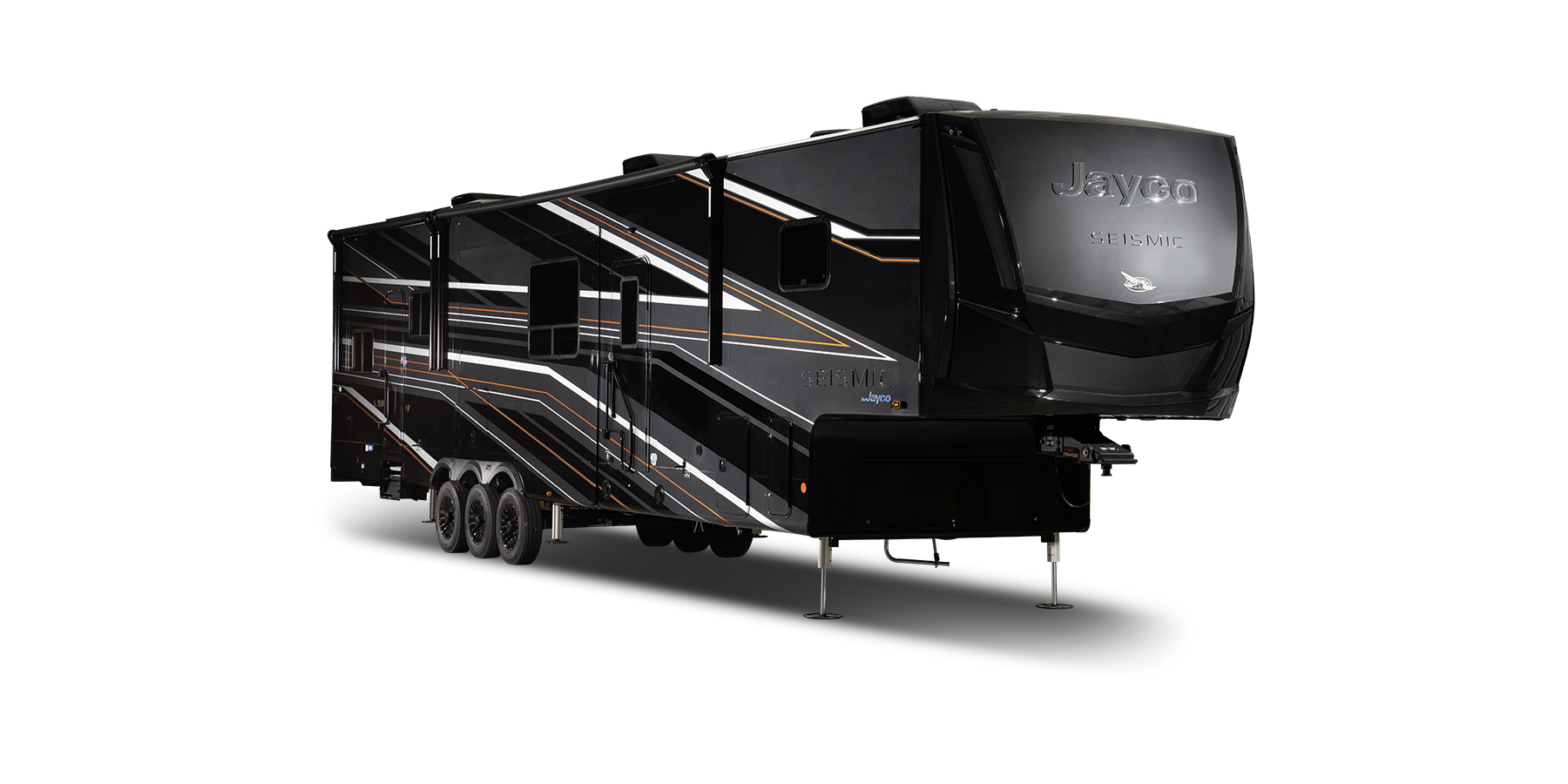

The 2027 Jayco Seismic Toy Hauler is engineered for serious adventure, combining rugged construction with elevated residential comfort inside and out. Built on a 102-inch wide structural steel I-beam frame, Seismic delivers strength where it matters most, featuring Jayco’s Stronghold VBL™ aluminum-framed, vacuum-bond laminated walls and the Magnum Truss™ XL6™ Roof System—one of the strongest tested roof structures in the industry—topped with a PVC roof membrane backed by a limited lifetime warranty.

Designed for true four-season use, the Climate Shield™ zero-degree tested weather protection system surrounds you with confidence. Double-layer fiberglass batt insulation, radiant barrier technology in the roof and floor, a fully enclosed and heated underbelly, and a powerful 35,000 BTU furnace all work together to keep you comfortable no matter the forecast. The HELIX Cooling System™ enhances climate control with an insulated dual-duct A/C design and directional, closeable vents for more efficient airflow throughout the coach.

On the road, the 5-Star Handling Package ensures a smooth, controlled towing experience. Dexter® axles with ABS, Tow Assist, and Sway Mitigation pair with 17.5-inch H-rated Cooper tires, MORryde® CRE 3000 suspension, and a Rota-Flex king pin to deliver stability and confidence mile after mile.

Off-grid capability comes standard with the NPS-powered Yamaha 6,000W generator and the Power Up Solar II system, featuring 400 watts of solar, an MPPT controller, and an 1800W inverter—giving you the freedom to camp longer and farther. Exterior convenience is elevated with the Nautilus docking station, dual black tank flush, quick-connect outside shower, LP quick-connect, Starlink prep, and pass-through storage with Slam-latch™ baggage doors. A painted fiberglass front cap with integrated RGB lighting and dual power awnings with app-controlled LED lighting bring a bold, modern presence to every campsite.

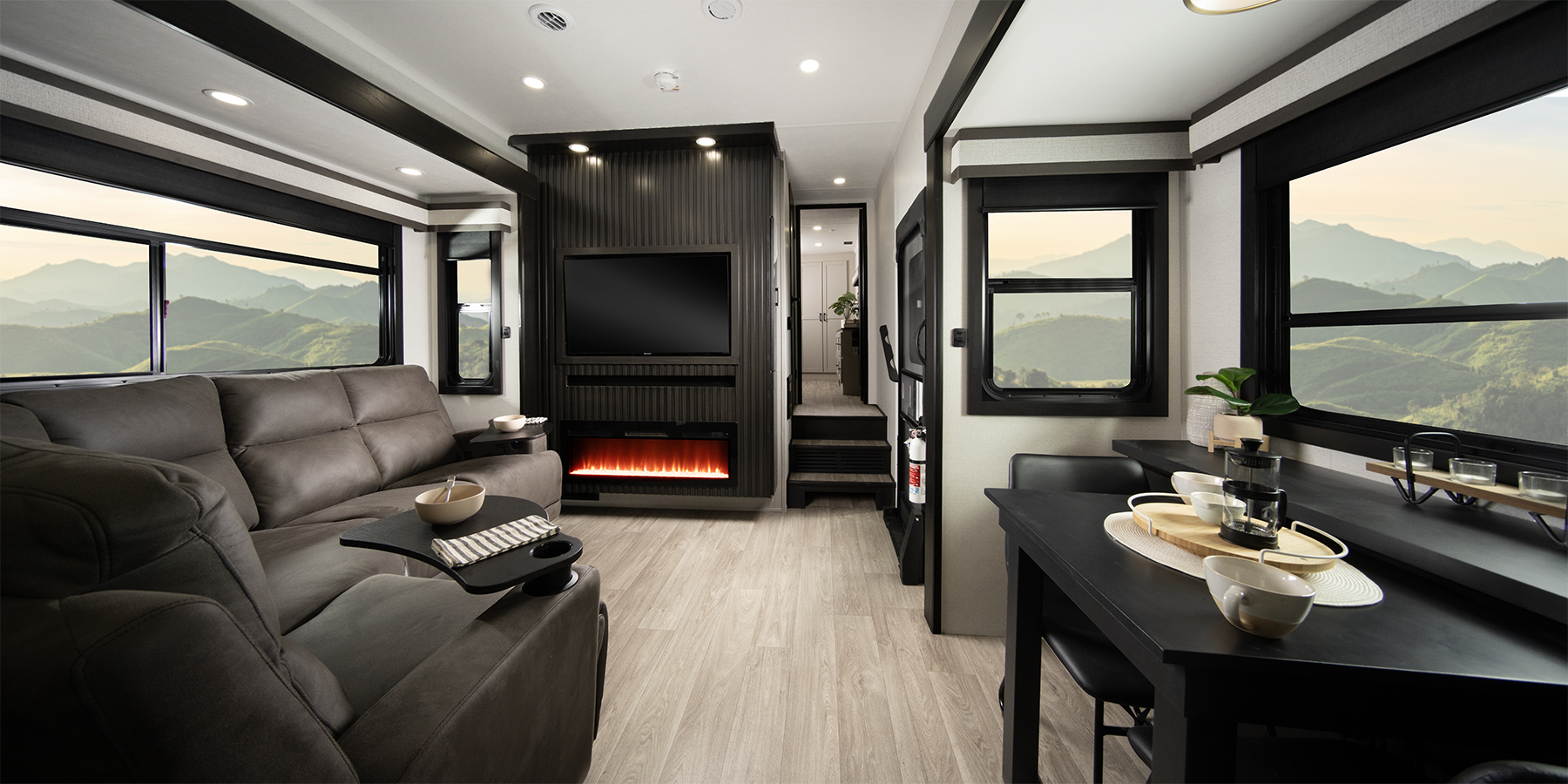

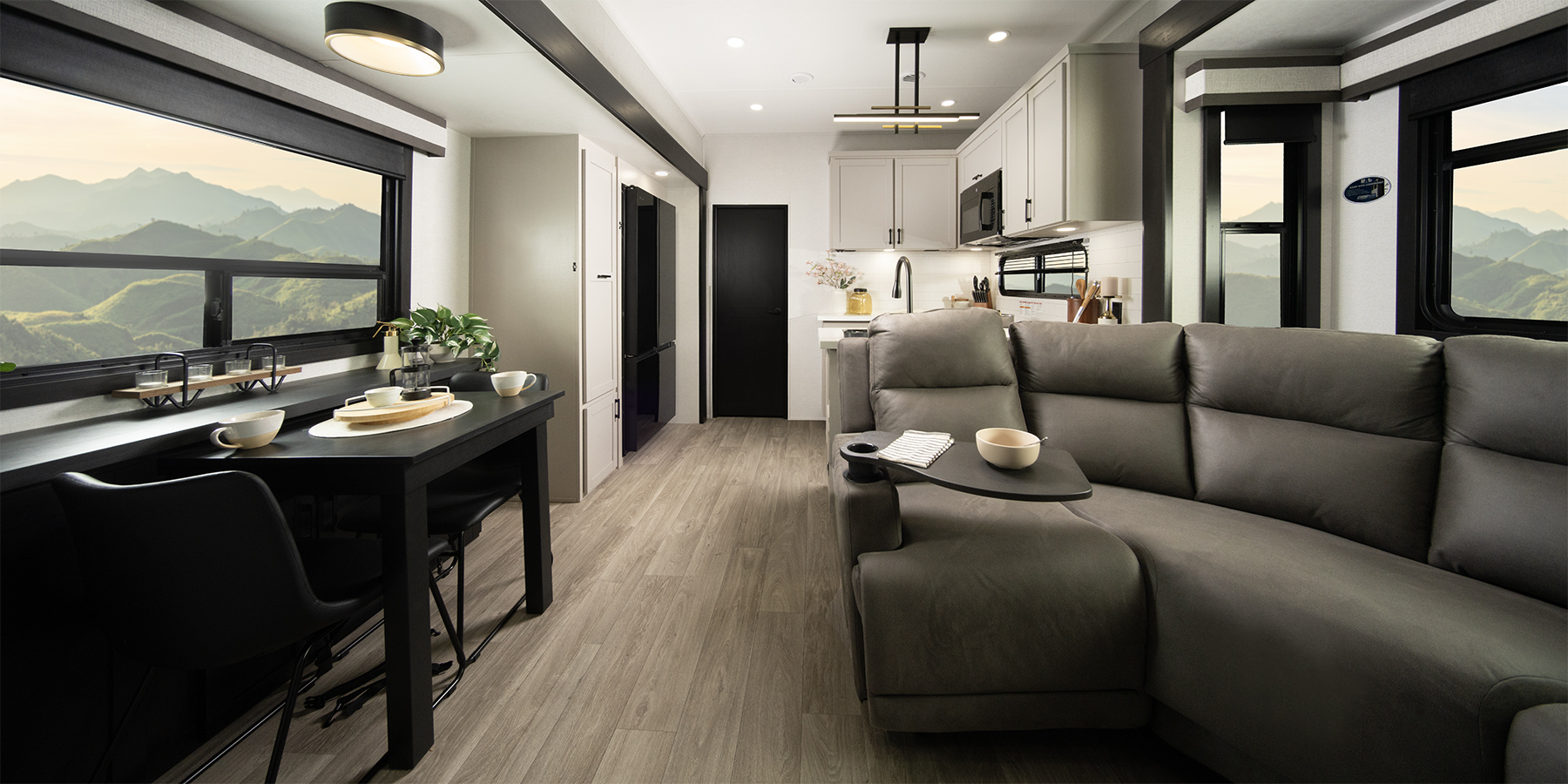

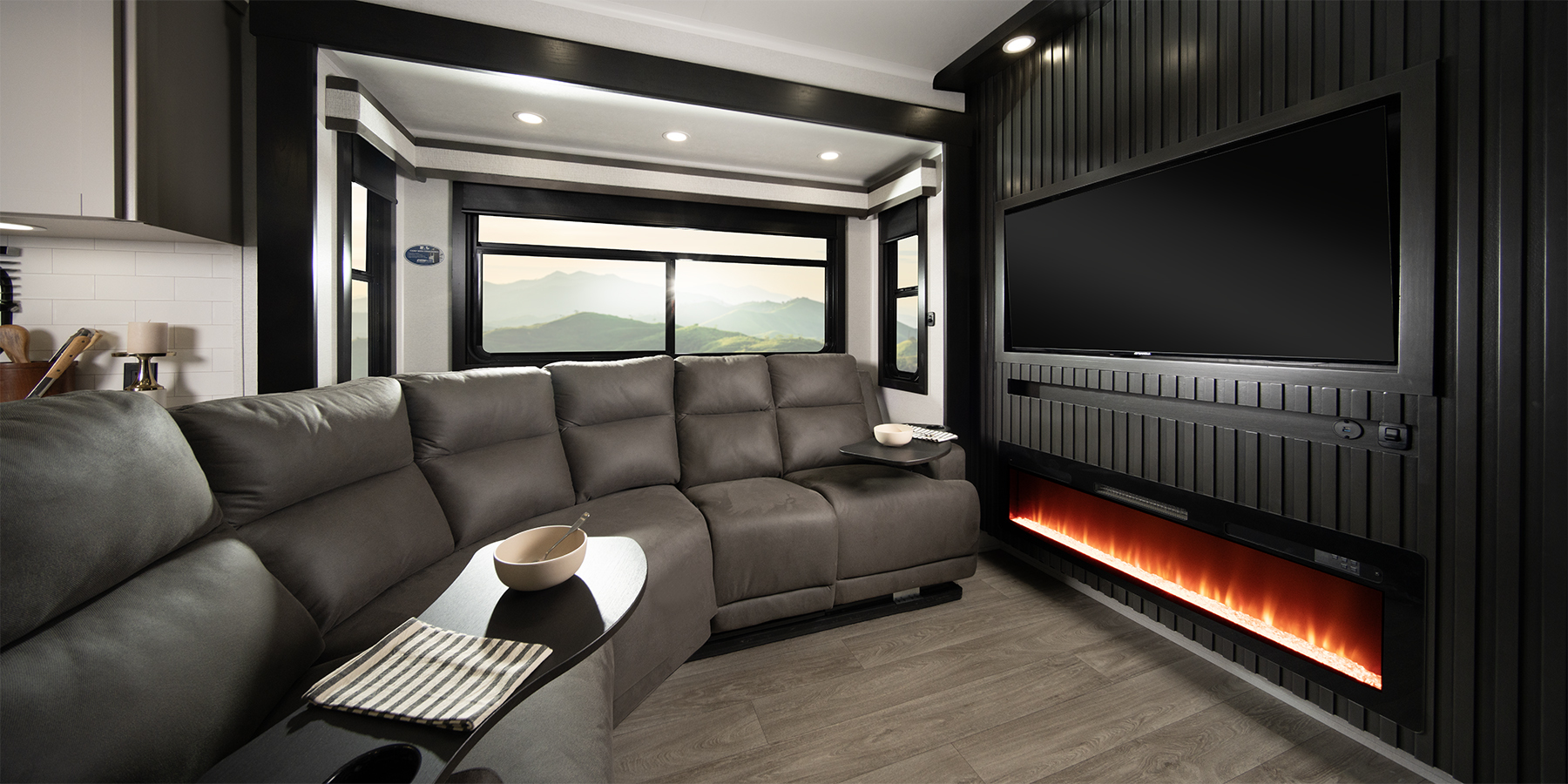

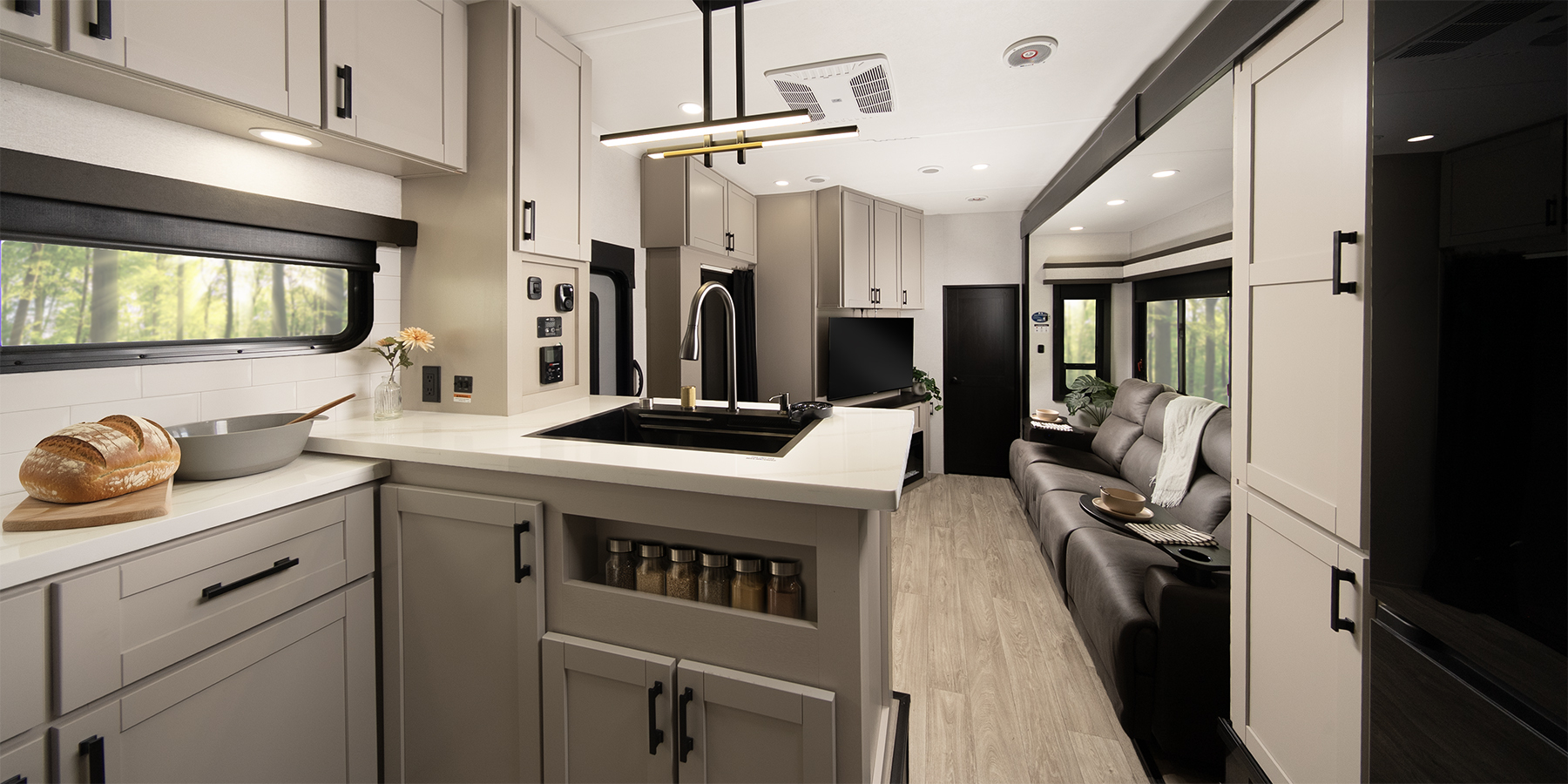

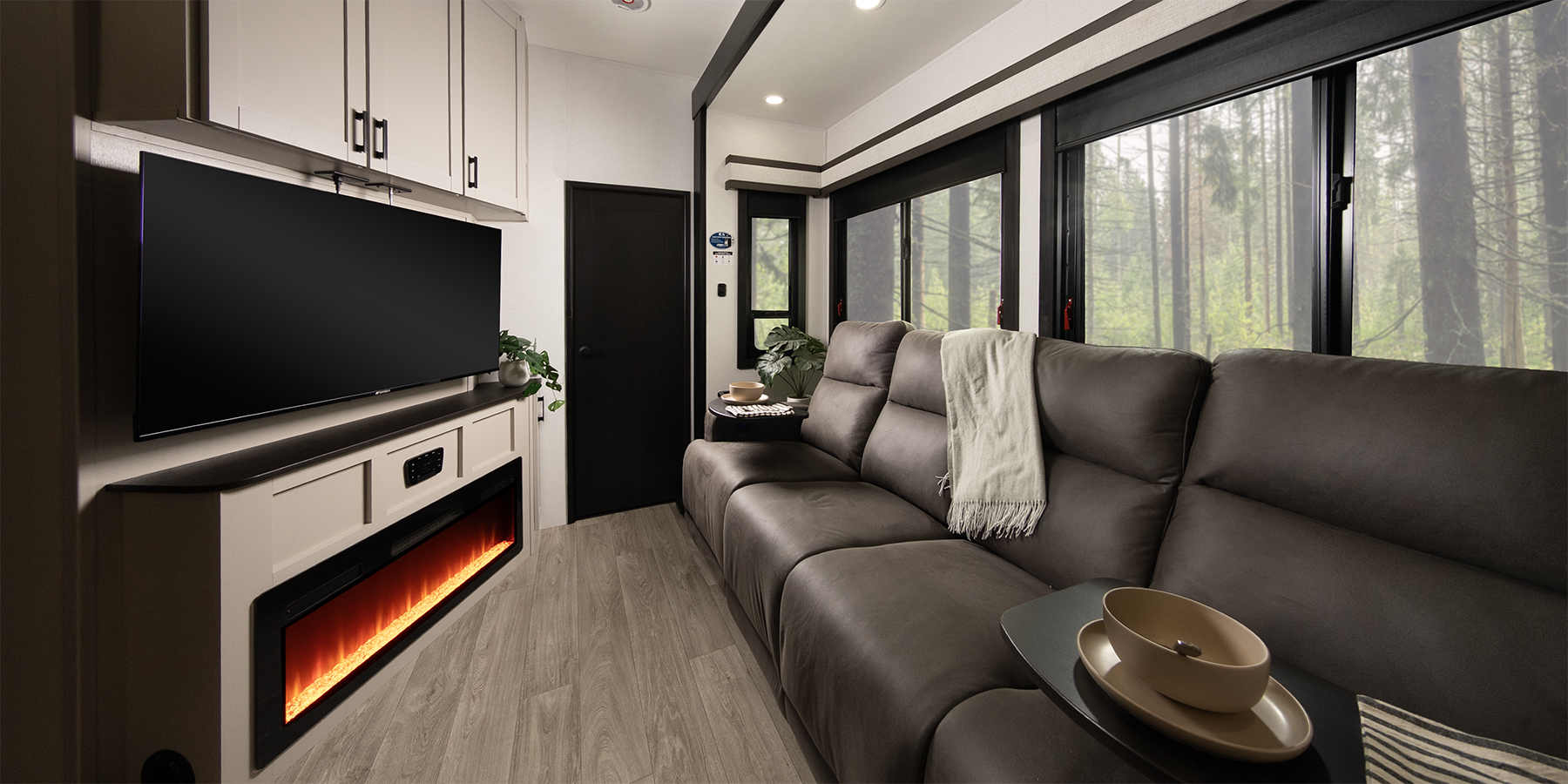

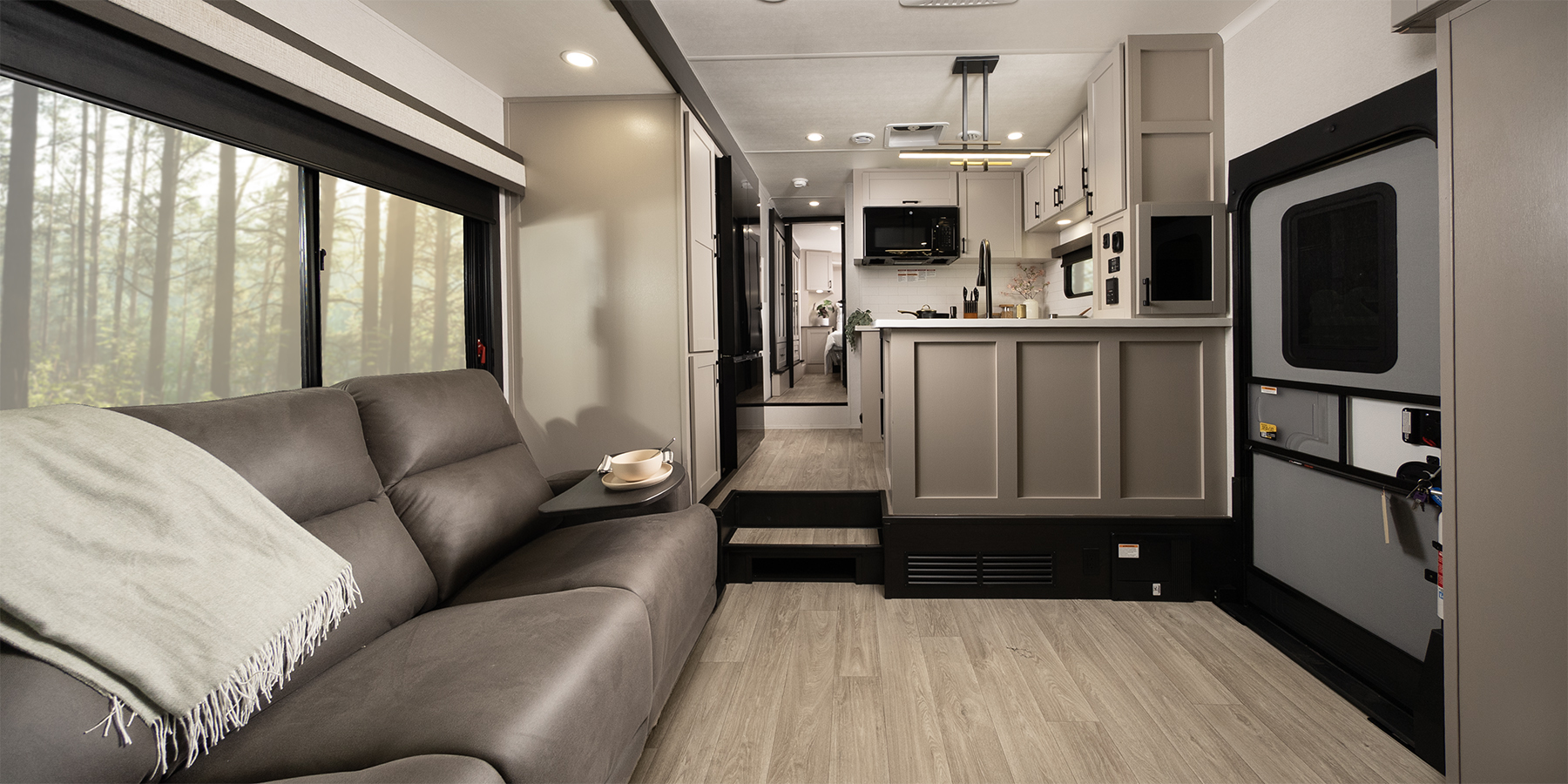

Inside, Seismic delivers a true residential experience. Premium touches include solid hardwood glazed cabinetry, dovetail-constructed drawers with full-extension guides, and durable vinyl flooring throughout—including slide rooms with no carpet. The living space offers a SuperSofa or theater seating with heat, massage, and LED lighting (select models), paired with a 4K Smart LED HDTV and MB Quart Bluetooth® audio system.

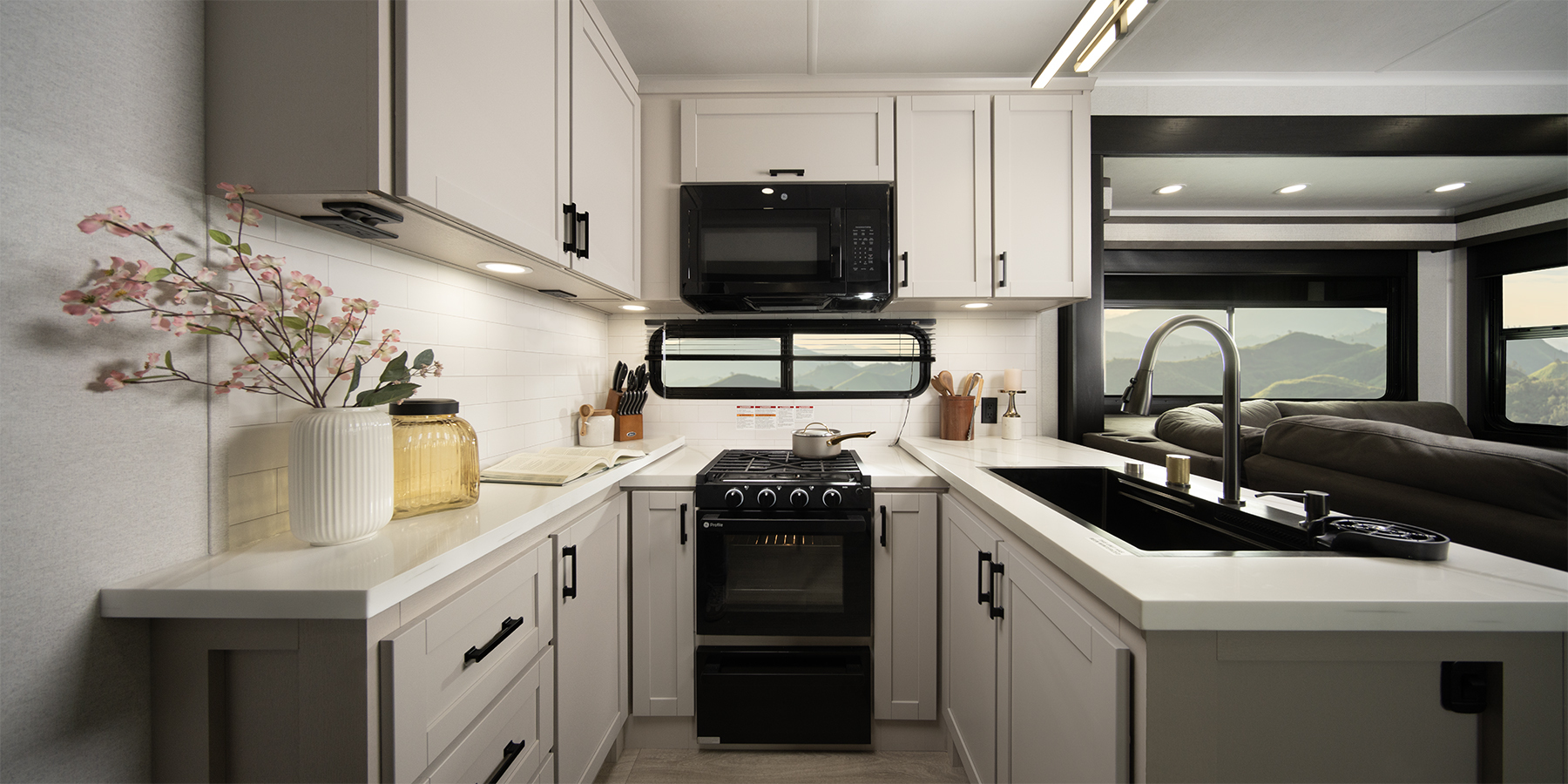

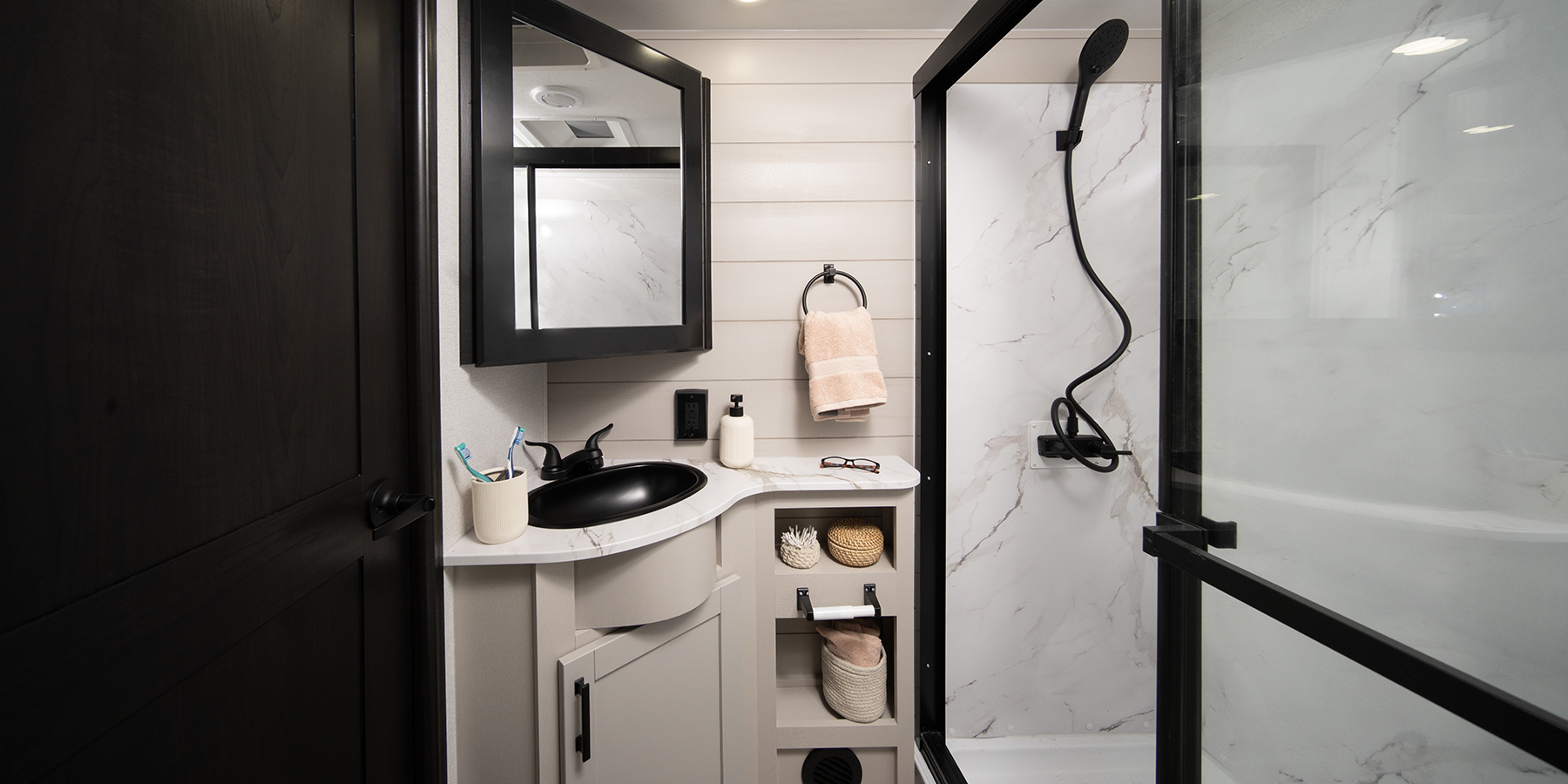

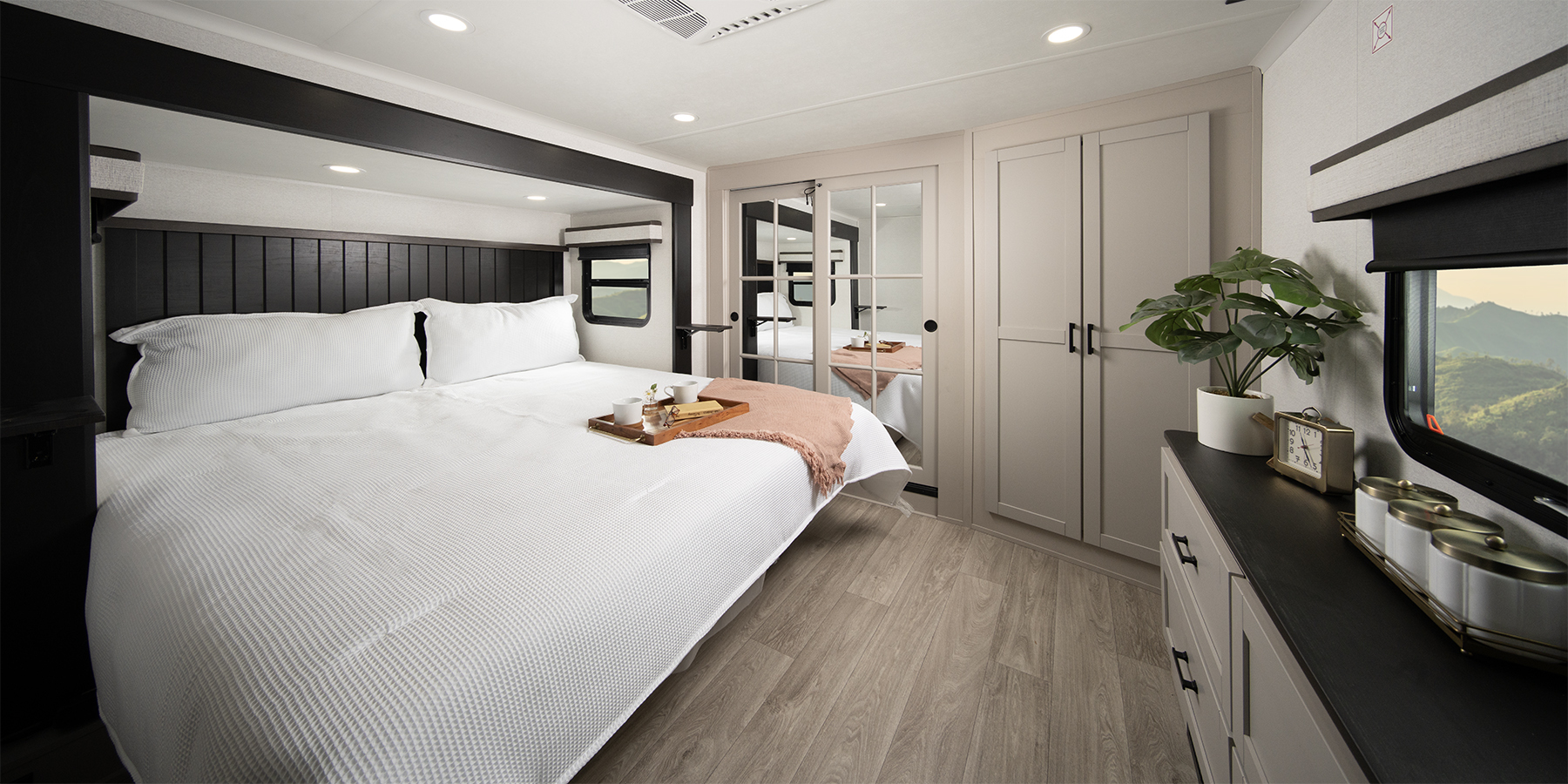

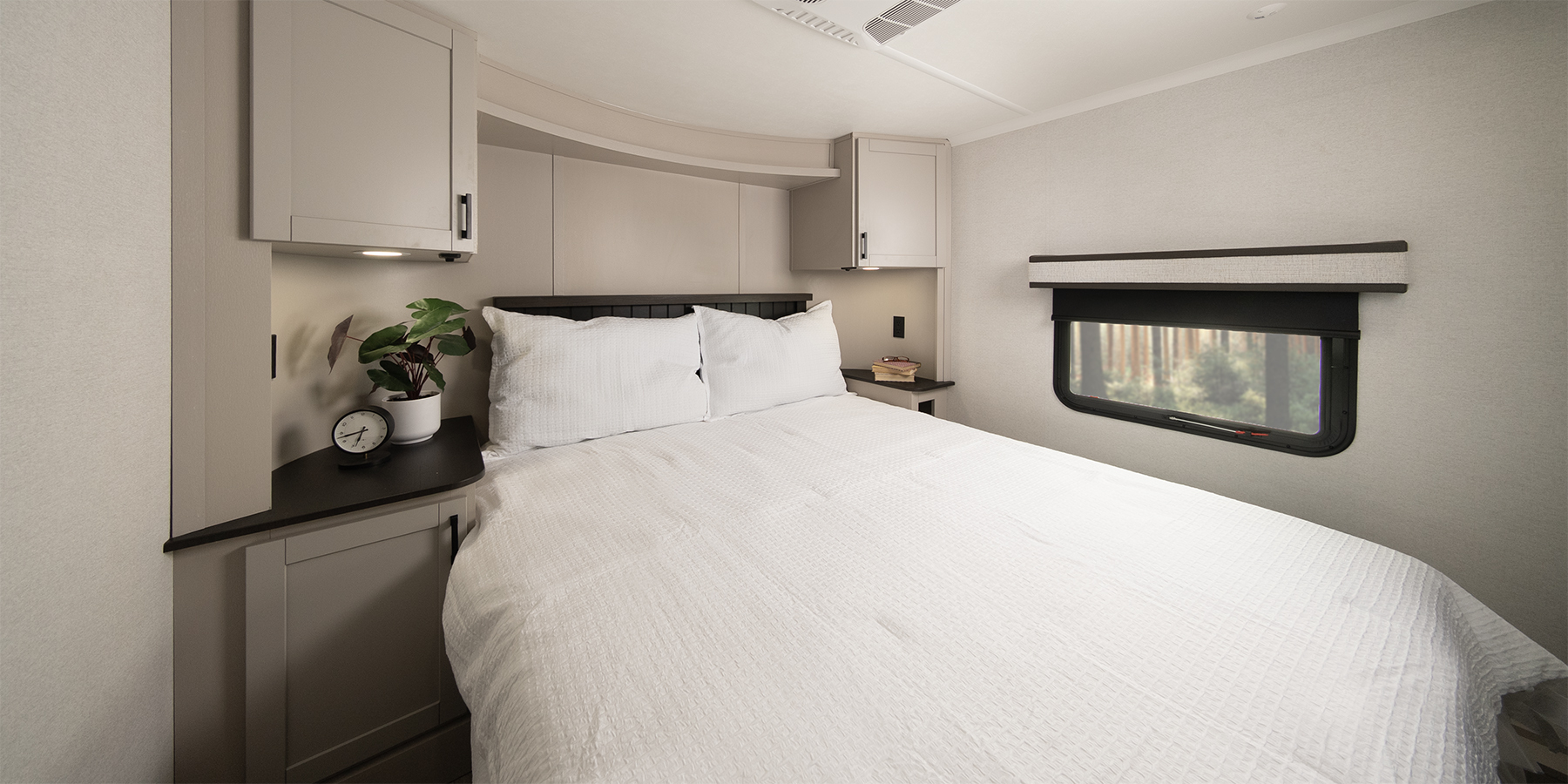

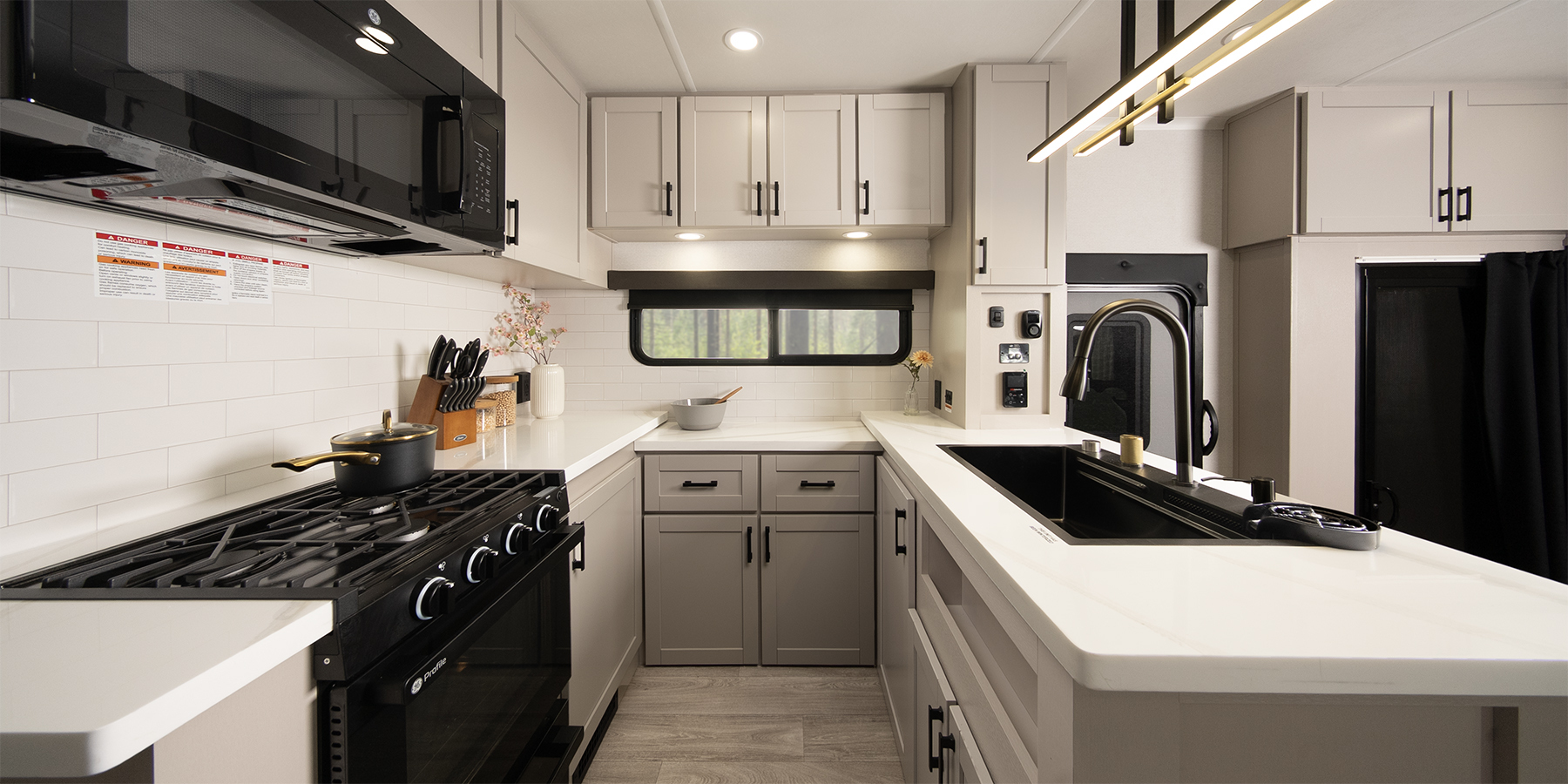

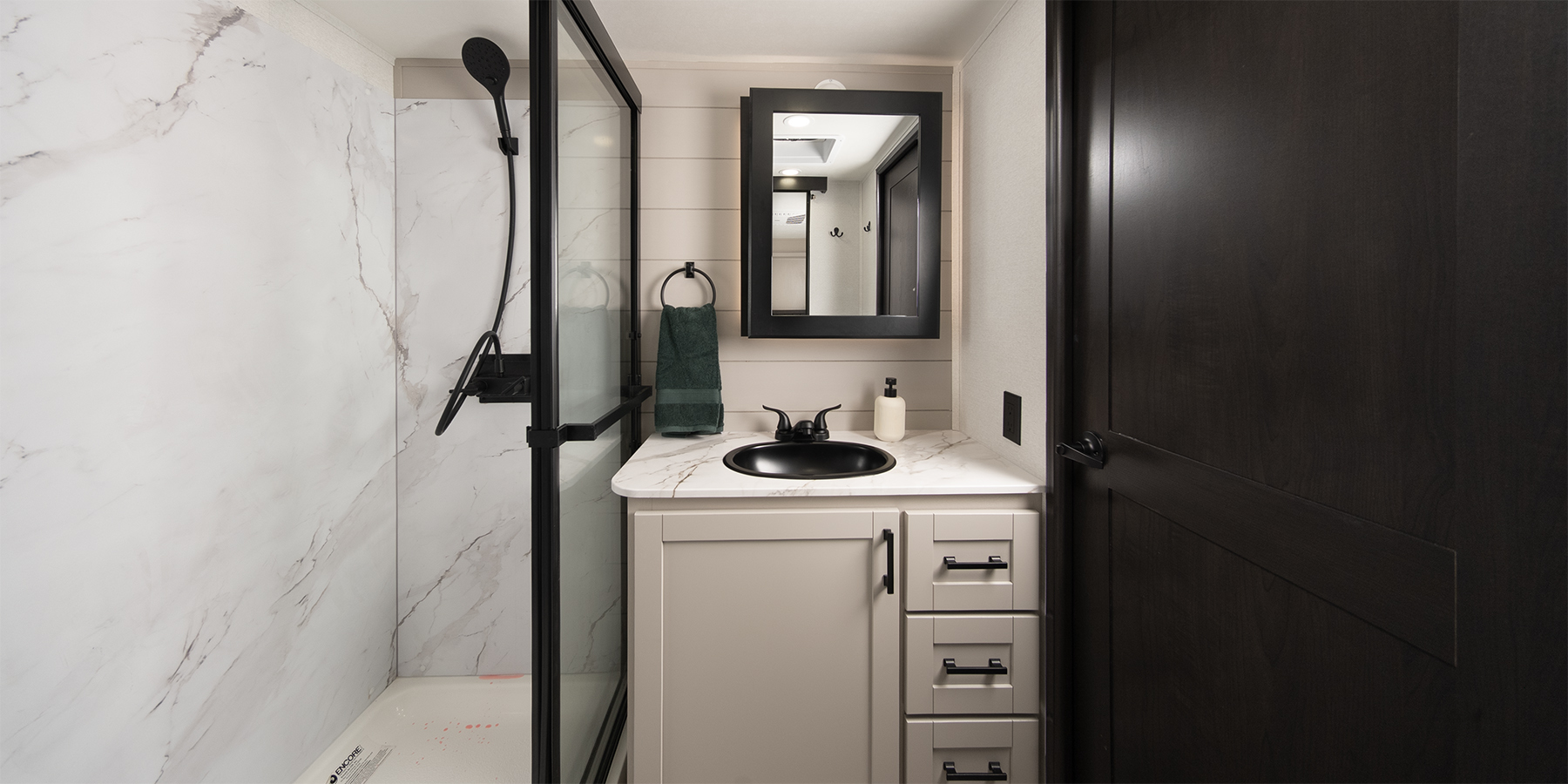

The kitchen is built to perform, featuring a 12V black glass 17 cu. ft. refrigerator, 30-inch residential microwave, and 21-inch oven with three burners, along with a versatile “do-it-all” sink complete with pull-out faucet, glass rinse, and vegetable rinse. In the bedroom, select models offer a king bed, CPAP prep on both sides, and under-bed storage, while the bathroom includes a glass shower door, skylight, porcelain foot-flush toilet, and power vent.

Jayco’s exclusive NuvoH2O whole-coach water treatment system comes standard, delivering softened, filtered water throughout the unit—part of the brand’s commitment to premium livability.

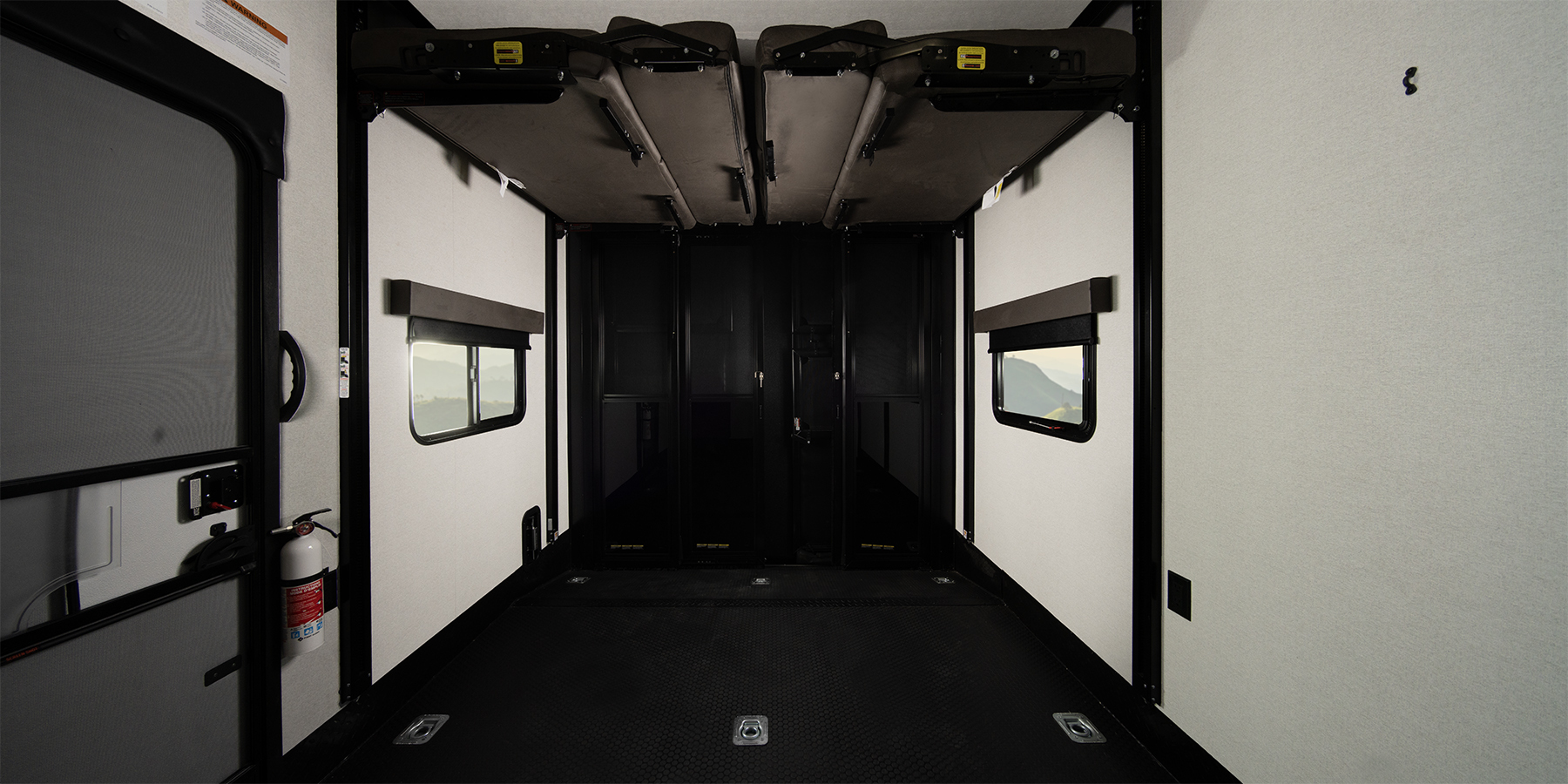

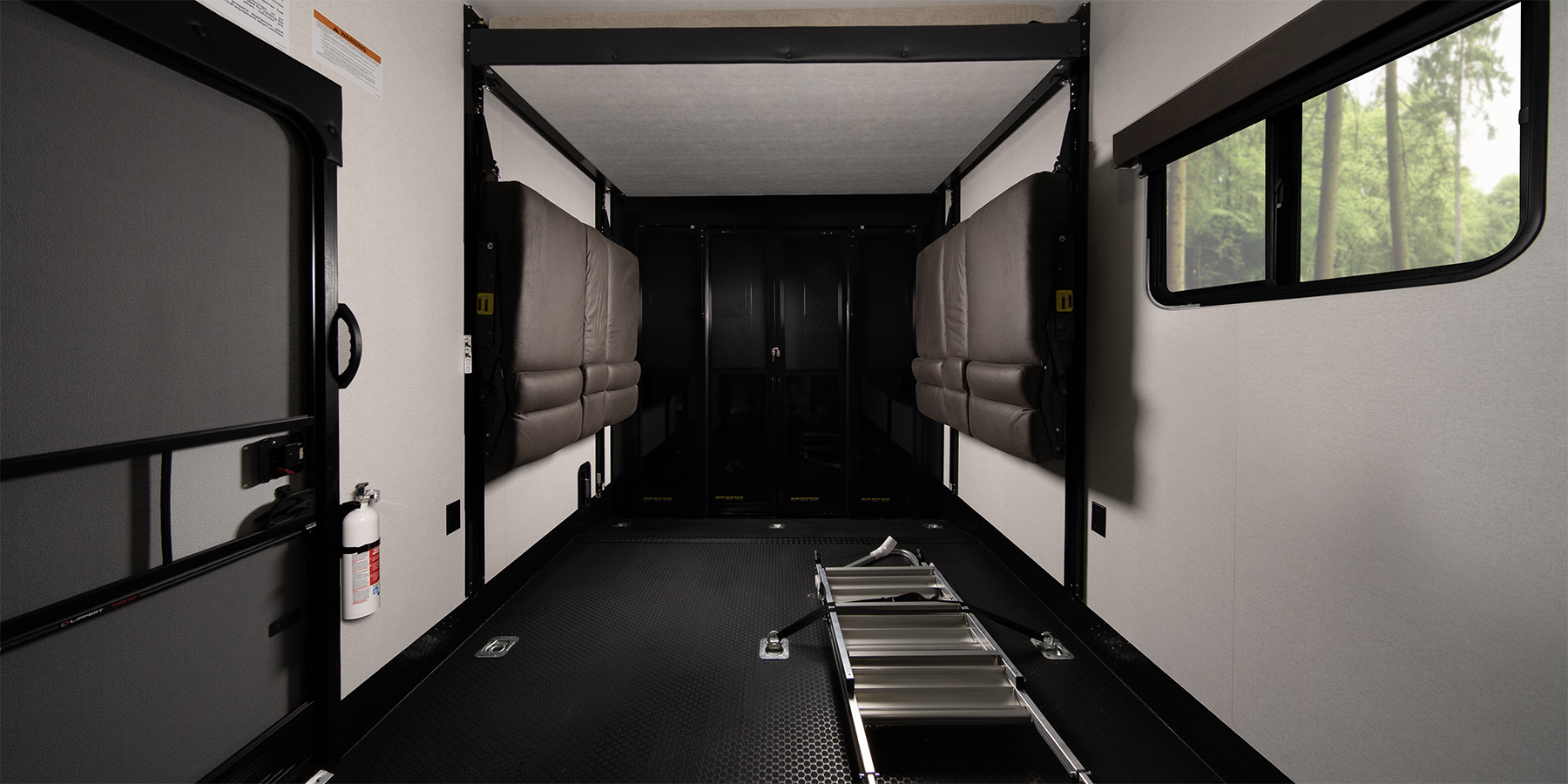

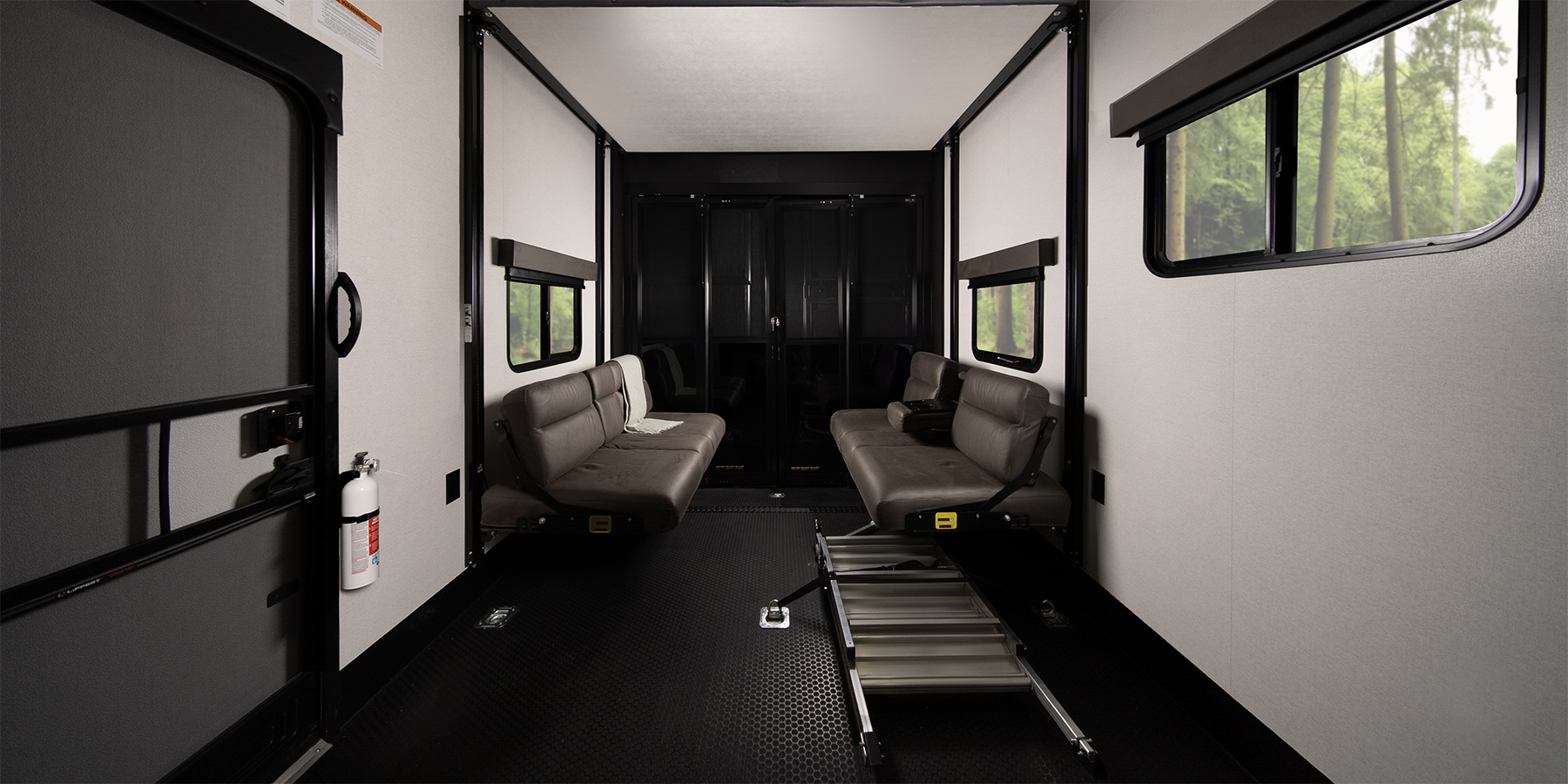

In the garage, versatility meets durability. A Tuff-Ply rubberized floor, 5,000 lb. rated D-rings anchored to the steel frame, and a 30-gallon fuel station make it easy to bring your toys along. The HappiJac® electric-lift queen beds with convertible sofas maximize space, while the three-season garage wall and ramp patio system with power awning and LED lighting transform the area into a functional living and entertainment zone.

From its advanced construction and towing confidence to its refined interior and flexible cargo space, the 2027 Jayco Seismic Toy Hauler is built to take you farther—without sacrificing the comfort of home.

Seismic Fifth Wheel Toy Hauler

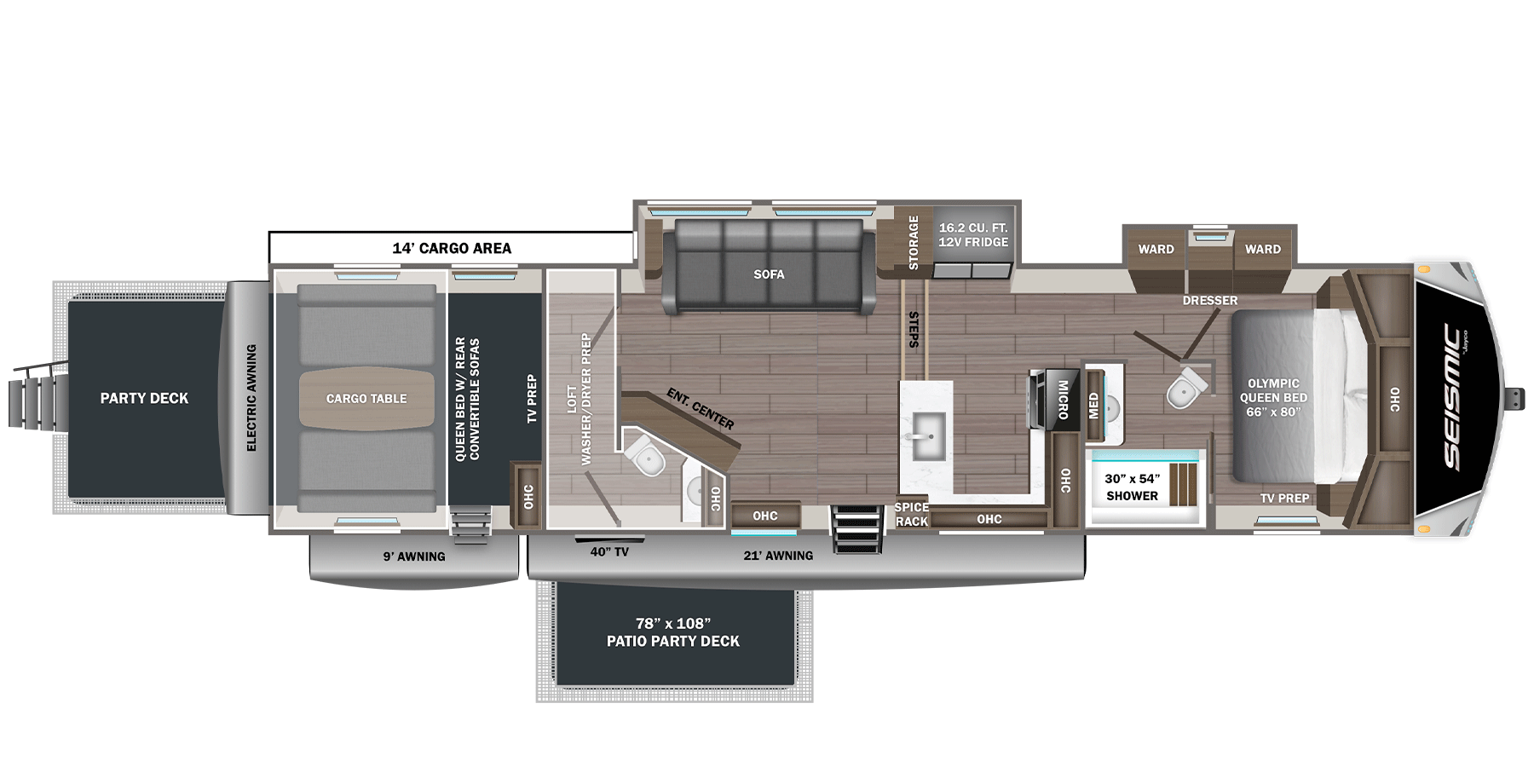

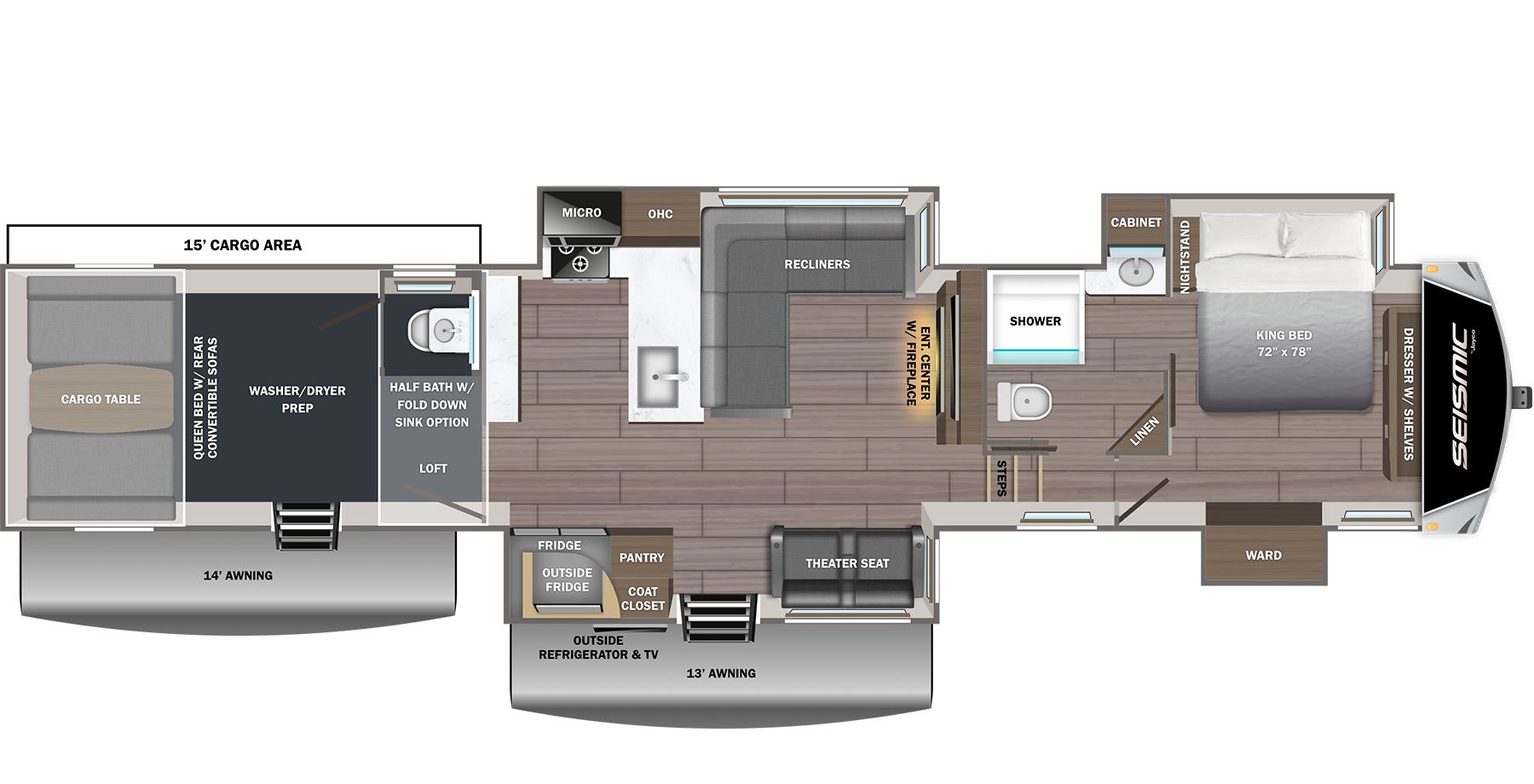

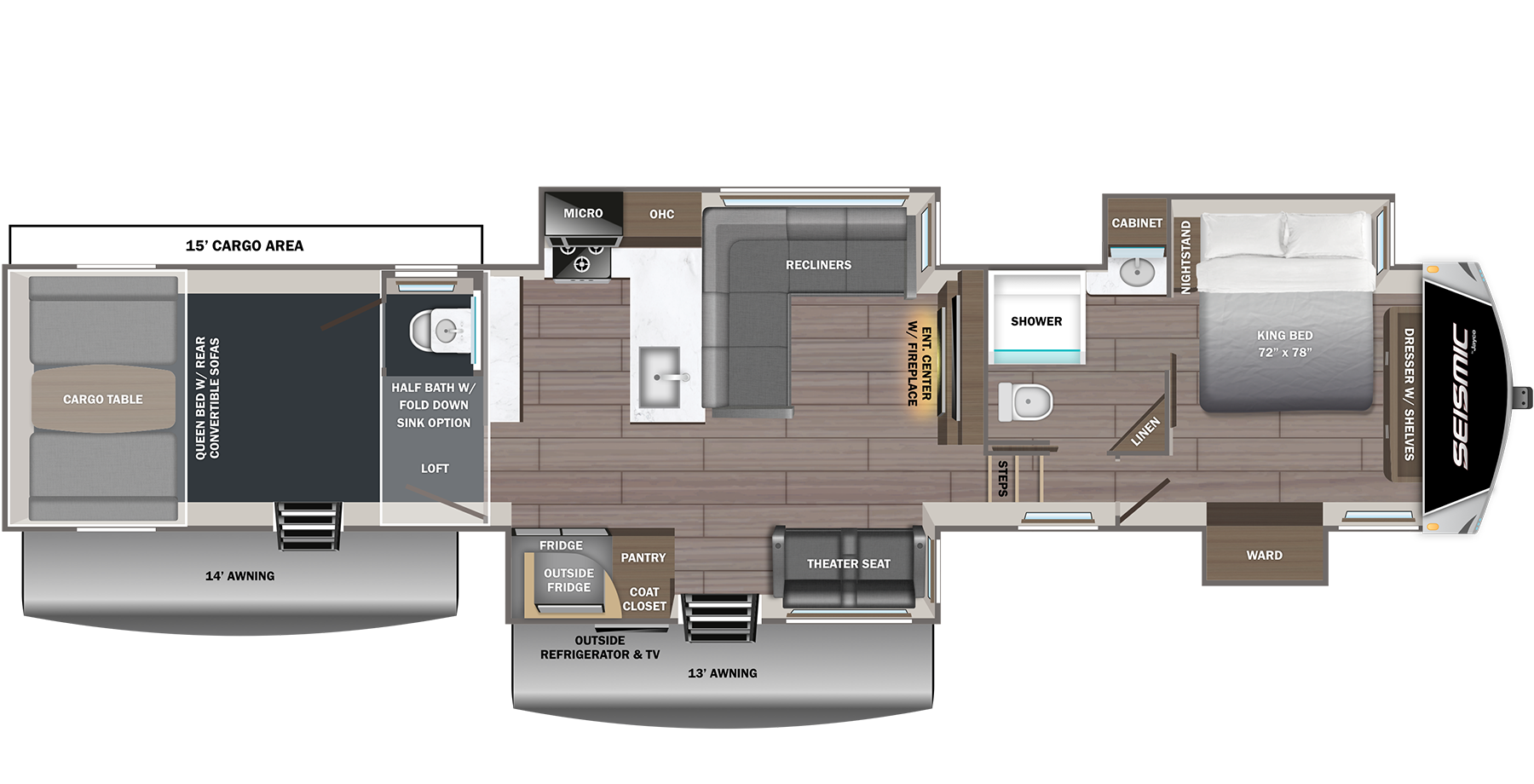

Seismic Fifth Wheel Toy Hauler Floorplans and Prices

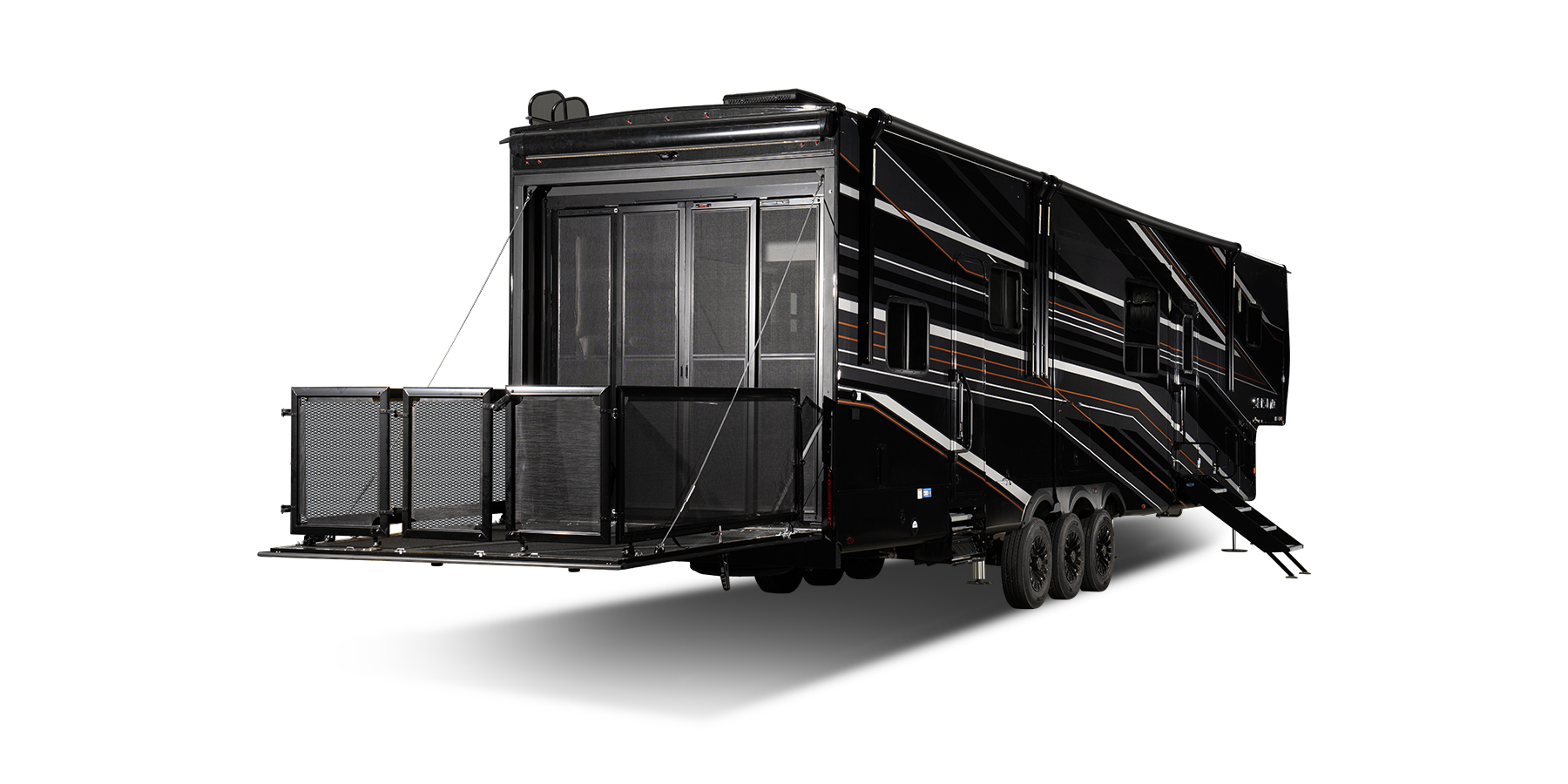

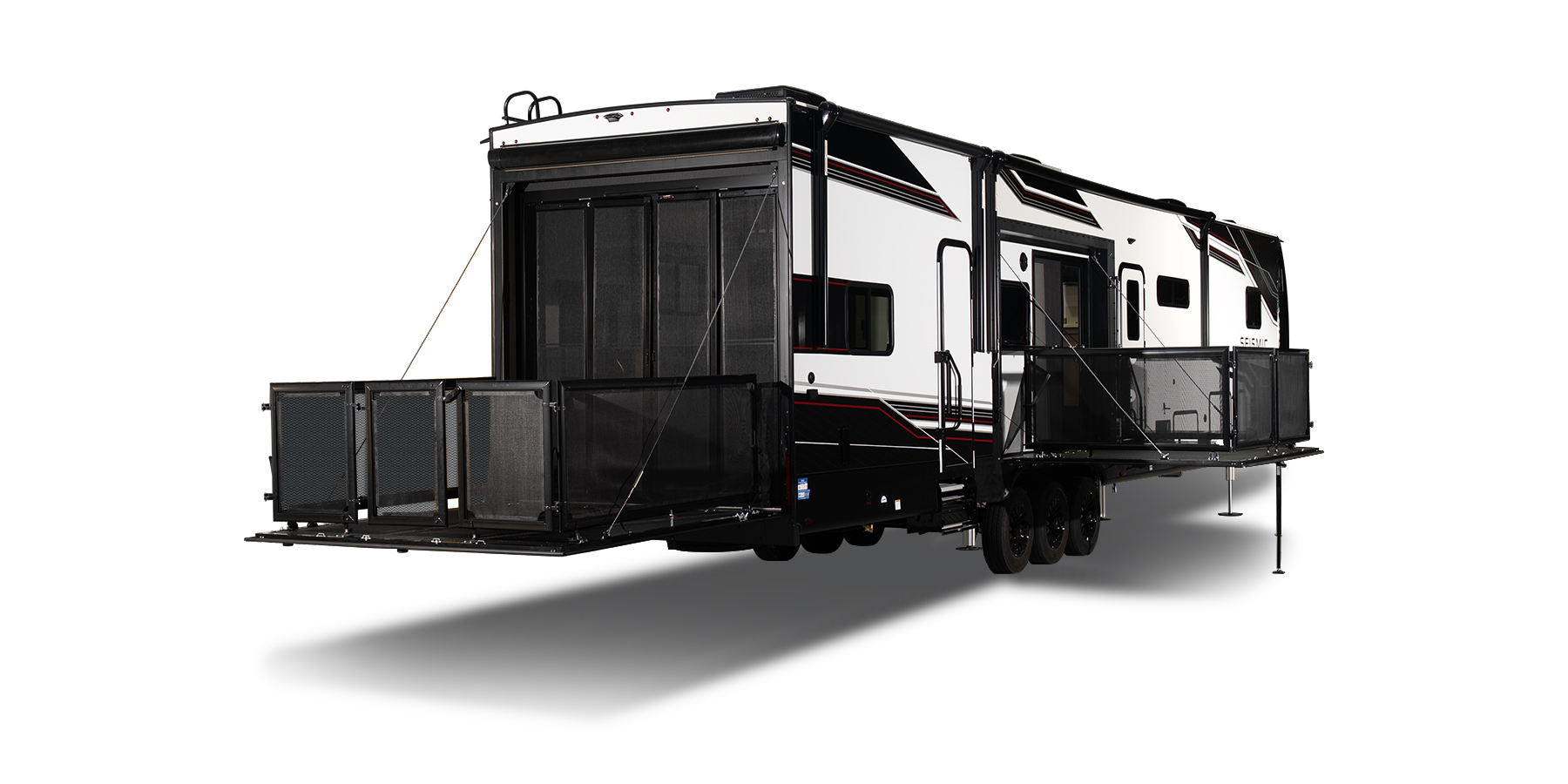

With several spacious floorplans ranging from 41′ 8″ to 47′ 3″, the 2027 Jayco Seismic Toy Hauler lineup is designed for those who demand both rugged hauling capability and elevated residential comfort. Each floorplan is thoughtfully engineered to maximize flexibility, featuring expansive garage areas that seamlessly transition into inviting living and entertainment spaces with the addition of a rear party deck and integrated patio stairs.

Inside, Seismic continues to deliver a true residential experience. King-size beds (select models), spacious walk-in showers, and refined interior finishes create a comfortable retreat after a day of adventure. Multiple seating configurations—including theater seating, tri-fold sofas, rear convertible sofas, and cargo tables—allow you to tailor the space to your lifestyle, whether you’re relaxing, hosting, or accommodating additional guests.

From versatile garage living to upscale interior design, the 2027 Seismic lineup is built to adapt—so you can bring more, do more, and enjoy every mile along the way.

Starting at $119,280
Sleeps up to 8
Length 46' 9" - 47' 0"
Weight 13,490 - 16,075 lbs.

Standard Features and Options

Standard Exterior Equipment

  • 102 in. wide body structural steel I-beam construction
  • Magnum Truss™ XL6™ roof system (strongest tested roof in the industry) with a PVC roof membrane system (limited lifetime warranty)
  • Stronghold VBL™ aluminum-framed and vacuum-bond-laminated gel-coated fiberglass exterior walls and slide room end walls
  • NPS 6,000W generator with built-in pure sine inverter and gas/C.A.R.B certified with remote
  • Helix cooling system™ (industry exclusive):
    • Jayco-exclusive insulated dual duct design
    • Directional and closeable A/C vents
    • 35,000 BTU high-capacity furnace
  • Climate shield™ zero-degree tested weather protection:
    • Double layer fiberglass batt insulation in ceiling and floor
    • Double sided radiant barrier insulation (roof and floor)
  • Painted fiberglass front cap with clear coat and built-in specialty integrated RGB lighting app controlled
  • Custom, automotive-grade vinyl exterior graphics package
  • JaySMART™ (safety markers and reverse travel) LED lighting
  • JayPort™ outside griddle prep (standard on all floorplans without a standard outside kitchen)
  • 50-amp service
  • Battery disconnect switch
  • Detachable shore power cord
  • Digital TV antenna
  • Satellite prep
  • Starlink prep
  • LED exterior lighting package
  • LED-lighted enclosed nautilus docking station
  • Dual black tank flush, winterization and sanitation station
  • Quick-connect outside shower with hose and sprayer
  • 5 in. fresh water drain valve
  • LP quick-connect
  • Pass-through storage with slam-latch™ baggage doors
  • Keyed-alike™ lock system
  • Under-mounted spare tire
  • 6-point hydraulic leveling

Standard Interior Equipment

  • King bed (Select Models)
  • Residential quilted bedspread
  • P.A.P. prepped bedroom (both sides)
  • Carbon monoxide and LP detector
  • Central command center with built-in tank monitoring
  • Removable shower head sprayer
  • Solid hardwood raised panel glazed doors and drawers
  • Hardwood safety handrail on hallway steps
  • Heavy-duty, 75 lb., full-extension, steel ball-bearing drawer guides
  • Residential finished dove-tail jointed drawers throughout
  • 5/8 in. tongue-and-groove joined plywood main floor decking and 3/8 in. tongue-and-groove plywood in the roof
  • USB-C 12V charging ports (multiple locations throughout)
  • 12V Inverted to 110V receptacles
  • LED fireplace with electric 5,000 BTU space heater (select models)
  • LED interior lighting throughout
  • No in floor heat registers throughout the coach
  • Porcelain foot flush toilet
  • Bathroom skylight
  • PEX plumbing
  • Water Shutoff at all faucet locations
  • Residential "Do it all" sink with pull-out kitchen faucet, glass rinse and vegetable rinse
  • Washer/dryer prep
  • Vinyl flooring in slide outs (no carpet)
  • Super sofa or theatre seats with heat, power recline and LED lighting (select models)
  • Gas-strutted under-bed storage
  • Stain-protected performance fabric on all furniture

Customer Value Package (Mandatory)

  • 106 gal. freshwater capacity
  • Residential NuvoH2O® whole-coach water treatment system with water softening and triple-cartridge filters
  • 60,000 BTU on-demand tankless water heater
  • (2) 60 lb. LP gas bottles
  • 12V 17 cu. ft. black glass refrigerator
  • 30 in. residential microwave
  • 21 in. 3-burner oven
  • (3) high-efficiency soft-start A/Cs
  • Teak shower seat prep
  • MB Quart® Bluetooth® stereo system with (2) interior and (2) exterior speakers
  • 4K Smart LED HDTV
  • Glass shower door
  • Roller blackout nightshades
  • Soft-close hidden hinges and magnetic door catches on cabinet doors
  • Lumber-core-style face frames
  • Triple-slide glass shower door
  • Bathroom power vent
  • MORryde® 4-step strut-assisted fold-away entrance steps (main entrance)
  • Universal docking station with outside shower
  • Factory-installed collapsible roof ladder
  • Main electric awning with app-controlled RGB LED lights
  • Second electric awning with app-controlled RGB LED lights
  • Fully enclosed, heated underbelly (ducted)
  • Overlander II Solar Package: 400W solar panel, MPPT 30-amp solar controller and 1,800W inverter

Ramp and Cargo Equipment (Mandatory)

  • 30 gal. fuel tank with locking enclosed pump and timer
  • 3-season locking garage wall
  • 5,000 lb. minimum breaking load garage D-rings mounted to the steel frame

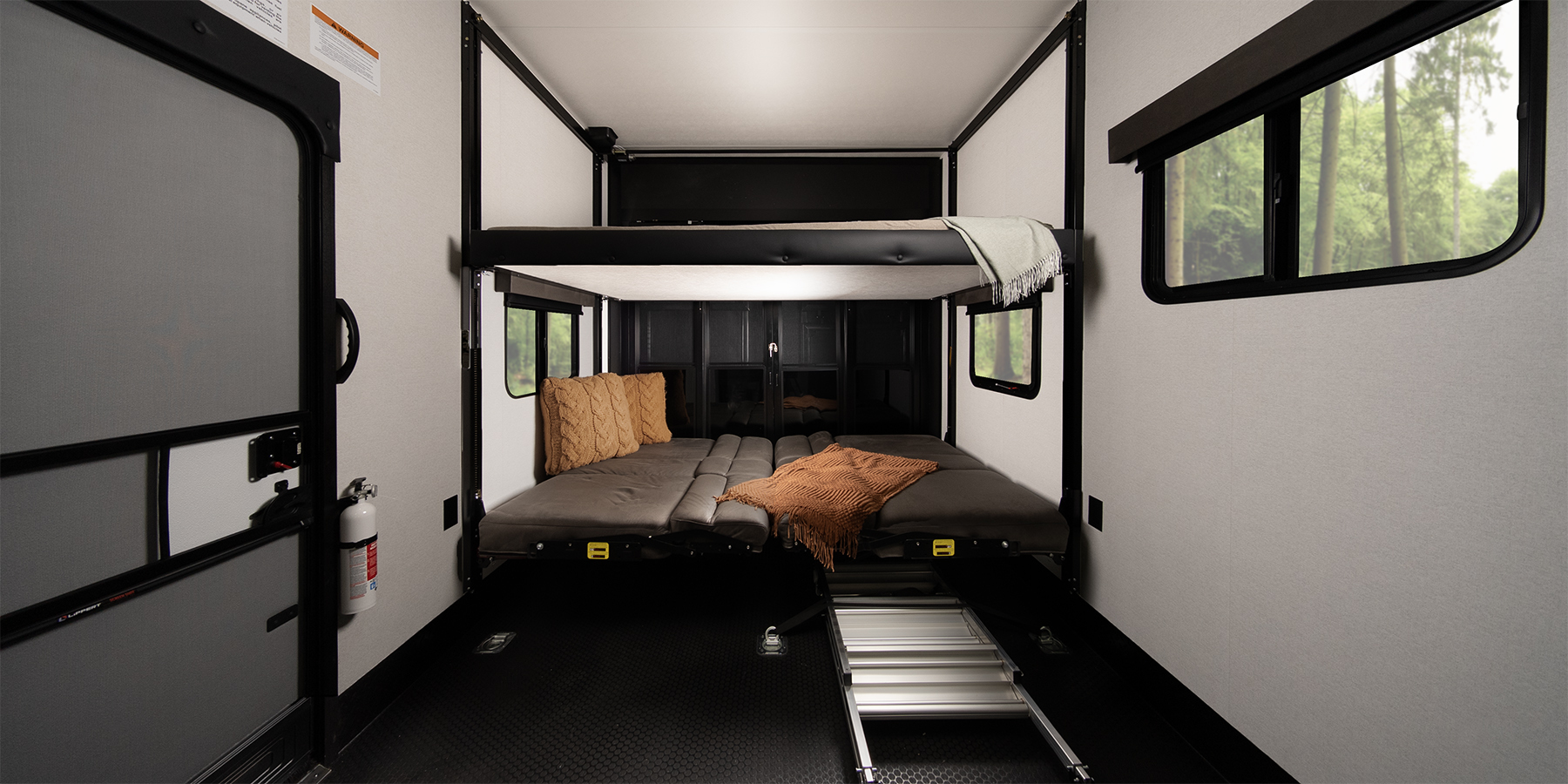

  • HappiJac® electric-lift queen beds with convertible sofas, folding armrests and cup holders
  • Rear loft ladder
  • High-intensity LED ramp lights
  • Ram air vents with power roof vent
  • Lift-assisted, weatherproof, anti-skid ramp door
  • Powder-coated aluminum patio kit with gate and steps
  • Tuff-Ply® rubberized garage floor liner
  • Power ramp patio awning with LED lighting

5 Star Handling Package (Mandatory)

  • 17.5 in. H-rated, 16-ply tires
  • Aluminum rims
  • Dexter® axles with ABS, Tow Assist and sway mitigation
  • Nev-R-Adjust® brakes
  • Greaseable wet bolt fasteners with bronze bushings and 4,000 lb. leaf springs
  • MORryde® CRE3000 suspension system
  • Rota-Flex® king pin
  • Backup and side camera prep
  • Entry door security camera prep

Options

  • Tinted safety glass windows
  • Frameless dual-pane tinted safety glass windows
  • Tank heat pads
  • Outside griddle for JayPort™ system
  • King bed (select models)
  • Queen bed (select models)

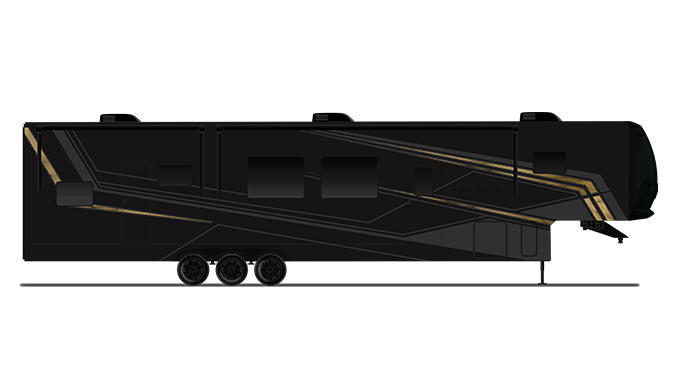

PAINT OPTIONS

  • Titanium full-body paint
  • Charcoal full-body paint
  • Metallic blue full-body paint
  • Metallic copper full-body paint
  • Metallic red full-body paint

Standard Features
and Options

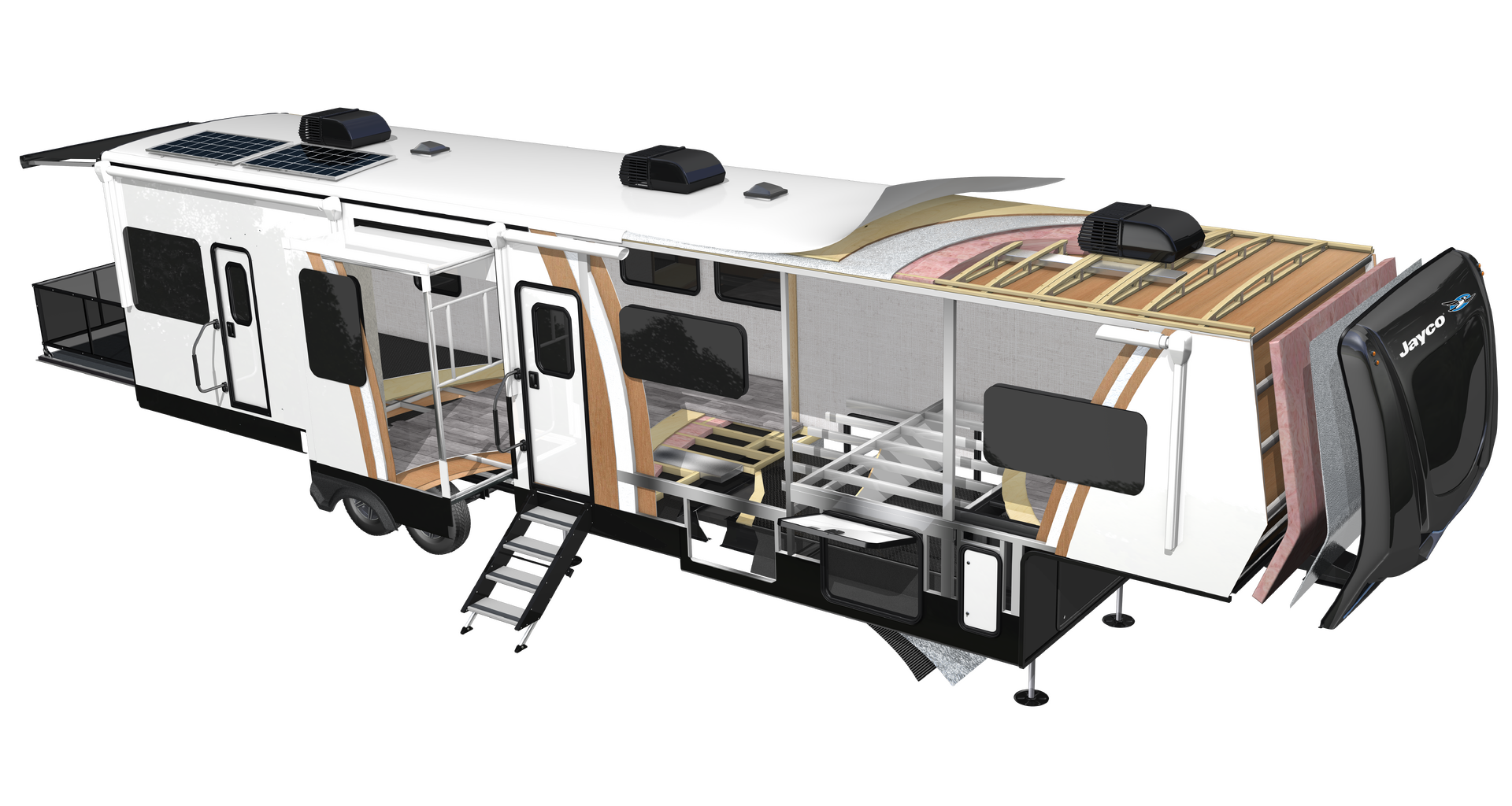

Superior Construction Elements
