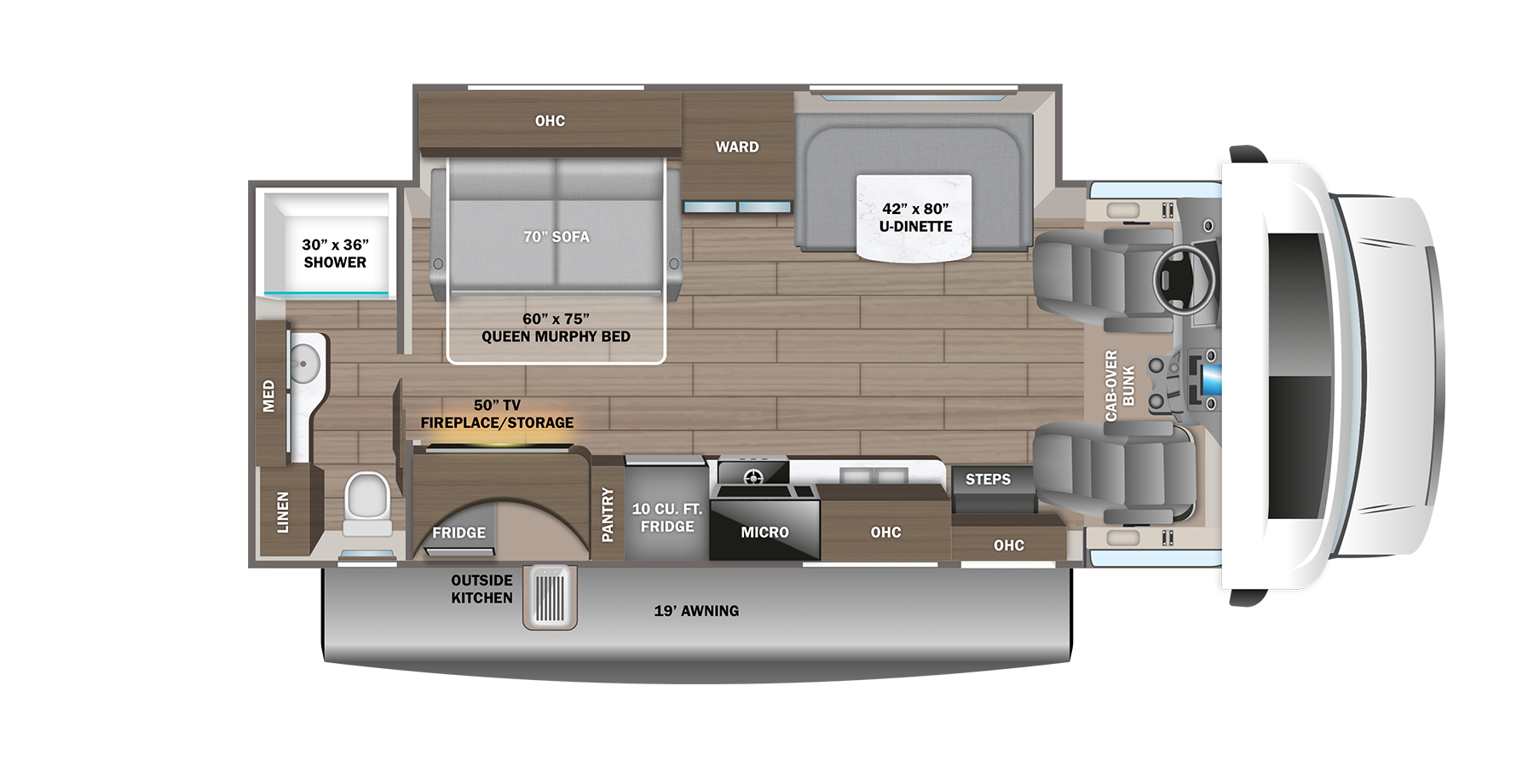

See Floorplan with
Interior Design
Ashville
Modern Farmhouse

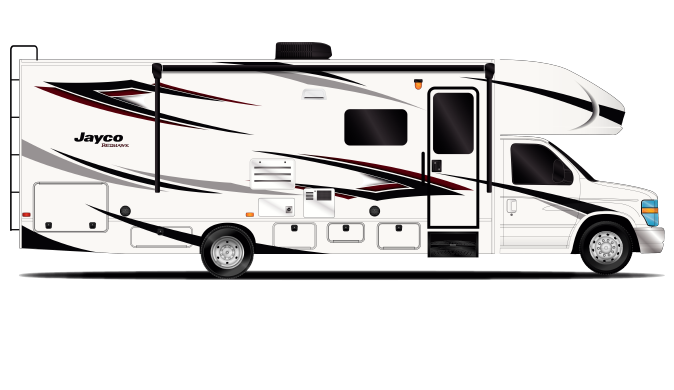

Exterior
Standard Graphics
Specifications
Weights
Gross Vehicle Weight Rating (lbs) | 14,500 |
Gross Combined Weight Rating (lbs) | 22,000 |
Measurements
Exterior Length (overall) | 28' 8" |
Exterior Height (with A/C) | 11' 6" |
Exterior Width | 8' 4" |
Exterior Width (with slides out) | 12' 2" |
Interior Height (main) | 7' 0" |
Awning Length | 19' 0" |
Tank Capacities
Fresh Water Capacity (gals) | 43.0 |
Gray Water Capacity (gals) | 40.0 |
Black Tank Capacity (gals) | 31.0 |
Propane Unit (lbs) | 41 |
Fuel Tank Capacity (gals) | 55 |
Miscellaneous
Sleeps | up to 5 |
Tire Size | LT225/75R16E |
Engine Size | 7.3L 2V DEVCT NA PFI V8 |
Exterior Cargo Capacity (cu. ft.) | 21 |
2024 Redhawk
Starting at $153,293
If motorhome ownership seems daunting, dip your toe in with the Jayco Redhawk Class C, featuring all the family-favorite amenities and floorplans. The Redhawk is a show-stopper, starting with the one-piece seamless fiberglass front cap with automotive-bonded panoramic window and power shade. For ease of navigation, the 9-inch Sony® Infotainment system comes with Apple® CarPlay™, Android Auto™ and integrated side-view cameras. Check out all the new looks for 2024, including new flooring, new farmhouse wallboard and more.
