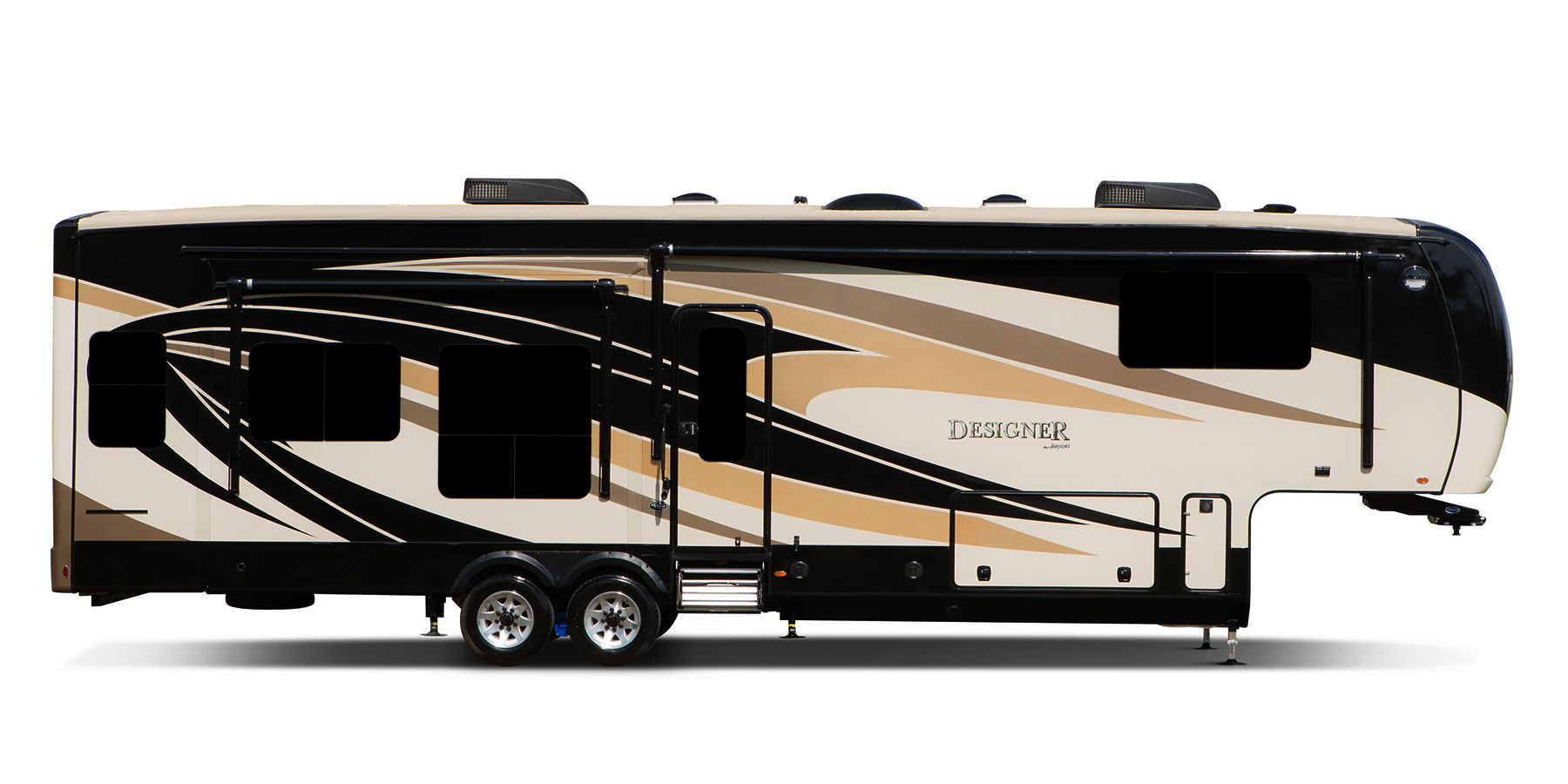

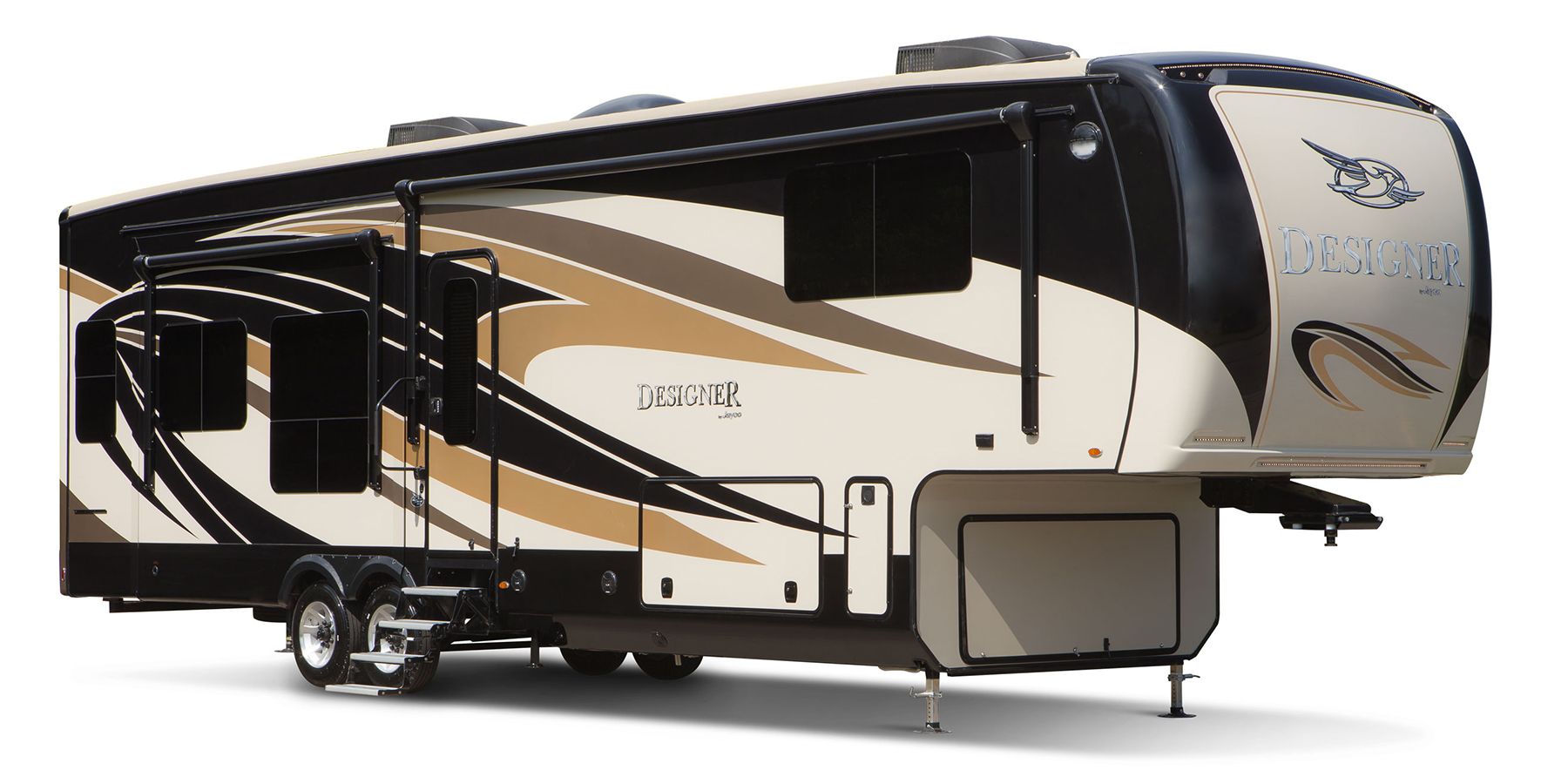

2017 Designer

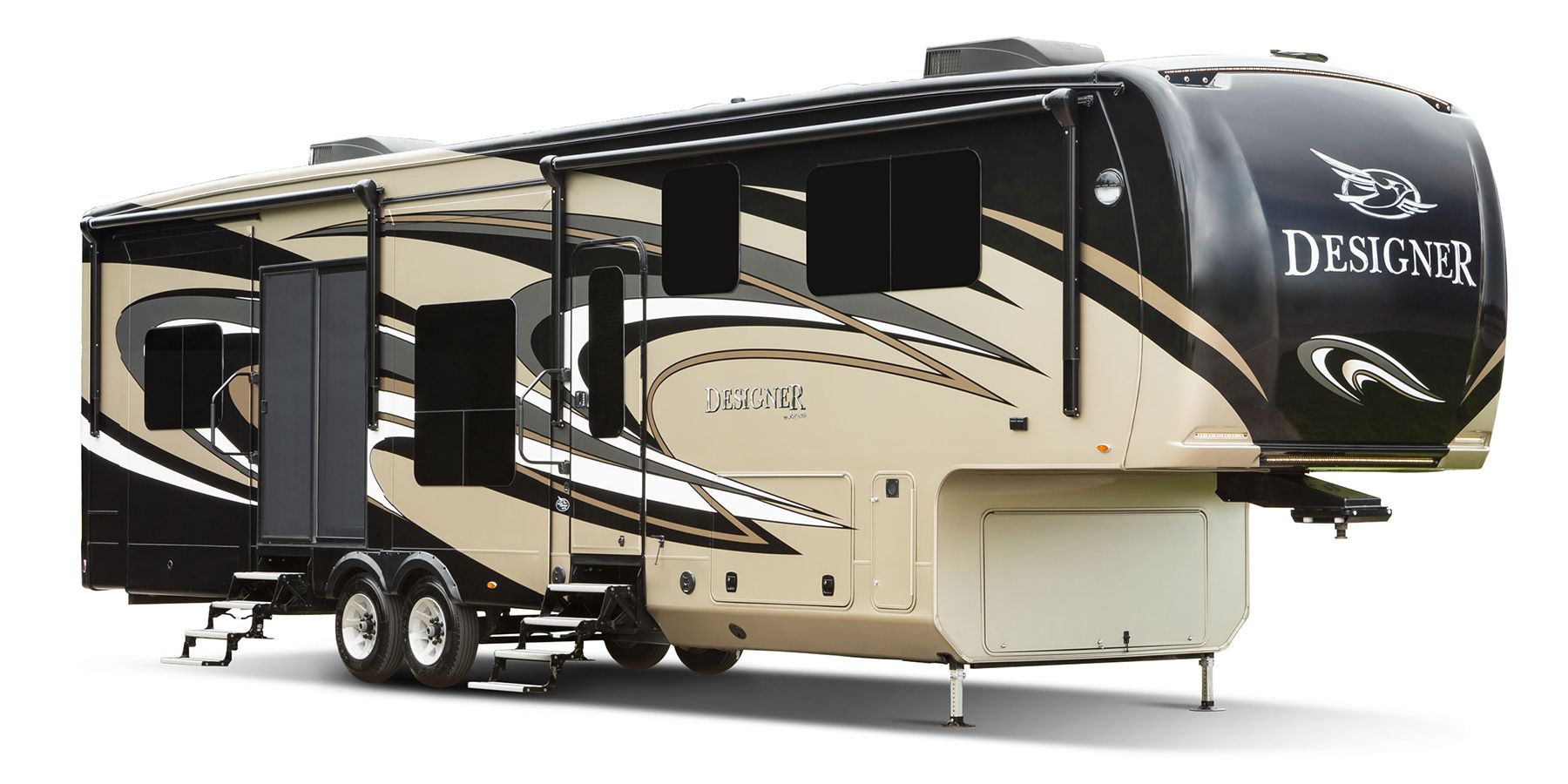

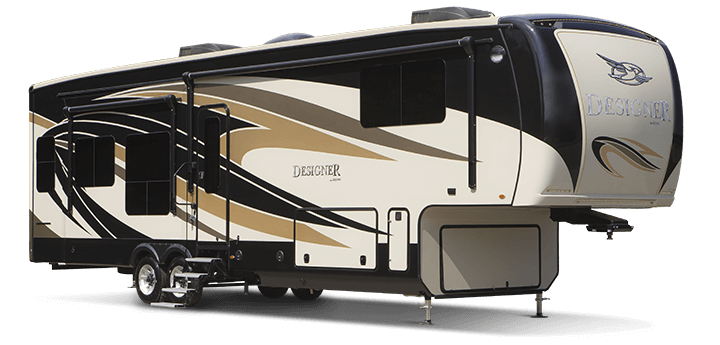

Make more memories for years to come with the Designer Luxury Fifth Wheel from Jayco. Choose from a selection of stunning features and awe-inspiring residential amenities—and find a unit that matches your family’s legacy. Turn heads. Every season. Wherever you go.


Designer Floorplans and Prices

Length 40' 1" - 42' 5"
Weight 14,370 - 15,115 lbs.

Standard Features and Options


  • 15,000-BTU central A/C
  • Arched interior ceiling with 82” upper deck interior height
  • Bath skylight
  • Bathroom power vent
  • Bedspread
  • Under-bed floor safe
  • Oversized folding exterior grab handle
  • Frameless G20 dark-tinted windows
  • LED interior lighting
  • Security lights
  • Slam-latch baggage doors with strut assist
  • Sofa and bed pillows
  • Solid-surface kitchen countertops
  • Keyed Alike exterior doors locking system


  • 6-point electric auto leveling system
  • Backup camera/monitoring system prep
  • Carefree power awning with Flex Guard Fabric Shield and LED light strip
  • Indoor/outdoor central vacuum system with kick pan

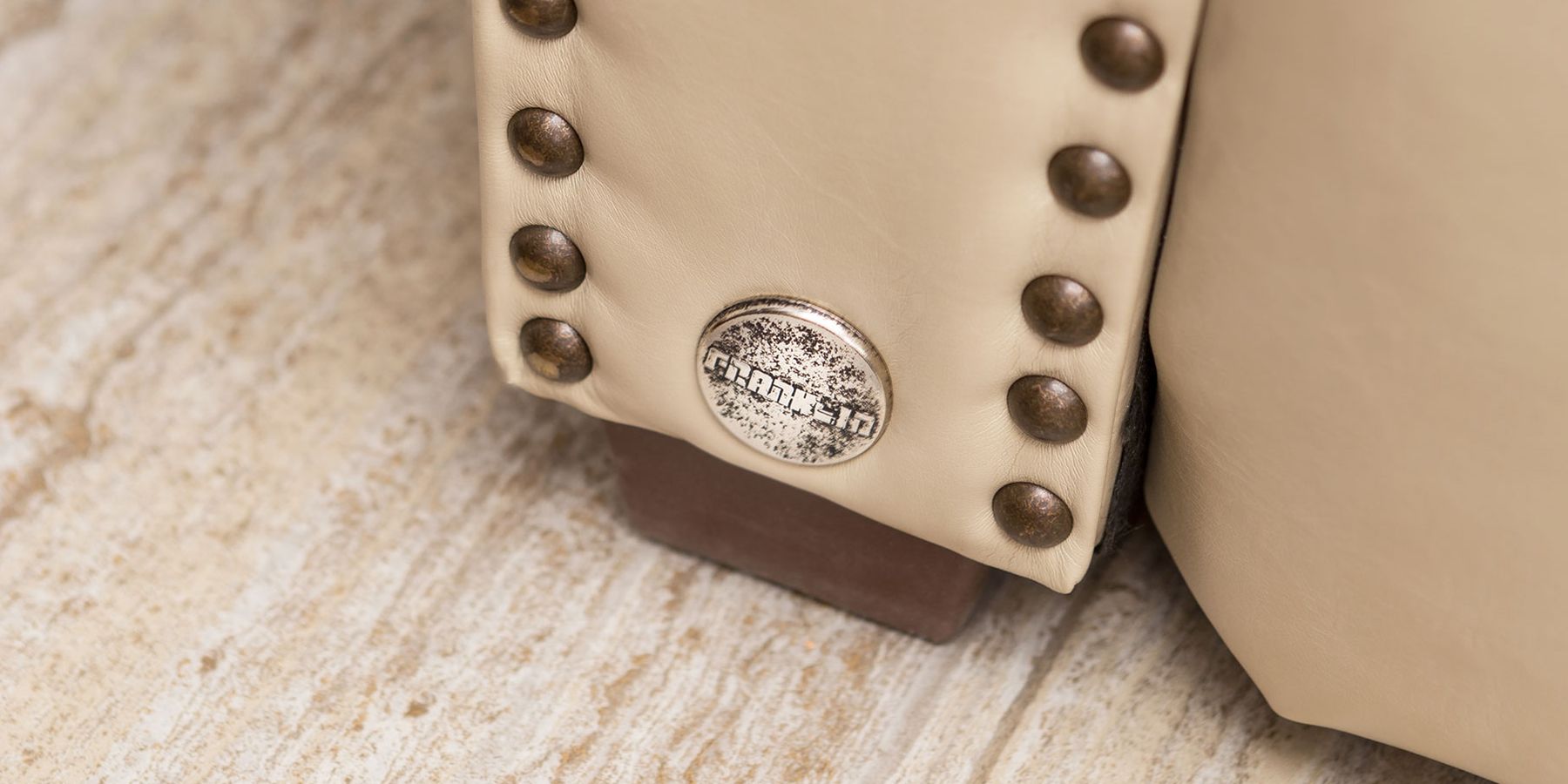

  • Franklin American-made residential furniture
  • 12” Magnum Frame System
  • Magnum Truss XL6 Roof System
  • Helix Cooling System featuring a Jayco-exclusive duct design, exterior-mounted A/C units,  directional/closable A/C vents, and larger return air vents with user accessible filters
  • Quad-tread aluminum entrance steps
  • Bluetooth/HDMI high-output entertainment system
  • Cargo accessory receiver

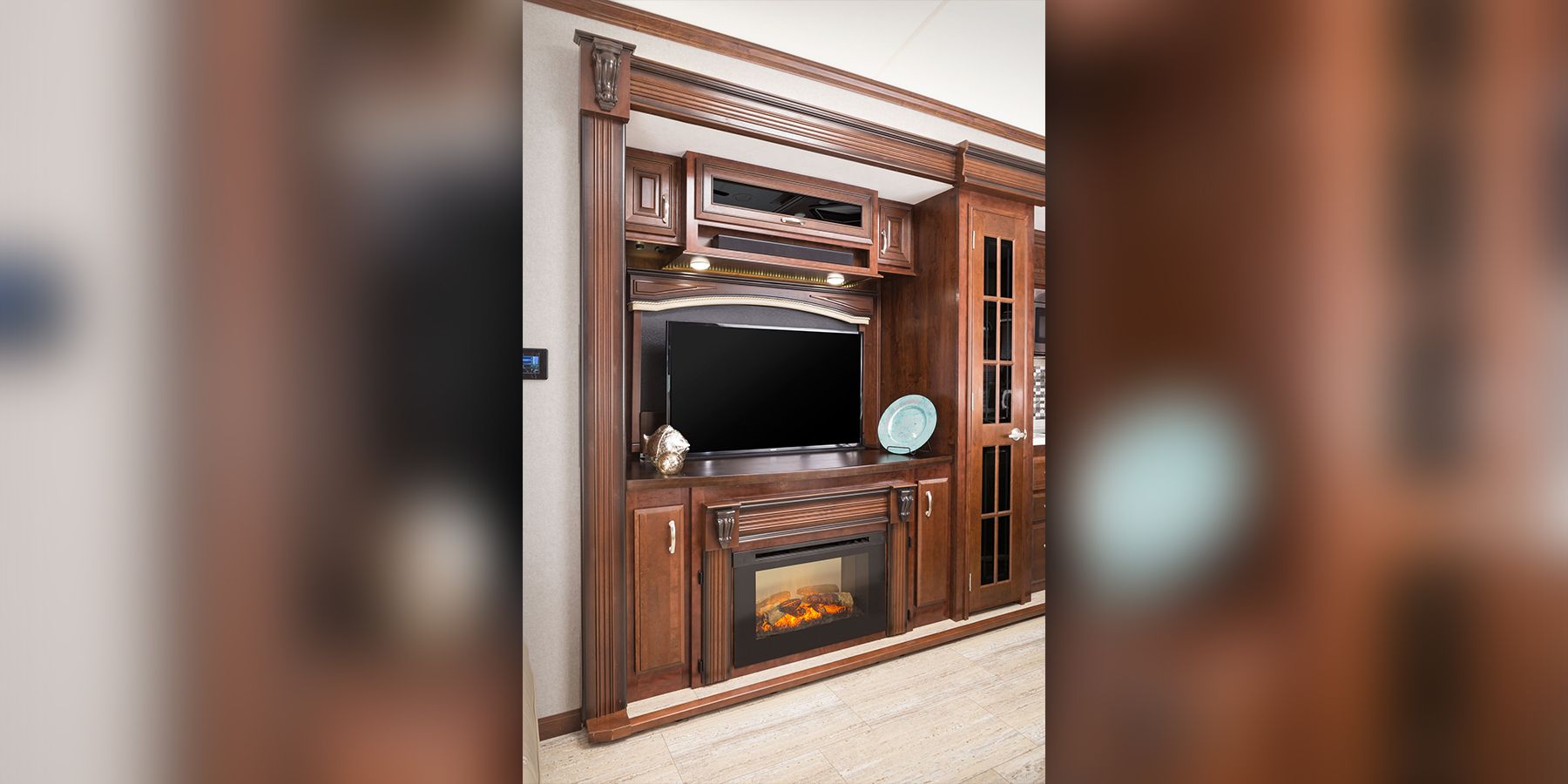

  • Electric, thermostat-controlled fireplace
  • Keyless main entrance door
  • LED exterior lighting
  • MOR/ryde pin box
  • Oversized battery compartment
  • Fully painted and clear coated front cap
  • Power kitchen vent with wall controls and rain sensor
  • Sidewall and roof mount solar prep
  • Whole coach water purification system

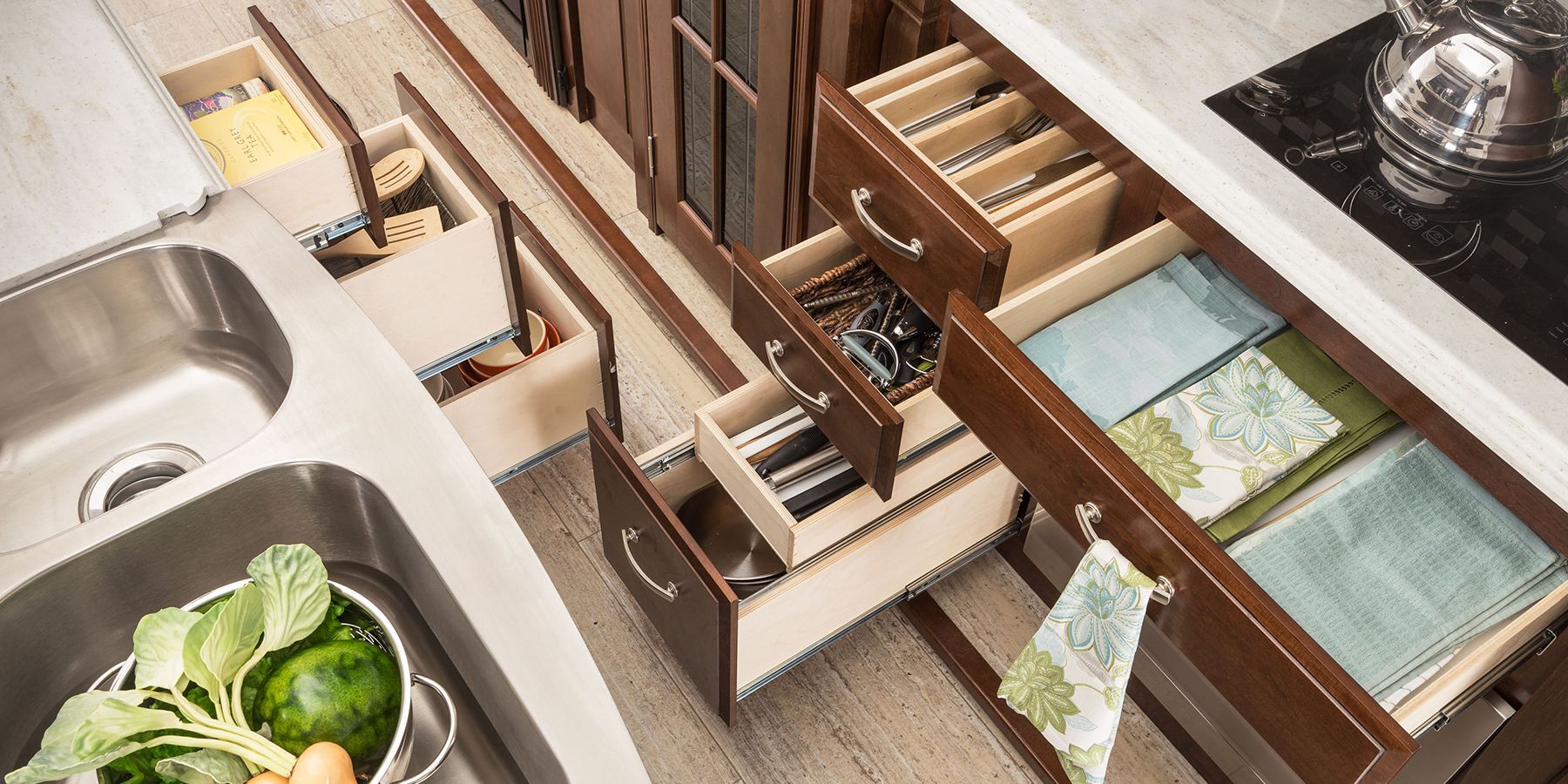

  • Full-timer kitchen storage system


  • 8000-lb axles
  • 17.5” H-rated tires
  • Mega-Wall double-layer laminated sidewalls
  • 30,000-BTU dual Whisper Quiet A/C system

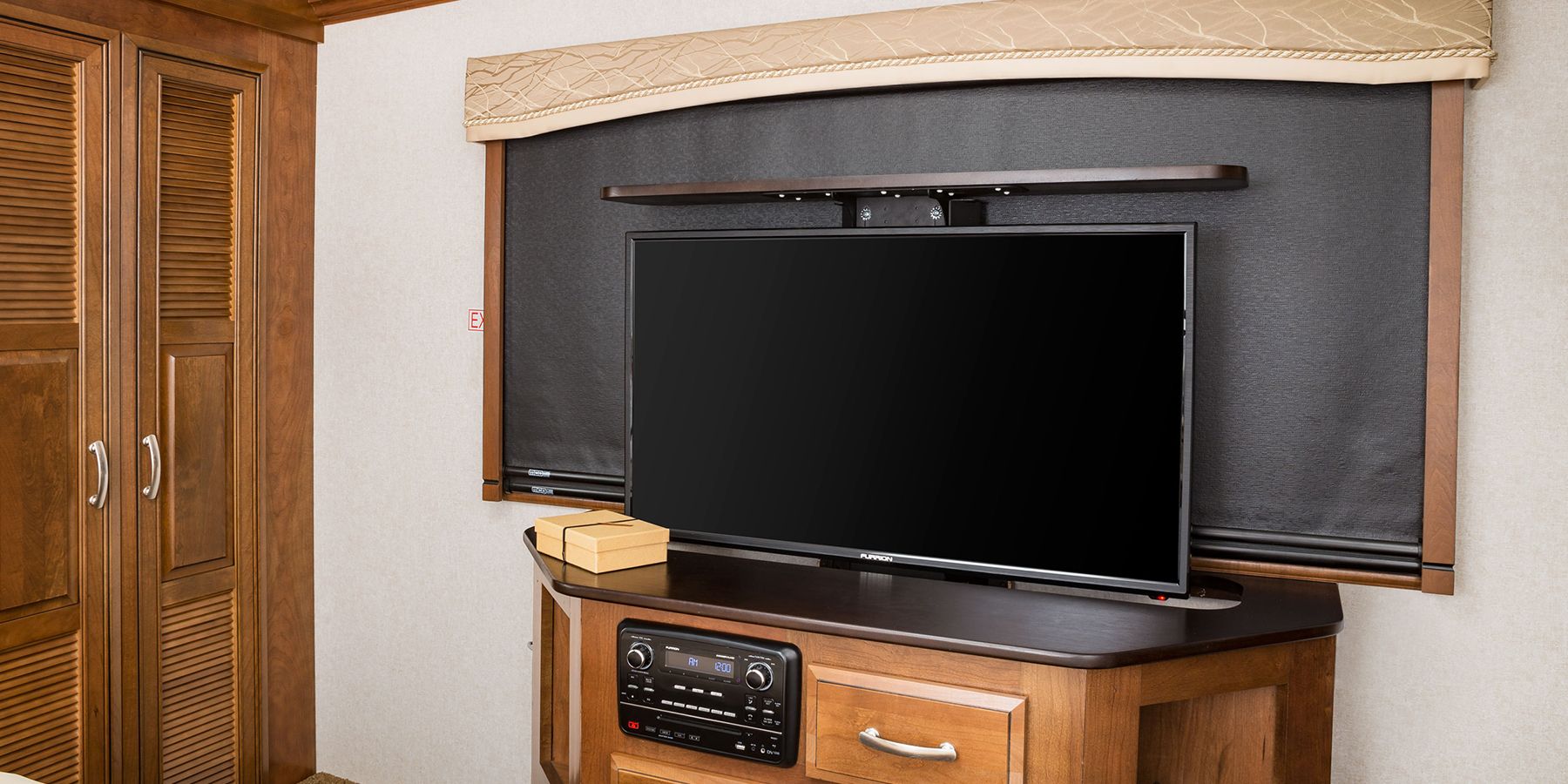

  • 39” bedroom LED HDTV
  • Tree Topper 8’ main living area slideouts
  • Jayco luxury sleep system with 80” Simmons residential foam top mattress
  • Residential dishwasher
  • Gel 360 Front Cap/Rear Cap/Sidewalls/Entrance and baggage doors
  • Oversized residential king showers

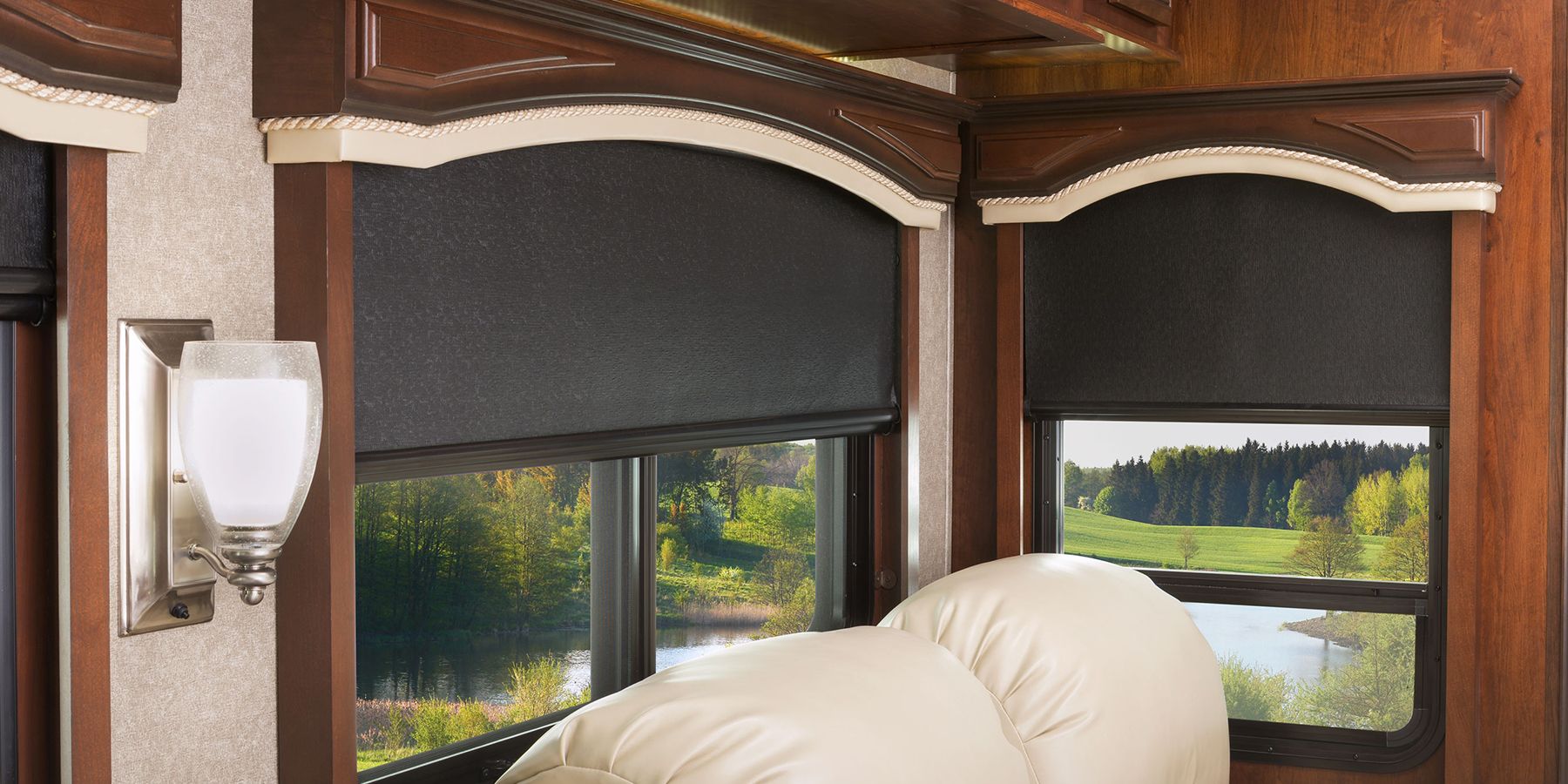

  • LED-lighted slideout fascia and window treatments in living areas
  • Residential hardwood window box casing
  • MOR/ryde LRE4000 rubberized suspension system

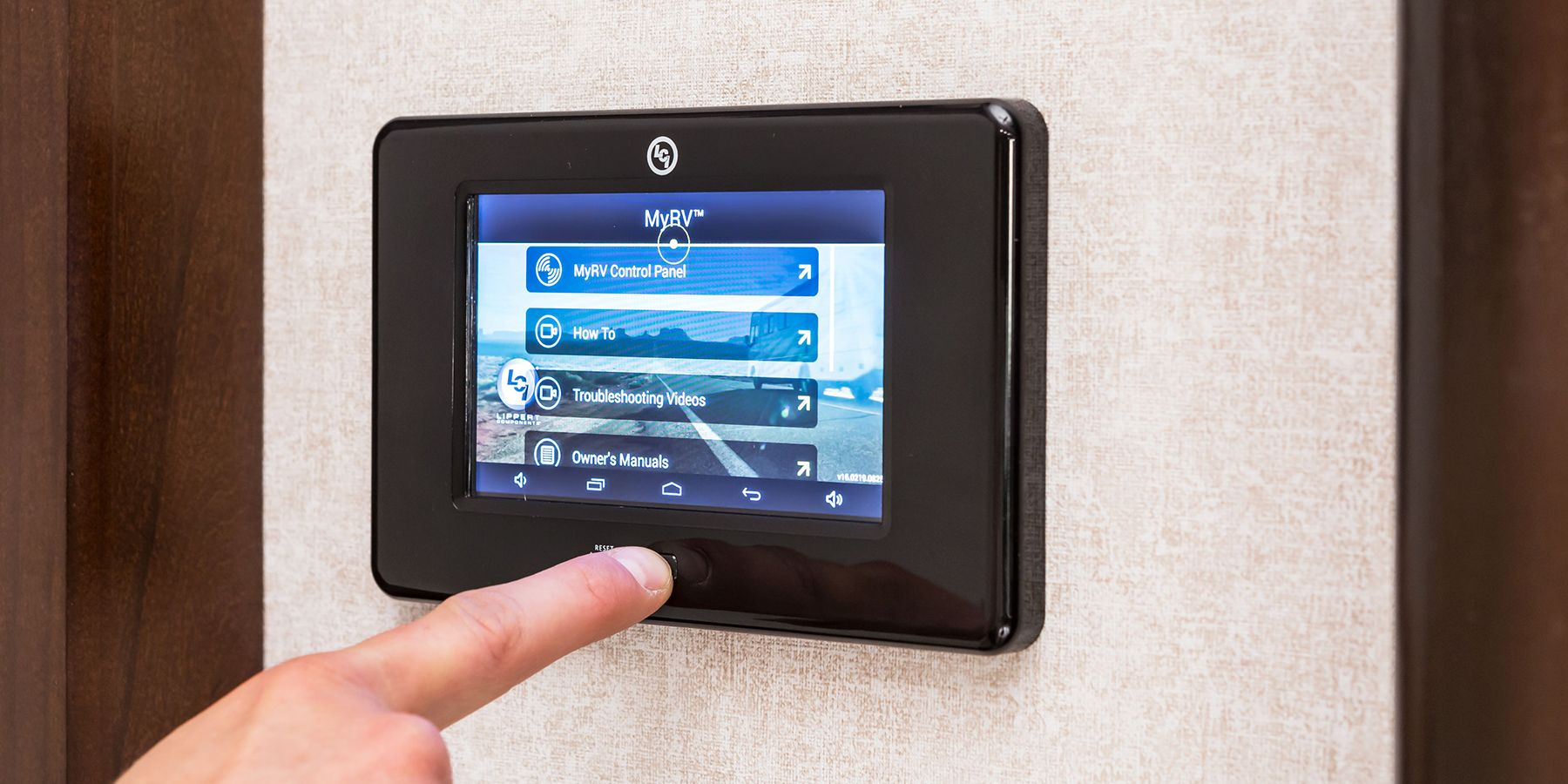

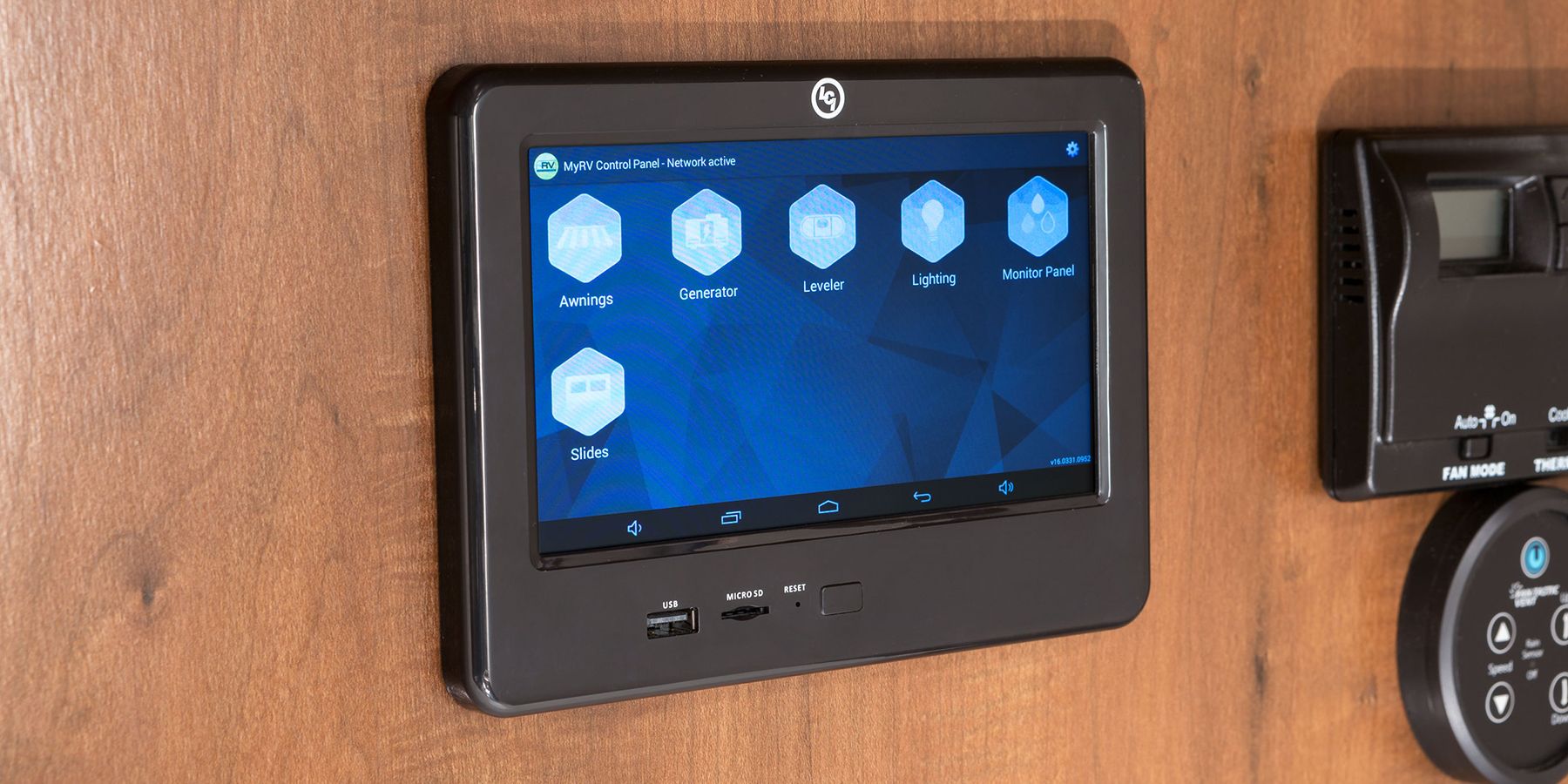

  • One Control Android-based complete command system, featuring multiplex lighting and digital touch screen controls

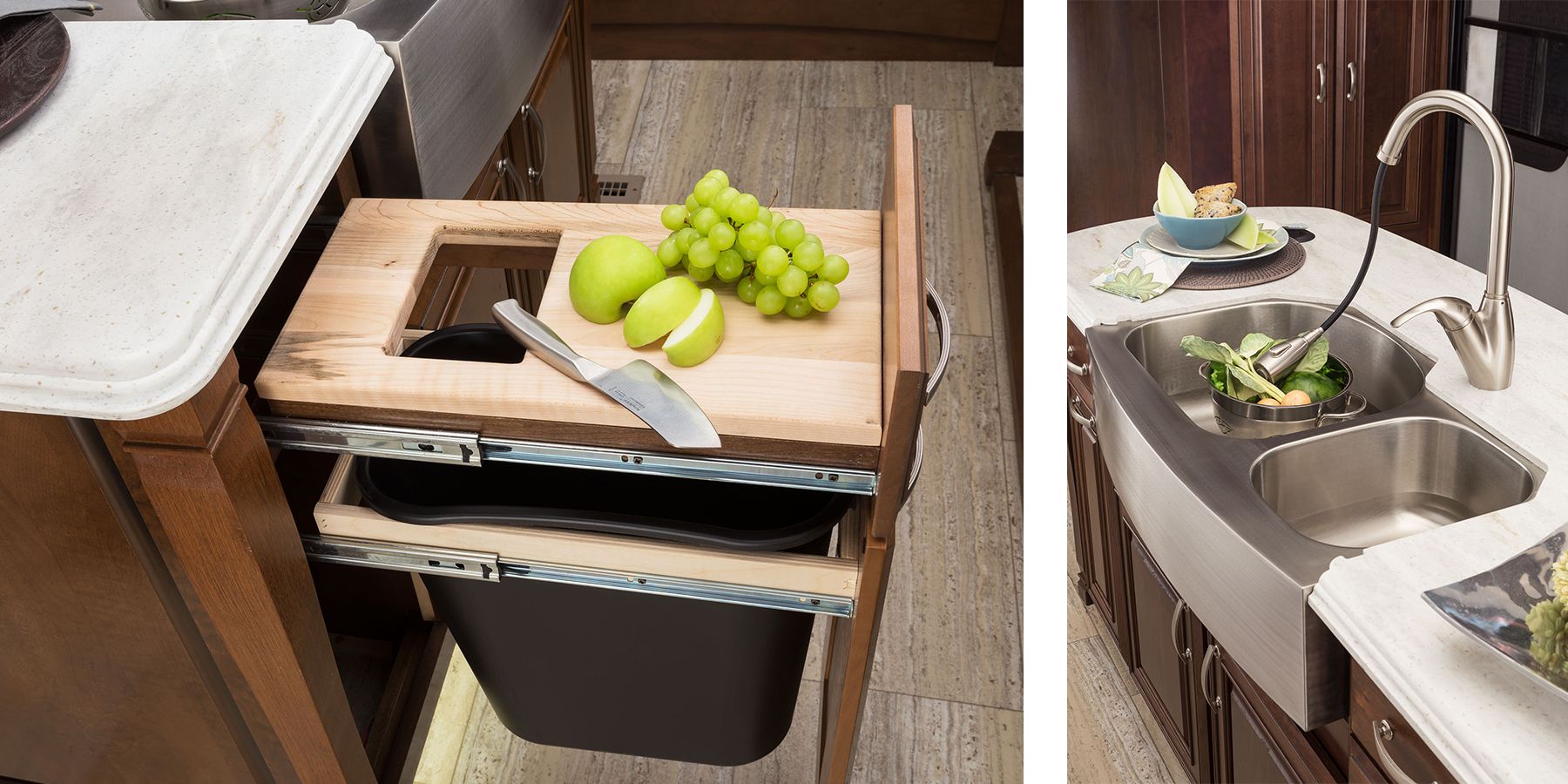

  • Oversized, stainless steel, apron-style sink

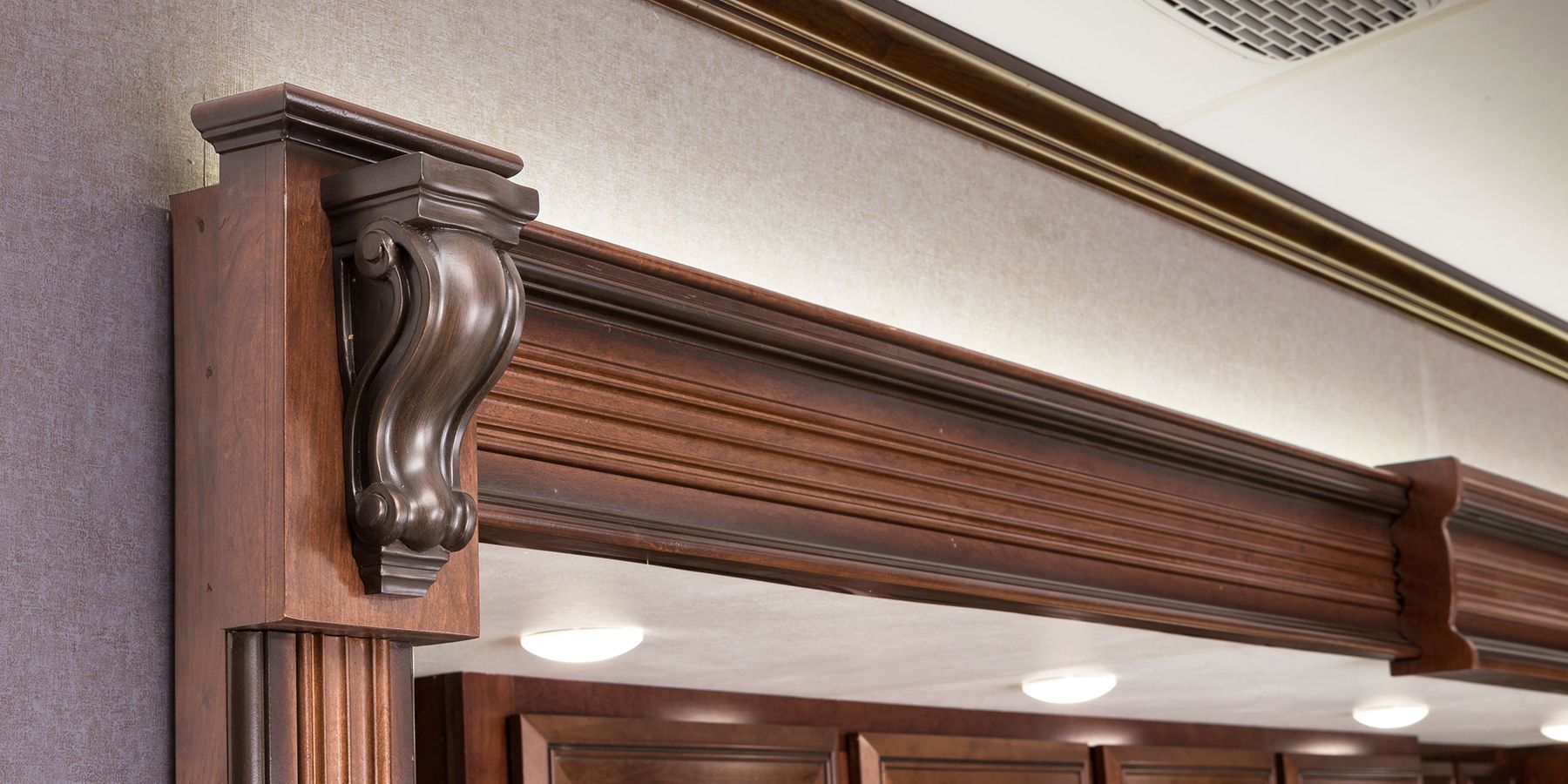

  • Residential hardwood cabinet crown molding
  • Stainless steel convection microwave
  • Triple 30’s propane capacity (90 lbs. total)

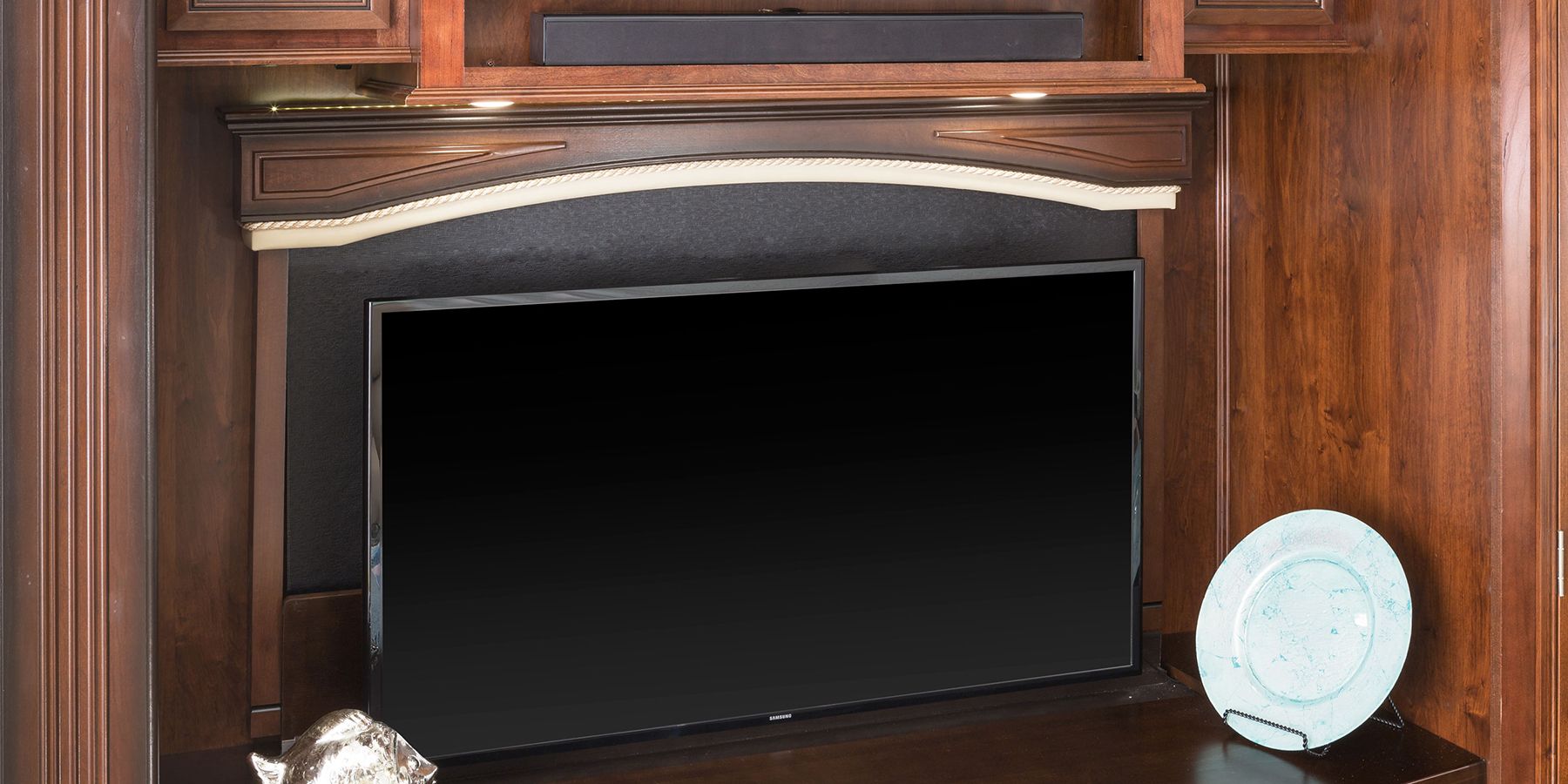

  • Samsung Professional Theater system in main living area, featuring Samsung HDTV, Samsung soundbar with built-in subwoofer, and Samsung Blu-Ray player
  • Bedroom CD/DVD/radio


  • Partial Paint Package with full clearcoat
  • Wide-body, 102" frame
  • Wide-stance front landing gear
  • TuffShell vacuum-bonded, laminated walls
  • Climate Shield
    • Enclosed, insulated, heated underbelly
    • High-BTU output furnace (40,000-BTU)
    • Astrofoil in roof and floors
  • Aerodynamic front and rear cap with LED lights
  • Seamless composite roof covering
  • 12" I-Class cambered, structural-steel I-beams
  • Super Lube hubs
  • Completely enclosed and protected slideout mechanisms
  • Frameless, dark-tinted, safety-glass windows
  • 30" x 78" entry door with oversized window
  • Exterior marine-grade speakers (2)
  • Front awning arm convenience outlet

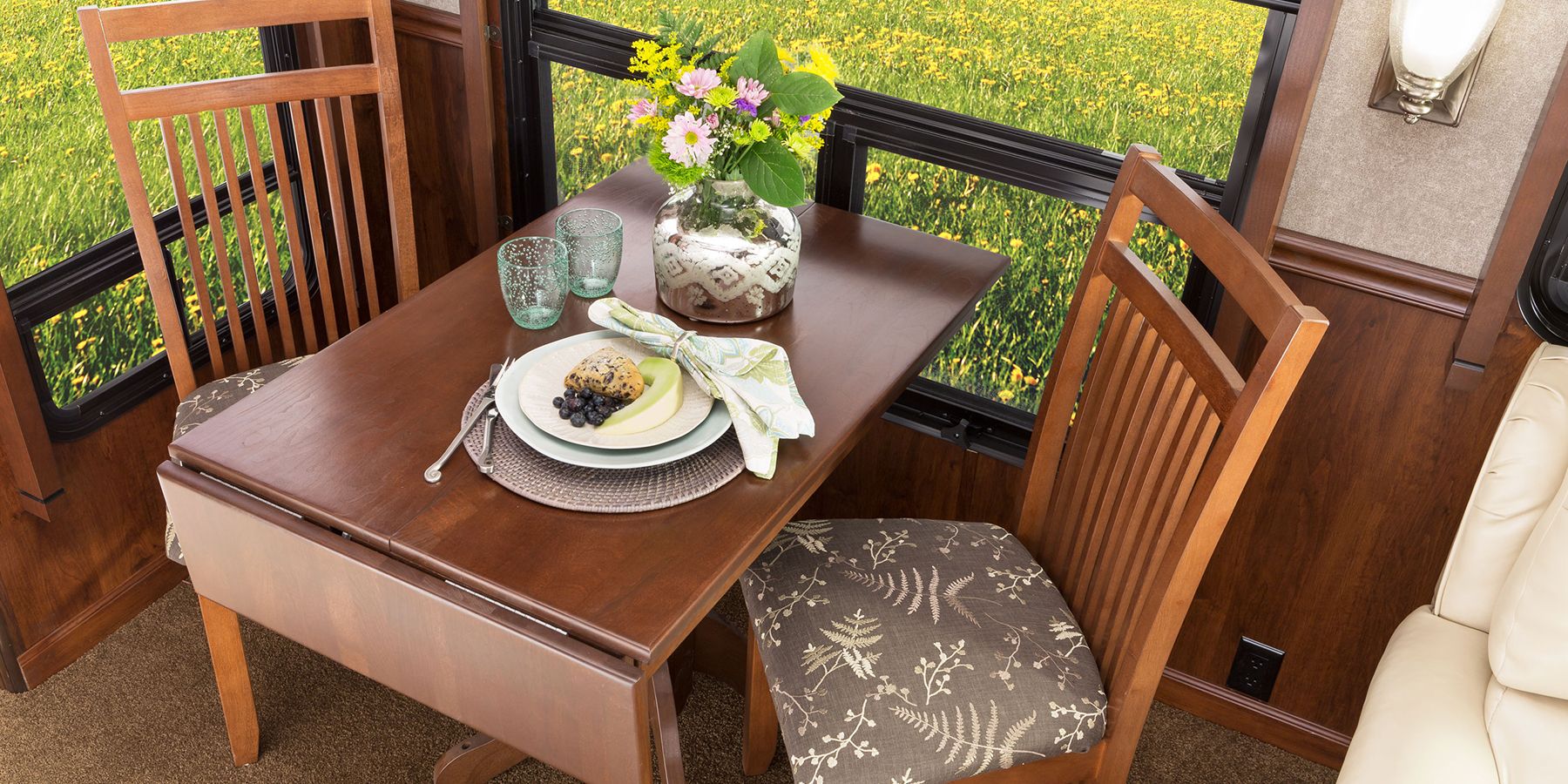

  • ExpansiView opera-style, floor-to-ceiling dining area windows
  • Enclosed, protected basement drop-frame
  • Cable TV and outlet in basement
  • Stor-Galore pass-through basement storage with slam latches and strut assist
  • Heated, enclosed Uni-Dock utility center
  • 50-amp power retractable cord reel
  • 75-gallon fresh water tank
  • 50-gallon black tank capacity minimum
  • Cable and satellite input ports
  • Roof prepped and framed for roof-mount satellite
  • Non-crank digital HDTV antenna
  • Outside grill prep
  • Under-mounted spare tire
  • Roof ladder
  • Hitch light
  • Upper-deck slideout convenience light

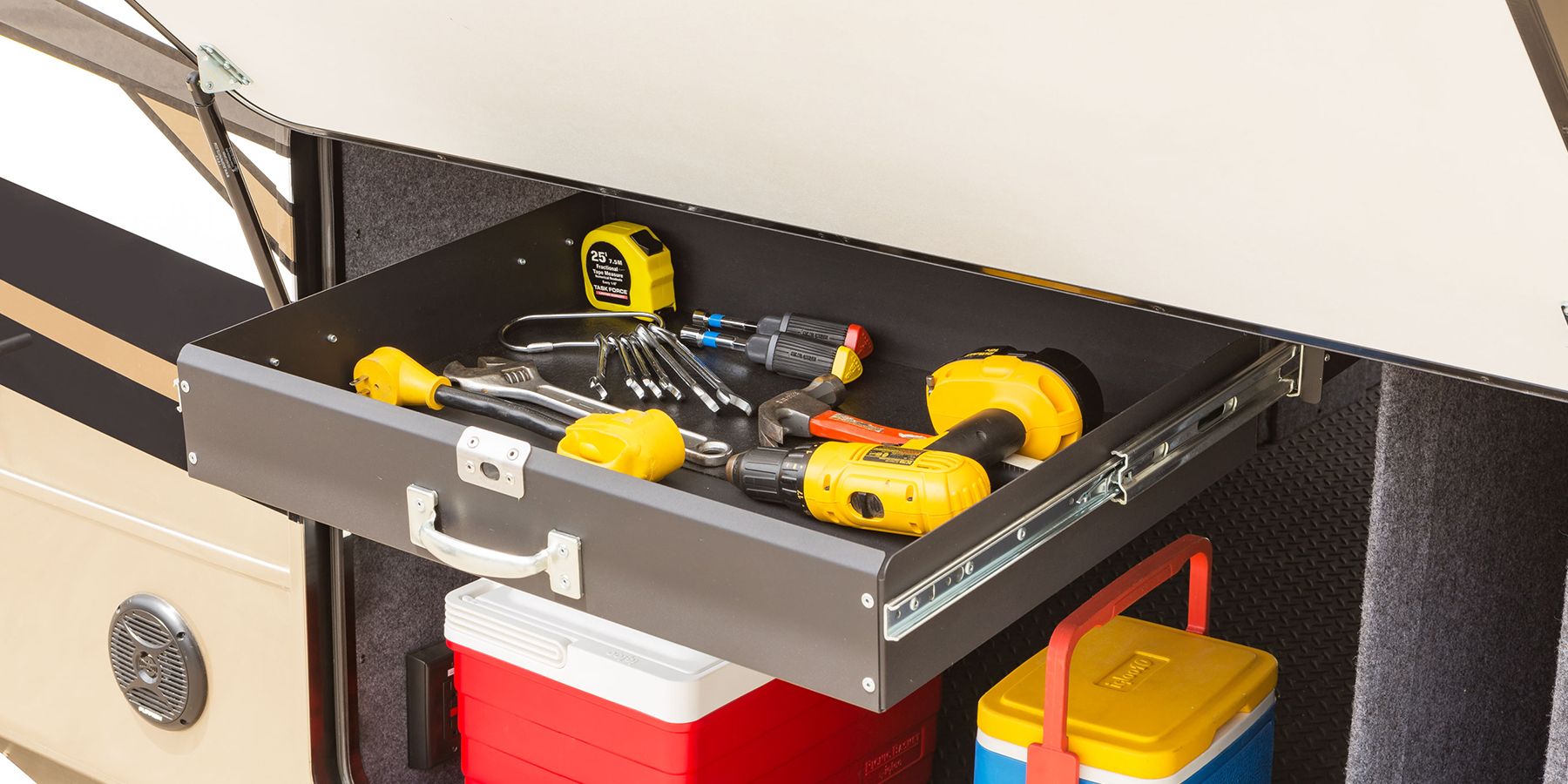

  • MOR/ryde cargo area tool drawer
  • EZ Cord – cargo area extension cord access port


  • Custom residential miter-cut cherry cabinet doors with hidden hinges
  • Satin-nickel, custom residential cabinet hardware
  • Hardwood cherry cabinet stiles
  • Hardwood framed headboard
  • Hardwood hallway steps with center carpet runners
  • Iron hallway assist railing
  • Iron interior assist handle
  • Hardwood slideout fascias
  • Decorative paneling with chair rail and baseboard in select living areas
  • Decorative interior entryway light fixture
  • Residential-style pantry
  • Trash can drawer with butcher block cutting board drawer above
  • Steel ball bearing drawer guides, 75-lb. capacity with full extension
  • Residential-grade, pull-out kitchen faucet
  • Water heater bypass

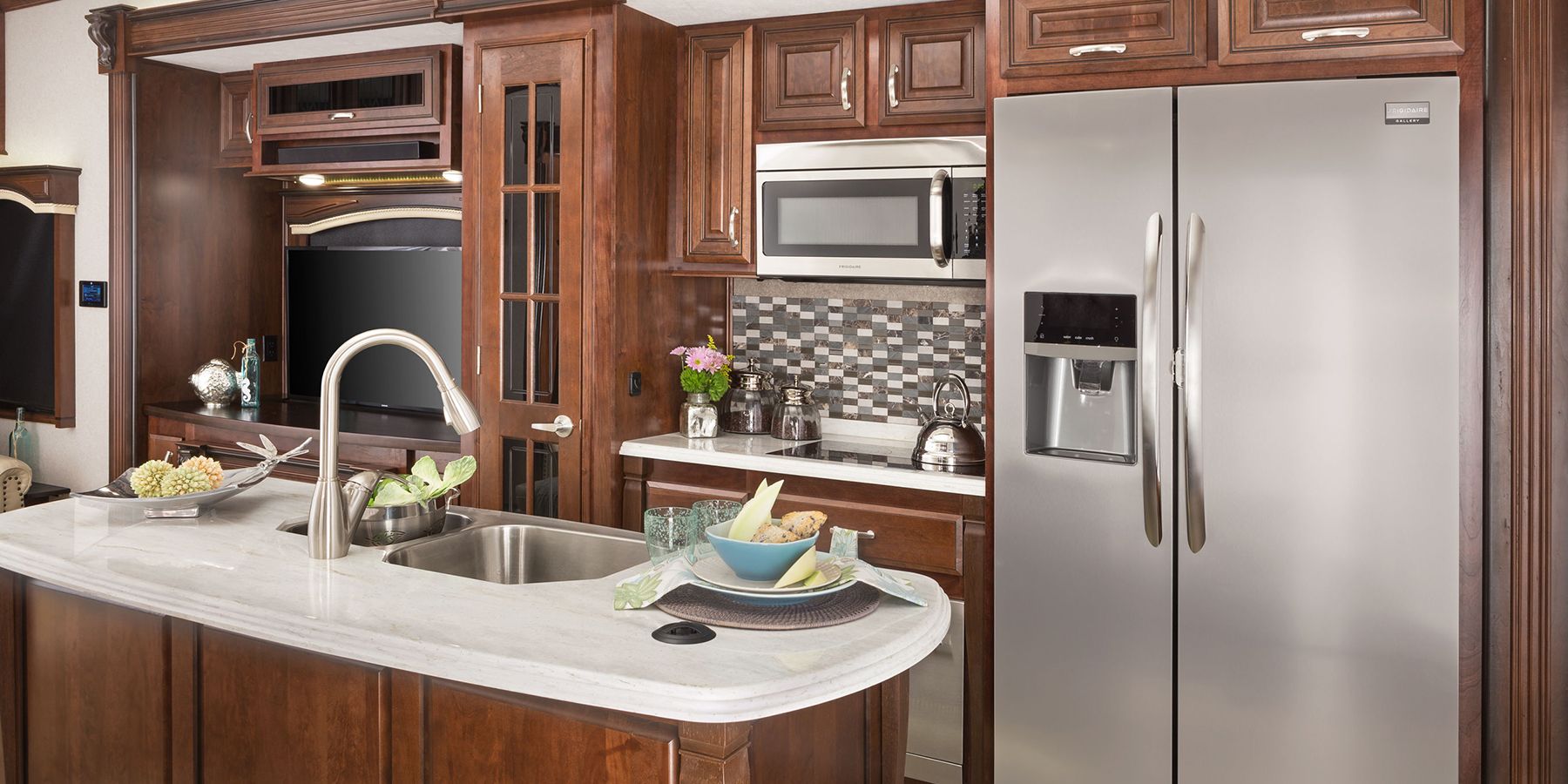

  • 23 cu. ft. residential refrigerator with water/ice in door
  • 1,000-watt inverter
  • Residential-grade, travertine-look vinyl flooring
  • Shaw R2X stain-resistant residential carpeting
  • “Night Light” toe-kick lighting in bedroom, bathroom, and kitchen
  • 90-amp power center with Charge Wizard
  • Closeable and directional air conditioner vents
  • Trifold hide-a-bed sofas with ottoman

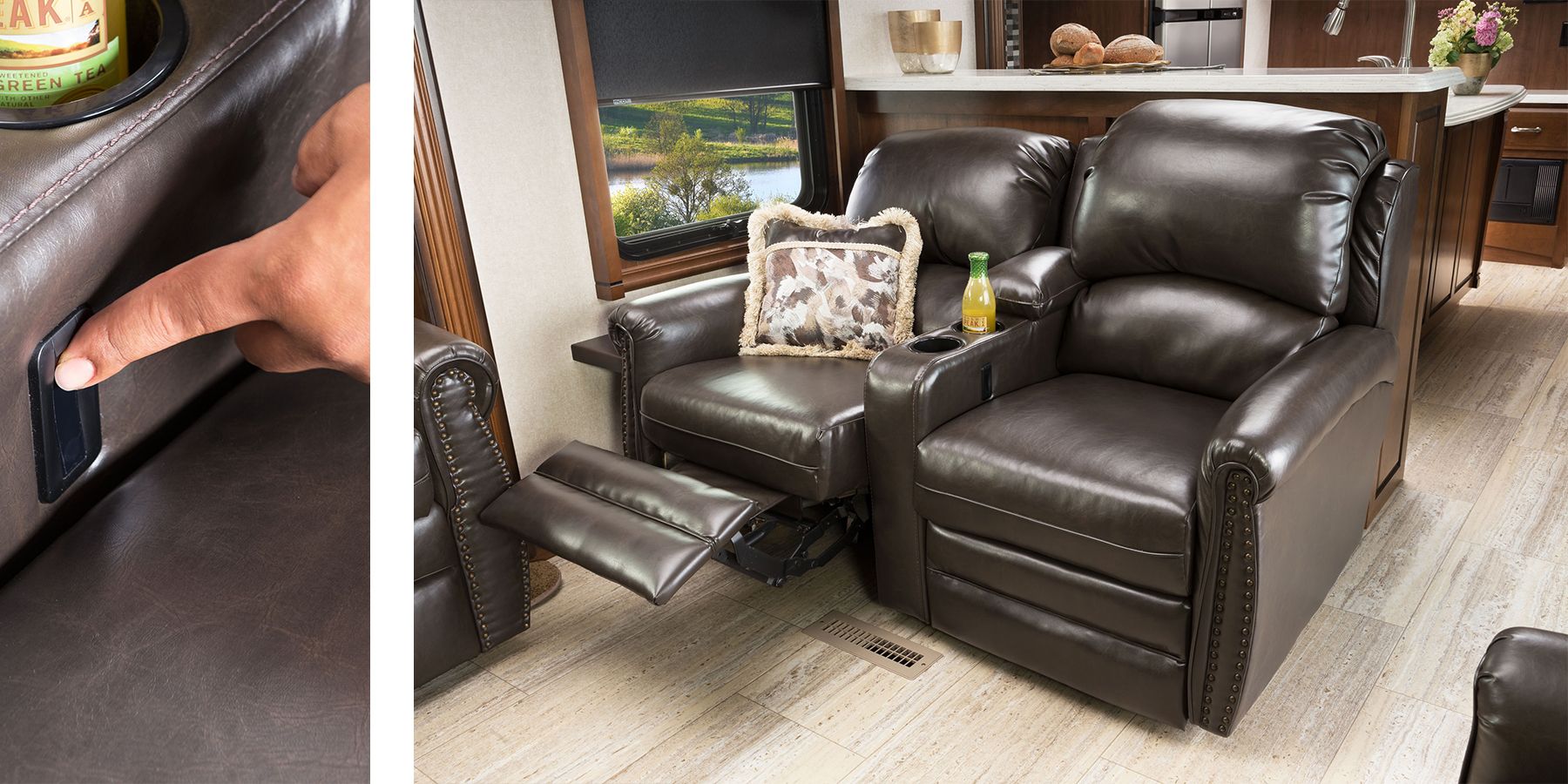

  • Power theater seat sofa

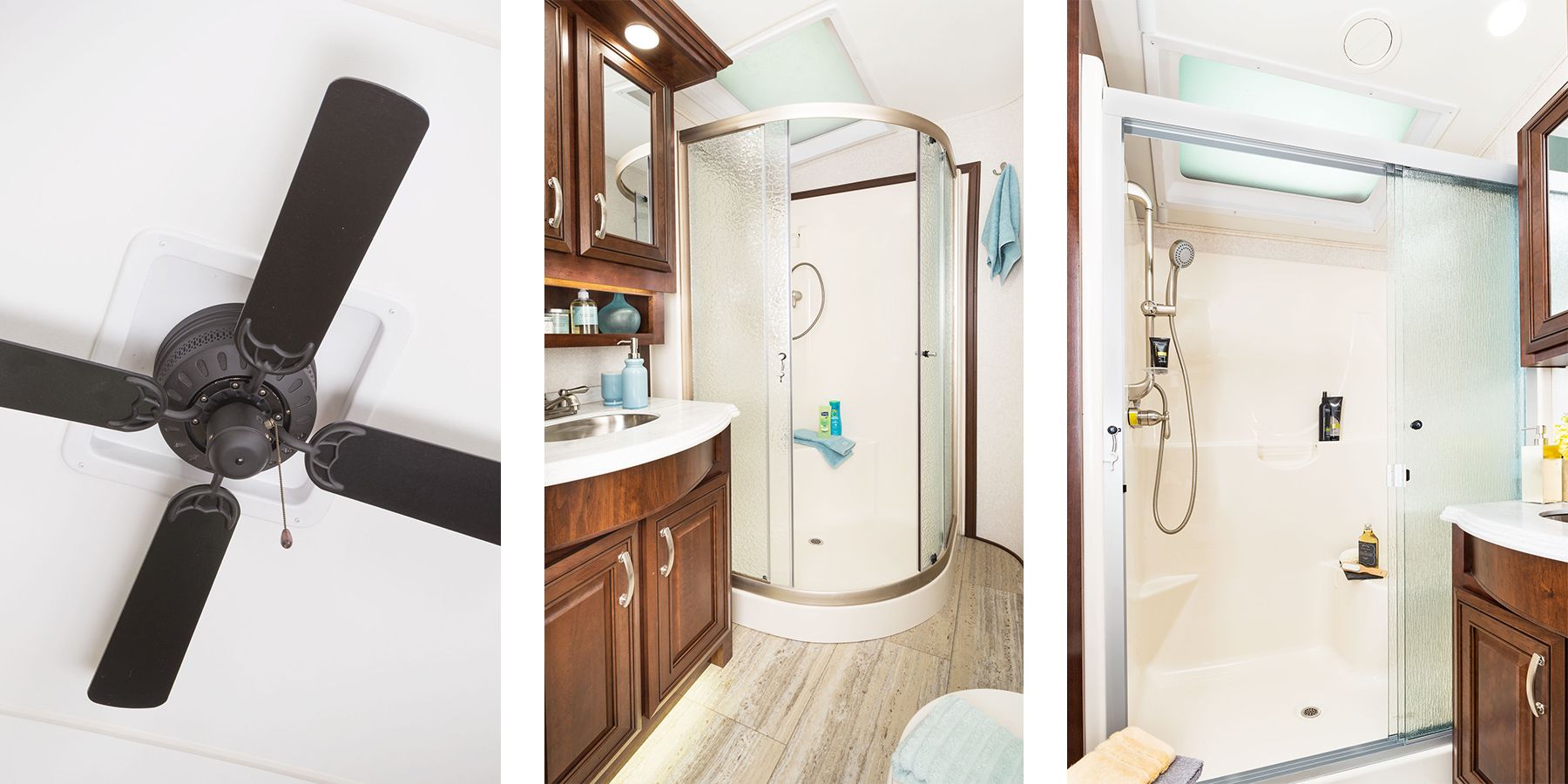

  • Ceiling fan (n/a 39FL)
  • Class A-style hardwood ceiling mantle with LED accent lighting
  • LED ceiling lights throughout
  • Porcelain bath stool with foot flush
  • Under-mounted stainless steel bathroom lavatory sink
  • Solid surface bathroom lavatory backsplash
  • Kingston Cherry cabinetry in bathrooms
  • Robe hooks in bath
  • Hardwood headboard
  • Oversized drawer storage in bed base
  • Walk-in-style front closet with dual hanging rods and cedar lining
  • Mullion-style front wardrobe doors
  • Washer/dryer prep (accommodates stackable unit)
  • Oversized bedroom dresser storage
  • Bedroom slide fascia built-in night stand storage system
  • Dual USB charging centers in kitchen, near sofa in living area, and near night stand in bedroom
  • DVD/radio receiver in bedroom
