Seismic

2022 Seismic

When a Seismic rolls into the campground, people can’t help but notice this impressive trailer. Its versatile garage makes it easy to bring everything from four-wheelers to canoes, while still feeling like you’re in a luxury fifth wheel. Back with surprising standard features, new floorplan designs, décor and graphics for 2022, the Seismic combines the best of adventure and luxury.

Seismic

Seismic Floorplans and Prices

Designs all include garages of 11 or 13 feet made even more versatile with a half bath.

Sleeps up to 8
Length 41' 7" - 41' 7"
Weight 12,730 - 12,730 lbs.

Standard Features and Options

Standard Exterior Equipment

  • 102 in. wide body structural steel I-beam construction
  • StrongholdVBL™ aluminum framed and vacuum bond laminated gelcoated fiberglass exterior walls and slide room end walls
  • Magnum Truss™ Roof System (strongest tested roof in the industry) with one piece, seamless roof material with 20 year warranty
  • Climate Shield™ zero-degree tested weather protection:
    • Fully enclosed and heated underbelly (ducted)
    • 35,000 BTU output furnace
    • Double layer fiberglass batt insulation in ceiling and floor
    • Double sided radiant barrier insulation (roof and floor)
    • PEX plumbing
  • HELIX Cooling System™ (industry exclusive):
    • Exterior-mounted 13,500 BTU ducted A/C
    • Jayco-exclusive insulated dual duct design
    • Directional and closeable A/C vents
  • JaySMART™ (Safety Markers And Reverse Travel) LED lighting (patent-pending)
  • Painted fiberglass front cap with built-in specialty LED lighting
  • Custom automotive-grade vinyl exterior graphics package
  • LED exterior lighting package
  • Detachable shore power cord
  • Dual 30 lb. propane bottles with auto regulator
  • Pass-through storage with Slam-latch™ baggage doors
  • Digital TV antenna with Wi-Fi prep
  • Exterior marine-grade speakers
  • Fully enclosed, LED-lighted universal docking center:
    • Quick-connect outside shower
    • Black tank flush, winterization and sanitation
    • Satellite prep
  • Water heater bypass
  • Battery disconnect
  • Under-mounted spare tire (Goodyear® Endurance® - made in the USA)
  • LP quick-connect
  • Folding roof ladder

Standard Interior Equipment

  • Solid hardwood cabinet doors
  • Handcrafted and glazed doors, drawers and trim
  • 5/8 in. tongue-and-groove joined plywood main floor decking
  • Residential vinyl flooring (made in the USA)
  • Vinyl flooring in slideouts (no carpet)
  • LED interior lighting throughout
  • 10 cu. ft. 12V refrigerator
  • Central command center with built-in tank monitoring
  • SuperSofa with heat, massage, and LED lighting
  • 12V charging station
  • Carbon monoxide and LP detector
  • LED fireplace with electric space heater (select models)
  • Inverter pre-wire
  • Heavy-duty, 75 lb., full-extension, steel ball-bearing drawer guides
  • Stainless steel kitchen sink
  • Brushed nickel kitchen faucet with pull-out sprayer
  • Residential quilted bedspread
  • Gas-strutted under-bed storage
  • Hardwood safety handrail on steps
  • Bathroom skylight
  • Bathroom tile backsplash
  • Porcelain foot flush toilet

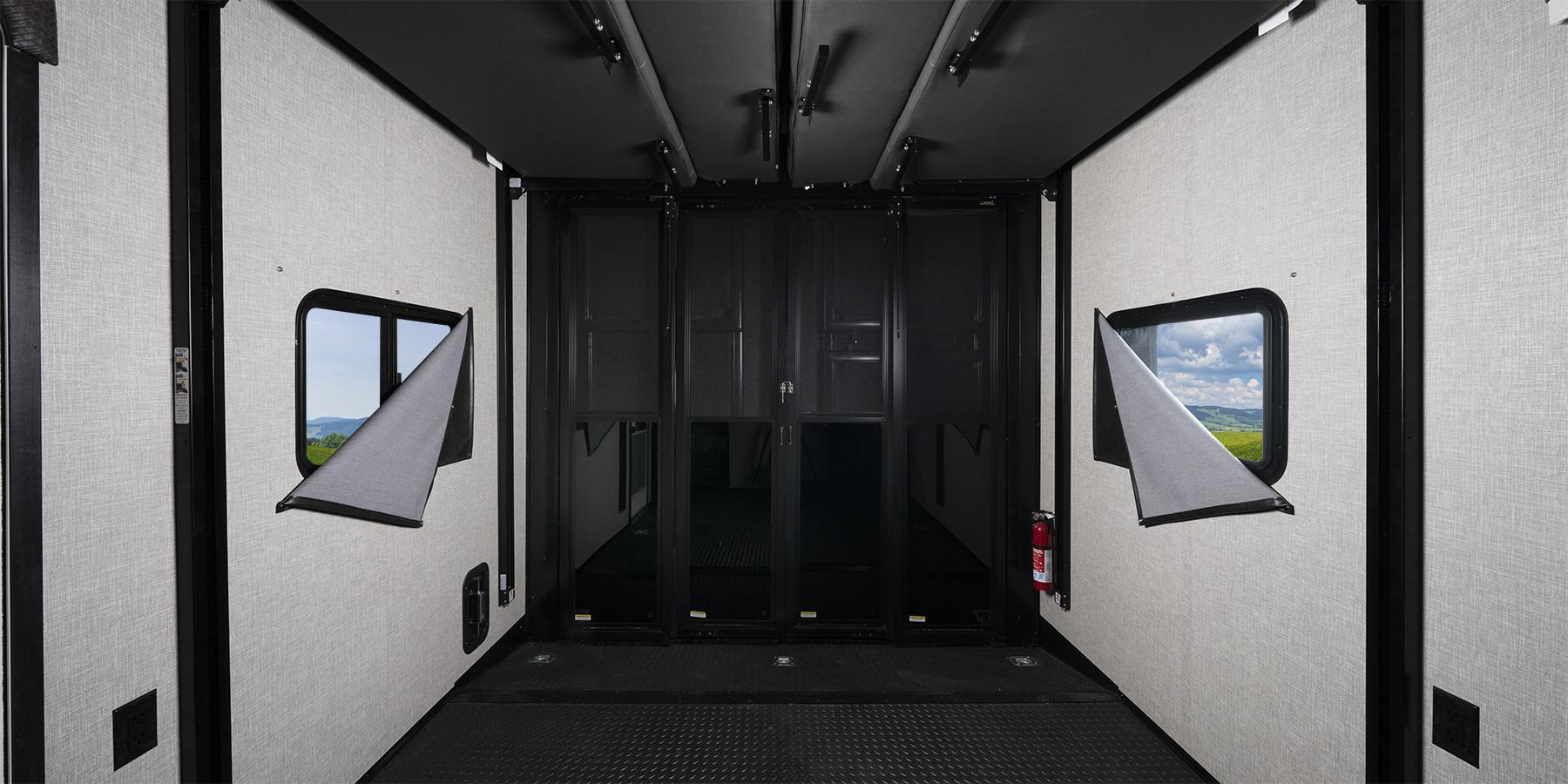

Ramp and Cargo Equipment

  • Rear ramp door and patio with anti-slip, non-skid flooring
  • LED high-intensity ramp lights
  • Tuff-ply, rubberized garage floor liner
  • Garage D-rings mounted to steel frame
  • Ram air vents and tinted power roof vent

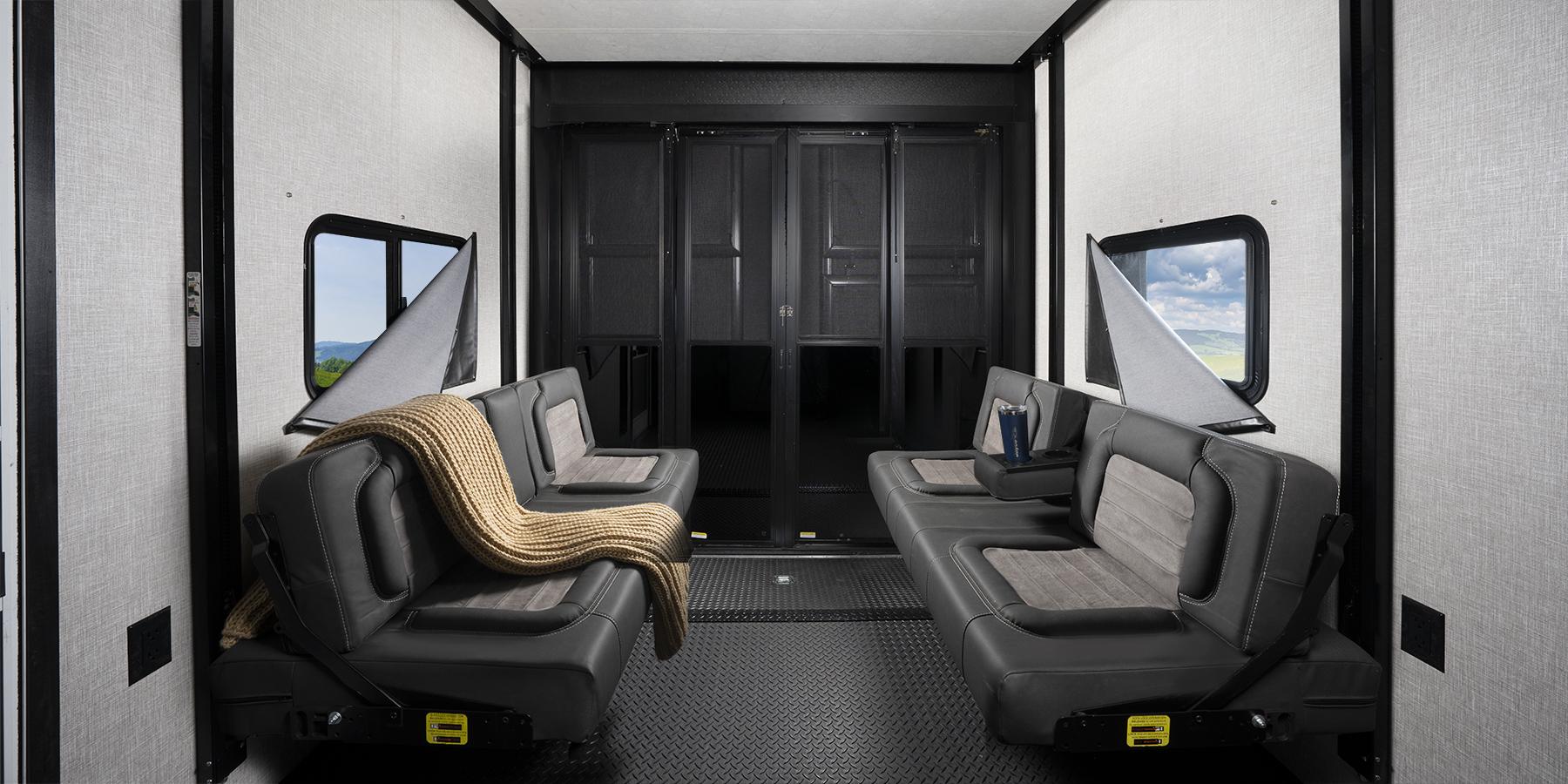

  • HappiJac® electric-lift queen beds/convertible sofas with folding armrests and cup holders
  • Ramp patio kit with exterior steps
  • Rear patio awning
  • Three seasons garage wall/doors
  • 30 gal. fuel tank with timer

Customer Value Package (Mandatory)

  • Strut-assisted fold-away entrance steps (main entrance)
  • 50-amp service and 3rd A/C prep
  • Electric awning with LED lights
  • Quick recovery gas/electric DSI water heater
  • Custom machined aluminum rims
  • Keyed-Alike™ lock system
  • Rooftop and ground solar prep
  • Hidden hinges on cabinet doors
  • Friction hinge entrance door
  • Night shades
  • LED HDTV with fully digital HDMI® output
  • AM/FM/CD/DVD/Bluetooth® stereo with 4 speakers
  • Microwave
  • Residential king (70 in. x 80 in.) mattress with under bed storage
  • Bathroom power vent
  • Oven with 3-burner recessed cooktop with glass cover
  • 10 cu. ft. 12V refrigerator

4 Star Handling Package (Mandatory)

  • Goodyear® Endurance® tires (made in the USA)
  • Dexter® axles with Nev-R-Adjust® brakes and E-Z Lube® hubs
  • Wet bolt fasteners and broze bushings and 4,000 lb. leaf springs
  • Rota-flex king pin

Platinum Package (Mandatory)

  • 6-point hydraulic auto-leveling system
  • 5,500W Onan® gas generator (CARB-certified)
  • Washer/dryer prep



Options

  • Custom interior design: Modern Farmhouse or Classic Cottage
  • 13.5 cu. ft. gas/electric refrigerator (select models)
  • Overlander Solar Kit (30 amp solar controller and two roof-mounted 190W solar panels)
  • Frameless dual-pane tinted safety-glass windows
  • Serta® queen residential foam-top mattress
  • 2nd 13,500 BTU A/C in bedroom
  • Outside griddle for JayPort™ system

Standard Features
and Options

American-made Goodyear<sup>®</sup> tires
5 Star Handling Package
JaySMART™
Climate Shield
The Magnum Truss™ Roof System
Strong foundations
Stronghold VBL™ Lamination
Prepped for Solar Power
JAYCOMMAND<sup>®</sup>

American-made Goodyear® tires

Rugged fabric-steel Durawall® construction offers improved durability and carrying capacity, while remaining compatible with tire pressure monitoring systems and typical tire inflation stations. Tow with confidence.

Learn more »

5 Star Handling Package

The 5 Star Handling package is a Jayco exclusive blend of five high-end components selected and installed to deliver a more safe and stable luxury fifth wheel towing experience.

Learn more »

JaySMART™

The exclusive safety system adds several tow vehicle-controlled exterior lights to indicate turning, braking, reverse travel and hazard situations—because a split second can make all the difference.

Learn more »

Climate Shield

Extend your camping season with built-in protection against extreme heat and cold—even in temperatures as high as 100 degrees or as low as zero degrees (Fahrenheit).

Learn more »

The Magnum Truss™ Roof System

In testing, the creatively engineered system withstood 4,500 pounds—50 percent more than competitors’ roofs.  Walk confidently on top of your unit and feel safer in wind or snowstorms.

Learn more »

Strong foundations

While other manufacturers often weld or modify stock frames, every Jayco RV is built on a custom frame, designed and sized specifically to best support each unit on and off the road for years to come.

Learn more »

Stronghold VBL™ Lamination

Every sidewall, rear wall and slide room wall is bonded together for a minimum of 16 minutes under 144 tons of pressure to create the lightest, yet strongest, construction available in the RV industry.

Learn more »

Prepped for Solar Power

Jayco is one of the first companies to offer solar prep, or solar panels, on every single RV. With sidewall AND roof-mounted prep kits, you have the option to easily install solar panels for extra power at camp.

Learn more »

JAYCOMMAND®

This system puts you in full control of your Jayco. Custom-built by our product development team and our partners, you can monitor and control key operations from just about anywhere on a phone or tablet.

Mini System Quick-Start Videos »Pro System Quick-Start Videos »

Seismic Videos

Superior Construction Elements

(Click on number for more information)

Cutouts
1
2
3
4
5
6
7

The Magnum Truss™ Roof system is one of the strongest roofs in the industry. It's capable of withstanding 50 percent more weight- up to 4,500 lbs.- than the competition so that you can safely perform maintenance and avoid costly structure damage from debris, branches or snow.

Jayco uses plywood vs. OSB or other materials because it is more eco-friendly (no formaldehyde), handles moisture better, is lighter in weight and has better screw retention.

Your RV needs a strong foundation built specifically for your floorplan. We build each trailer on a frame that has been specifically designed by our skilled team of engineers for its size and shape to better endure the wear and tear of the road. Our frames also include more outriggers and cross members for better support and structural integrity.

Jayco's standard Goodyear® tires are built using rugged fabric-steel and are reinforced specifically for trailering. Enhanced durability, geater carrying capacities and higher speed ratings help you stay safe, preventing dangerous blow outs all while remaining compatible with tire pressure monitoring systems and typical tire inflation stations.

Axles are a key factor to a comfortable and stable towing experience. That's why we partner with a long-standing American company, Dexter.

Functionality is key and that's why Jayco uses MORryde over other brands. MORryde suspensions absorb the 3-4 in. of up and down travel that trailers often take while on the road.

Most manufacturers use standard 3500 lb. springs but on all Luxury Fifth Wheels and Toy Haulers we upgrade to the heavy duty 4000 lb. springs for maximum strength.
