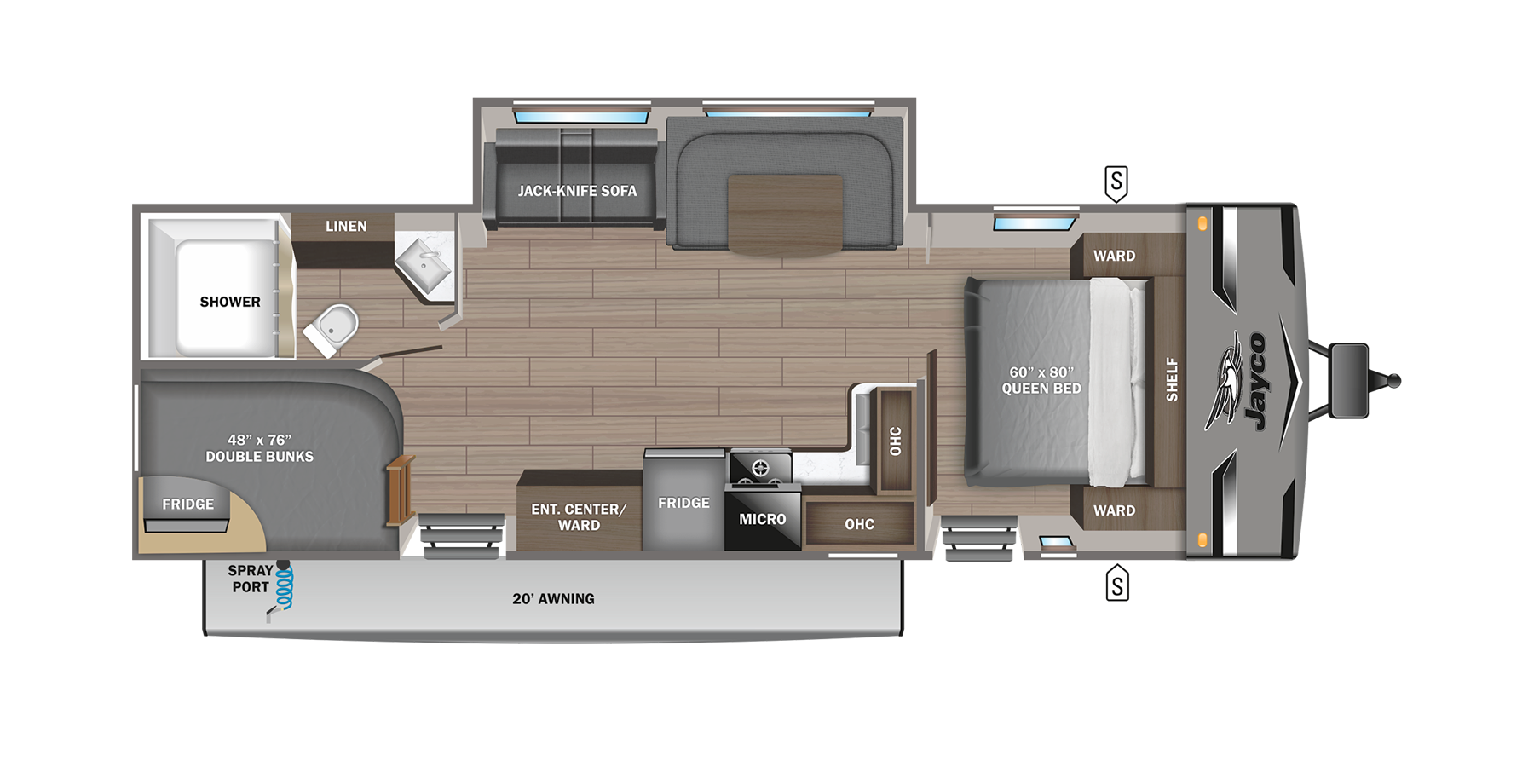

2023 Jay Flight | 285BHS

2023 Jay Flight

Previous model years are dealer stock only.

See Floorplan with
an Option Added:

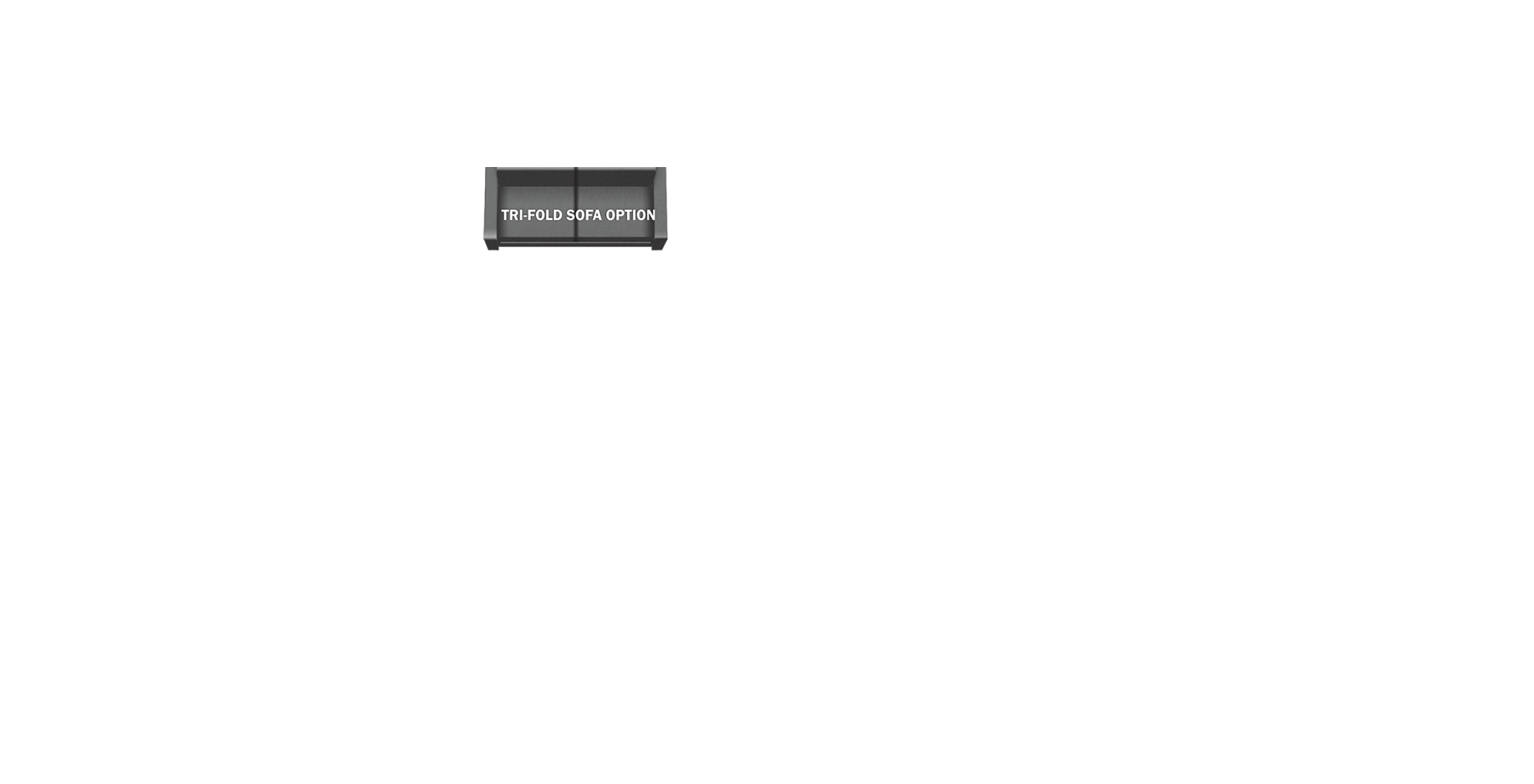

285BHS Tri-fold sofa

See Floorplan with an Option Added:

Interior Design

Modern Farmhouse

Modern Farmhouse

Classic Cottage

Classic Cottage

Specifications

Weights
Dry Hitch Weight (lbs)760
Unloaded Vehicle Weight (lbs)6,450
Cargo Carrying Capacity (lbs)1,700
Gross Vehicle Weight Rating (lbs)8,150
Measurements
Exterior Length (overall)33' 4"
Exterior Length (pin to bumper)29' 11"
Exterior Height10' 6"
Exterior Height (with A/C)11' 4"
Exterior Height (with 2nd A/C)11' 4"
Exterior Width8' 0"
Exterior Width (with slides out)11' 0"
Interior Height (main)6' 9"
Awning Length20' 0"
Tank Capacities
Fresh Water Capacity (gals)38.0
Gray Water Capacity (gals)78.0
Black Tank Capacity (gals)39.0
Propane Unit (lbs)40
Propane Unit (lbs) (Optional)60
Miscellaneous
Sleepsup to 8
Water HeaterTankless
# of outside storage compartments2
Furnace BTU 35000
Tire SizeST225/75R15'E'
Jay Flight

2023 Jay Flight

Starting at $31,640

One of our longest running brands, the Jay Flight has been a family favorite for years. Part of Jay Flight’s lasting power is its superior construction. For example, the integrated A-frame and magnum truss roof system on all models. Unlike our competitors, it’s not just the bottom of the trailer being towed, but the entire frame, creating more stability and safety on the road. We also offer dark-tinted windows for your privacy and added safety.
