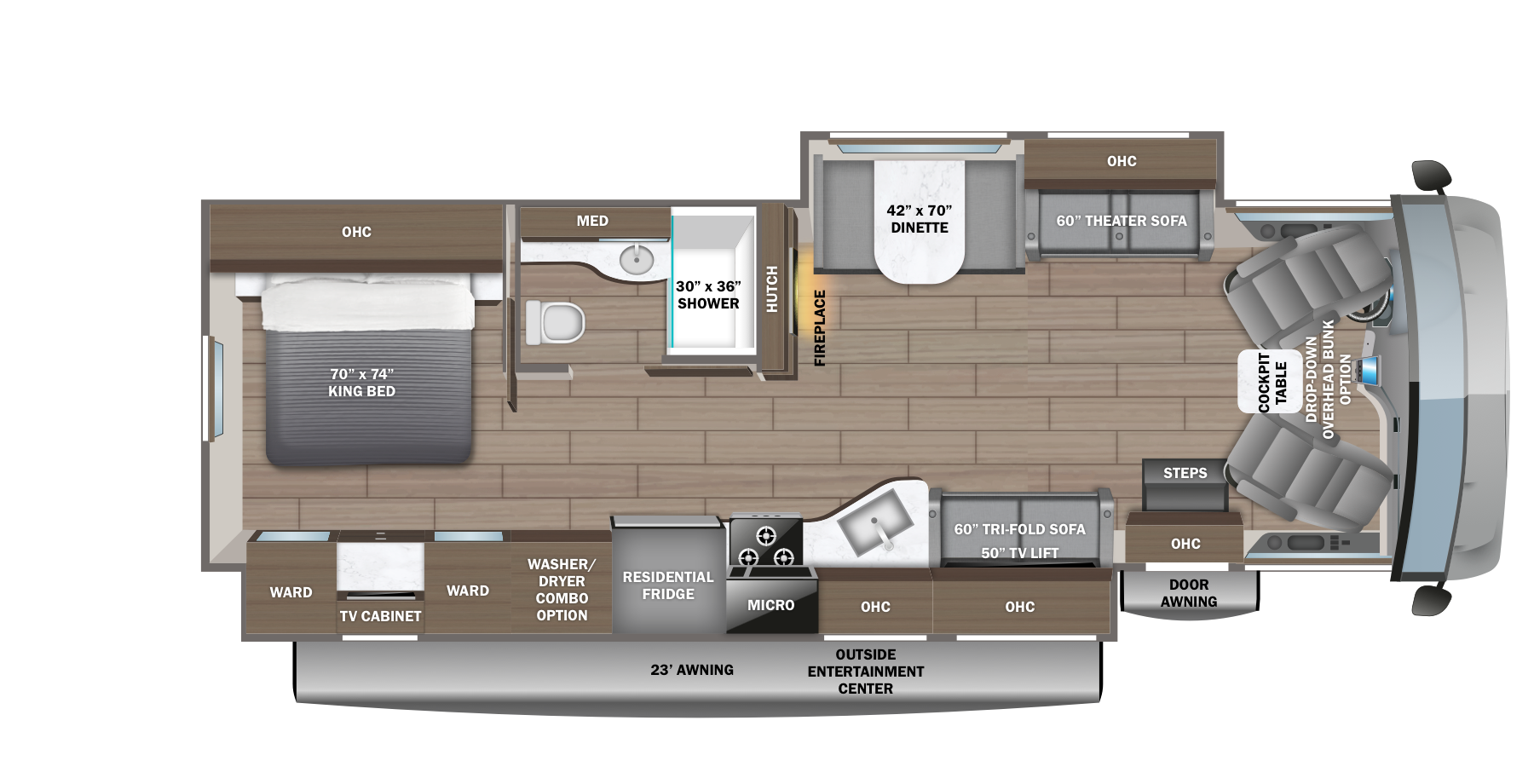

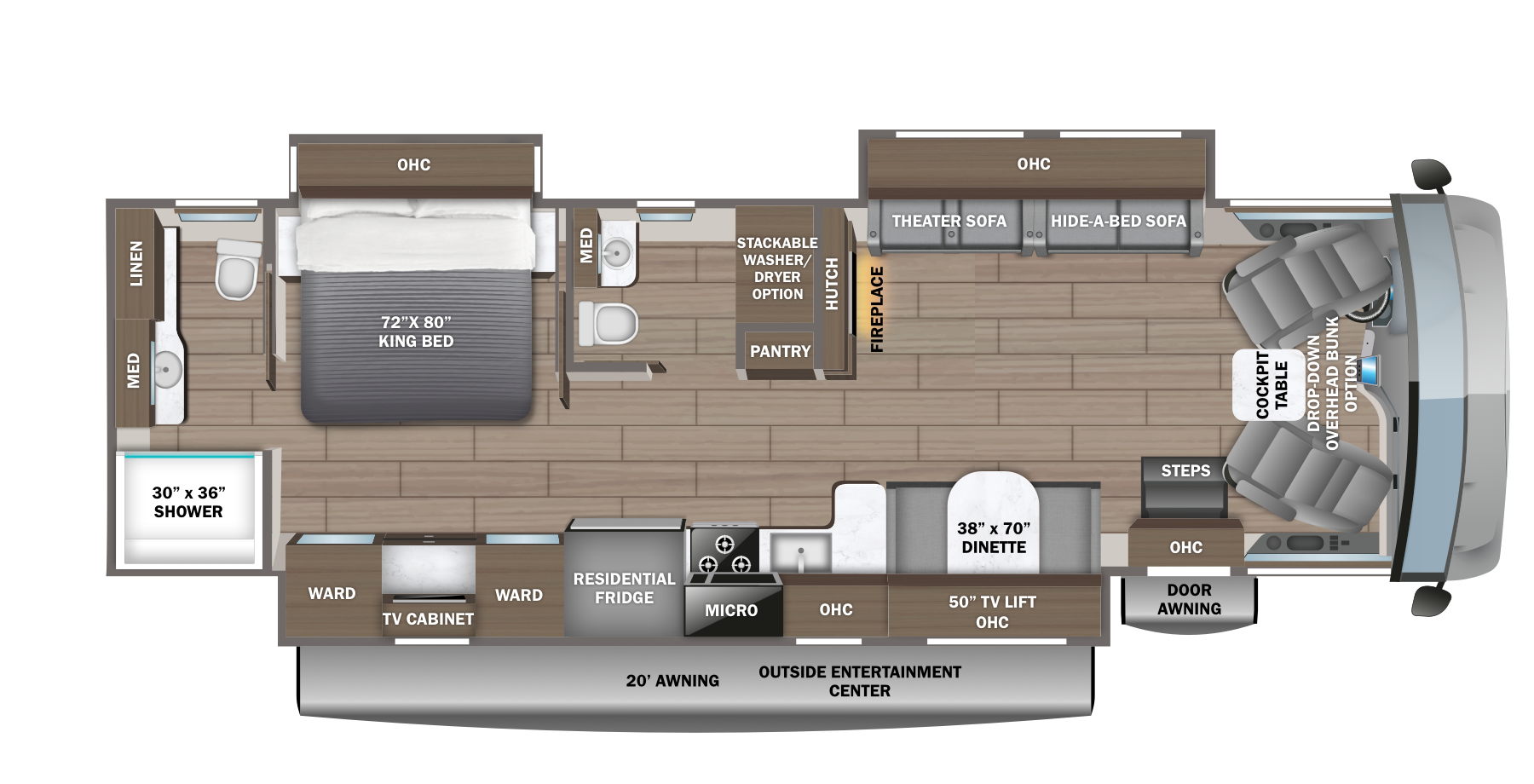

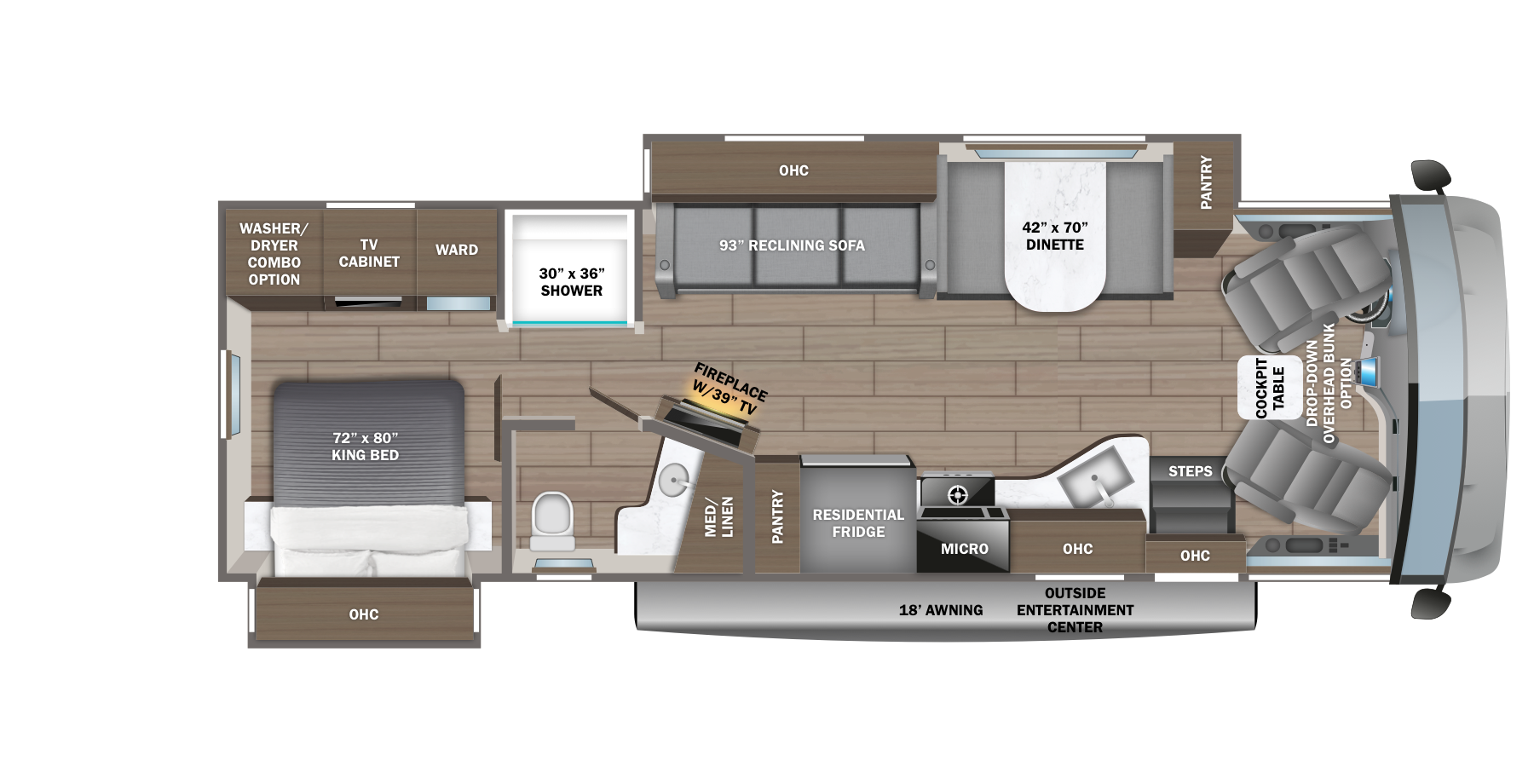

2024 Precept Floorplans

Standard Driving Equipment

• Ford® F53 chassis
• GVWR- 22,000 lb. (31UL, 34B, 34G) 24,000 lb. (36A, 36C)
• GCWR- 26,000 lb. (31UL, 34B, 34G), 30,000 lb. (36A, 36C)
• 7.3L V-8 335 HP engine with 468 ft.-lb. torque
• 6-speed automatic TorqShift® transmission with overdrive and tow haul mode
• 210-amp alternator
• Catalytic converter theft deterrent
• G-rated highway tires- 235/80R22.5 (31UL, 34B, 34G), 255/80R22.5 (36A, 36C)
• Front and rear disc, 4-wheel anti-lock brakes
• 5,000 lb. rear hitch receiver with dual connector and 7-pin plug
• 12V chassis battery
• 80 gal. fuel tank
• 120 in. panoramic windshield
• 6-way power and swivel driver/passenger seats
• Soft-touch, vinyl-wrapped automotive dash
• Tilt steering wheel
• Cruise control
• Hill start assist
• Electronic stability control
• Traction control
• Auxiliary start
• Power front privacy shade with manual side privacy shades

Standard Exterior Equipment

• StrongholdVBL™ roof, floor and sidewalls
• Bead-foam insulation (R-24 max roof, R-9 max floor, R-8 max walls)
• One-piece, seamless fiberglass front cap with partial paint
• One-piece, seamless fiberglass rear cap
• One-piece, seamless, crowned fiberglass roof
• Fiberglass exterior walls with vinyl graphics
• Entrance door with industry’s largest travel-view window
• Electric-powered entrance steps
• Lockable, pass-through storage compartments with metal slam latches
• Third brake light
• Roof ladder
• Prep for satellite dish
• Cable TV hookup with RG-6 coax and video selector switch
• Winegard 2.0 Wi-fi/4G antenna
• 200W solar panel with dual controller
• (2) 6V AGM (220Ah) house batteries on slideout tray
• Transfer switch with reverse polarity protection
• 16.5 gal. propane tank (56 lb.)
• LP quick-connect hookup
• Heated holding tanks (12V pads)
• Exterior utility center
• Winterization drain system
• Black tank flush
• Outside shower
• 12V demand water pump
• Water filtration system

Standard Interior Equipment

• Firefly total coach control system with wall-mounted touchscreen and mobile app
• 84 in. interior ceiling height with padded vinyl ceiling
• High-intensity recessed LED ceiling lights
• LED-lit hardwood fascia
• Hardwood cabinet doors and drawer fronts
• Ball-bearing drawer guides
• Jayco-exclusive, easy-operation legless dinette table
• 2-point lap safety belts in all designated seating locations
• Car seat tethers (select floorplans)
• 30,000 BTU auto-ignition ducted furnace (31UL, 34B, 34G, 36C)
• (2) 30,000 BTU auto-ignition ducted furnaces (36A)
• Electric fireplace (34B, 34G, 36C)
• Residential refrigerator
• Furrion® all-in-one cooktop and oven
• Residential-size microwave
• Decorative kitchen backsplash
• Shower with decorative surround, glass door, skylight and light
• Stainless steel bathroom sink
• Porcelain toilet with foot flush
• Powered roof vent in bathroom with wall switch
• Walk-around, king-size bed with bedspread and nightstands
• USB port and wireless charging in nightstands
• LED HD Smart TV in bedroom
• Under-bed storage (select models)
• Large wardrobes
• Bunks with industry-exclusive 300 lb. capacity each (36A)
• Wall-mounted tablet holder in each bunk (36A)
• Smoke alarm
• Carbon monoxide detector
• Fire extinguisher

Customer Value Package (Mandatory)

• JRide® Plus: Computer-balanced driveshaft, Bilstein® steering stabilizer, Koni® shocks, variable-rate front and rear jounce bumpers, heavy-duty front and rear stabilizer bars, 22.5 in. Michelin® tires
• Automatic hydraulic leveling jacks
• Frameless windows
• 15,000 BTU A/C unit with heat pump and second 13,500 BTU A/C unit
• Exterior entertainment center with outside speakers and LED HD Smart TV mounted on swivel bracket
• Electric patio awning with LED lights
• Slideout awning(s)
• 5,500W generator with auto-gen start
• 1,200W inverter
• 50-amp electrical service
• 10 gal. gas/electric water heater
• Sony® infotainment center with Apple® CarPlay™ and Android Auto™
• Backup and side-view cameras
• Removable driver/passenger cockpit table
• LED-lit, solid-surface kitchen countertops with recessed stainless steel sink and sink covers
• LED HD Smart TV in living area
• Integrated day/night cassette shades

Options

• Drop-down overhead bunk in cab area with 750 lb. capacity
• Power theater seating (36A) (STD 34G, 36C)
• 15 cu. ft. 12V refrigerator
• Combination washer/dryer (34B, 34G, 36A)
• Stackable washer/dryer (36C)
