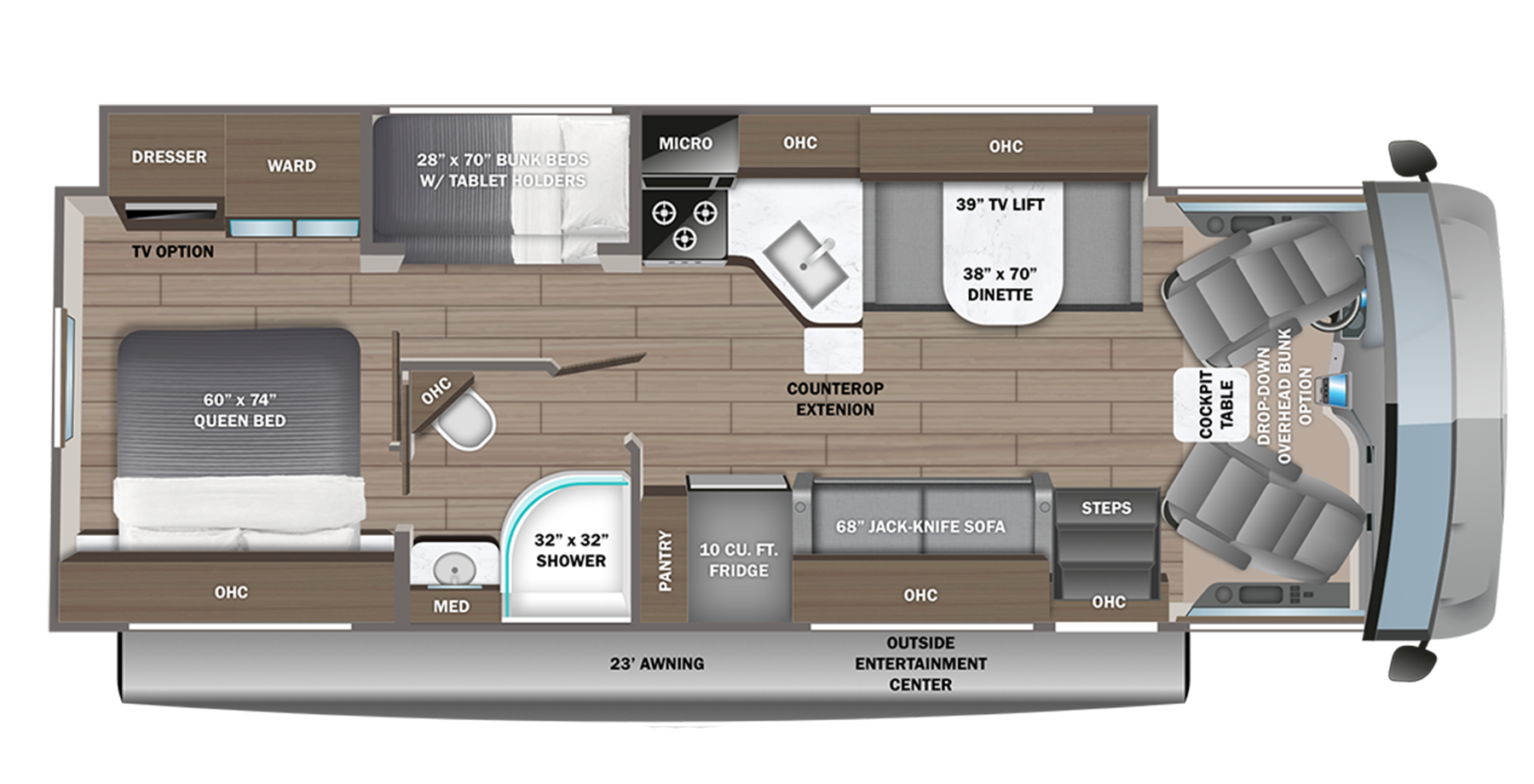

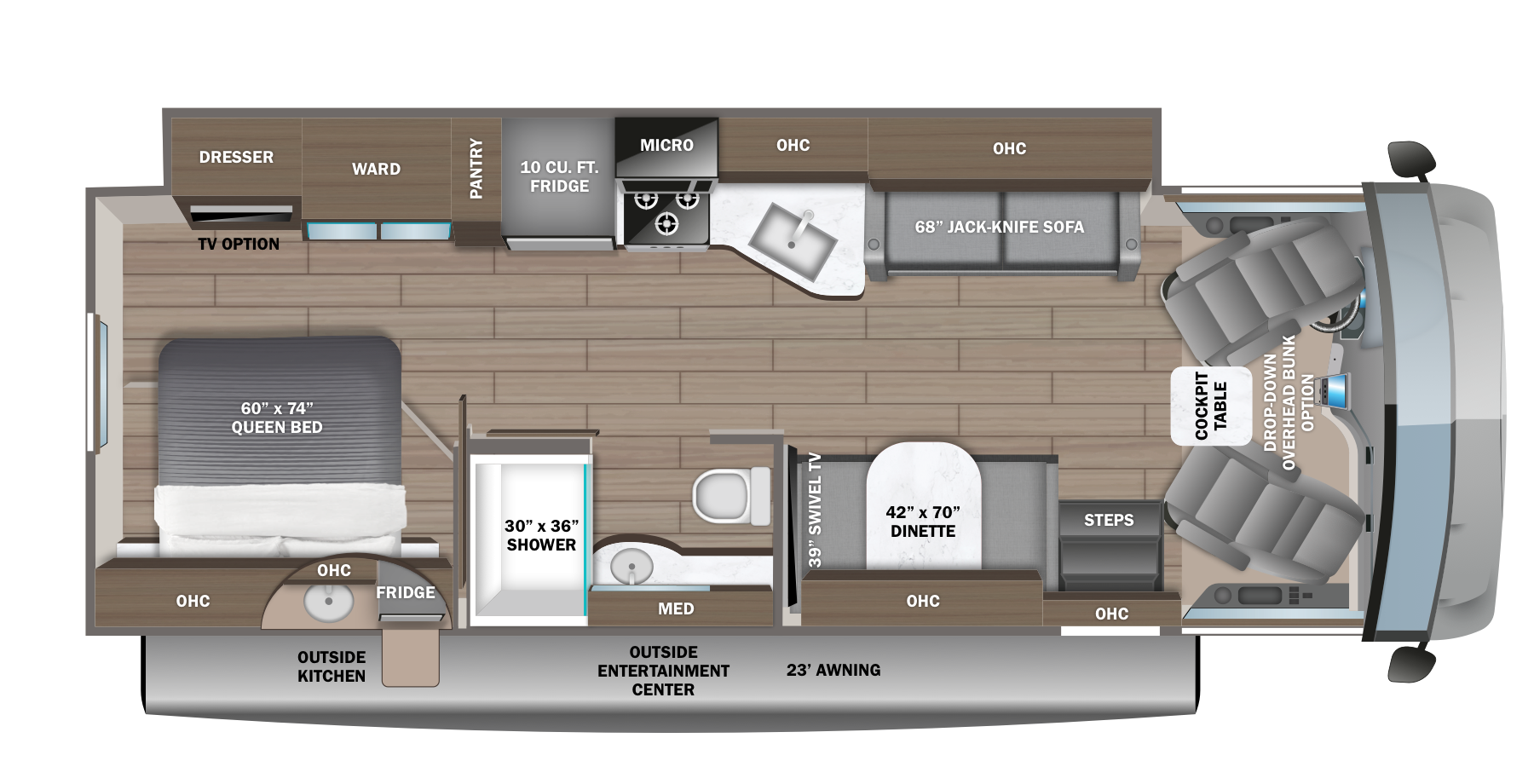

2025 Alante Floorplans

Standard Driving Equipment

• Ford® F53 chassis
• GVWR- 18,000 lb.
• GCWR- 23,000 lb.
• 7.3L V-8 335 HP engine with 468 ft.-lb. torque
• 6-speed automatic TorqShift® transmission with overdrive and tow haul mode
• 210-amp alternator
• Catalytic converter theft deterrent
• G-rated highway tires-245/70R19.5
• Front and rear disc, 4-wheel anti-lock brakes
• 5,000 lb. rear hitch receiver with dual connector and 7-pin plug
• 12V chassis battery
• 80 gal. fuel tank
• 120 in. panoramic windshield
• Power front privacy shade with manual side privacy shades
• Swivel driver and passenger seats
• 6-way power driver seat
• Soft-touch, vinyl-wrapped automotive dash
• Tilt steering wheel
• Cruise control
• Hill start assist
• Electronic stability control
• Traction control
• Auxiliary start

Standard Exterior Equipment

• StrongholdVBL™ roof, floor and sidewalls
• Bead-foam insulation (R-24 max roof, R-9 max floor, R-8 max walls)
• One-piece, seamless, fiberglass front cap
• Fiberglass exterior walls with vinyl graphics
• Automatic hydraulic leveling jacks
• Frameless windows
• Entrance door with industry’s largest travel-view window
• Electric-powered entrance steps
• Lockable, pass-through storage compartments with metal slam latches
• LED headlights
• Third brake light
• 4 in. bumper tube with sewer hose storage
• Roof ladder
• Prep for satellite dish
• Cable TV hookup with RG-6 coax and video selector switch
• Winegard 2.0 Wi-fi/4G antenna
• 4,000W generator
• 200W solar panel with dual controller and second house battery
• (2) 12V house batteries
• Transfer switch with reverse polarity protection
• 30-amp electrical service
• Detachable power cord
• 16.5 gal. propane tank (56 lb.)
• LP quick-connect hookup
• Heated holding tanks (12V pads)
• Exterior utility center
• Winterization drain system
• Black tank flush
• Outside shower
• 12V demand water pump
• Water filtration system

Standard Interior Equipment

• 84 in. interior ceiling height
• High-intensity recessed LED ceiling lights
• LED-lit fascia
• Hardwood cabinet doors and drawer fronts
• Ball-bearing drawer guides
• Jayco-exclusive, easy-operation legless dinette table
• 2-point lap safety belts in all designated seating locations
• Car seat tethers (select floorplans)
• JBL® audio system
• Dual 13,500 A/C units with power management system
• 30,000 BTU auto-ignition ducted furnace
• 6 gal. gas/electric DSI auto-ignition water heater
• 10 cu. ft. 12V refrigerator
• Furrion® all-in-one cooktop and oven
• Residential-size microwave
• Large stainless steel kitchen sink with cover
• LED-lit pressed countertops
• Flip-up countertop extension (select models)
• Decorative kitchen backsplash
• Pop-up charging station in kitchen with 120V outlets and USB ports
• Shower with decorative surround, glass door, skylight and light
• Stainless steel bathroom sink
• Porcelain toilet with foot flush
• Powered roof vent in bathroom with wall switch
• Walk-around, queen-size bed with bedspread and nightstands (king size in 27A)
• USB port and wireless charging in nightstands
• Under-bed storage (select models)
• Large wardrobes
• Bunks with industry-exclusive 300 lb. capacity each (29F)
• Wall-mounted tablet holder in each bunk (29F)
• Smoke alarm
• Carbon monoxide detector
• Fire extinguisher

Customer Value Package (Mandatory)

• JRide®: Computer-balanced driveshaft, Bilstein® steering stabilizer, jounce bumpers, heavy-duty front and rear stabilizer bars, SACHS shocks
• One-piece, seamless, crowned fiberglass roof
• Exterior entertainment center with outside speakers and LED HD Smart TV mounted on swivel bracket
• Electric patio awning with LED lights
• Slideout awning(s)
• 1,000W inverter
• Sony® infotainment center with Apple® CarPlay and Android Auto™
• Backup and side-view cameras
• Removable driver/passenger cockpit table
• LED HD Smart TV in living area
• Blackout night roller shades

Options

• Drop-down overhead bunk in cab area with 750 lb. capacity
• Theater seating (29S)
• 15 cu. ft. 12V refrigerator (27A, 29F)
• LED HD Smart TV in bedroom
