2023 Terrain

Small but mighty, the Jayco Terrain provides rugged all-terrain handling with luxury amenities when you’re parked at your site. Jayco’s JRide® ride and handling package makes driving this already easy-to-drive van a dream. Built on the Sprinter 4X4 Premium Mercedes-Benz® chassis, the Terrain features a dual bench seat with two seatbelts and slide and recline features, as well as a rear garage with power drop-down overhead bunk rated at 750 pounds.

Terrain

Terrain Floorplans and Prices

Do it all in the Jayco Terrain. Venture from the beaten path with enough space to eat, sleep, shower, lounge and explore.

Sleeps up to 2
Length 19' 7" - 19' 7"

Standard Features and Options

STANDARD DRIVING EQUIPMENT

  • Mercedes-Benz® Sprinter 2500 4x4 van with 144 in. wheelbase
  • GVWR- 9,050 lb.
  • GCWR- 13,930 lb.
  • 3.0L V6 engine with 188HP and 325 ft.-lb. torque
  • 7-speed automatic transmission
  • 220 amp alternator
  • Daytime running headlamps
  • Power folding/heated side-view mirrors
  • 5,000 lb. rear hitch receiver with 7 pin connector
  • 12V chassis battery
  • 24.5 gal. fuel tank (diesel)
  • 5.8 gal DEF Tank

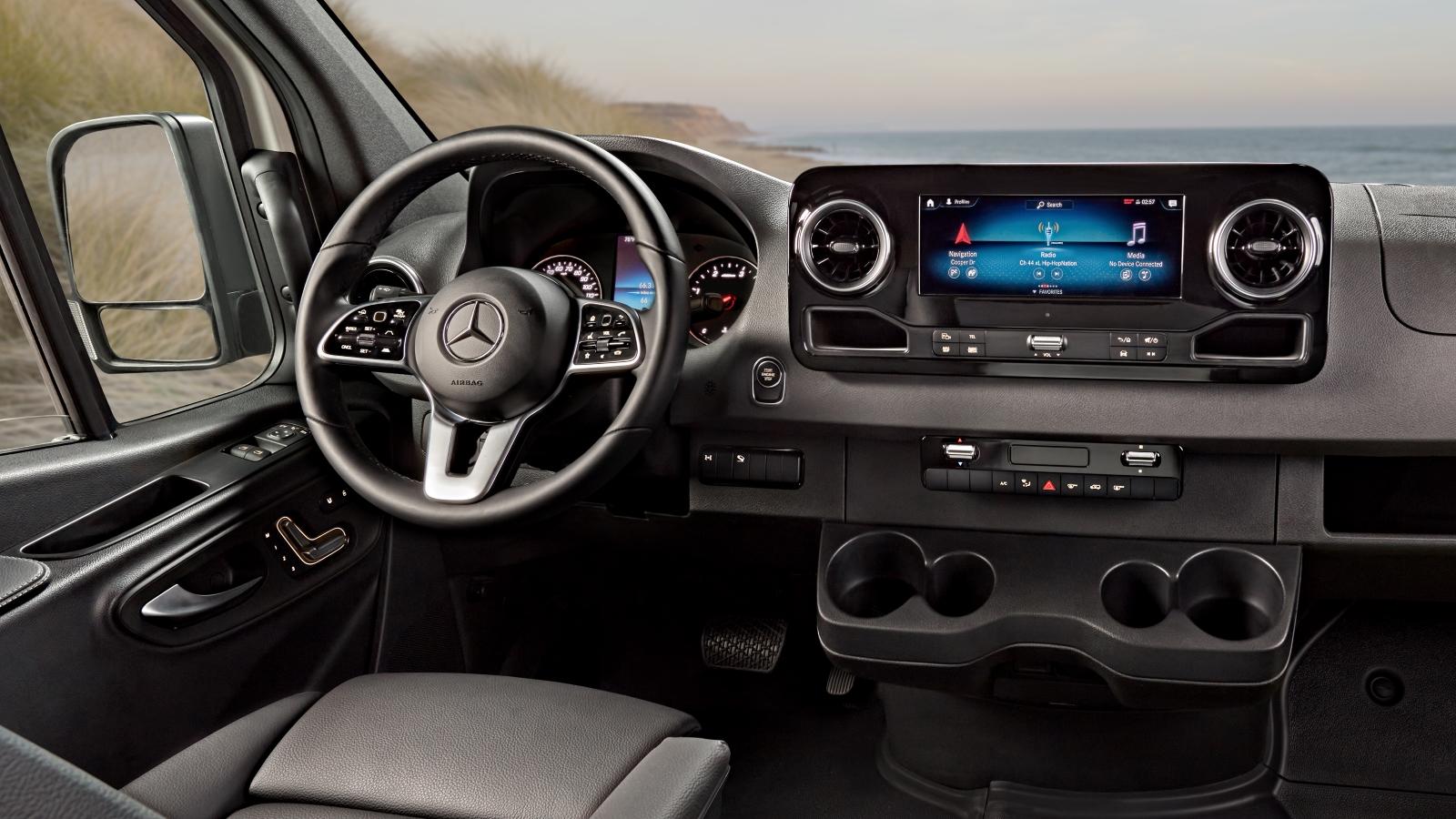

  • 10.25 in. MBUX infotainment center
  • Power windows and door locks
  • A/C and cruise control
  • Active distance assist DISTRONIC®
  • Active brake assist
  • Heated power swivel driver/passenger seats
  • Smartphone tray with wireless charging
  • Rain-sensing wiper system
  • Lane keeping assist
  • Blind spot assist
  • Traffic sign assist
  • Leather-wrapped tilt steering wheel with integrated controls
  • Cab area privacy shade

STANDARD EXTERIOR EQUIPMENT

  • LED-lit running boards for cab and entry doors
  • 110V exterior outlet
  • Portable solar plug
  • LED-lit holding tank valves
  • Side screen door with magnetic and zipper close offs
  • Rear screen door with roll-up and black out capabilities

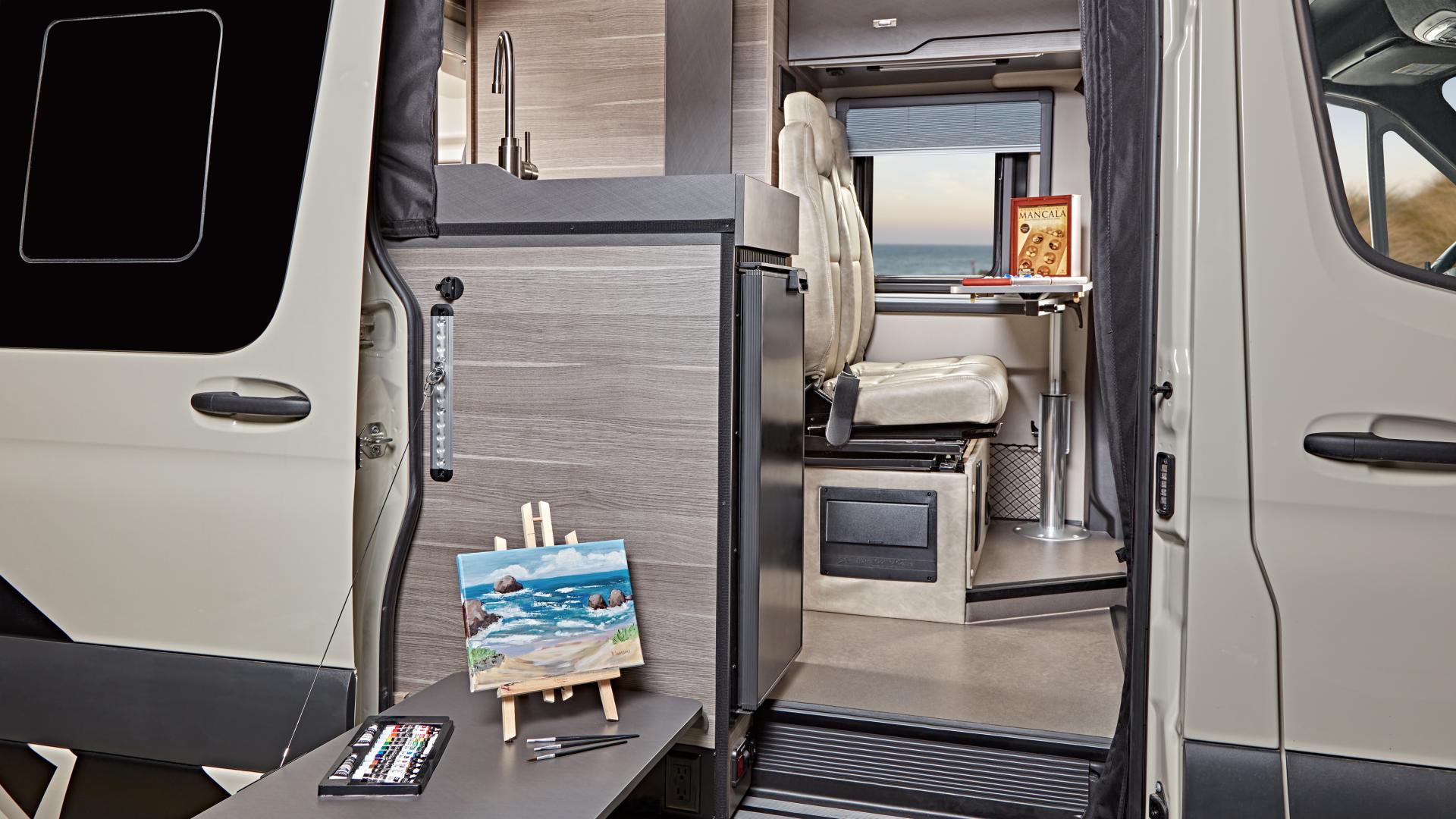

  • Fold-down exterior table
  • On-board air compressor with front and rear chucks
  • 48V - 210 amp hour smart lithium battery providing 10KW hours of power
  • 3,500W inverter
  • 2nd 48V alternator dedicated to lithium battery
  • 30 amp electrical service with detachable power cord
  • 200W of roof-mounted solar panels
  • Slow charge solar panel for chassis battery
  • Utility center with water controls and outside hose
  • City water connection
  • Winterization drain system
  • 12V demand water pump
  • Water filtration system
  • House battery disconnect switch
  • Aqua View® SHOWERMI$ER™ water management system
  • Heated grey tank (12V pad) with skid plate
  • Interior-mounted fresh water tank
  • Remote keyless entry

STANDARD INTERIOR EQUIPMENT

  • SoftFlex® interior wall panels
  • Soft-touch vinyl ceiling
  • High-intensity LED ceiling lights
  • Tecnoform® European-style, cabinetry
  • Tecnoform® pull-out kitchen countertop extension
  • Pantry
  • Durable rubber flooring
  • JAYCOMMAND® powered by Firefly
  • (2) sliding vented windows with cassette shades
  • Rear dual-pane acrylic window with cassette shades

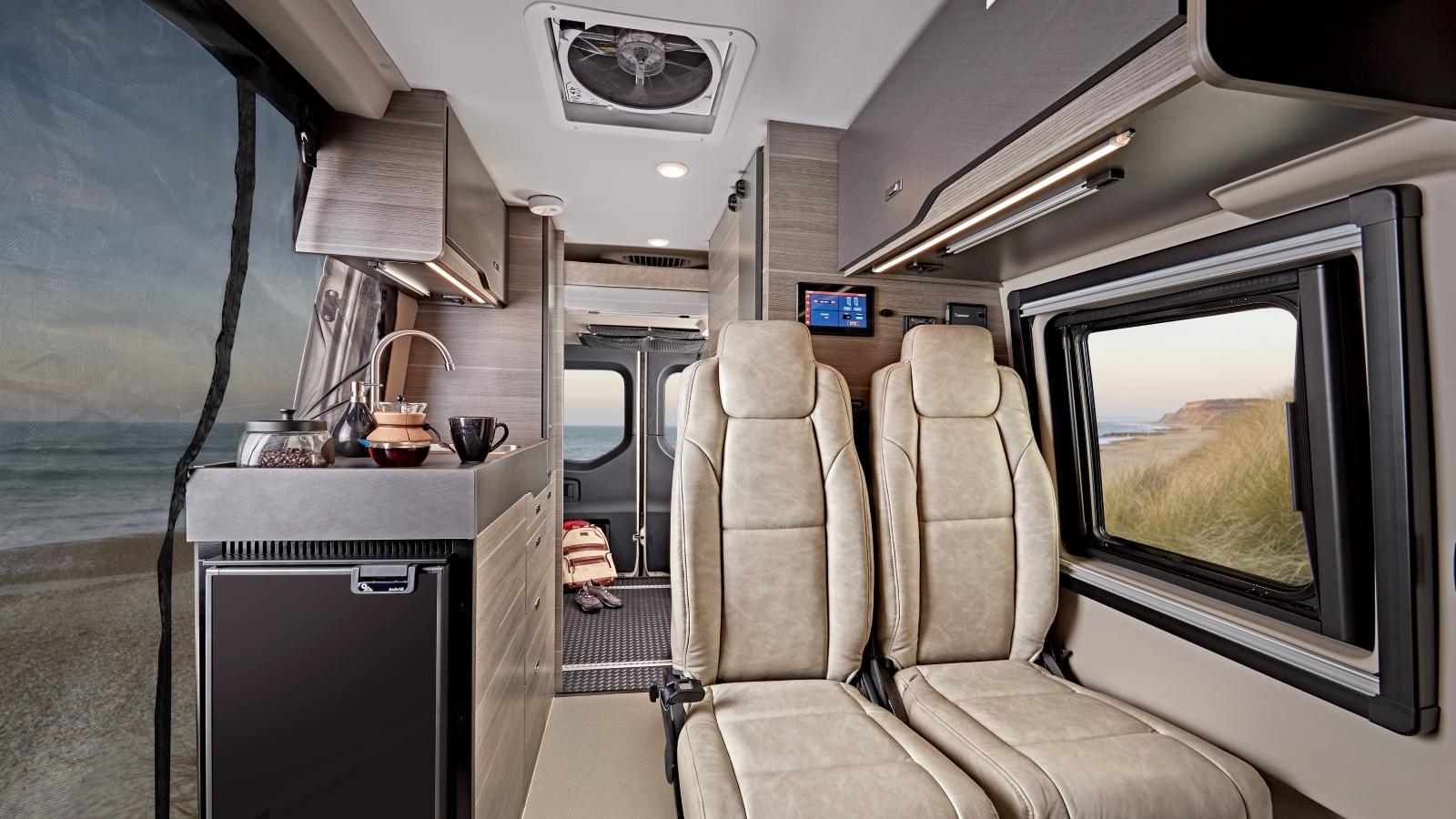

  • MaxxAir Deluxe roof vent

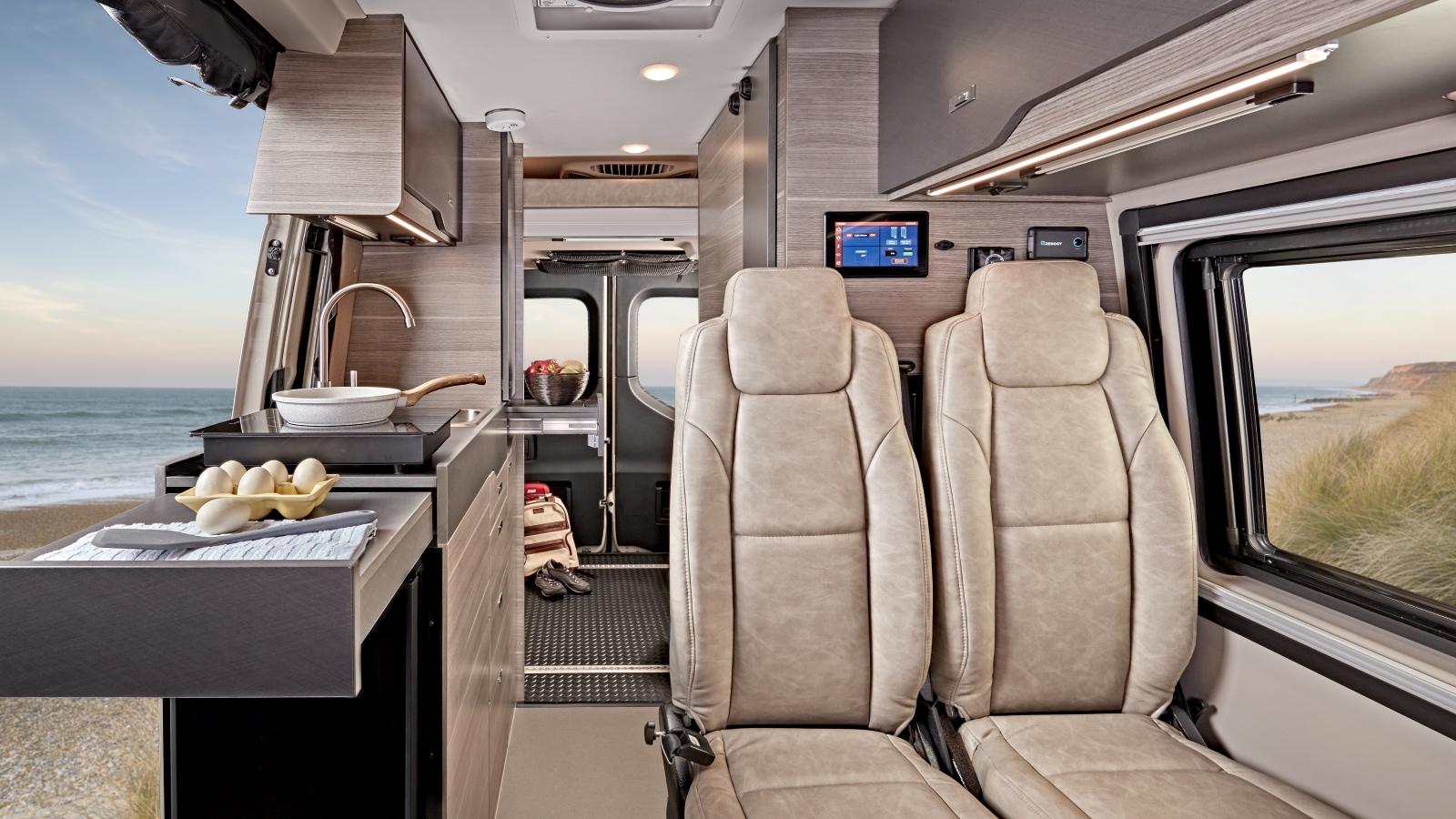

  • (2) additional cab bucket seats with slide and recline features
  • Collapsible dinette table
  • 3 cu.ft. DC refrigerator
  • Portable induction cooktop

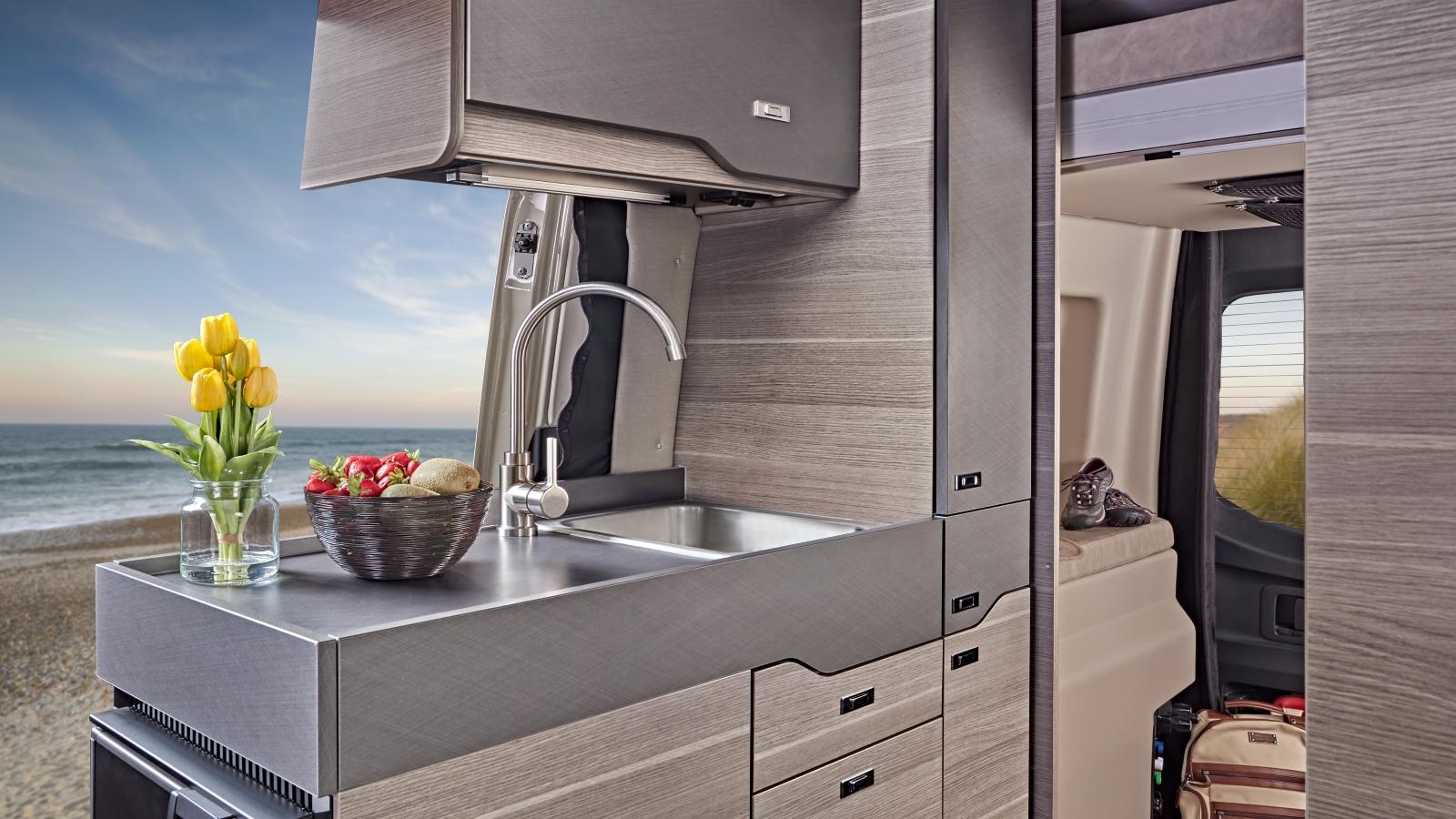

  • Stainless-steel sink
  • 110V/USB outlets throughout
  • Drop-down overhead bed with 750 lb. capacity
  • Fiberglass side pods create larger sleeping surface

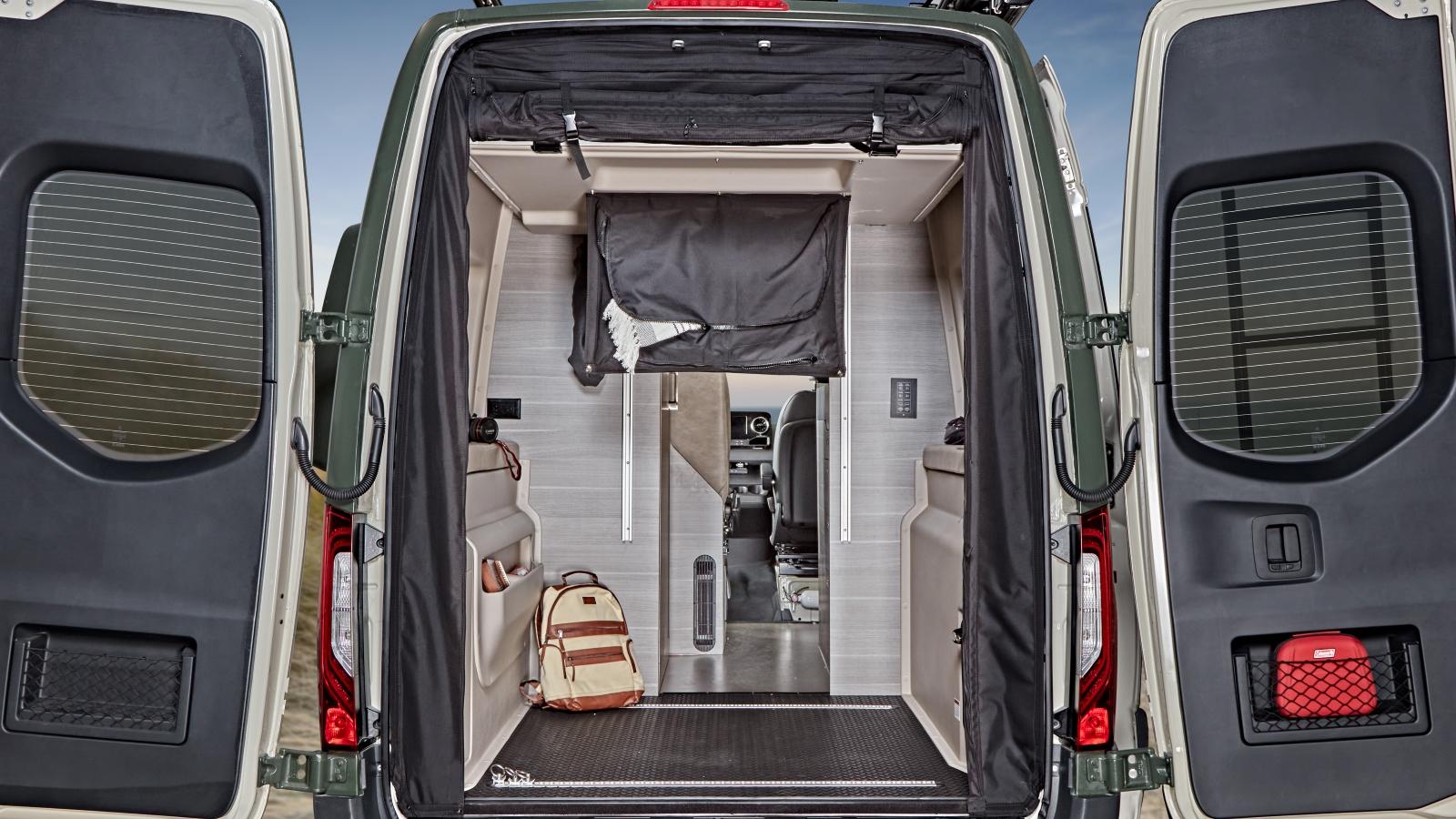

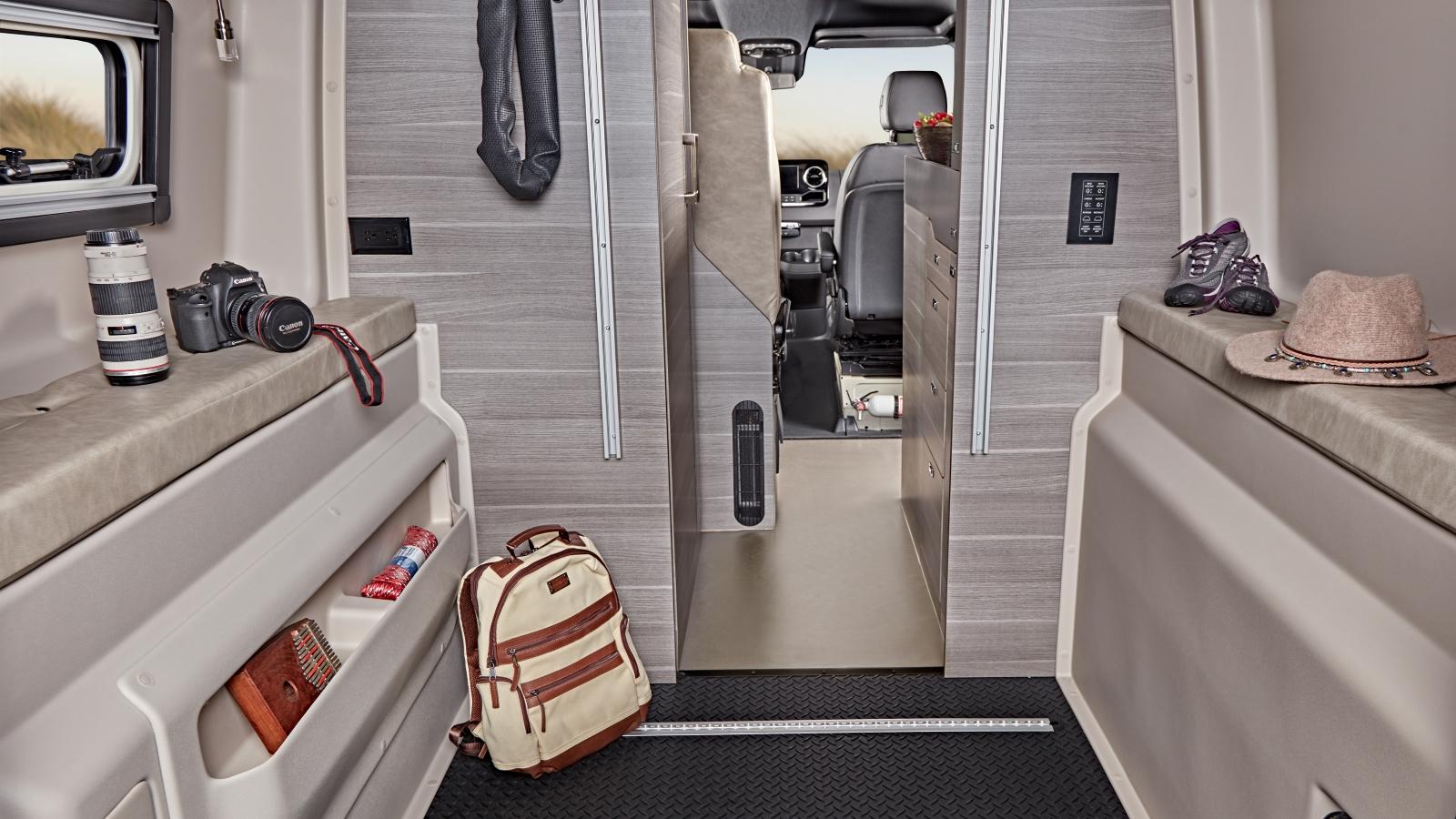

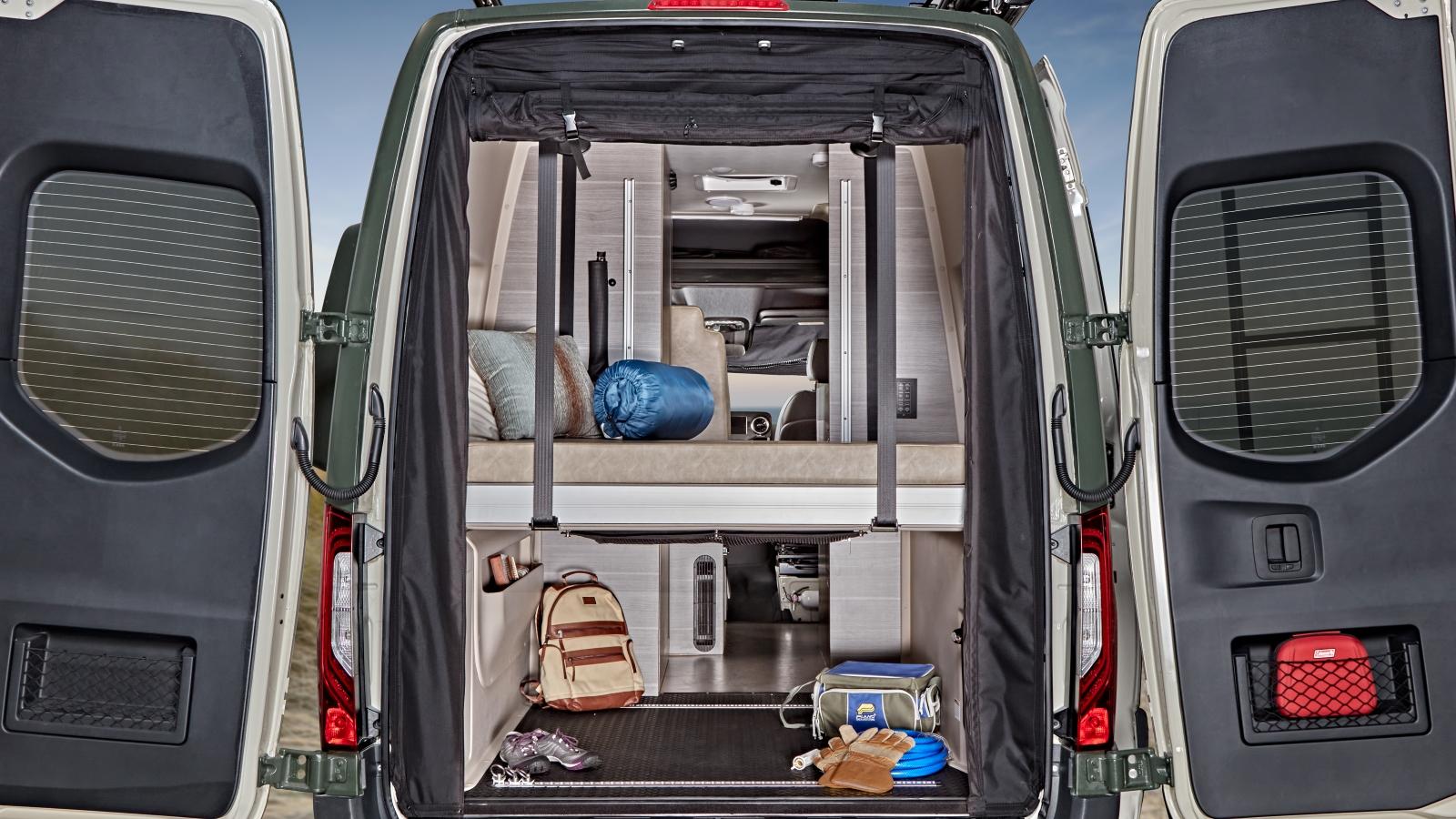

  • Rear garage under bed with L-track mounts for securing cargo
  • (2) recessed under-bed storage bags

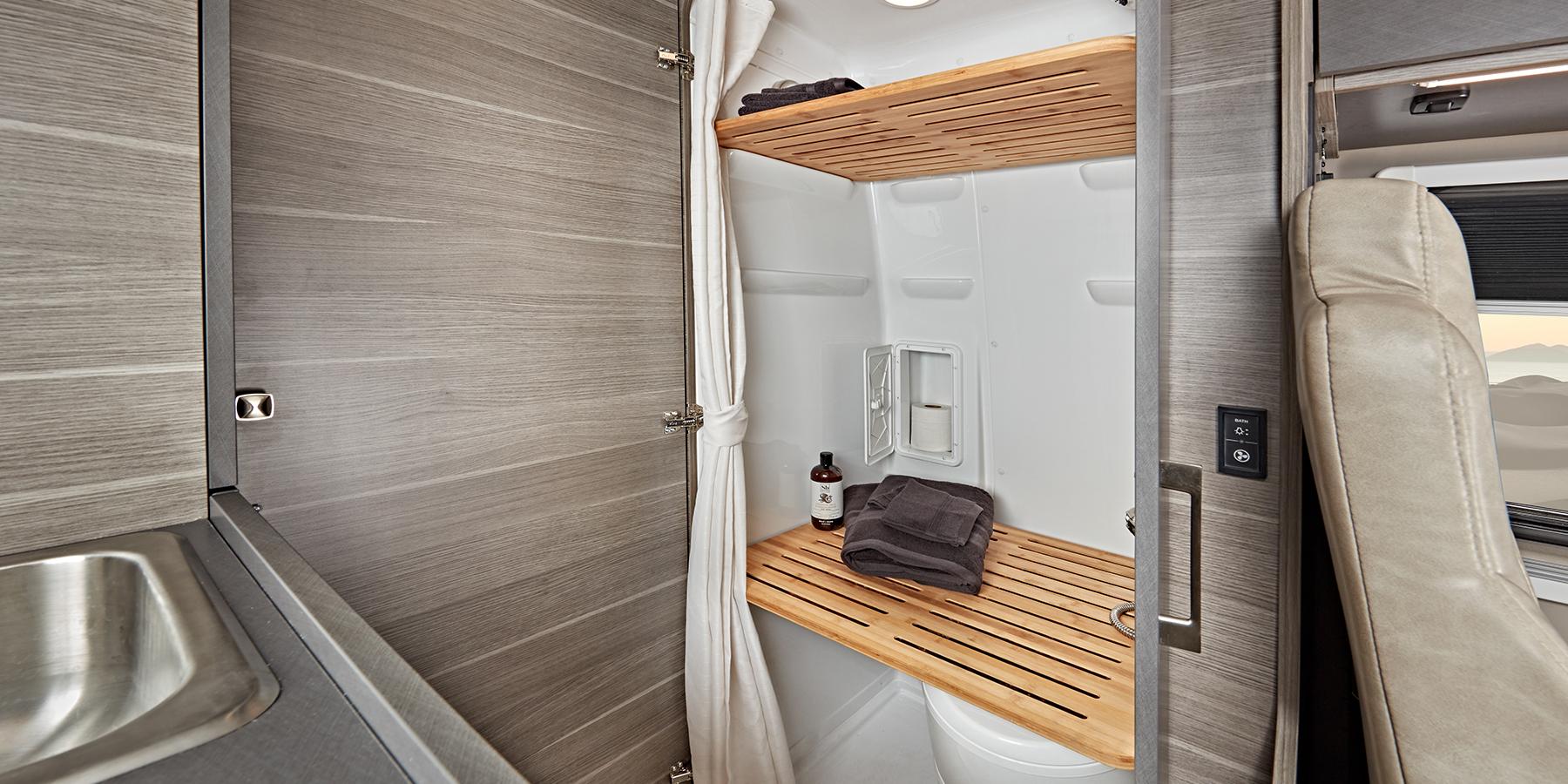

  • All-in-one wet bath with shower and cassette toilet
  • Removable bamboo shelf in wet bath
  • Powered roof vent in bathroom
  • Retractable clothes line in shower
  • Seatbelts in all seating locations
  • Driver and passenger airbags
  • Smoke alarm
  • Carbon monoxide detector
  • Fire extinguisher

CUSTOMER VALUE PACKAGE

  • JRIDE®: Koni® shocks, heavy-duty rear stabilizer bar
  • Carefree® armless patio awning with LED light strip and wind sensor
  • Double roof rack and moveable roof ladder
  • Front and rear wind deflectors with front LED light bar
  • Hydronic heating system with LED touchscreen control
  • 48V Coleman®-Mach® 10 air conditioner
  • Black aluminum wheels with BFGoodrich® All-Terrain T/A® KO2® tires

Standard Features
and Options

JRide<sup>®</sup>
Solar Power
Incredible Bunk Ratings
JAYCOMMAND<sup>®</sup>

JRide®

We engineer each motorhome with several specific enhancements for a powerful blend of precise handling and renowned stability on the road. Because the journey should be as exciting as the destination.

Learn more »

Solar Power

Jayco is one of the first companies to offer solar prep, or solar panels, on every single motorhome.  With sidewall or roof-mounted prep kits, you have the option to easily install solar panels, or additional panels if already solar equipped, for extra power at your camp.

Learn more »

Incredible Bunk Ratings

Go ahead and bring another traveler or some extra gear. With an overhead bunk capacity of 750 lbs., Jayco beats the industry standard by 300lbs. On top of that, Jayco offers a 300 lb. capacity in each standard bunk.

Learn more »

JAYCOMMAND®

This system puts you in full control of your Jayco. Custom-built by our product development team and our partners, you can monitor and control key operations from just about anywhere on a phone or tablet.

Learn more »
