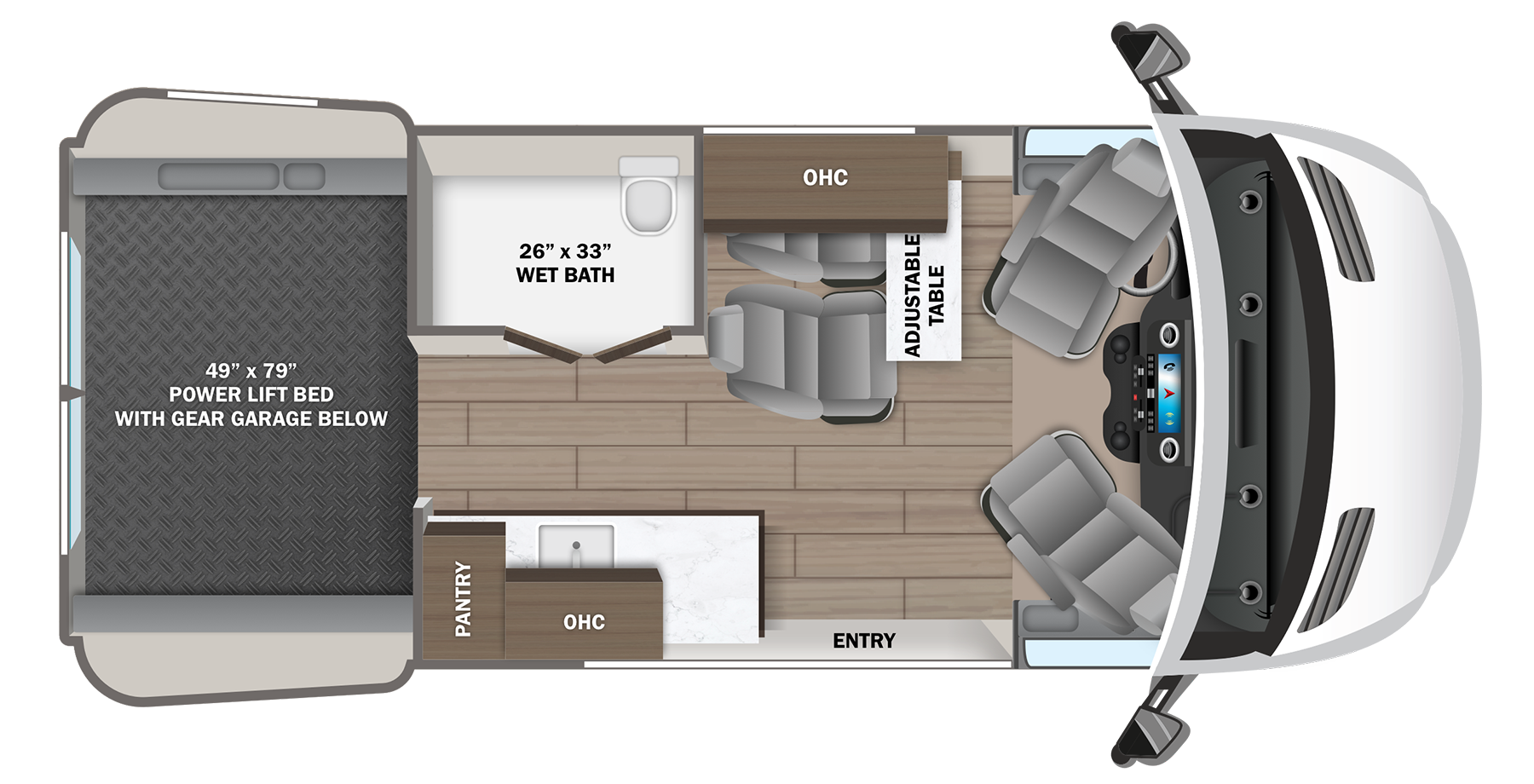

2025 Terrain Floorplans

Standard Driving Equipment

• Mercedes-Benz® Sprinter 2500 AWD van with 144 in. wheelbase
• GVWR- 9,050 lb.
• GCWR- 13,930 lb.
• 2.0L inline 4-cylinder diesel engine with 211HP and 332 ft.-lb. torque
• 9-speed automatic transmission
• 250-amp alternator
• 5,000 lb. rear hitch receiver with 7 pin connector
• 12V chassis battery
• 24.5 gal. fuel tank (diesel)
• 5.8 gal DEF Tank
• 10.25 in. integrated Mercedes-Benz® MBUX infotainment center with Apple® CarPlay™ and Android Auto™
• Power folding/heated side-view mirrors
• Heated power swivel driver/passenger seats
• Leather-wrapped tilt steering wheel with integrated controls
• Smartphone tray with wireless charging
• Parking package with 360° camera
• Backup camera
• Active Distance Assist DISTRONIC®
• Active lane keeping assist
• Crosswind assist
• Hill start assist
• Brake assist plus
• Traffic sign assist
• Attention assist
• Breakdown management
• Emergency call system
• Driver and passenger airbags
• Tire pressure monitoring system (TPMS)
• Rain-sensing windshield wipers
• Headlight assistant
• LED high performance headlights
• Third brake light
• Power windows and door locks
• Privacy shades for cab windows
• Remote keyless entry

Standard Exterior Equipment

• LED-lit running boards for cab and entry doors
• Fold-down exterior table
• Daytime running headlamps
• 48V-165 amp hour smart lithium battery providing 7.9KW hours of power (19Y)
• 2,500W LP generator with auto-gen start (19YG)
• (2) 12V AGM batteries - 230AH (19YG)
• Prepped for auto engine start with high idle (19Y)
• 3,000W inverter (19Y)
• 2,000W inverter (19YG)
• 2nd 48V alternator dedicated to lithium battery (19Y)
• House battery disconnect switch
• 200W of roof-mounted solar panels
• 30-amp electrical service with detachable power cord
• 120V exterior outlet
• Starlink satellite internet system (19Y)
• Heated grey tank (12V pad) with skid plate
• Interior-mounted fresh water tank
• LED-lit holding tank valves
• Utility center with water controls and outside hose
• City water connection
• Winterization drain system
• 12V demand water pump
• Water filtration system

Standard Interior Equipment

• Custom-molded ABS interior wall panels
• Soft-touch vinyl ceiling
• High-intensity LED ceiling lights
• Tecnoform® European-style, cabinetry
• Durable rubber flooring
• Firefly total coach control system with wall-mounted touchscreen and mobile app
• MaxxAir Deluxe roof vent
• 120V/USB outlets throughout
• Side screen door with magnetic and zipper close offs
• Removable privacy shade for sliding door window
• Rear screen door with roll-up and black out capabilities
• Rear dual-pane acrylic window with cassette shades
• (2) sliding vented windows
• (2) additional cab bucket seats with slide and recline features
• Removable/adjustable table
• JBL® Flip 6 removable wireless Bluetooth speaker
• Tecnoform® pull-out kitchen countertop extension
• Pantry
• 3 cu.ft. DC refrigerator
• Portable induction cooktop
• Stainless-steel sink
• Drop-down overhead bed with 750 lb. capacity
• Fiberglass side pods create larger sleeping surface
• Rear garage under bed with L-track mounts for securing cargo
• (2) recessed under-bed storage bags
• All-in-one wet bath with shower and cassette toilet
• Aqua View® SHOWERMI$ER™ water management system
• Removable bamboo shelf in wet bath
• Retractable clothes line in shower
• Powered roof vent in bathroom
• Seatbelts in all seating locations
• Smoke alarm
• Carbon monoxide detector
• Fire extinguisher

Customer Value Package (Mandatory)

• JRide®: Koni® shocks, heavy-duty rear stabilizer bar
• Carefree® armless patio awning with LED light strip and wind sensor
• Double roof rack and moveable roof ladder
• Front and rear wind deflectors with front LED light bar
• 17,000 BTU Timberline Binar 5D hydronic heating system with LED touchscreen control
• 13,500 BTU 48V Coleman®-Mach® 10 air conditioner (19Y)
• 13,500 BTU 110V air conditioner (19YG)
• Black aluminum wheels with all-terrain 245/70R17 tires

Options

• Starlink satellite internet system (19YG)
• Workstation ILO rear passenger seats
• 2nd 48V-165 amp hour battery with bench cover on driver-side (19Y)
• 2nd 48V-165 amp hour battery with bench cover on driver-side and additional storage bench on passenger side (19Y)
• Driver-side rear garage storage bench
• Driver and passenger-side rear garage storage benches
• 400W portable solar blanket (19Y)
