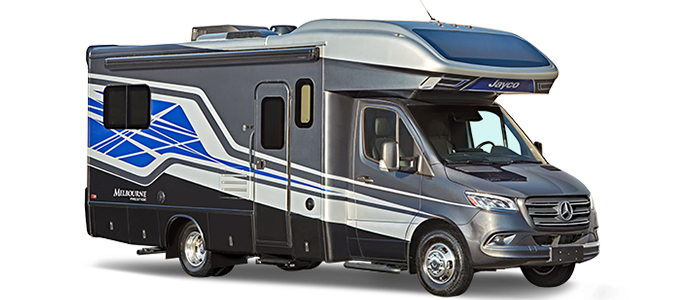

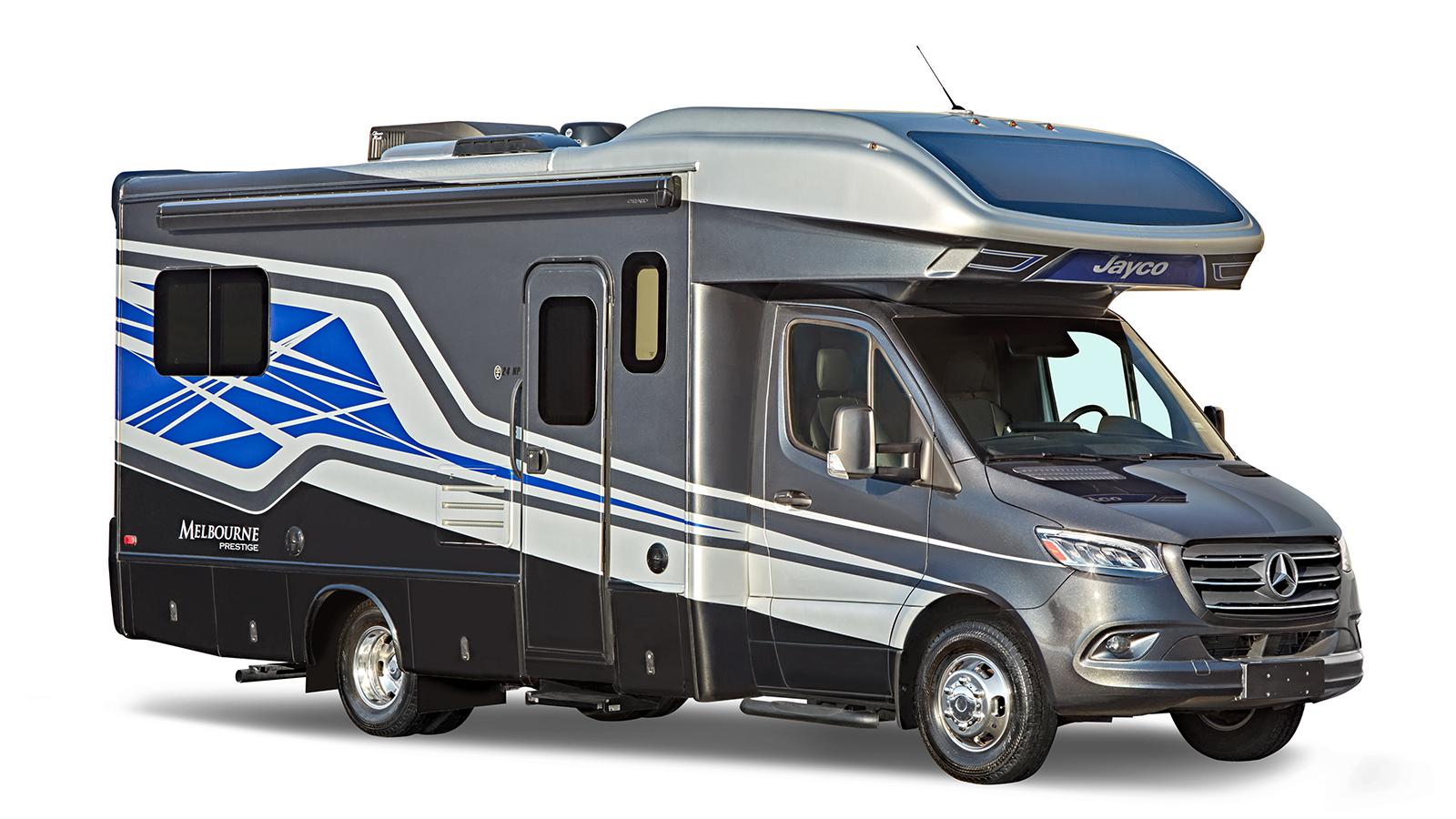

2023 Melbourne Prestige

Built on the upgraded premium Mercedes-Benz® 3500 chassis and including the 10.25-inch integrated Mercedes-Benz infotainment center with GPS, the diesel Class C Melbourne Prestige provides elite performance on a premium platform. A slightly smaller unit that doesn’t skimp on luxuries, the upgraded premium chassis features active brake assist, adaptive cruise control, heated captain’s seats, upgraded lighting, traffic sign and lane-keeping assist, to name just a few.

Melbourne Prestige

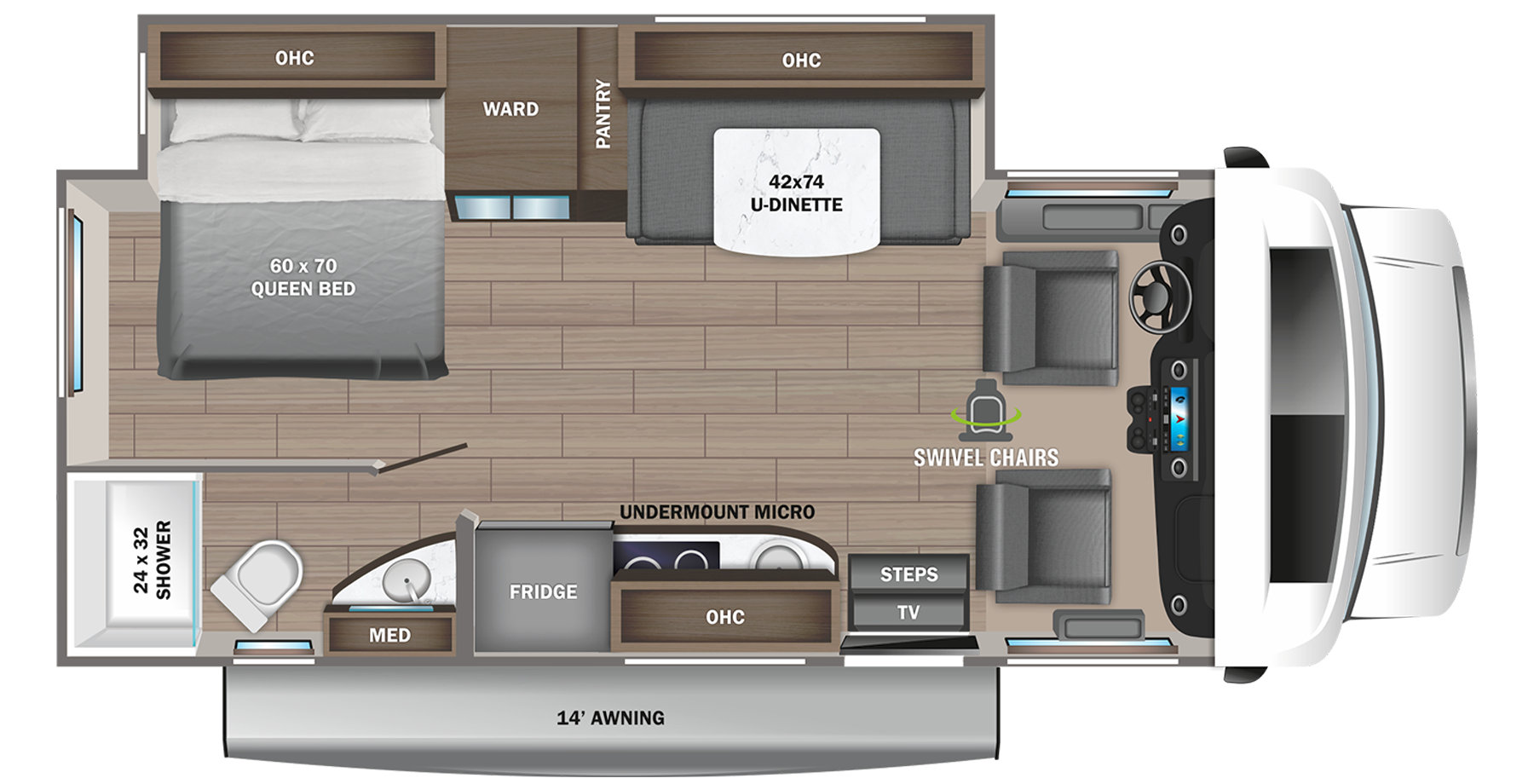

Melbourne Prestige Floorplans and Prices

With JAYCOMMAND® powered by Firefly, have complete control at your fingertips no matter which luxury floorplan you choose from Melbourne Prestige.

Sleeps up to 5
Length 25' 2" - 25' 2"

Standard Features and Options

STANDARD DRIVING EQUIPMENT

  • Premium Mercedes-Benz® 3500 chassis with 170 in. wheelbase. Upgraded premium features include active brake assist, chrome grill package, adaptive cruise control, heated captain's seats, smartphone tray with wireless charging, upgraded lighting package, rain-sensing wiper system, leather steering wheel, lane-keeping assist and traffic sign assist.
  • GVWR- 11,030 lb.
  • GCWR- 15,250 lb.
  • V-6 Turbo 188 HP diesel engine with electronic fuel injection and 325 ft.-lb. torque
  • 7-speed automatic transmission
  • 220 amp alternator
  • E-rated highway tires- 215/85R16
  • Aluminum rims
  • Front and rear disc, 4-wheel anti-lock brakes
  • 5,000 lb. rear hitch receiver with dual connector 7-pin plug
  • 12V chassis battery
  • 26.4 gal. fuel tank
  • 5.8 gal. DEF tank
  • Heated, remote-controlled, side-view mirrors

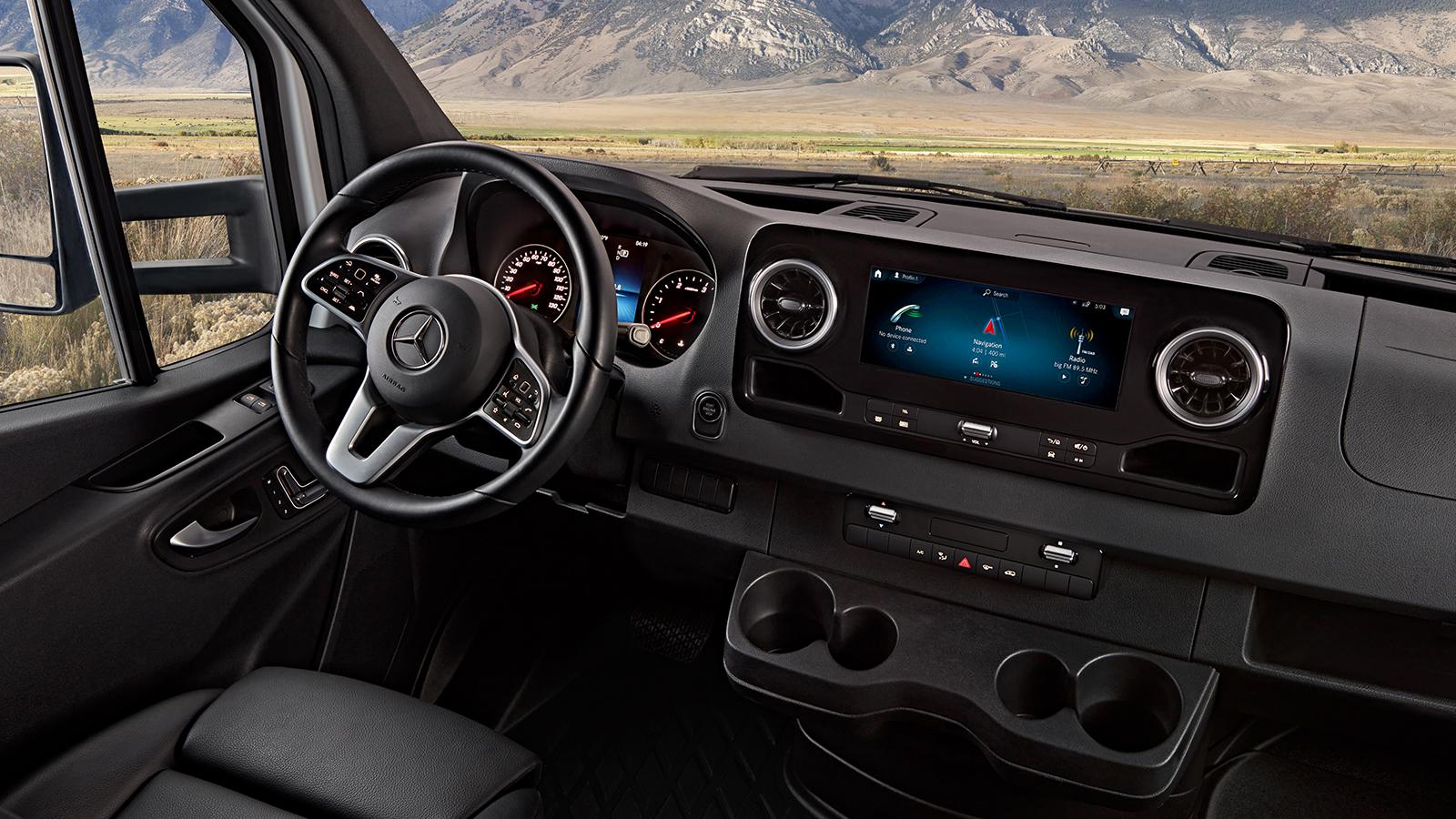

  • 10.25 in. integrated Mercedes-Benz® infotainment center with GPS
  • Driver and passenger airbags
  • Power windows and door locks
  • Tilt steering wheel
  • A/C and cruise control
  • Auxiliary start switch
  • Cab area privacy curtain

STANDARD EXTERIOR EQUIPMENT

  • StrongholdVBL™ roof, floor and sidewalls
  • Bead-foam insulation (R-24 max roof, R-9 max floor, R-5 max walls)
  • One-piece, seamless, fiberglass roof
  • Partial fiberglass rear cap
  • Premium Sikkens full-body paint
  • Electric stabilizer jacks
  • Slideout awning(s)
  • Entrance door with industry’s largest travel-view window
  • Electric-powered entrance step with integrated house battery compartment
  • (2) 12V house batteries
  • 200W solar panel with dual controller
  • Aluminum skirt-hung baggage doors
  • 12.2 gal. propane tank (41 lb.)
  • LP quick-connect hookup
  • Exterior utility center
  • Winterization drain system
  • Black tank flush
  • Outside shower
  • 12V demand water pump
  • Onan® 3,600W LP generator
  • Transfer switch with reverse polarity protection
  • 30 amp electrical service
  • Third brake light

STANDARD INTERIOR EQUIPMENT

  • Custom-molded ABS surround in cab-over area

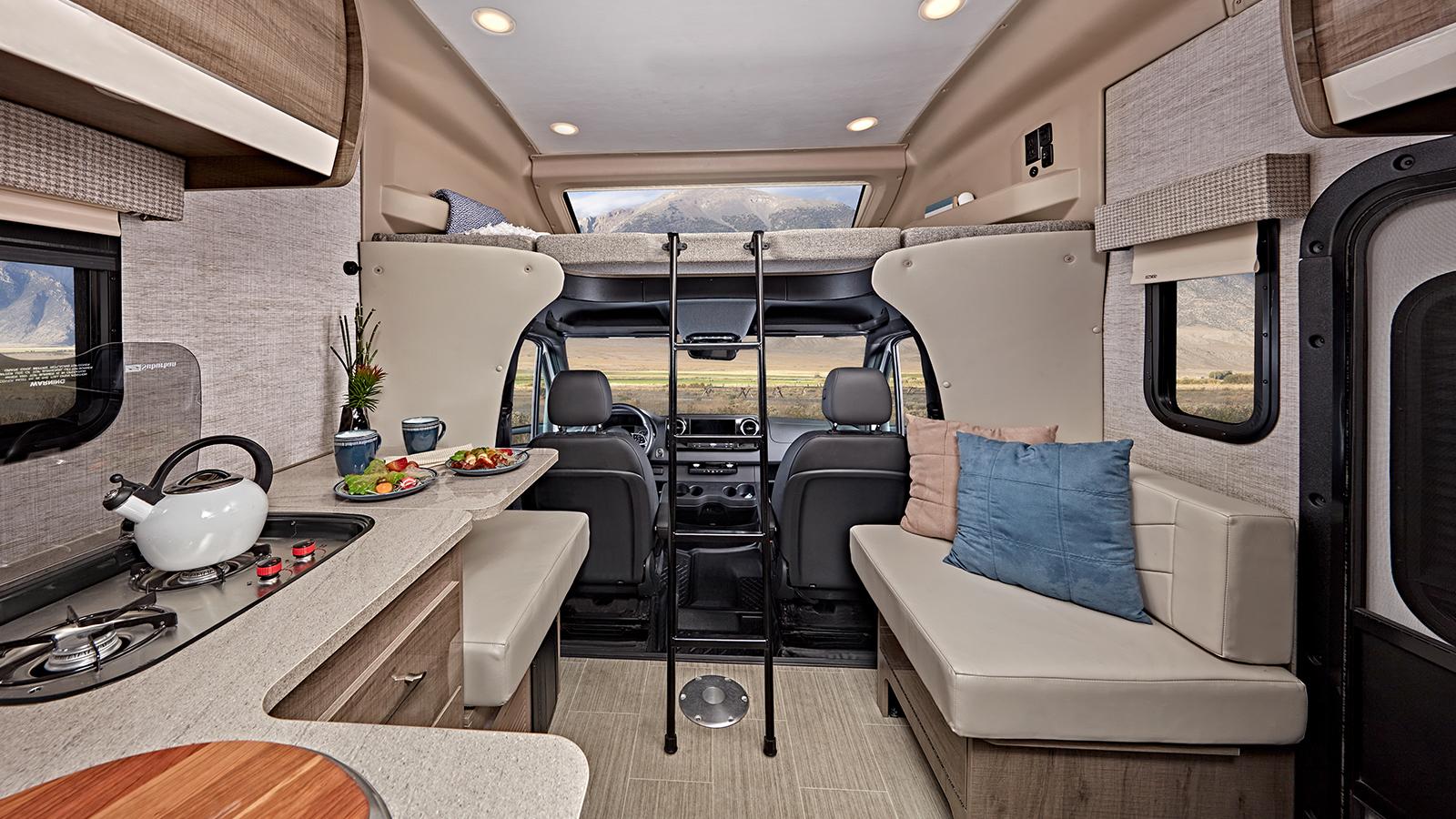

  • Overhead bunk with 750 lb. capacity
  • JAYCOMMAND® powered by Firefly
  • 80 in. interior ceiling height with padded vinyl ceiling
  • High-intensity LED ceiling lights
  • High-gloss hardwood fascia
  • Tecnoform® high-gloss cabinetry
  • Ball-bearing drawer guides

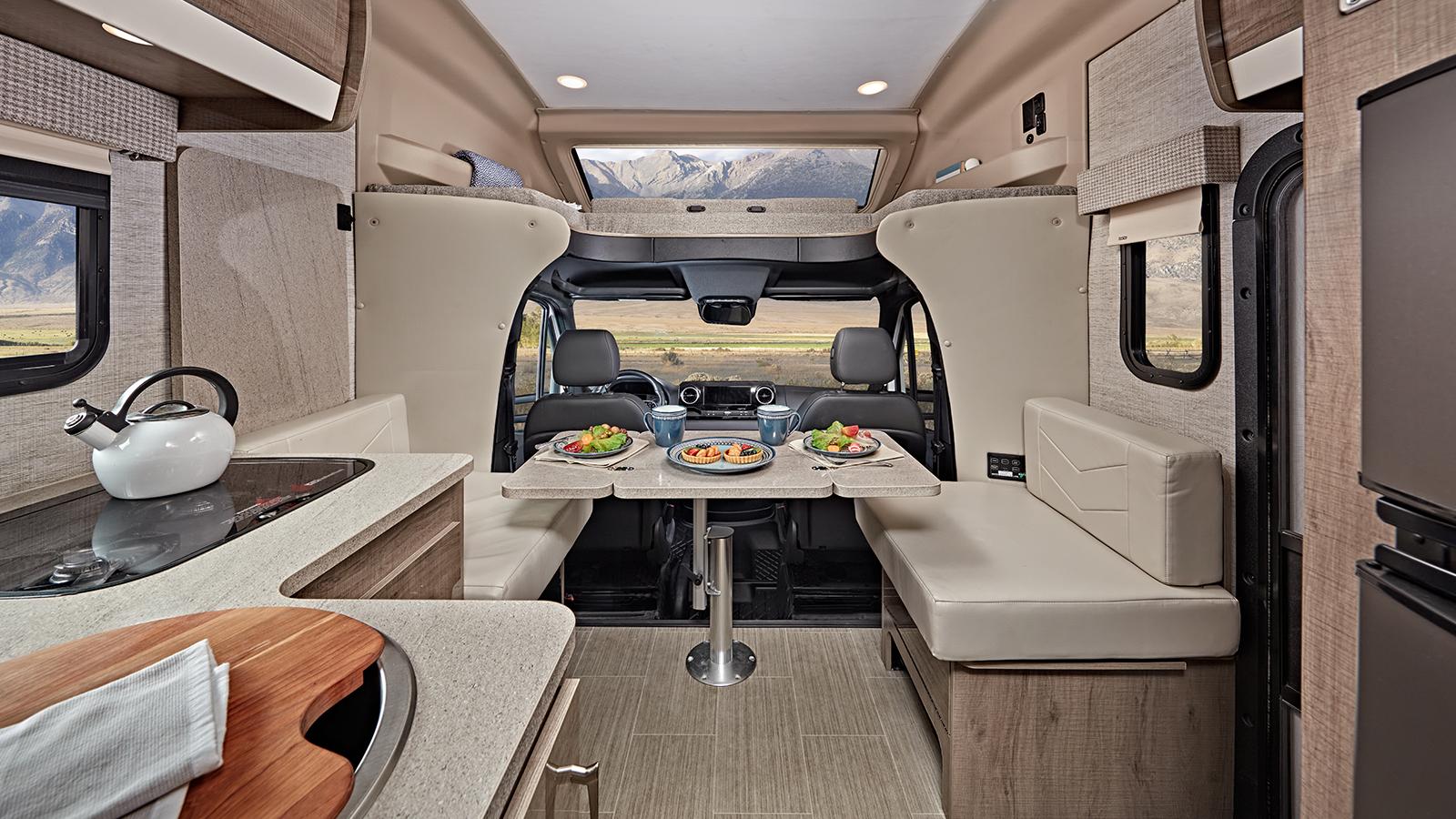

  • Jayco-exclusive, easy-operation legless dinette table (24RP)
  • U-shaped dinette with stow away pedestal legs (24LP)
  • 12V USB charging station in dinette area
  • 2-point lap safety belts in all designated seating locations
  • Day/night roller shades
  • 15,000 BTU A/C
  • 30,000 BTU auto-ignition ducted furnace
  • Powered roof vent in living area with wall switch
  • LED HD TV in living area
  • Prep for satellite dish
  • Cable TV hookup with RG-6 coax
  • Winegard 2.0 Wi-fi/4G antenna

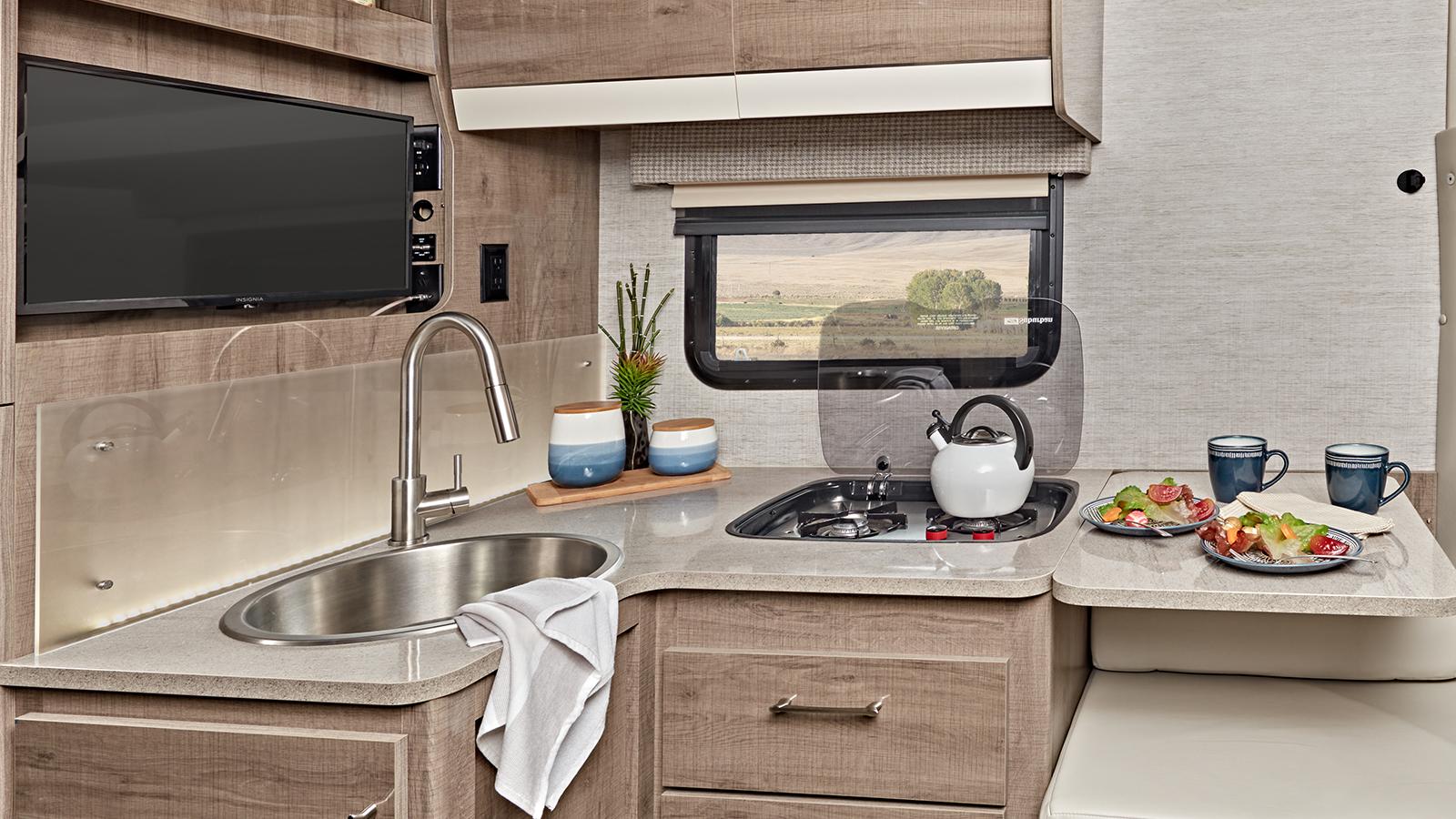

  • 2-burner, drop-in cooktop with flush cover
  • Convection microwave
  • Tecnoform® high-gloss countertops
  • Stainless steel sink with wooden cover/cutting board
  • Decorative kitchen backsplash
  • Water filtration system
  • Shower with decorative surround and skylight

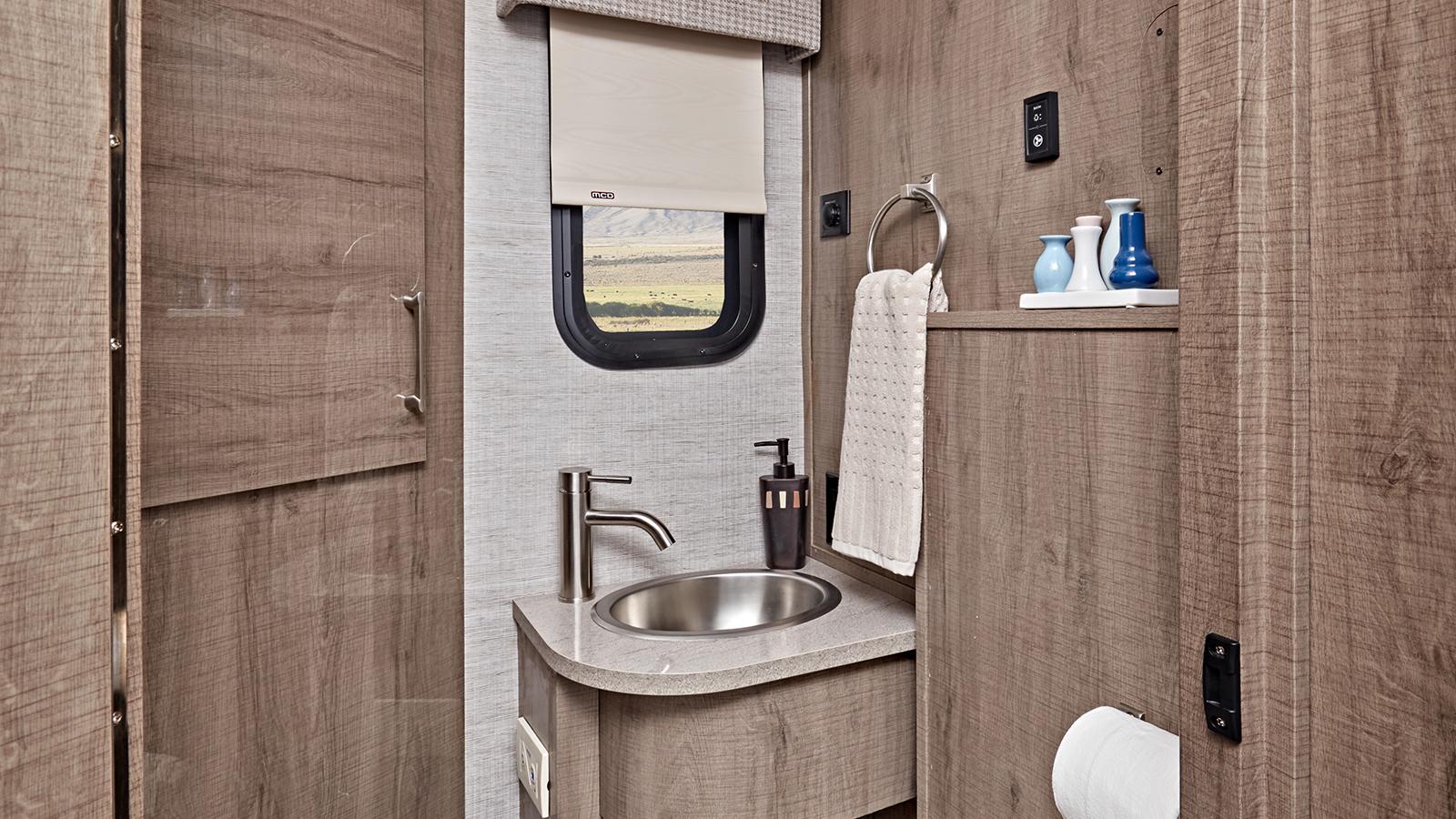

  • Stainless steel bathroom sink
  • Porcelain toilet with foot flush
  • Powered roof vent in bathroom with wall switch
  • Queen-size bed with bedspread (24LP)
  • Queen-size power Murphy bed (24RP)

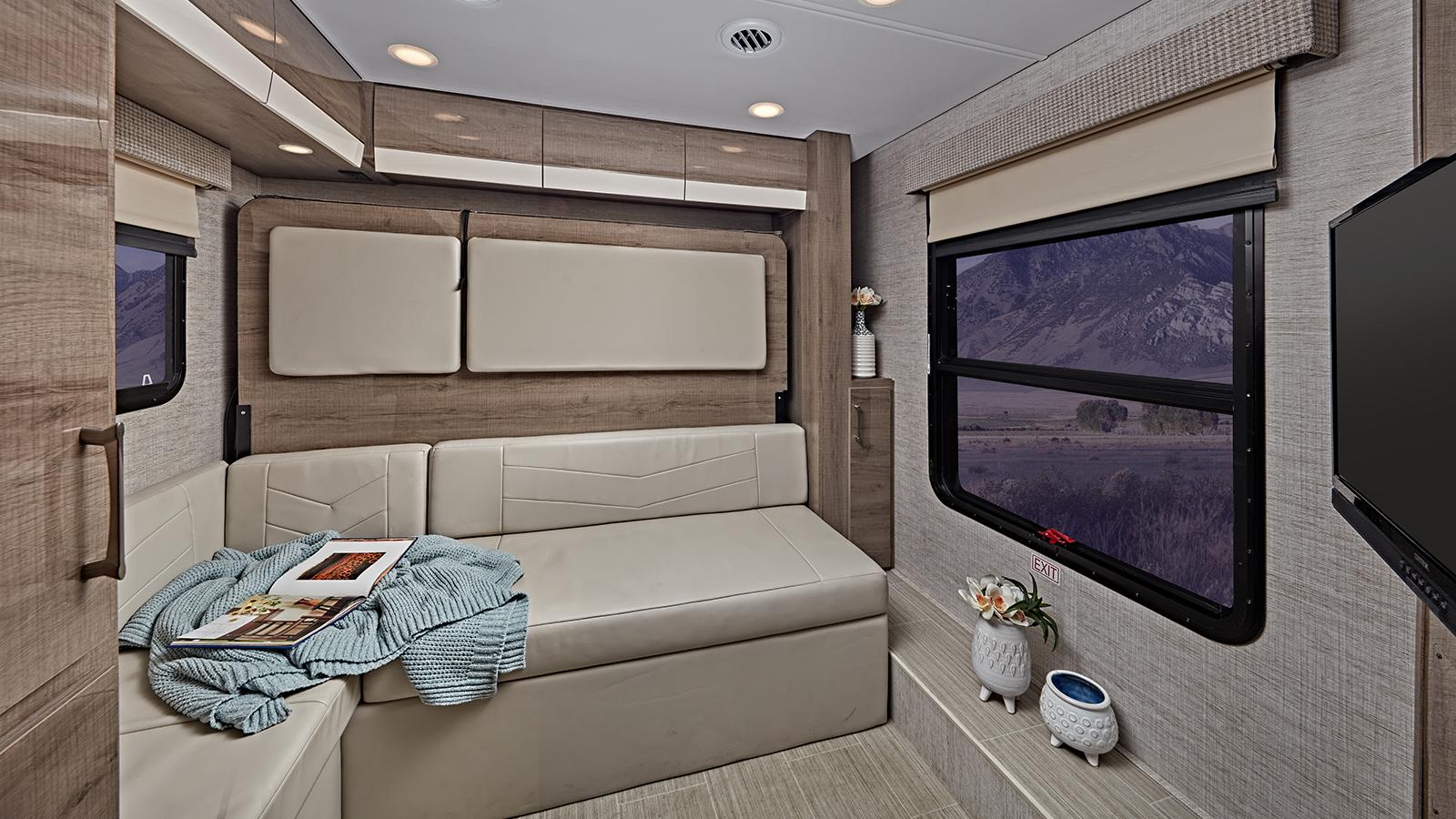

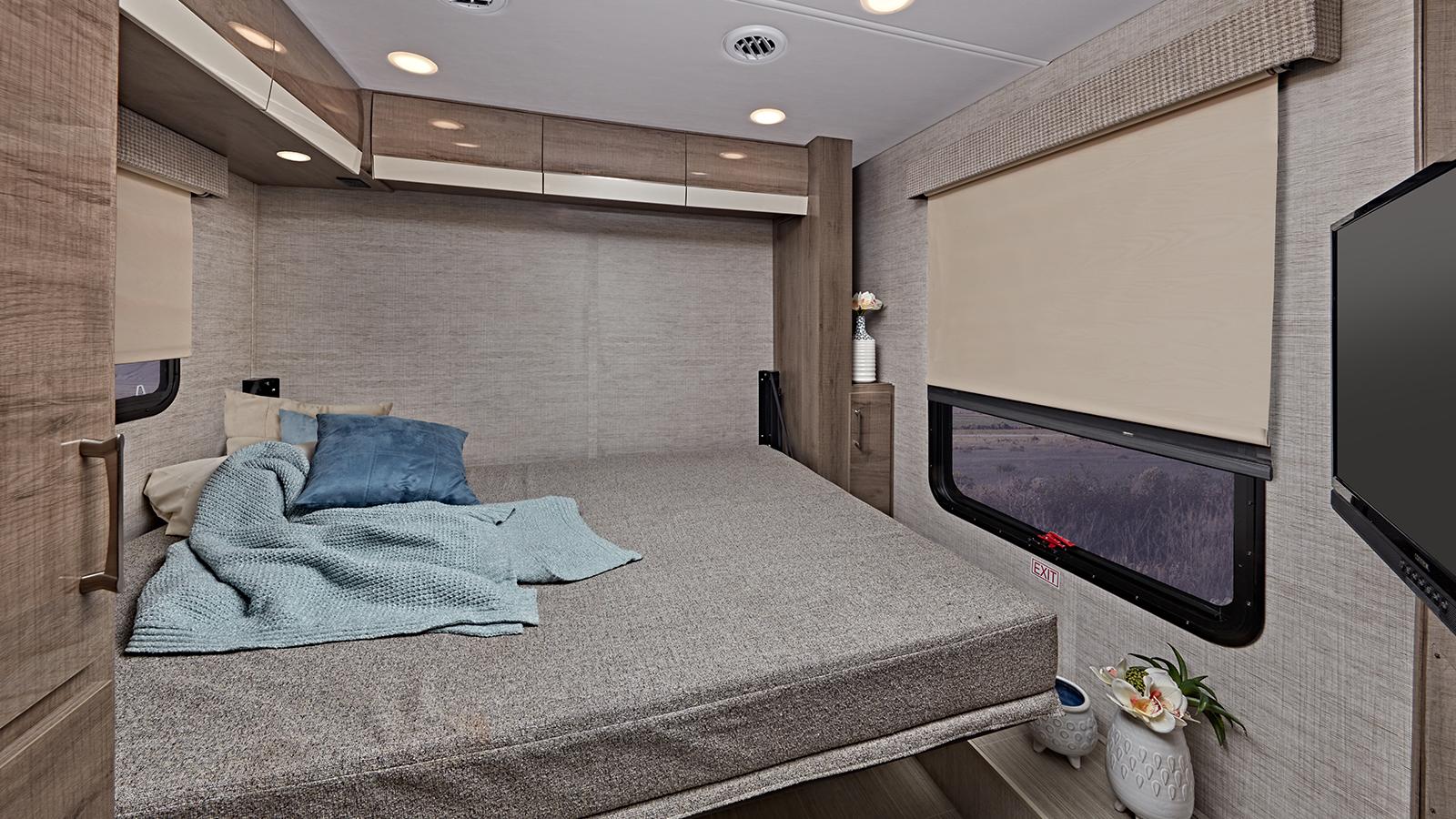

  • Queen-size manual Murphy bed (24NP)
  • (2) twin-size beds (24TP)
  • USB port in bedroom
  • Under-bed storage (select models)
  • LED HD TV in bedroom (24NP)
  • Bedroom TV prep (N/A 24NP)
  • Large wardrobes
  • Smoke alarm
  • Carbon monoxide detector

CUSTOMER VALUE PACKAGE

  • One-piece, seamless, fiberglass front cap
  • Automotive-bonded, panoramic window in front cap with power shade
  • Frameless windows
  • Backup and side-view cameras
  • Girard® armless patio awning with LED light strip
  • 1,000W inverter
  • Heated holding tanks (12V pads)
  • Truma AquaGo Comfort Plus tankless water heater
  • Keyless cab entry
  • Swivel driver and passenger seats

OPTIONS

  • Hydraulic leveling jacks
  • 3,200W diesel generator
  • B-plus front cap (Standard with CSA)
  • Theater seating ILO dinette (24LP, 24RP)
  • Folding windshield sun shade

Standard Features
and Options

Stronghold VBL™ Lamination
Solar Power
One-Piece Seamless Front Cap
Incredible Bunk Ratings
JAYCOMMAND<sup>®</sup>
Seatbelts in All Designated Seating Locations

Stronghold VBL™ Lamination

Every sidewall, rear wall and slide room wall is bonded together for a minimum of 16 minutes under 144 tons of pressure to create the lightest, yet strongest, construction available in the RV industry.

Learn more »

Solar Power

Jayco is one of the first companies to offer solar prep, or solar panels, on every single motorhome.  With sidewall or roof-mounted prep kits, you have the option to easily install solar panels, or additional panels if already solar equipped, for extra power at your camp.

Learn more »

One-Piece Seamless Front Cap

An RVs front cap bears a lot of the brunt of the road. The one-piece, seamless front cap resists wear and tear like fading or moisture damage over the years.

Learn more »

Incredible Bunk Ratings

Go ahead and bring another traveler or some extra gear. With an overhead bunk capacity of 750 lbs., Jayco beats the industry standard by 300lbs. On top of that, Jayco offers a 300 lb. capacity in each standard bunk.

Learn more »

JAYCOMMAND®

This system puts you in full control of your Jayco. Custom-built by our product development team and our partners, you can monitor and control key operations from just about anywhere on a phone or tablet.

Learn more »

Seatbelts in All Designated Seating Locations

To help you keep you most precious cargo safe as you roll on down the road, we install seatbelts in every designated seating location.

Learn more »

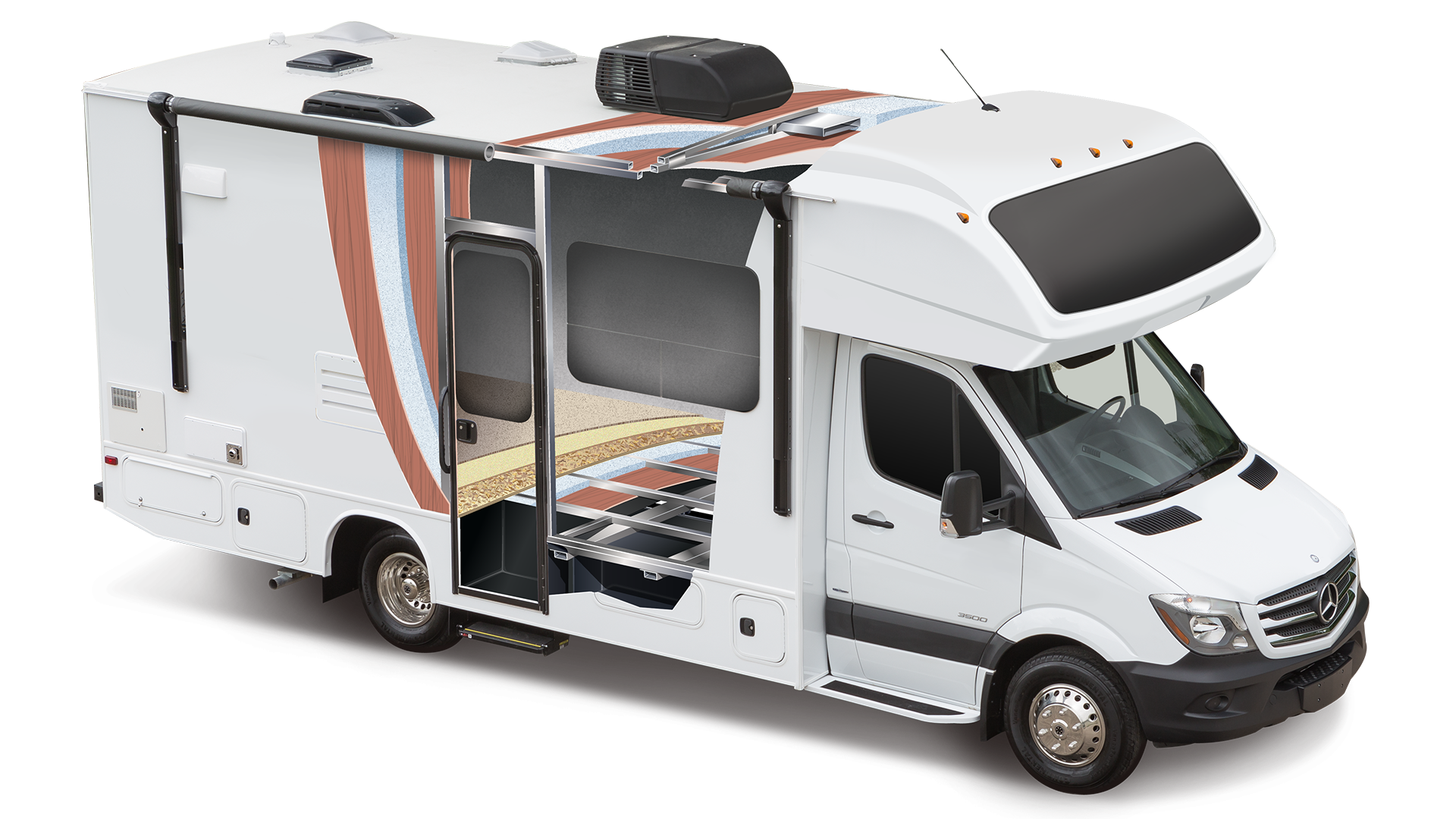

Superior Construction Elements

(Click on number for more information)

Cutouts
1
2
3
4
5
6
7
8

The upgraded features on the Premium Mercedes-Benz 3500 chassis include:

- Active brake assist
- Chrome grille package
- Adaptive cruise control
- Heated captain's seats
- Smartphone tray with wireless charging
- Upgraded lighting package
- Rain-sensing wiper system
- Leather steering wheel
- Lane-keeping assist
- Traffic sign assist



Jayco RV's StrongholdVBL® vacuum-bond process applies 144 tons of pressure to wall components (fiberglass exterior siding, welded aluminum framing, block foam insulation, metal backers and interior wall panels) for 16 to 18 minutes for an incredibly strong and durable product. All sidewalls, floors and roofs are built by Jayco RV in a temperature and humidity-controlled facility.

The Melbourne Prestige's one-piece, seamless front cap resists wear and tear like fading or moisture damage over the years. An automotive-bonded panoramic window with a power shade in the front cap lets in plenty of natural light.

A crowned one-piece fiberglass roof provides unmatched durability.

The overhead bunk in the Melbourne Prestige boasts a weight capacity of 750 lbs. This is 300 lbs. more than the industry standard and allows owners to sleep two full-sized adults or store extra gear while traveling.

Not only is solar power environmentally friendly, but it also reduces the cost and load of electrical use in your motorhome. A standard 200W solar panel with a dual controller will monitor and charge your house and chassis' batteries simultaneously.

Melbourne Prestige's frameless windows make exterior maintenance easier than ever and give the motorhome a sleek, modern look.

Jayco RV installs stress-tested seatbelts in every designated seating position to ensure the safety of your entire family.
