2024 Eagle Fifth Wheels | 355MBQS
2024 Eagle Fifth Wheels
Previous model years are dealer stock only.

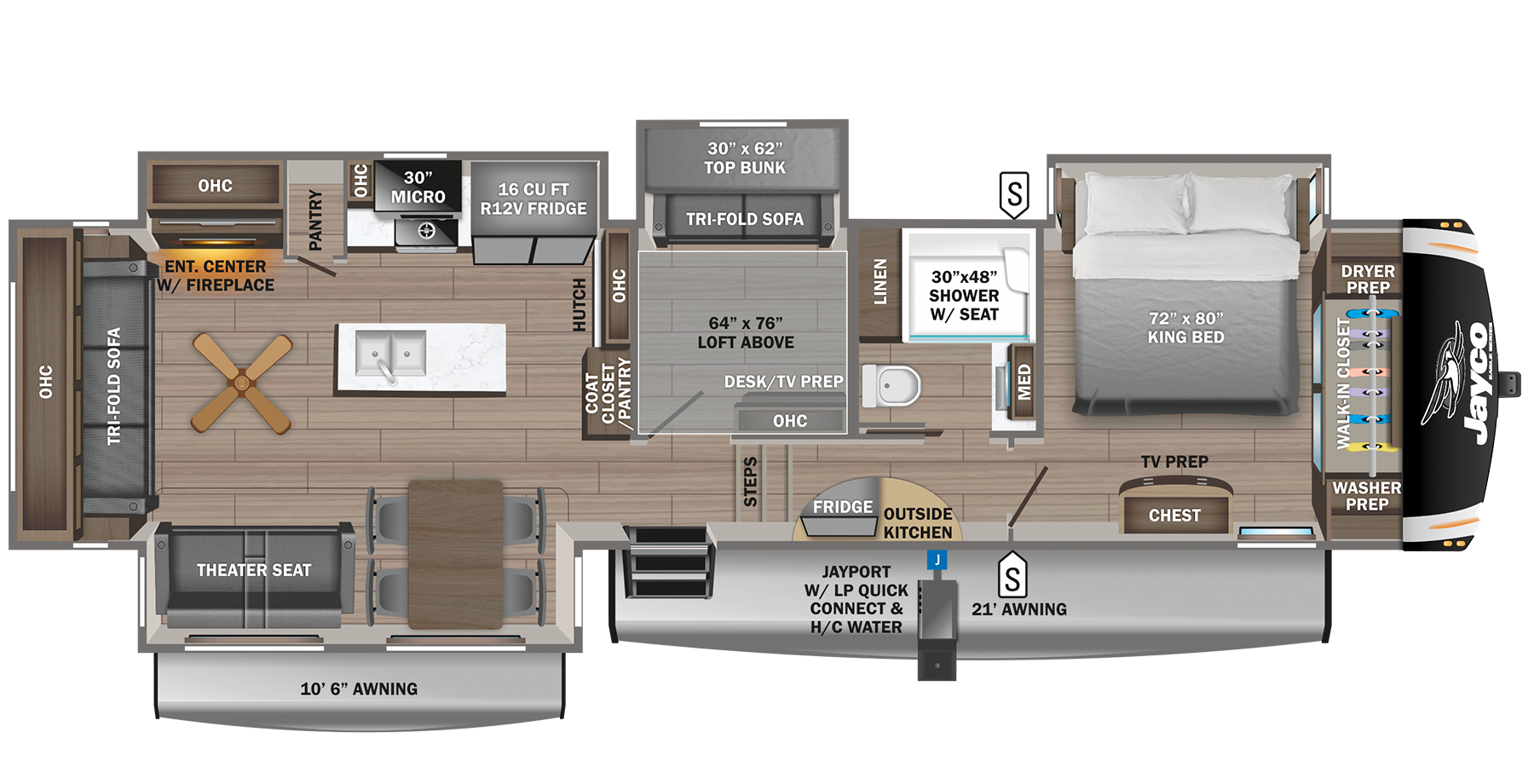

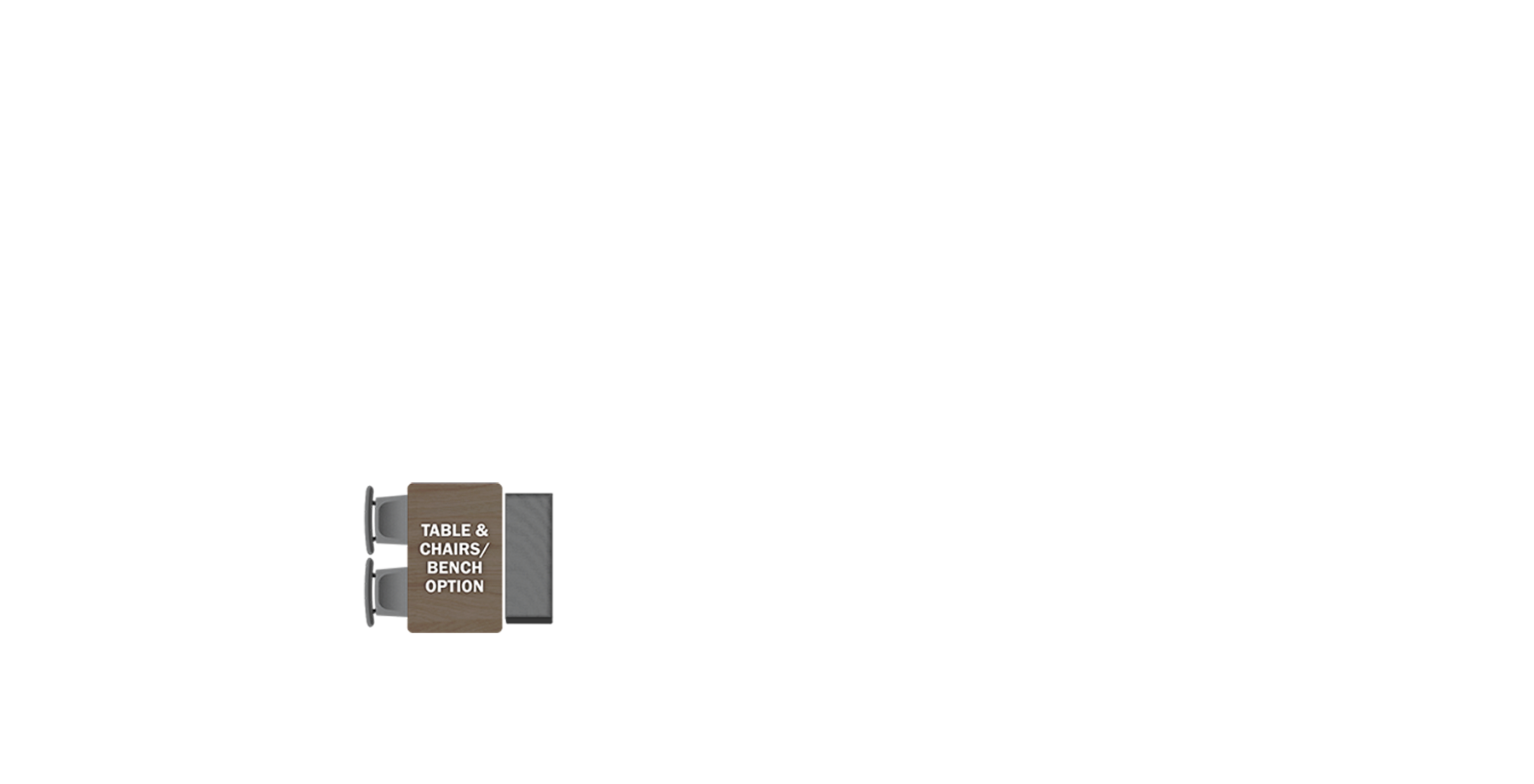

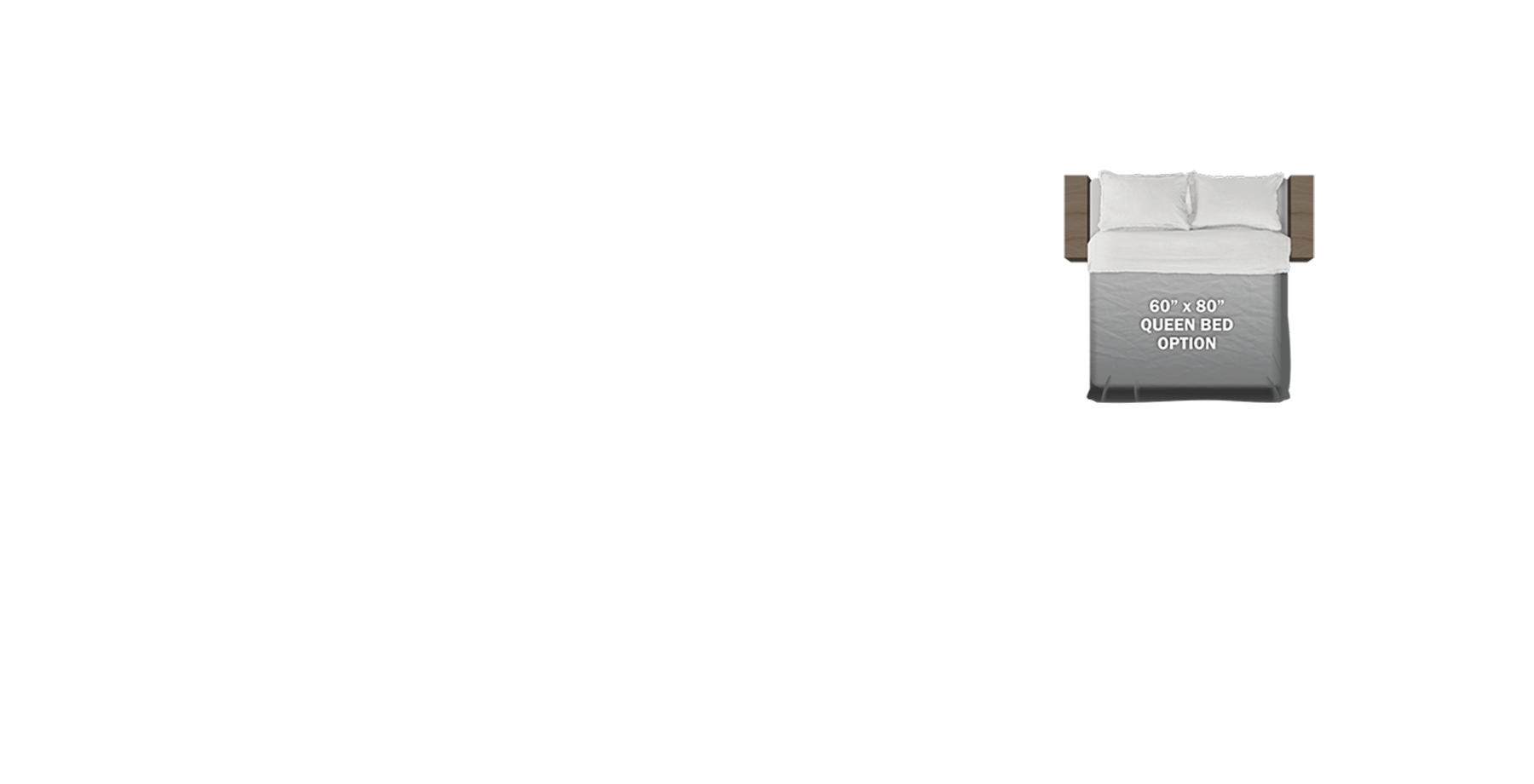

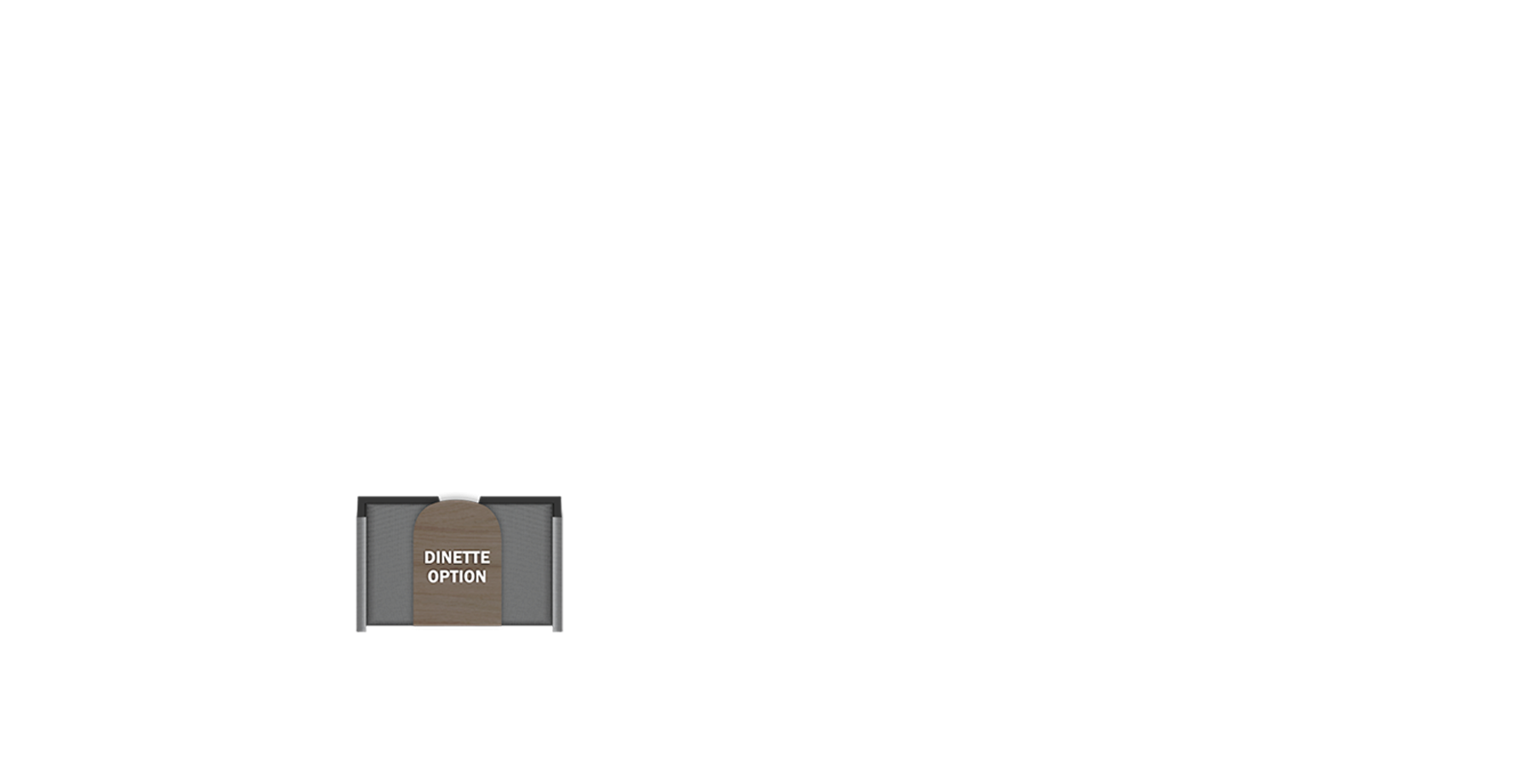

See Floorplan with
an Option Added:
See Floorplan with
Specifications
Weights
| Dry Hitch Weight (lbs) | 2,420 |
| Unloaded Vehicle Weight (lbs) | 12,830 |
| Cargo Carrying Capacity (lbs) | 2,370 |
| Gross Vehicle Weight Rating (lbs) | 15,200 |
Measurements
| Exterior Length (overall) | 42' 4" |
| Exterior Length (pin to bumper) | 41' 1" |
| Exterior Height | 12' 7" |
| Exterior Height (with A/C) | 12' 9" |
| Exterior Height (with 2nd A/C) | 13' 4" |
| Exterior Width | 8' 1" |
| Exterior Width (with slides out) | 14' 0" |
| Interior Height (main) | 8' 7" |
| Interior Height (upper deck) | 6' 7" |
| Awning Length | 21' 0" |
| Awning Length 2 | 10' 6" |
Tank Capacities
| Fresh Water Capacity (gals) | 81.0 |
| Gray Water Capacity (gals) | 87.0 |
| Black Tank Capacity (gals) | 50.0 |
| Propane Unit (lbs) | 60 |
| Propane Unit (lbs) (Optional) | 80 |
Miscellaneous
| Sleeps | up to 10 |
| Water Heater | Tankless |
| # of outside storage compartments | 2 |
| Furnace BTU | 35000 |
| Tire Size | ST235/85R16'E' |
2024 Eagle Fifth Wheels
Starting at $72,153
Move to a new level of luxury with Jayco’s Eagle Fifth Wheel. It takes the best of the Eagle HT Fifth Wheel and adds in even more luxurious touches like a 24-inch GE stove, a dual 15K whisper quiet A/C, legless free standing dinette with pivoting and extension function for a desk, and the JayPort system with 22-inch griddle, deep sink and hot/cold water connections.
