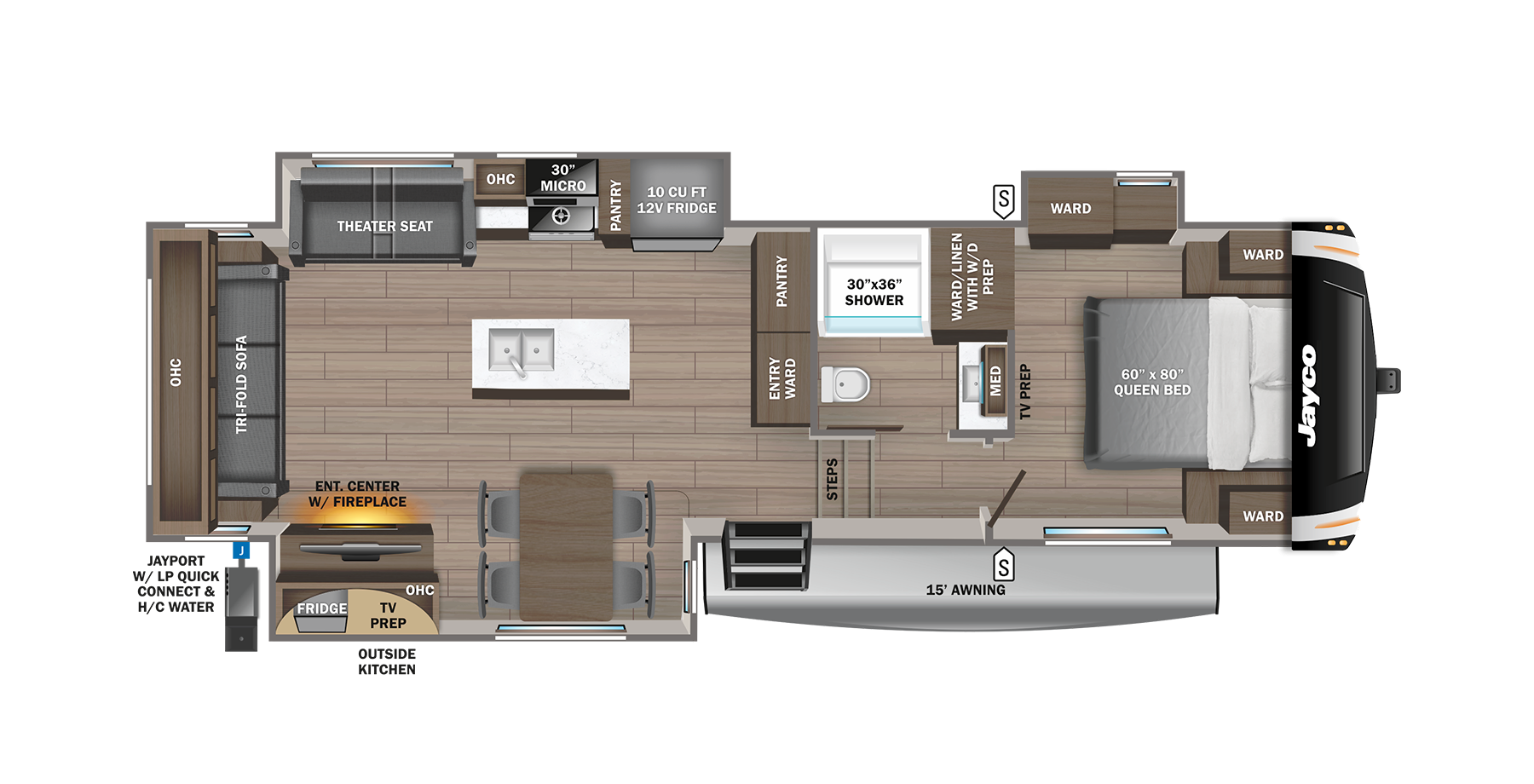

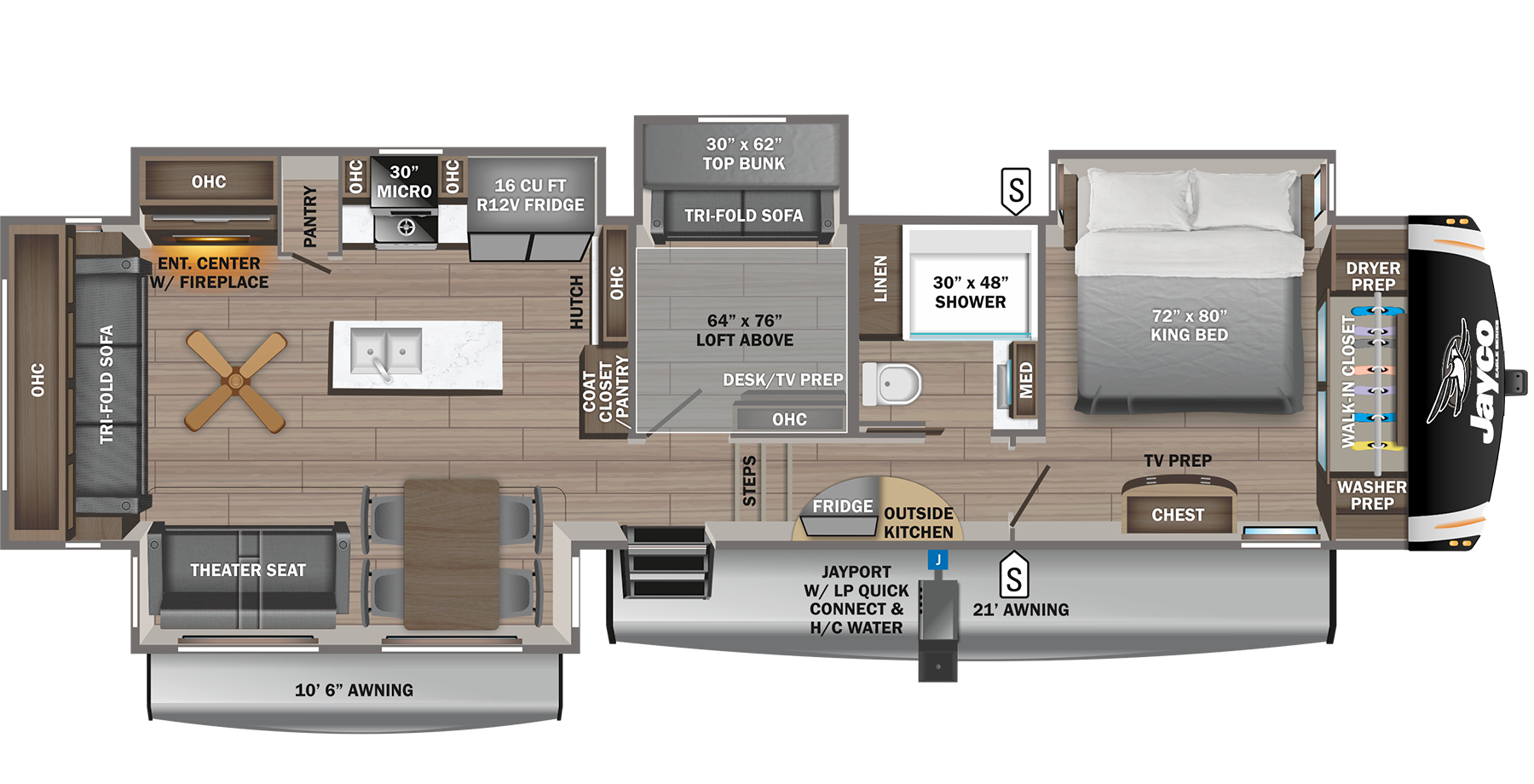

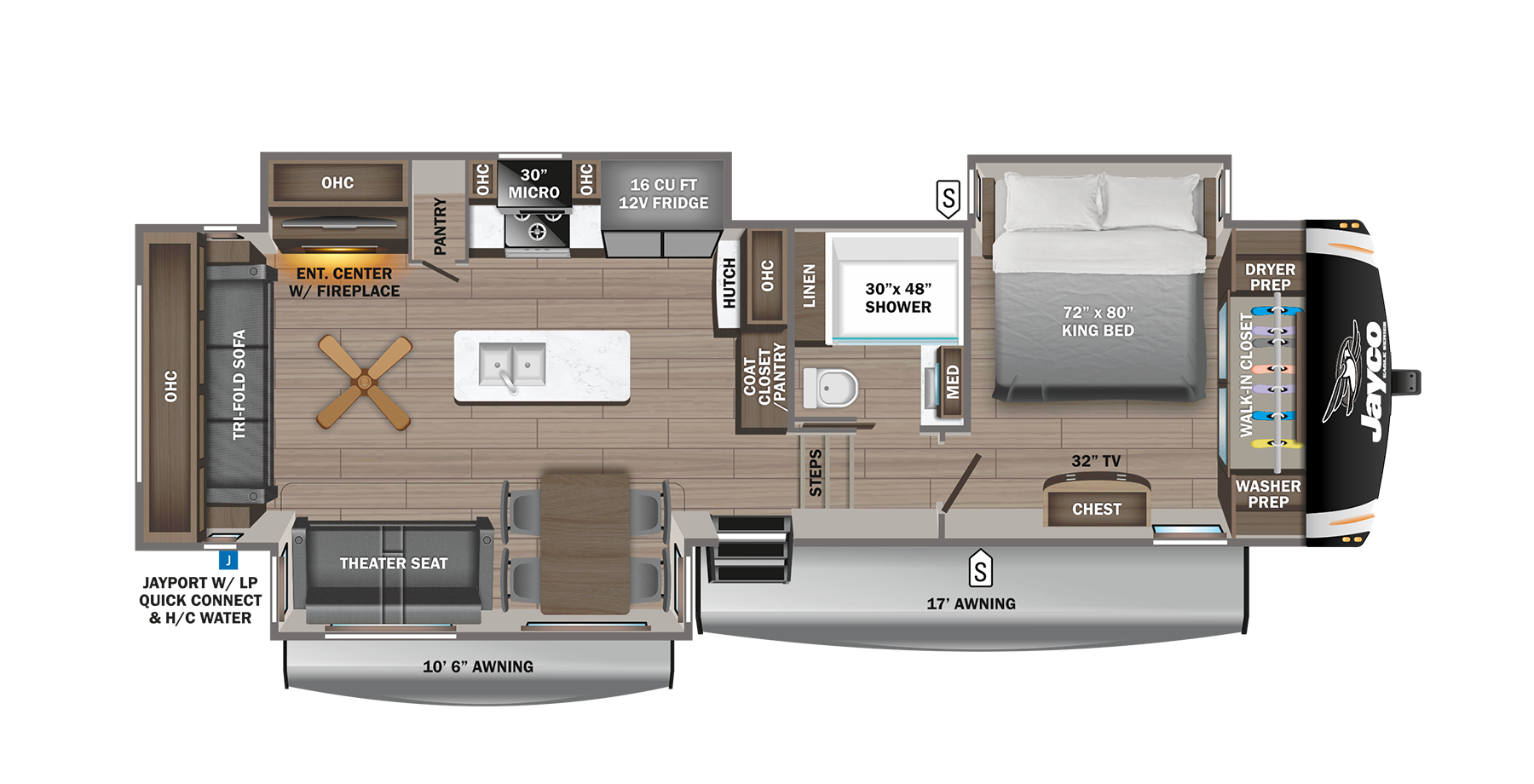

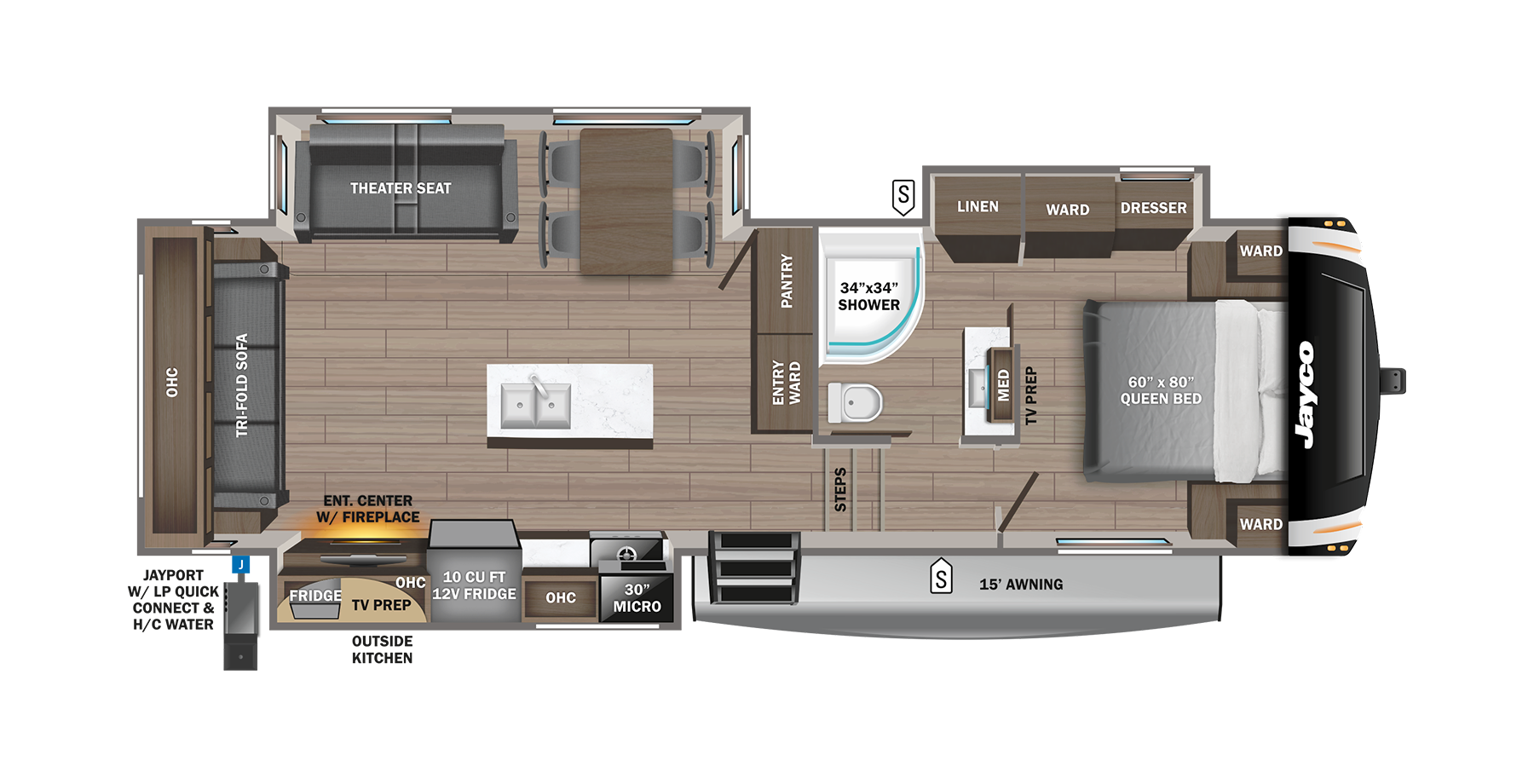

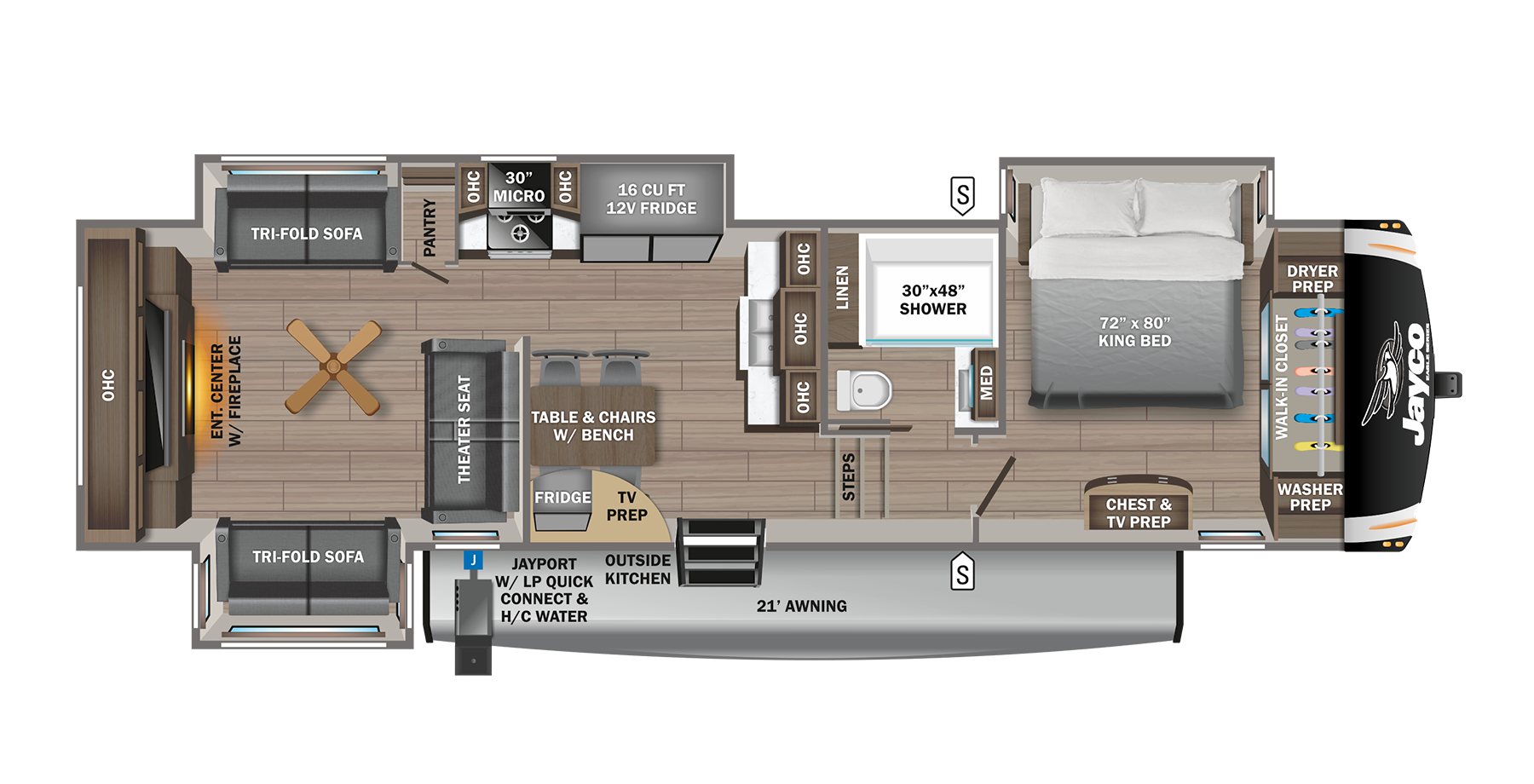

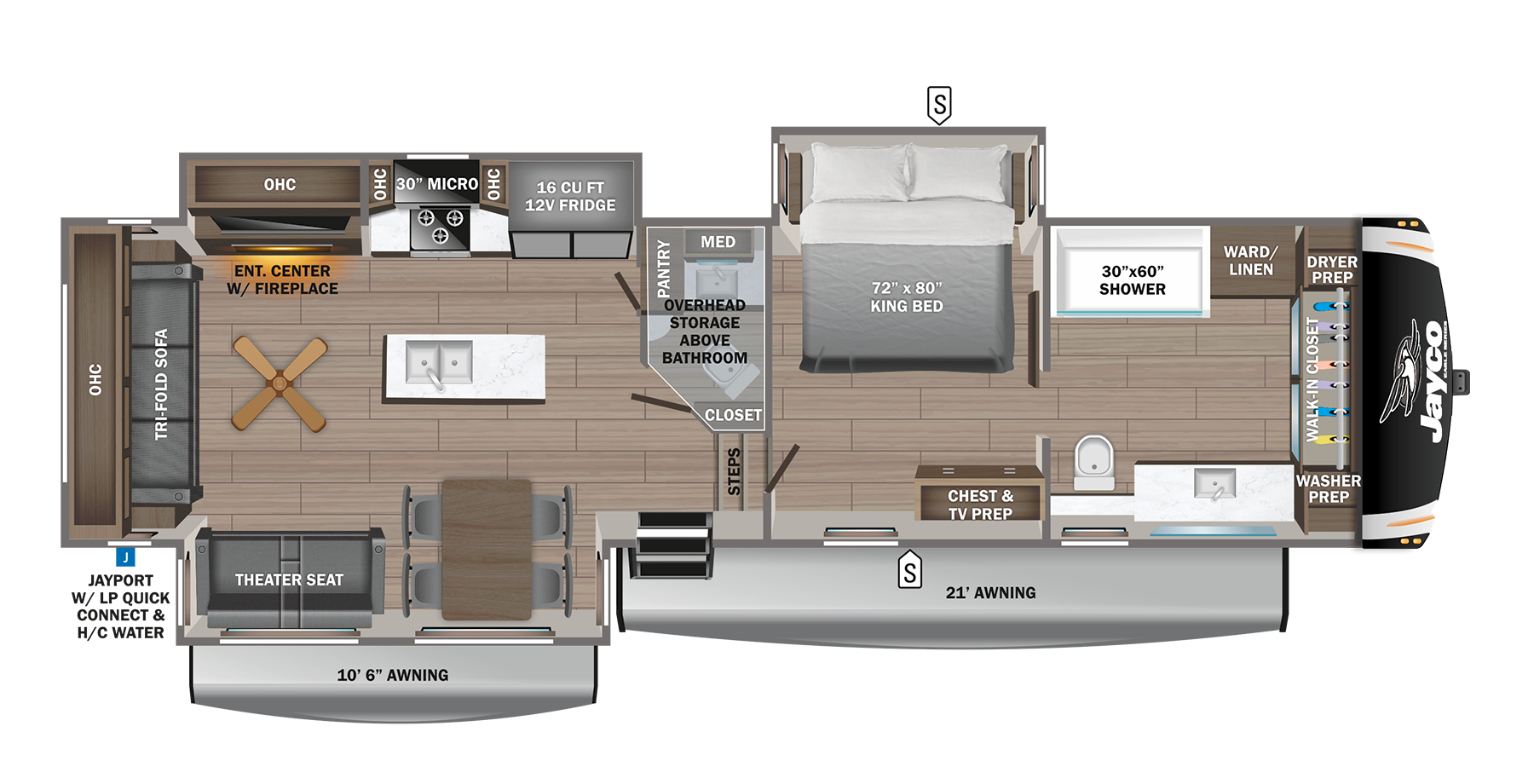

2024 Eagle Fifth Wheels Floorplans

Standard Exterior Equipment

• 1.5 in. fresh water drain valve
• 5 in. Magnum Truss™ Roof System with Alpha roof membrane system with limited lifetime warranty
• 50-amp detachable power cord
• LED lighting in pass through area with 3-way switches
• Auto-grade vinyl graphics
• Automotive style front cap with max turn radius (painted on select models)
• Battery disconnect in pass through area
• Black tank flush
• Climate Shield™ zero-degree tested weather protection:
  • Fully enclosed and heated underbelly (ducted)
  • 35,000 BTU furnace
  • Double layer fiberglass batt insulation in ceiling and floor
  • Double sided radiant barrier insulation (roof, floor and behind cap)
  • PEX plumbing
• Commercial grade rubber flooring in pass through area
• Digital TV antenna with WiFi prep
• Dual 30 lb. LP bottles
• Dual channel exterior speaker
• Factory installed roof ladder
• Galvanield steel coated outside kitchens
• HELIX Cooling System™ (industry exclusive):
  • Jayco exclusive insulated dual duct design
  • Directional and closeable A/C vents
  • Larger return air vents with user accessible filters
• Independent satellite and cable hookups
• JaySMART™ (Safety Marker And Reverse Travel) exterior LED lights
• LED exterior lighting package
• LP quick connect for gas griddle (next to JayPort)
• Metal slam latch baggage doors
• Nautilus 2.5 water connections
• Nitrogen filled undermount spare tire (model/option varies 15 in. or 16 in.)
• Quick connect water connections (door side hot/cold and off door side cold only)
• Slide topper/awning prep
• Stronghold VBL™ walls (laminated sidewalls, rear walls and slide out walls)

Standard Interior Equipment

• 2-piece high gloss bathroom surround
• 5/8 in. tongue-and-groove plywood flooring
• 75 lb. full extension drawer guides
• 90 in. x 92 in. residential quilted bedspread (both queen and king mattresses)
• Bathroom skylight
• Bedroom TV prep
• C.P.A.P. prepped bedroom
• Extra 120V power outlets in kitchen and slide rooms (where applicable)
• Furniture cup holder tables (1 pair)
• Gas strutted under bed storage
• Handcrafted and glazed door/drawer fronts (new sizes)
• Inverter pre-wire (multiple locations) ((7) 110 outlets) (6 USBs 12V)
• LED backlit medicine cabinet with custom framed mirror
• LED lights with dimmer switches and motion activated (throughout interior)
• Matte black kitchen faucet with pull-out sprayer
• Porcelain foot flush toilet
• Residential 60 in. x 80 in. queen size mattress (28.5RSTS, 29.5BHDS, 29.5BHOK, 30.5RSOK, 31MB)
• Residential vinyl flooring throughout
• Solid hardwood slide fascia
• Stainless steel kitchen sink
• Theater seating (select models)
• Tri-fold hide-a-bed sofa with residential memory foam sleep surface (select models)
• USB charging ports (multiple locations throughout)

Customer Value Package (Mandatory)

• 15K BTU "Whisper Quiet" A/C and bedroom A/C prep
• 4K Ultra LED HD Smart TV in living room (43 in. on 28.5RSTS, 29.5BHDS, 29.5BHOK, 30.5RSOK, 31MB)
• 4K Ultra LED HD Smart TV in living room (50 in. on 317RLOK, 319MLOK, 321RSTS, 335RDOK, 355MBQS, 360DBOK, 370FBTS)
• 50-amp service with dual A/C ducts
• 60K on-demand water heater with mixing tank
• Custom machined aluminum rims
• Electric patio awning with integrated dimmable LED lights
• GE 30 in. over-the-range black and stainless microwave with exhaust fan
• GE black and stainless 21 in. range with edge to edge grates (28.5RSTS, 29.5BHDS, 29.5BHOK, 30.5RSOK, 31MB)
• GE black and stainless 24 in. range with edge to edge grates (317RLOK, 319MLOK, 321RSTS, 335RDOK, 355MBQS, 360DBOK, 370FBTS)
• Hidden hinges on cabinet doors
• JBL Aura Bar 12V with Bluetooth® and dual HDMI (dual zone)
• Keyed-Alike™ lock system
• MORryde Step Above™ entrance steps (main entrance) with blue LED light
• Rain proof bathroom power vent
• Rear 2 in. towing receiver (4-pin connector on fifth wheels only)
• Security monitor prep (rear, sides and entrance door)
• Upgraded friction hinge entrance door

Luxury Package (Mandatory)

• Blackout roller shades with reflective side throughout
• Electric auto-leveling
• GE 10 cu.ft. 12V refrigerator (28.5RSTS, 29.5BHDS, 29.5BHOK, 30.5RSOK, 31MB)
• JAYCOMMAND® "Smart RV System" (Pro Tablet)
• JayPort 2 in. mount (for outside accessories)
• LED fireplace with 5,000 BTU electric space heater (select models)
• MORryde Safe-T-Rail grab handle
• Overlander 1 Solar Package (200W panel and 30-amp solar controller)
• Residential style glass shower door
• TPMS (Tire Pressure Monitoring System) in-stem monitoring
• Washer/dryer prep (select models)

5 Star Handling Package (Mandatory)

• Dexter® ABS brake system with anti-sway
• Dexter® Axles with NEV-R-Adjust® brakes and E-Z Lube® hubs
• Goodyear® Endurance® tires (load range E)
• MORryde® CRE-3000™ rubberized suspension
• Wet bolt fasteners with bronze bushings

Comfort Plus Package Package (Mandatory on 317RLOK, 319MLOK, 321RSTS, 335RDOK, 355MBQS, 360DBOK, 370FBTS ONLY)

• 16 in. Endurance® Goodyear® wheels/tires
• 2nd 15,000 BTU "Whisper Quiet" A/C
• BMPro Bluetooth® light switches throughout
• Drinking Water System (patented)
• King bed (72 in. x 80 in.) mattress with under-bed storage
• Larger exterior baggage door sizes
• Second power awning with dimmable LED lights (N/A 335RDOK)
• Solid surface kitchen countertop with bamboo sink covers and strainer
• Upsized 16 cu. ft. 12V refrigerator
• Upsized 34 in. LED fireplace with 5,000 BTU electric space heater
• Upsized 50 in. 4K SMART LED TV in living room
• Upsized GE 24 in. residential stove with 4-burner cooktop

Options

• 15K bedroom A/C
• 22 in. outside griddle with deep sink attachment for JayPort system (select models)
• 360 degree security monitor kit with 7 in. view
• Booth dinette (select models)
• Dry camping package (generator prep and extra LP capacity)
• Dual 40 lb. LP bottles (select models)
• Extreme Weather Package with 120 heat pads (12V heat tape on fresh water)
• Frameless dual pane windows
• Free standing table with leaf and bench seat, 2 storage chairs and 2 folding chairs
• Free standing table with leaf, 2 storage chairs and 2 folding chairs in place of booth dinette
• LED fireplace with 5,000 BTU electric space heater (select models)
• Overlander 2 Solar Package: (2) 200W panels, MPPT 30-amp solar controller and 1800W inverter)
• Overlander 4 Solar Package: (4) 200W panels, (2) 100AH lithium batteries, 60-amp MPPT solar controller, 3000 W split phase inverter/charger, DC/DC power converter, soft start 15,000 A/C with heat pump, battery monitor, roof pre-wire solar, generator option, battery enclosed)
• Residential 60 in. x 80 in. queen size mattress (317RLOK, 319MLOK, 321RSTS, 335RDOK, 355MBQS, 360DBOK, 370FBTS)
• Residential 72 in. x 80 in. king size mattress (N/A 28.5RSTS, 29.5BHDS, 29.5BHOK, 30.5RSOK, 31MB)
• Theater seating in place of tri-fold sofa (select models)
