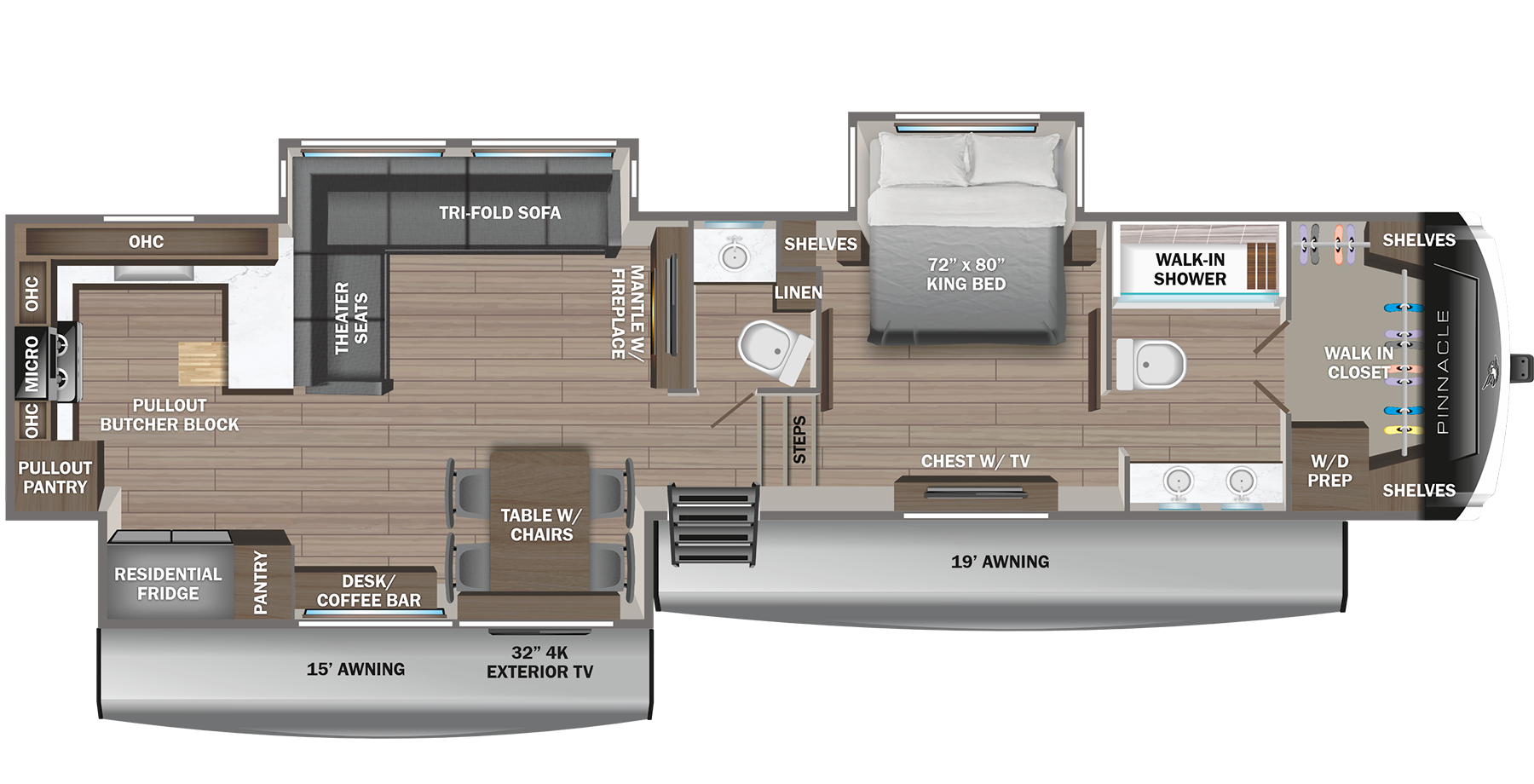

See Floorplan with
Exterior

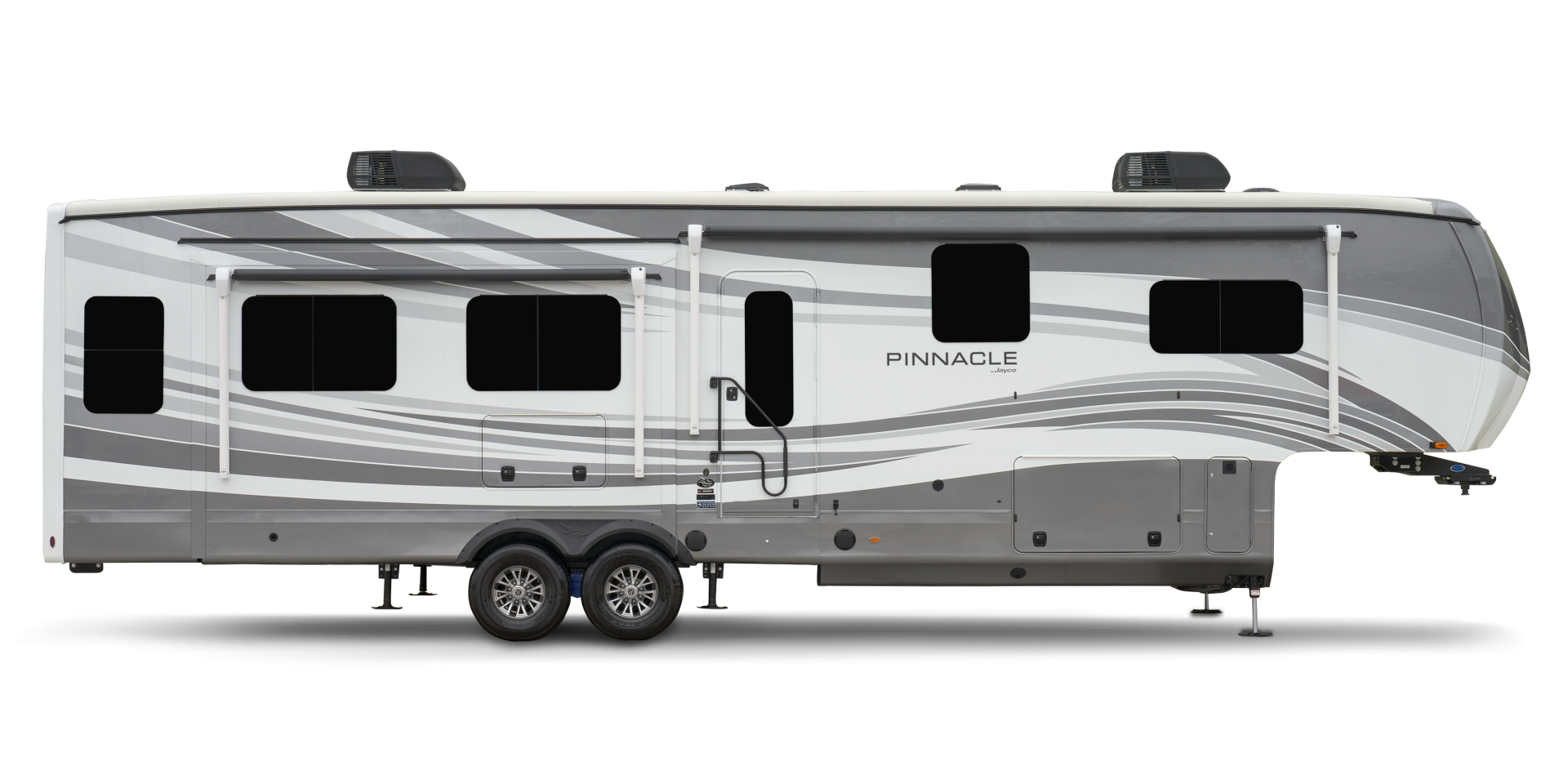

Diamond Paint

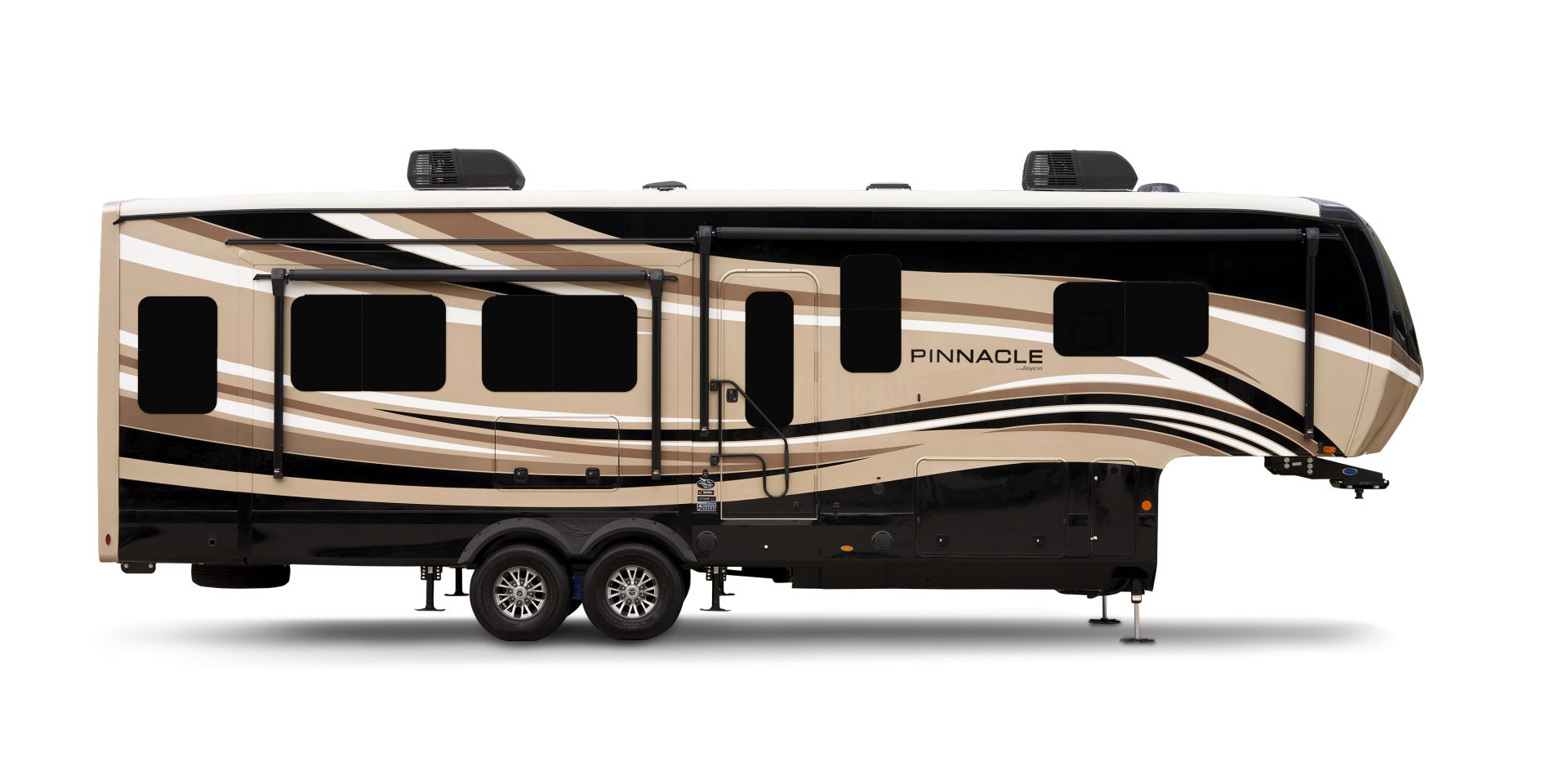

Sand Paint
Steel Paint
Specifications
Weights
Dry Hitch Weight (lbs) | 2,940 |
Unloaded Vehicle Weight (lbs) | 14,995 |
Cargo Carrying Capacity (lbs) | 3,005 |
Gross Vehicle Weight Rating (lbs) | 18,000 |
Measurements
Exterior Length (overall) | 43' 10" |
Exterior Length (pin to bumper) | 42' 5" |
Exterior Height | 12' 10" |
Exterior Height (with A/C) | 13' 5" |
Exterior Height (with 2nd A/C) | 13' 5" |
Exterior Width | 8' 6" |
Exterior Width (with slides out) | 16' 4" |
Interior Height (main) | 8' 7" |
Interior Height (upper deck) | 6' 8" |
Awning Length | 15' 0" |
Tank Capacities
Fresh Water Capacity (gals) | 75.0 |
Gray Water Capacity (gals) | 87.0 |
Black Tank Capacity (gals) | 50.0 |
Propane Unit (lbs) | 120 |
Miscellaneous
Sleeps | up to 4 |
Water Heater | 16 |
Furnace BTU | 40000 |
Tire Size | 215/75R17.5'H' |
2024 Pinnacle
Starting at $122,568
The pinnacle of luxury fifth wheels, Jayco’s Pinnacle Fifth Wheel pays attention to every detail so you don’t have to. The 102-inch wide-body design features solid hardwood cabinets and stiles with high sheen and a GE residential appliance package featuring a microwave with a built-in air fryer.
