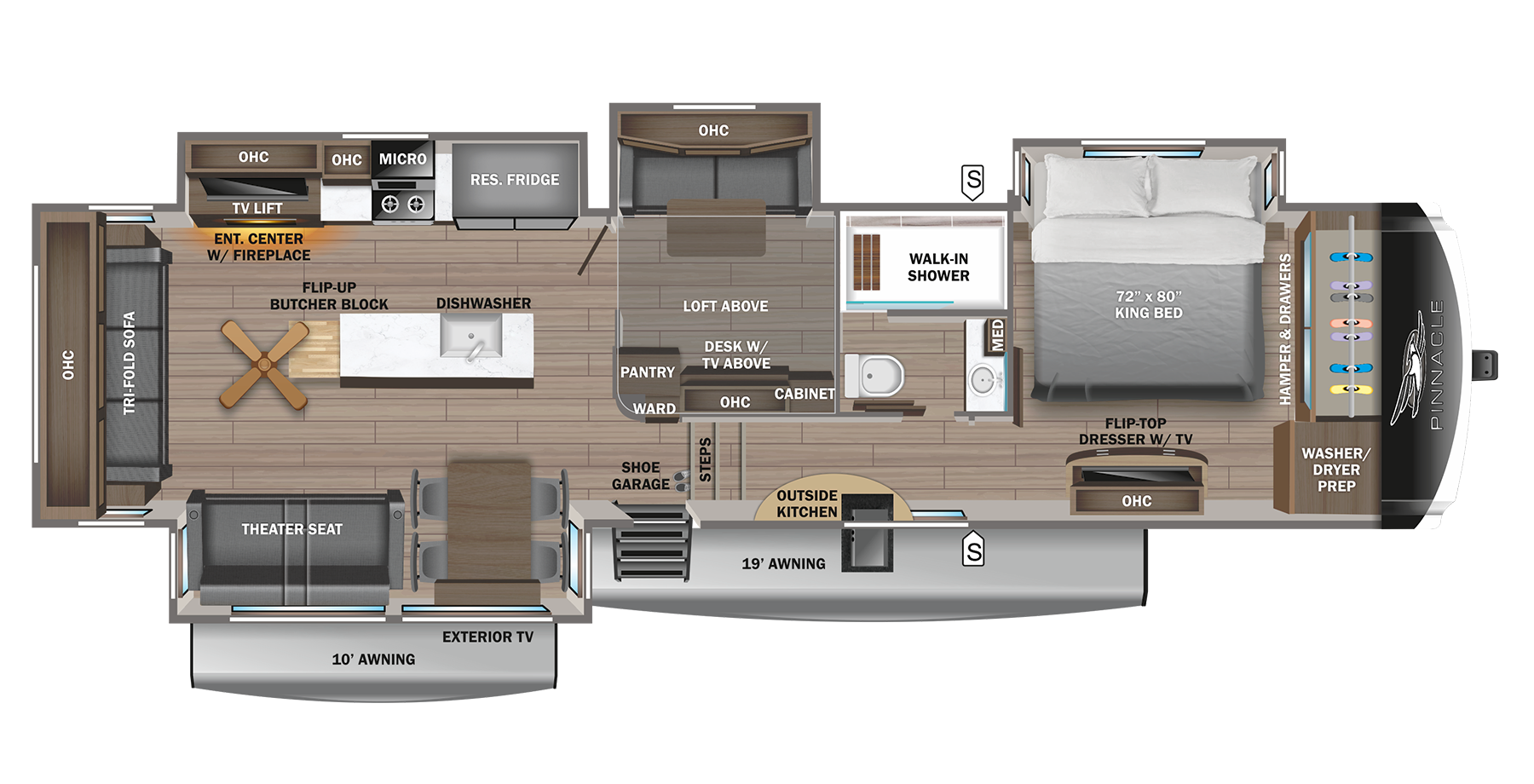

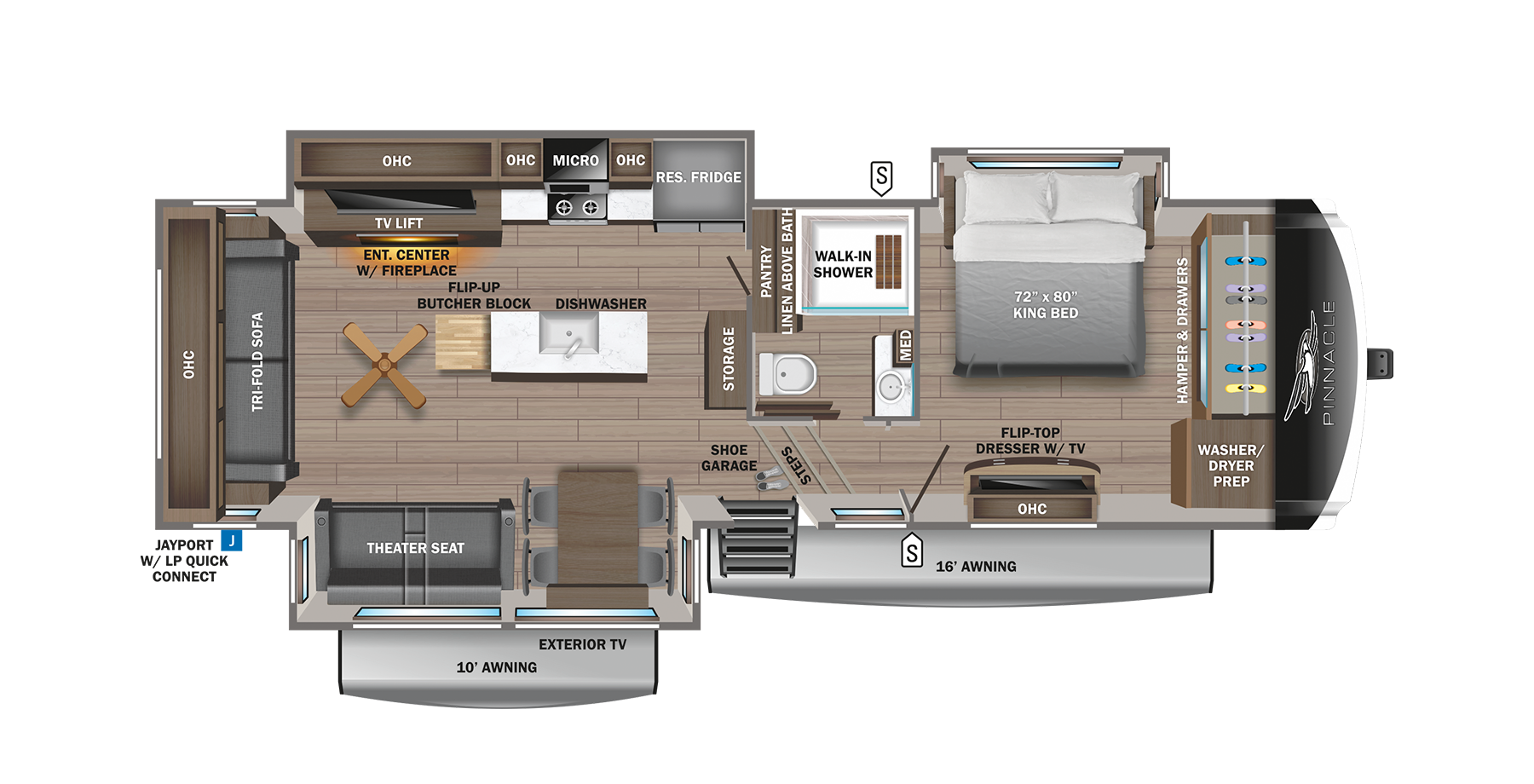

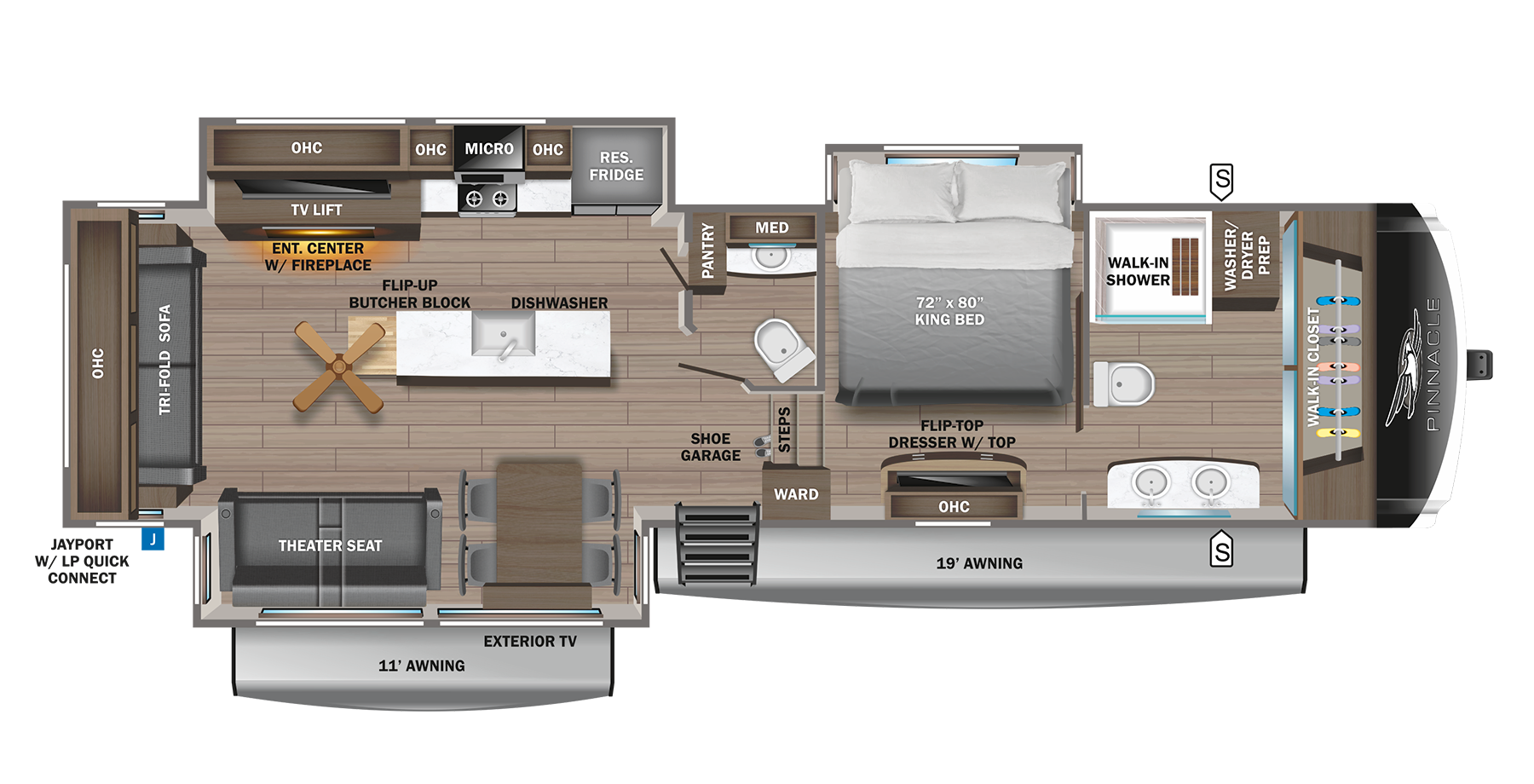

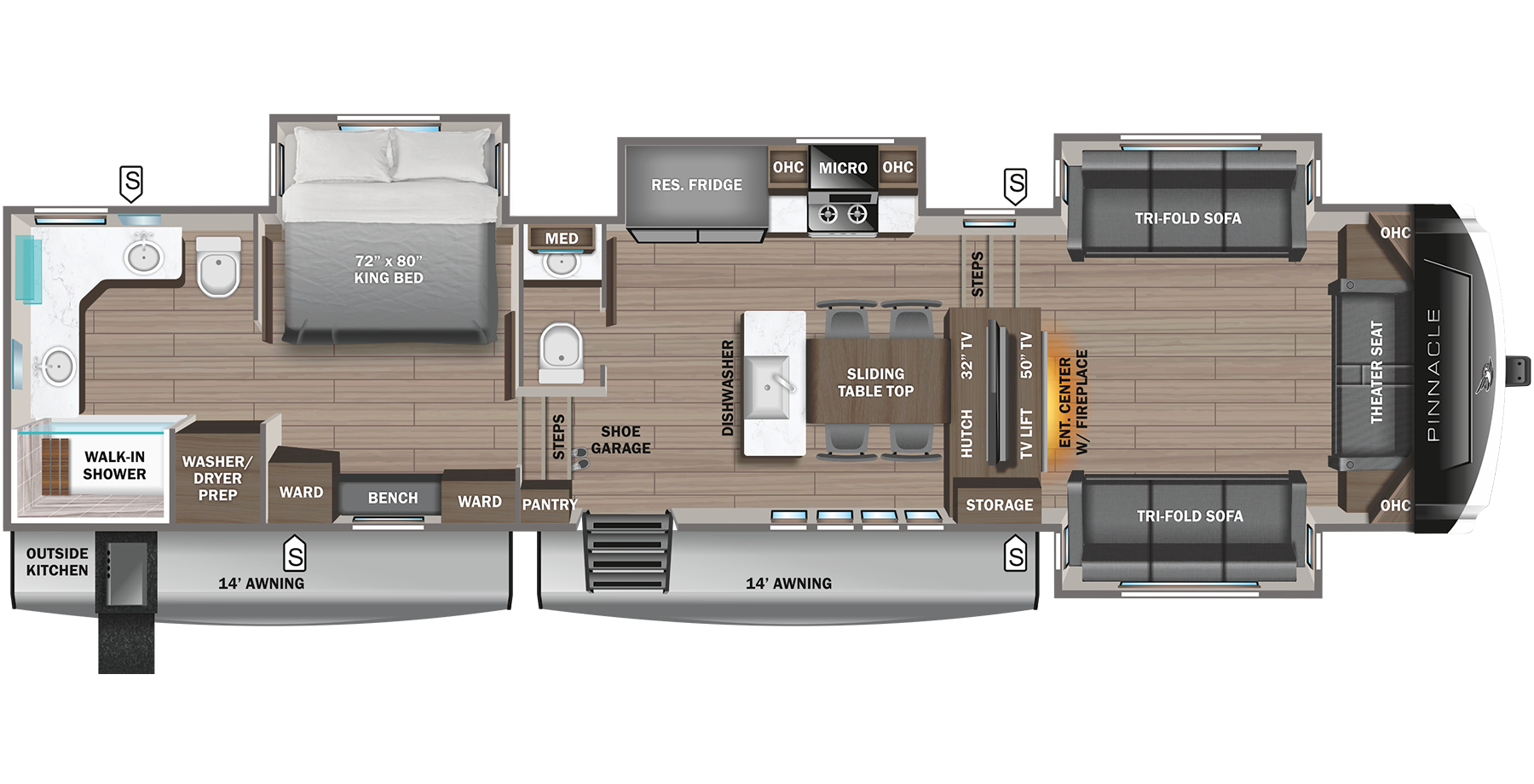

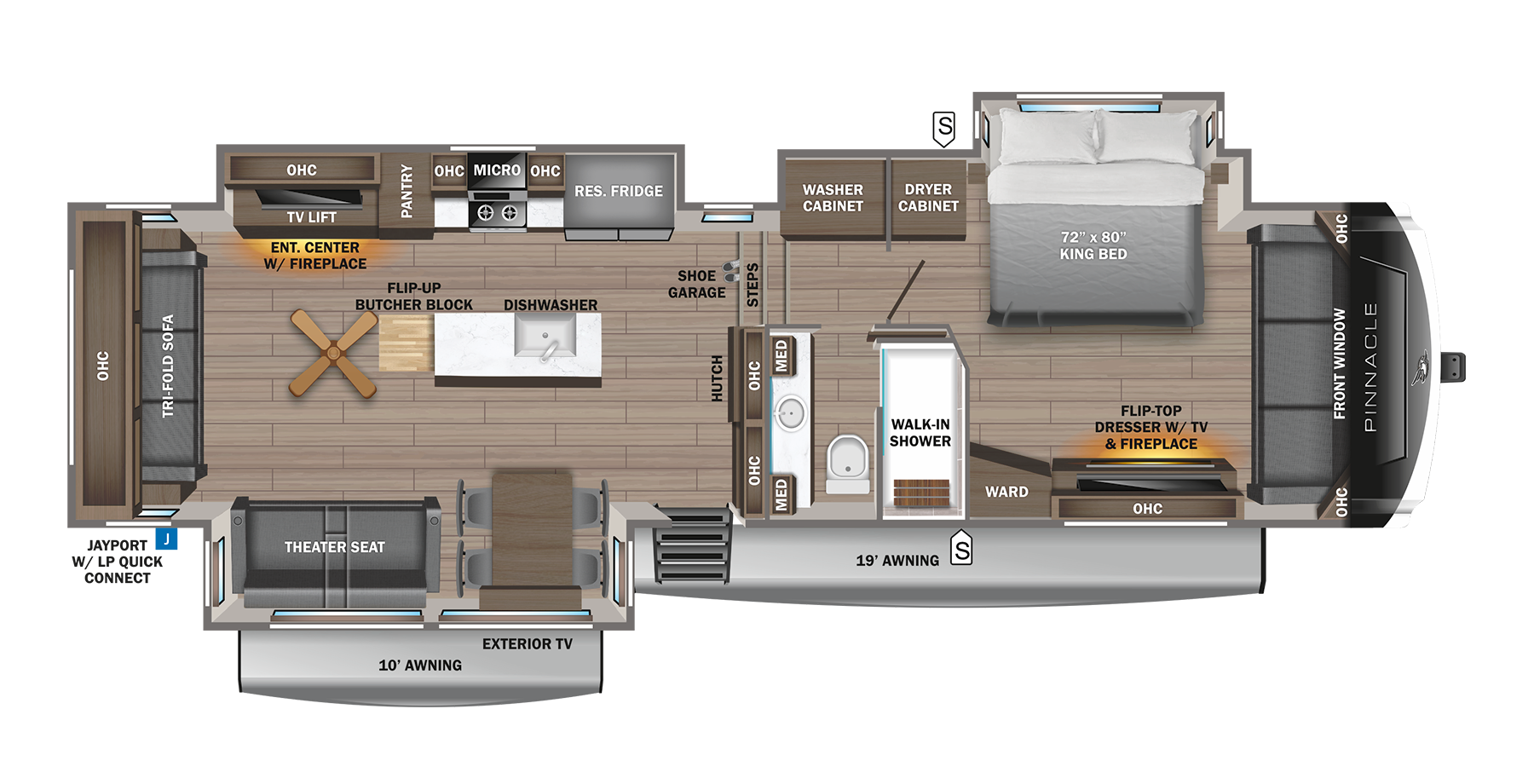

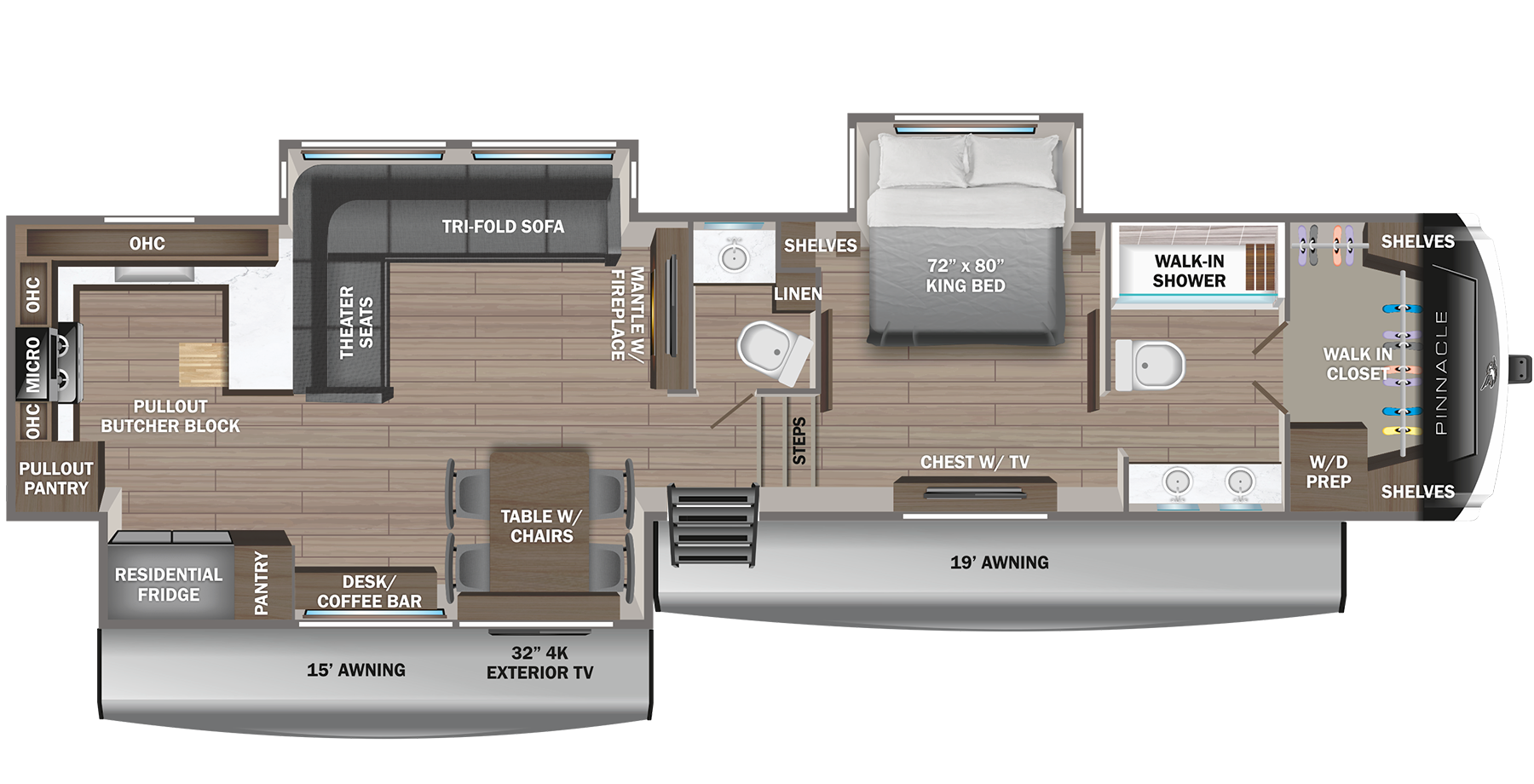

2024 Pinnacle Floorplans

Standard Exterior Equipment

• (3) 40 lb. LP propane bottles with auto regulator (120 lb. max LP system)
• 102 in. widebody construction
• 12 in. structural steel I-beam with 10 in. steel drop frame
• 120V heat blankets on all tanks plus 12V heat tape on fresh water line
• 3,000 lb. tow hitch with 4-way pin
• Battery disconnect
• Built in sewer hose carrier
• Climate Shield™ zero-degree tested weather protection:
  • 40,000 BTU output furnace
  • Double layer fiberglass batt insulation (roof and floor)
  • Fully enclosed and heated underbelly (ducted)
  • PEX plumbing, 2 in. block foam and reflective foil
• Custom automotive-grade vinyl exterior graphics package
• Digital TV antenna with Wi-Fi extender
• Exterior marine-grade speakers with Bluetooth® controller
• Frameless dark tinted safety-glass windows
• Fully enclosed, universal docking center:
  • Black tank flush
  • Independent satellite wiring
  • Quick-connect outside shower
  • Selectable water connections
  • Whole coach cable hookups
  • Winterization and sanitation
• Inverter pre-wire to select outlets
• JayPort outside griddle prep (standard on all floorplans without a standard outside kitchen)
• JaySMART™ (Safety Markers And Reverse Travel) LED lighting (patented)
• LED exterior lighting package
• Magnum Truss™ XL6™ Roof System (strongest tested roof in the industry) with Alpha roof membrane system with limited lifetime warranty
• Painted fiberglass front and rear cap with clear coat and built-in specialty LED lighting
• Pass-through storage with Slam-latch™ baggage doors
• Skirt metal enclosed drop frame
• Stronghold VBL™ aluminum framed and vacuum bond laminated gelcoated fiberglass exterior walls (including slide room end walls)
• Under-mounted spare tire
• Water heater bypass

Standard Interior Equipment

• 12V charging station
• 5/8 in. tongue-and-groove joined plywood floor and 3/8 in. roof decking
• Bathroom skylight
• Built-in laundry hamper in wardrobe (select models)
• Carbon monoxide and LP detector
• Cedar-lined front wardrobe closet
• Ceiling fan (select models)
• CPAP prepped bedroom
• Extra 120V power outlets in kitchen and slide rooms
• Farmhouse stainless steel kitchen sink
• Flip-up countertop extension with 24 in. x 24 in. butcher block bar top (select models)
• Flip-up hidden storage in bedroom chest of drawers (select models)
• Flip-up tabletop storage next to tri-fold sofa (select models)
• Gas-strutted under-bed storage
• Handcrafted hardwood glazed doors, stiles, drawers and trim
• JayVoice voice command system - controls lighting, A/C and furnace
• LED accent lighting above slideouts
• LED backlit custom framed mirror and medicine cabinet
• LED interior lighting throughout
• Porcelain toilet with foot flush
• Pull-out spice rack above microwave (select models)
• Pull-out utility drawer under kitchen sink
• Residential quilted bedspread and pillows
• Residential-grade, pull-out kitchen faucet
• “Shoe garage” in hallway step (select models)
• Soft close, heavy-duty, 75 lb. full extension, steel ball-bearing drawer guides
• Solid hardwood slide fascia
• Toe kick nightlights in bedroom, bathroom and kitchen
• Tri-fold hide-a-bed sofa with sleep surface (select models)
• Vessel bowl sink with high rise faucet in main bath
• Vinyl flooring (made in the USA) throughout including slide rooms

Customer Value Package (Mandatory)

• 15,000 BTU “Whisper Quiet” A/C (bedroom)
• 15,000 BTU “Whisper Quiet” A/C with heat pump (main)
• 16 gal. gas/electric DSI water heater
• 50 in. 4K SMART LED HDTV with fully digital HDMI® output and two additional HDMI® cables
• Backup, main entrance door and side observation security camera prep (includes a power switch in the bedroom to use the optional 7 in. monitor for security)
• Custom machined aluminum rims
• Electric patio awning with integrated LED lights
• Hidden hinges on cabinet doors
• JBL® home entertainment system with sound bar and subwoofer
• Keyed-Alike™ lock system (single key for all doors/locks)
• MORryde Safe-T-Rail grab handle
• Residential king (72 in. x 80 in.) mattress with under-bed storage
• Rooftop and ground solar prep
• Wireless remote control system (includes Bluetooth® wireless interior controls) with dimmer switches

5 Star Handling Package (Mandatory)

• 17.5 in. 16 ply 'H' rated Uniroyal tires
• Dexter® Axles with ABS and Tow Assist - includes Nev-R-Adjust® brakes and E-Z Lube® hubs
• MORryde® LRE-4000™ rubberized suspension
• MORryde® rubber pin box
• Wet bolt fasteners, bronze bushings and 4,000 lb. leaf springs

Luxury Package (Mandatory)

• 2nd electric patio awning with integrated LED lights
• 32 in. 4K outside Smart LED TV
• 32 in. 4K Smart LED bedroom TV
• 6-point hydraulic auto-leveling system
• Cellular prep for 4G WiFi antenna and JAYCOMMAND®
• Central vacuum system with dust port
• Day/night roller shades in living room
• Frameless dark tinted safety-glass windows
• Free-standing (no pedestal) table with leaf, (2) free-standing and (2) folding chairs
• Fresh Water Drinking System (patented) for fresh drinking water at the kitchen sink and water/ice dispensers in the residential refrigerator
• GE 21 cu. ft. residential refrigerator with 1800W inverter
• GE Profile Series 30 in. residential convection microwave with built in air fryer
• GE Profile Series residential 24 in. range (3.7 cu. ft. with 9100 BTU high output burner)
• High gloss gelcoated sidewalls
• JAYCOMMAND® “Smart RV” system
• LED fireplace with electric space heater
• MORryde® StepAbove™ entrance steps (main entrance) with strut assist
• Oversized multi-battery compartment (industry leading room for 4-6 batteries)
• Powered 50-amp cord reel
• Residential solid-surface kitchen countertop with solid-surface sink covers
• Residential walk-in shower with shampoo/soap holder, teak seat and shower tower
• Solid hardwood cabinet stiles
• Washer/dryer prep
• Under-sink dishwasher

Options

• 20 cu. ft. 12V refrigerator
• 3rd 15,000 BTU ducted A/C
• 5,500W Onan® Microquiet generator
• 7K hydraulic disc brake package (ABS N/A with disc brakes)
• 8K hydraulic disc brake package (ABS N/A with disc brakes)
• Butler’s pantry (in place of half bath 38FLGS)
• Frameless dual-pane tinted safety-glass windows
• Front wardrobe in place of front windshield and sofa lounge (36SSWS)
• Full body paint- Sand, Steel and Diamond
• Generator prep
• MORryde independent suspension with 8K axles and disc brakes (ABS not available)
• Outside griddle for JayPort system (32RLTS, 36FBTS, 36KPTS, 36SSWS)
• Overlander 2 Solar Package: 30-amp controller, (1) 1800W inverter and (2) 200W solar panels
• Overlander 4 Solar Package: (4) 200W solar panels, (2) 100-amp/hour lithium heated batteries, 60-amp controller, 3000W inverter, DC/DC power converter, soft start power save main 15K A/C, soft start power save for bedroom 15K A/C, battery monitor, energy management system, roof pre-wire for additional solar panels, generator prep capable and heavy gauge steel battery enclosure
• Overlander EXT Solar Package: 3,000W inverter/charger with internal 50-amp transfer switch, energy management system, (6) solar panels with 200W each, (6) 100-amp/hour lithium heated batteries, 12V DC A/C in bedroom, DC to DC battery charger, 100-amp MPPT controller management, generator prep capable
• Queen residential foam-top mattress
• Sani-Con® Turbo waste management system
• Slideout awning(s) (quantity varies by model)
• True interior design choice (Modern Farmhouse or Vintage Farmhouse)
• Truma on-demand hot water system
• Wireless backup/side view/front entry door observation kit with 7 in. monitor
