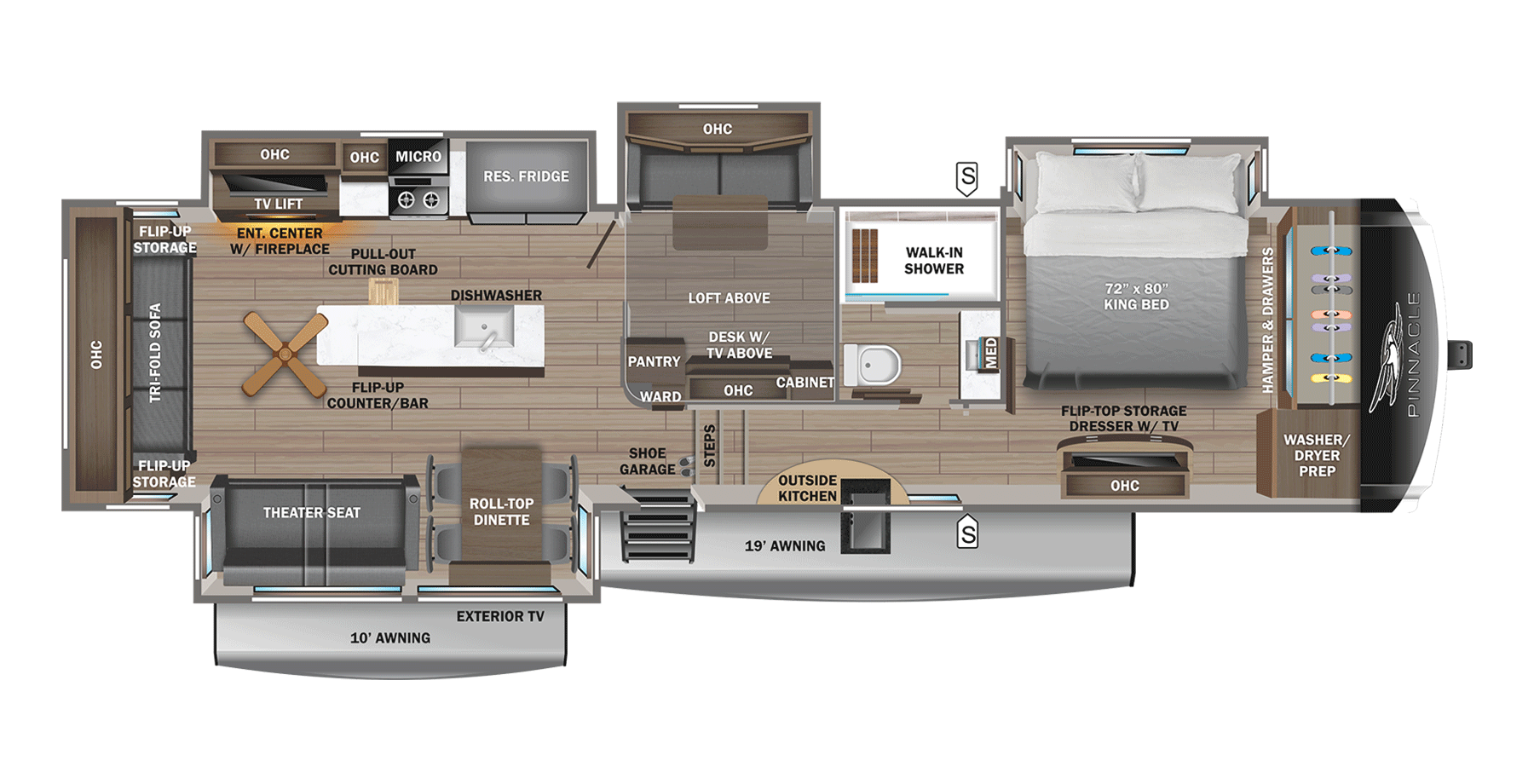

See Floorplan with
Virtual Floorplan Showings and Product Specifics Are Subject to Change Without Notice
Interior Design
Vintage Farmhouse
Modern Farmhouse
Exterior
Midnight Charcoal Paint
Midnight Gold Paint
Silver Metallic Paint
Top Feature Gallery
Build and Price Your Jayco
Choose your customizations below and receive a price estimate.
Specifications
Weights
Dry Hitch Weight (lbs) | 3,100 |
Unloaded Vehicle Weight (lbs) | 15,315 |
Cargo Carrying Capacity (lbs) | 3,085 |
Gross Vehicle Weight Rating (lbs) | 18,400 |
Gross Combined Weight Rating (lbs) | 21,400 |
Measurements
Exterior Length (overall) | 41' 8" |
Exterior Length (pin to bumper) | 39' 11" |
Exterior Height | 12' 6" |
Exterior Height (with A/C) | 13' 3" |
Exterior Height (with 2nd A/C) | 13' 3" |
Exterior Width | 8' 6" |
Exterior Width (with slides out) | 14' 6" |
Interior Height (main) | 8' 6" |
Interior Height (upper deck) | 6' 8" |
Awning Length | 19' 0" |
Awning Length 2 | 10' 0" |
Tank Capacities
Fresh Water Capacity (gals) | 75.0 |
Gray Water Capacity (gals) | 87.0 |
Black Tank Capacity (gals) | 50.0 |
Propane Unit (lbs) | 120 |
Miscellaneous
Sleeps | up to 8 |
# of outside storage compartments | 2 |
Furnace BTU | 40000 |
Tire Size | 215/75R17.5'H' |
Exteriors
Interior Designs
Options
2025 Pinnacle
Starting at $120,243
Our top-of-the-line luxury fifth wheel, the Jayco Pinnacle, gets a host of upgrades for 2025, including an all-new front wardrobe design with pull-out drawers, a laundry hamper and a separate washer and dryer compartment. Additionally, the luxury doors, drawers, and stiles are crafted from real residential hardwood maple. All the things you’re used to having at home are now available in the Pinnacle.
This year, we are also excited to introduce the brand-new NuvoH2O water purification system. This whole-house system is compatible with both city water and dry camping, featuring a salt-free softener that filters 5,000 gallons and effectively prevents and removes scale buildup, meaning that your drinking water is safer, healthier and better tasting. You'll also have softer water to wash with so no more staining of your shower or toilet. Finally, you'll be impressed by the power theater seats with industry-first three-position headrests. The Pinnacle features residential cloth fabric powered theater seats in the main living area, complete with satin protection, power recline, LED lights, USB ports, and heat and massage functions. These seats are designed to resist stains and avoid the wear and tear of pleather, ensuring they look great over time. Enjoy ultimate comfort while reclining and conveniently recharge your devices with the USB ports located right on the seats.
In the kitchen, you’ll find all GE appliances, including a 21 cu. ft. residential refrigerator with an 1800W inverter, a GE Profile Series 30 in. residential convection microwave with built-in air fryer and GE Profile Series residential 24 in. range. With appliances from a brand you can trust, like GE, and a built-in air fryer, could you dream up a more amazing kitchen? We even added a flip up 24” X 24” butcher block countertop kitchen island extension, as well as pull-out utility storage under the sink: you’ll have more room to entertain, prep delicious meals and serve them. Beyond the entertaining you’ll do at the butcher block countertop, the residential Bluetooth®/HDMI entertainment system will be the envy of the campground. The high-output JBL® sound system with upgraded sound bar and Bluetooth® capability will take your movie nights or outdoor hangouts to the next level.
The Pinnacle takes advantage of the 102” wide body design’s maximum width to provide maximum living space and storage, including three, 40-lb. LP bottles, so you can spend less time filling propane bottles and more time making memories. Stay cool with the HELIX Cooling System™, which includes an improved curved vent design and a residential air return system. This setup maximizes airflow and efficiency while Whisper Quiet technology ensures a quieter cooling experience compared to traditional RV A/C systems.
Take control of all your systems, including A/C, with JAYCOMMAND®: a custom built system that offers exclusive mobile technology allowing you to control your unit from just about anywhere. You can monitor and control key RV features from the palm of your hand, which simplifies your camping experience.
Indulge in the Pinnacle of sophistication with our most luxurious fifth wheel yet.
