2023 Seismic Luxury Series | 3815

Standard Exterior Equipment

• 102 in. wide-body structural steel I-beam construction
• Stronghold VBL™ aluminum framed and vacuum bond laminated gelcoated fiberglass exterior walls (including slide room end walls)
• Magnum Truss™ (strongest tested roof in the industry) with one piece, seamless roof material with 20 year warranty
• Climate Shield™ zero-degree tested weather protection:
  • Fully enclosed and heated underbelly (ducted)
  • 40,000 BTU output furnace
  • Double layer fiberglass batt insulation (roof and floor)
  • PEX plumbing
• Helix Cooling System™ (industry exclusive):
  • Two exterior-mounted 15,000 BTU "Whisper Quiet" A/C unit (living room and bedroom)
  • Jayco exclusive insulated dual duct design
  • Directional and closeable A/C vents
  • Larger return air vents with user-accessible filters
• JaySMART™ (Safety Markers And Reverse Travel) LED lighting (patent-pending)
• Painted fiberglass front cap with double clear coat and built-in specialty LED lighting
• Custom automotive-grade vinyl exterior graphics package
• LED exterior lighting package
• Detachable shore power cord
• Dual 30 lb. propane bottle with auto regulator
• Pass-through storage with Slam-latch™ baggage doors
• Digital TV antenna with Wi-Fi extender
• Exterior marine-grade speakers
• Fully enclosed, LED-lit universal docking center:
  • Quick-connect outside shower
  • Black tank flush
  • Winterization and sanitation
  • Independent satellite wiring
  • Whole coach cable hookups
• Water heater bypass
• Battery disconnect
• Under-mounted spare tire
• Folding roof ladder
• JayPort for outside griddle
• Oversized multi-battery compartment (industry leading room for 4-6 batteries)
• 3-season removable garage wall

Standard Interior Features

• Solid hardwood slide fascia and cabinet doors
• Handcrafted hardwood glazed doors, drawers and trim
• 5/8 in. tongue-and-groove joined plywood floor decking and 3/8 in. tongue-and-groove joined plywood roof decking
• Residential vinyl flooring (made in the USA)
• Vinyl flooring in slideouts (no carpet)
• LED interior lighting throughout
• JAYCOMMAND® “Smart RV” system
• SuperSofa with heat, massage, recliners, cup holders and LED lighting
• Two removable cup holder sofa tables
• Dual USB charging ports (kitchen and bedroom)
• 12V charging station
• Carbon monoxide and LP detector
• LED fireplace with electric space heater (select models)
• Inverter pre-wire
• “Shoe garage” in hallway step (select models)
• Heavy-duty, 75 lb., full-extension, steel ball-bearing drawer guides
• Stainless steel kitchen sink
• Kitchen faucet with pull-out sprayer
• Pull-out spice rack above microwave (select models)
• 17 cu. ft. 12V refrigerator
• Residential quilted bedspread and pillows
• Gas-strutted under-bed storage
• Hardwood safety handrail on steps
• P.A.P. prepped bedroom
• Bathroom skylight
• Medicine cabinet with custom framed LED backlit mirror
• Bathroom tile backsplash
• Porcelain foot flush toilet
• Bathroom hallway window

Ramp and Cargo Equipment

• Rear ramp door and patio with anti-slip, non-skid flooring
• LED high-intensity ramp lights
• Tuff-ply, rubberized garage floor liner
• 2 in. block-foam fully insulated garage floor (industry first)
• Garage D-rings mounted to steel frame
• Ram air vents and power roof vent
• HappiJac® electric-lift queen beds/convertible sofas with folding armrests and cup holders
• Three seasons garage wall/doors (removeable)
• Dual 30 gal. fuel tanks with timer (1 dedicated to generator)
• Ramp patio kit with exterior steps
• Rear patio awning

Customer Value Package (Mandatory)

• MORryde® StepAbove™ entrance steps with strut assist (main entrance)
• 50-amp service and 3rd A/C prep
• Dual electric awnings with LED lights
• Quick recovery gas/electric DSI water heater
• Custom machined aluminum rims
• Keyed-Alike™ lock system
• Rooftop and ground solar prep
• Hidden hinges on cabinet doors
• 4K Smart LED HDTV with fully digital HDMI® output
• Residential Insignia™ stove (3.73 cu. ft.) with 12K BTU high output burner
• Residential king (72 in. x 80 in.) mattress with under-bed storage
• Bathroom power vent
• Hydraulic 6-point auto-leveling system with oversized foot pads
• Automotive style front windshield
• JAYCOMMAND® “Smart RV” system powered by BMPRO®
• Fresh Water Drinking System (patent-pending)
• Home entertainment system with subwoofer
• Residential solid-surface kitchen countertop with bamboo sink cover and strainer
• 30 in. residential microwave
• Night roller shades in living room
• 39 in. 4K Smart bedroom TV
• Residential “walk-in” shower with shampoo/soap holder, teak seat and shower tower
• Backup, main entrance door and side observation security camera prep (includes a power switch in the bedroom to use the optional 7 in. monitor for security)
• Cellular prep for 4G WiFi repeater and JAYCOMMAND® “Smart RV” system
• High gloss gelcoated exterior sidewalls
• Frameless dark tinted safety-glass windows
• 5,500W Onan® gas generator (CARB-certified)
• Wireless remote control system (includes Bluetooth® wireless interior controls) with dimmer switches
• Refrigerator temperature sensors linked to JAYCOMMAND®
• Washer/dryer prep

5 Star Handling Package (Mandatory)

• 16 in. Goodyear® Endurance tires
• Dexter® axles with Nev-R-Adjust® brakes, E-Z Lube® hubs, and 4000 lb. leaf springs
• MORryde® pin box
• MORryde® CRE-3000™ rubberized suspension
• Wet bolt fasteners and bronze bushings

Options

• Full body paint options: Metallic Ice, Velocity Blue and Victory Red
• Truma on-demand water heater
• Custom interior design: Modern Farmhouse or Classic Cottage
• Customer Value Package with 15,000 BTU A/C and heat pump
• Extreme Weather Package:
  • 120V heated holding tank pads
  • 12V wrapped and heated fresh water line
  • Interior illuminated switch
• 15,000 BTU drop-in cargo area A/C
• Wireless backup/rear, side view and front entrance door observation camera kit (includes a power switch in the bedroom to use the (optional) 7 in. monitor for security)
• Overlander 2 Solar Kit (30-amp solar controller and two roof-mounted 200W solar panels with 1800W inverter)
• Frameless dual-pane tinted safety-glass windows

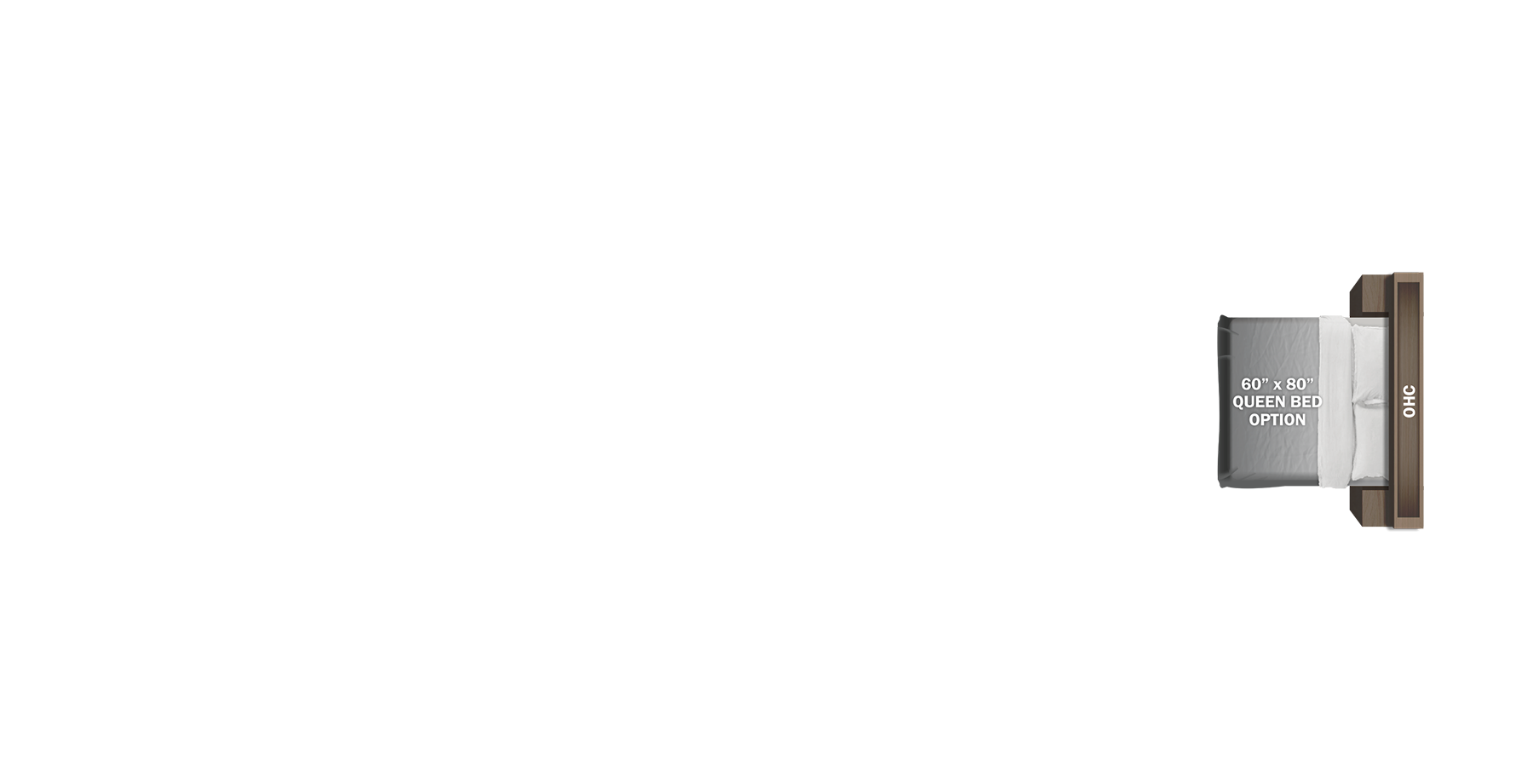

• Queen residential foam-top mattress
• 7K hydraulic disc brake package
• 8K hydraulic disc brake package
• Slideout awnings (quantity varies by model) (standard 4113)

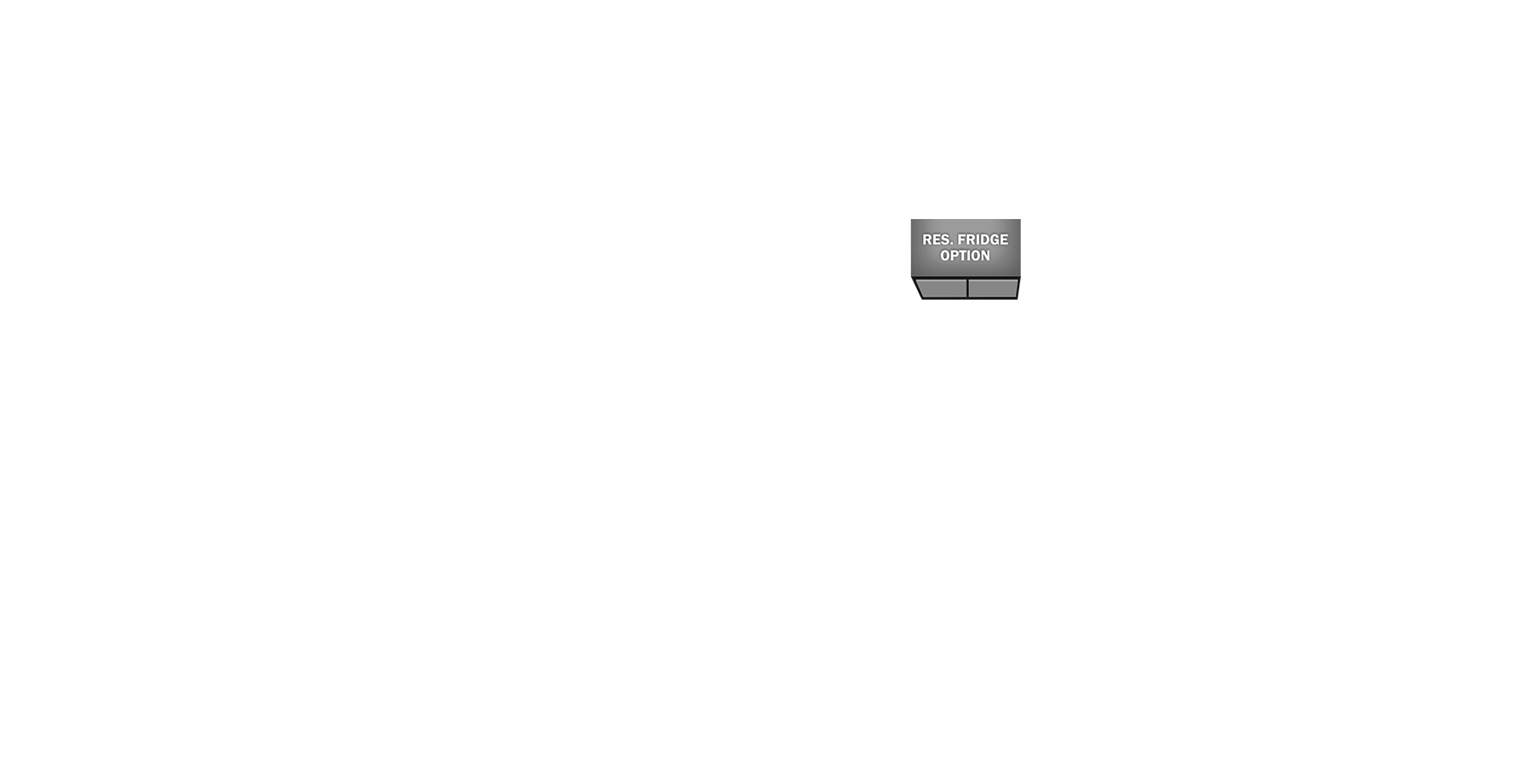

• Residential refrigerator with ice maker
• 18 cu. ft. gas/electric refrigerator
• Patented Outside Tailgater Camp Kitchen
• 4K Smart LED cargo TV
• Sani-Con® Turbo Waste Management System
• Overlander EXT Solar Package: 3000W inverter/charger with internal 50-amp transfer switch, energy management system, (6) solar panels with 200W each, (6) 100-amp/hour lithium heated batteries, 12V DC A/C in bedroom, DC to DC battery charger, 100-amp MPPT controller management, generator prep capable
• Overlander 4 Solar Package: (4) 200W solar panels, (2) 100-amp/hour lithium heated batteries, 60-amp controller, 3000W inverter, DC/DC power converter, soft start power save main 15K A/C, soft start power save for bedroom 15K A/C, battery monitor, energy management system, roof pre-wire for additional solar panels, generator option compatible and heavy gauge steel battery enclosure
