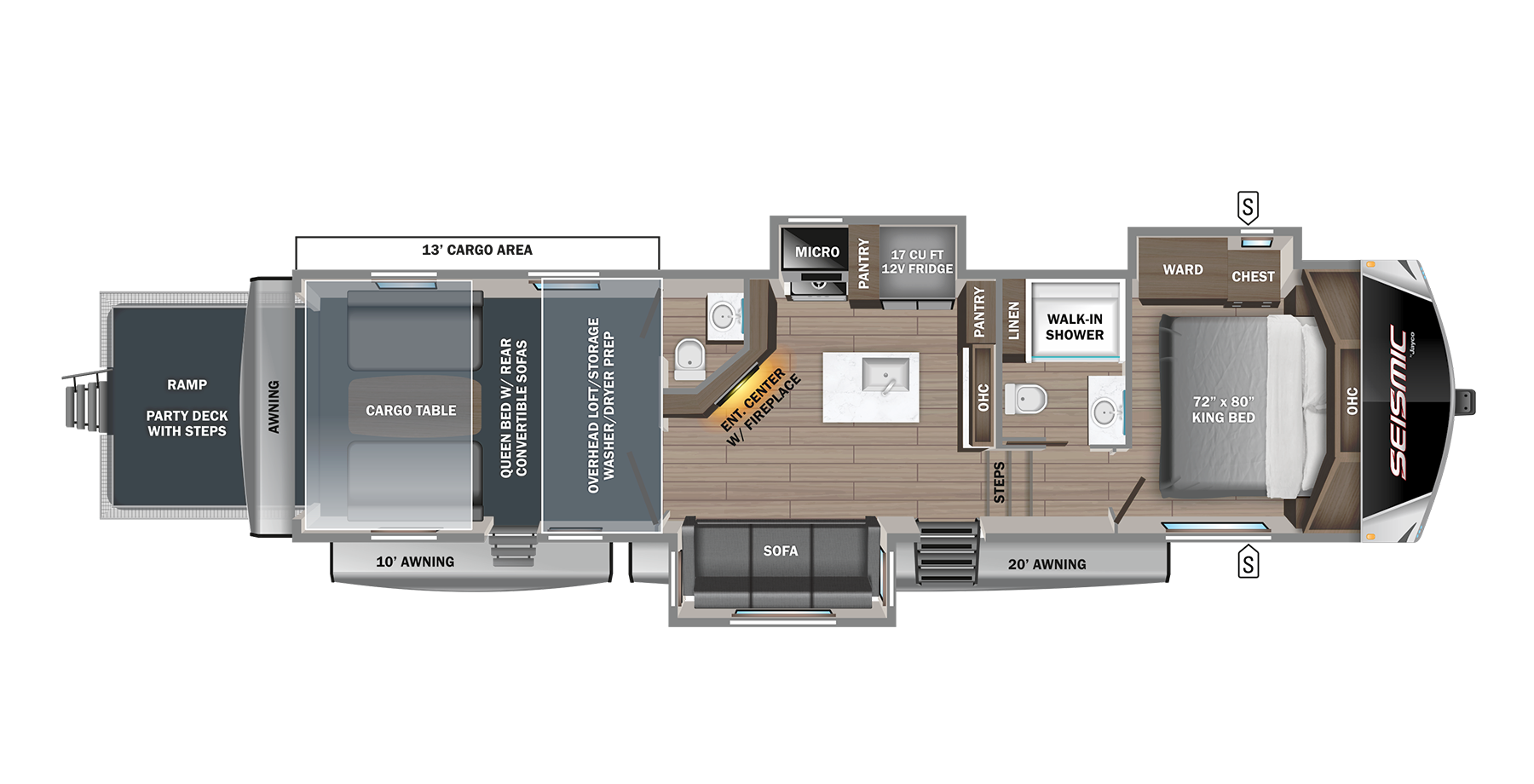

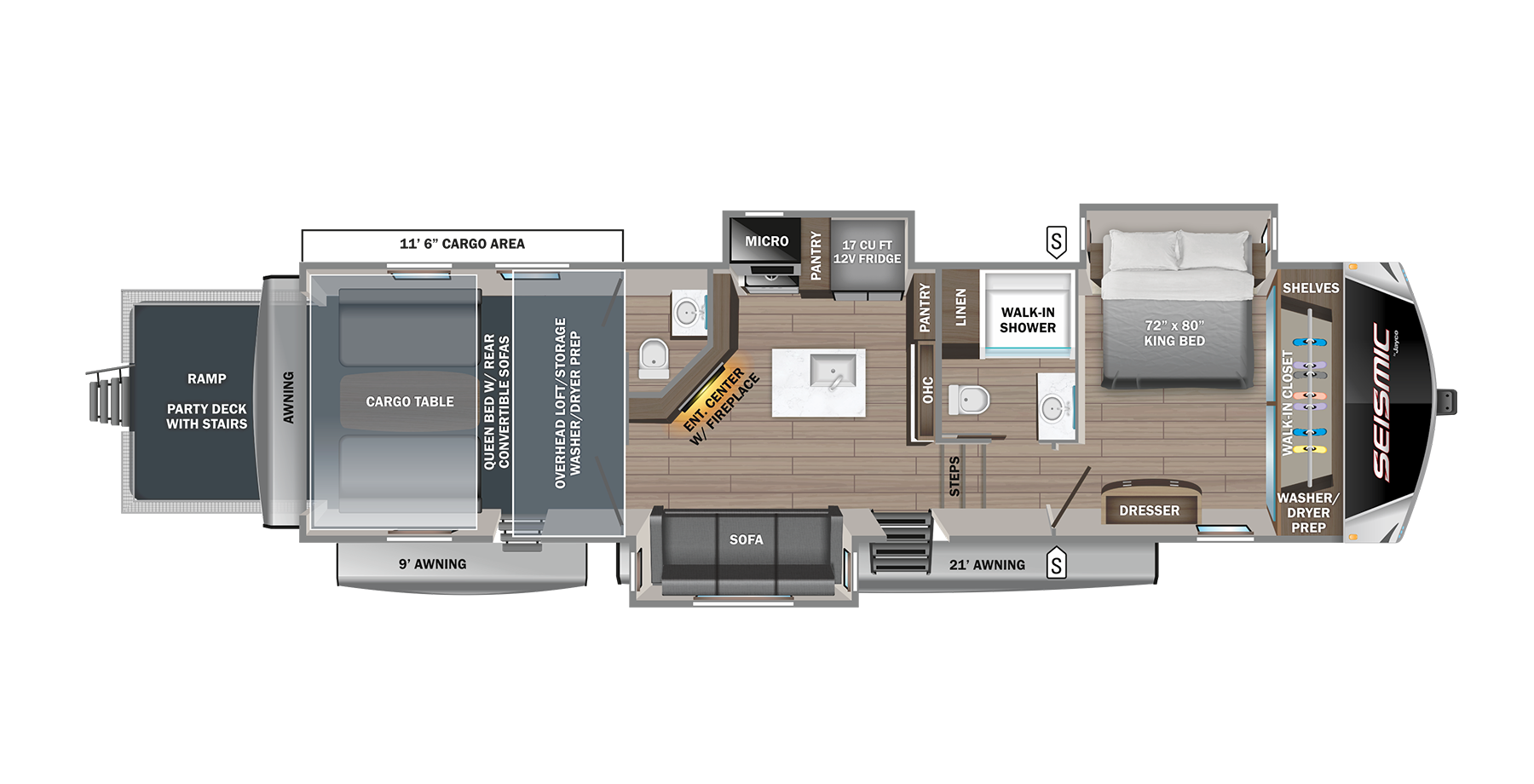

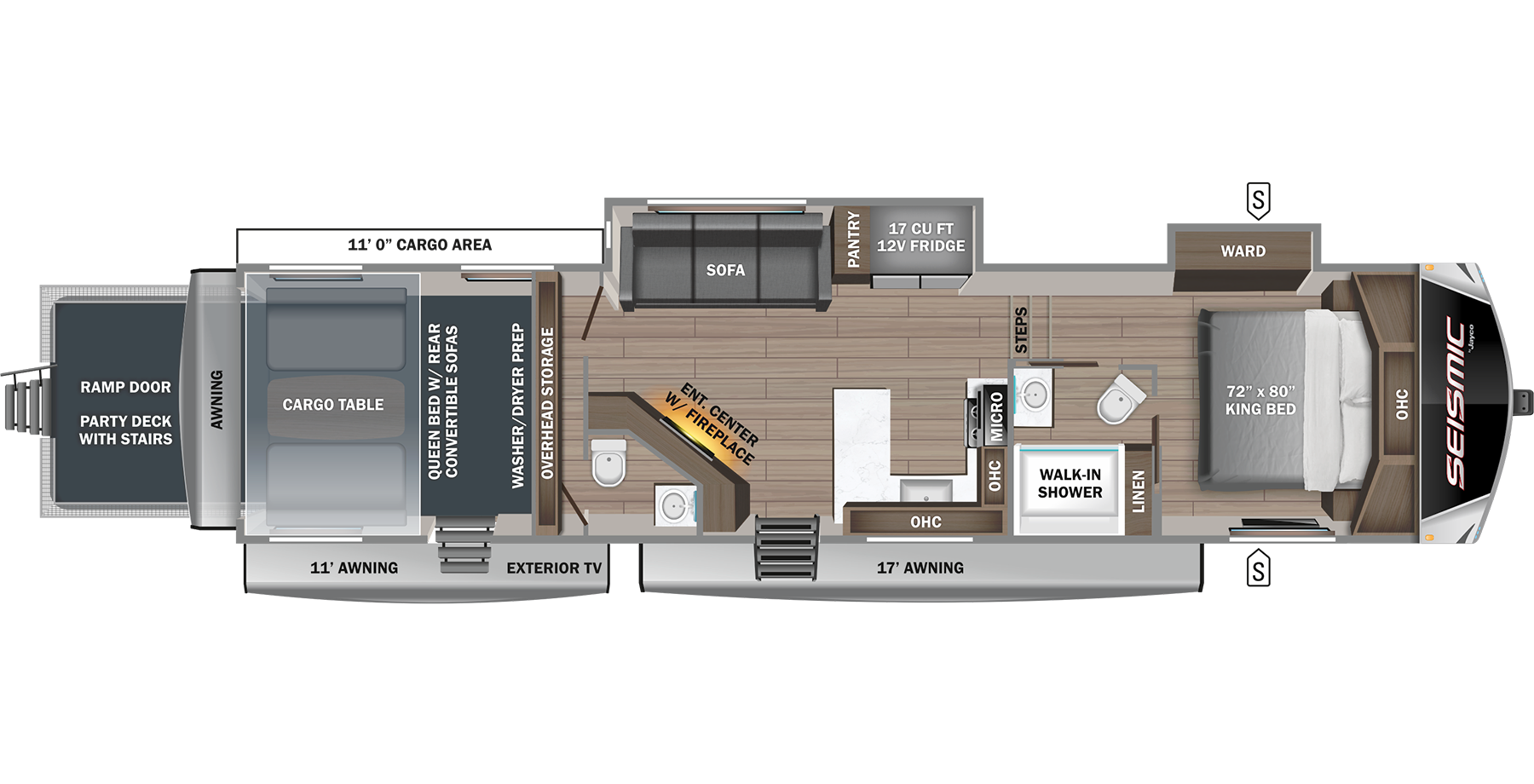

2024 Seismic Floorplans

Standard Exterior Equipment

• 102 in. wide body structural steel I-beam construction
• NPS – Powered by Yamaha 6,000 watt generator, gas/C.A.R.B certified
• 6-point hydraulic auto-leveling system
• Battery disconnect switch
• Climate Shield™ zero-degree tested weather protection:
  • PEX plumbing
  • 35,000 BTU output furnace
  • Double layer fiberglass batt insulation in ceiling and floor
  • Double sided radiant barrier insulation (roof and floor)
  • Fully enclosed and heated underbelly (ducted)
• Custom automotive-grade vinyl exterior graphics package
• Detachable shore power cord
• Digital TV antenna
• Dual 30 lb. propane bottles with auto regulator
• Exterior marine-grade speakers
• Folding roof ladder
• Fully enclosed, LED-lighted universal docking center:
  • Black tank flush, winterization and sanitation
  • Quick-connect outside shower
  • Satellite prep
• HELIX Cooling System™ (industry exclusive):
  • Directional and closeable A/C vents
  • Jayco-exclusive insulated dual duct design
  • Two exterior-mounted 15,000 BTU ducted A/Cs (living room and bedroom)
• JaySMART™ (Safety Markers And Reverse Travel) LED lighting (patented)
• LED exterior lighting package
• LP quick-connect
• Magnum Truss™ Roof System (strongest tested roof in the industry) with Alpha roof membrane system with limited lifetime warranty
• Painted fiberglass front cap with clear coat and built-in specialty LED lighting
• Pass-through storage with Slam-latch™ baggage doors
• Stronghold VBL™ aluminum framed and vacuum bond laminated gelcoated fiberglass exterior walls and slide room end walls
• Under-mounted spare tire
• Water heater bypass

Standard Interior Equipment

• 12V charging station
• 5/8 in. tongue-and-groove joined plywood main floor decking and 3/8 in. tongue-and-groove plywood in the roof
• Bathroom skylight
• Carbon monoxide and LP detector
• Central command center with built-in tank monitoring
• Custom interior design - Vintage Farmhouse
• Gas-strutted under-bed storage
• Handcrafted and glazed doors, drawers and trim
• Hardwood safety handrail on steps
• Heavy-duty, 75 lb., full-extension, steel ball-bearing drawer guides
• Inverter pre-wire
• Kitchen faucet with pull-out sprayer
• LED fireplace with electric space heater (select models)
• LED interior lighting throughout
• Porcelain foot flush toilet
• Residential quilted bedspread
• Residential vinyl flooring (made in the USA)
• Solid hardwood cabinet doors
• Stainless steel kitchen sink
• SuperSofa with heat, massage and LED lighting
• Two removable cup holder sofa tables
• Vinyl flooring in slideouts (no carpet)
• Washer/dryer prep

Customer Value Package (Mandatory)

• 16 gal. gas/electric DSI water heater
• 17 cu. ft. 12V refrigerator
• 2nd electric awning
• 4K Smart LED HDTV with fully digital HDMI® output
• 50-amp service and 3rd A/C prep
• AM/FM/CD/DVD/Bluetooth® stereo with 4 speakers
• Bathroom power vent
• Custom machined aluminum rims
• Electric awning with LED lights
• Hidden hinges on cabinet doors
• Keyed-Alike™ lock system
• Microwave
• MORryde® strut-assisted fold-away entrance steps (main entrance)
• Night shades
• Oven with 3-burner recessed cooktop with glass cover
• Residential king (72 in. x 80 in.) mattress with under bed storage
• Rooftop and ground solar prep

4 Star Handling Package (Mandatory)

• 17.5 in. 16 ply 'H' rated Uniroyal tires
• Dexter® Axles with ABS and Tow Assist - includes Nev-R-Adjust® brakes and E-Z Lube® hubs
• Rota-flex king pin
• Wet bolt fasteners, bronze bushings and 4,000 lb. leaf springs

Ramp and Cargo Equipment

• 30 gal. fuel tank with timer
• Garage D-rings mounted to steel frame
• HappiJac® electric-lift queen beds/convertible sofas with folding armrests and cup holders
• LED high-intensity ramp lights
• Ram air vents and power roof vent
• Ramp patio kit with exterior steps
• Rear electric patio awning
• Rear ramp door and patio with anti-slip, non-skid flooring
• Three seasons removable garage wall/doors
• Tuff-ply, rubberized garage floor liner

Options

• Frameless dual-pane tinted safety-glass windows
• Outside griddle for JayPort system
• Overlander 2 Solar Package: 30-amp solar controller with (2) roof-mounted 200W solar panels and a 1800W inverter
• Overlander 4 Solar Package: (4) 200W solar panels, (2) 100-amp/hour lithium heated batteries, 60-amp controller, 3000W inverter, DC/DC power converter, soft start power save main 15K A/C, soft start power save for bedroom 15K A/C, battery monitor, energy management system, roof pre-wire for additional solar panels, generator prep capable and heavy gauge steel battery enclosure
• Queen residential foam-top mattress
