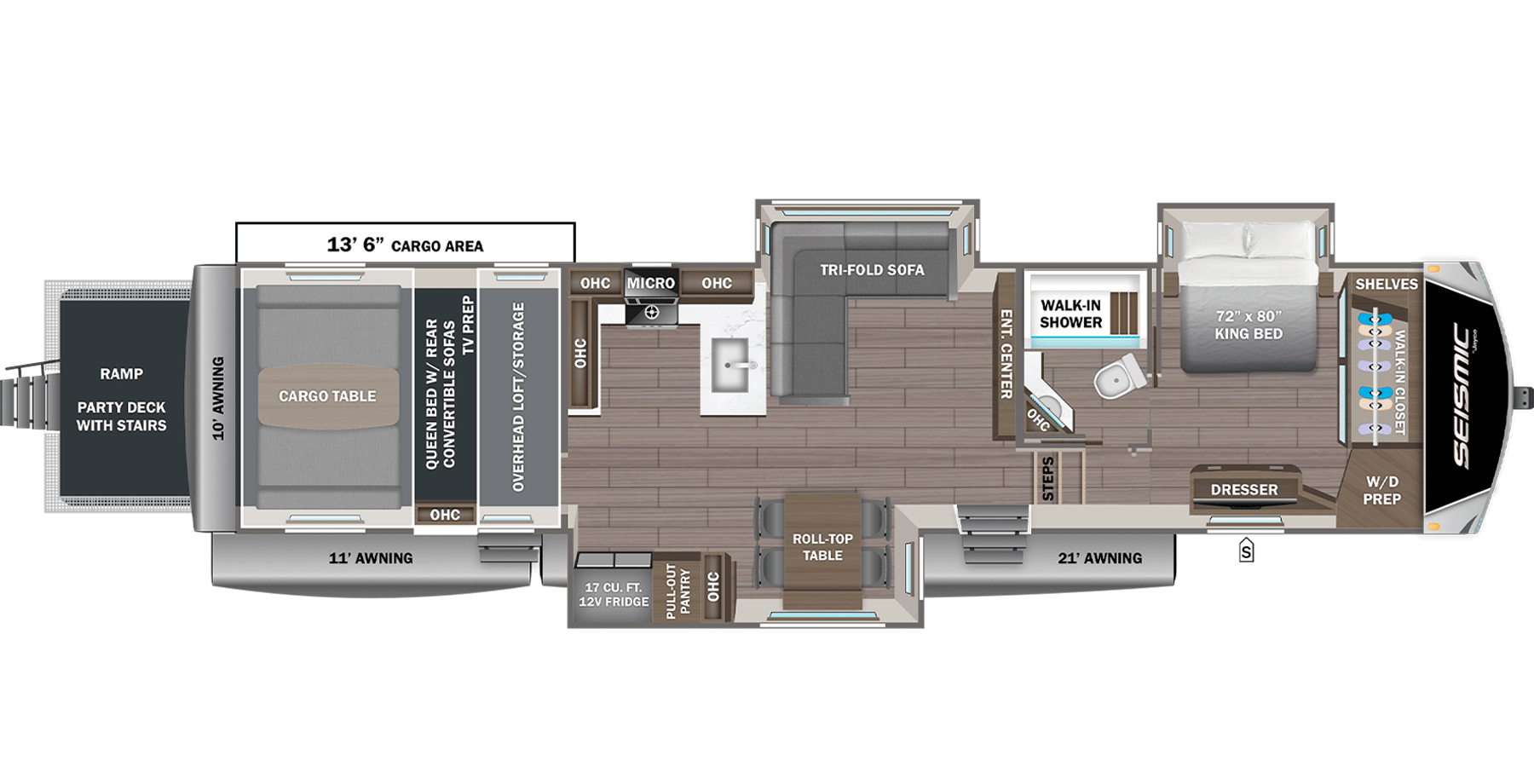

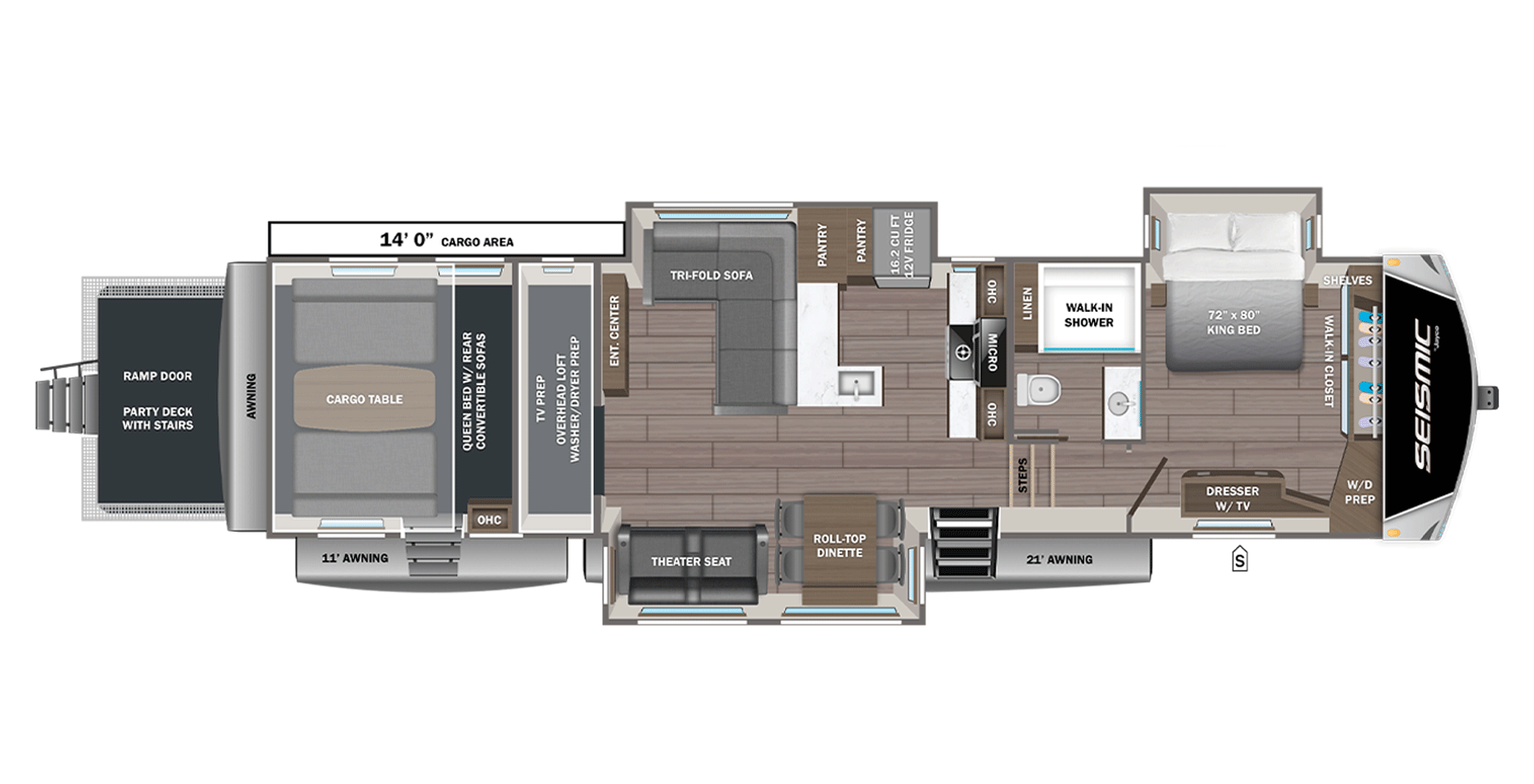

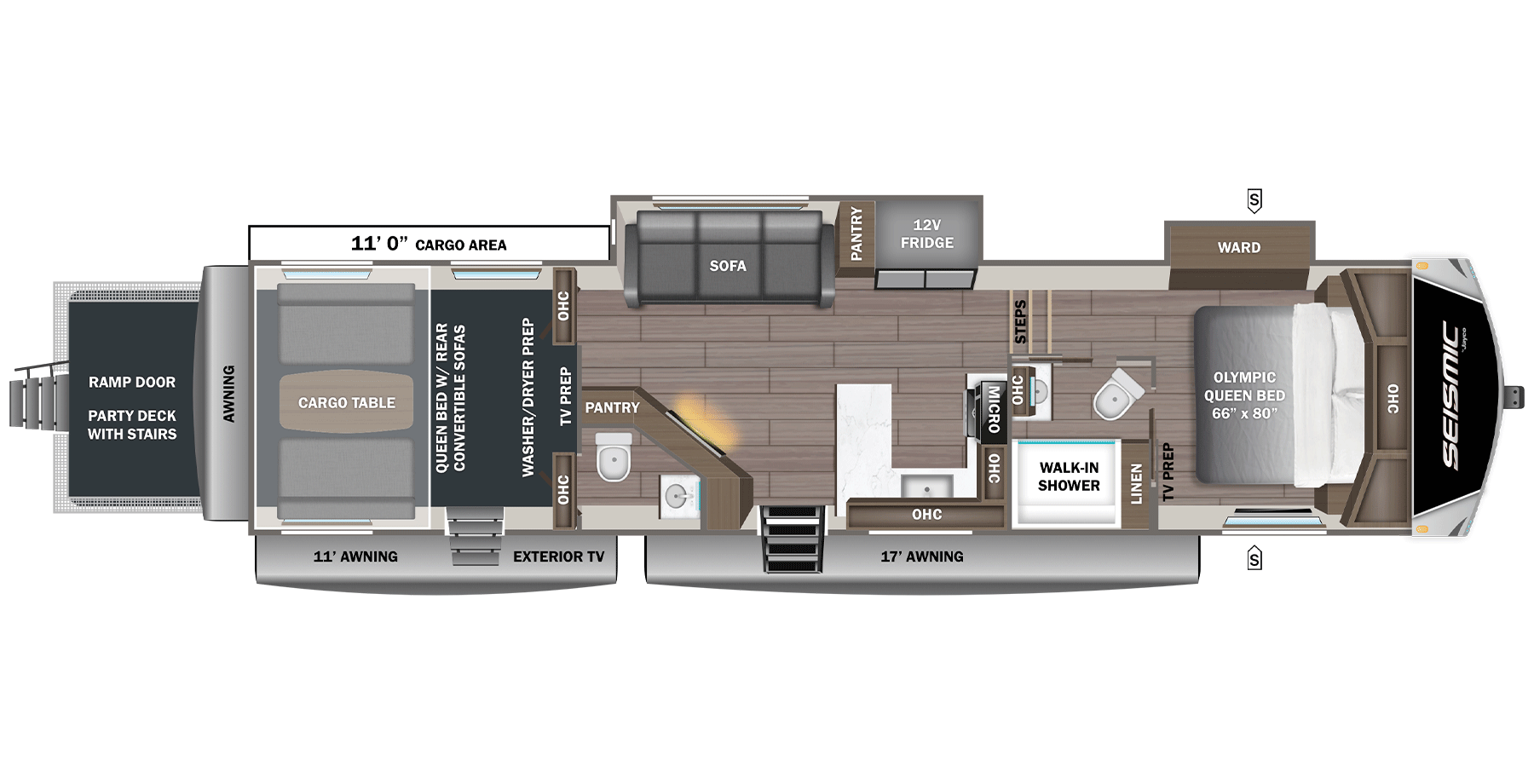

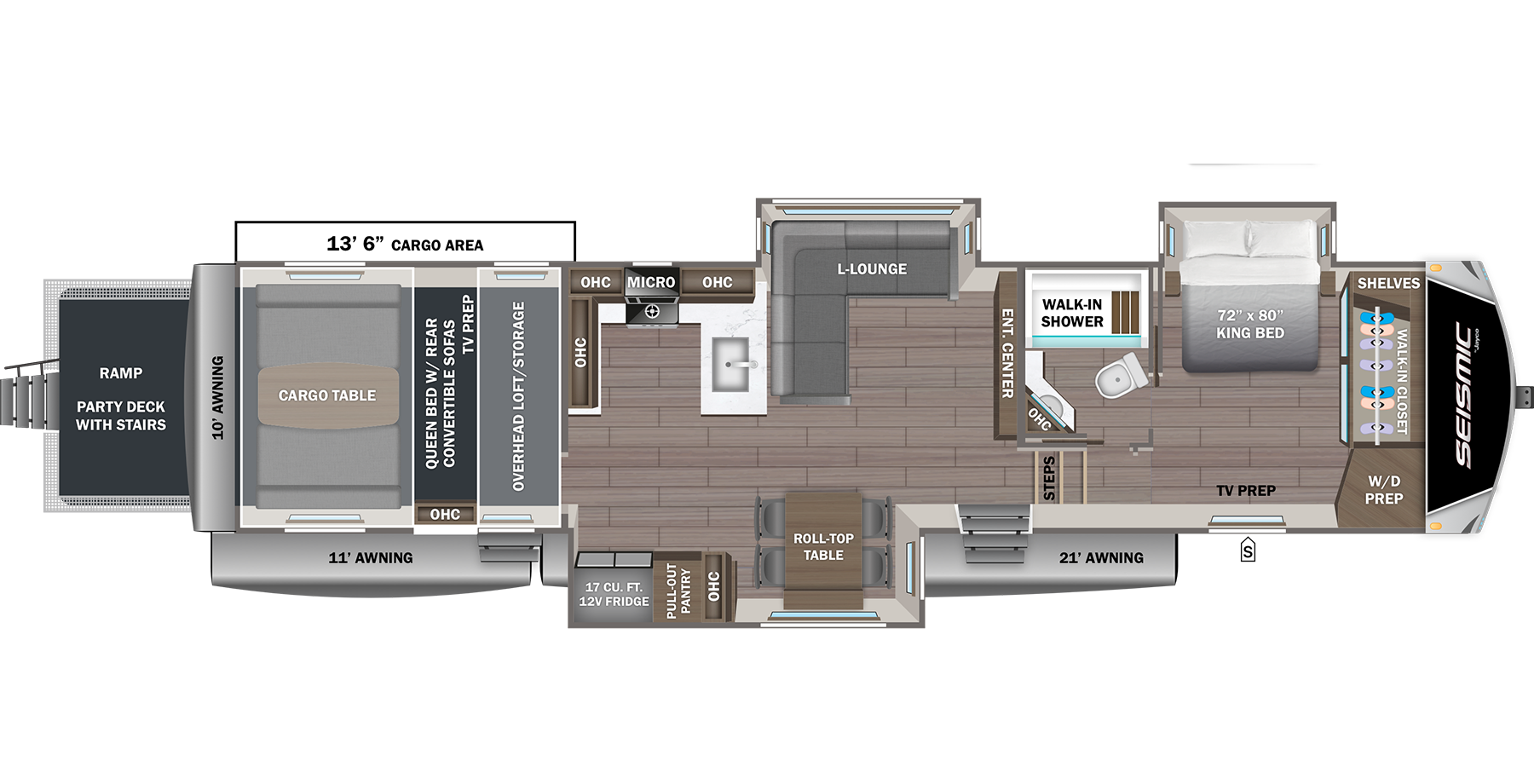

2027 Seismic Fifth Wheel Toy Hauler Floorplans

Standard Exterior Equipment

• 102 in. wide body structural steel I-beam construction
• Magnum Truss™ XL6™ roof system (strongest tested roof in the industry) with a PVC roof membrane system (limited lifetime warranty)
• Stronghold VBL™ aluminum-framed and vacuum-bond-laminated gel-coated fiberglass exterior walls and slide room end walls
• NPS 6,000W generator with built-in pure sine inverter and gas/C.A.R.B certified with remote
• Helix cooling system™ (industry exclusive):
  • Jayco-exclusive insulated dual duct design
  • Directional and closeable A/C vents
  • 35,000 BTU high-capacity furnace
• Climate shield™ zero-degree tested weather protection:
  • Double layer fiberglass batt insulation in ceiling and floor
  • Double sided radiant barrier insulation (roof and floor)
• Painted fiberglass front cap with clear coat and built-in specialty integrated RGB lighting app controlled
• Custom, automotive-grade vinyl exterior graphics package
• JaySMART™ (safety markers and reverse travel) LED lighting
• JayPort™ outside griddle prep (standard on all floorplans without a standard outside kitchen)
• 50-amp service
• Battery disconnect switch
• Detachable shore power cord
• Digital TV antenna
• Satellite prep
• Starlink prep
• LED exterior lighting package
• LED-lighted enclosed nautilus docking station
• Dual black tank flush, winterization and sanitation station
• Quick-connect outside shower with hose and sprayer
• 5 in. fresh water drain valve
• LP quick-connect
• Pass-through storage with slam-latch™ baggage doors
• Keyed-alike™ lock system
• Under-mounted spare tire
• 6-point hydraulic leveling

Standard Interior Equipment

• King bed (Select Models)
• Residential quilted bedspread
• P.A.P. prepped bedroom (both sides)
• Carbon monoxide and LP detector
• Central command center with built-in tank monitoring
• Removable shower head sprayer
• Solid hardwood raised panel glazed doors and drawers
• Hardwood safety handrail on hallway steps
• Heavy-duty, 75 lb., full-extension, steel ball-bearing drawer guides
• Residential finished dove-tail jointed drawers throughout
• 5/8 in. tongue-and-groove joined plywood main floor decking and 3/8 in. tongue-and-groove plywood in the roof
• USB-C 12V charging ports (multiple locations throughout)
• 12V Inverted to 110V receptacles
• LED fireplace with electric 5,000 BTU space heater (select models)
• LED interior lighting throughout
• No in floor heat registers throughout the coach
• Porcelain foot flush toilet
• Bathroom skylight
• PEX plumbing
• Water Shutoff at all faucet locations
• Residential "Do it all" sink with pull-out kitchen faucet, glass rinse and vegetable rinse
• Washer/dryer prep
• Vinyl flooring in slide outs (no carpet)
• Super sofa or theatre seats with heat, power recline and LED lighting (select models)
• Gas-strutted under-bed storage
• Stain-protected performance fabric on all furniture

Customer Value Package (Mandatory)

• 106 gal. freshwater capacity
• Residential NuvoH2O® whole-coach water treatment system with water softening and triple-cartridge filters
• 60,000 BTU on-demand tankless water heater
• (2) 60 lb. LP gas bottles
• 12V 17 cu. ft. black glass refrigerator
• 30 in. residential microwave
• 21 in. 3-burner oven
• (3) high-efficiency soft-start A/Cs
• Teak shower seat prep
• MB Quart® Bluetooth® stereo system with (2) interior and (2) exterior speakers
• 4K Smart LED HDTV
• Glass shower door
• Roller blackout nightshades
• Soft-close hidden hinges and magnetic door catches on cabinet doors
• Lumber-core-style face frames
• Triple-slide glass shower door
• Bathroom power vent
• MORryde® 4-step strut-assisted fold-away entrance steps (main entrance)
• Universal docking station with outside shower
• Factory-installed collapsible roof ladder
• Main electric awning with app-controlled RGB LED lights
• Second electric awning with app-controlled RGB LED lights
• Fully enclosed, heated underbelly (ducted)
• Overlander II Solar Package: 400W solar panel, MPPT 30-amp solar controller and 1,800W inverter

Ramp and Cargo Equipment (Mandatory)

• 30 gal. fuel tank with locking enclosed pump and timer
• 3-season locking garage wall
• 5,000 lb. minimum breaking load garage D-rings mounted to the steel frame
• HappiJac® electric-lift queen beds with convertible sofas, folding armrests and cup holders
• Rear loft ladder
• High-intensity LED ramp lights
• Ram air vents with power roof vent
• Lift-assisted, weatherproof, anti-skid ramp door
• Powder-coated aluminum patio kit with gate and steps
• Tuff-Ply® rubberized garage floor liner
• Power ramp patio awning with LED lighting

5 Star Handling Package (Mandatory)

• 17.5 in. H-rated, 16-ply tires
• Aluminum rims
• Dexter® axles with ABS, Tow Assist and sway mitigation
• Nev-R-Adjust® brakes
• Greaseable wet bolt fasteners with bronze bushings and 4,000 lb. leaf springs
• MORryde® CRE3000 suspension system
• Rota-Flex® king pin
• Backup and side camera prep
• Entry door security camera prep

Options

• Tinted safety glass windows
• Frameless dual-pane tinted safety glass windows
• Tank heat pads
• Outside griddle for JayPort™ system
• King bed (select models)
• Queen bed (select models)

PAINT OPTIONS

• Titanium full-body paint
• Charcoal full-body paint
• Metallic blue full-body paint
• Metallic copper full-body paint
• Metallic red full-body paint
