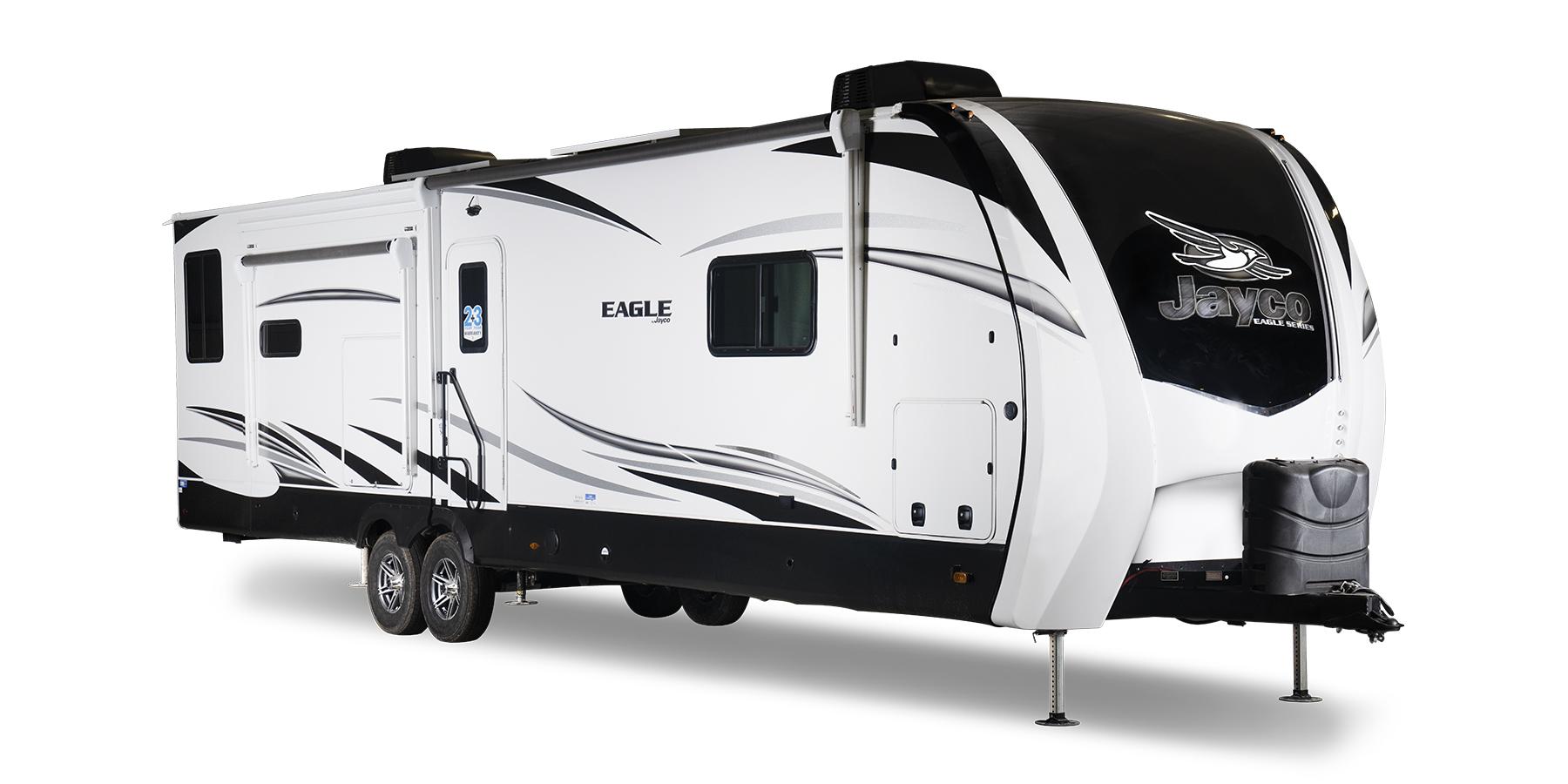

Eagle Travel Trailers

2023 Eagle Travel Trailers

Starting at $79,928

Enjoy even more amenities in the Eagle Travel Trailer. Our dual 15,000-Whisper Quiet A/C units are 40 percent quieter than the competition, meaning a cooler, more restful night’s sleep. Aside from dual air conditioners, the Eagle features dual power awnings, and a fresh water drinking system with a spigot in the island and a residential refrigerator with ice and water built in. Another convenience feature includes the outdoor JayPort system for a 22-inch griddle. With JayPort there’s no more hassle to set up a charcoal grill or spend time cleaning up the grill afterward.

Eagle Travel Trailers

Eagle Travel Trailers Floorplans and Prices

Residential features like washer/dryer prep and entertainment centers with fireplaces pepper the Eagle travel trailer floorplans. All of the floorplans feature the 4 Star Handling Package, which includes Goodyear Endurance tires, Dexter Axles, MORryde CRE-3000 rubberized suspension, and shock absorber prep.

Starting at $79,928
Sleeps up to 6
Length 40' 1" - 40' 1"
Weight 10,665 - 10,725 lbs.

Standard Features and Options

Standard Exterior Equipment

  • StrongholdVBL™ aluminum framed and vacuum bond laminated gelcoated fiberglass exterior walls (including rear wall and slide room end walls)
  • Magnum Truss™ Roof System with one piece seamless roofing material with 20 year warranty
  • Climate Shield™ zero-degree tested weather protection:
  • Fully enclosed and heated underbelly (ducted)
  • 35,000 BTU output furnace
  • Double layer fiberglass batt insulation in ceiling and floor
  • Double sided radiant barrier insulation (roof, floor, and behind cap)
  • PEX plumbing
  • HELIX Cooling System™ (industry exclusive):
  • Jayco exclusive insulated dual duct design
  • Directional and closeable A/C vents
  • Larger return air vents with user accessible filters
  • JaySMART™ (Safety Markers And Reverse Travel) LED lighting (patented)
  • Painted fiberglass front cap with built-in specialty LED lighting
  • Custom automotive-grade vinyl exterior graphics package
  • LED exterior lighting package
  • Detachable shore power cord
  • Dual 30 lb. propane bottles with auto regulator
  • Pass-through storage with Slam-latch™ baggage doors
  • Digital TV antenna with Wi-Fi prep
  • Dual channel exterior marine-grade speaker
  • Fully enclosed, LED-lighted universal docking center:
  • Selectable water connections
  • Quick-connect outside shower
  • Black tank flush, winterization and sanitization
  • Independent satellite and whole coach cable hookups
  • Water heater bypass
  • Battery disconnect
  • Under-mounted spare tire (Goodyear® Endurance®- made in the USA)
  • LP quick-connect
  • Slide topper/awning prep
  • “Industry’s BEST” outside kitchen (select models)

Standard Interior Equipment

  • Solid hardwood slide fascia
  • Handcrafted and glazed doors, drawers and trim
  • Heavy-duty, 75 lb., full-extension, steel ball-bearing drawer guides
  • 5/8 in. tongue-and-groove joined plywood floor decking
  • Residential vinyl flooring (made in the USA)
  • Residential vinyl flooring in slideouts (no carpet)
  • LED dimmer switches (multiple locations)
  • Tri-fold hide-a-bed sofa with residential sleep surface (select models)
  • Theater seating (select models)
  • Stainless steel kitchen sink
  • Matte black kitchen faucet with pull-out sprayer
  • Dual USB charging ports (multiple locations)
  • Extra 120V power outlets in kitchen and slide rooms (where applicable)
  • Residential quilted bedspread and pillows
  • Gas-strutted under-bed storage
  • Inverter pre-wire (multiple locations)
  • P.A.P. prepped bedroom
  • Carbon monoxide and LP detector

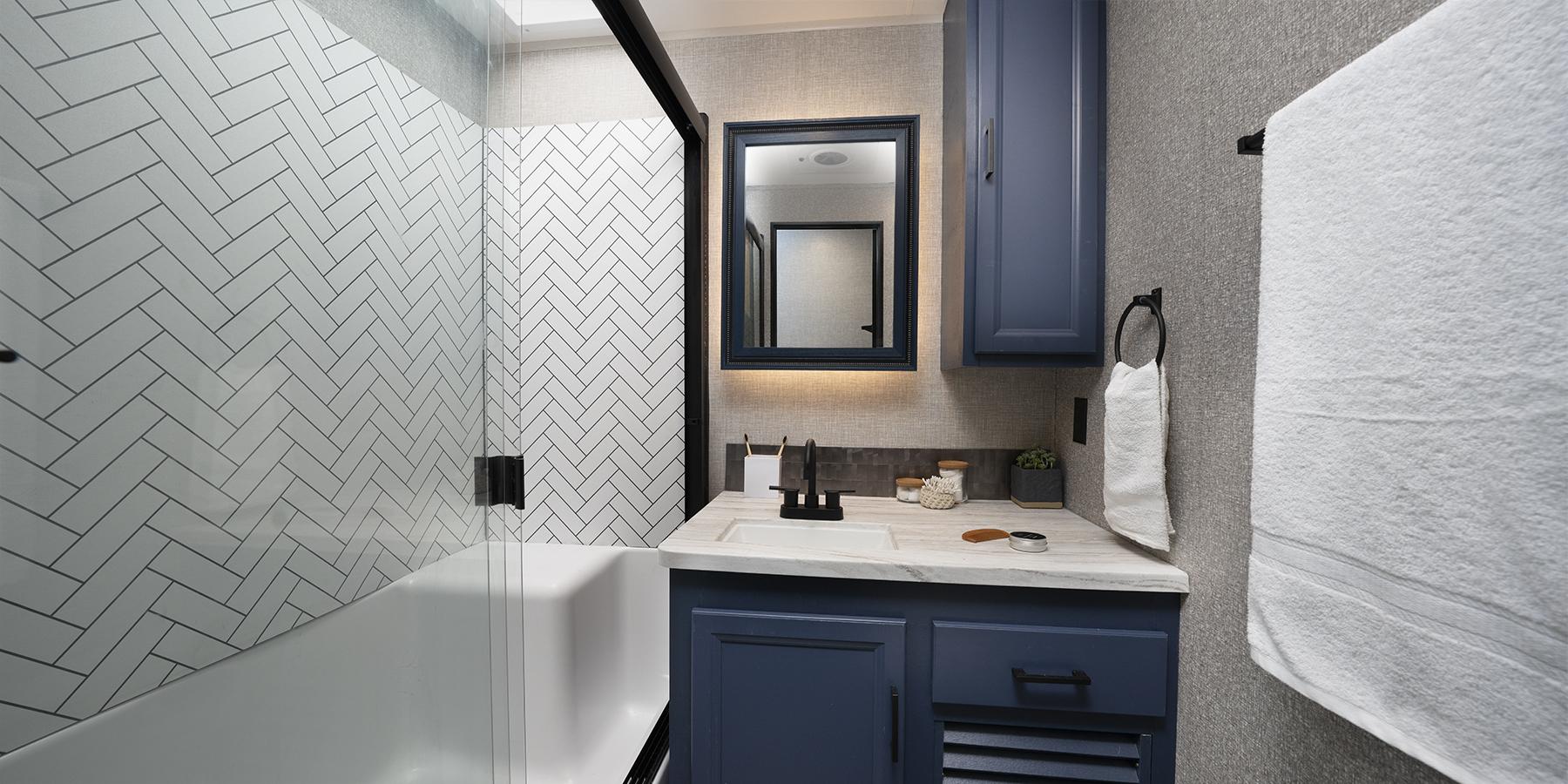

  • Bathroom skylight
  • LED backlit medicine cabinet with custom framed mirror
  • Bathroom tile backsplash
  • Blue LED nightlights in bathrooms
  • Porcelain foot flush toilet

Customer Value Package (Mandatory)

  • MORryde® StepAbove™ entrance steps (main entrance) with blue LED light
  • 15,000 BTU “Whisper Quiet” A/C
  • 50-amp service with dual A/C ducts
  • Electric patio awning with integrated dimmable LED lights
  • 60K BTU tankless water heater (6 gal. gas/electric water heater on units built prior to 9/8)
  • Custom machined aluminum rims
  • Rear 2 in. accessories receiver
  • Keyed-Alike™ lock system (single key for all doors/locks)
  • Rooftop and ground solar prep
  • Security monitor prep- observation camera prep (rear, sides and entrance door)
  • Hidden hinges on cabinet doors
  • Soft-close residential kitchen drawers
  • Upgraded friction hinge entrance door with XL grab handle
  • 12V A/V system with Bluetooth® and HDMI®
  • Stainless steel range with glass cover
  • Stainless steel 30 in. over the range microwave with exhaust fan
  • Rain-proof bathroom power vent

Luxury Package (Mandatory)

  • 2nd power awning with dimmable LED lighting
  • Electric auto-leveling system
  • 2nd 15,000 BTU “Whisper Quiet” A/C
  • JAYCOMMAND® “Smart RV” system (Pro tablet)
  • LED fireplace with electric space heater
  • Fresh Water Drinking System (patent-pending)
  • Residential refrigerator
  • Solid-surface kitchen countertop with bamboo sink cover and strainer
  • Blackout roller shades
  • Washer/dryer prep
  • Tire Pressure Monitoring System (TPMS)
  • 4K Ultra HD Smart TV with fully digital HDMI® output
  • 32 in. LED Smart TV in master bedroom

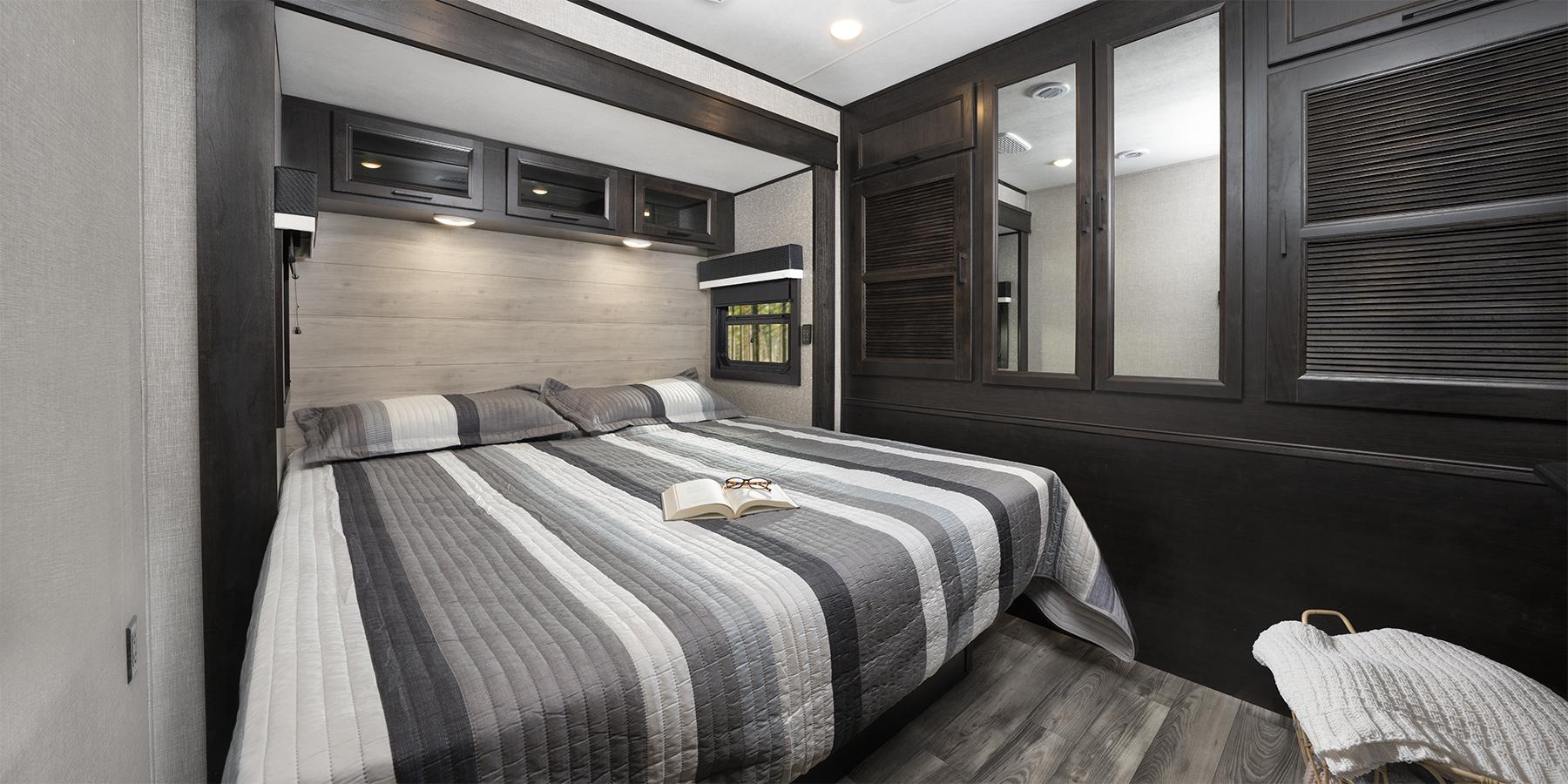

  • King (72 in. x 80 in.) mattress with under-bed storage

4 Star Handling Package (Mandatory)

  • Goodyear® Endurance® tires (made in the USA, load range ‘E’)
  • Dexter® Axles with Nev-R-Adjust® brakes and E-Z Lube® hubs
  • MORryde® CRE-3000™ rubberized suspension
  • Wet bolt fasteners, bronze bushings, and shock absorber prep

Options

  • Extreme Weather Package with 110V heat pads (110V heat pads with 12V heat tape on main water line)
  • Generator prep

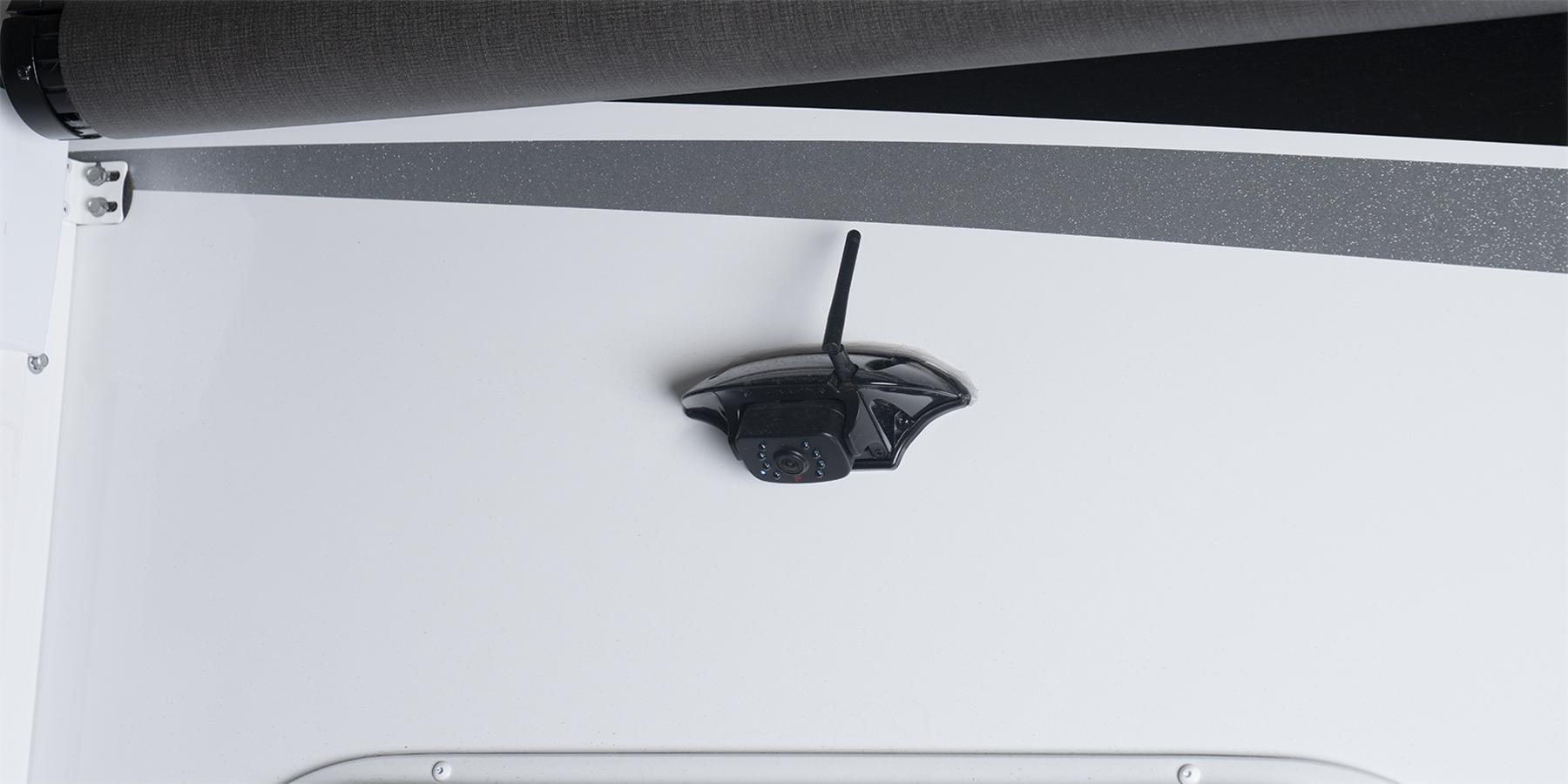

  • 360° security kit with 7 in. monitor
  • Overlander 2 Solar Package: (2) 200W solar panels, 30-amp digital controller and 1800W inverter
  • Overlander 4 Solar Package: (4) 200W solar panels, (2) 100-amp/hour lithium heated batteries, 60-amp controller, 3000W inverter, DC/DC power converter, soft start power save main 15K A/C, soft start power save for bedroom 15K A/C, battery monitor, energy management system, roof pre-wire for additional solar panels, generator prep capable and heavy gauge steel battery enclosure
  • Frameless dual-pane tinted safety-glass windows
  • Canadian Standards (CSA)
  • Free-standing rustic table with leaf, bench seat, 2 storage and 2 folding chairs
  • Free-standing rustic table with leaf, 2 storage and 2 folding chairs
  • Booth dinette (select models)
  • 4 door gas/electric refrigerator (select models)
  • Residential 60 in. x 80 in. queen size mattress
  • Outside griddle for JayPort system

Standard Features
and Options

Overlander Packages
JAYCOMMAND<sup>®</sup>
4 Star Handling Package
American-made Goodyear<sup>®</sup> tires
Climate Shield
JaySMART™
Prepped for Solar Power
Strong foundations
Stronghold VBL™ Lamination
The Magnum Truss™ Roof System

Overlander Packages

Solar Capabilities

Solar power offers RVers newfound freedom when it comes to their camping experiences by allowing users to break away from shore power constraints. Jayco RV now offers varying levels of optional solar packages on travel trailers, fifth wheels and toy haulers. Your next RV can come equipped with solar prep or optional solar packages.

Learn More »

JAYCOMMAND®

This system puts you in full control of your Jayco. Custom-built by our product development team and our partners, you can monitor and control key operations from just about anywhere on a phone or tablet.

Mini System Quick-Start Videos »Pro System Quick-Start Videos »

4 Star Handling Package

The 4 Star Handling package is a Jayco exclusive blend of four high-end components selected and installed to provide the most confident travel trailer towing experience.



Learn more »

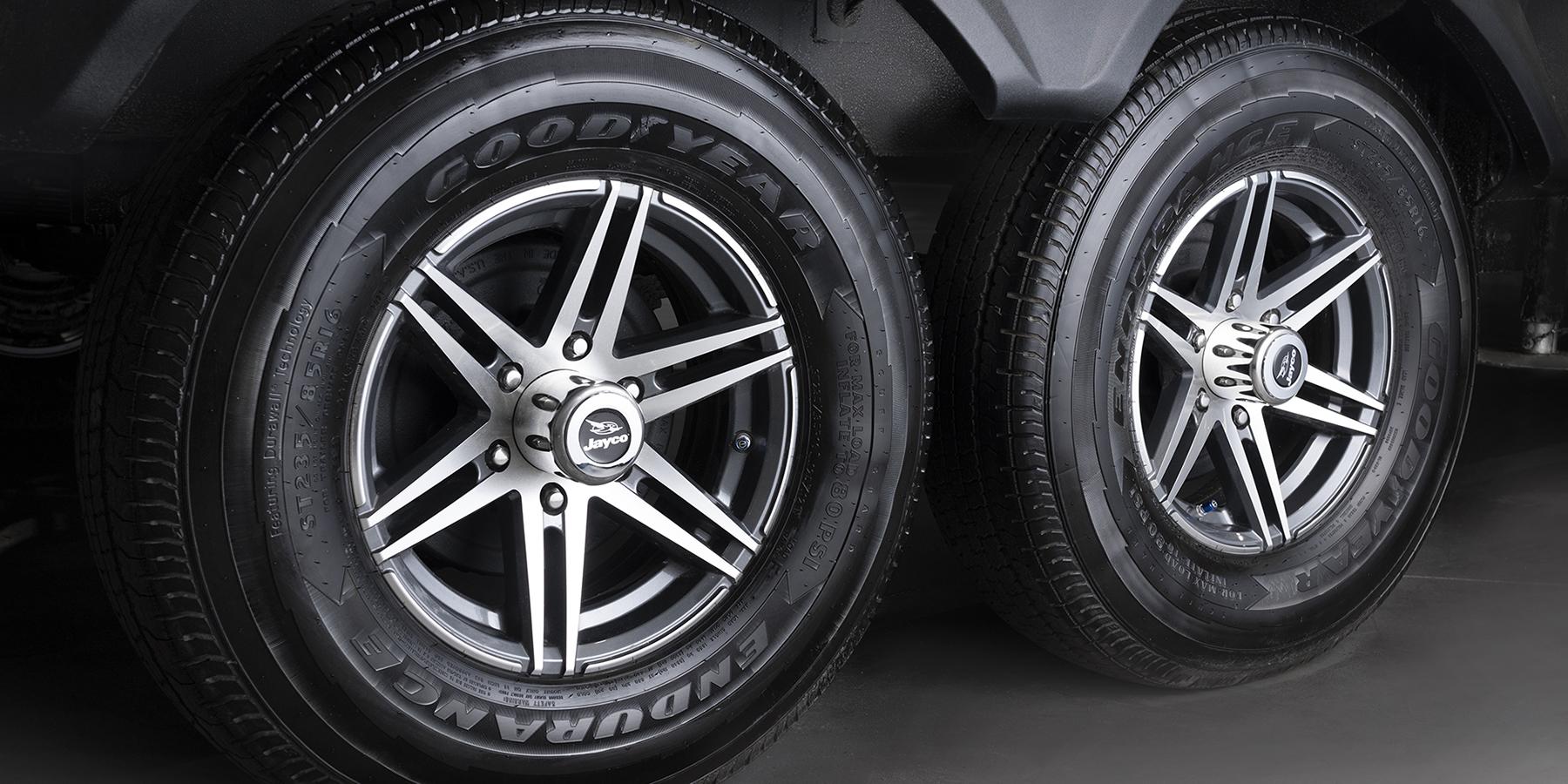

American-made Goodyear® tires

Rugged fabric-steel Durawall® construction offers improved durability and carrying capacity, while remaining compatible with tire pressure monitoring systems and typical tire inflation stations. Tow with confidence.

Learn more »

Climate Shield

Extend your camping season with built-in protection against extreme heat and cold—even in temperatures as high as 100 degrees or as low as zero degrees (Fahrenheit).

Learn more »

JaySMART™

The exclusive safety system adds several tow vehicle-controlled exterior lights to indicate turning, braking, reverse travel and hazard situations—because a split second can make all the difference.

Learn more »

Prepped for Solar Power

Jayco is one of the first companies to offer solar prep, or solar panels, on every single RV. With sidewall AND roof-mounted prep kits, you have the option to easily install solar panels for extra power at camp.

Learn more »

Strong foundations

While other manufacturers often weld or modify stock frames, every Jayco RV is built on a custom frame, designed and sized specifically to best support each unit on and off the road for years to come.

Learn more »

Stronghold VBL™ Lamination

Every sidewall, rear wall and slide room wall is bonded together for a minimum of 16 minutes under 144 tons of pressure to create the lightest, yet strongest, construction available in the RV industry.

Learn more »

The Magnum Truss™ Roof System

In testing, the creatively engineered system withstood 4,500 pounds—50 percent more than competitors’ roofs.  Walk confidently on top of your unit and feel safer in wind or snowstorms.

Learn more »

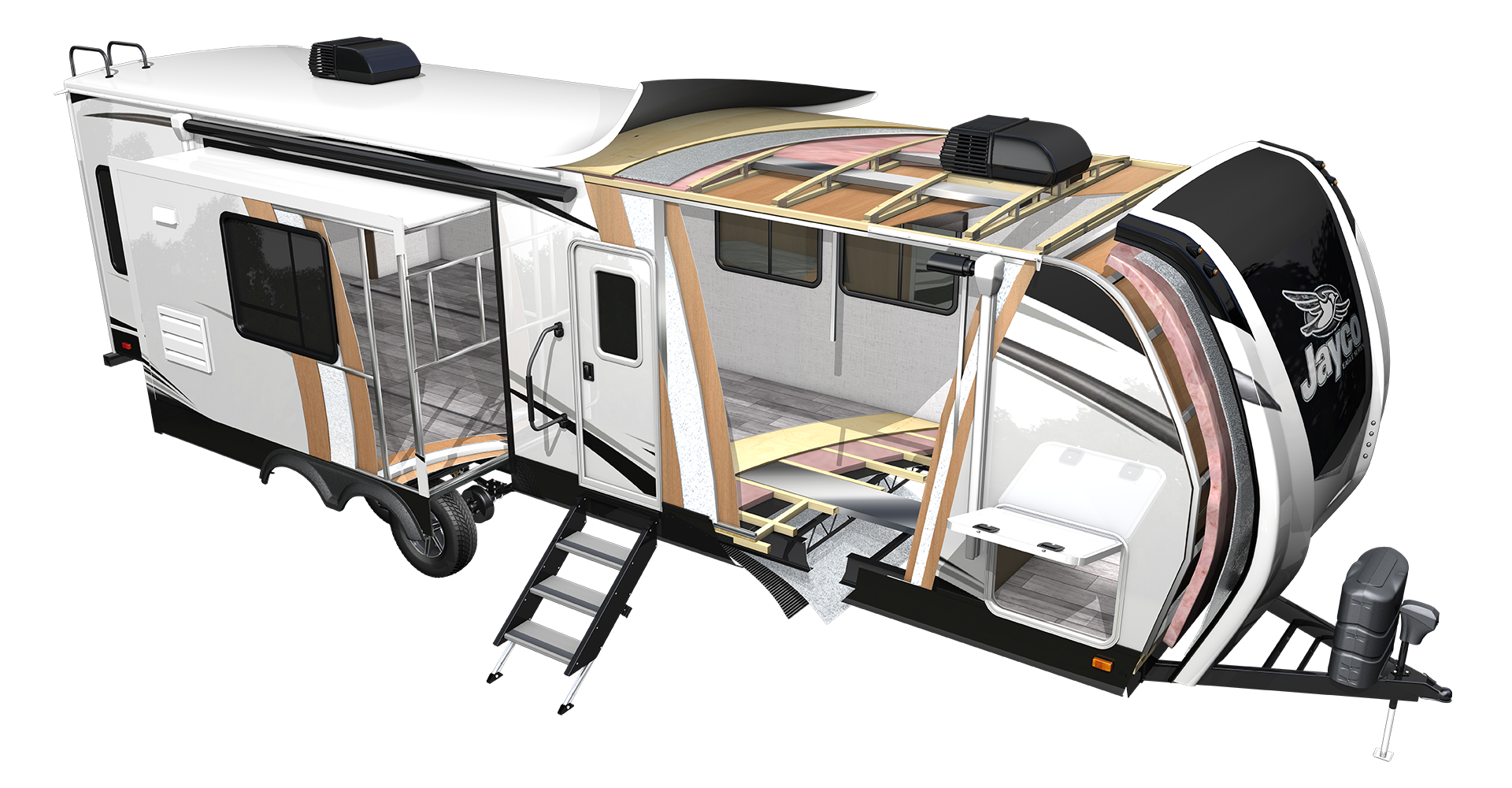

Superior Construction Elements

(Click on number for more information)

Cutouts
1
2
3
4
5
6
7
8
9
10

Jayco uses plywood vs. OSB or other materials because it is more eco-friendly (no formaldehyde), handles moisture better, is lighter in weight and has better screw retention.

Jayco uses plywood vs. OSB or other materials because it is more eco-friendly (no formaldehyde), handles moisture better, is lighter in weight and has better screw retention.

Functionality is key and that's why Jayco uses MORryde over other brands. MORryde suspensions absorb the 3-4 in. of up and down travel that trailers often take while on the road.

Jayco's standard Goodyear® tires are built using rugged fabric-steel and are reinforced specifically for trailering. Enhanced durability, geater carrying capacities and higher speed ratings help you stay safe, preventing dangerous blow outs all while remaining compatible with tire pressure monitoring systems and typical tire inflation stations.

Axles are a key factor to a comfortable and stable towing experience. That's why we partner with a long-standing American company, Dexter.

Your RV needs a strong foundation built specifically for your floorplan. We build each trailer on a frame that has been specifically designed by our skilled team of engineers for its size and shape to better endure the wear and tear of the road. Our frames also include more outriggers and cross members for better support and structural integrity.

Jayco's exclusive Stronghold VBL™ (vacuum-bond lamination) wall construction process uses vacuum bonding to combine laminated fiberglass with welded aluminum framing, metal backers, decorative interior wall panels and fiberglass exterior siding. This super-durable structure was designed specifically for heavy use and travel while  still reducing weight.

The Magnum Truss™ Roof system is one of the strongest roofs in the industry. It's capable of withstanding 50 percent more weight- up to 4,500 lbs.- than the competition so that you can safely perform maintenance and avoid costly structure damage from debris, branches or snow.

Our industry exclusive HELIX Cooling System™ includes an exterior-mounted 15,000 BTU "Whisper Quiet" A/C unit, our exclusive insulated dual duct design, directional and closeable A/C vents and larger return air vents with user accessible filters.
