2019 Embark

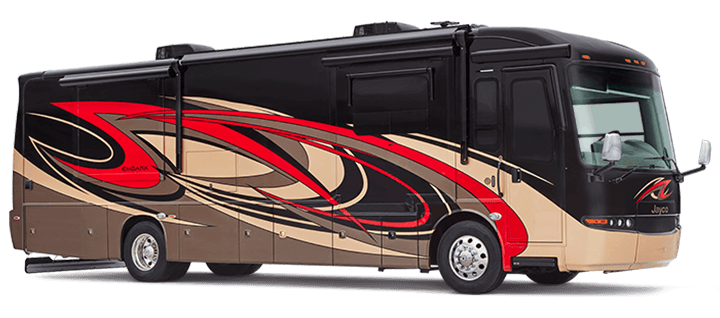

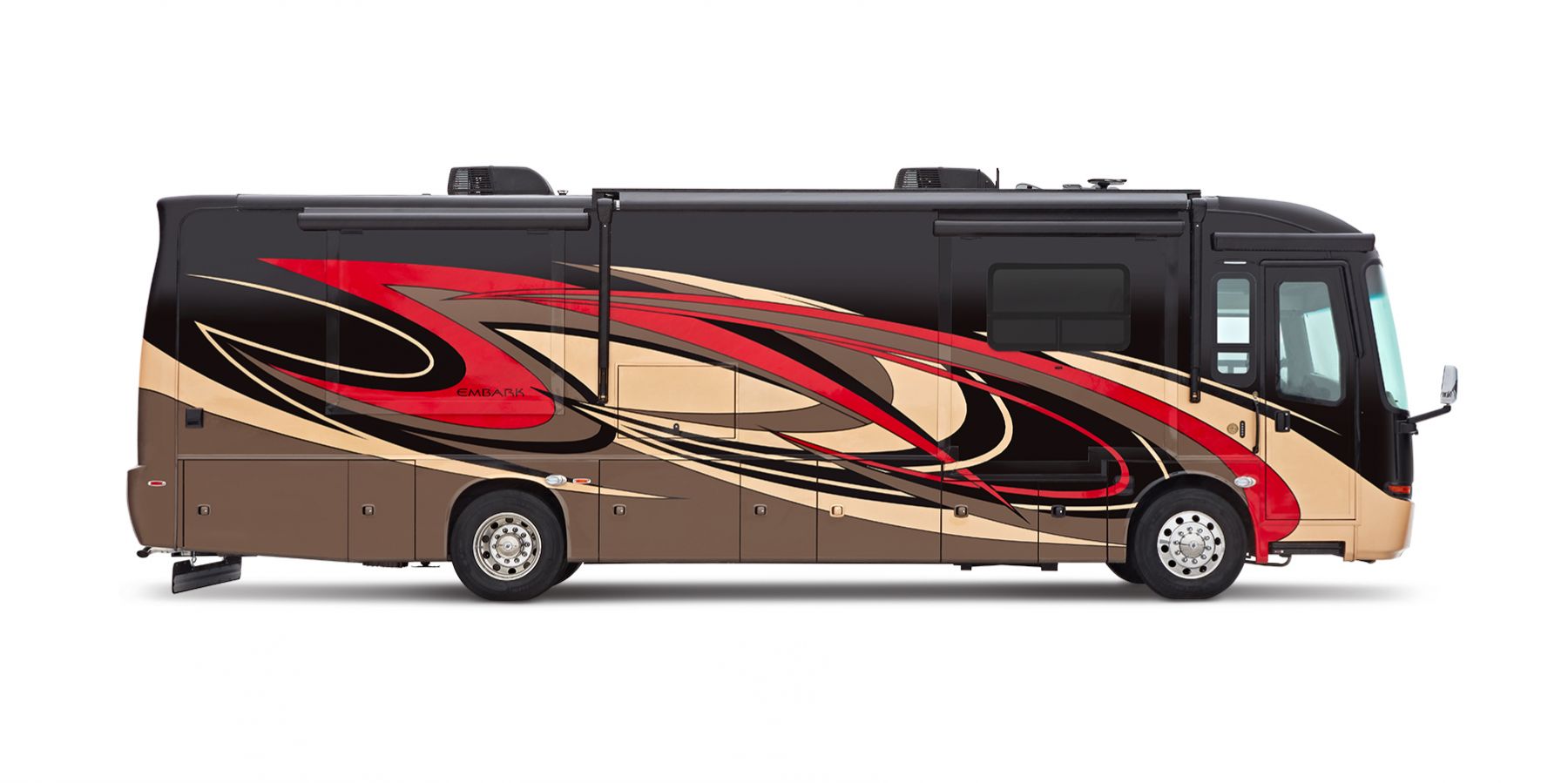

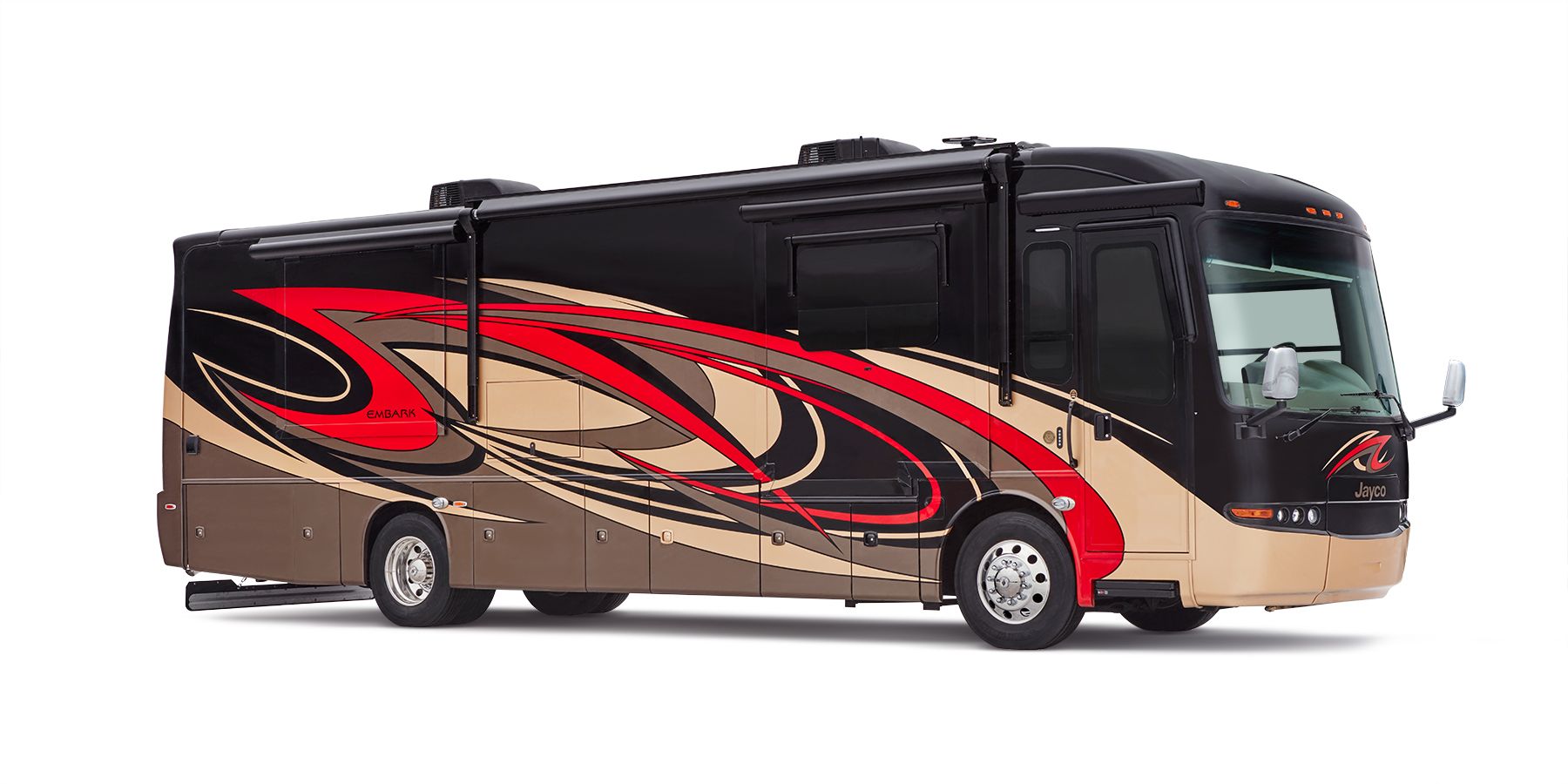

Luxury meets adventure in the new Embark Class A Diesel Motorhome. Built on a Spartan K1 raised rail chassis, with a Cummins ISB turbocharged engine and exclusive Independent Front Suspension, the Embark offers a smooth and quiet ride in luxury diesel style.


Embark Floorplans and Prices

Length 37' 10" - 39' 11"

Standard Features and Options

Customer Value Package

  • JRide Premium®
  • 8 KW Diesel Generator
  • 2,000 Watt Inverter
  • 15,000 BTU Air Conditioner w/Heat Pump (2)
  • Automatic Leveling Jacks
  • Backup & Sideview Cameras
  • Power Awning w/LED Lights

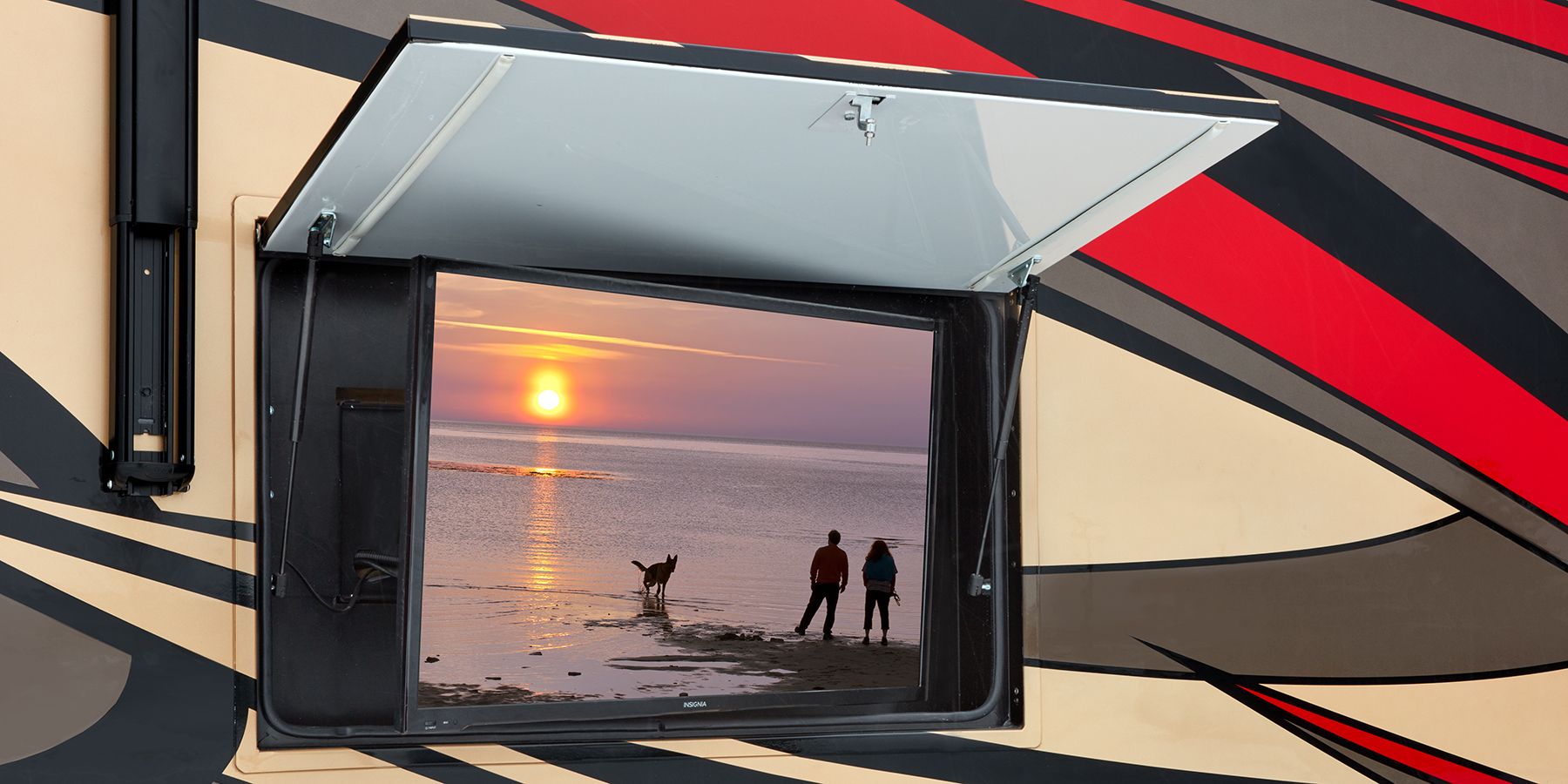

  • Exterior Entertainment Center w/LED TV
  • Solar Shades

Standard Driving Equipment

  • Automatic hydraulic leveling jacks
  • Spartan® K1 raised rail chassis
  • Cummins® B turbocharged 360 HP engine 800 lb. ft. torque at 1,800 RPM
  • Allison® 3000 MH 6-speed transmission
  • 750-watt engine block heater
  • IFS independent 12,000-lb. front axle *s/b 12,600-lb. front axle (37MB), 14,329-lb. front axle (38BH/39T2)
  • Rear axle 20,000-lb. *s/b 20,000-lb. (37MB), 22,000-lb. (39BH/39T2)
  • 4.88 rear axle ratio
  • 10,000-lb. hitch with 7/4-pin plug
  • Rear-mounted radiator
  • ABS drum brakes on front and rear
  • Variable geometry turbo (VGT) brake
  • Bilstein® 46mm shocks
  • 100-gal. fuel tank, driver side fill
  • 10-gal. DEF tank, driver side fill
  • Michelin®  275/80R 22.5” tires
  • Chassis batteries (2) 12 volt
  • 170-amp alternator
  • Remote air connection
  • Hydraulic automatic leveling

Standard Construction Equipment

  • X-Bridge frames welded into chassis frame
  • Enclosed, insulated storage area
  • Insulation with reflective Flexfoil® roof (R-24), front and rear caps (R-22)
  • Floor with vacuum bonded layers of Darco underbelly, a welded aluminum frame, R-9 bead-foam insulation and 5/8" decking
  • Sidewalls high-gloss gelcoat vacuum bonded laminated w/R-8 bead-foam insulation
  • Electric-powered slideout rooms
  • One-piece fiberglass roof w/ 3/8" plywood decking and 4" arched aluminum roof truss
  • Steel-reinforced front cap and windshield frame

Heat, A/C, Power and Water Equipment

  • 16.5-gal. propane tank
  • 10-gal. gas/electric water heater
  • 35,000-BTU furnace (27MB)/ 1-20,000 and 1-30,000 (39BH/ 39T2)
  • 15,000-BTU standard profile A/Cs (2) with heat pump
  • 50-amp power cord
  • Onan® 8,000-watt diesel generator with auto gen start on slideout tray
  • 2,000-watt pure sine wave inverter with 100-amp battery charger
  • L16 AGM batteries (2) (6V/ 390 amp hrs. each)
  • Surge protector transfer switch
  • Black holding tank sprayer
  • Macerator holding tank dump system w/ manual gate valves
  • City and tank water filtration system
  • Winterizing drain system

Standard Exterior Equipment

  • 3M front protective film mask
  • Halogen high and low beam headlights
  • Halogen fog lights
  • Daytime running lights
  • LED marker, turn lights, docking lights and accent lights
  • Keyless entry
  • Power patio awning with LED lights
  • Power entrance door awning with LED lights
  • Heated, remote controlled, sideview mirrors w/ integrated cameras
  • Frameless, dual-pane, tinted, safety-glass windows
  • Exterior 39" Insignia LED HDTV
  • Exterior utility center with system monitor panel
  • Winegard® in-motion satellite dome w/ prep for Trav'ler satellite dish
  • Winegard Rayzar Z1 TV antenna
  • Full-width rear mudflap, w/chrome nameplate

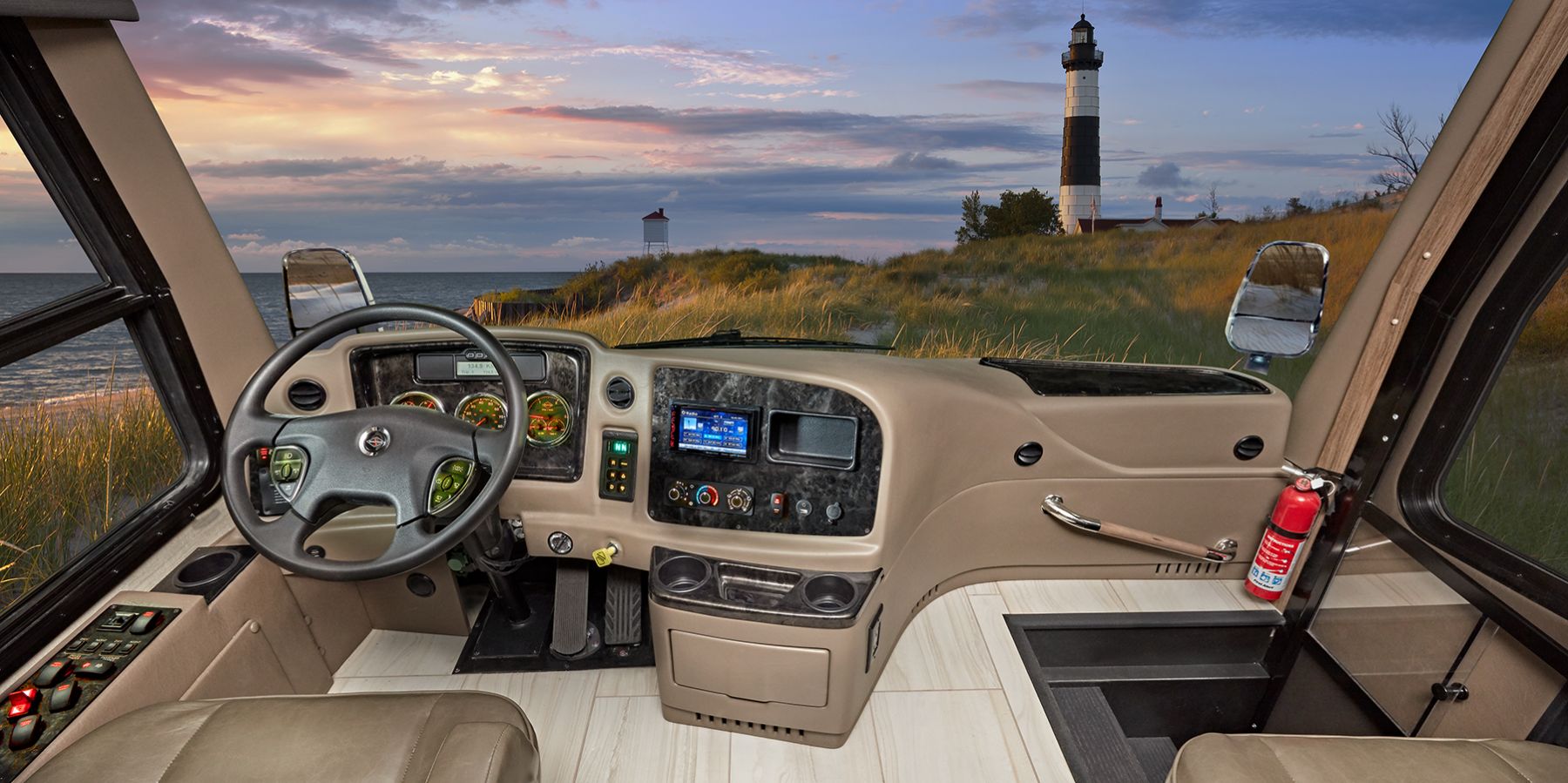

Standard Cockpit Amenities

  • Powered front sun visors and privacy shade
  • Power adjustable driver and passenger seats with 3-point belt
  • Tilt and telescoping steering wheel w/ integrated controls for cruise and wipers
  • Spartan Message Center with LCD display featuring: odometer, tachometer, fuel economy, fuel remaining, outside air temp., coolant temp., engine oil temp. and pressure, transmission temp., turbo boost pressure, air pressure, trip meter, speed and voltage
  • Sony 6.4" receiver
  • 2-6.5" speakers
  • Floor mounted foot pedals
  • Color side and rearview cameras
  • Dual USB ports

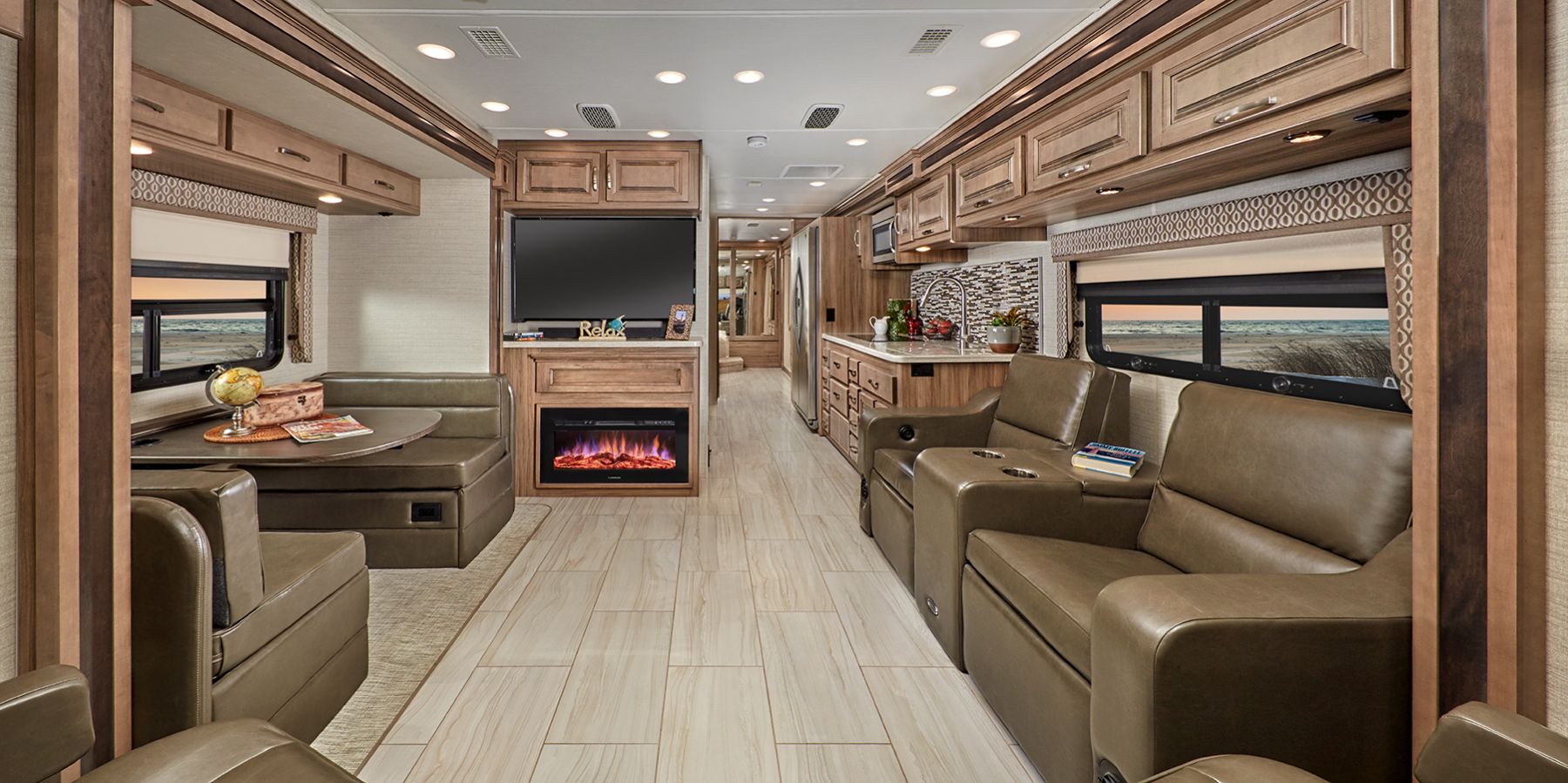

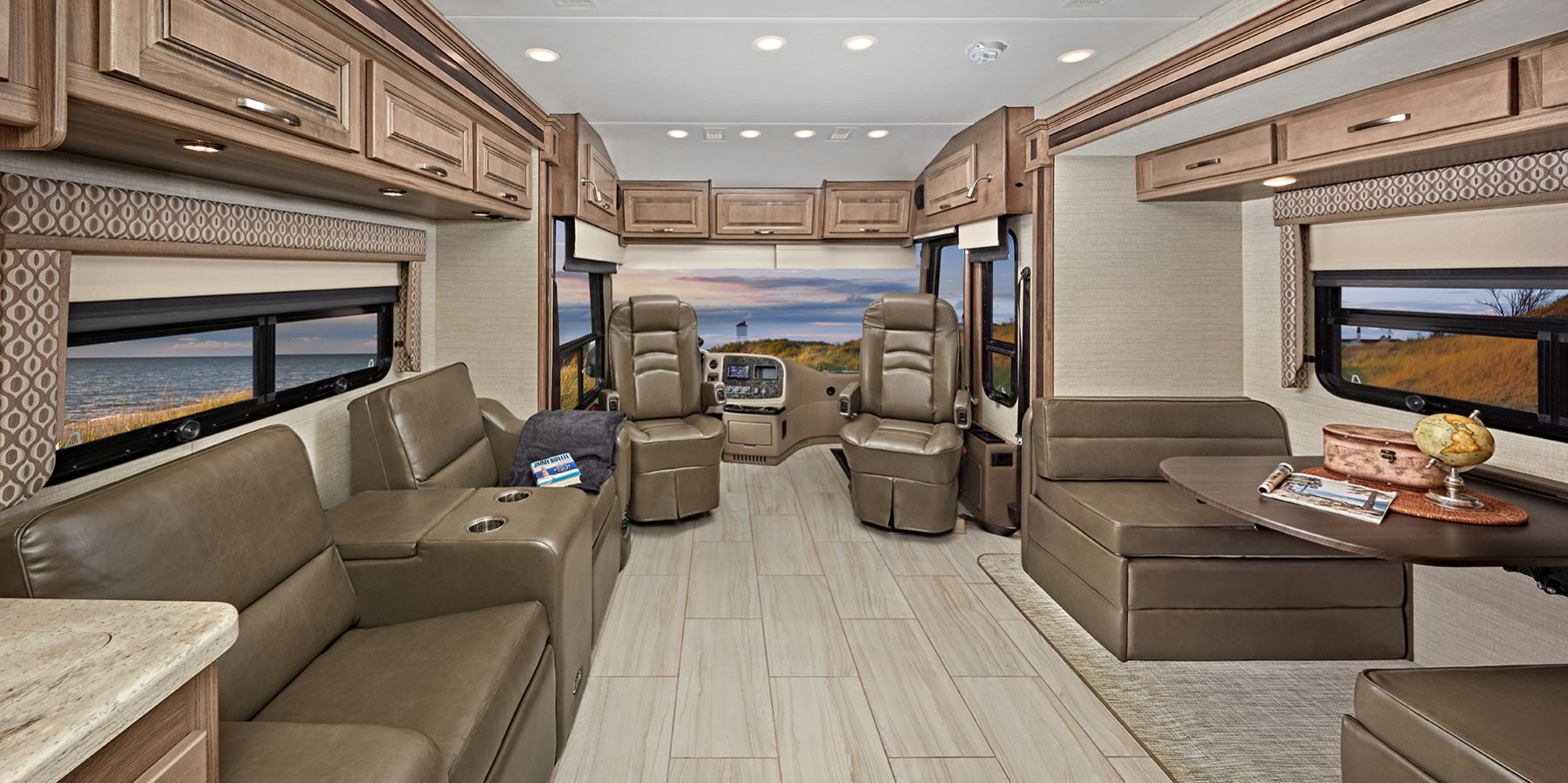

Standard Interior Equipment

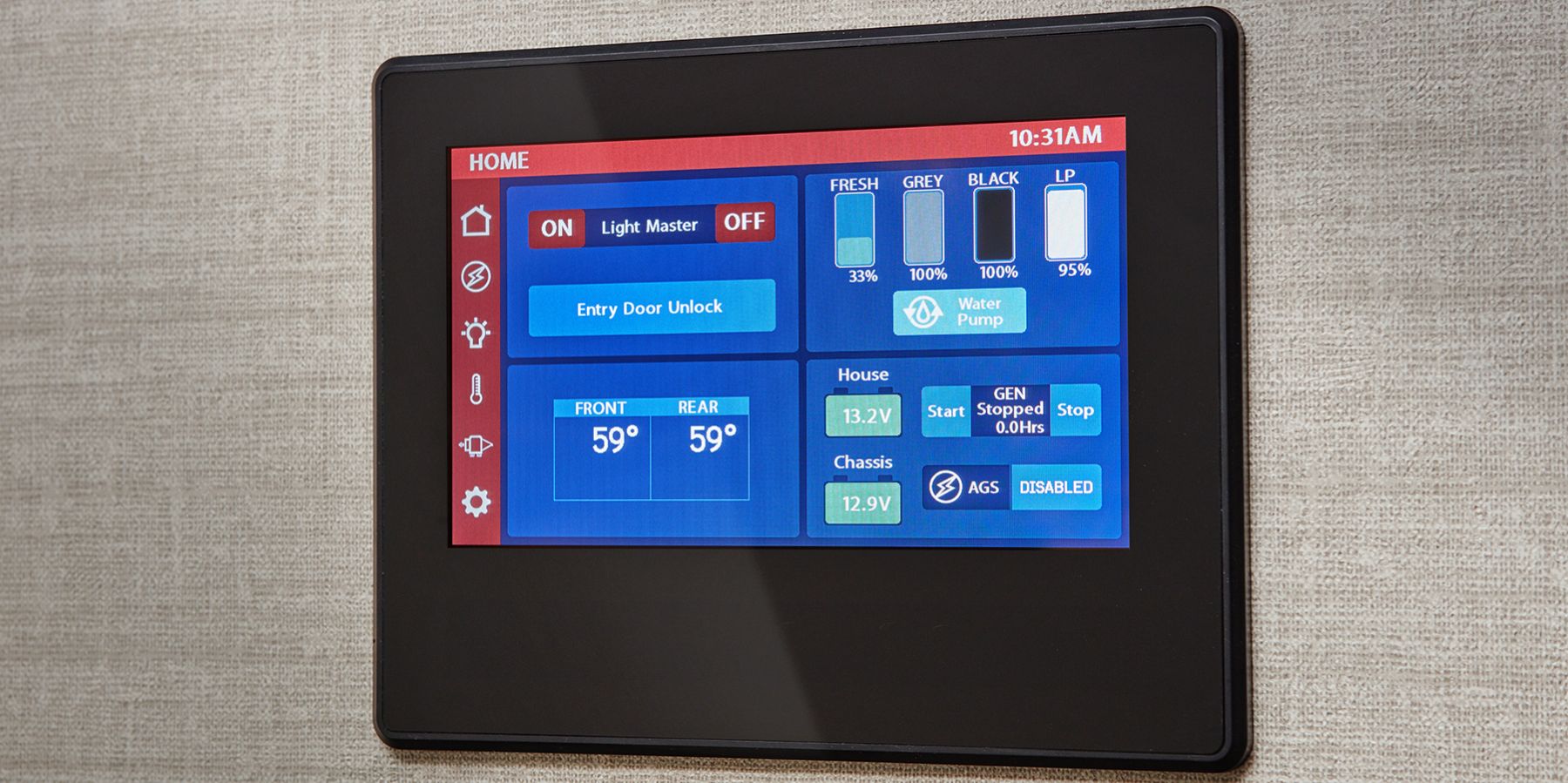

  • Touchpad system, for integration of coach controls
  • LED recessed 12V lighting
  • Polished tile flooring
  • Manual solar day and black out night shades
  • Insignia™ 50" LED HDTV in living area
  • Insignia sound bar in living room
  • Blu-Ray™ player in living area and bedroom

Standard Kitchen Equipment

  • Solid-surface countertops with stainless steel sink
  • Large deep drawer with waste basket
  • Induction cooktop
  • Frigidaire® 1.5 cu. ft. convection microwave oven
  • Whirlpool® residential refrigerator with ice maker and water dispenser
  • Power vent

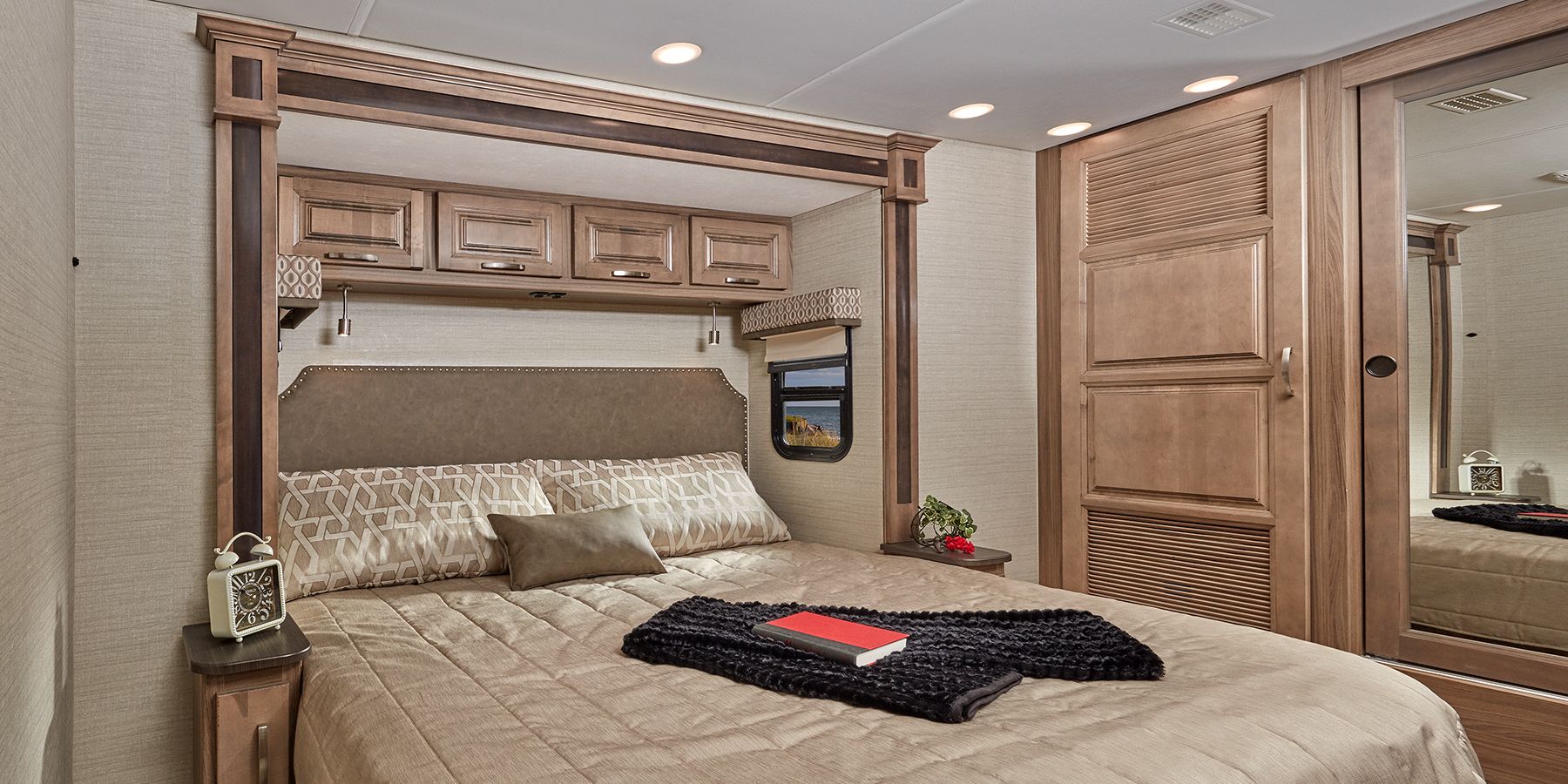

Standard Bedroom Equipment

  • King size, thick foam mattress (37MB)
  • King size, power head lift mattress (39BH/39T2)
  • Insignia 32" LED HDTV
  • Blue-Ray™ player in living area

Standard Bathroom Equipment

  • Solid-surface countertop with integrated sink
  • Thetford® Aqua Magic Style 2 toilet with foot flush
  • One-piece fiberglass shower w/ skylight
  • Power vent

Standard Safety Equipment

  • Security lights (3)
  • Smoke alarm
  • Carbon monoxide detector
  • Propane alarm
