2023 Embark

Starting at $407,400

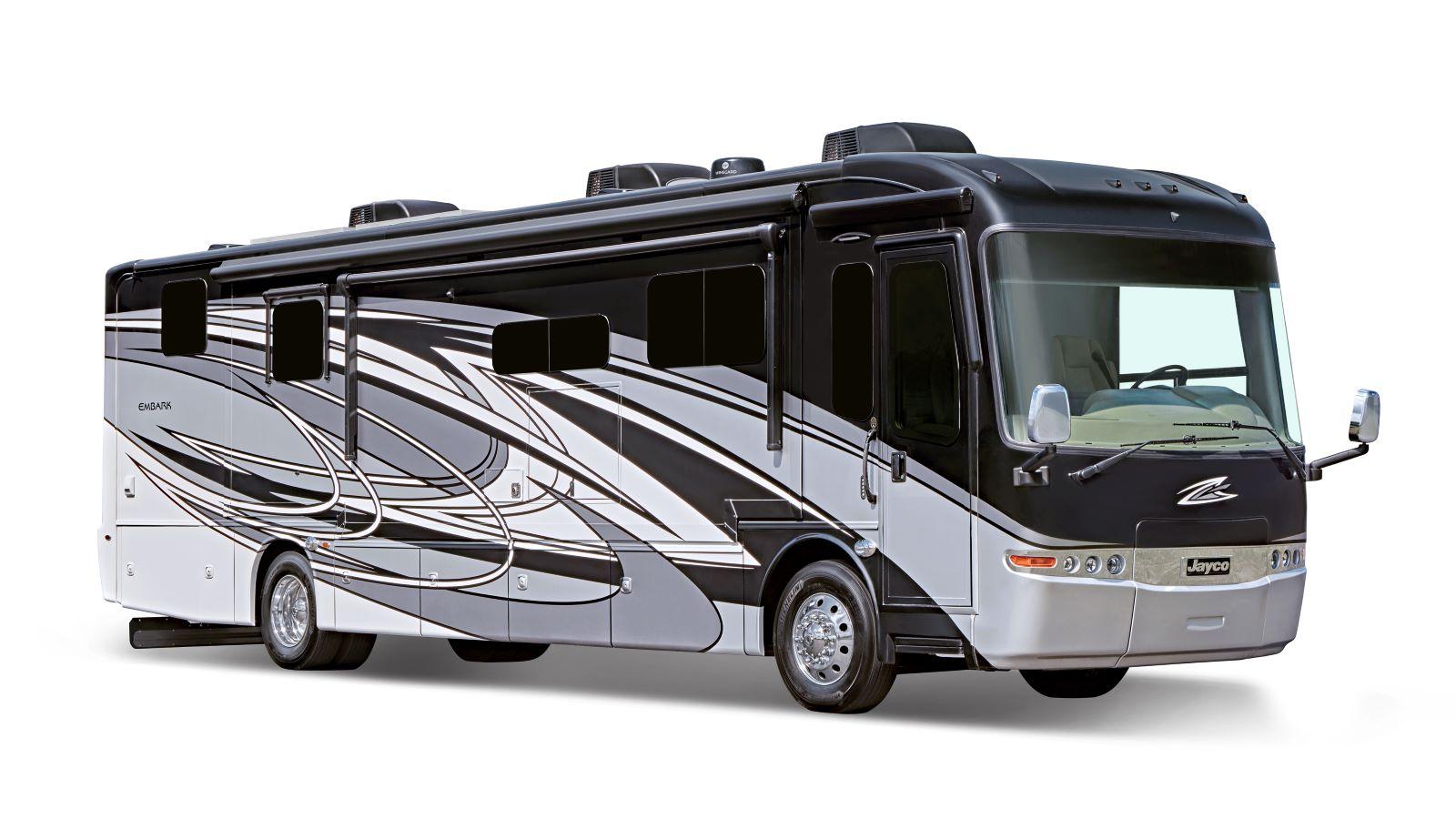

The Embark is one of the most accessible diesel pushers on the market. It’s built on an industry-leading K1 chassis with a turbocharged engine, features independent front suspension and our finest ride and handling package, JRide® Premium. Add full-body paint, lavish interiors, all the conveniences that matter most to seasoned travelers, and you have it all.

Embark

Embark Floorplans and Prices

The Embark Class A Motorhome has the space and function for groups of just about any size.

Starting at $407,400
Sleeps up to 7
Length 37' 10" - 39' 11"

Standard Features and Options

Standard Driving Equipment

  • Spartan® K1 raised-rail chassis
  • Cummins® B6.7 turbocharged 360 HP engine with 800 lb.-ft. torque at 1,800 RPM
  • Allison® 3,000 MH 6-speed transmission
  • Rear-mounted radiator
  • 170 amp alternator
  • 750W engine block heater
  • Variable geometry turbo (VGT) engine brake
  • Independent front air suspension (IFS) front axle- 12,600 lb. (37K) 14,320 lb. (39BH,39T2)
  • Rear axle - 20,000 lb. (37K) 22,000 lb (39BH,39T2)
  • 4.88 rear axle ratio
  • Michelin® 275/80R 22.5 in. tires
  • Bilstein® 46mm shocks
  • Wireless tire pressure monitoring system (TPMS) with temperature monitoring
  • Remote air connection
  • (2) 12V chassis batteries
  • 100 gal. fuel tank
  • 10 gal. DEF tank
  • Spartan® Safe Haul™ tow vehicle air brake system
  • 10,000 lb. hitch with 7-pin plug
  • Valid 12.3 in. digital dash with quad core graphics processor, on-board diagnostics, selector knob and ability to display traditional instrument cluster, 360° camera system or GPS navigation
  • Xite™ XSG4 infotainment system with 9 in. touchscreen, iGO navigation, Bluetooth®, Sirius XM™ and AM/FM tuner, integrated camera control and house mode whole-coach audio distribution
  • Steering wheel with integrated controls for cruise, wipers, radio and Bluetooth® phone functionality
  • Manual tilt and telescoping steering column
  • Ultra-Vision® one-piece wrap-around tinted windshield
  • 6-way power-adjustable driver and passenger seats with power recline
  • Powered flush stepwell cover
  • Powered adjustable brake and accelerator pedals
  • Powered front sun visors and privacy shades

Standard Exterior Equipment

  • Roof: One-piece fiberglass with 3/8 in. plywood decking, 4 in. arched aluminum trusses, insulation and reflective Flexfoil® (R-24)
  • Sidewalls: Vacuum-bonded, high-gloss gelcoat with R-8 bead-foam insulation
  • Floors: Vacuum-bonded layers of Darco underbelly, a welded aluminum frame, R-9 bead-foam insulation, 3/8" Structurwood® and 1/4" plywood
  • X-Bridge™ bracing welded into chassis frame
  • Heated basement storage
  • Insulated front and rear caps (R-24)
  • Steel-reinforced front cap and windshield frame
  • Electric-powered slideout rooms
  • (2) L16 AGM batteries (6V/390 amp hrs. ea.)
  • 50 amp power cord
  • Automatic transfer switch with surge protection
  • (2) 190W Go Power!® solar panels
  • 35,000 BTU furnace (37K) / (1) 20,000 and (1) 30,000 (39BH, 39T2)
  • Tankless gas water heater
  • 24.5 gal. propane tank
  • Sani-Con® macerator holding tank dump system with manual gate valves and manual backup
  • Black holding tank sprayer
  • City and tank water filtration system
  • Winterizing drain system
  • Carefree® power entrance door awning with LED lights
  • Carefree® slideout awnings
  • Carefree® window awnings
  • Frameless, dual-pane, tinted, safety-glass windows
  • Grab handle and keypad system for keyless entry
  • Heated, remote-control, side-view mirrors with integrated cameras
  • Diamond Shield™ front protective film mask
  • Halogen high and low beam headlights and fog lights
  • Daytime running lights
  • LED marker lights, turn lights, license plate light, third brake light, accent lights and docking lights
  • Porch light
  • Winegard® TRAV’LER satellite dish DIRECTV® - standard with USA option
  • Winegard® TRAV’LER satellite dish Shaw TV - standard with CSA option
  • Winegard Connect 2.0 Wi-Fi/4G antenna
  • Exterior utility center
  • Slideout basement storage tray
  • Sikkens custom full-body paint

Standard Interior Equipment

  • (2) dual USB ports and (2) 12V sockets for charging
  • JAYCOMMAND® powered by Firefly offers control of important coach features via LED touchscreen or mobile app
  • 50 in. Samsung® 4K UHD Smart TV
  • Samsung® sound bar with subwoofer
  • Sony® Blu-ray™ player
  • Premium furniture
  • Hand-laid, woodgrain porcelain tiled floors
  • LED interior lighting
  • Decorative ceiling feature with integrated accent lighting
  • LED-lit fireplace with 5,000 BTU heating element (37K only)
  • Central vacuum system
  • Removable screen on entry door
  • Window with push-out lever operation and screen
  • Whirlpool® stainless-steel residential refrigerator with ice maker and water dispenser
  • Induction cooktop
  • 1.5 cu. ft. convection microwave oven

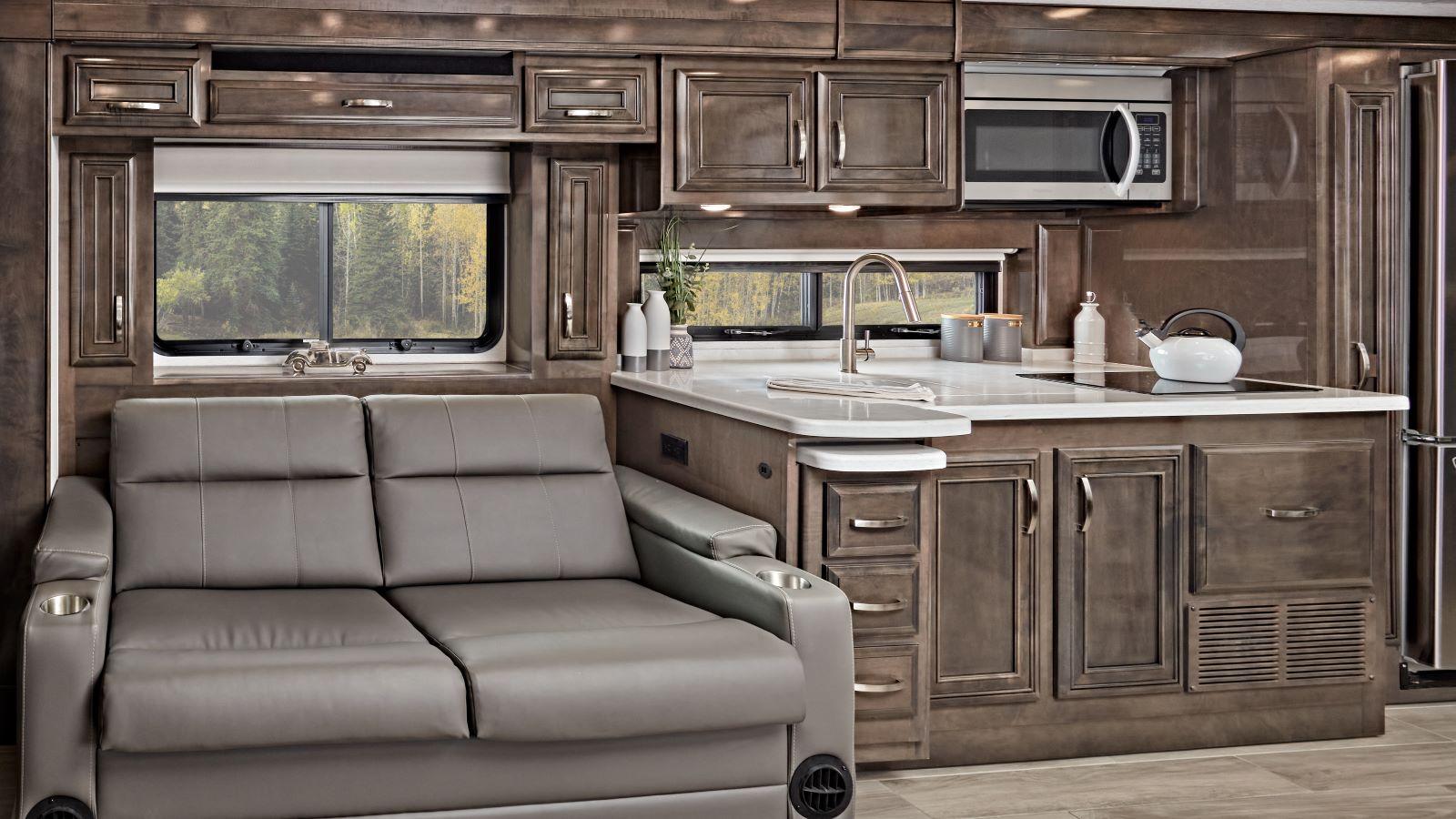

  • Solid-surface countertops with stainless steel sink
  • Fan-Tastic power exhaust fan with intake
  • King-size pillow-top mattress on tilt bed
  • 32 in. Samsung® LED 1080P Smart TV
  • Sony® Blu-ray™ player
  • Solid-surface countertops with integrated sink
  • One-piece fiberglass shower with skylight
  • Aqua View SHOWERMI$ER™ water saving system
  • Thetford® Aqua Magic toilet with foot flush
  • Fan-Tastic power exhaust fan with intake

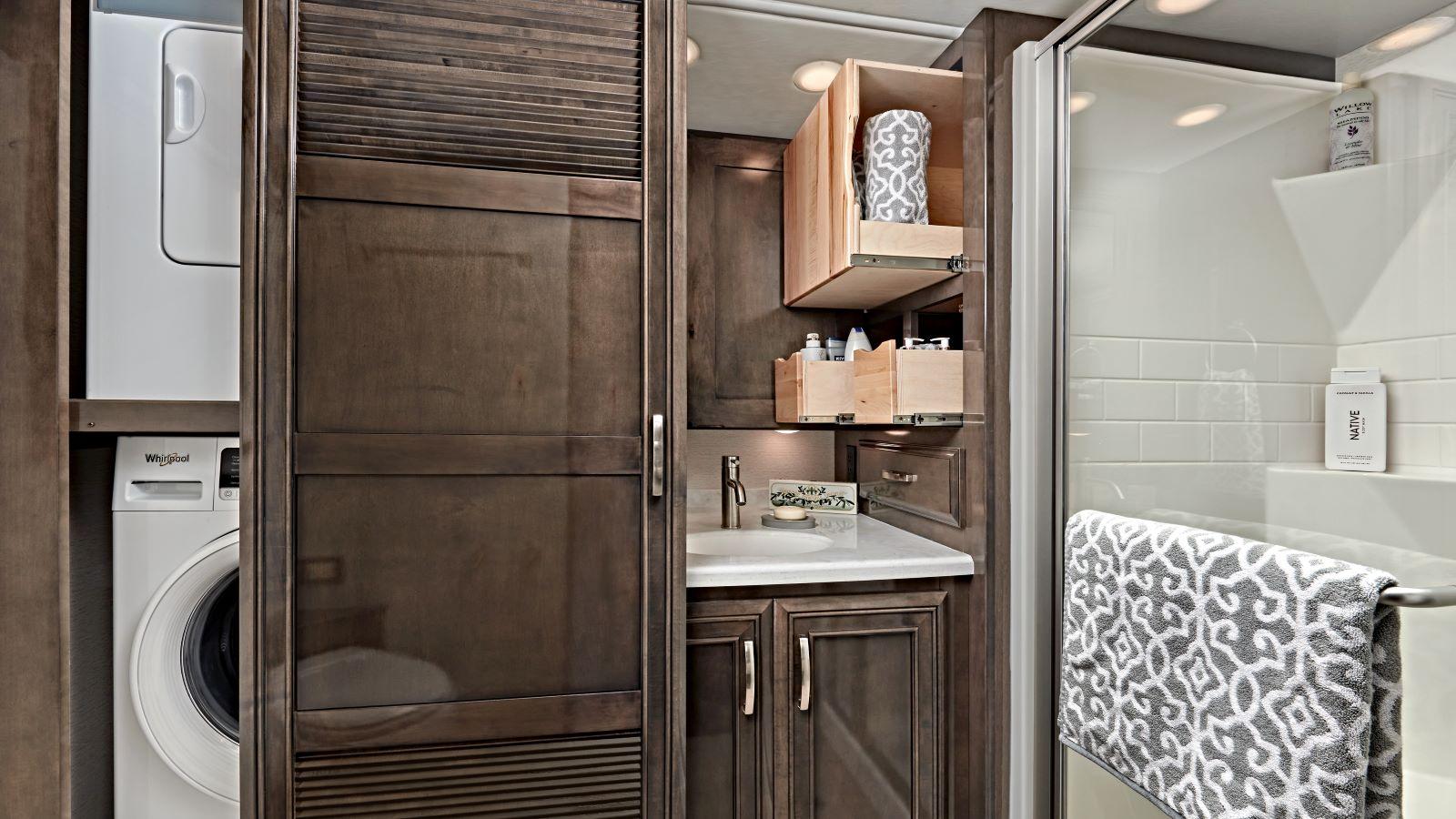

  • Whirlpool® stacked washer and dryer
  • Combination carbon monoxide detector and LP gas alarm
  • Smoke alarm

Customer Value Package (Mandatory)

  • Onan® 8,000W diesel generator, with automatic start, on slide-out tray
  • 2,000W pure sine wave inverter with 100 amp battery charger
  • (3) 15,000 BTU A/C units with heat pumps [(2) 15,000 BTU units with heat pumps on 37K]
  • Equalizer™ hydraulic automatic coach leveling
  • Xite™ 360° HD digital camera system

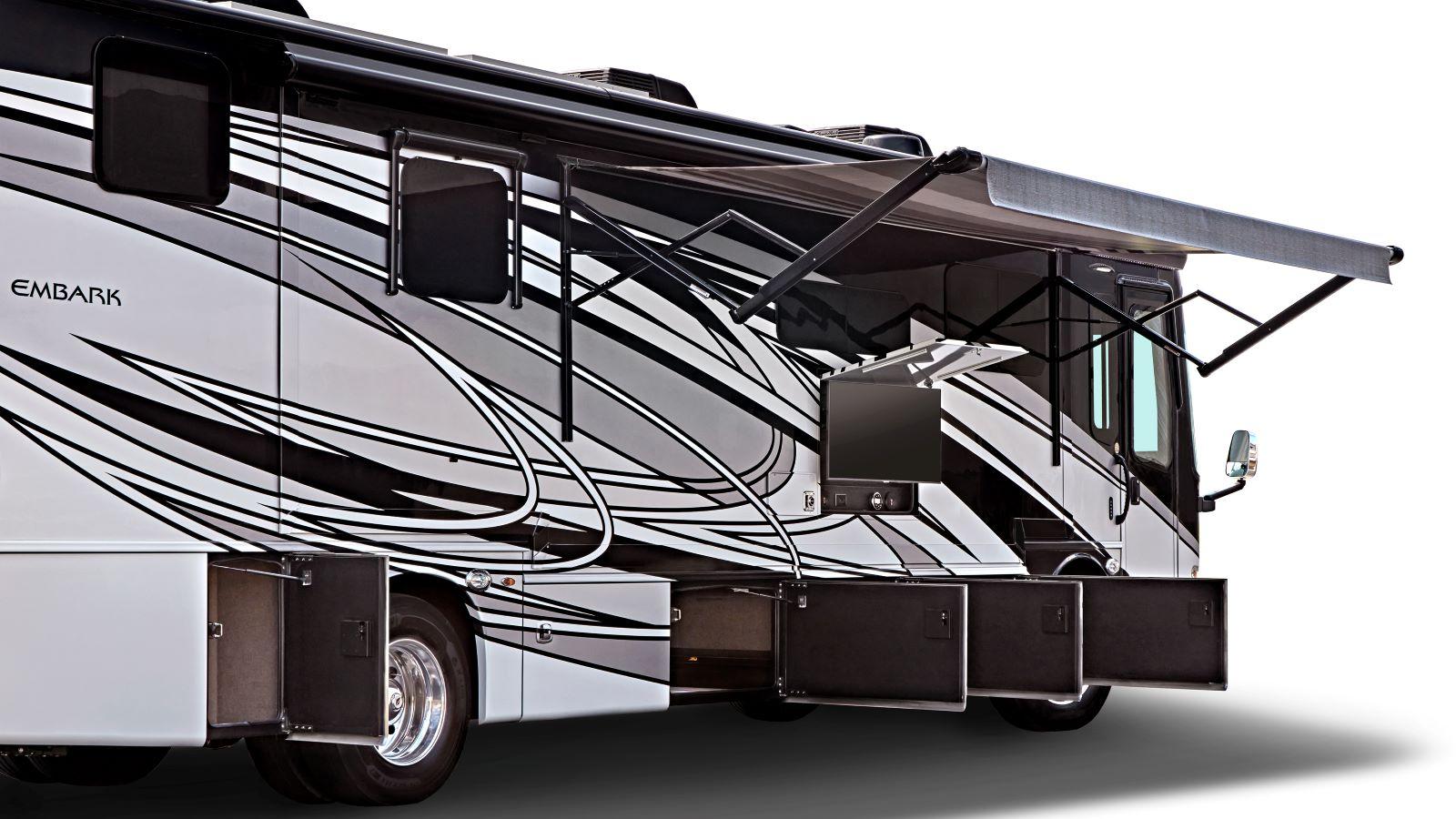

  • Carefree® power patio awning with LED lights
  • 43 in. Samsung® 4K UHD Smart TV with tilt, swivel, and extend adjustment
  • JBL radio and speakers with USB port and receptacle
  • Manual solar day shades and blackout night shades

Options

  • Canadian standards (CSA)
  • Theater seating with power recliners (39BH)
  • Winegard® in-motion satellite dome
  • Winegard® TRAV’LER satellite dish Dish Network®

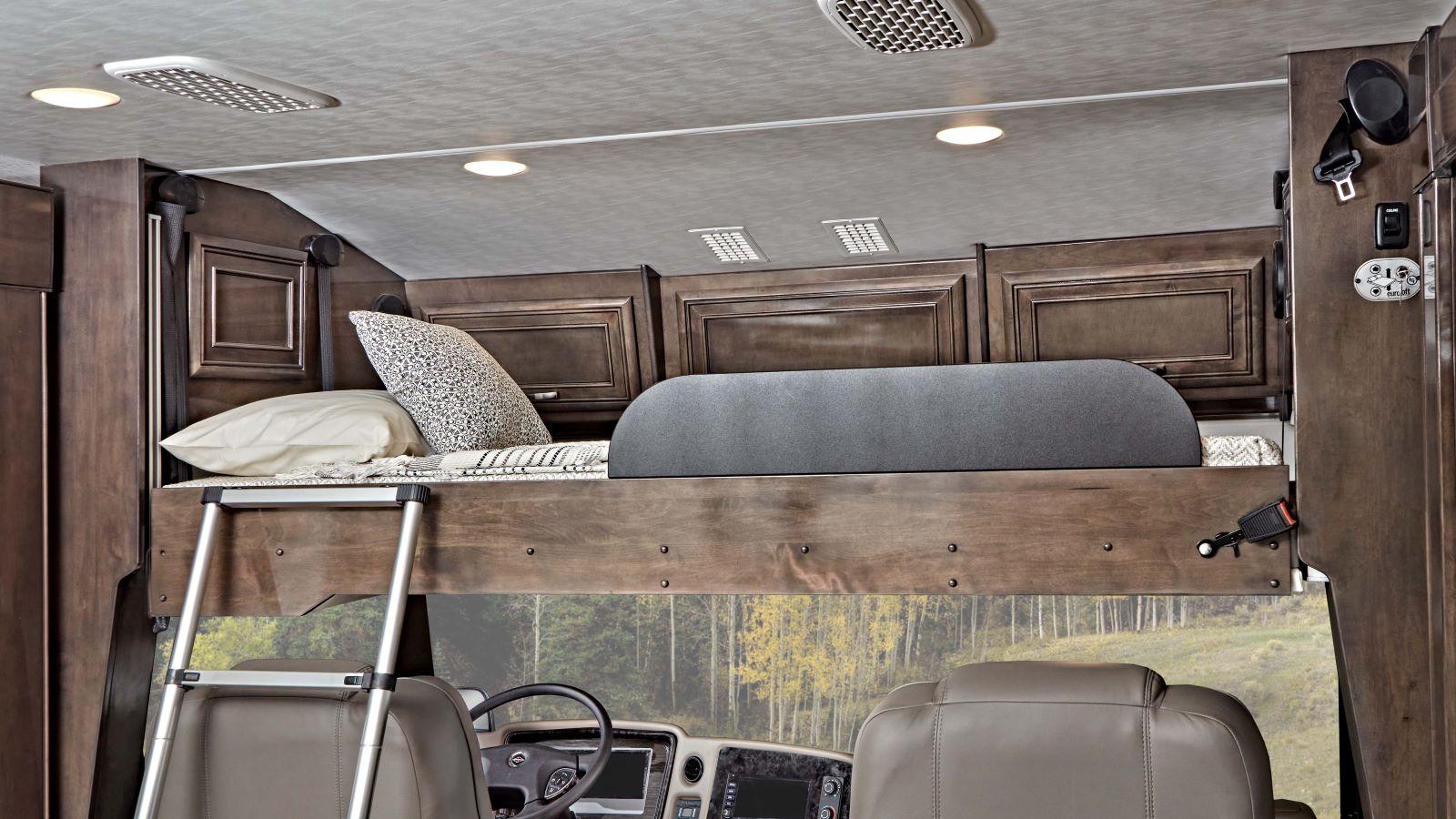

  • Drop-down overhead bunk in cab area with 750 lb. capacity

Standard Features
and Options

JRide<sup>®</sup>
Stronghold VBL™ Lamination
Solar Power
One-Piece Seamless Front Cap
Incredible Bunk Ratings
JAYCOMMAND<sup>®</sup>
Seatbelts in All Designated Seating Locations

JRide®

We engineer each motorhome with several specific enhancements for a powerful blend of precise handling and renowned stability on the road. Because the journey should be as exciting as the destination.

Learn more »

Stronghold VBL™ Lamination

Every sidewall, rear wall and slide room wall is bonded together for a minimum of 16 minutes under 144 tons of pressure to create the lightest, yet strongest, construction available in the RV industry.

Learn more »

Solar Power

Jayco is one of the first companies to offer solar prep, or solar panels, on every single motorhome.  With sidewall or roof-mounted prep kits, you have the option to easily install solar panels, or additional panels if already solar equipped, for extra power at your camp.

Learn more »

One-Piece Seamless Front Cap

An RVs front cap bears a lot of the brunt of the road. The one-piece, seamless front cap resists wear and tear like fading or moisture damage over the years.

Learn more »

Incredible Bunk Ratings

Go ahead and bring another traveler or some extra gear. With an overhead bunk capacity of 750 lbs., Jayco beats the industry standard by 300lbs. On top of that, Jayco offers a 300 lb. capacity in each standard bunk.

Learn more »

JAYCOMMAND®

This system puts you in full control of your Jayco. Custom-built by our product development team and our partners, you can monitor and control key operations from just about anywhere on a phone or tablet.

Learn more »

Seatbelts in All Designated Seating Locations

To help you keep you most precious cargo safe as you roll on down the road, we install seatbelts in every designated seating location.

Learn more »

Superior Construction Elements

(Click on number for more information)

Cutouts
1
2
3
4
5
6
7
8
9
10
11

Every Spartan® chassis comes with a best-in-class 3-year/50,000-mile transferable warranty, with no deductibles.
Spartan® chassis also boasts an industry-best, 20-year transferable warranty on the frame as well as a Cummins®
5-year/100,000-mile engine warranty and an Allison® 5-year/200,000-mile transmission warranty.
Included in the limited warranty is roadside assistance provided by Coach-Net.

Our exclusive X-Bridge™ frame adds even more floor strength and structural rigidity, eliminating chassis flex and twisting;
with it, the suspension—not the chassis—absorbs road shock and vibration.

Designed to increase strength and durability while simultaneously reducing weight, our TuffShell vacuum-bond
lamination process is a superior construction process. Every sidewall, rear wall and slide room wall is bonded together
for a minimum of 16 minutes under 144 tons of pressure to create the lightest, yet strongest, construction available in
the RV industry.

Designed specifically for luxury motorcoaches by Bilstein®, these shocks have 228% more surface area than twin-tube
shocks for greater sensitivity and control. They virtually eliminate excessive sway and self-adjust.

Tire pressure monitoring systems are extremely valuable in monitoring tire health for a safe journey. Embark goes a step beyond the competition by providing the ability to toggle between tire pressure and temperature monitoring on the digital dashboard.

Embark is the only coach in its class to feature IFS vs. standard I-beam suspension. This premium
feature reduces road shock and delivers the best ride in the industry.

Integrated into the Embark's digital dash are a 360° camera and TPMS with temperature monitoring.

This coach command center, powered by Firefly, offers control of important coach features via 7 in. LED touchscreen or mobile app

At 120 in., the Embark's windshield is the largest in the industry. Not only does this provide a great view, but it also increases visibility and results in safer travel. Oversized wiper blades add to the safety factor by keeping your view clear in all weather. Fun fact: our windshields are manufactured in Turkey, home of the world's finest sand, to eliminate any distortion in the curved portions of the glass. This windshield delivers the best possible view of the road ahead.

Every other manufacturer in the motorhome industry tiles their entire floor prior to installing their cabinets and interior walls. This results in driving screws down through the tile, which causes squeaks and creaks over time. In the Embark, we take a residential approach by installing cabinetry and interior walls directly onto the wood subfloor. We then hand-tile around cabinetry. This takes more time on the production line, but we take that extra time to ensure Embark owners have the quietest drive possible.
