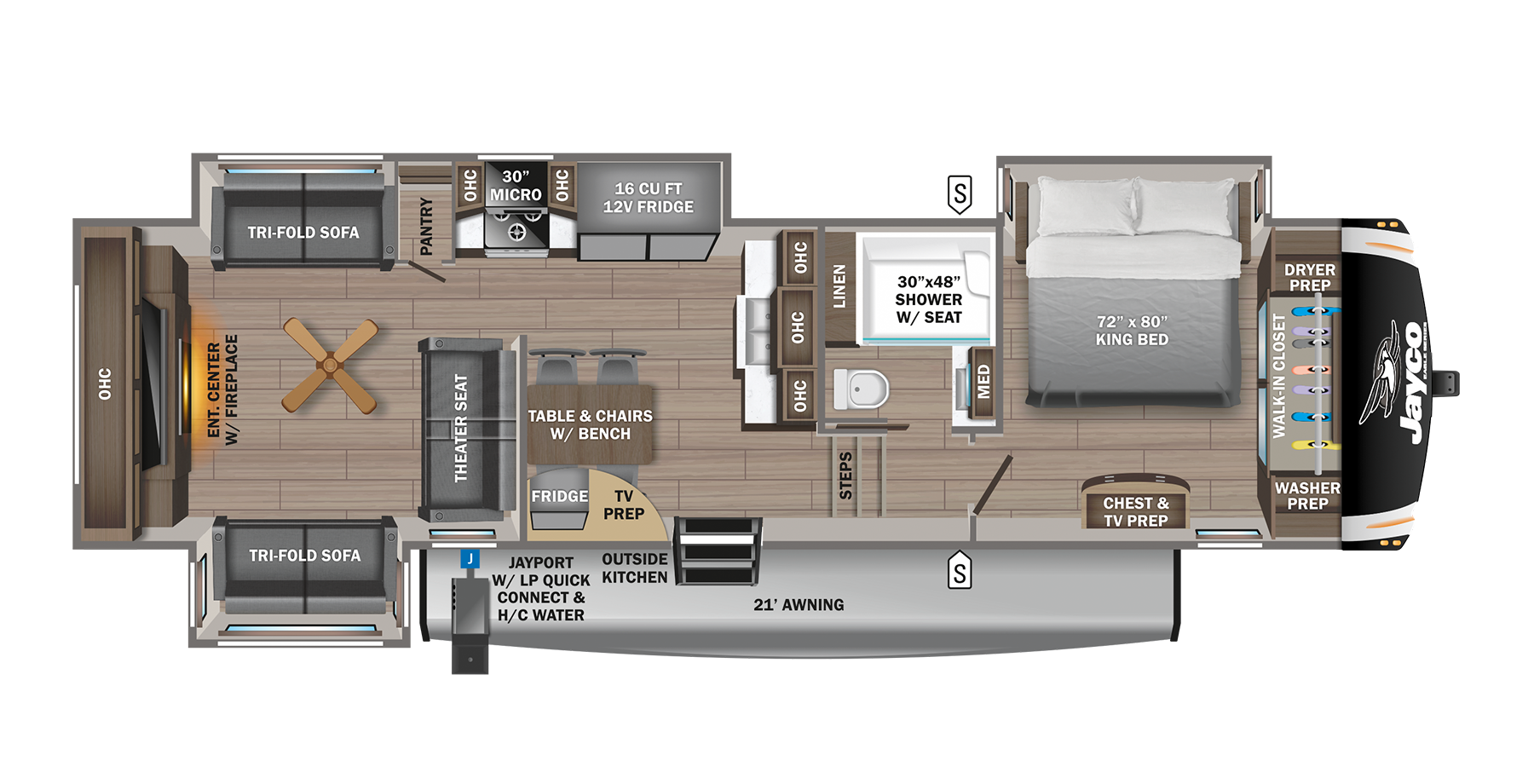

See Floorplan with
Specifications
Weights
Dry Hitch Weight (lbs) | 2,445 |
Unloaded Vehicle Weight (lbs) | 13,455 |
Cargo Carrying Capacity (lbs) | 2,770 |
Gross Vehicle Weight Rating (lbs) | 16,225 |
Measurements
Exterior Length (overall) | 37' 11" |
Exterior Length (pin to bumper) | 36' 2" |
Exterior Height | 12' 7" |
Exterior Height (with A/C) | 13' 5" |
Exterior Height (with 2nd A/C) | 13' 5" |
Exterior Width | 8' 6" |
Exterior Width (with slides out) | 14' 6" |
Interior Height (main) | 8' 5" |
Interior Height (upper deck) | 6' 7" |
Awning Length | 16' 0" |
Awning Length 2 | 11' 0" |
Tank Capacities
Fresh Water Capacity (gals) | 75.0 |
Gray Water Capacity (gals) | 87.0 |
Black Tank Capacity (gals) | 50.0 |
Propane Unit (lbs) | 120 |
Miscellaneous
Sleeps | up to 5 |
Water Heater | 16 |
# of outside storage compartments | 1 |
Furnace BTU | 40000 |
Tire Size | 215/75R17.5'H' |
2024 North Point
Starting at $110,775
From the top to bottom, Jayco’s North Point Fifth Wheel uses superior construction and materials to provide safety and security on the road. The Magnum Truss XL6 roof rafter system is the strongest tested roof in the industry and is constructed out of a one-piece seamless roof material with a 20 year warranty. The 5 star handling package featured 17.5-inch "H" rated Uniroyal tires, MORryde rubber pin box, Dexter axles, ABS and tow assist braking system.
