2024 North Point

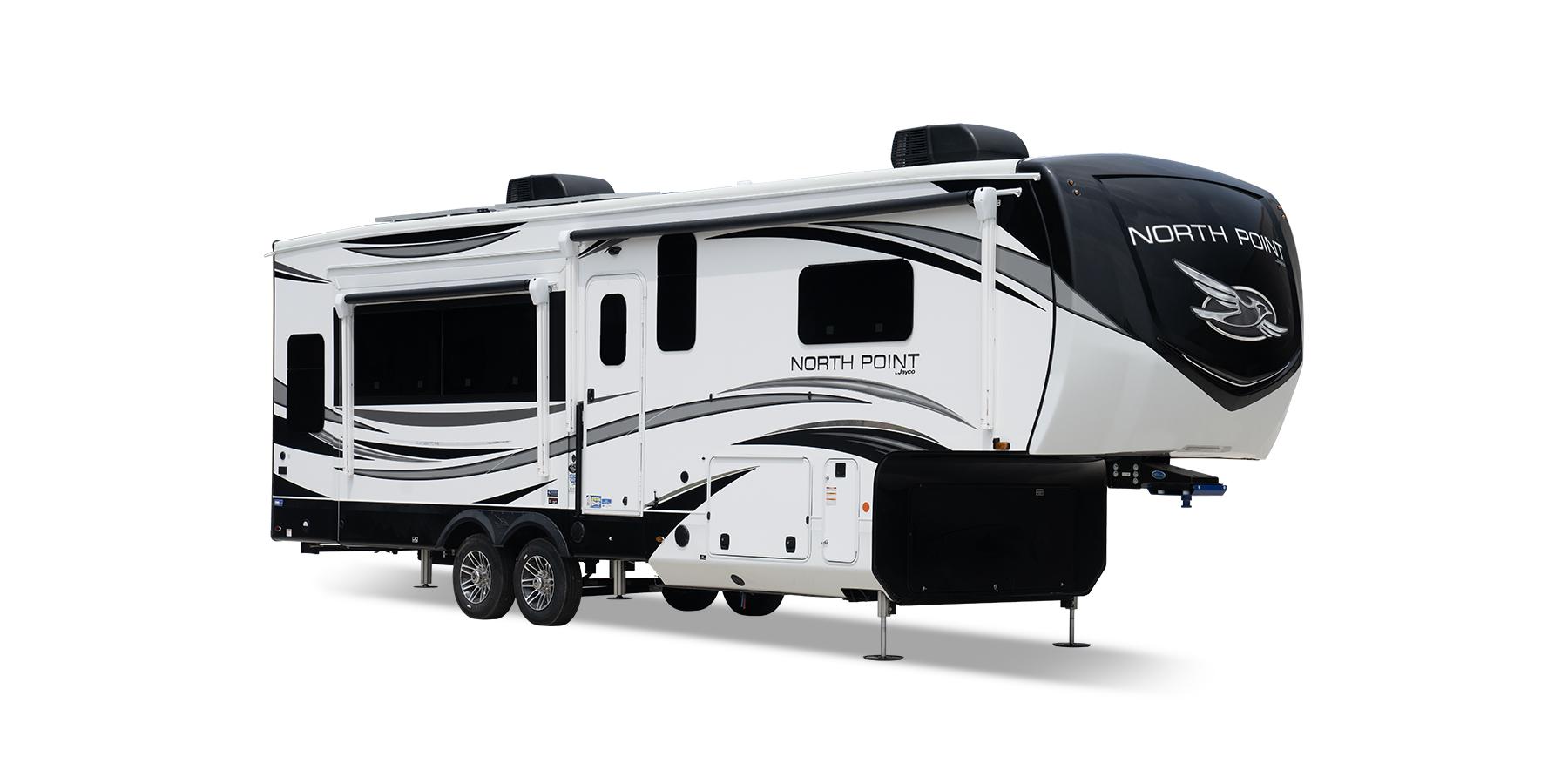

From the top to bottom, Jayco’s North Point Fifth Wheel uses superior construction and materials to provide safety and security on the road. The Magnum Truss XL6 roof rafter system is the strongest tested roof in the industry and is constructed out of a one-piece seamless roof material with a 20 year warranty. The 5 star handling package featured 17.5-inch "H" rated Uniroyal tires, MORryde rubber pin box, Dexter axles, ABS and tow assist braking system.

North Point

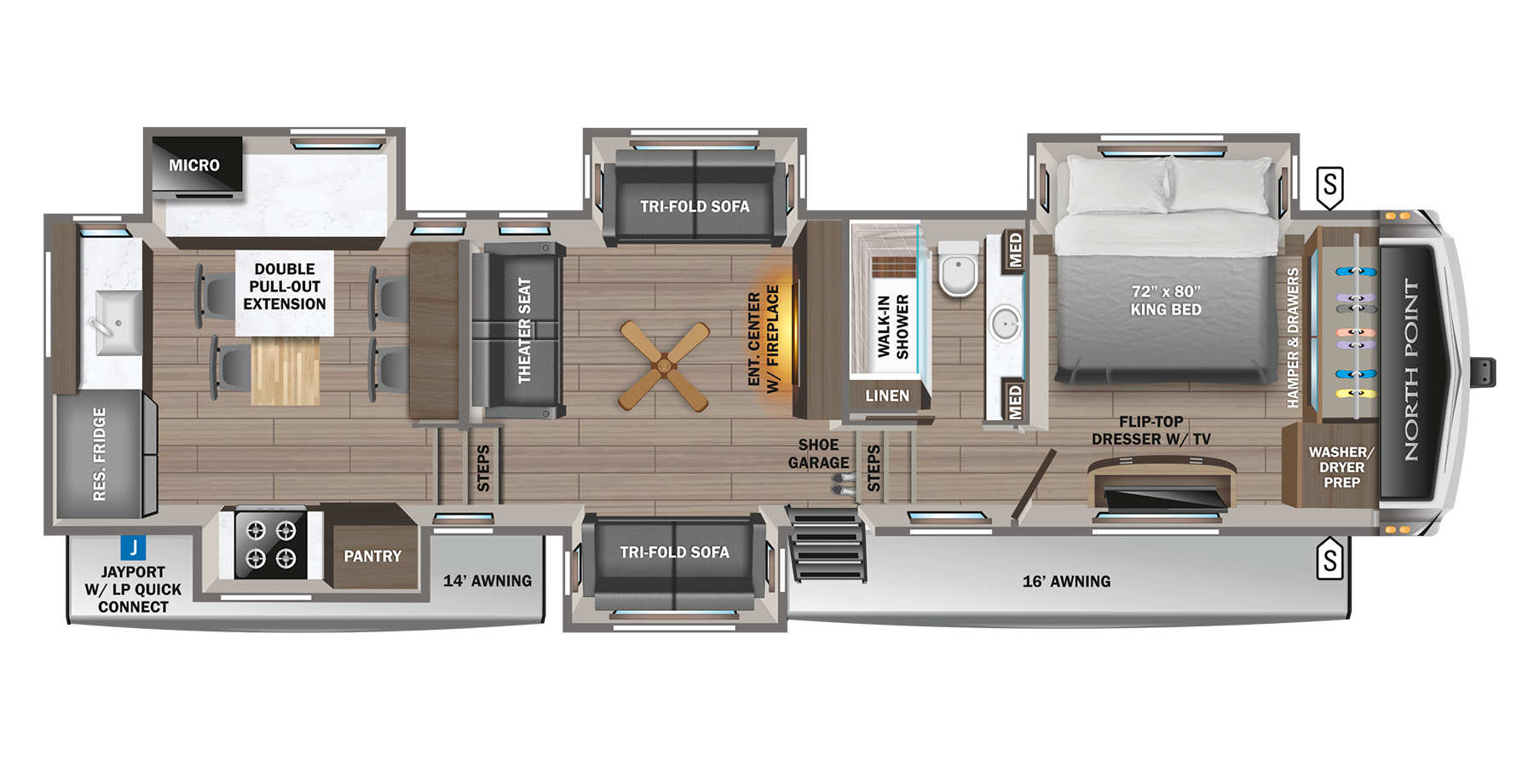

North Point Floorplans and Prices

New to North Point floorplans this year is the GE residential appliance package featuring a microwave with a built-in air fryer. Other amenities include a walk-in shower with teak seat, 102-inch wide-body design and dual whisper quiet A/Cs with the Jayco exclusive Helix A/C system.

Sleeps up to 10
Length 36' 0" - 43' 10"
Weight 12,885 - 15,835 lbs.

Standard Features and Options

Standard Exterior Equipment

  • (3) 40 lb. propane bottles with auto regulator (120 lb. max LP system)
  • 102 in. wide body construction
  • 12 in. structural steel I-beam with 10 in. steel drop frame
  • 3,000 lb. tow hitch with 4-way pin (N/A 390CKDS)
  • Battery disconnect
  • Built in sewer hose carrier
  • Climate Shield™ zero-degree tested weather protection:
    • 40,000 BTU output furnace
    • Double layer fiberglass batt insulation (roof and floor)
    • Fully-enclosed and heated underbelly (ducted)
    • PEX plumbing, 2 in. block foam and reflective foil
  • Custom automotive-grade vinyl exterior graphics package
  • Digital TV antenna with Wi-Fi extender
  • Exterior marine-grade speakers with Bluetooth® controller
  • Frameless, dark tinted, safety-glass windows
  • Fully enclosed, universal docking center:
    • Black tank flush
    • Independent satellite wiring
    • Quick-connect outside shower
    • Selectable water connections
    • Whole coach cable hookups
    • Winterization and sanitation
  • Inverter pre-wire to select outlets
  • JayPort system for outside griddle (all floorplans without a standard outside kitchen)
  • JaySMART™ (Safety Markers And Reverse Travel) LED lighting (patented)
  • LED exterior lighting package
  • Magnum Truss™ XL6™ Roof System (strongest tested roof in the industry) with Alpha roof membrane system with limited lifetime warranty
  • Painted fiberglass front cap with clear coat and built-in specialty LED lighting
  • Pass-through storage with Slam-latch™ baggage doors
  • Skirt metal enclosed drop frame
  • Stronghold VBL™ aluminum framed and vacuum bond laminated gelcoated fiberglass exterior walls (including rear wall and slide room end walls)
  • Under-mounted spare tire
  • Water heater bypass

Standard Interior Equipment

  • 5/8 in. tongue-and-groove joined plywood floor decking
  • Bathroom skylight
  • Built-in laundry hamper in wardrobe (select models)
  • Carbon monoxide and LP detector
  • Ceiling fan (select models)
  • CPAP prepped bedroom
  • Dual USB charging ports throughout
  • Extra 120V power outlets in kitchen and slide rooms
  • Flip-up countertop extension with 24 in. x 24 in. butcher block bar top (select models)
  • Flip-up hidden storage in bedroom chest of drawers (select models)
  • Flip-up tabletop storage next to tri-fold sofa (select models)
  • Gas-strutted under-bed storage
  • Handcrafted hardwood glazed doors and drawers
  • JayVoice voice command system- controls lighting, A/C and furnace
  • LED accent lighting above slideouts
  • LED backlit custom framed mirror and medicine cabinet
  • LED interior lighting throughout
  • Porcelain toilet with foot flush
  • Pull-out spice rack above microwave (select models)
  • Pull-out utility drawer under kitchen sink
  • Residential quilted bedspread and pillow shams
  • Residential-grade, pull-out kitchen faucet
  • “Shoe garage” in hallway step (select models)
  • Soft close, heavy-duty, 75 lb. full-extension, steel ball-bearing drawer guides
  • Solid hardwood slide fascia
  • Stainless steel kitchen sink
  • Toe kick nightlights in bedroom and bathroom
  • Tri-fold hide-a-bed sofa with residential sleep surface (select models)
  • True interior design (Modern Farmhouse)
  • Vessel bowl sink with high rise faucet in main bathroom
  • Vinyl flooring (made in the USA) throughout (includes slideout floors)

Customer Value Package (Mandatory)

  • 15,000 BTU “Whisper Quiet” A/C (main)
  • 15,000 BTU “Whisper Quiet” A/C (bedroom)
  • 16 gal. gas/electric DSI water heater
  • 50 in. 4K Smart LED HDTV with fully digital HDMI® output and two extra HDMI cables
  • Backup, main entrance door and side observation security camera prep (includes a power switch in the bedroom to use the optional 7 in. monitor for security)
  • Custom machined aluminum rims
  • Electric patio awning with integrated LED lights
  • Hidden hinges on cabinet doors
  • JBL® home entertainment system with sound bar and subwoofer
  • Keyed-Alike™ lock system (single key for all doors/locks)
  • MORryde Safe-T-Rail grab handle
  • Residential king (72 in. x 80 in.) mattress with under-bed storage
  • Rooftop and ground solar prep
  • Tire pressure monitoring system
  • Wireless remote control system (includes Bluetooth® wireless controls) with dimmer switches

5 Star Handling Package (Mandatory)

  • 17.5 in. 16 ply 'H' rated Uniroyal tires
  • Dexter® Axles with ABS and Tow Assist - includes Nev-R-Adjust® brakes and E-Z Lube® hubs
  • MORryde® CRE-3000™ rubberized suspension
  • MORryde® rubber pin box
  • Wet bolt fasteners, bronze bushings and 4,000 lb. leaf springs

Luxury Package (Mandatory)

  • 2nd electric patio awning with integrated LED lights
  • 32 in. 4K Smart bedroom TV
  • 6-point hydraulic auto-leveling system
  • Cellular prep for 4G WiFi repeater and JAYCOMMAND® “Smart RV” system
  • Central vacuum system with dust port
  • Frameless dark tinted safety-glass windows
  • Free-standing (no pedestal) table with leaf and (2) free-standing and (2) folding chairs
  • Fresh Water Drinking System (patented) (connects to ice maker)
  • GE 21 cu. ft. residential refrigerator with 1800W inverter
  • GE Profile Series 30 in. residential convection microwave with built in air fryer
  • GE Profile Series residential 24 in. range (3.7 cu. ft. with 9100 BTU high output burner)
  • High gloss gelcoated sidewalls
  • JAYCOMMAND® “Smart RV” system
  • LED fireplace with electric space heater
  • MORryde® StepAbove™ entrance steps with strut assist (main entrance)
  • Oversized multi-battery compartment (industry leading room for 4-6 batteries)
  • Privacy roller shades

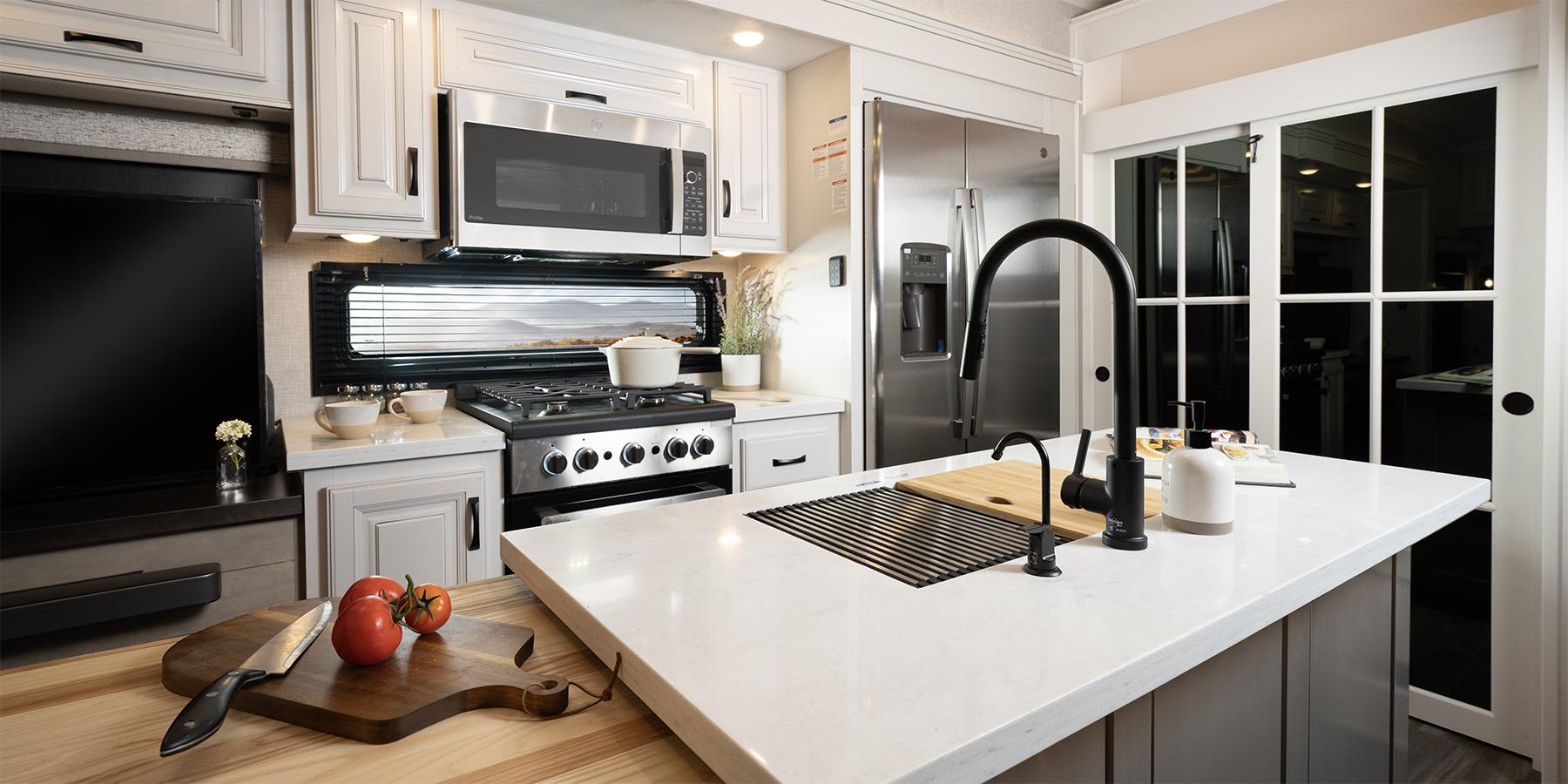

  • Residential solid-surface kitchen countertop with bamboo sink cover and strainer

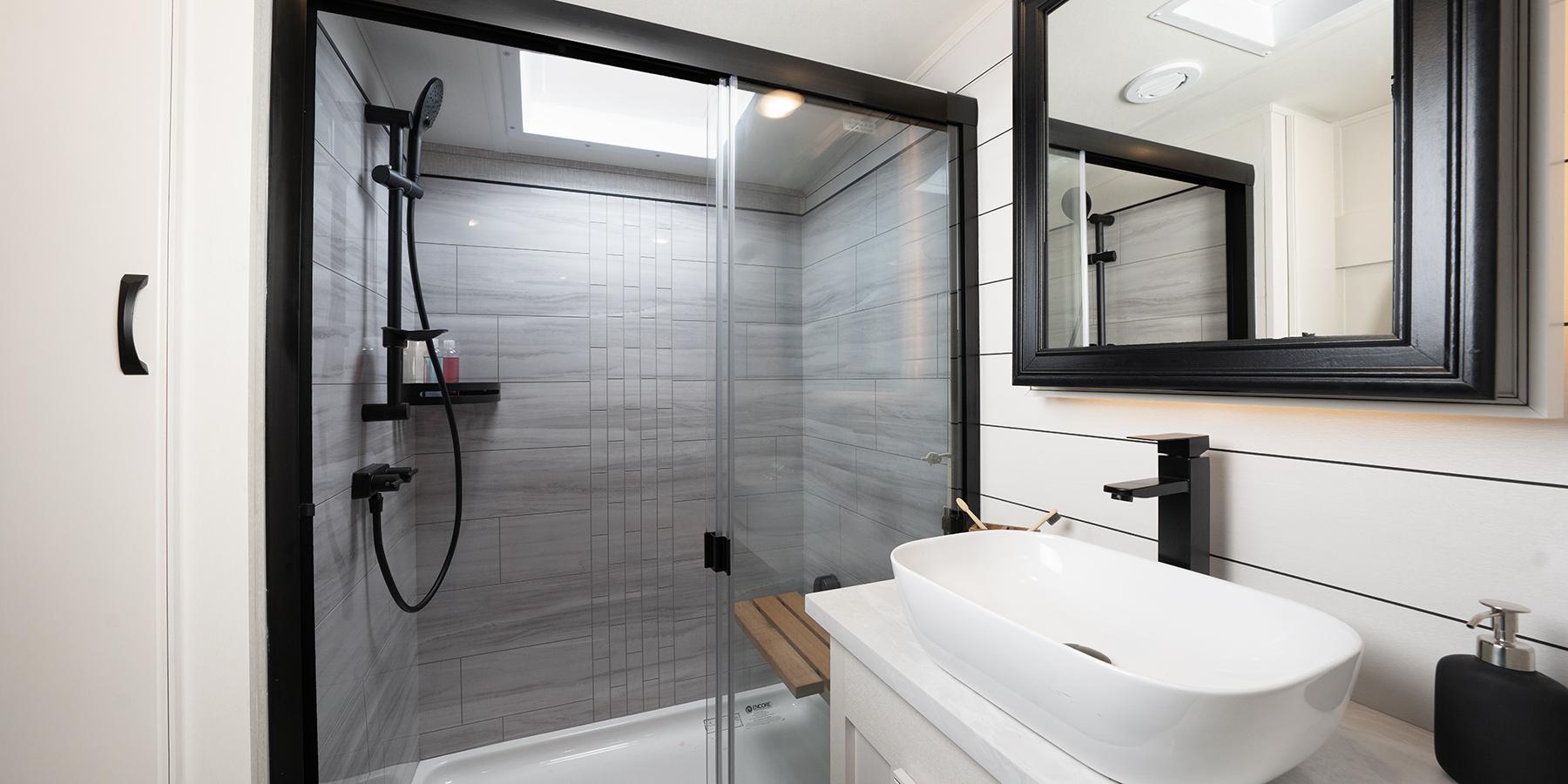

  • Residential walk-in shower with shampoo/soap holder and teak seat
  • Washer/dryer prep

Options

  • 20 cu. ft. 12V refrigerator
  • 39 in. 4K Smart TV in cargo area
  • 3rd 15,000 BTU ducted A/C
  • 5,500W Onan® Microquiet generator
  • 7K hydraulic disc brake package (ABS N/A with disc brakes)
  • 8K hydraulic disc brake package (ABS N/A with disc brakes)
  • Customer Value Package: 15,000 BTU central air with heat pump
  • Extreme Weather Package: 120V heated holding tank pads and 12V wrapped and heated fresh water line
  • Frameless dual pane tinted safety-glass windows
  • Generator prep
  • MORryde independent suspension with 8K axles and disc brakes (ABS not available)
  • Outside griddle for JayPort system (includes LP quick-connect) (310RLTS, 380RKGS)
  • Overlander 2 Solar Package: 30-amp controller, 1800W inverter and (2) 200W solar panels
  • Overlander 4 Solar Package: (4) 200W solar panels, (2) 100-amp/hour lithium heated batteries, 60-amp controller, 3000W inverter, DC/DC power converter, soft start power save main 15K A/C, soft start power save for bedroom 15K A/C, battery monitor, energy management system, roof pre-wire for additional solar panels, generator prep capable and heavy gauge steel battery enclosure
  • Overlander EXT Solar Package: 3,000W inverter/charger with internal 50-amp transfer switch, energy management system, (6) solar panels with 200W each, (6) 100-amp/hour lithium heated batteries, 12V DC A/C in bedroom, DC to DC battery charger, 100-amp MPPT controller management, generator prep capable
  • Queen residential foam top mattress
  • Sani-Con® Turbo waste management system
  • Slideout awning(s) (quantity varies by model)
  • Truma on-demand hot water system
  • Wireless backup/side view/front entry door observation kit with 7 in. monitor

Standard Features
and Options

North Point Videos

Superior Construction Elements

(Click on number for more information)

Cutouts
1
2
3
4
5
6
7
8
9

Jayco uses plywood vs. OSB or other materials because it is more eco-friendly (no formaldehyde), handles moisture better, is lighter in weight and has better screw retention.

The Magnum Truss™ Roof system is one of the strongest roofs in the industry. It's capable of withstanding 50 percent more weight- up to 4,500 lbs.- than the competition so that you can safely perform maintenance and avoid costly structure damage from debris, branches or snow.

Most manufacturers use standard 3500 lb. springs but on all Luxury Fifth Wheels and Toy Haulers we upgrade to the heavy duty 4000 lb. springs for maximum strength.

Jayco uses plywood vs. OSB or other materials because it is more eco-friendly (no formaldehyde), handles moisture better, is lighter in weight and has better screw retention.

Your RV needs a strong foundation built specifically for your floorplan. We build each trailer on a frame that has been specifically designed by our skilled team of engineers for its size and shape to better endure the wear and tear of the road. Our frames also include more outriggers and cross members for better support and structural integrity.
