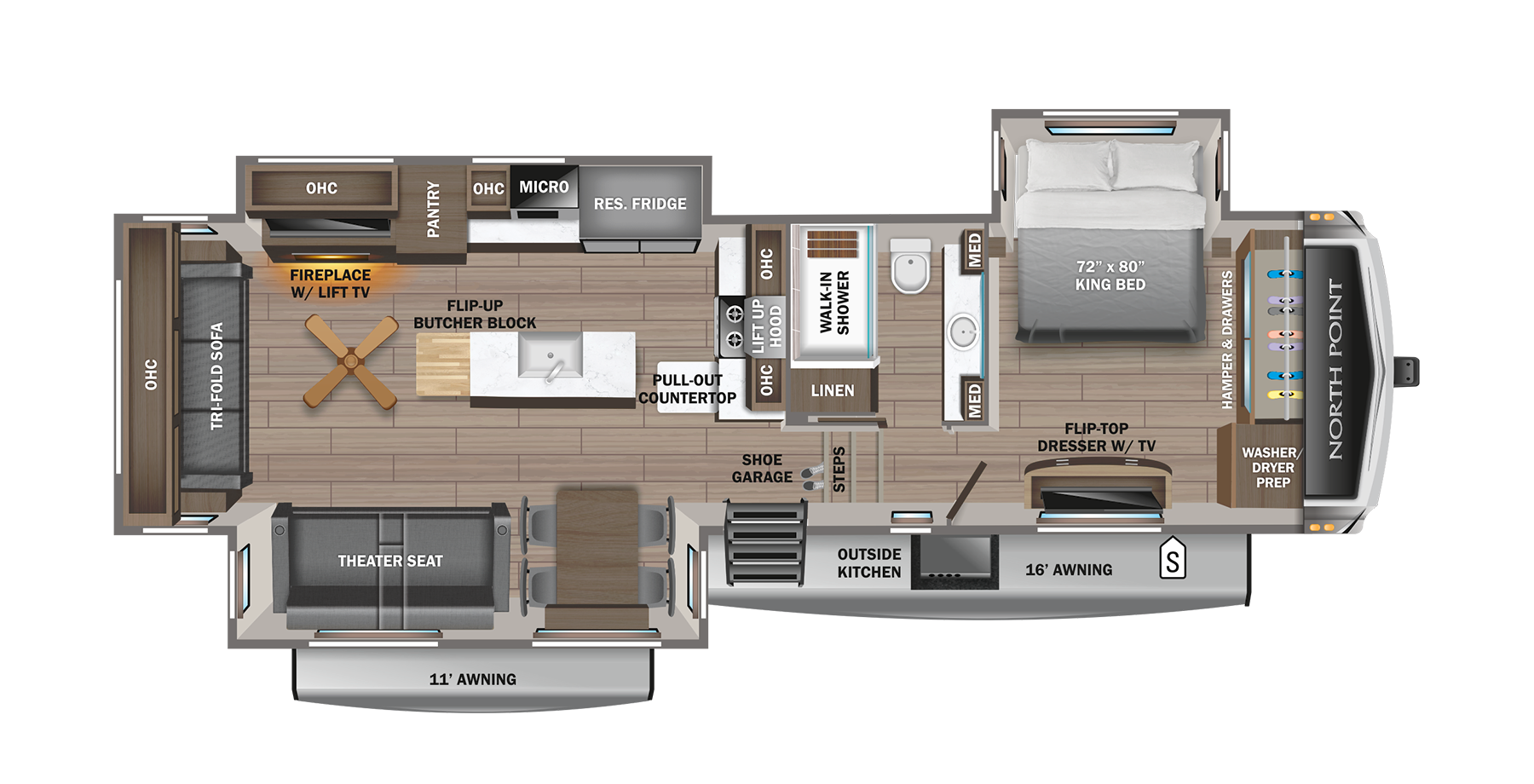

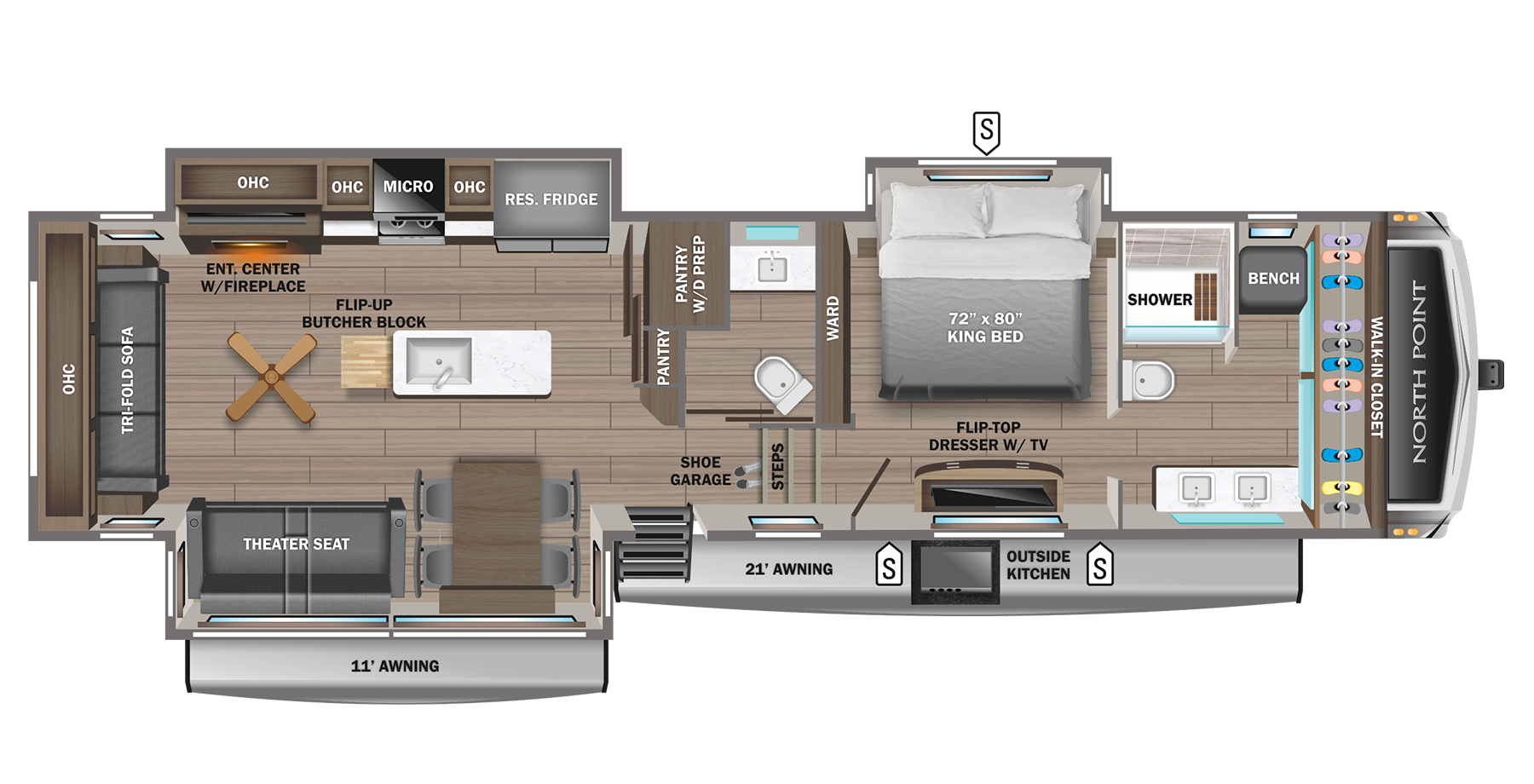

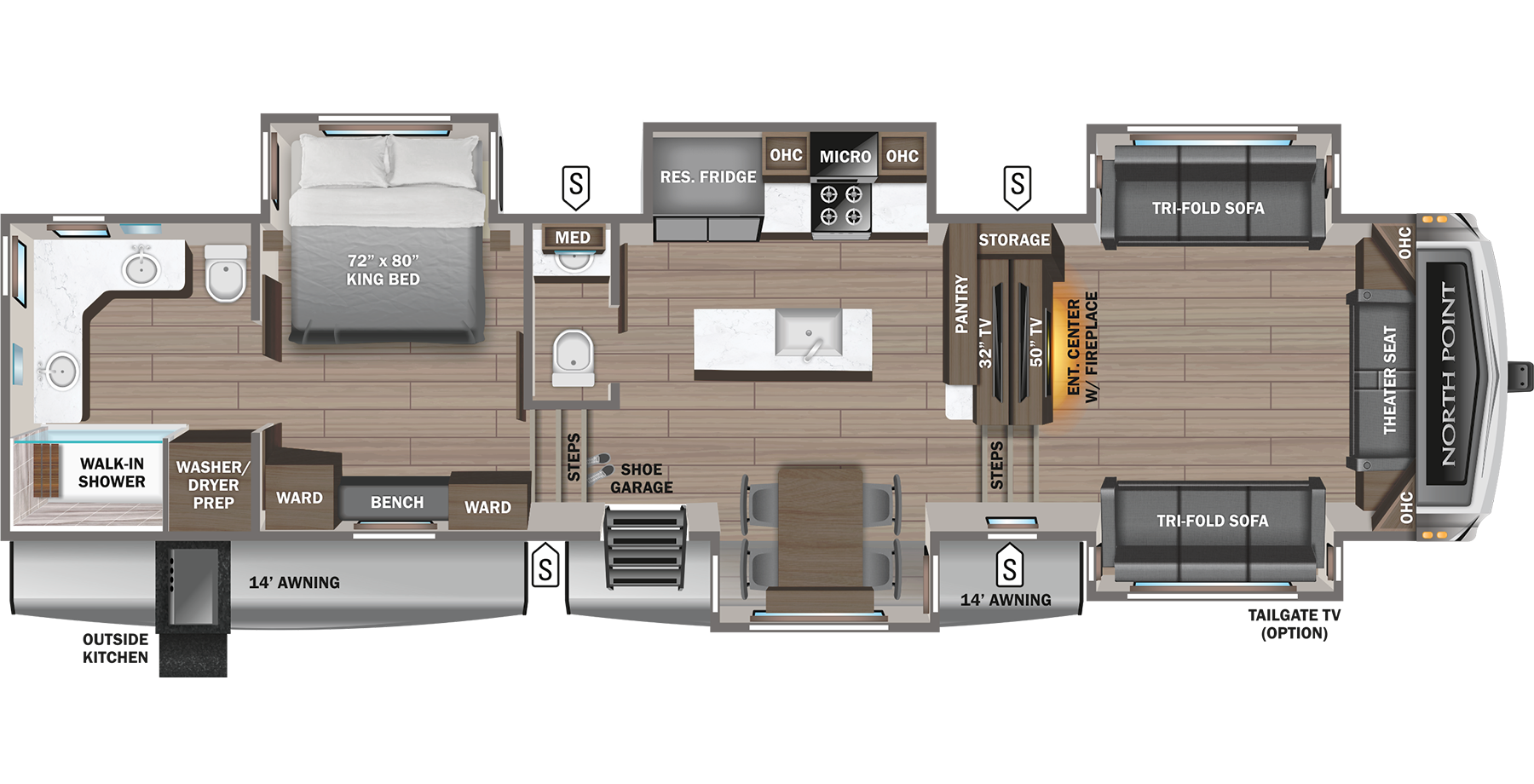

2024 North Point Floorplans

Standard Exterior Equipment

• (3) 40 lb. propane bottles with auto regulator (120 lb. max LP system)
• 102 in. wide body construction
• 12 in. structural steel I-beam with 10 in. steel drop frame
• 3,000 lb. tow hitch with 4-way pin (N/A 390CKDS)
• Battery disconnect
• Built in sewer hose carrier
• Climate Shield™ zero-degree tested weather protection:
  • 40,000 BTU output furnace
  • Double layer fiberglass batt insulation (roof and floor)
  • Fully-enclosed and heated underbelly (ducted)
  • PEX plumbing, 2 in. block foam and reflective foil
• Custom automotive-grade vinyl exterior graphics package
• Digital TV antenna with Wi-Fi extender
• Exterior marine-grade speakers with Bluetooth® controller
• Frameless, dark tinted, safety-glass windows
• Fully enclosed, universal docking center:
  • Black tank flush
  • Independent satellite wiring
  • Quick-connect outside shower
  • Selectable water connections
  • Whole coach cable hookups
  • Winterization and sanitation
• Inverter pre-wire to select outlets
• JayPort system for outside griddle (all floorplans without a standard outside kitchen)
• JaySMART™ (Safety Markers And Reverse Travel) LED lighting (patented)
• LED exterior lighting package
• Magnum Truss™ XL6™ Roof System (strongest tested roof in the industry) with Alpha roof membrane system with limited lifetime warranty
• Painted fiberglass front cap with clear coat and built-in specialty LED lighting
• Pass-through storage with Slam-latch™ baggage doors
• Skirt metal enclosed drop frame
• Stronghold VBL™ aluminum framed and vacuum bond laminated gelcoated fiberglass exterior walls (including rear wall and slide room end walls)
• Under-mounted spare tire
• Water heater bypass

Standard Interior Equipment

• 5/8 in. tongue-and-groove joined plywood floor decking
• Bathroom skylight
• Built-in laundry hamper in wardrobe (select models)
• Carbon monoxide and LP detector
• Ceiling fan (select models)
• CPAP prepped bedroom
• Dual USB charging ports throughout
• Extra 120V power outlets in kitchen and slide rooms
• Flip-up countertop extension with 24 in. x 24 in. butcher block bar top (select models)
• Flip-up hidden storage in bedroom chest of drawers (select models)
• Flip-up tabletop storage next to tri-fold sofa (select models)
• Gas-strutted under-bed storage
• Handcrafted hardwood glazed doors and drawers
• JayVoice voice command system- controls lighting, A/C and furnace
• LED accent lighting above slideouts
• LED backlit custom framed mirror and medicine cabinet
• LED interior lighting throughout
• Porcelain toilet with foot flush
• Pull-out spice rack above microwave (select models)
• Pull-out utility drawer under kitchen sink
• Residential quilted bedspread and pillow shams
• Residential-grade, pull-out kitchen faucet
• “Shoe garage” in hallway step (select models)
• Soft close, heavy-duty, 75 lb. full-extension, steel ball-bearing drawer guides
• Solid hardwood slide fascia
• Stainless steel kitchen sink
• Toe kick nightlights in bedroom and bathroom
• Tri-fold hide-a-bed sofa with residential sleep surface (select models)
• True interior design (Modern Farmhouse)
• Vessel bowl sink with high rise faucet in main bathroom
• Vinyl flooring (made in the USA) throughout (includes slideout floors)

Customer Value Package (Mandatory)

• 15,000 BTU “Whisper Quiet” A/C (main)
• 15,000 BTU “Whisper Quiet” A/C (bedroom)
• 16 gal. gas/electric DSI water heater
• 50 in. 4K Smart LED HDTV with fully digital HDMI® output and two extra HDMI cables
• Backup, main entrance door and side observation security camera prep (includes a power switch in the bedroom to use the optional 7 in. monitor for security)
• Custom machined aluminum rims
• Electric patio awning with integrated LED lights
• Hidden hinges on cabinet doors
• JBL® home entertainment system with sound bar and subwoofer
• Keyed-Alike™ lock system (single key for all doors/locks)
• MORryde Safe-T-Rail grab handle
• Residential king (72 in. x 80 in.) mattress with under-bed storage
• Rooftop and ground solar prep
• Tire pressure monitoring system
• Wireless remote control system (includes Bluetooth® wireless controls) with dimmer switches

5 Star Handling Package (Mandatory)

• 17.5 in. 16 ply 'H' rated Uniroyal tires
• Dexter® Axles with ABS and Tow Assist - includes Nev-R-Adjust® brakes and E-Z Lube® hubs
• MORryde® CRE-3000™ rubberized suspension
• MORryde® rubber pin box
• Wet bolt fasteners, bronze bushings and 4,000 lb. leaf springs

Luxury Package (Mandatory)

• 2nd electric patio awning with integrated LED lights
• 32 in. 4K Smart bedroom TV
• 6-point hydraulic auto-leveling system
• Cellular prep for 4G WiFi repeater and JAYCOMMAND® “Smart RV” system
• Central vacuum system with dust port
• Frameless dark tinted safety-glass windows
• Free-standing (no pedestal) table with leaf and (2) free-standing and (2) folding chairs
• Fresh Water Drinking System (patented) (connects to ice maker)
• GE 21 cu. ft. residential refrigerator with 1800W inverter
• GE Profile Series 30 in. residential convection microwave with built in air fryer
• GE Profile Series residential 24 in. range (3.7 cu. ft. with 9100 BTU high output burner)
• High gloss gelcoated sidewalls
• JAYCOMMAND® “Smart RV” system
• LED fireplace with electric space heater
• MORryde® StepAbove™ entrance steps with strut assist (main entrance)
• Oversized multi-battery compartment (industry leading room for 4-6 batteries)
• Privacy roller shades
• Residential solid-surface kitchen countertop with bamboo sink cover and strainer
• Residential walk-in shower with shampoo/soap holder and teak seat
• Washer/dryer prep

Options

• 20 cu. ft. 12V refrigerator
• 39 in. 4K Smart TV in cargo area
• 3rd 15,000 BTU ducted A/C
• 5,500W Onan® Microquiet generator
• 7K hydraulic disc brake package (ABS N/A with disc brakes)
• 8K hydraulic disc brake package (ABS N/A with disc brakes)
• Customer Value Package: 15,000 BTU central air with heat pump
• Extreme Weather Package: 120V heated holding tank pads and 12V wrapped and heated fresh water line
• Frameless dual pane tinted safety-glass windows
• Generator prep
• MORryde independent suspension with 8K axles and disc brakes (ABS not available)
• Outside griddle for JayPort system (includes LP quick-connect) (310RLTS, 380RKGS)
• Overlander 2 Solar Package: 30-amp controller, 1800W inverter and (2) 200W solar panels
• Overlander 4 Solar Package: (4) 200W solar panels, (2) 100-amp/hour lithium heated batteries, 60-amp controller, 3000W inverter, DC/DC power converter, soft start power save main 15K A/C, soft start power save for bedroom 15K A/C, battery monitor, energy management system, roof pre-wire for additional solar panels, generator prep capable and heavy gauge steel battery enclosure
• Overlander EXT Solar Package: 3,000W inverter/charger with internal 50-amp transfer switch, energy management system, (6) solar panels with 200W each, (6) 100-amp/hour lithium heated batteries, 12V DC A/C in bedroom, DC to DC battery charger, 100-amp MPPT controller management, generator prep capable
• Queen residential foam top mattress
• Sani-Con® Turbo waste management system
• Slideout awning(s) (quantity varies by model)
• Truma on-demand hot water system
• Wireless backup/side view/front entry door observation kit with 7 in. monitor
