2024 North Point | 390CKDS

2024 North Point

See Floorplan with
an Option Added:

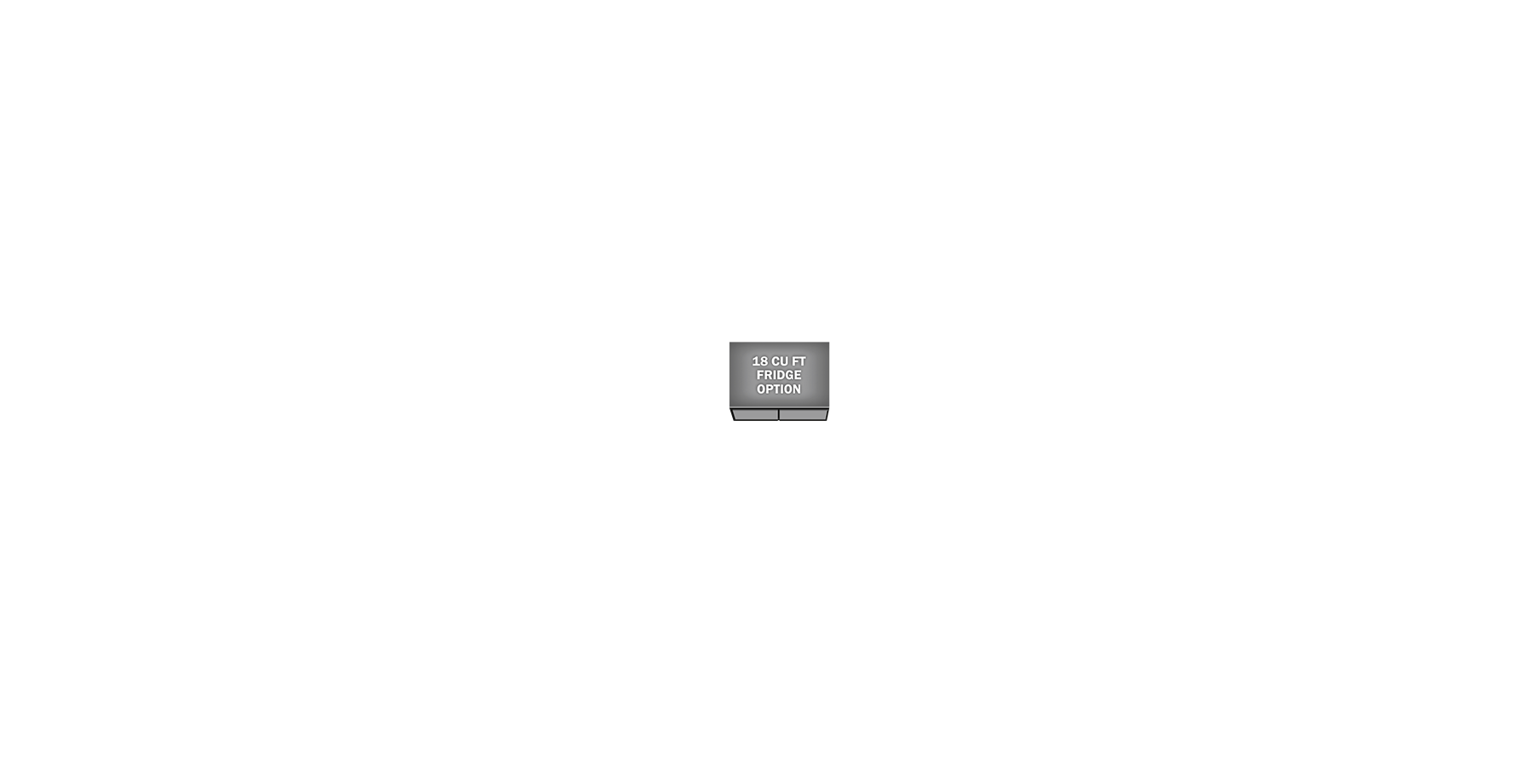

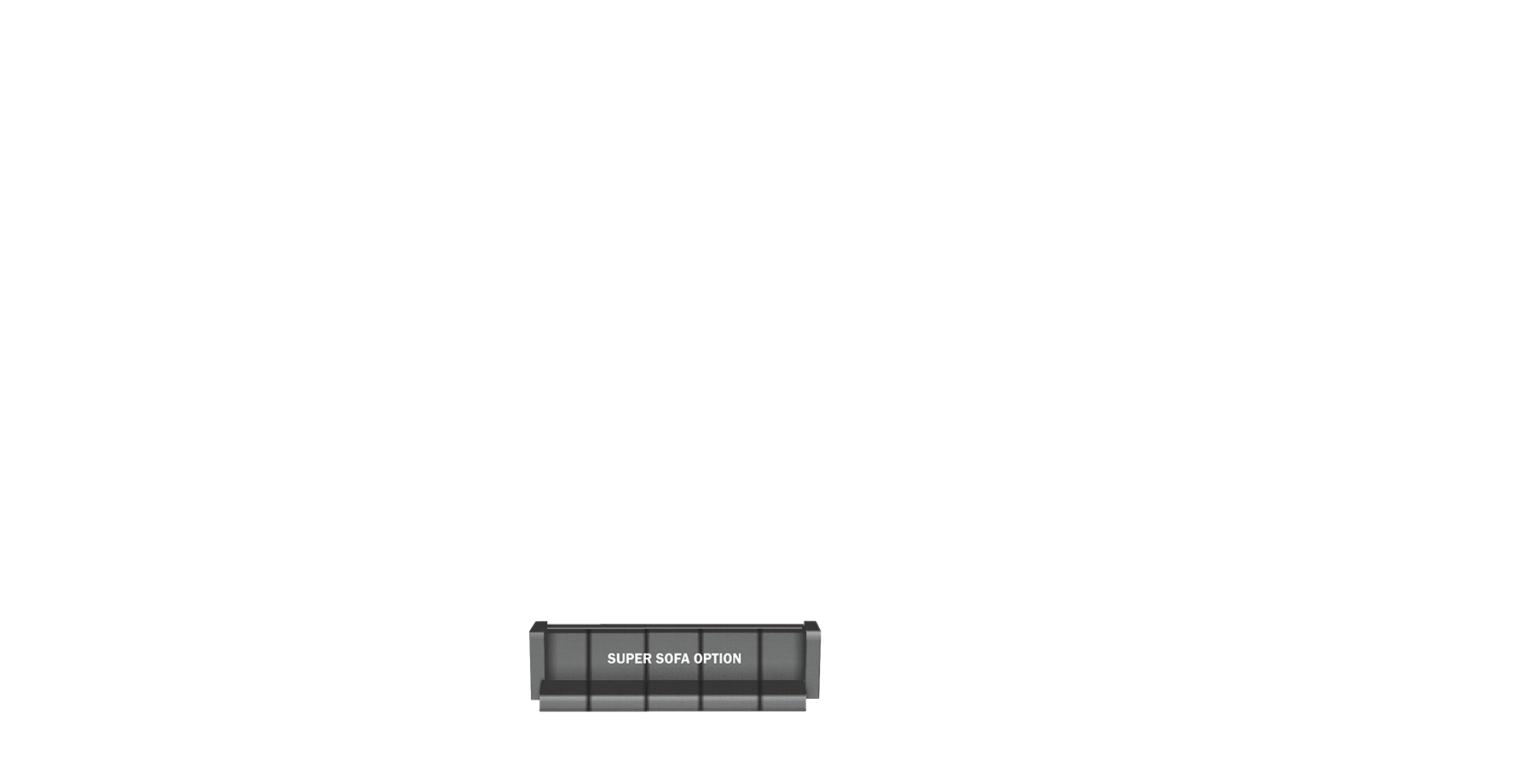

390CKDS Queen bed Refrigerator option Super Sofa

See Floorplan with an Option Added:

Build and Price Your Jayco

Choose your customizations below and receive a price estimate.


Dry Hitch Weight (lbs)2,950
Unloaded Vehicle Weight (lbs)15,835
Cargo Carrying Capacity (lbs)2,515
Gross Vehicle Weight Rating (lbs)18,350
Exterior Length (overall)43' 9"
Exterior Length (pin to bumper)42' 1"
Exterior Height12' 7"
Exterior Height (with A/C)13' 4"
Exterior Height (with 2nd A/C)13' 4"
Exterior Width8' 6"
Exterior Width (with slides out)14' 6"
Interior Height (main)8' 6"
Interior Height (upper deck)6' 8"
Awning Length16' 0"
Awning Length 210' 0"
Tank Capacities
Fresh Water Capacity (gals)75.0
Gray Water Capacity (gals)137.0
Black Tank Capacity (gals)100.0
Propane Unit (lbs)120
Sleepsup to 9
Water Heater16
# of outside storage compartments1
Furnace BTU 40000
Tire Size215/75R17.5'H'
3rd A/C in living area (15K BTU) $1,193
20 cu. ft. 12V refrigerator $1,193
Tailgate TV $938
Generator prep $743
5500W Onan microquiet generator $6,743
Truma on demand water heater $1,575
Sani-con® turbo waste management system $525
360° security kit with 7" monitor $1,365
Dual pane tinted safety glass windows $2,243
Slideout awnings (4) $1,110
8K axle with hydraulic disc brakes without ABS $4,043
Super Lounge in place of Theater Seat & Dinette $143
Queen bed $75
Customer Value Package $4,500
Customer Value Package w/ 15,000 BTU A/C & heat pump $375
Luxury Package $10,200
5 Star Handling Package $5,993
Overlander 2 Solar Package $1,943
Overlander 4 Solar Package $14,093
Overlander EXT Solar Package $743
Extreme Weather Package $743

$128,625 MSRP*

*MSRP shown in USD. Doesn’t include freight and dealer prep charges

Build and Price »
North Point

2024 North Point

Starting at $110,775

From the top to bottom, Jayco’s North Point Fifth Wheel uses superior construction and materials to provide safety and security on the road. The Magnum Truss XL6 roof rafter system is the strongest tested roof in the industry and is constructed out of a one-piece seamless roof material with a 20 year warranty. The 5 star handling package featured 17.5-inch "H" rated Uniroyal tires, MORryde rubber pin box, Dexter axles, ABS and tow assist braking system.

Standard Features
and Options

Your Saved Floorplans

Click the star on a floorplan page to save and compare.
