Eagle Travel Trailers

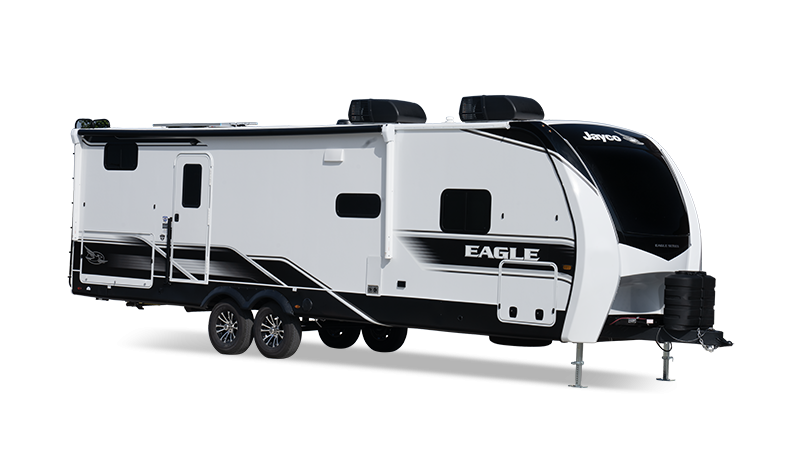

2024 Eagle Travel Trailers

The Jayco Eagle Travel Trailer steps up the travel trailer game with high-end features like GE appliances (stove, refrigerator and microwave) and the Overlander 1 solar package. The legless free-standing dinette does double duty with a pivoting and extension function for a desk. The JayPort system with 22-inch griddle, deep sink and hot/cold water and the five-star handling package including Dexter ABS and tow assist braking system make this RV a dream to drive and enjoy when you arrive.

Eagle Travel Trailers

Eagle Travel Trailers Floorplans and Prices

Jayco Eagle Travel Trailer floorplans combine the best features and ammentities to make your next camping trip a dream.

Sleeps up to 10
Length 33' 10" - 38' 9"
Weight 7,855 - 9,870 lbs.

Standard Features and Options

Standard Exterior Equipment

  • 1.5 in. fresh water drain valve
  • 5 in. Magnum Truss™ Roof System with Alpha roof membrane system with limited lifetime warranty
  • 50-amp detatchable power cord
  • LED lighting in pass through area with 3-way switches
  • Auto-grade vinyl graphics
  • Automotive style painted front cap with max turn radius (painted on select models)
  • Battery disconnect in pass through area
  • Black tank flush
  • Climate Shield™ zero-degree tested weather protection:
    • Fully enclosed and heated underbelly (ducted)
    • 35,000 BTU furnace
    • Double layer fiberglass batt insulation in ceiling and floor
    • Double sided radiant barrier insulation (roof, floor and behind cap)
    • PEX plumbing
  • Commercial grade rubber flooring in pass through area
  • Digital TV antenna with WiFi prep
  • Dual 30 lb. LP bottles
  • Dual channel exterior speaker
  • Factory installed roof ladder
  • Galvanield steel coated outside kitchens
  • HELIX Cooling System™ (industry exclusive):
    • Jayco exclusive insulated dual duct design
    • Directional and closeable A/C vents
    • Larger return air vents with user accessible filters
  • Independent satellite and cable hookups
  • JaySMART™ (Safety Marker And Reverse Travel) exterior LED lights
  • LED exterior lighting package
  • LP quick connect for gas griddle (next to JayPort)
  • Metal slam latch baggage doors
  • Nautilus 2.5 water connections
  • Nitrogen filled undermount spare tire (model/option varies 15 in. or 16 in.)
  • Quick connect water connections (door side hot/cold and off door side cold only)
  • Slide topper/awning prep
  • Stronghold VBL™ walls (laminated sidewalls, rear walls and slide out walls)



Standard Interior Equipment

  • 2 piece high gloss bathroom surround
  • 5/8 in. tongue-and-groove plywood flooring
  • 75 lb. full extension drawer guides
  • 90 in. x 92 in. residential quilted bedspread (both queen and king mattresses)
  • Bathroom skylight
  • Bedroom TV prep
  • CPAP prepped bedroom
  • Extra 120V power outlets in kitchen and slide rooms (where applicable)
  • Furniture cup holder tables (1 pair)
  • Gas strutted under bed storage
  • Handcrafted and glazed door/drawer fronts (new sizes)
  • Inverter pre-wire (multiple locations) ((7) 110 outlets) (6 USBs 12V)
  • LED backlit medicine cabinet with custom framed mirror
  • LED lights with dimmer switches and motion activated (throughout interior)
  • Matte black kitchen faucet with pull-out sprayer
  • Porcelain foot flush toilet
  • Residential 60 in. x 80 in. queen size mattress
  • Residential vinyl flooring throughout
  • Solid hardwood slide fascia
  • Stainless steel kitchen sink
  • Theater seating (select models)
  • Tri-fold hide-a-bed sofa with residential memory foam sleep surface (select models)
  • USB charging ports (multiple locations throughout)

Customer Value Package (Mandatory)

  • 15K BTU "Whisper Quiet" A/C and bedroom A/C prep
  • 43 in. 4K Ultra LED HD Smart TV in living room
  • 50-amp service with dual A/C ducts
  • 60K on-demand water heater with mixing tank
  • Custom machined aluminum rims
  • Electric patio awning with integrated dimmable LED lights
  • GE 30 in. over-the-range black and stainless microwave with exhaust fan
  • GE black and stainless 21 in. range with edge to edge grates
  • Hidden hinges on cabinet doors
  • JBL® Aura Bar 12V with Bluetooth® and dual HDMI (dual zone)
  • Keyed-Alike™ lock system
  • MORryde Step Above™ entrance steps (main entrance) with blue LED light
  • Rain proof bathroom power vent
  • Rear 2 in. accessory receiver
  • Security monitor prep (rear, sides and entrance door)
  • Upgraded friction hinge entrance door

Luxury Package (Mandatory)

  • Blackout roller shades with reflective side throughout
  • Electric leveling front legs with electric rear stabilizer jacks
  • GE 10 cu.ft. 12V refrigerator
  • JAYCOMMAND® "Smart RV System" (Pro Tablet)
  • JayPort 2 in. mount (for outside accessories)
  • LED fireplace with 5,000 BTU electric space heater (select models)
  • MORryde® Safe-T-Rail grab handle
  • Overlander 1 Solar Package (200W panel and 30-amp solar controller)
  • Residential style glass shower door
  • TPMS (Tire Pressure Monitoring System) in-stem monitoring
  • Washer/dryer prep (select models)

5 Star Handling Package (Mandatory)

  • Dexter® ABS brake system with anti-sway
  • Dexter® Axles with NEV-R-Adjust® brakes and E-Z Lube® hubs
  • Goodyear® Endurance® tires (load range E)
  • MORryde® CRE-3000™ rubberized suspension
  • Wet bolt fasteners with bronze bushings

Options

  • 15,000 BTU bedroom A/C

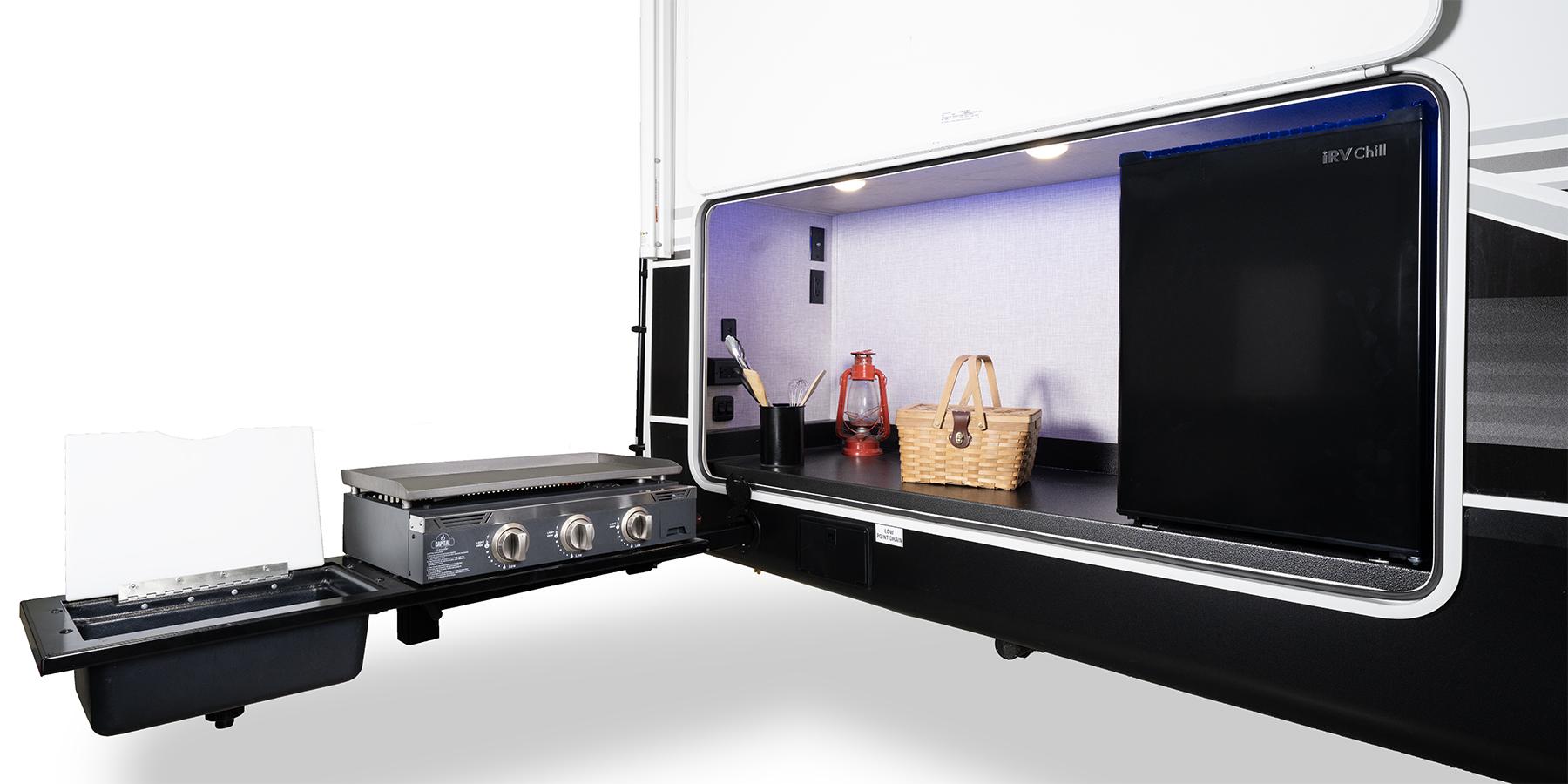

  • 22 in. outside griddle with deep sink attachment for JayPort system
  • 360 degree security monitor kit with 7 in. view
  • Booth dinette (select models)
  • Dry camping package (generator prep and extra LP capacity)
  • Electric auto-leveling
  • Extreme Weather Package with 120 heat pads (12V heat tape on fresh water)
  • Frameless dual pane windows
  • Free standing table with leaf and bench seat, 2 storage chairs and 2 folding chairs
  • Free standing table with leaf, 2 storage chairs and 2 folding chairs in place of booth dinette
  • LED fireplace with 5,000 BTU electric space heater (select models)
  • Overlander 2 Solar Package: (2) 200W panels, MPPT 30-amp solar controller and 1800W inverter)
  • Overlander 4 Solar Package: (4) 200W panels, (2) 100AH lithium batteries, 60-amp MPPT solar contoller, 3000 W split phase inverter/charger, DC/DC power converter, soft start 15,000 A/C with heat pump, battery monitor, roof pre-wire solar, generator option, battery enclosed)
  • Residential 72 in. x 80 in. king size mattress (select models)
  • Theater seating in place of tri-fold sofa (select models)



Standard Features
and Options

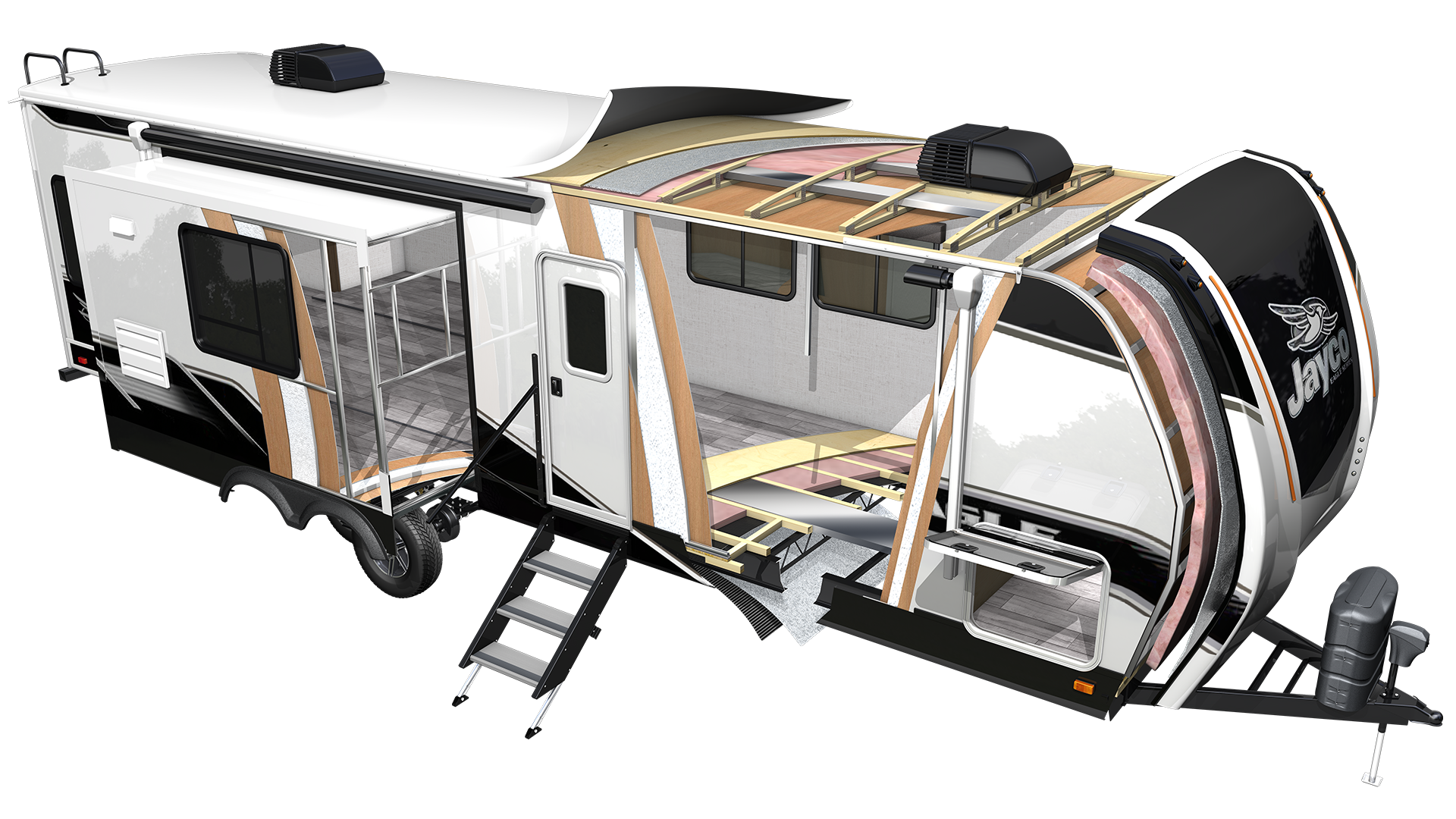

Superior Construction Elements

(Click on number for more information)

Cutouts
1
2
3
4
5
6
7
8
9
10
11

Jayco uses plywood vs. OSB or other materials because it is more eco-friendly (no formaldehyde), handles moisture better, is lighter in weight and has better screw retention.

Our industry exclusive HELIX Cooling System™ includes an exterior-mounted 15,000 BTU "Whisper Quiet" A/C unit, our exclusive insulated dual duct design, directional and closeable A/C vents and larger return air vents with user accessible filters.

The Magnum Truss™ Roof system is one of the strongest roofs in the industry. It's capable of withstanding 50 percent more weight- up to 4,500 lbs.- than the competition so that you can safely perform maintenance and avoid costly structure damage from debris, branches or snow.

Jayco's exclusive Stronghold VBL™ (vacuum-bond lamination) wall construction process uses vacuum bonding to combine laminated fiberglass with welded aluminum framing, metal backers, decorative interior wall panels and fiberglass exterior siding. This super-durable structure was designed specifically for heavy use and travel while  still reducing weight.

Axles are a key factor to a comfortable and stable towing experience. That's why we partner with a long-standing American company, Dexter.

Jayco's standard Goodyear® tires are built using rugged fabric-steel and are reinforced specifically for trailering. Enhanced durability, geater carrying capacities and higher speed ratings help you stay safe, preventing dangerous blow outs all while remaining compatible with tire pressure monitoring systems and typical tire inflation stations.

Functionality is key and that's why Jayco uses MORryde over other brands. MORryde suspensions absorb the 3-4 in. of up and down travel that trailers often take while on the road.

Jayco uses plywood vs. OSB or other materials because it is more eco-friendly (no formaldehyde), handles moisture better, is lighter in weight and has better screw retention.
