2024 Jay Feather Micro

Upgrade your camping digs from a tent to Jayco’s entry-level Jay Feather Micro. The lightest travel trailer offering from Jayco, it can be towed by most mid-sized tow vehicles. Take the Jay Feather Micro anywhere with its Climate Shield ultimate weather protection tested from 0-100° F. The Jay Feather Micro features superior construction including stronghold VBL™ with double-sided Azdel perimeter walls and a 2-inch vacuum-bond laminated floor. You can feel confident traveling down the road on the 16-inch Goodyear American-made tires with self-adjusting electric brakes. The 55-gallon fresh water tank makes dry camping a feasible option.

Jay Feather Micro

Jay Feather Micro Floorplans and Prices

All the floorplans in the Jay Feather Micro offering weigh less than 5,000 lbs. without sacrificing function. Elevate your experience with a compact but concise floorplan from Jay Feather Micro.

Sleeps up to 8
Length 19' 7" - 23' 2"
Weight 3,735 - 4,510 lbs.

Standard Features and Options

Standard Exterior Equipment

  • 1.5 in. fresh water drain valve
  • 2 in. Stronghold VBL™ floor with 2 lb. density foam
  • Aerodynamic, rounded front profile with aluminum framing
  • American-made Norco Z-frame with integrated A-frame
  • Automotive-style aluminum rims
  • Battery quick-disconnect
  • Black tank flush
  • Dark-tinted safety-glass windows
  • Exterior TV bracket with 120V and cable hook-ups
  • Keyed-Alike™ lock system
  • LCI Solid Step fold-down aluminum tread steps on main entry door
  • Magnum Truss™ Roof System
  • Marine grade exterior speakers with blue LED accent lighting
  • Modern graphics package with dual-colored sidewall
  • Mounted camera bracket for pre-wired side and rear back-up prep
  • Outdoor camp kitchen with galvanized steel bases (select models)
  • PVC roofing membrane (limited lifetime warranty)
  • Reinforced steel wheel wells
  • Stronghold VBL™ walls with double-sided Azdel composite (sidewalls, rear walls and slide out boxes)
  • Swing-out entry door assist handle

Standard Interior Equipment

  • 4 in. high-density dinette cushions with vinyl backing
  • 4 in. Teddy Bear soft-touch bunk mats (select models)
  • 75 lb. full extension drawer guides
  • Bathroom skylight
  • Decorative backsplash
  • Decorative roller shades with reflective barrier
  • Handcrafted, hardwood door/drawer fronts
  • Hidden-hinged cabinet doors
  • High output auto-ignition LP gas furnace
  • LED lighting throughout
  • Plywood dinette, bed, bunk and shower/tub bases
  • Residential style kitchen countertops
  • Residential vinyl flooring throughout
  • Screwed and glued cabinet stiles
  • USB charging ports (multiple locations throughout)

Customer Value Package (Mandatory)

  • 13,500 BTU roof-mounted A/C
  • 20 lb. LP gas bottles with auto-regulator and ABS cover
  • 55 gal. fresh water tank
  • Bathroom skylight
  • Black tank flush
  • Detachable power cord
  • Max-length power awning with LED light
  • MAXXAIR® power roof vent
  • On-demand 60,000 BTU water heater
  • Outside griddle for JayPort system
  • Outside shower (select models without outside camp kitchen)
  • Power tongue jack
  • Rock Solid Stabilizer System
  • Side and rear back-up camera prep
  • Spare tire

Jay Pro Package (Mandatory)

  • 16 in. American-made Goodyear® off-road tires with self-adjusting electric brakes
  • 32 in. 12V LED TV with built-in soundbar and AM/FM/Bluetooth®
  • Climate Shield (zero to 100 degree tested weather insulation package)
  • Dual-hinge 10 cu. ft. 12V fridge
  • Rear-mounted roof ladder
  • Inverter pre-wire (main bedroom nightstand outlets or power tower and exterior outlet for models with an outside fridge)
  • Overlander 1 Solar Package: (1) 200W solar panel and 30-amp digital controller
  • Rubber torsion axle

Options

  • 120V heated tank pads
  • 30 lb. LP gas bottles with auto-regulator and ABS cover
  • Accessory roof rack
  • Convection microwave
  • JAYCOMMAND® Smart RV System with TPMS
  • Oven with 3-burner gas cooktop in place of single 3-burner gas cooktop
  • Overlander 2 Solar Package: (2) 200W solar panels, 1,800W inverter and 30-amp digital controller

Standard Features
and Options

Jay Feather Micro Videos

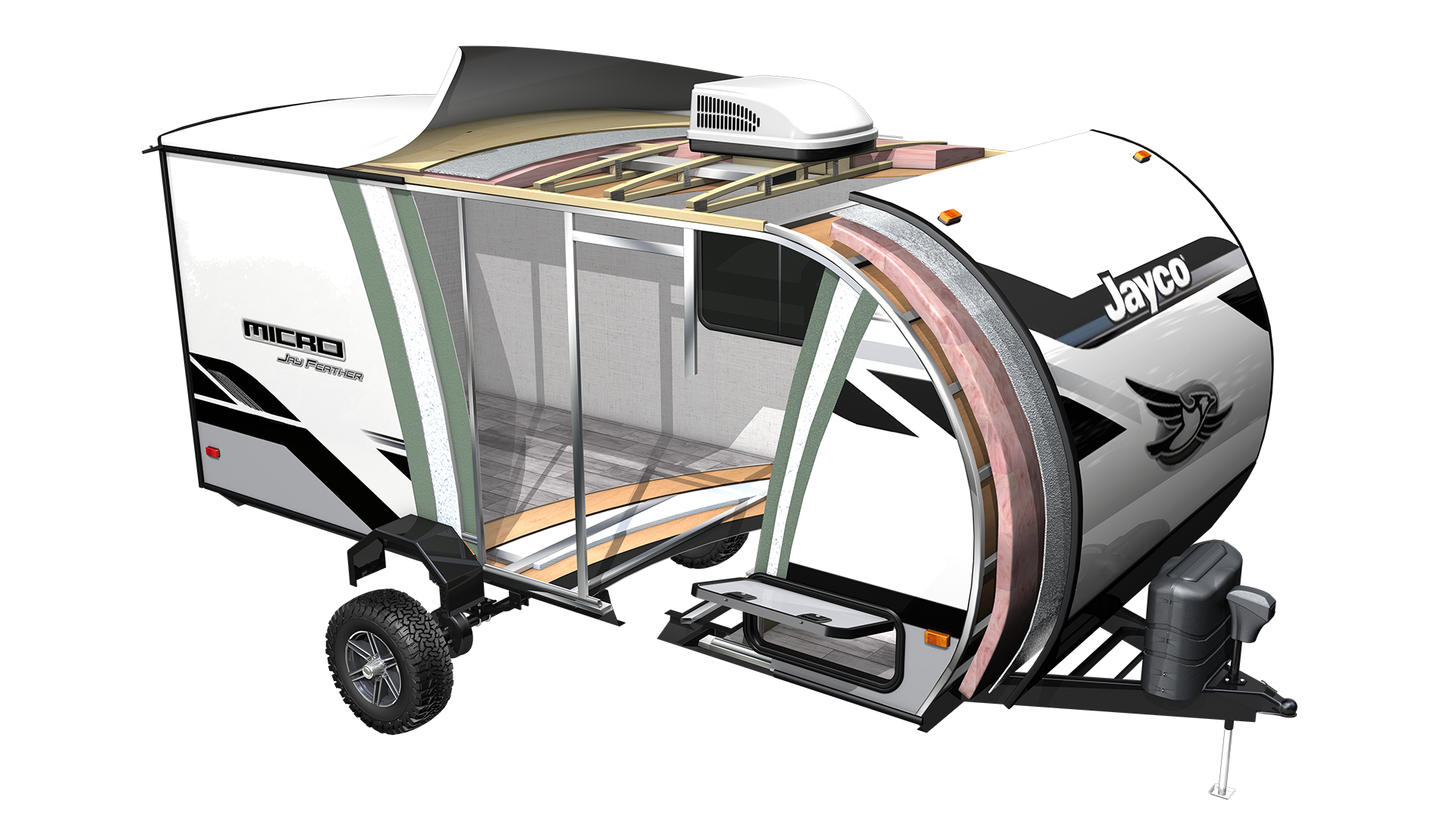

Superior Construction Elements

(Click on number for more information)

Cutouts
1
2
3
4
5
6
7

Jayco uses plywood vs. OSB or other materials because it is more eco-friendly (no formaldehyde), handles moisture better, is lighter in weight and has better screw retention

The Magnum Truss™ Roof system is one of the strongest roofs in the industry. It's capable of withstanding 50 percent more weight- up to 4,500 lbs.- than the competition so that you can safely perform maintenance and avoid costly structure damage from debris, branches or snow.

Azdel composite material is vacuum-bond laminated to the interior and exterior side walls, rear walls and all slide room walls.

Your RV needs a strong foundation built specifically for your floorplan. We build each trailer on a frame that has been specifically designed by our skilled team of engineers for its size and shape to better endure the wear and tear of the road. Our frames also include more outriggers and cross members for better support and structural integrity.

An integrated A-frame runs through the main frame, preventing the hitch from buckling like competing tack-welded frames can

Jayco's standard Goodyear® tires are built using rugged fabric-steel and are reinforced specifically for trailering. Enhanced durability, geater carrying capacities and higher speed ratings help you stay safe, preventing dangerous blow outs all while remaining compatible with tire pressure monitoring systems and typical tire inflation stations.

Jayco's exclusive Stronghold VBL™ (vacuum-bond lamination) wall construction process uses vacuum bonding to combine laminated fiberglass with welded aluminum framing, metal backers, decorative interior wall panels and fiberglass exterior siding. This super-durable structure was designed specifically for heavy use and travel while  still reducing weight.
