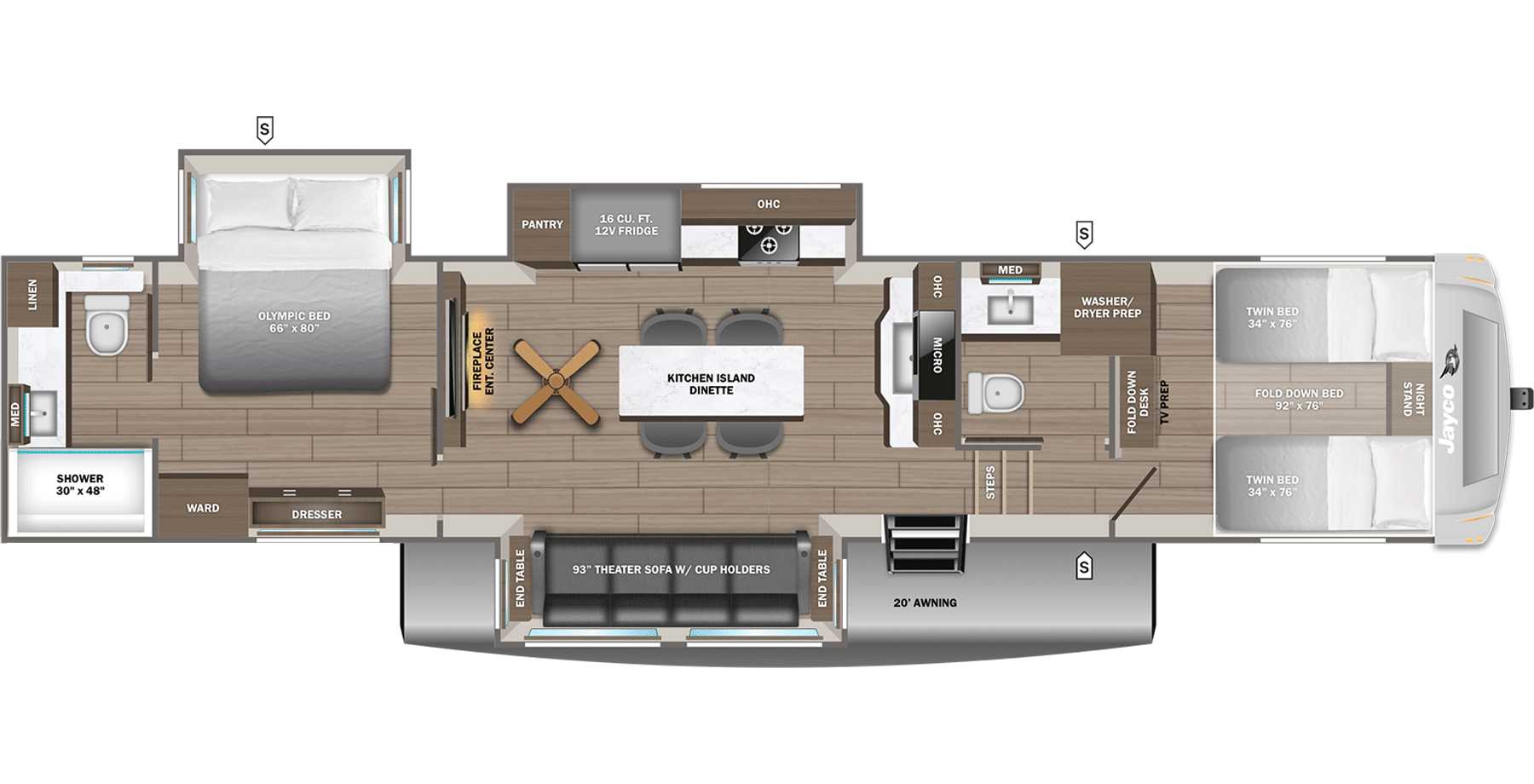

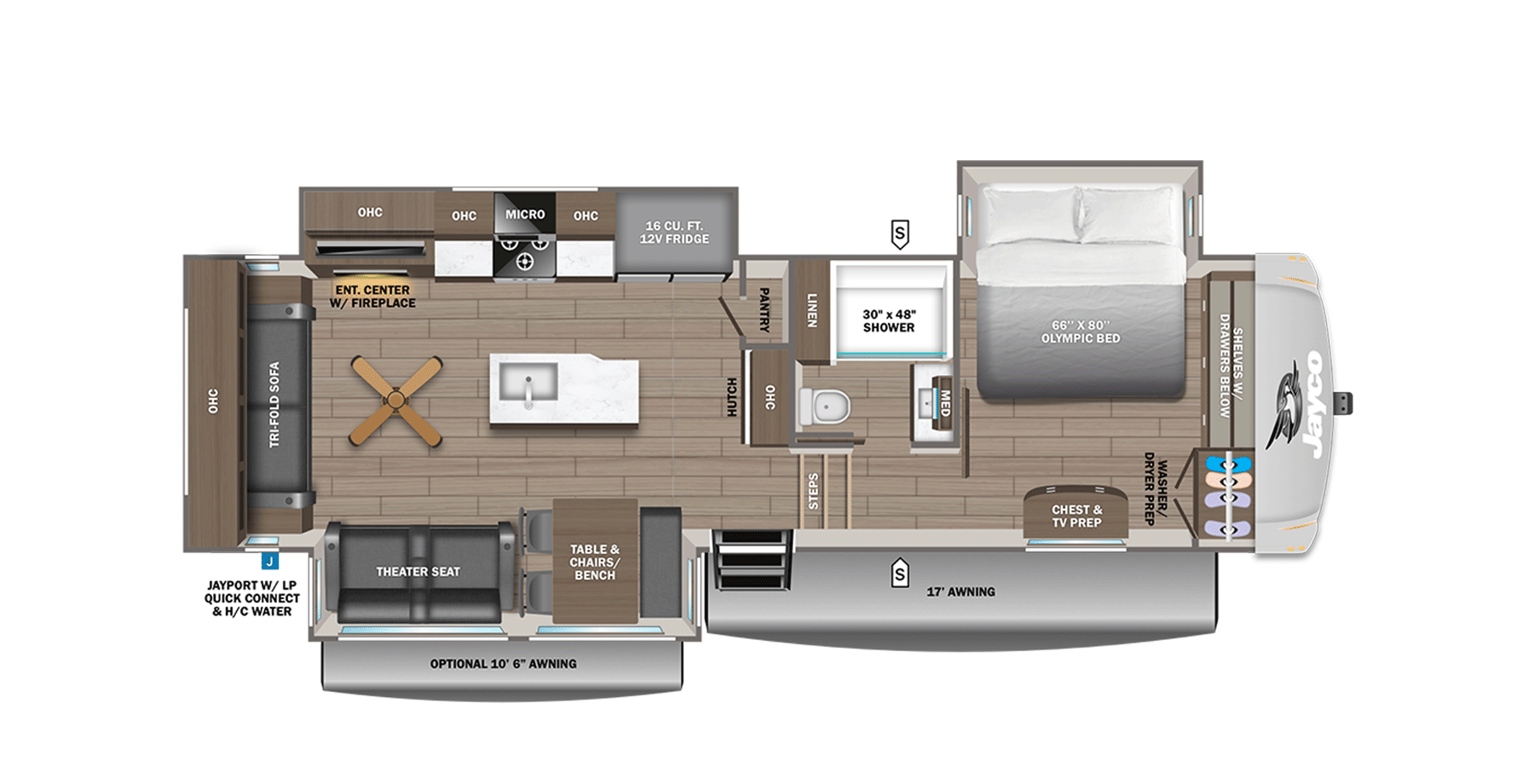

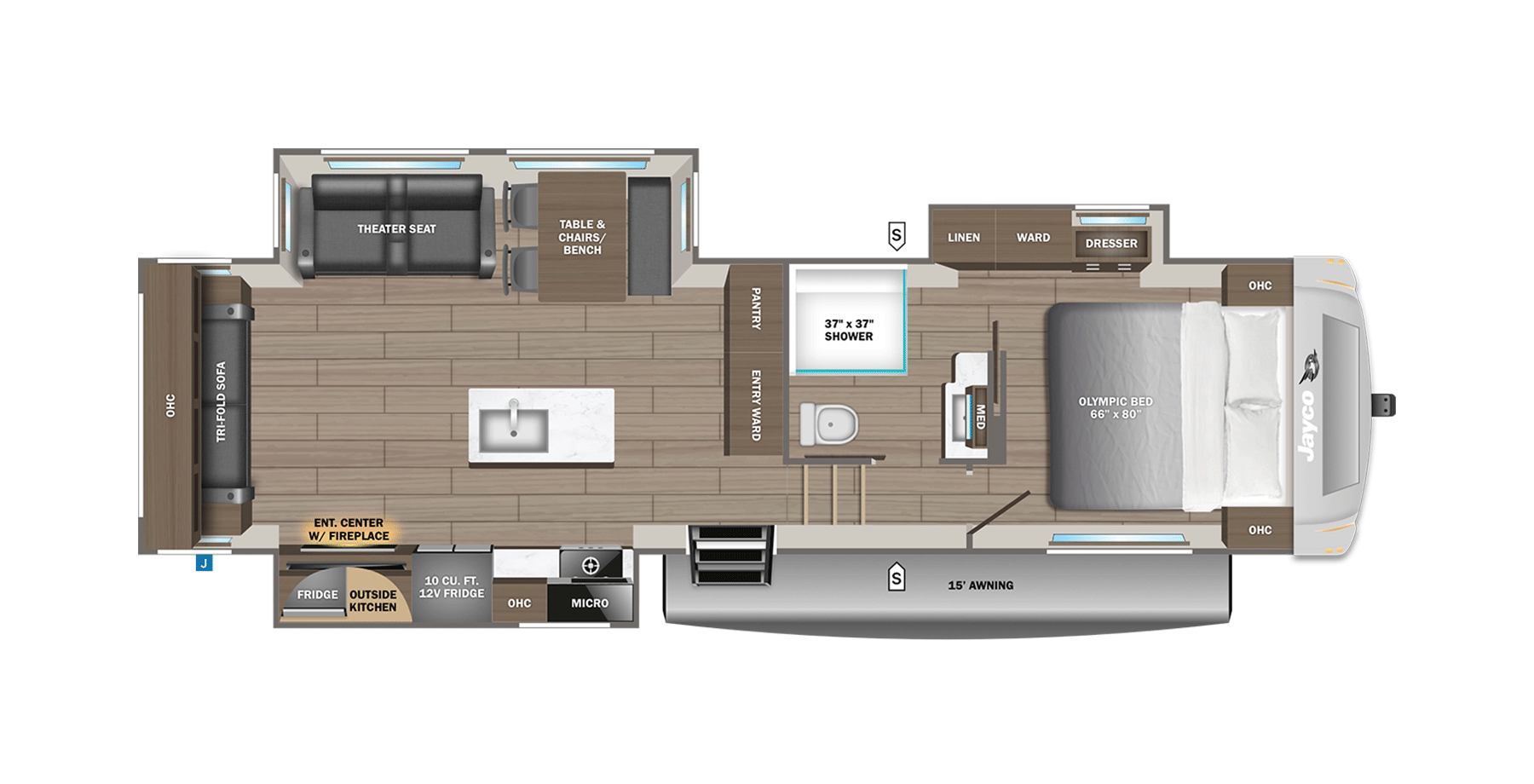

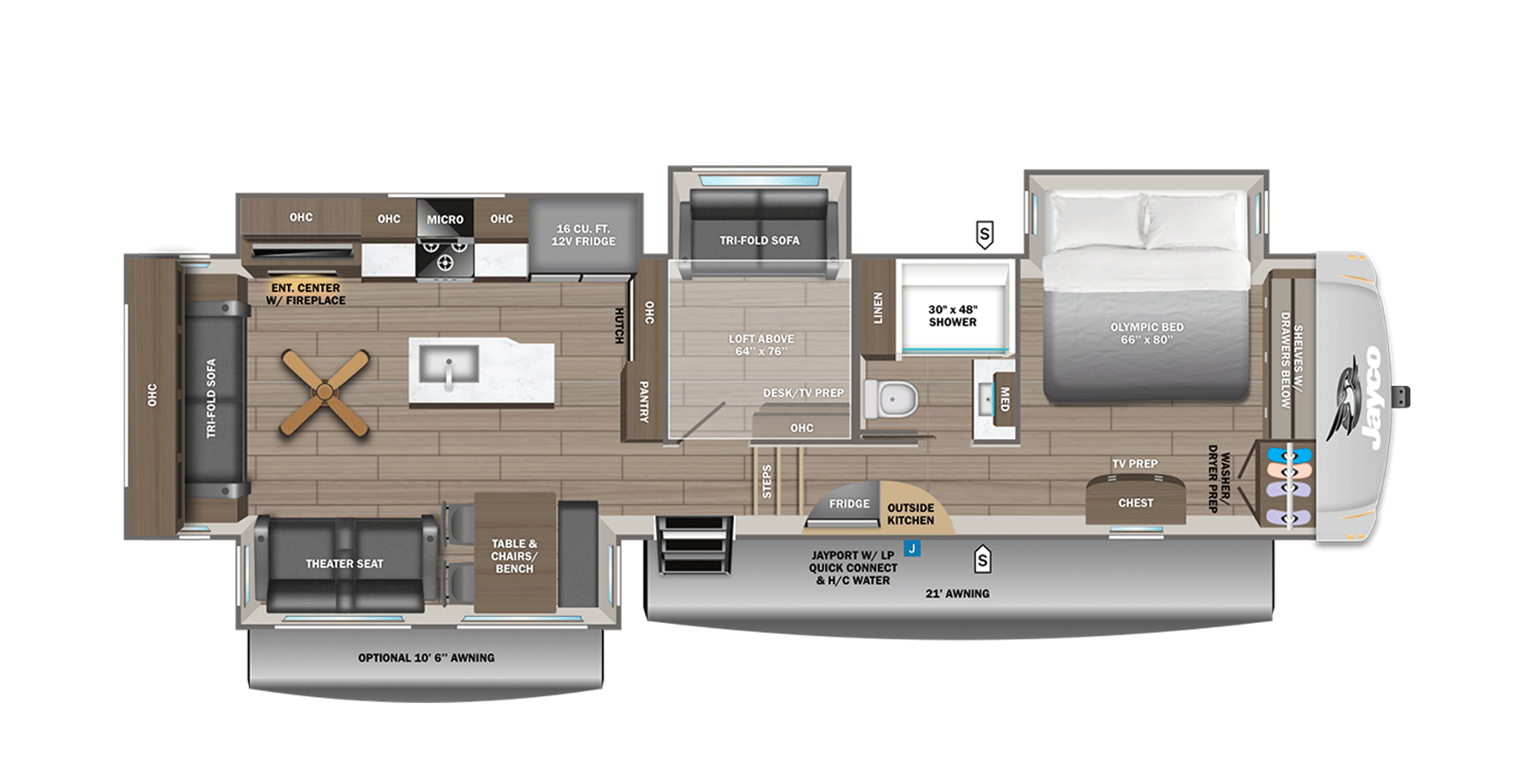

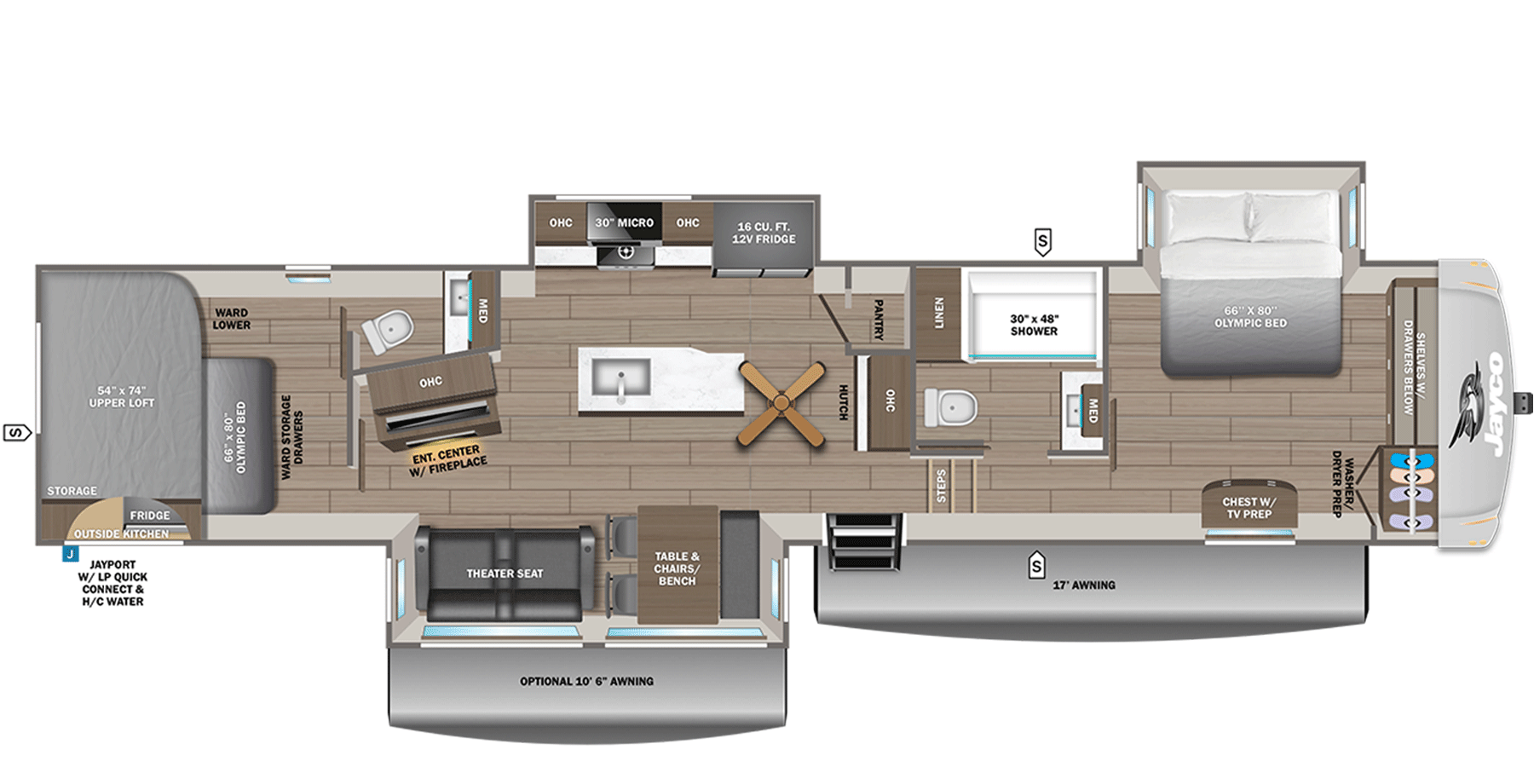

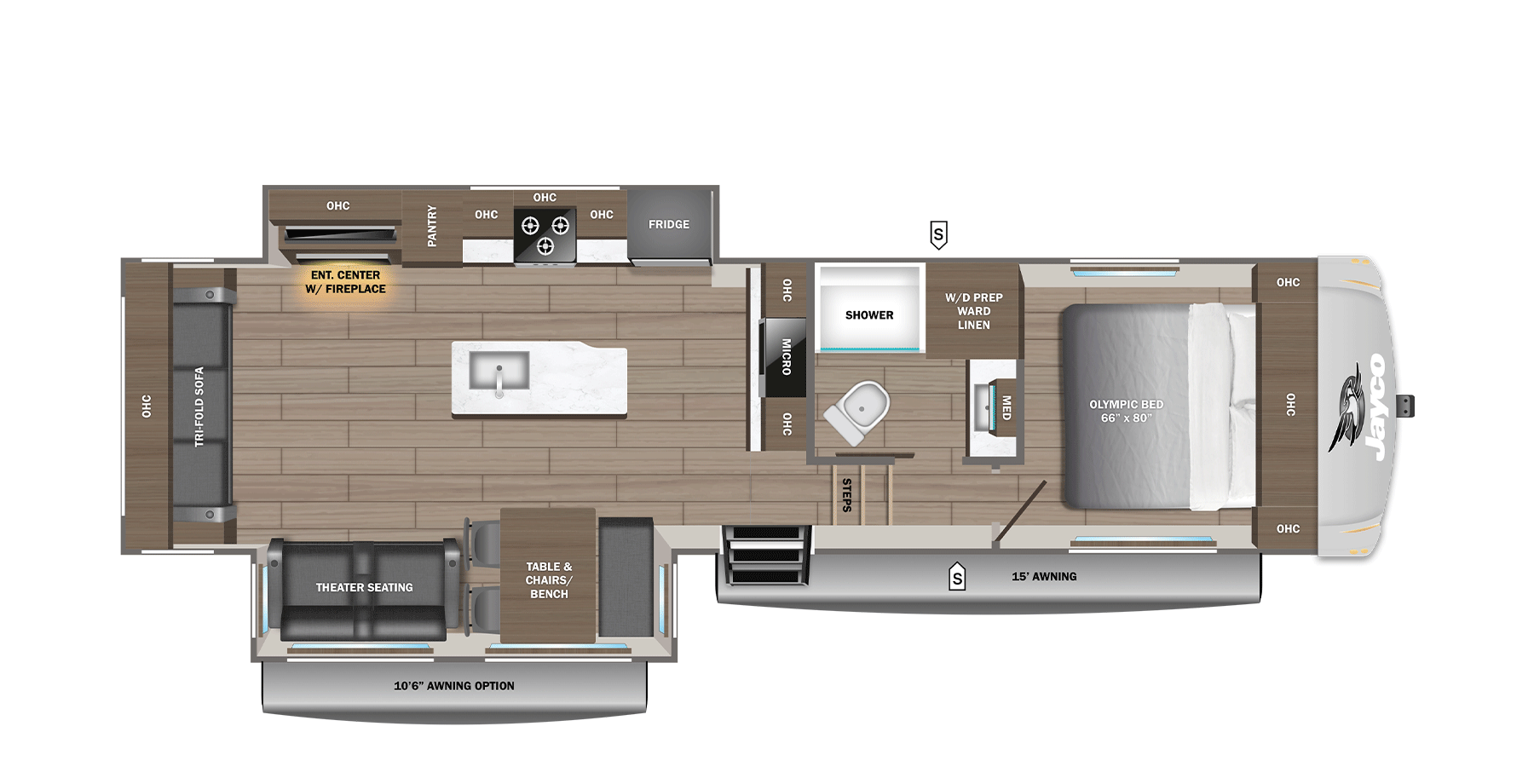

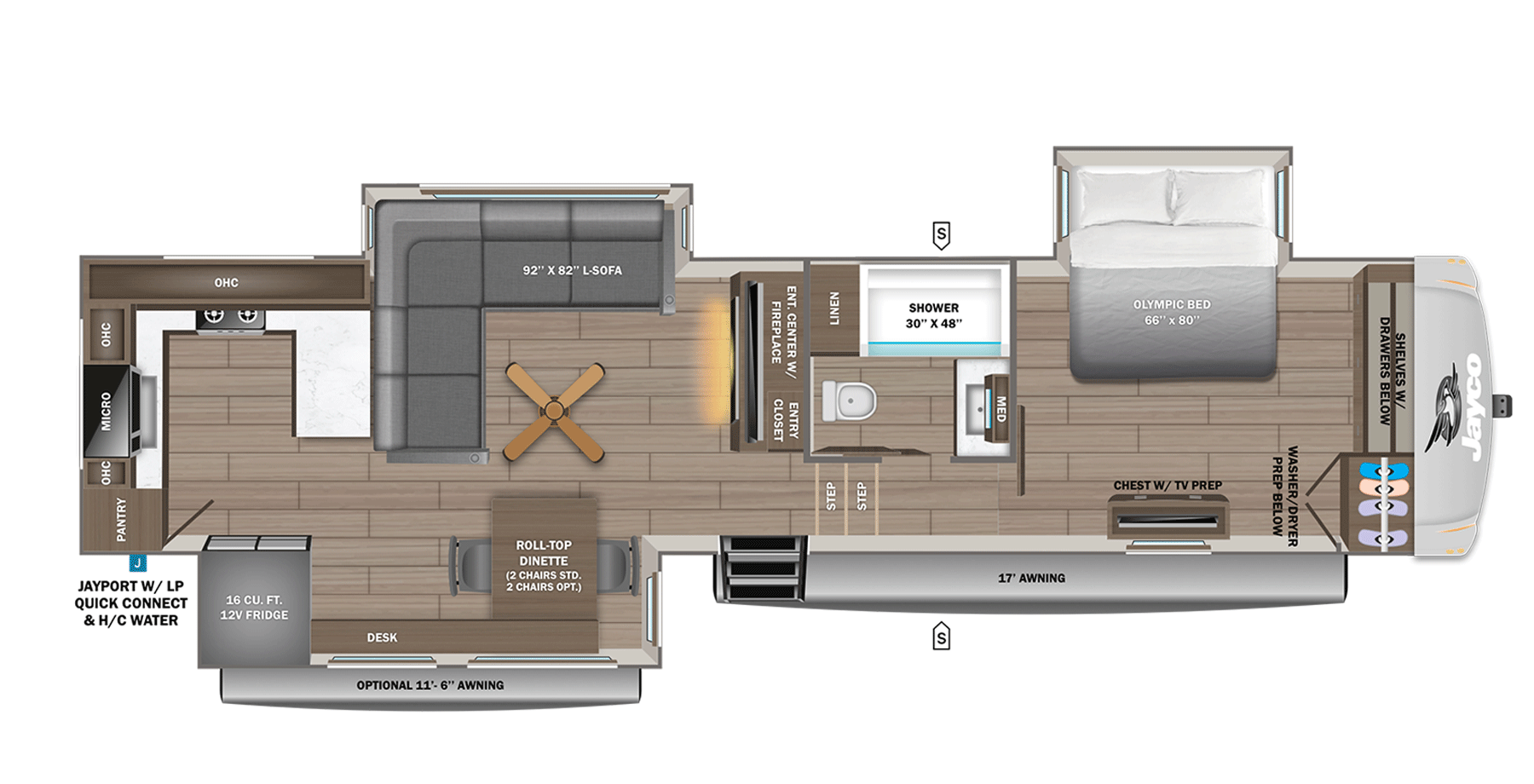

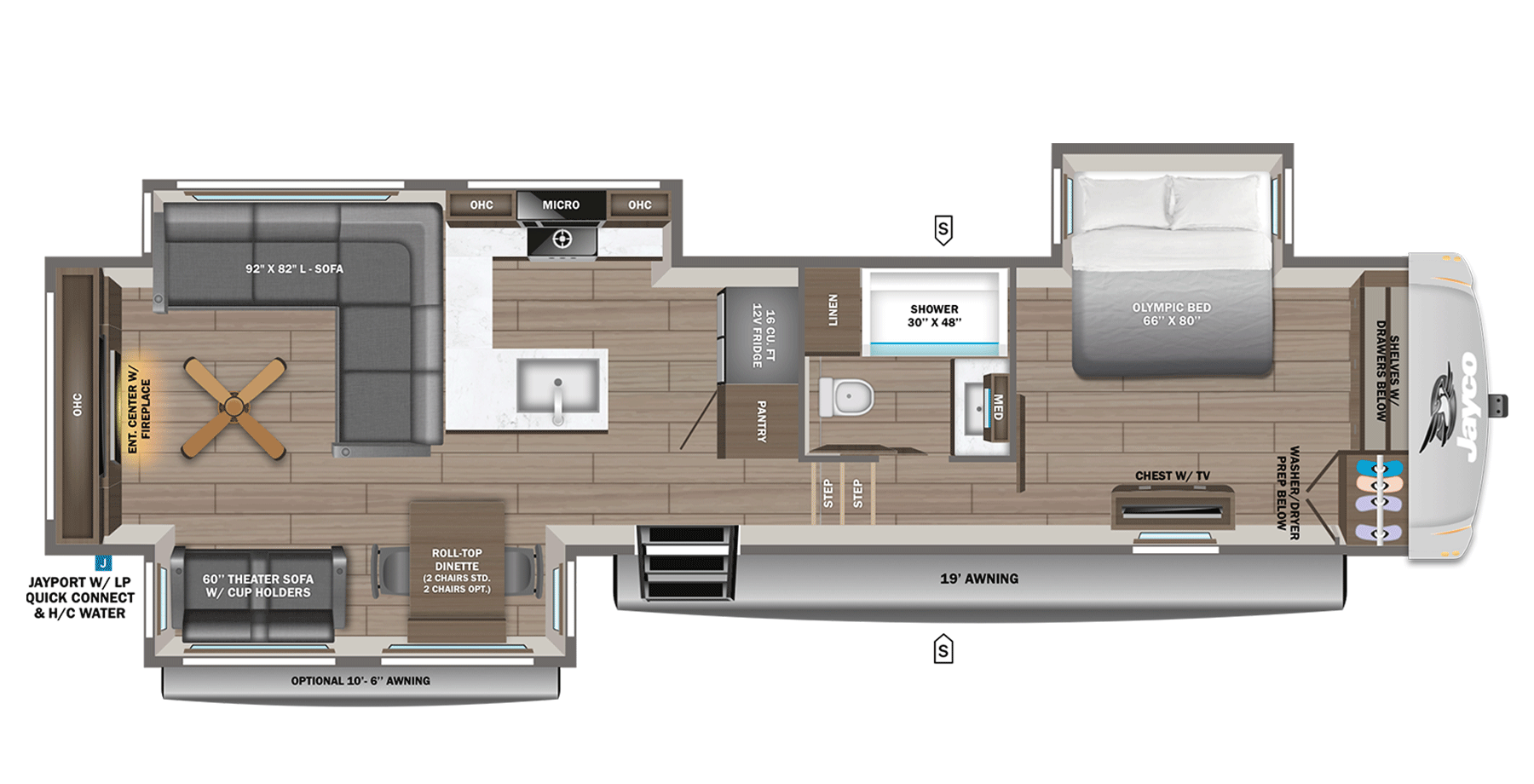

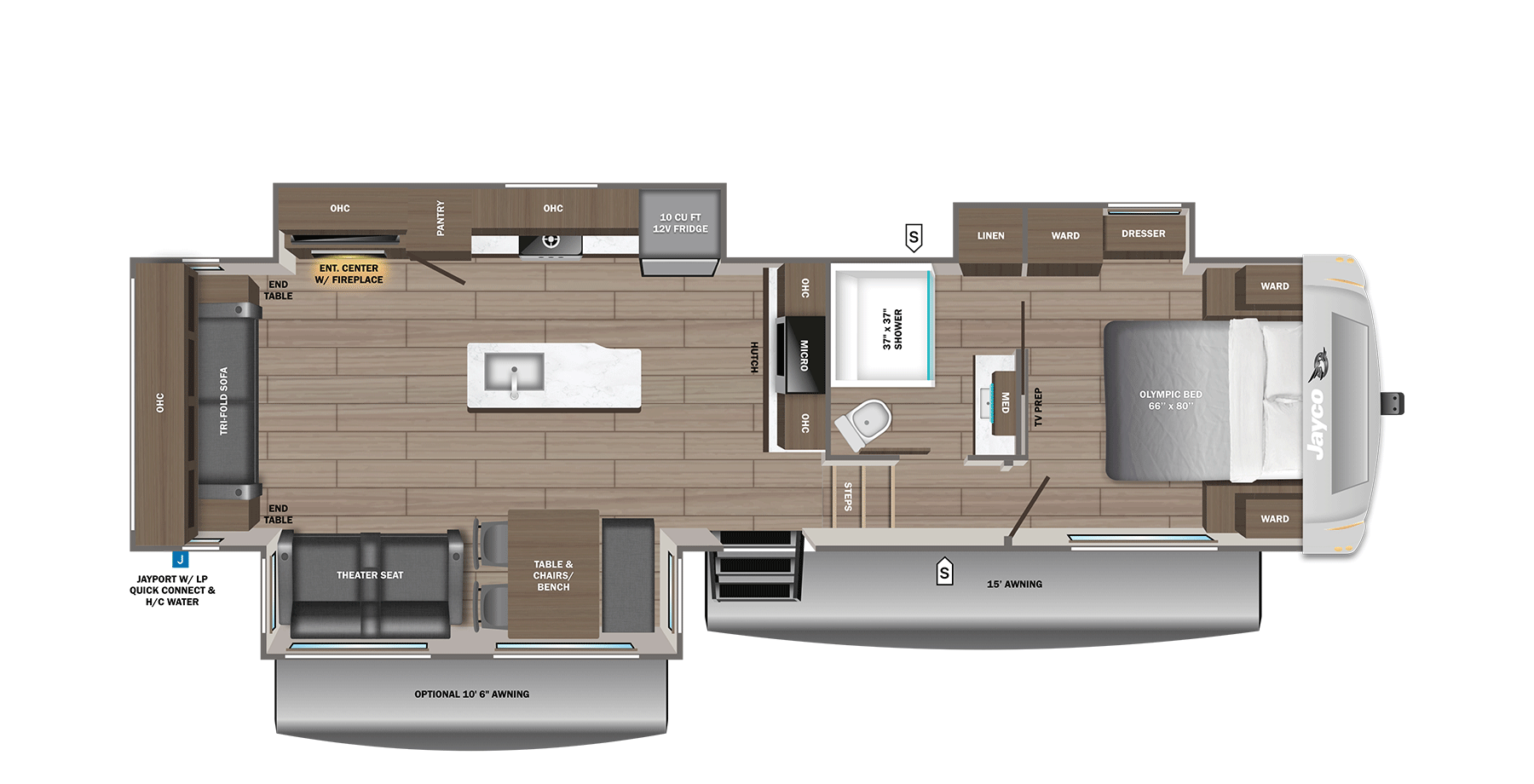

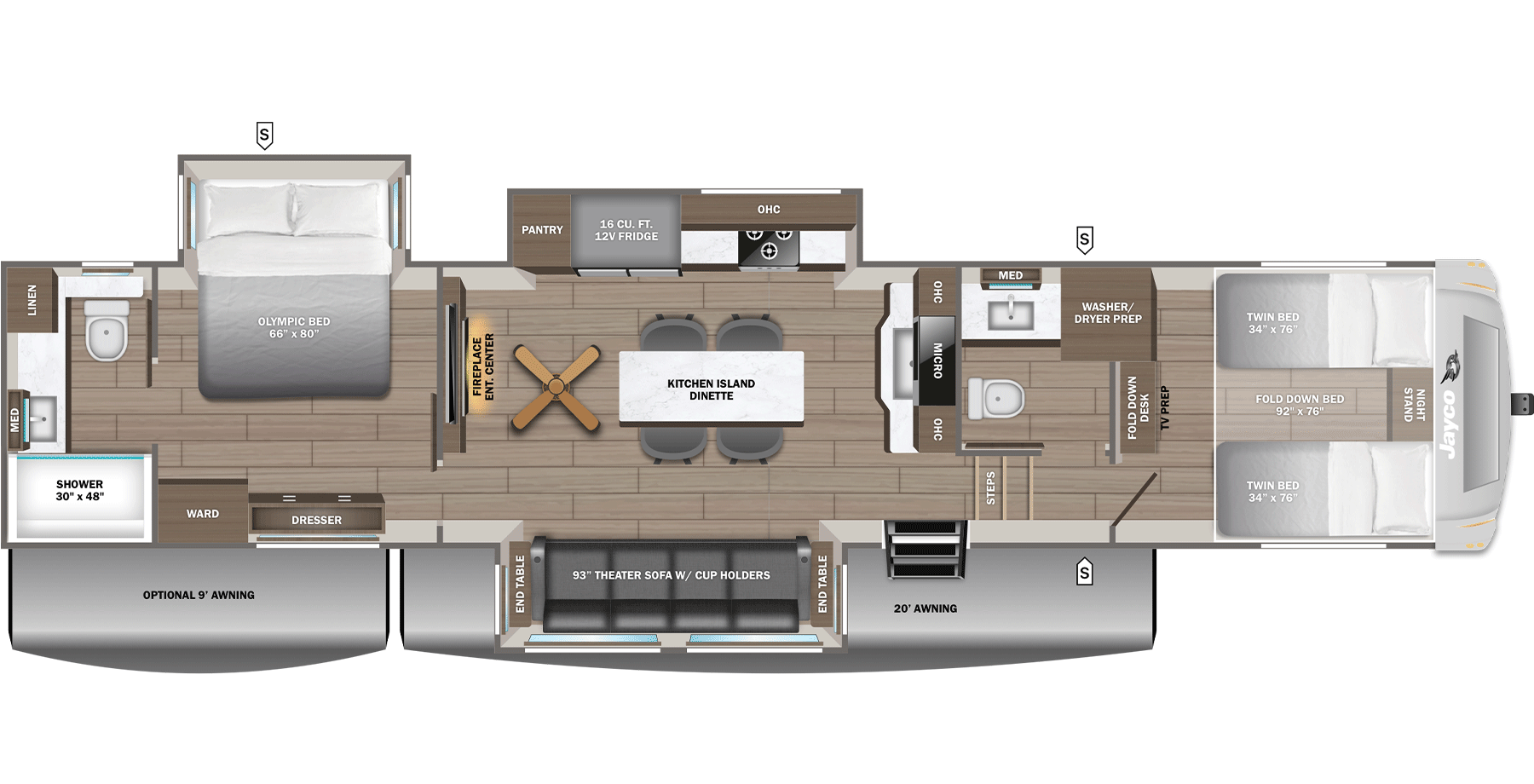

2027 Eagle Floorplans

Standard Exterior Equipment

• 1.5 in. fresh water drain valve
• 5 in. Magnum Truss™ w/ Plywood Roof Decking
• Alpha Ply TPO Roof membrane (thickest membrane w/ Limited Lifetime Warranty)
• 50-amp detachable power cord
• Motion activated LED lighting in pass through area(s)
• Auto-grade vinyl graphics
• Automotive style front cap with max turn radius (painted on select models)
• Black tank flush
• LED Light & Termination w/ "No Surprise" additional T-Valve
• Climate Shield™ zero-degree tested weather protection:
  • Fully enclosed and heated underbelly (ducted)
  • 35,000 BTU furnace
  • Double layer fiberglass batt insulation in ceiling and floor
  • Double sided radiant barrier insulation (roof, floor and behind cap)
  • 100% Residential plumbing throughout
• Commercial grade rubber flooring in pass through area (excludes TT's)
• Dual 30 lb. LP bottles (TT's dual 20lb)
• Factory installed roof ladder (SLE's prepped)
• Galvanized steel coated outside kitchens
• HELIX Cooling System™ (industry exclusive):
  • Jayco exclusive insulated dual duct design
  • Directional and closeable A/C vents
  • Larger return air vents with user accessible filters
• Independent satellite and cable hookups (outside kitchens and/or pass through storage areas)
• LED exterior lighting package
• LP quick connect for gas griddle
• Metal slam latch baggage doors
• Nautilus 2.5 water connections
• Nitrogen filled undermount spare tire (model/option varies 15 in. or 16 in.)
• Quick connect water connections (door side hot/cold and off door side cold only)
• Stronghold VBL™ walls (laminated sidewalls, rear walls and slide out walls)
• "Brianza" high gloss fiberglass sidewalls
• Star Link Prep
• Rear Camera Prep

Standard Interior Equipment

• 2-piece high gloss bathroom surround
• Teak seat shower prep
• 5/8 in. tongue-and-groove plywood flooring
• 75 lb. full extension drawer guides
• Magnetic catches on all doors & drawers throughout
• 30 in. X 22 in. Shower Skylight w/ built in LED light
• Bedroom TV, SAT, CABLE prep
• C.P.A.P. prepped bedroom (both sides)
• Extra 120V power outlets in kitchen and slide rooms (where applicable)
• Gas strutted under bed storage
• High Sheen handcrafted door/drawer fronts
• Medicine cabinet with custom framed mirror
• Kitchen faucet with pull-out sprayer
• Porcelain foot flush toilet w/ soft closed lid
• Residential vinyl flooring throughout (NO CARPET)
• Theater seating (select models)
• Tri-fold hide-a-bed sofa with residential memory foam sleep surface (select models)
• USB/USB-C 12V charging ports (multiple locations throughout)
• Water Shutoff at all faucet locations
• 100% No Floor Heat Vents
• 4 in. interior ceiling can lighting (4000K lumen)
• Venting windows throughout

Customer Value Package (Mandatory)

• 15K BTU "Whisper Quiet" A/C and bedroom A/C prep
• 4K Ultra LED HD Smart TV in living room (varies from 40" to 65")
• 50-amp service with fully ducted A/C System
• 60K on-demand tankless water heater
• Custom machined aluminum rims
• Electric patio awning
• Hidden hinges soft close cabinet doors
• Interior "MB Quart Entertainment" w/ MB Quart Sound (TV & Phone)
• Keyed-Alike™ lock system
• Suburban entry steps (main entrance) with blue LED light
• Rain proof bathroom power vent
• Rear 2 in. towing receiver (4-pin connector on fifth wheels only)
• Winegard Air 360 Antenna
• Overlander I Solar Package
• Inverter pre-wire (multiple locations throughout)

4 Star Handling Package

• Dexter® Axles with NEV-R-Adjust® brakes and E-Z Lube® hubs
• 15" Rainier "E" Rated tires OR 16" Rainier "H" Rated tires
• MORryde® CRE-3000™ rubberized suspension
• Wet bolt fasteners with bronze bushings

Luxury PLUS Package

• Blackout roller shades with reflective side throughout
• Electric auto-leveling
• Complete NUVOH20 water softening & filtration system
• JayPort™ 2 in. mount (for outside accessories)
• Residential style glass shower door
• Washer/dryer prep (select models)
• 30 in. over-the-range microwave with exhaust fan
• 21 in. oven w/ 3 burner stove top
• Dove Tail Drawers throughout
• Solid Surface Kitchen Countertop(s)
• LED fireplace with 5,000 BTU electric space heater (select models)
• Exterior Light & Outlet at the JayPort Location
• Soft closed cabinet doors (upper & lower) throughout
• Copper Infused 8" thick mattress w/ temperature regulating material
• Custom Padded Headboard w/ Cell Phone & Tablet holder (bed slides only)
• Residential 66 in. x 80 in. Olympic Mattress w/ under-bed storage
• "Camp Mode" & "Storage Mode" Power Disconnect
• Black glass, 12V refrigerator

Options

• Overlander II Solar Package
• Extreme Weather Package
• Ducted 2nd 15K A/C
• Ducted 3rd 15K A/C (on select models)
• Dual Pane Frameless Tinted Safety Glass Windows
• HALO Outside Griddle with Deep Sink for JayPort System
• Dexter ABS Brake System w/Anti-Sway
• SpartanLync TPMS Monitoring
• 2nd Power Awning with LED Lights (select models)
• Furniture Cup Holder Tables (1 pair)
• King Bed 72" X 80" Copper Cool Mattress
