2022 Melbourne

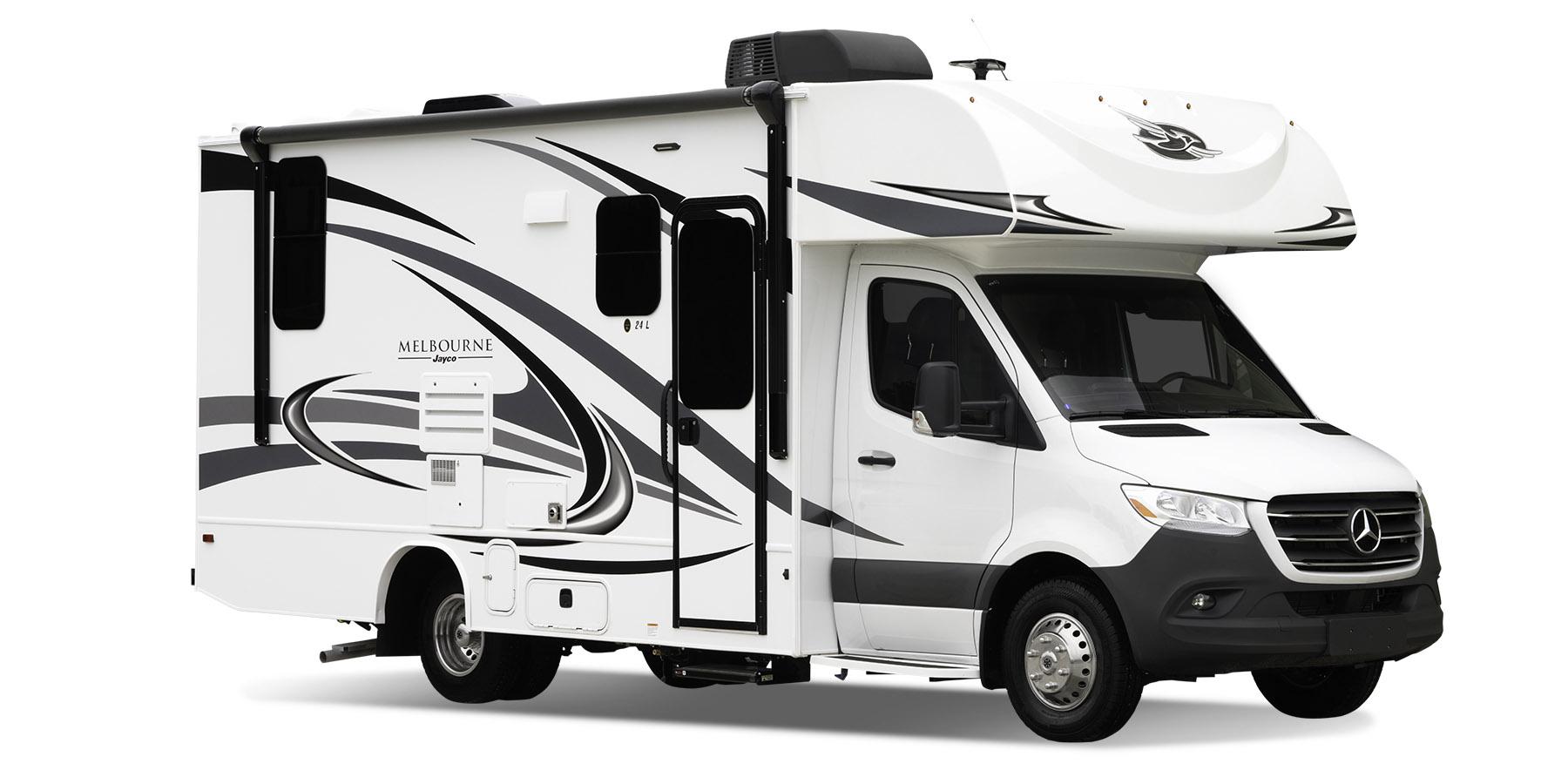

The turbo diesel-powered 2022 Melbourne Class C Motorhome boasts everything you need for a comfortable adventure, all in an RV that’s powerfully compact and fun to drive. Melbourne is the ideal mix of craftsmanship, value and drivability. Plus, Melbourne is built on the expertly engineered and fuel-efficient Mercedes-Benz® Sprinter chassis, making for a remarkable experience from beginning to end.

Melbourne

Melbourne Floorplans and Prices

Built on a Mercedes-Benz® 3500 chassis, this Class C diesel RV is geared up for fun small-group adventures.

Sleeps up to 5
Length 25' 2" - 25' 2"

Standard Features and Options

Standard Driving Equipment

  • Mercedes-Benz® 3500 chassis with 170 in. wheelbase
  • GVWR- 11,030 lb.
  • GCWR- 15,250 lb.
  • V-6 Turbo 188 HP diesel engine with electronic fuel injection and 325 ft.-lb. torque
  • 7-speed automatic transmission
  • 220-amp alternator
  • E-rated highway tires- 215/85R16
  • Front and rear disc, 4-wheel anti-lock brakes
  • 5,000 lb. rear hitch receiver with dual connector 7-pin plug
  • 12V chassis battery
  • 24.5 gal. fuel tank
  • 5.8 gal. DEF tank
  • Driver and passenger airbags
  • Power windows and door locks
  • Tilt steering wheel
  • A/C and cruise control
  • Auxiliary start switch
  • Privacy curtains for cab area

Standard Exterior Equipment

  • StrongholdVBL™ roof, floor and sidewalls
  • Bead-foam insulation (R-24 max roof, R-9 max floor, R-5 max walls)
  • TPO laminated roof
  • Fiberglass running boards
  • Fiberglass exterior walls with vinyl graphics
  • Electric stabilizer jacks
  • Slideout cover awnings
  • Entrance door with industry’s largest travel-view window
  • Electric-powered entrance step with integrated house battery compartment
  • 12V house battery
  • Exterior utility center
  • Winterization drain system
  • Black tank flush
  • Outside shower
  • 12V demand water pump
  • Onan® 3,600-watt LP generator
  • Transfer switch with reverse polarity protection
  • 30-amp electrical service
  • Solar prep
  • 12.2 gal. propane tank (41 lb.)
  • LP quick-connect hookup
  • Flush-mount LED marker lights
  • Third brake light
  • 4 in. tube bumper with sewer hose storage

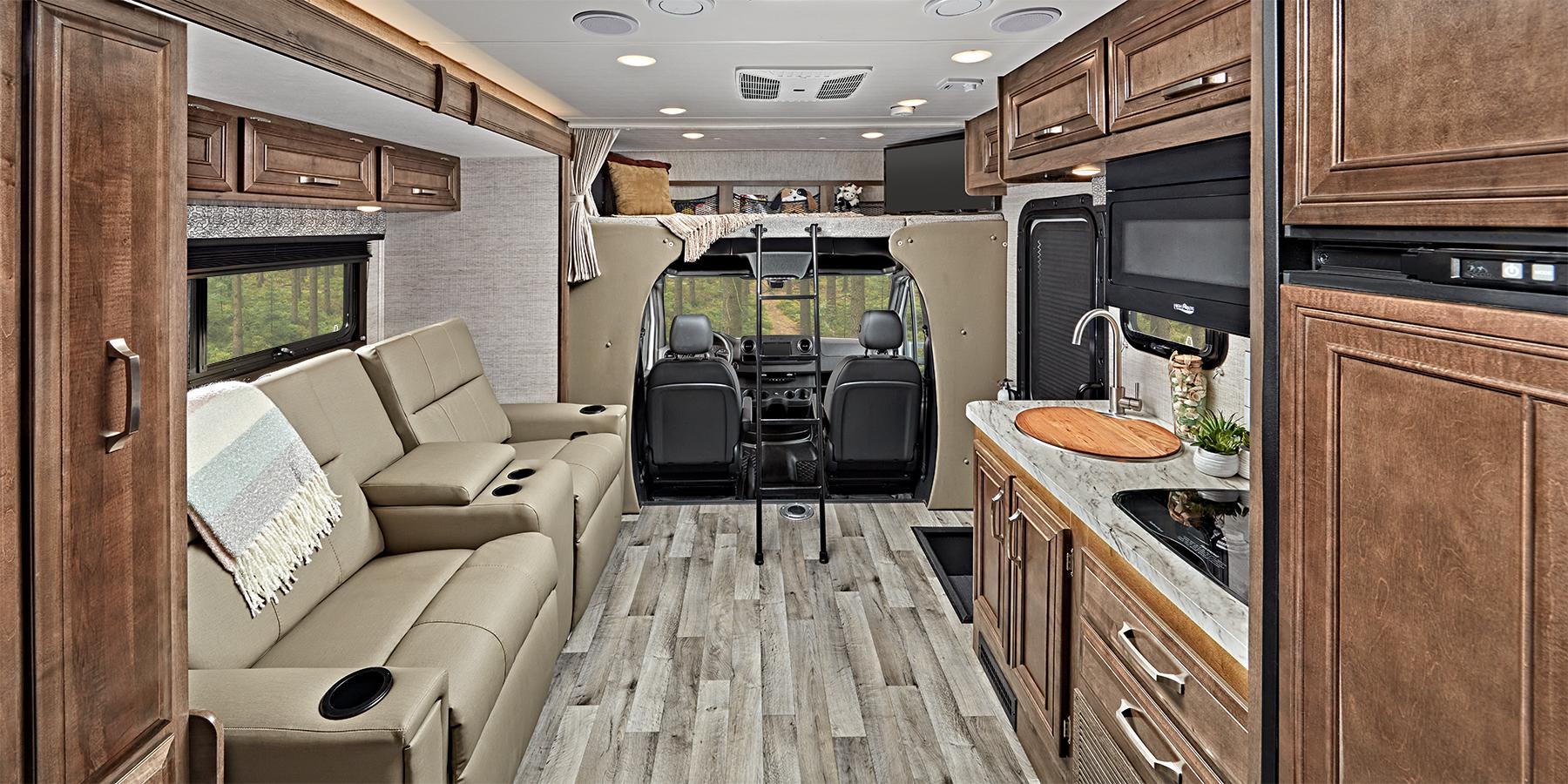

Standard Interior Equipment

  • 83 in. interior ceiling height with padded vinyl ceiling
  • High-intensity, LED ceiling lights
  • LED-lit slideout fascia
  • Hardwood cabinet doors and drawers
  • Ball-bearing drawer guides
  • Jayco-exclusive, easy-operation legless dinette table (24R)
  • U-shaped dinette with stow away pedestal legs (24L)
  • 12V USB charging station in dinette area
  • 2-point lap safety belts in all designated seating locations
  • Pleated blackout shades
  • 13,500 BTU A/C
  • 30,000 BTU auto-ignition ducted furnace
  • 6 gal. gas/electric water heater and water heater bypass
  • Powered roof vent in living area with wall switch
  • LED HD Smart Fire TV in living area
  • Prep for satellite dish
  • Cable TV hookup with RG-6 coax
  • Digital antenna with signal booster
  • 8 cu. ft. gas/electric refrigerator

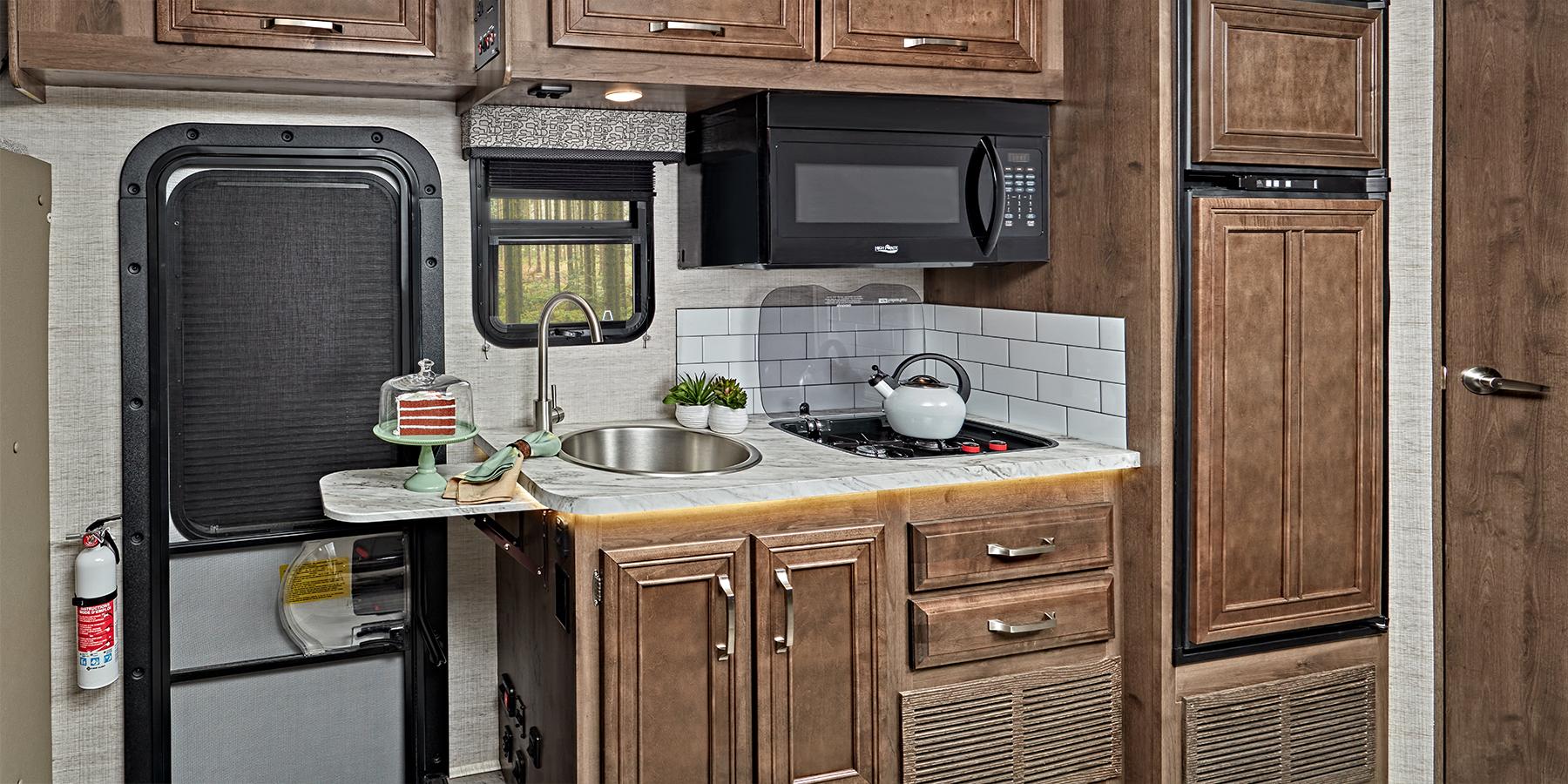

  • Suburban 2-burner, drop-in cooktop with flush cover
  • Convection microwave
  • Stainless steel sink with wooden cover/cutting board
  • LED-lit, pressed countertops
  • Flip-up countertop extension (select models)
  • Decorative kitchen backsplash
  • Water filtration system

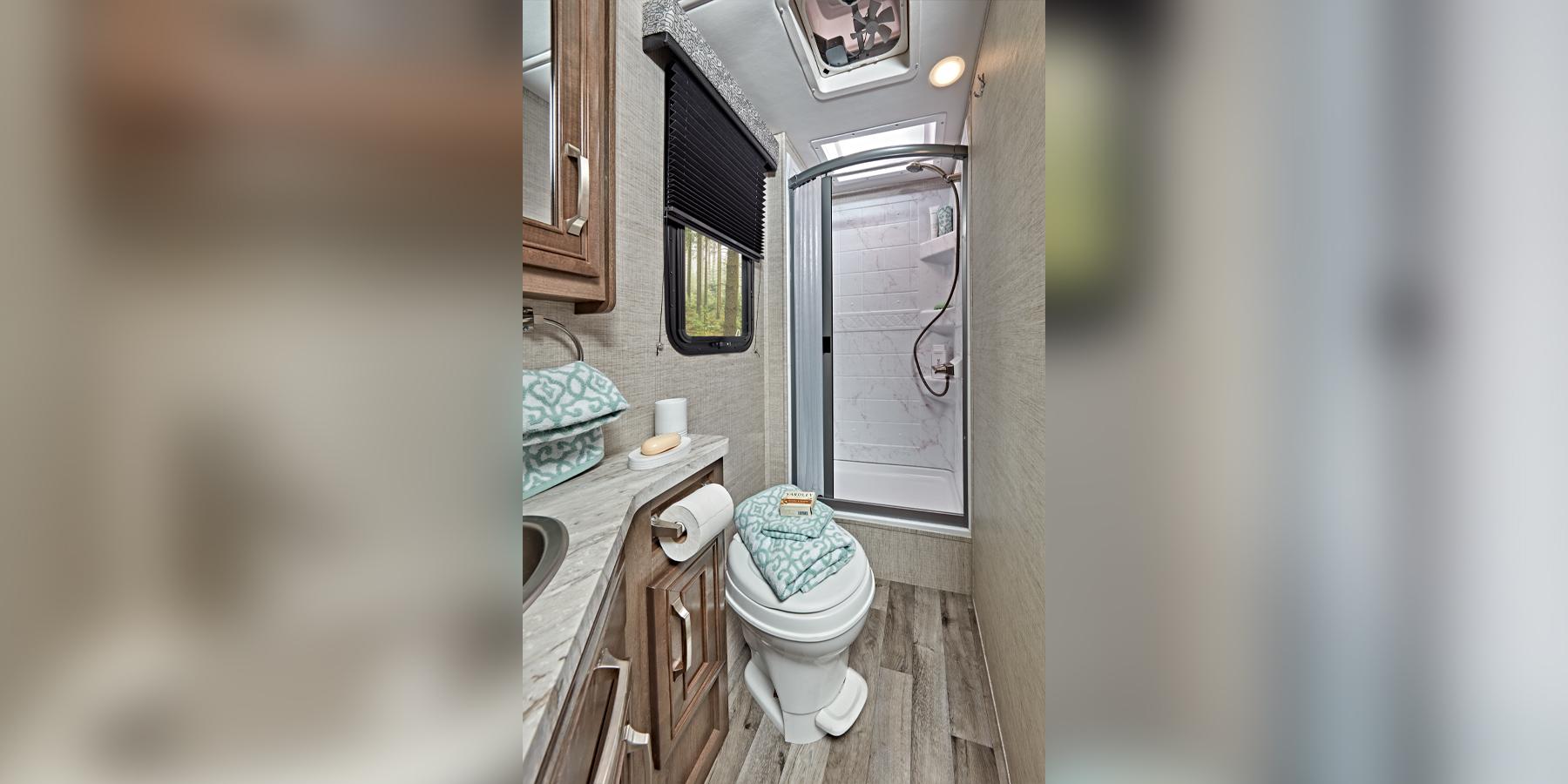

  • Shower with decorative surround and skylight

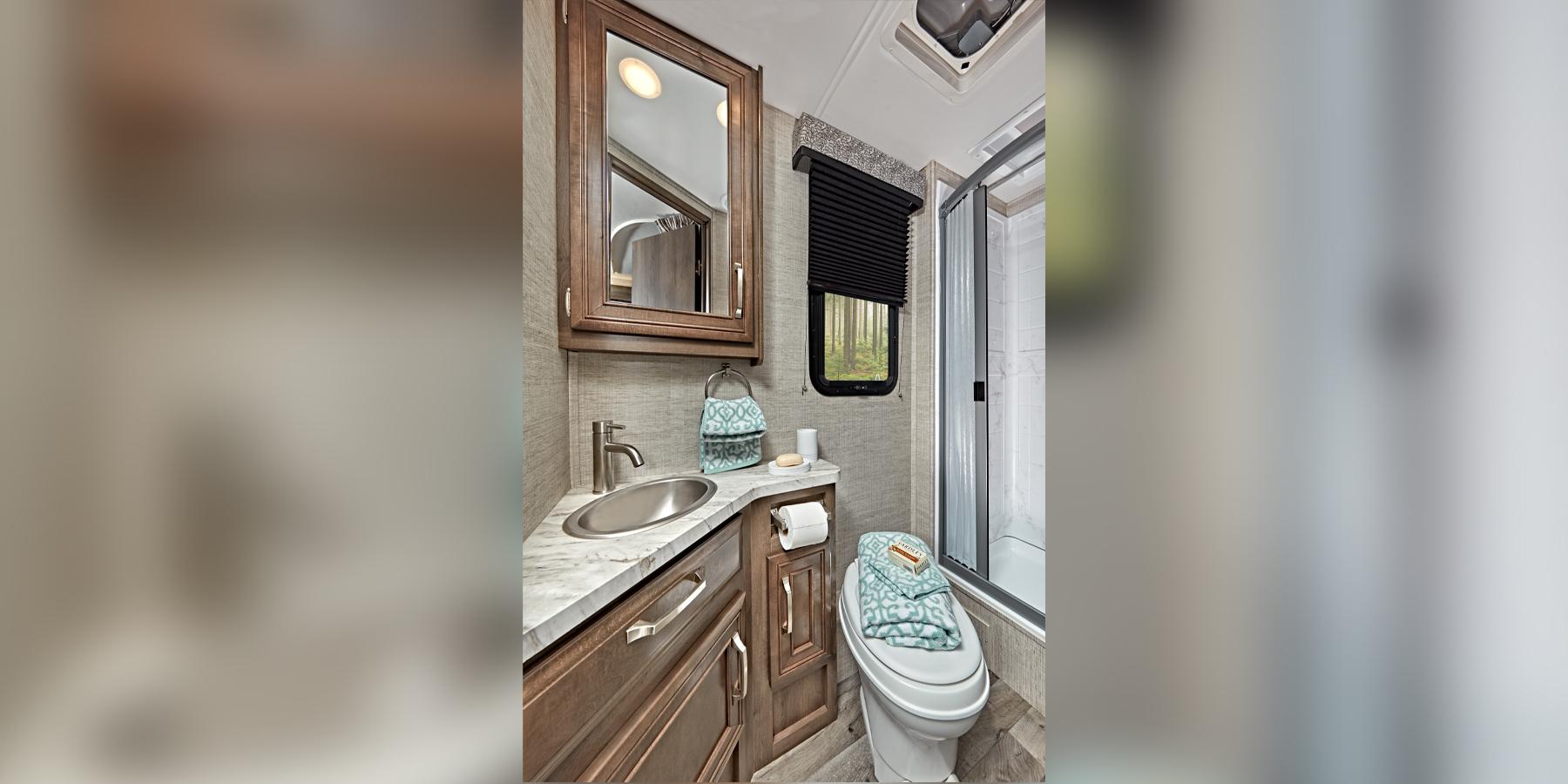

  • Stainless steel bathroom sink
  • Toilet with foot flush
  • Powered roof vent in bathroom with wall switch
  • Queen-size bed with bedspread (24L)
  • Queen-size power Murphy bed (24RP)
  • (2) Twin-size beds (24T)
  • Bedroom TV prep

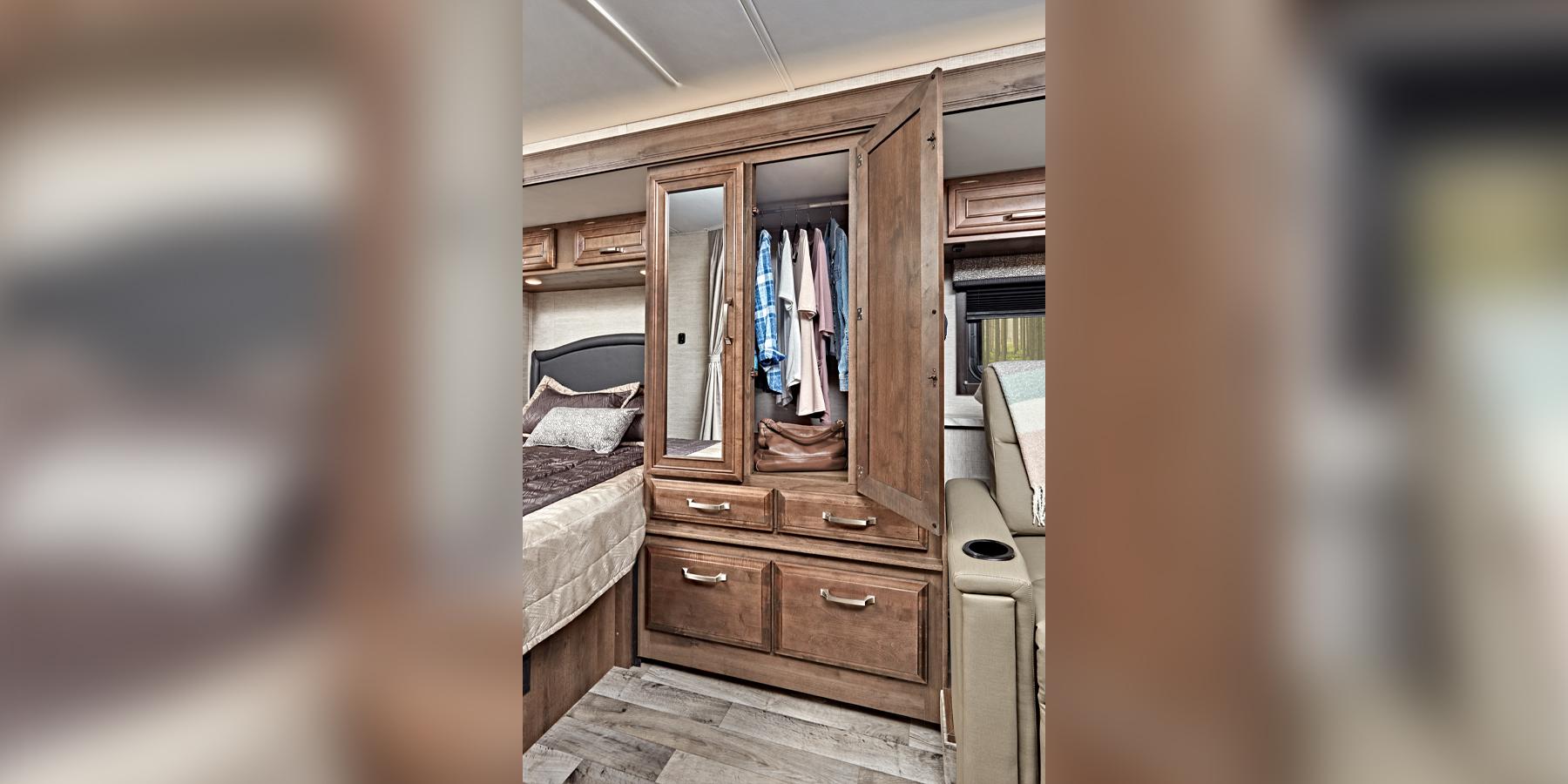

  • Large wardrobes
  • Overhead bunk with 750 lb. capacity and safety net
  • Smoke alarm
  • Carbon monoxide detector

Customer Value Package (Mandatory)

  • One-piece, seamless, fiberglass front cap
  • Frameless windows
  • Heated holding tanks (12V pads)
  • Heated, remote-controlled, side-view mirrors
  • Electric patio awning with LED lights
  • Backup and side-view cameras
  • Keyless cab entry

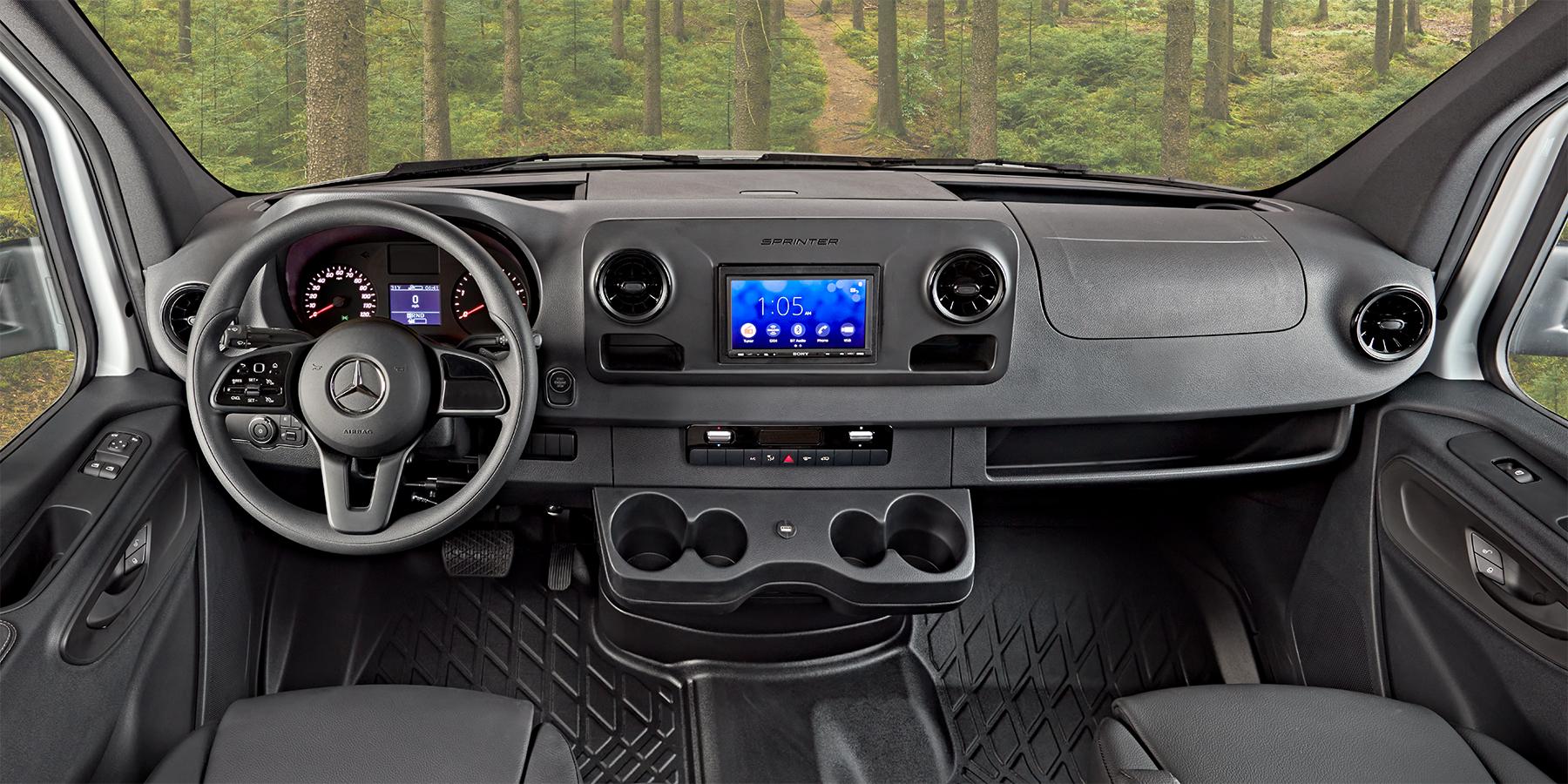

  • Sony® infotainment center with Apple® CarPlay™ and Android Auto™
  • Swivel driver and passenger seats with boosters

Options

  • Front entertainment center with 32 in. LED TV
  • 3,200-watt diesel generator
  • Folding windshield sun shade
  • 4-point hydraulic leveling jacks
  • Theater seating ILO dinette (24L, 24R)
  • 190W solar panel with dual controller and second house battery

Standard Features
and Options

Stronghold VBL™ Lamination
Solar Power
One-Piece Seamless Front Cap
Incredible Bunk Ratings
Seatbelts in All Designated Seating Locations

Stronghold VBL™ Lamination

Every sidewall, rear wall and slide room wall is bonded together for a minimum of 16 minutes under 144 tons of pressure to create the lightest, yet strongest, construction available in the RV industry.

Learn more »

Solar Power

Jayco is one of the first companies to offer solar prep, or solar panels, on every single motorhome.  With sidewall or roof-mounted prep kits, you have the option to easily install solar panels, or additional panels if already solar equipped, for extra power at your camp.

Learn more »

One-Piece Seamless Front Cap

An RVs front cap bears a lot of the brunt of the road. The one-piece, seamless front cap resists wear and tear like fading or moisture damage over the years.

Learn more »

Incredible Bunk Ratings

Go ahead and bring another traveler or some extra gear. With an overhead bunk capacity of 750 lbs., Jayco beats the industry standard by 300lbs. On top of that, Jayco offers a 300 lb. capacity in each standard bunk.

Learn more »

Seatbelts in All Designated Seating Locations

To help you keep you most precious cargo safe as you roll on down the road, we install seatbelts in every designated seating location.

Learn more »
